Lecture 8 sept 29 2011

Lecture 8 Sept 29, 2011

  • Regular expressions – examples

  • Converting DFA to regular expression. (same works for NFA to r.e. conversion.)

  • Converting R.E. to NFA

  • Pumping lemma


Lecture 8 sept 29 2011

  • Theorem: A language is regular if and only if it is accepted by a regular expression.

  • Proof: Show how to convert from regular expression to NFA and vice-versa.

  • Let L be accepted by a regular expression. We prove that it is regular, i.e., there is a NFA for L.

  • Cases to consider:

  • empty-set (2) single symbol {a} (3) {e}

  • (a) R1 + R2

  • (b) R1 . R2

  • (c) R1*

  • (1), (2) and (3) are easy base cases. For (4), inductively construct NFA’s for R1 and R2, and from it construct an NFA for R.


Lecture 8 sept 29 2011

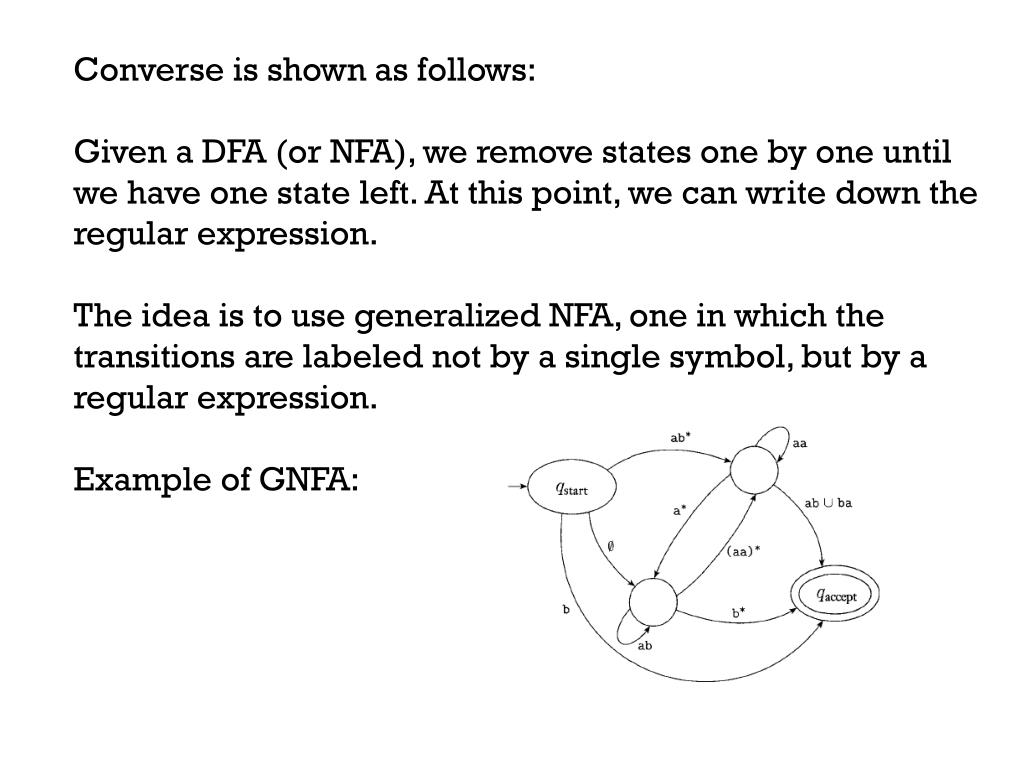

Converse is shown as follows:

Given a DFA (or NFA), we remove states one by one until we have one state left. At this point, we can write down the regular expression.

The idea is to use generalized NFA, one in which the transitions are labeled not by a single symbol, but by a regular expression.

Example of GNFA:


Lecture 8 sept 29 2011

Conversion from DFA to regular expression

Key step: how to remove a state of a GNFA


Lecture 8 sept 29 2011

  • So far, we have seen how to design DFA, NFA or regular expressions for various languages.

  • We also learned how to convert:

    • NFA  DFA

    • DFA  regular expression

    • Regular expression  NFA

  • But there are many languages for which we can never build a DFA or an NFA or a regular expression.

  • Can you think of such a language?


Lecture 8 sept 29 2011

  • Two fundamental examples

  • L = { anbn | n > 0}

  • This contains strings e, ab, aabb, aaabbb, … etc.

  • Why is it not possible to create a DFA for L?

  • L’ = { w | w is a balanced parentheses string over [, ] }

  • This includes strings such as [ ], [ ][ ], [ [ ] ], etc.

  • How can we show that it is impossible to build DFA for these languages?


A tool known as pumping lemma is used to show that certain languages are not regular

A tool known as pumping lemma is used to show that certain languages are not regular.

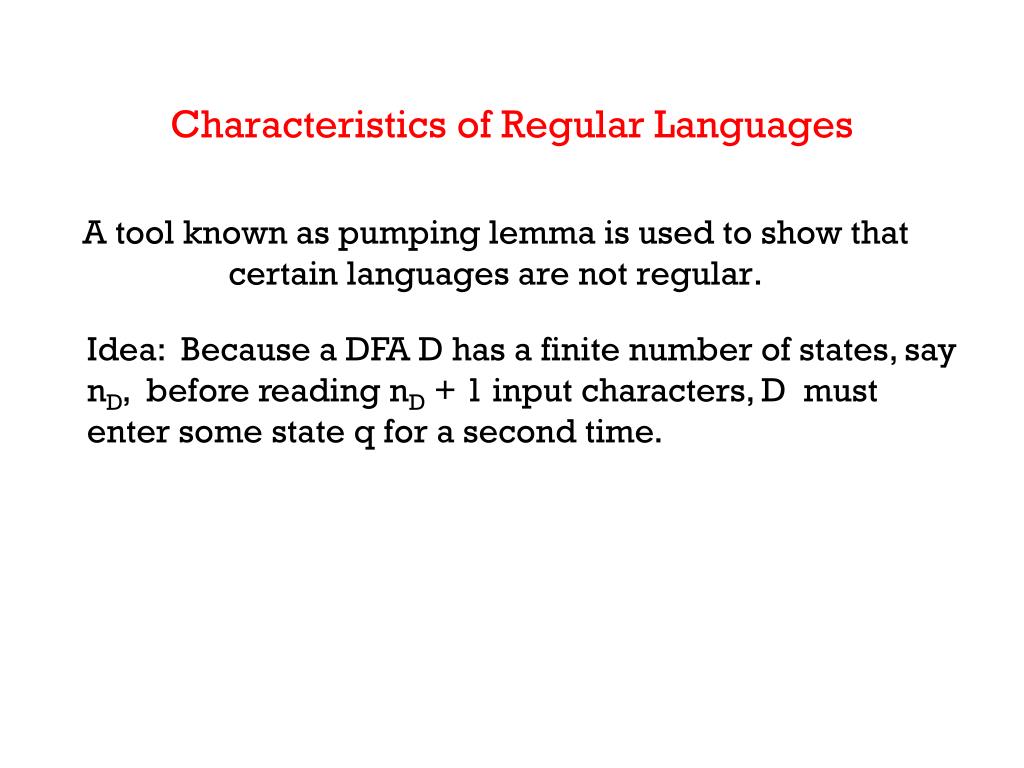

Characteristics of Regular Languages

Idea: Because a DFA D has a finite number of states, say nD, before reading nD + 1 input characters, D must enter some state q for a second time.


The pumping lemma

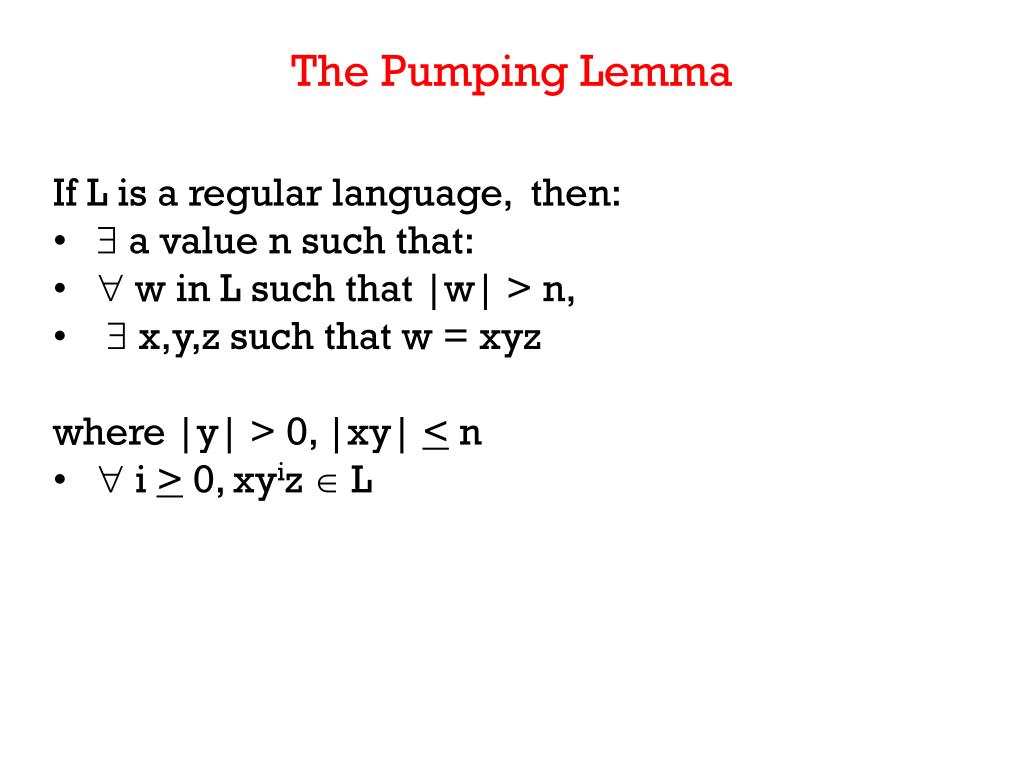

The Pumping Lemma

  • If L is a regular language, then:

  •  a value n such that:

  •  w in L such that |w| > n,

  •  x,y,z such that w = xyz

  • where |y| > 0, |xy| < n

  •  i > 0, xyiz  L


Proof let l l d

Proof: let L = L(D)

Given w = w1 w2 … wk,

let s1s2 … sk+1 be the consecutive states reached

by DFA D on w (where s1= s the start state)

If k>nD, then by the pigeon hole principle, we know  i,j, (i<j), i, j{1 … k+1} such that si = sj

Then x = w1 w2 … wi-1 puts D in state si

and so does xy = w1 w2 … wi-1 wi … wj-1

… and so does xyt = w1 w2 … wi-1 (wi … wj-1)t

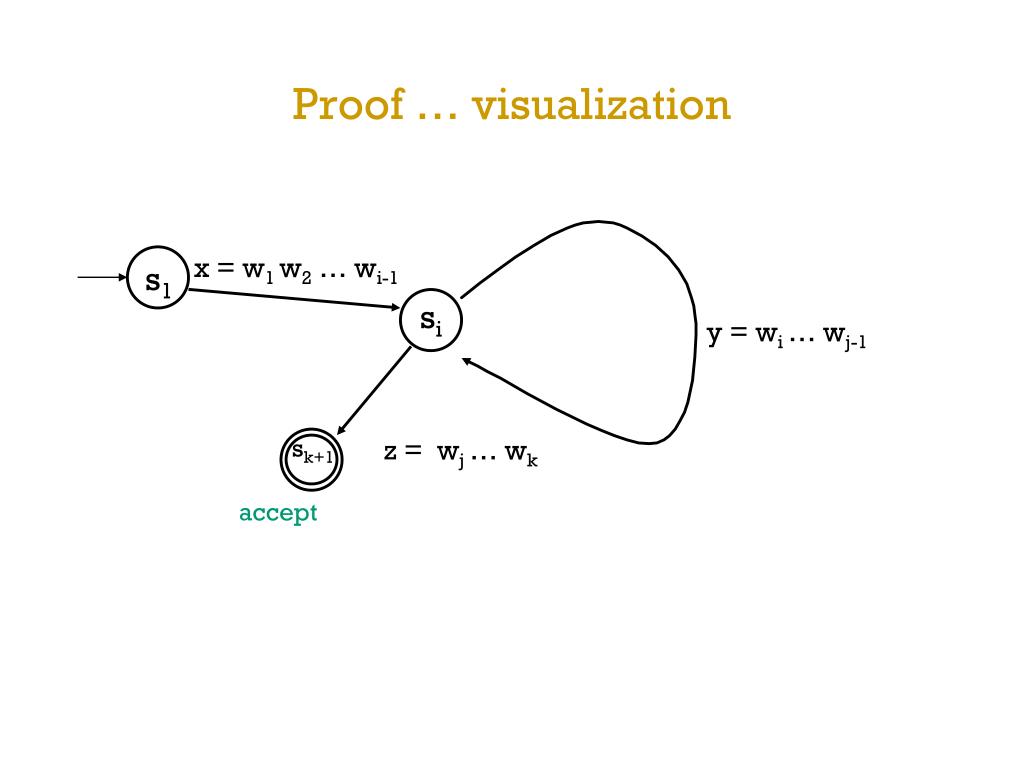

Proof visualization

Proof … visualization

x = w1 w2 … wi-1

s1

si

y = wi … wj-1

sk+1

z = wj … wk

accept


Proof continued

Proof … continued

z = wj … wk takes D from state si to sk+1, an accept state

So xytz = w1 w2 … wi-1 (wi … wj-1)t wj … wk takes D from the start state to the same accept state


Crucial use of the pumping lemma to show that l is not regular

Crucial use of the Pumping Lemma:to show that L is not regular!

Using the contrapositive

A implies B B implies A


Lecture 8 sept 29 2011

the Pumping Lemma in contrapositive form

If

 n in Z

 w such that |w| > n

 x,y,z such that w = xyz

and |y|>0 and |xy|<n

 i>0 s.t. xyiz is NOT in L

then

L is NOT a regular language


Lecture 8 sept 29 2011

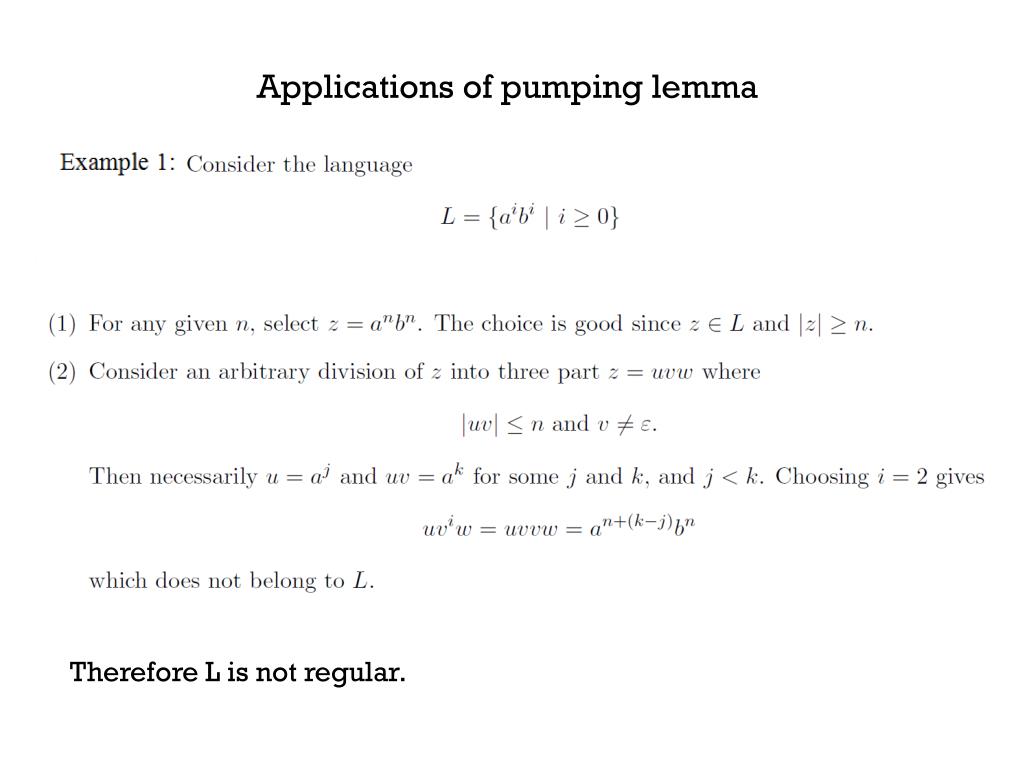

Applications of pumping lemma

Therefore L is not regular.


Lecture 8 sept 29 2011

A technique for showing lower-bound on the number of states in a DFA

Example: Consider the regular language L = { x | the 5-th symbol from the right-end of x is 1} over the alphabet S = {0, 1}.

We will show that any DFA for this language requires at least 32 states. Let w0 = 00000, w1 = 00001, …, w31 = 11111 be the list of all strings of length 5 over S.

Let M be any DFA accepting L. Let qj = d(s, wj) be the state reached from the starting state on input wj. We will argue that all qj’s must be distinct.

(The proof will be completed in lecture.)

Note: Problem 4 of HW 4 requires you to use this technique.
