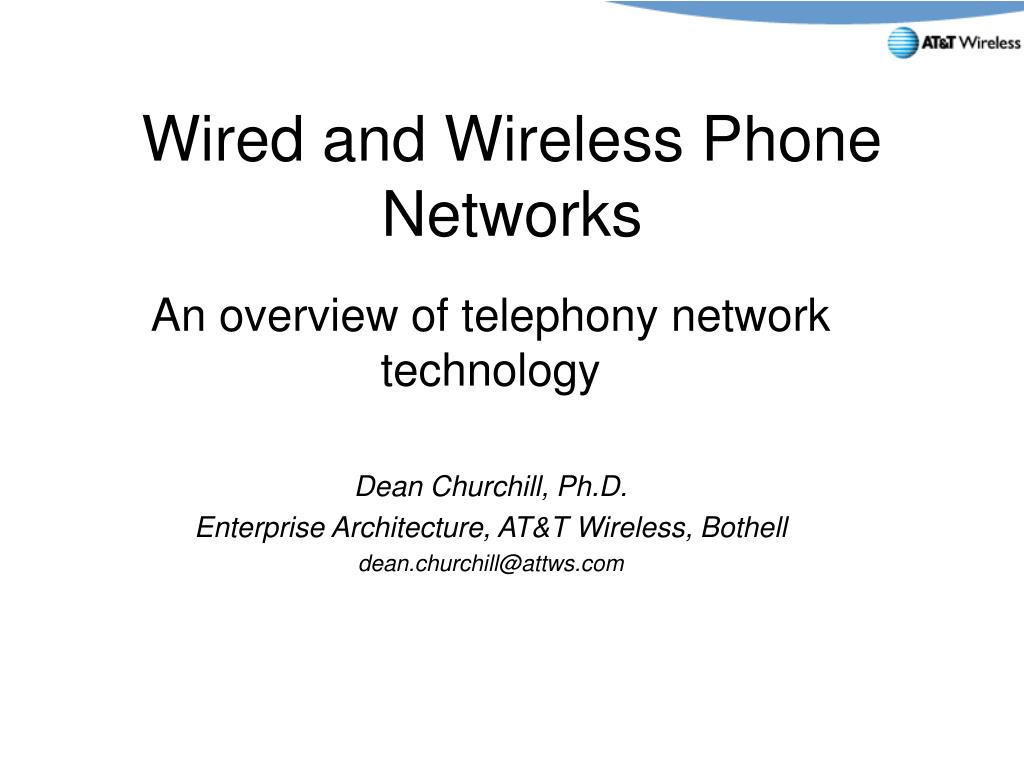

Wired and Wireless Phone Networks

An overview of telephony network technology

Dean Churchill, Ph.D.

Enterprise Architecture, AT&T Wireless, Bothell

[email protected]


Outline of talk l.jpg

1. History of phone networks – analog, and digital

2. Circuit switched vs. packet switched networks

3. Architecture of cellular networks

4. Multiplexing – TDMA and GSM networks

5. GPRS: Internet on a cell phone

6. GPRS Network Architecture

Outline of Talk

Mobile Phone Networks


History l.jpg
History

  • First networks (1800s) were “point-to-point”. Required N*(N-1)/2 phone lines between N phones.

  • First telephone offices used patch panels with human operators. Required N phone lines, but required a manual connection for each call placed.

  • First mechanical switches developed in late 1800s.

  • Digital “land-line” connections began in 1960s.

  • Analog wireless phones took off in 70s.

Mobile Phone Networks


Circuit switched architecture l.jpg
Circuit Switched Architecture

Mobile Phone Networks


Circuit switched networks l.jpg
Circuit Switched Networks

  • Dedicated connections: local loop, switch, and trunk resources are dedicated to the two end-points.

  • Must be heavily over-designed to handle peak call volumes

  • Expensive, inefficient

  • Good for voice quality; bad for Internet connections

  • Billing is based on duration of call.

Mobile Phone Networks


Packet switched land line networks l.jpg
Packet Switched Land-line Networks

Mobile Phone Networks


Packet switched attributes l.jpg
Packet Switched Attributes

  • Voice, video, images, pure data, get broken into small segments

  • called packets.

  • Each packet is encapsulated in a frame

  • Packet streams from multiple users are combined into a single stream

  • More economical, as multiple users share a common resource.

Mobile Phone Networks


Connection less packet services l.jpg

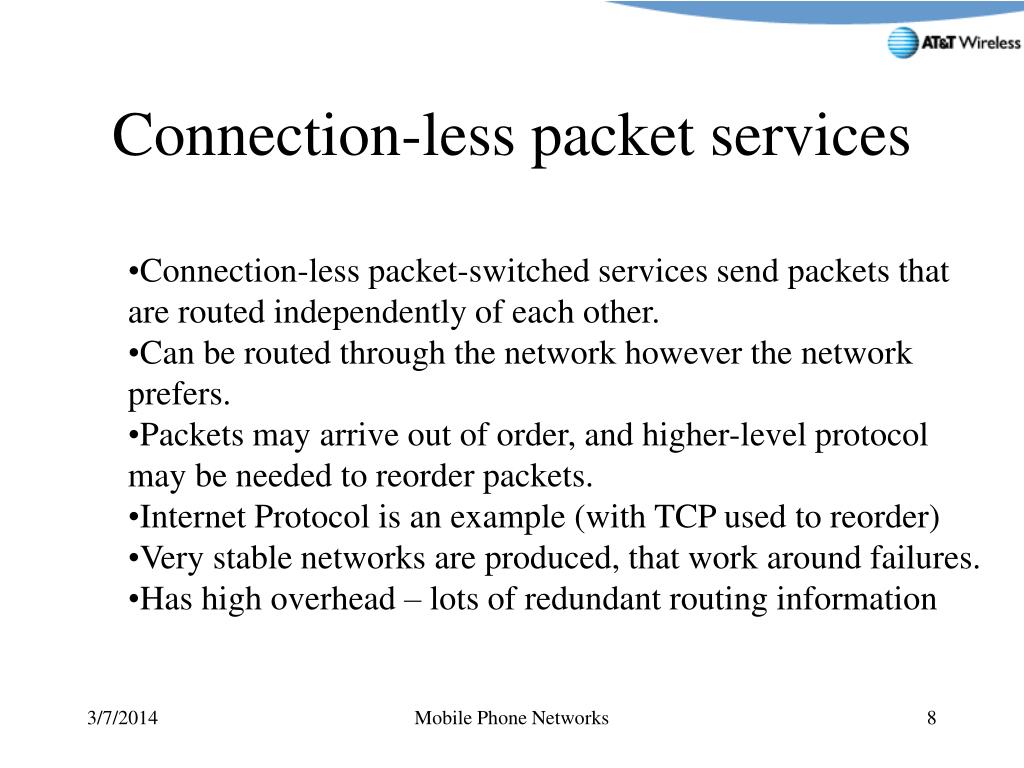

Connection-less packet services

  • Connection-less packet-switched services send packets that

  • are routed independently of each other.

  • Can be routed through the network however the network

  • prefers.

  • Packets may arrive out of order, and higher-level protocol

  • may be needed to reorder packets.

  • Internet Protocol is an example (with TCP used to reorder)

  • Very stable networks are produced, that work around failures.

  • Has high overhead – lots of redundant routing information

Mobile Phone Networks


Connection oriented packet services l.jpg
Connection-oriented packet services

  • All packets sent from same source access the same path

  • across the network, ensuring sequential delivery.

  • Has low overhead – little redundant routing information

  • Requires a very reliable infrastructure ( like fiber optics)

  • Example protocols: X.25, Frame Relay, and ATM

Mobile Phone Networks


Voice wireless architecture l.jpg
Voice Wireless Architecture

Mobile Phone Networks


Provisioning data architecture l.jpg
Provisioning Data Architecture

Mobile Phone Networks


Gsm attributes l.jpg

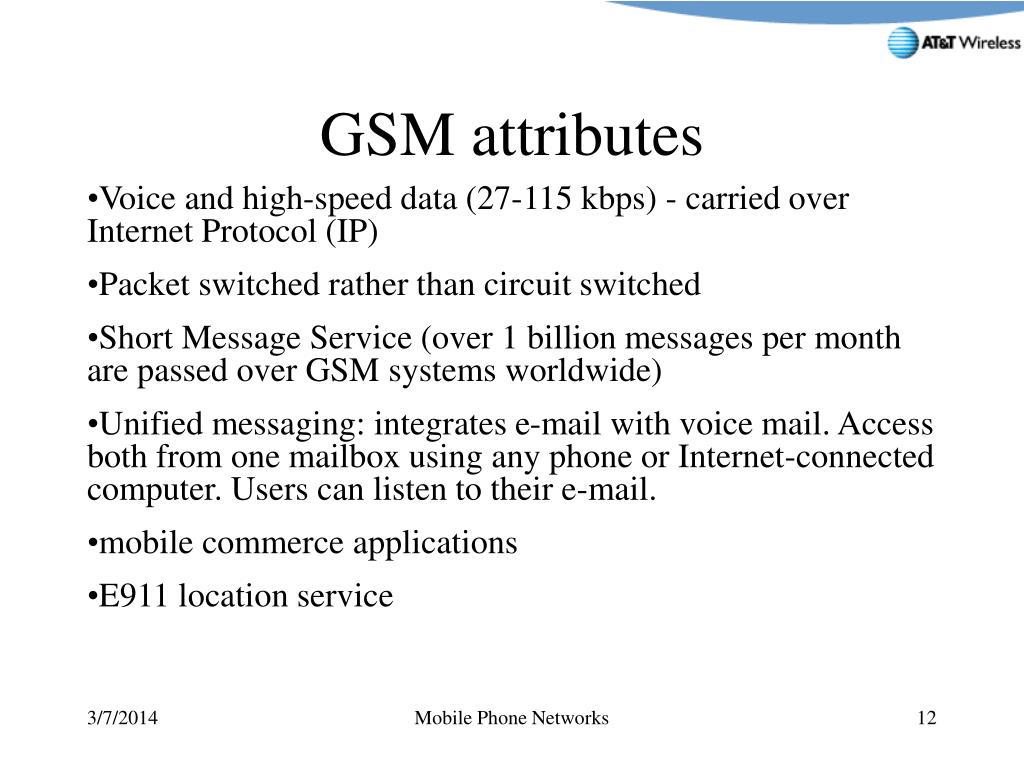

GSM attributes

  • Voice and high-speed data (27-115 kbps) - carried over Internet Protocol (IP)

  • Packet switched rather than circuit switched

  • Short Message Service (over 1 billion messages per month are passed over GSM systems worldwide)

  • Unified messaging: integrates e-mail with voice mail. Access both from one mailbox using any phone or Internet-connected computer. Users can listen to their e-mail.

  • mobile commerce applications

  • E911 location service

Mobile Phone Networks


General packet radio service gprs l.jpg
General Packet Radio Service (GPRS)

  • Wireless extension of the Internet all the way to mobile device

  • Optimized for “bursty” packet-data traffic (e.g. web site downloads).

  • Billing may be based on the amount of data transferred, rather than duration of call.

  • Allows a customer to view web pages “on line” without incurring additional cost.

  • Has higher transfer rates, shorter access times, improved utilization of radio spectrum

Mobile Phone Networks


Gprs description continued l.jpg
GPRS Description continued

  • Provides packet-data transport at rates from 40 to 271 kilobits per seconds (as one to eight channels are used)

  • Voice and data operations can occur concurrently.

Mobile Phone Networks


Gprs spectrum utilization l.jpg
GPRS Spectrum Utilization

Mobile Phone Networks


Gprs characteristics l.jpg
GPRS Characteristics

  • A single mobile device can transmit on one to eight channels of the same frame.

  • Channels are allocated only when data packets are sent or received, and they are released after the transmission.

  • Users experience being “on-line”, though the data channels of the radio connection may have been reallocated.

  • Channels can be mapped dynamically into packet switched (GPRS) service or circuit switched (conventional) service on demand.

Mobile Phone Networks


Gprs characteristics continued l.jpg
GPRS Characteristics (continued)

  • Multiple users can share one channel

  • Upload and download can occur simultaneously

  • High speed downloads available on demand

  • Command and control channels allow mobile device to acquire data channels dynamically.

Mobile Phone Networks


Gprs network l.jpg
GPRS Network

Mobile Phone Networks


Gateway grps support node ggsn l.jpg
Gateway GRPS Support Node (GGSN)

  • GGSN is the interface between GPRS Network and external packet data networks (e.g. Internet).

  • Converts GPRS packets from SGSN into IP packets

  • Receives IP packets and converts them into GPRS packets

  • Sends packets to the SGSN

  • Performs authentication and charging functions

Mobile Phone Networks


Authentication center auc l.jpg

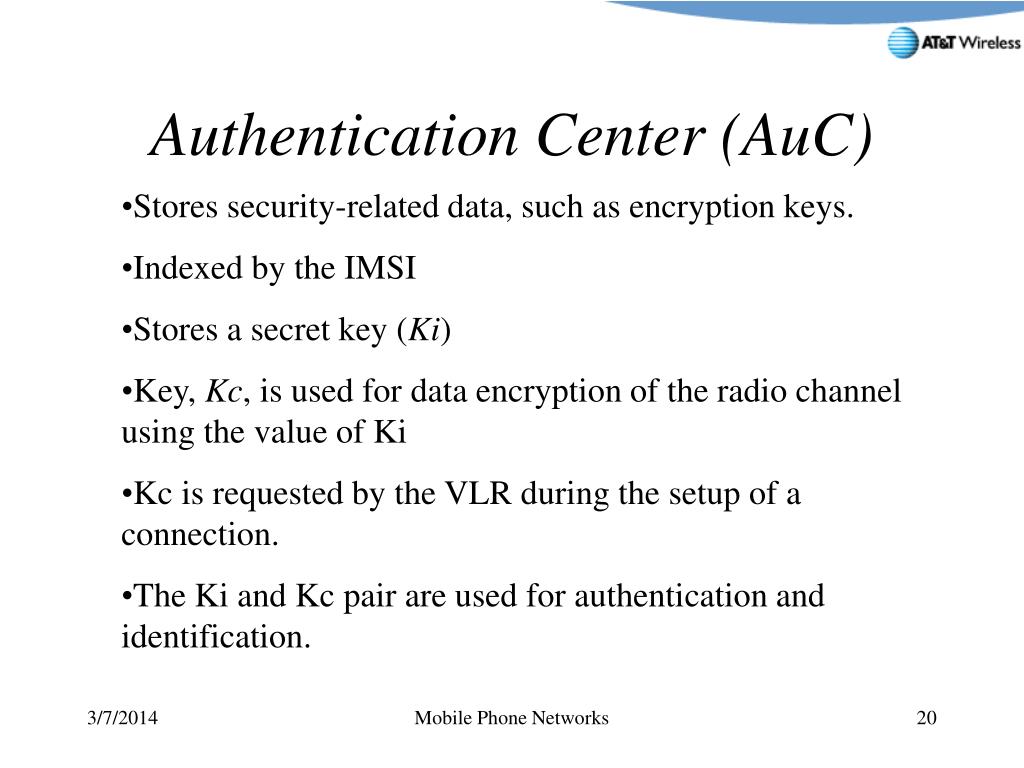

Authentication Center (AuC)

  • Stores security-related data, such as encryption keys.

  • Indexed by the IMSI

  • Stores a secret key (Ki)

  • Key, Kc, is used for data encryption of the radio channel using the value of Ki

  • Kc is requested by the VLR during the setup of a connection.

  • The Ki and Kc pair are used for authentication and identification.

Mobile Phone Networks


Authentication and encryption l.jpg
Authentication and Encryption

Mobile Phone Networks


Summary l.jpg
Summary

  • Phone networks are evolving from analog-only, land-line circuit switched networks to include wireless digital packet-switched networks

  • Next phase of the industry is to provide high-speed Internet service on top of voice phone service.

  • Heavy reliance on TCP/IP networking for the digital, packet-based components.

  • Global roaming on GSM phones is a likely result in the long run.

Mobile Phone Networks
