Presentation Transcript


Emissions from Aviation

SAGE

System for assessing Aviation’s Global Emissions

International Civil Aviation Organization briefing for the

United Nations Framework Convention on Climate Change

Subsidiary Body for Scientific and Technological Advice

May 2005

Maryalice Locke

U.S. Federal Aviation Administration

Washington, DC

Maryalice.Locke@FAA.gov

LMI


INTRODUCTION

SAGE – System for assessing Aviation’s Global Emissions

  • estimates aircraft fuel burn and emissions

  • for variable-year emissions inventories and

  • for operational, policy, and technology-related scenarios.

  • Gridded

    • latitude

    • longitude

    • altitude

    • time

  • AnalysisScale

    • Single flight

    • Aircraft

    • Engine

    • Airport

    • Country/ Region

    • Global Totals

  • Parameters

    • carbon monoxide (CO)

    • hydrocarbons (HC)

    • nitrogen oxides (NOx)

    • carbon dioxide (CO2)

    • water (H2O)

    • sulfur oxides

    • (SOx modeled as SO2)


MODEL OVERVIEW

Methods

  • Best publicly available data

  • Internationally recognized and/or accepted methodologies

  • Flexible modules incorporate state-of-the-art methodswith contributions from government, industry, and academia

  • All methods and data are open

    Steps to develop an inventory

  • Process: radar, schedule and fleet data

  • Determine: equipment, taxi times, delays & atmospheric parameters

  • Compute: trajectory, fuel burn and emissions

  • Output: inventory results for variable level analyses

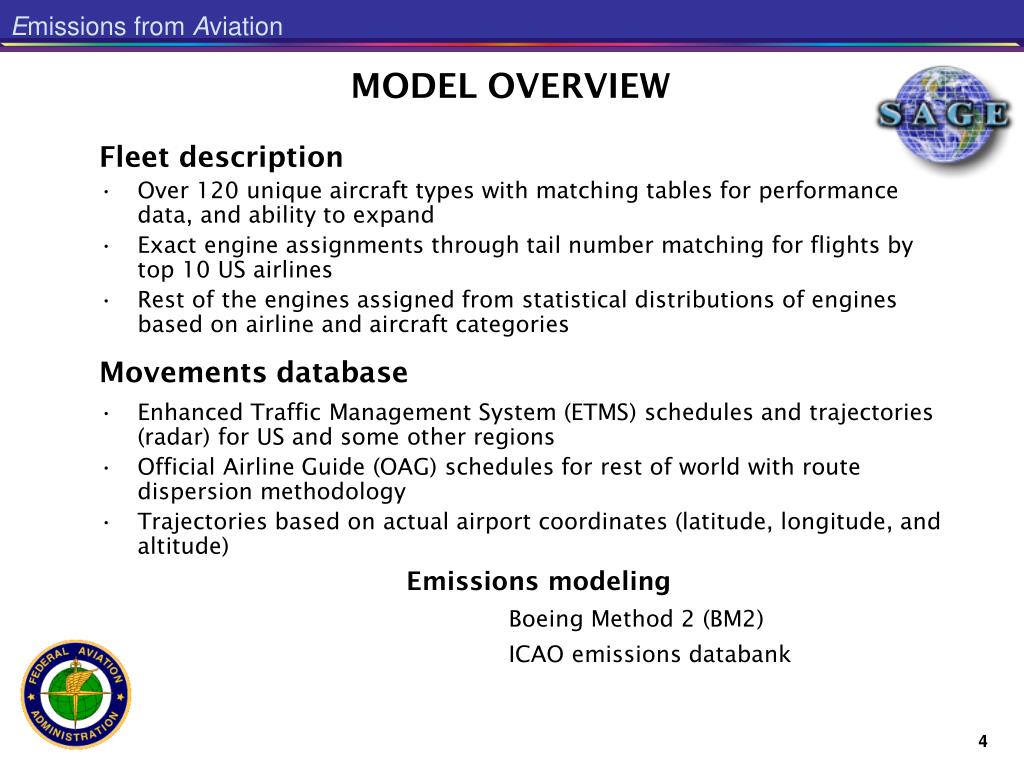

MODEL OVERVIEW

Fleet description

  • Over 120 unique aircraft types with matching tables for performance data, and ability to expand

  • Exact engine assignments through tail number matching for flights by top 10 US airlines

  • Rest of the engines assigned from statistical distributions of engines based on airline and aircraft categories

    Movements database

  • Enhanced Traffic Management System (ETMS) schedules and trajectories (radar) for US and some other regions

  • Official Airline Guide (OAG) schedules for rest of world with route dispersion methodology

  • Trajectories based on actual airport coordinates (latitude, longitude, and altitude)

    Emissions modeling

    Boeing Method 2 (BM2)

    ICAO emissions databank


OUTPUT DATA/RESULTS

Country and Region definitions are based on airport locations

  • Within region and bunker

    (1) Africa, (2) Asia, (3) Australia and Oceania, (4) Eastern Europe,

    (5) Middle East, (6) North America & Caribbean, (7) South America, and

    (8) Western Europe & North Atlantic.


OUTPUT DATA/RESULTS

  • Inventory of fuel burn and emissions for individual flights

    • Approximately 30 million records per year

  • Inventory of fuel burn and emissions for flight segments

    (points along flight path)

    • Approximately 1 billion records per year

  • Inventory of fuel burn and emissions for world grids,

    1 degree by 1 degree by 1 kilometer for each hour of the year

    • Approximately 900 million records per year


OUTPUT DATA/RESULTS

Example plot of fuel burn on a 1 degree by 1 degree world grid


MODELING CAPABILITIES

Historic Inventories

  • Development of emissions inventories which can be analyzed from a single flight with a specified airframe/engine combination to analysis by airline, airport, city-pair, region, or worldwide

    Analysis of policy scenarios and forecasting

  • Proposed airframe/engine technology

  • Changing global fleets

  • Improvements to air traffic control/airspace capacity

  • Enhancements to airport infrastructure

  • Improvements in aircraft operations


COMPARISON

of

SAGE, AERO, AERO2K

& UNFCCC

Fuel Consumption Data

International Civil Aviation Organization

briefing for the

United Nations Framework Convention on Climate Change

Subsidiary Body for Scientific and Technological Advice

May 2005

Maryalice Locke


Introduction

FCCC/SBSTA/2005/Misc.4

Comparison of aviation fuel consumption data

UNFCCC inventories 1999-2002

Modeled aviation data:

AERO1999

AERO2k2002

SAGE2000-2004


Domestic / International

Fuel consumption data was split into domestic and international traffic components and presented by country.

  • A flight is defined as a single take-off to the next landing.

  • Domestic flights take off and land in the same country.

  • International flights take off in one country and land in another.

  • All fuel consumption on a flight is attributed to the departure country.

  • Data were generated by modeling worldwide flights and aggregating the data into each country’s domestic and international flight categories.

  • Flights were attributed to countries based on airport locations using various publicly available airport databases.


Methods Comparison

Aspects of modeling methods may result in estimates that are slightly lower (or higher) than the probable actual value.

  • Modeling methods are continuously improving

    Systematic effects in fuel-sold inventory methods may tend to overestimate fuel actually burned in commercial aircraft

    Scope of data covered varies:

  • Model data for this analysis does not include military, piston-engine aircraft or general aviation operations


Geographic Coverage

Modeling for ICAO analyses does not consider data in terms of Annex I and non-Annex I parties.

Countries selected for this comparison were determined in part on completeness of aviation data in the UNFCCC inventories.

Country definitions may vary between data sets.

Emissions Coverage

Aviation tools compute fuel burn and emissions of CO2, H2O, CO, HC, NOx, and SOx (modeled as SO2).

Data, though, are presented only for fuel consumption.

CO2 and H2O emissions can be directly computed from this fuel consumption data.


United Kingdom – Fuel Burn (TJ)


USA – Fuel Burn (TJ)


Canada – Fuel Burn (TJ)


Germany – Fuel Burn (TJ)


Observations

Similar values seen in the comparison of total fuel consumption figures (domestic plus international)

Though, UNFCCC total and domestic fuel consumption data are generally slightly higher than modeled data,

International figures appear closer than domestic fuel consumption

Variations in country definitions result in comparison discrepancies


Observations

Most UNFCCC inventories are based on fuel sold data.

  • No uniform approach to disaggregating fuel data into domestic and international components

  • Statistical source data variations may require adaptation before used in national inventories

  • Aviation traffic is a better basis for distinguishing domestic and international


Emissions fromAviation

Bonn, 21 May 2005

Presentation by

The International Civil Aviation Organization

Jane Hupe, Secretary of CAEP

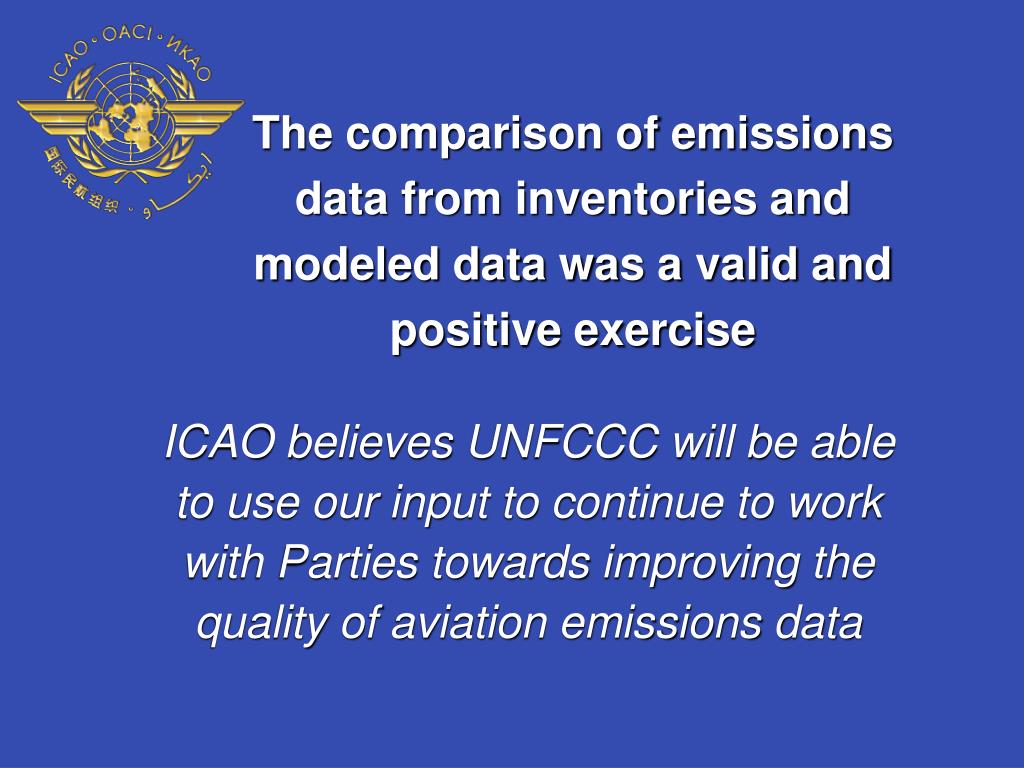

The comparison of emissions data from inventories and modeled data was a valid and positive exercise

ICAO believes UNFCCC will be able to use our input to continue to work with Parties towards improving the quality of aviation emissions data


Next Steps

  • CAEP will continue to

    • Evaluate the aviation models

    • Identify possible areas of improvement

  • Modelers are continuing to improve methods and source data

  • Parties should work on improving the quality of aviation emissions data in their inventories and better distinguish domestic and international aviation


Next Steps … ICAO will

  • continue to work on the assessment of the evolution of emissions and towards improving availability of information related to the present and future impact of aircraft engine emissions as requested by the ICAO Assembly


Next Steps … ICAO will

  • explore the feasibility and cost implications of providing a database of worldwide air services for UNFCCC Parties;

  • continue to study policy options to limit or reduce the environmental impact of emissions,

  • cooperate with UNFCCC and

  • assist SBSTA regarding methodological issues, as needed


Thank you


Keeping track of ICAO's

environmental activities

www.icao.int
