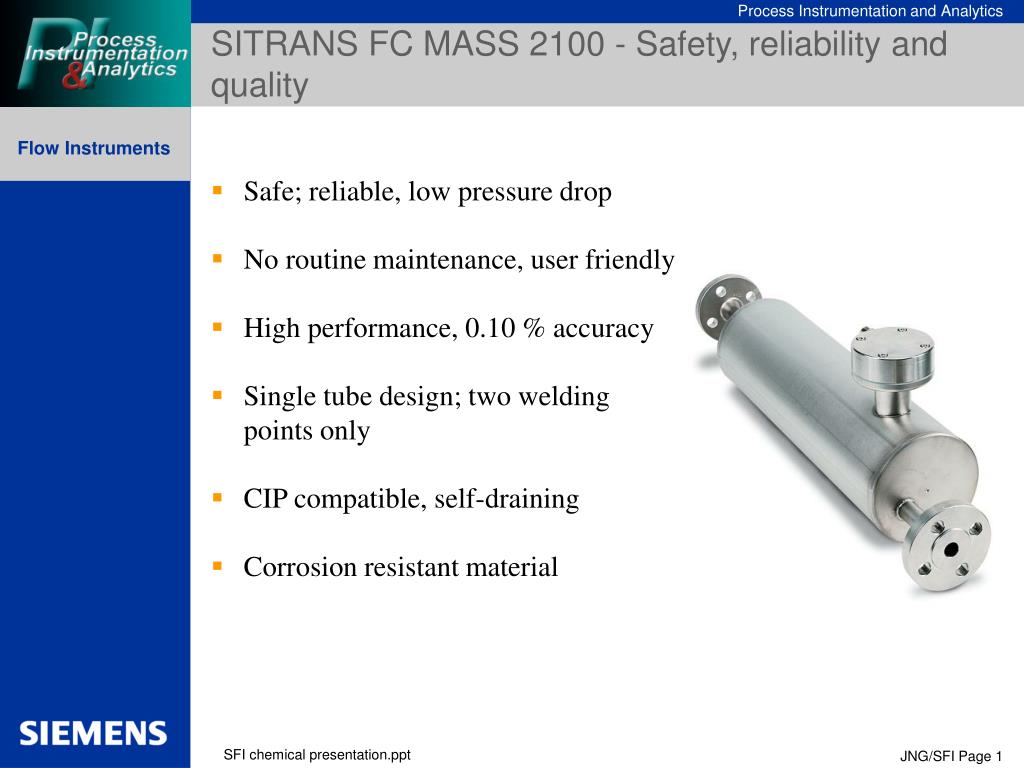

SITRANS FC MASS 2100 - Safety, reliability and quality

  • Safe; reliable, low pressure drop

  • No routine maintenance, user friendly

  • High performance, 0.10 % accuracy

  • Single tube design; two welding pointsonly

  • CIP compatible, self-draining

  • Corrosion resistant material

SFI chemical presentation.ppt

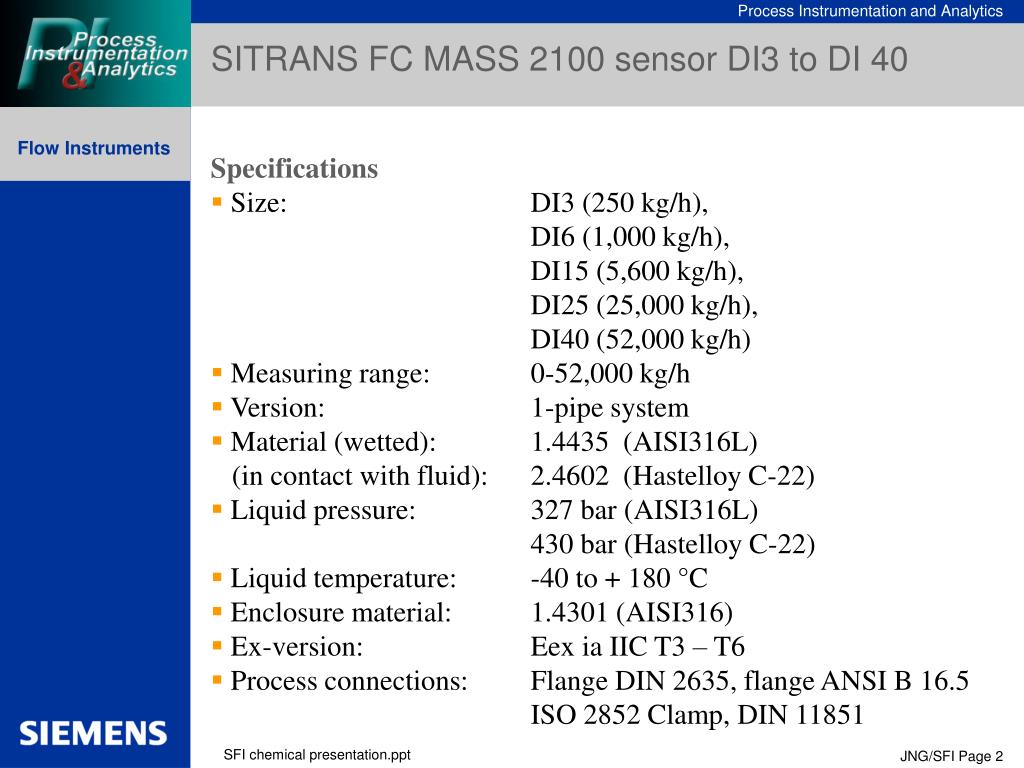

SITRANS FC MASS 2100 sensor DI3 to DI 40

Specifications

  • Size: DI3 (250 kg/h), DI6 (1,000 kg/h), DI15 (5,600 kg/h),

  • DI25 (25,000 kg/h),

  • DI40 (52,000 kg/h)

  • Measuring range: 0-52,000 kg/h

  • Version: 1-pipe system

  • Material (wetted): 1.4435 (AISI316L)

  • (in contact with fluid): 2.4602 (Hastelloy C-22)

  • Liquid pressure: 327 bar (AISI316L)

  • 430 bar (Hastelloy C-22)

  • Liquid temperature: -40 to + 180 °C

  • Enclosure material: 1.4301 (AISI316)

  • Ex-version: Eex ia IIC T3 – T6

  • Process connections: Flange DIN 2635, flange ANSI B 16.5

  • ISO 2852 Clamp, DIN 11851

SFI chemical presentation.ppt

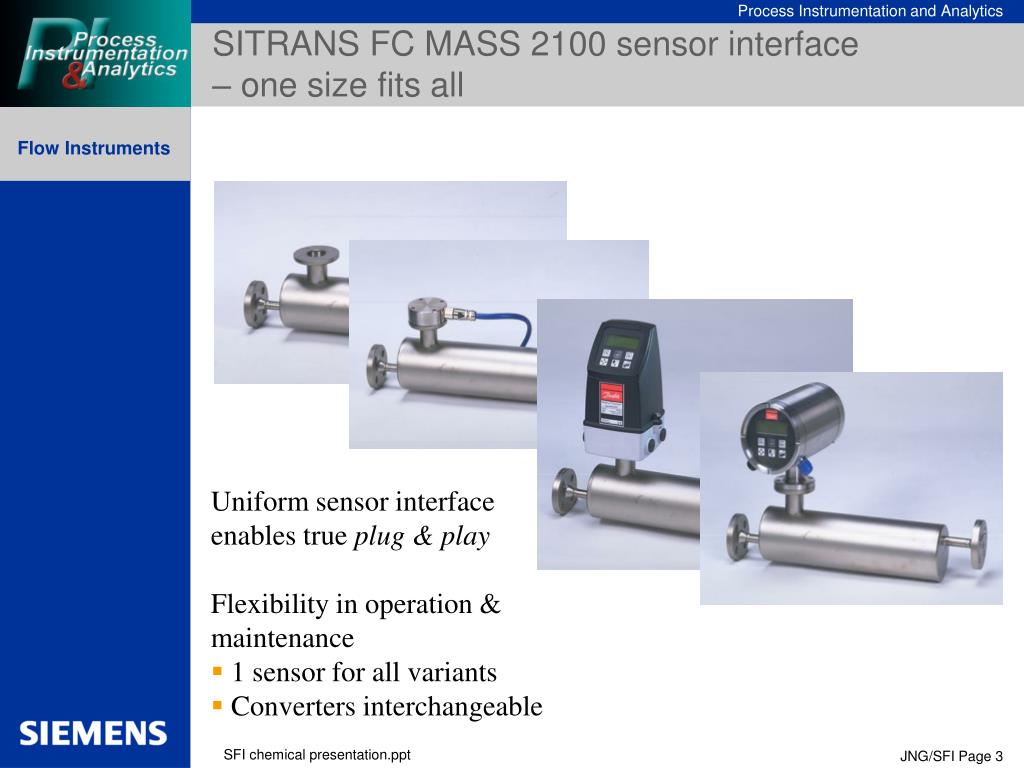

SITRANS FC MASS 2100 sensor interface

– one size fits all

Uniform sensor interface

enables true plug & play

Flexibility in operation & maintenance

  • 1 sensor for all variants

  • Converters interchangeable

SFI chemical presentation.ppt

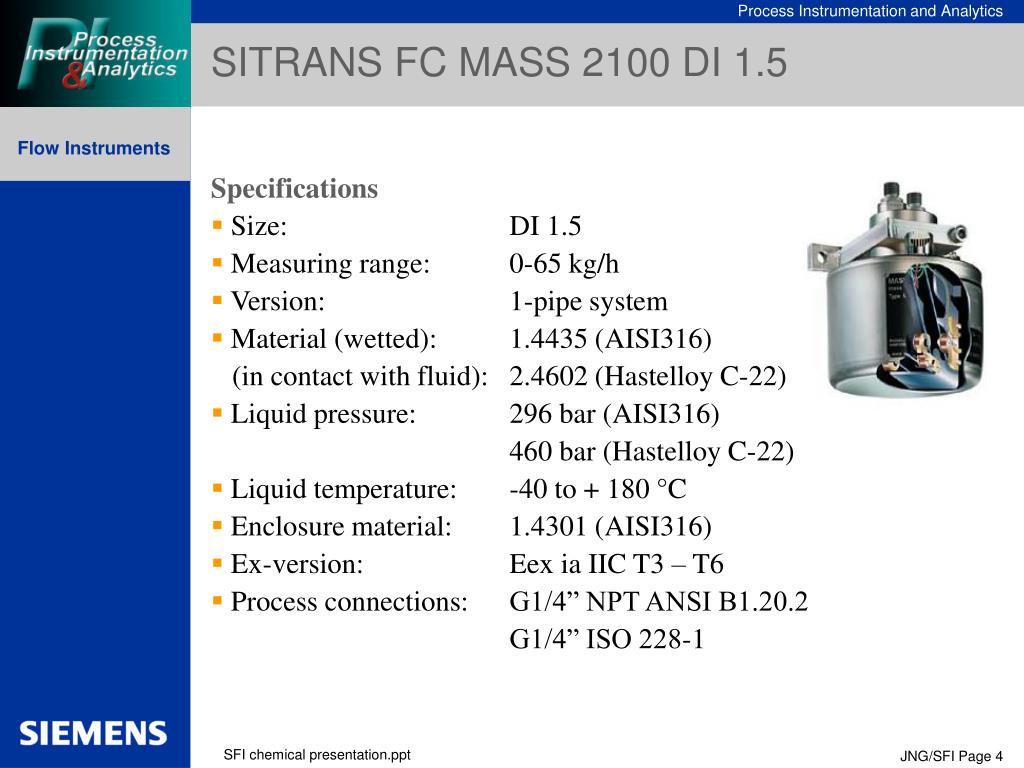

SITRANS FC MASS 2100 DI 1.5

Specifications

  • Size: DI 1.5

  • Measuring range: 0-65 kg/h

  • Version: 1-pipe system

  • Material(wetted): 1.4435 (AISI316)

  • (in contact with fluid): 2.4602 (Hastelloy C-22)

  • Liquid pressure: 296 bar (AISI316)

  • 460 bar (Hastelloy C-22)

  • Liquid temperature: -40 to + 180 °C

  • Enclosure material: 1.4301 (AISI316)

  • Ex-version: Eex ia IIC T3 – T6

  • Process connections: G1/4” NPT ANSI B1.20.2

  • G1/4” ISO 228-1

SFI chemical presentation.ppt

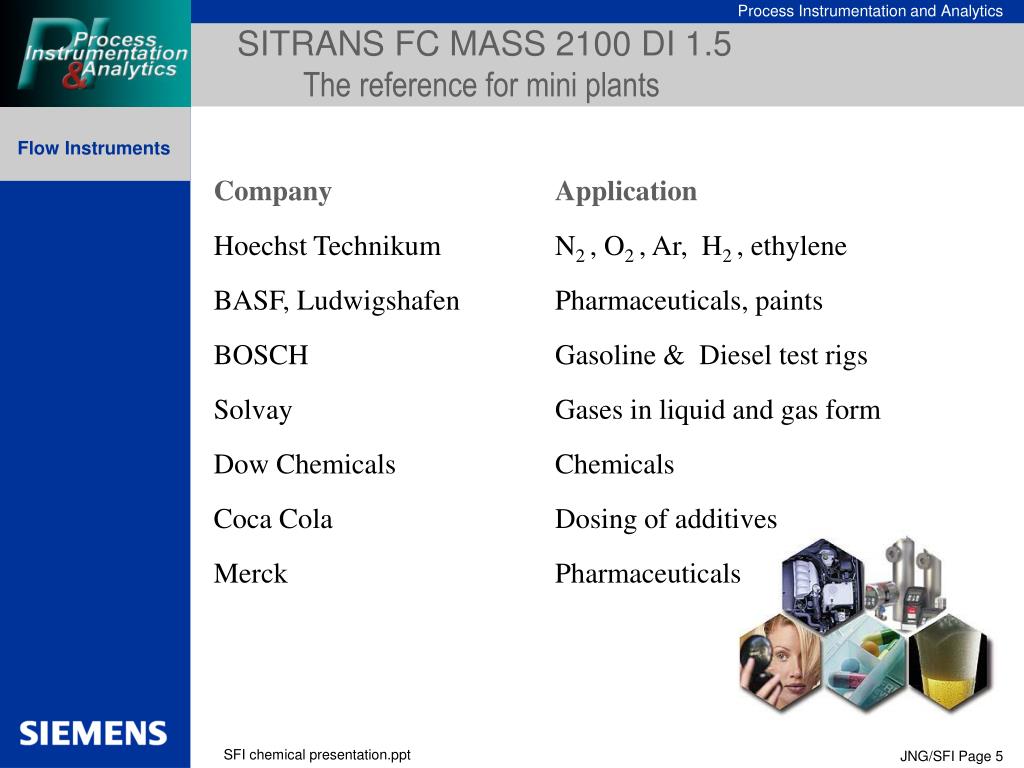

SITRANS FC MASS 2100 DI 1.5

The reference for mini plants

Company Application

Hoechst Technikum N2 , O2 , Ar, H2 , ethylene

BASF, Ludwigshafen Pharmaceuticals, paintsBOSCH Gasoline & Diesel test rigsSolvay Gases in liquid and gas formDow Chemicals ChemicalsCoca Cola Dosing of additivesMerck Pharmaceuticals

SFI chemical presentation.ppt

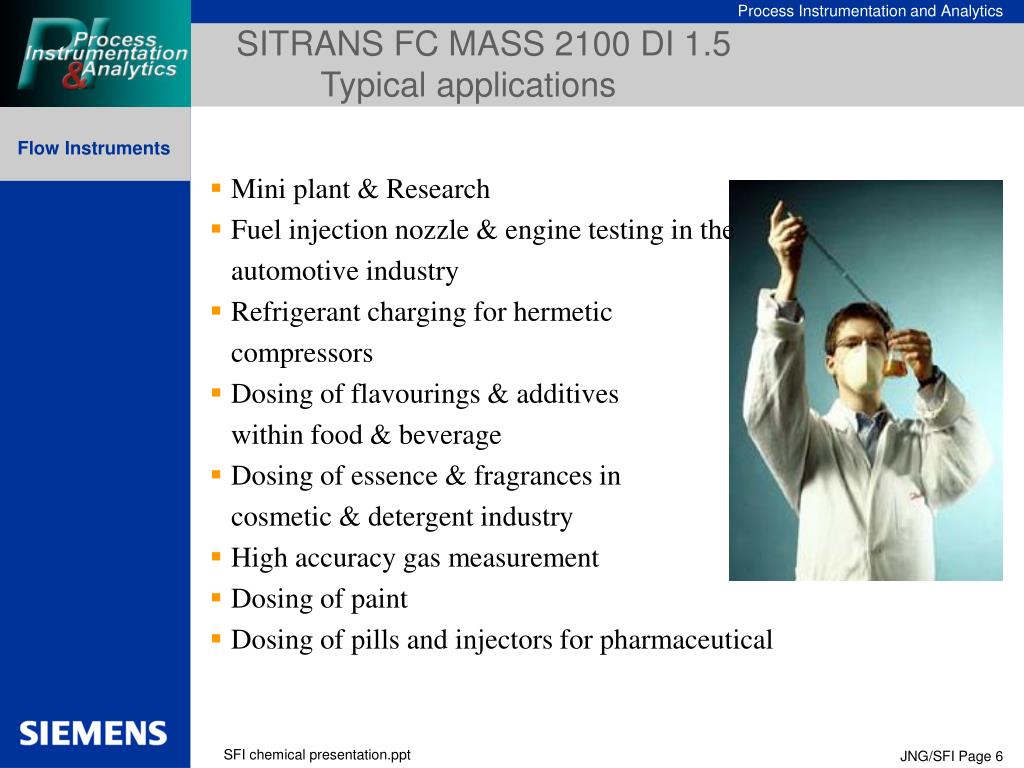

SITRANS FC MASS 2100 DI 1.5

Typical applications

  • Mini plant & Research

  • Fuel injection nozzle & engine testing in the automotive industry

  • Refrigerant charging for hermetic

  • compressors

  • Dosing of flavourings & additives within food & beverage

  • Dosing of essence & fragrances in cosmetic & detergent industry

  • High accuracy gas measurement

  • Dosing of paint

  • Dosing of pills and injectors for pharmaceutical

SFI chemical presentation.ppt

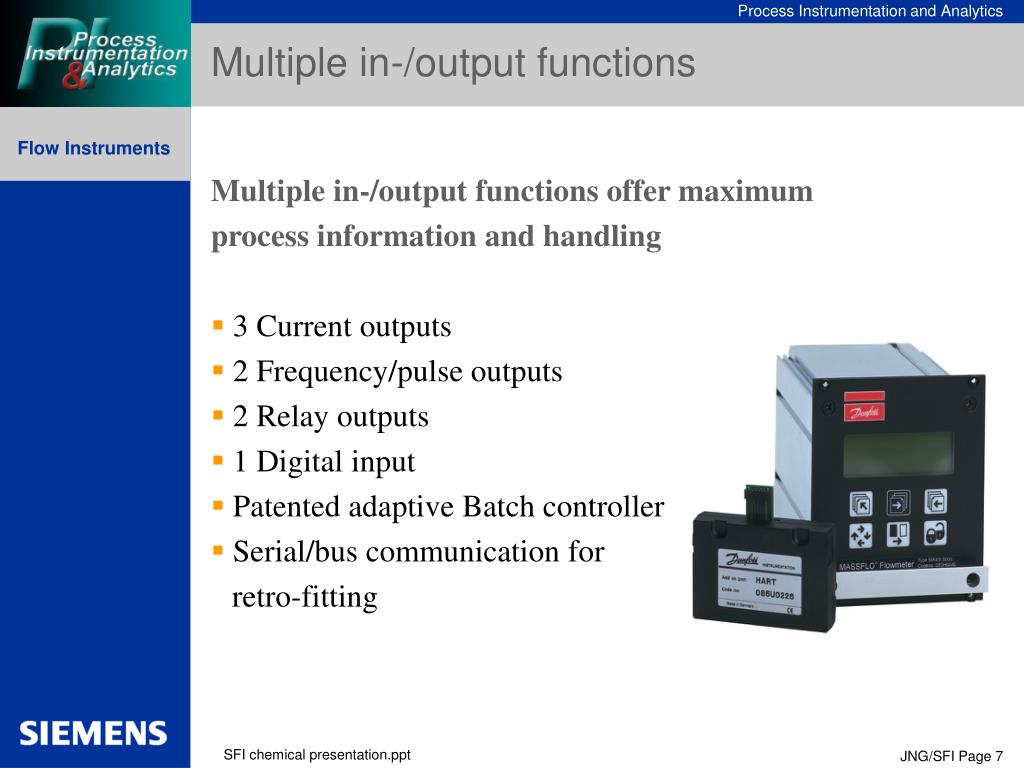

Multiple in-/output functions

  • Multiple in-/output functions offer maximum process information and handling

  • 3 Current outputs

  • 2 Frequency/pulse outputs

  • 2 Relay outputs

  • 1 Digital input

  • Patented adaptive Batch controller

  • Serial/bus communication for retro-fitting

SFI chemical presentation.ppt

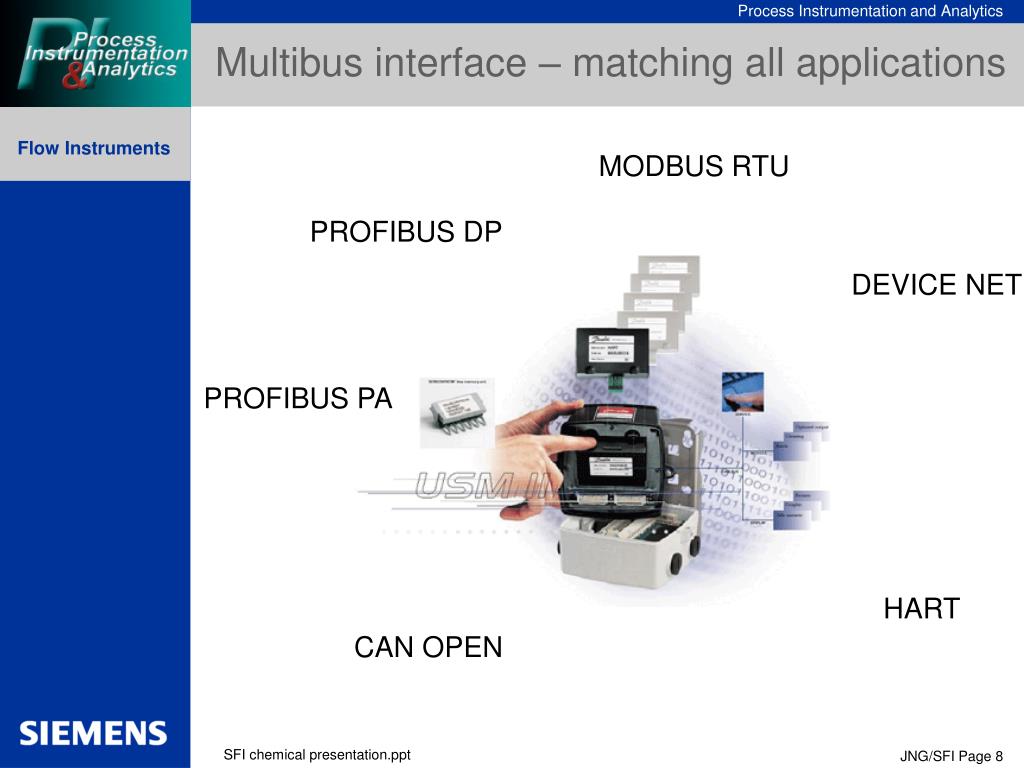

Multibus interface – matching all applications

MODBUS RTU

PROFIBUS DP

DEVICE NET

PROFIBUS PA

HART

CAN OPEN

SFI chemical presentation.ppt

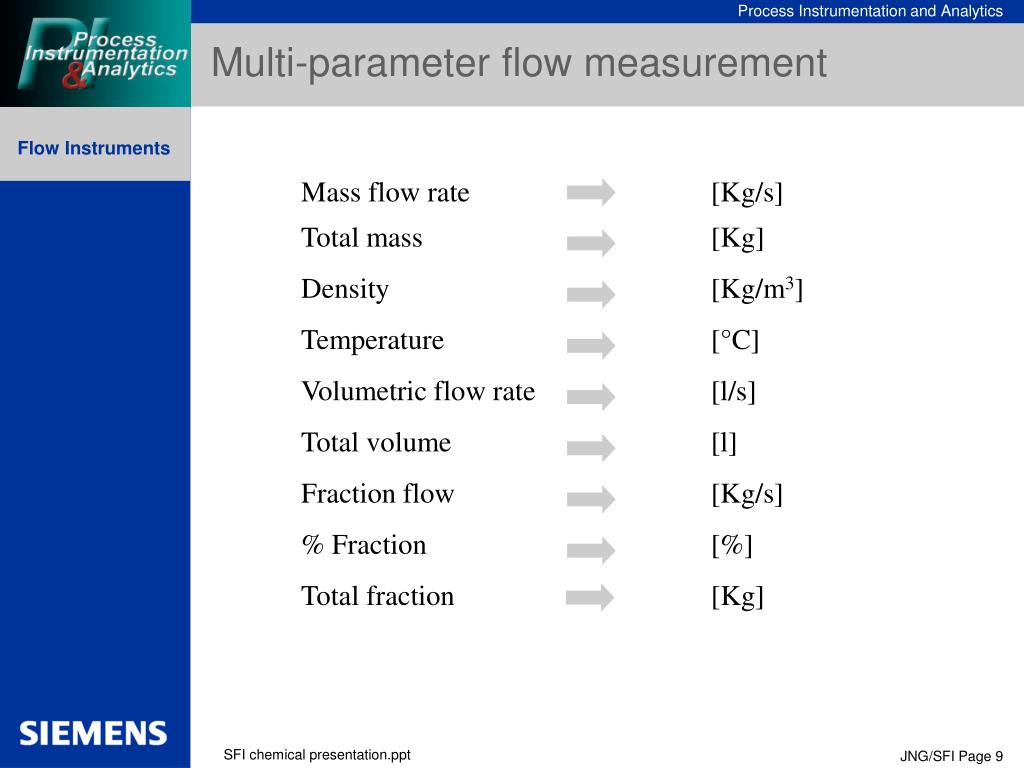

Multi-parameter flow measurement

Mass flow rate [Kg/s]

Total mass [Kg]

Density [Kg/m3]

Temperature [°C]

Volumetric flow rate [l/s]

Total volume [l]

Fraction flow [Kg/s]

% Fraction [%]

Total fraction [Kg]

SFI chemical presentation.ppt

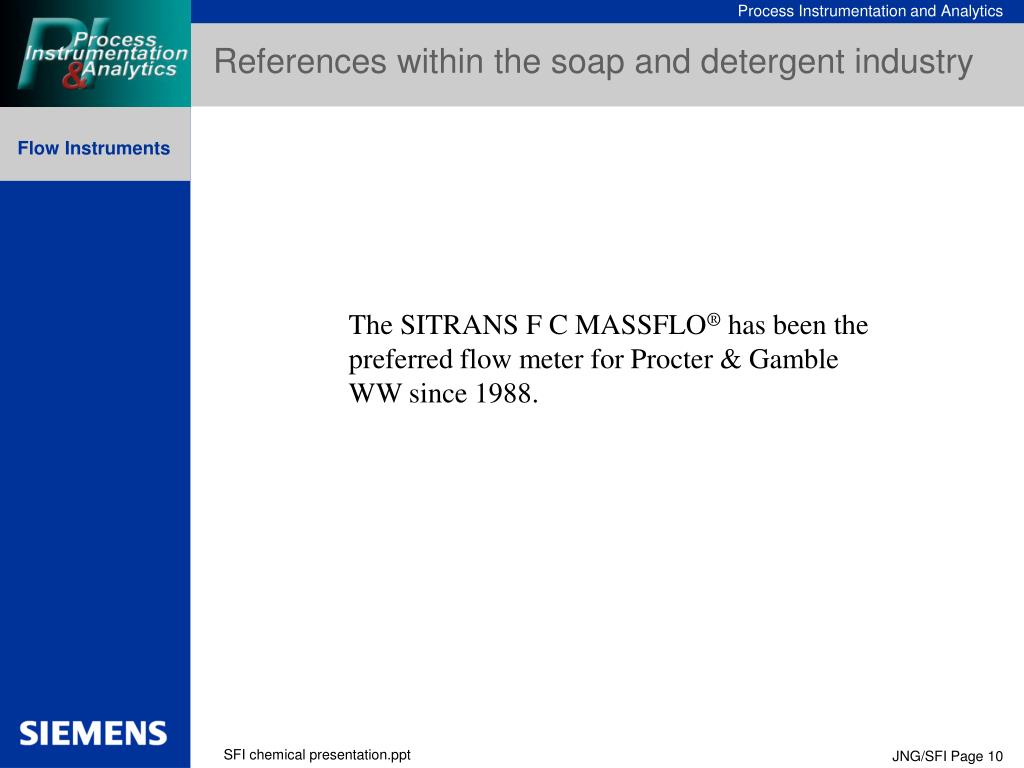

References within the soap and detergent industry
References within the soap and detergent industry

The SITRANS FC MASSFLO® has been the preferred flow meter for Procter & Gamble

WW since 1988.

SFI chemical presentation.ppt

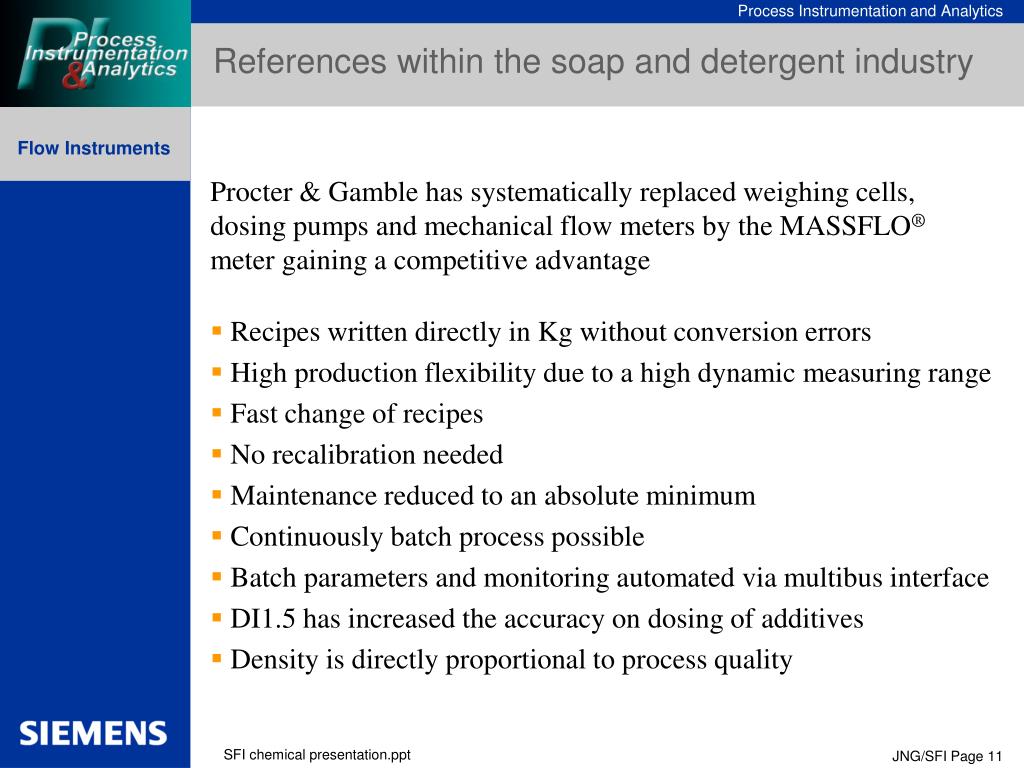

References within the soap and detergent industry

Procter & Gamble has systematically replaced weighing cells, dosing pumps and mechanical flowmeters by the MASSFLO®meter gaining a competitive advantage

  • Recipes written directly in Kg without conversion errors

  • High production flexibility due to a high dynamicmeasuring range

  • Fast change of recipes

  • No recalibration needed

  • Maintenance reduced to an absolute minimum

  • Continuously batch process possible

  • Batch parameters and monitoring automated via multibus interface

  • DI1.5 has increased the accuracy on dosing of additives

  • Density is directly proportional to process quality

SFI chemical presentation.ppt


Sitrans f m magflo mag 1100

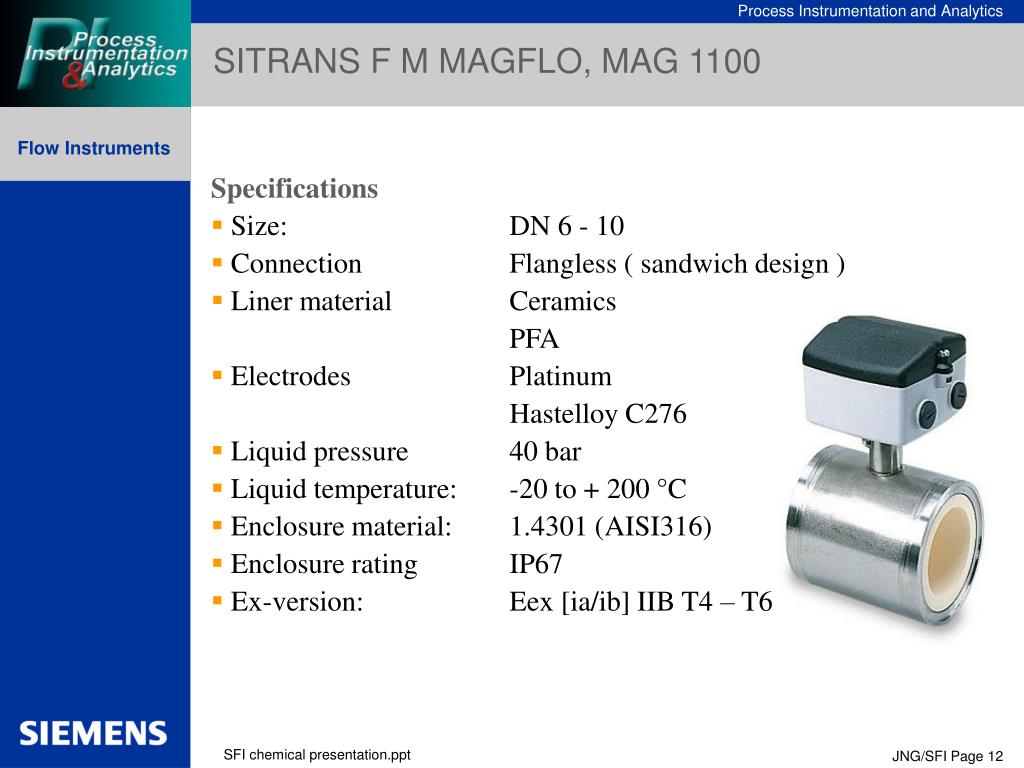

SITRANS F M MAGFLO, MAG 1100

Specifications

  • Size: DN 6 - 10

  • ConnectionFlangless ( sandwich design )

  • Liner material Ceramics

  • PFA

  • Electrodes Platinum

  • Hastelloy C276

  • Liquid pressure 40 bar

  • Liquid temperature: -20 to + 200 °C

  • Enclosure material: 1.4301 (AISI316)

  • Enclosure rating IP67

  • Ex-version: Eex [ia/ib] IIB T4 – T6

SFI chemical presentation.ppt

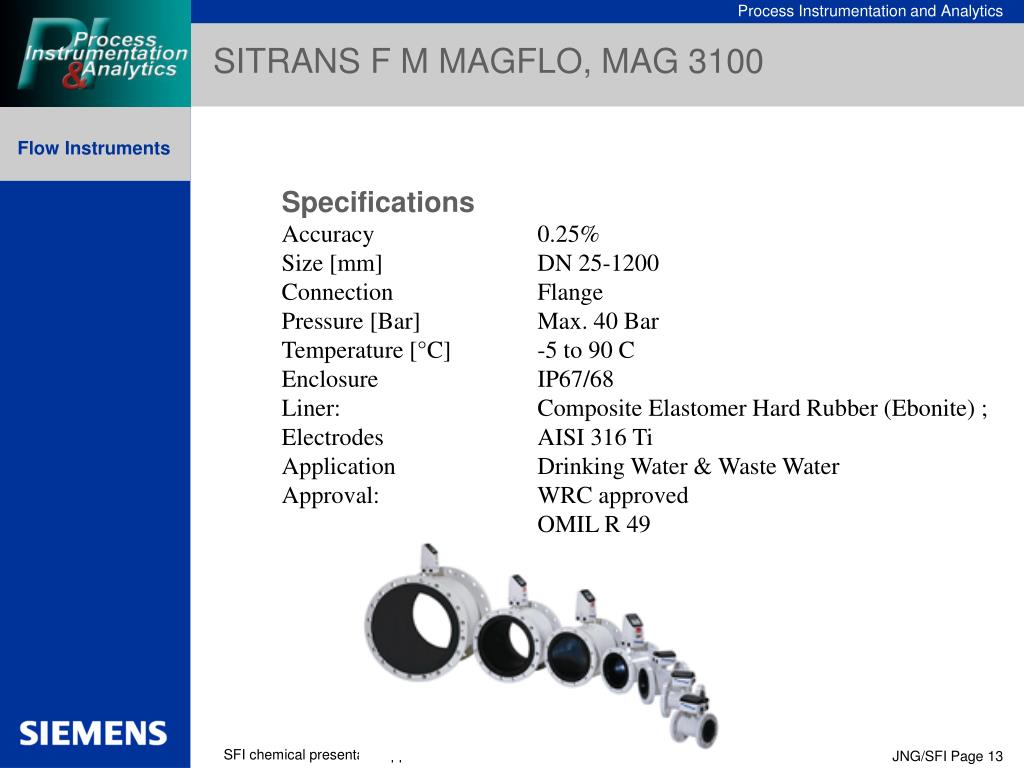

SITRANS F M MAGFLO, MAG 3100

Specifications

Accuracy 0.25%

Size [mm] DN 25-1200

Connection Flange

Pressure [Bar] Max. 40 Bar

Temperature [°C] -5 to 90 C

Enclosure IP67/68

Liner: Composite Elastomer Hard Rubber (Ebonite) ;

Electrodes AISI 316 Ti

Application Drinking Water & Waste Water

Approval: WRC approved

OMIL R 49

SFI chemical presentation.ppt

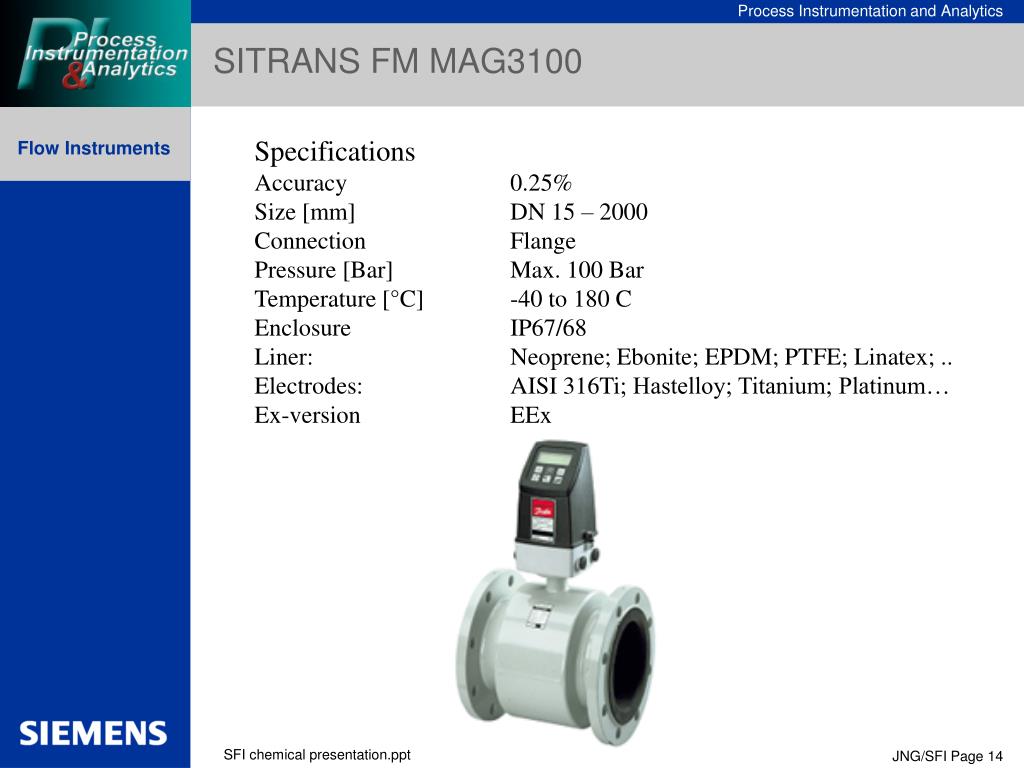

SITRANS FM MAG3100

Specifications

Accuracy 0.25%

Size [mm] DN 15 – 2000

Connection Flange

Pressure [Bar] Max. 100 Bar

Temperature [°C] -40 to 180 C

Enclosure IP67/68

Liner: Neoprene; Ebonite; EPDM; PTFE; Linatex; ..

Electrodes: AISI 316Ti; Hastelloy; Titanium; Platinum…

Ex-version EEx

SFI chemical presentation.ppt

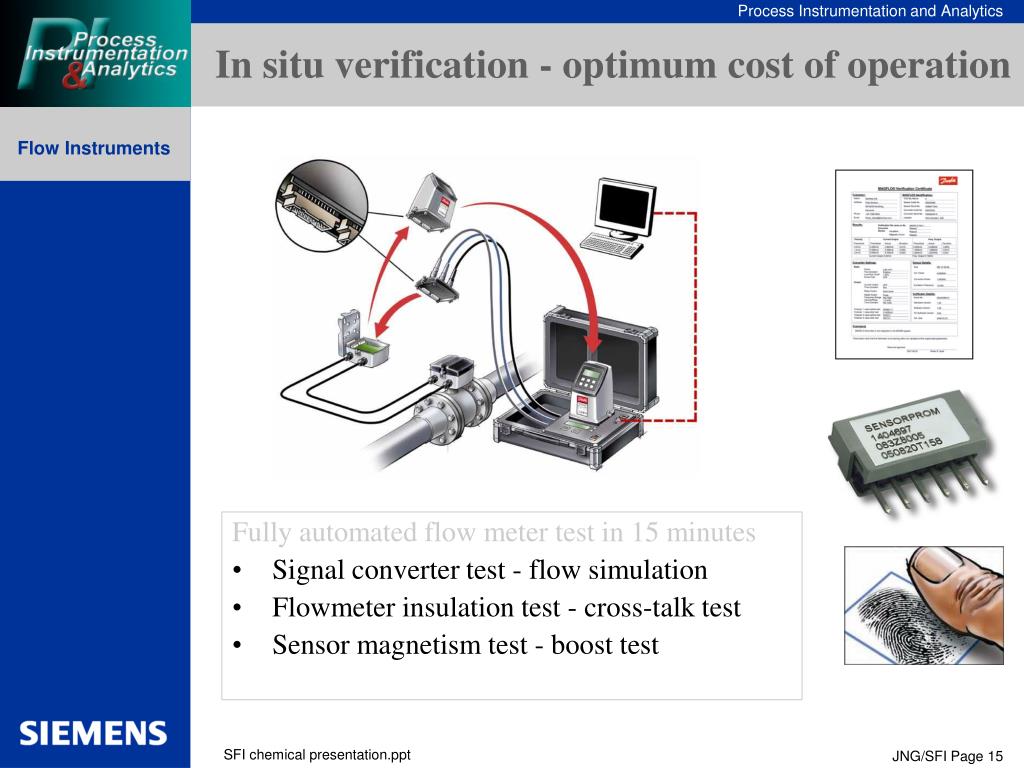

In situ verification - optimum cost of operation

Fully automated flow meter test in 15 minutes

  • Signal converter test - flow simulation

  • Flowmeter insulation test - cross-talk test

  • Sensor magnetism test - boost test
