Presentation Transcript


Phylum arthropoda l.jpg

Phylum Arthropoda

Subphylum Uniramia


Subphylum uniramia l.jpg

Subphylum Uniramia

  • Class: Diplopoda (dip-lop-o-da)

    • Millipedes

  • Class: Chilopoda (ki-lop-o-da)

    • Centipedes

  • Class: Insecta (in-sect-a)

    • Insects


Class diplopoda l.jpg

Class: Diplopoda

  • Note two pair of appendages per somite

Return to Uniramia


Class chilopoda l.jpg

House

centipedes

Dorsal view

Ventral view

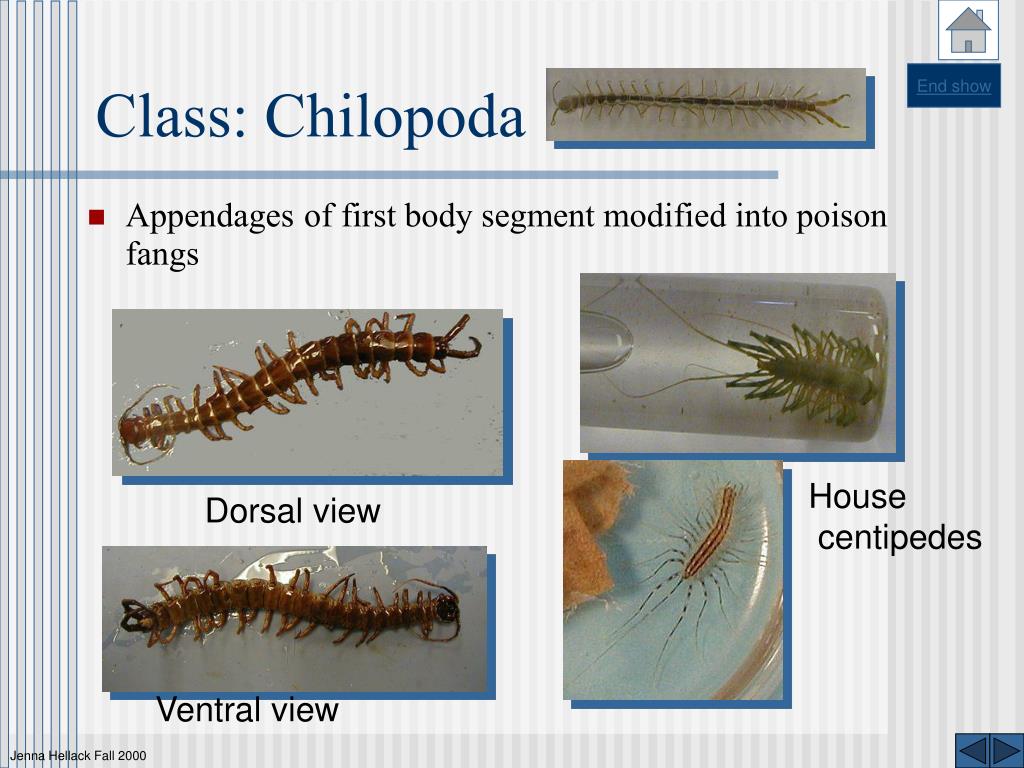

Class: Chilopoda

  • Appendagesof first body segment modified into poison fangs


Class insecta l.jpg

Class Insecta

  • Head, thorax, and abdomen distinct. Typically with two pair of wings

  • Order: Thysanura (silverfish)

  • Order: Ephemeroptera (mayflies)

  • Order: Odonata (dragonflies and damselflies)

  • Order: Orthoptera (crickets and grasshoppers)

  • Order: Phasmida (walking sticks)

  • Order: Blattaria (cockroaches)

  • Order: Mantodea (praying mantids)

  • Order: Isoptera (termites)


Insecta orders continue l.jpg

Insecta (orders continue)

  • Order: Hemiptera (true bugs)

  • Order: Homoptera (cicadas, aphids, leafhoppers, scale insects)

  • Order: Neuroptera (lacewings, ant lions, dobsonflies)

  • Order: Coleoptera (beetles, weevils, fireflies)

  • Order: Lepidoptera (butterflies and moths)

  • Order: Diptera (true flies)

  • Order: Siphonaptera (fleas)

  • Order: Hymenoptera (ants, bees, wasps)


Order thysanura l.jpg

Return to Insecta

Order Thysanura

  • Silverfish

    • Primitive unwinged insects. Three long terminal cerci (filaments)


Order ephemeroptera l.jpg

Return to Insecta

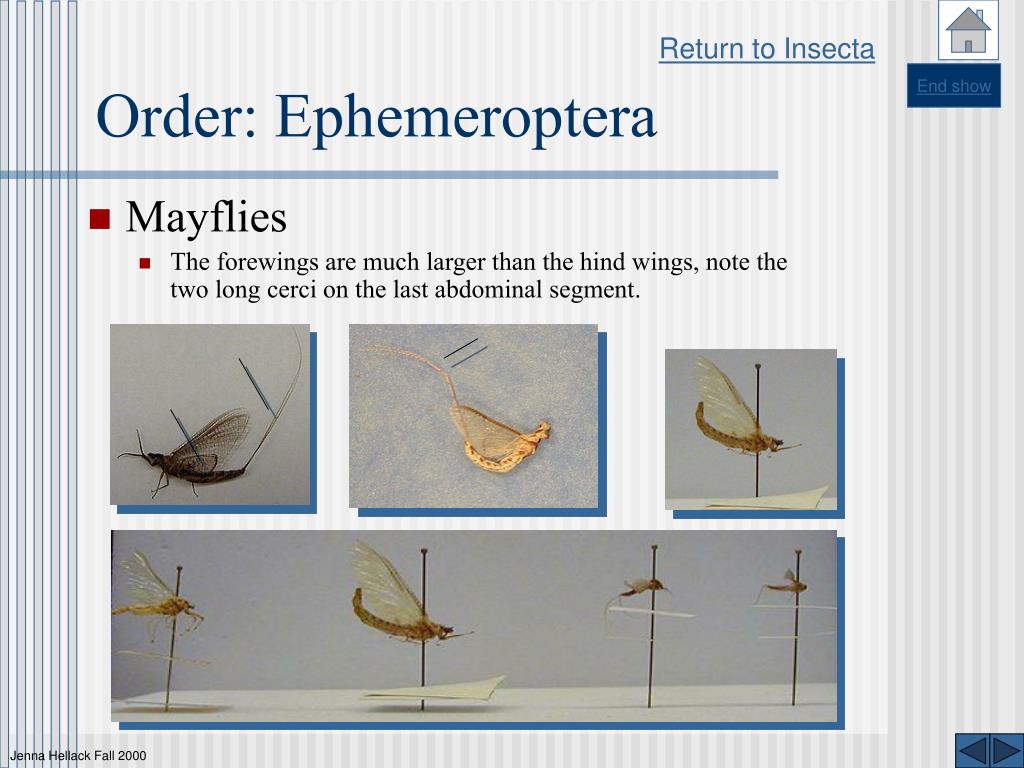

Order: Ephemeroptera

  • Mayflies

    • The forewings are much larger than the hind wings, note the two long cerci on the last abdominal segment.


Order odonata l.jpg

Dragonflies

Damselflies

Return to Insecta

Order: Odonata

  • Dragonflies and damselflies

    • Long narrow bodies with long narrow membranous wings that are similar in size.


Order orthoptera l.jpg

House cricket

Camel Crickets

Cave cricket

Grasshoppers

Mole cricket

Return to Insecta

Order: Orthoptera

  • Crickets and grasshoppers

    • Enlarged femur on third walking leg


Order phasmida l.jpg

Return to Insecta

Order: Phasmida

  • Walking sticks

    • Very elongated and twig-like in appearance


Order blattaria l.jpg

Return to Insecta

Order: Blattaria

  • Cockroaches

    • Oval flattened shape with the head concealed under the pronotum (shield)


Order mantodea l.jpg

Egg case

Return to Insecta

Order: Mantodea

  • Prey Mantids

    • Modified front legs with front femora and tibiae are armed with strong spines and fitted for grasping prey.


Order isoptera l.jpg

Return to Insecta

Order: Isoptera

  • Termites

    • Distinguishable from ants by broad union of thorax and abdomen.


Order hemiptera l.jpg

Return to Insecta

Order: Hemiptera

  • True bugs

    • Forewings with base portion leathery, apical portion membranous. Piercing sucking mouthparts.


Order homoptera l.jpg

Return to Insecta

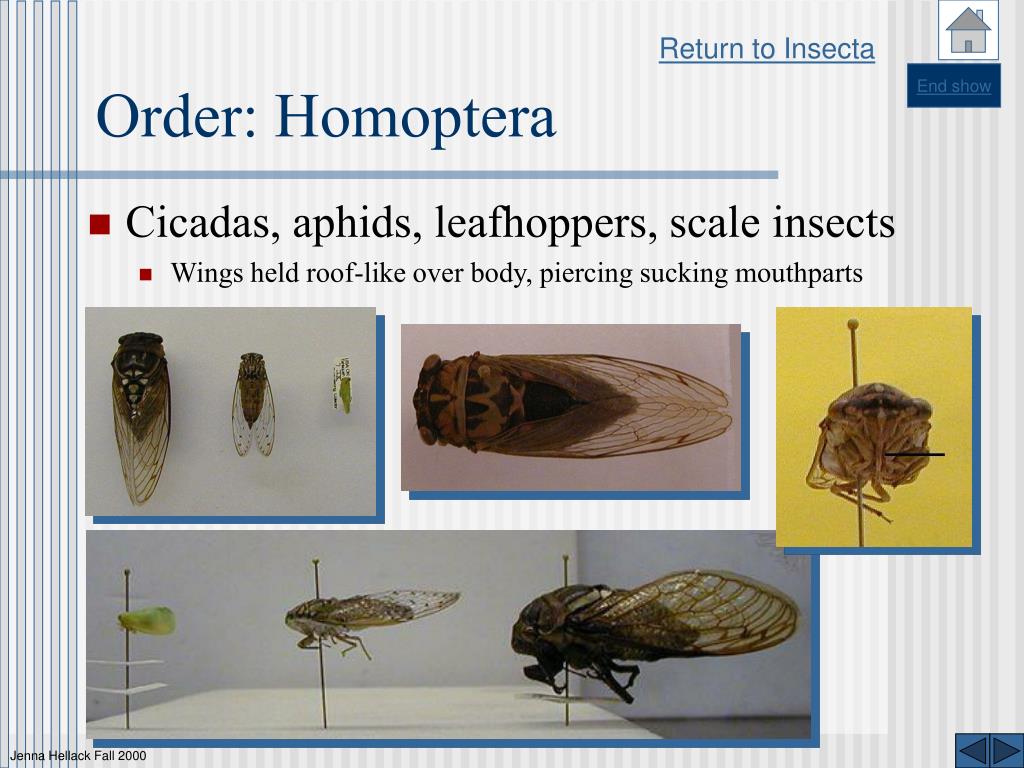

Order: Homoptera

  • Cicadas, aphids, leafhoppers, scale insects

    • Wings held roof-like over body, piercing sucking mouthparts


Order neuroptera l.jpg

¢

Ant lion larva

(doodlebug)

Dobsonflies

Lacewing

Return to Insecta

Order: Neuroptera

  • Lacewings, ant lions, dobsonflies

    • Membranous wings with many cross veins


Order coleoptera l.jpg

Return to Insecta

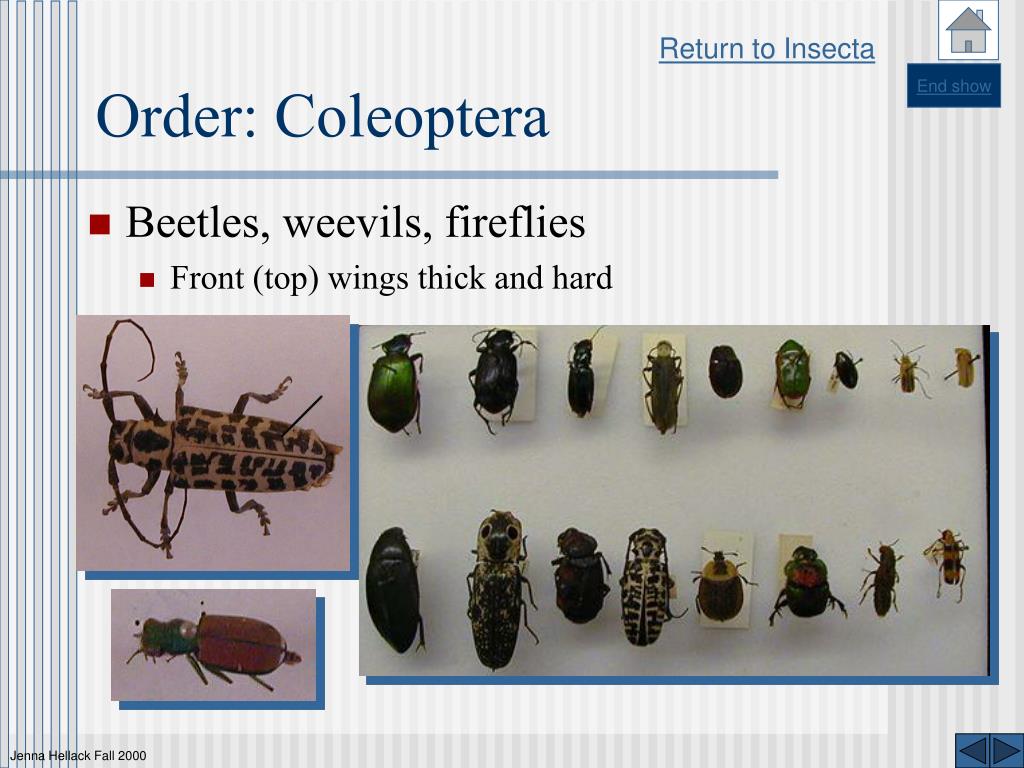

Order: Coleoptera

  • Beetles, weevils, fireflies

    • Front (top) wings thick and hard


Order lepidoptera l.jpg

Return to Insecta

Order: Lepidoptera

  • Butterflies and moths

    • Wings with overlapping scales, coiled sucking mouthparts


Order diptera l.jpg

Return to Insecta

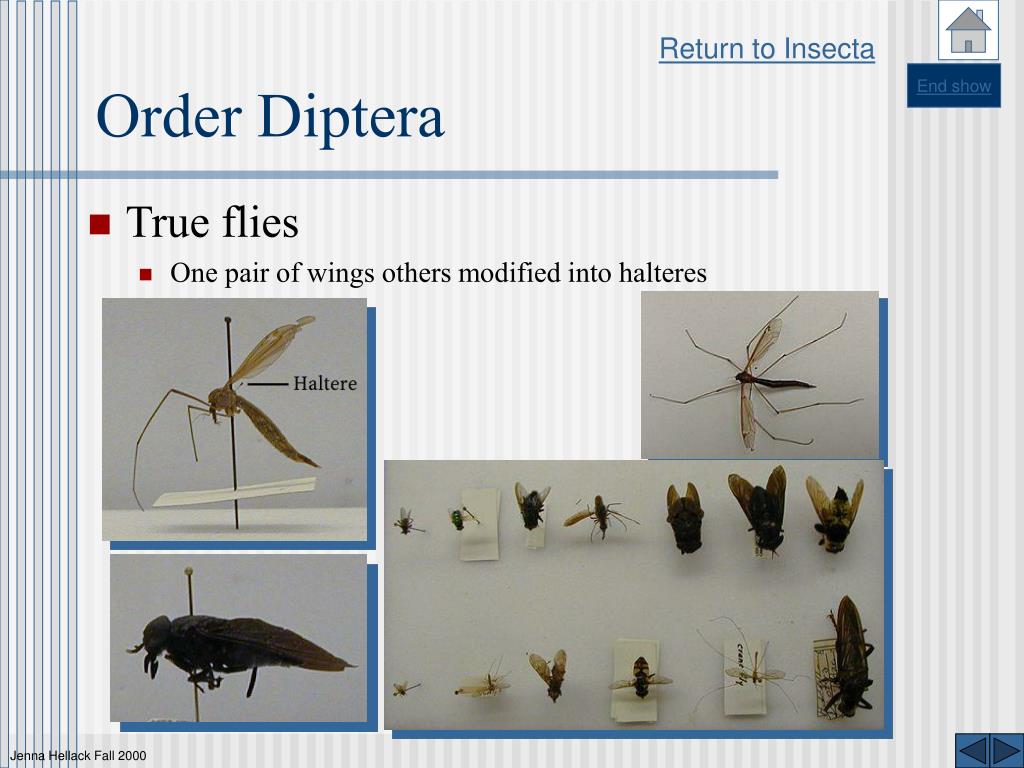

Order Diptera

  • True flies

    • One pair of wings others modified into halteres


Order siphonaptera l.jpg

Return to Insecta

Order: Siphonaptera

  • Fleas

    • Laterally compressed body, no wings, piercing, sucking mouth parts.


Order hymenoptera l.jpg

Return to Insecta

Order: Hymenoptera

  • Ants, bees, wasps

    • Membranous, narrow wings coupled distally.

Last slide
