Presentation Transcript


Mobile network evolution introduction of ip in 3g wcdma ran l.jpg

Mobile network evolutionIntroduction of IP in 3G WCDMA RAN

Quoc-Thinh Nguyen-Vuong

[email protected]


Agenda l.jpg

Agenda

  • Market & Technology trend

  • Introduction of IP in 3G/LTE solution

  • China Unicom: 3G HSPA deployment


Slide3 l.jpg

1

Market & Technology trend


Mobile telecom market trend l.jpg

Mobile telecom market trend

  • Data revenues per user increase

  • Data revenues per Mbit decrease

    -> Cost per Mbit MUST decreases


Transport technologies wireless sdh ethernet l.jpg

SDH Evolution Path

ASON

(ROADM

& PXC)

ASTN & OTN

(MSTP)

Wireless Access Evolution Path

Native Ethernet Evolution Path

Radio Access

Networks

SDH & WDM

(Digital Cross

Connect)

T-MPLS

Sync. Ethernet

PBT

Packet

Radio

Systems

Metro

Ethernet

Digital

Radio

Systems

Transport technologies – Wireless, SDH, Ethernet

Time

Customer Bandwidth requirement

nxTbit/s

Tbit/s

Nodal Capacity

Gbit/s

SDH

(ADM)

Analogue

Radio

Systems

ATM

Mbit/s

Time

10 Gbit/s

40 Gbit/s

2.5 Gbit/s

155 Mbit/s

Network Core Granularity

ASON – Automatically Switched Optical Network, ROADM – Reconfigurable Optical Add Drop Multiplexer, PXC – Photonic Cross Connect, ASTN – Automatically Switched Transport Network, MSSP – Multi Service Transport Platform, SDH – Synchronous Digital Hierarchy, ADM – Add Drop Multiplexer, N/MWDM – National/ Metro Wavelength division Multiplexing


Mobile technology evolution 3gpp only l.jpg

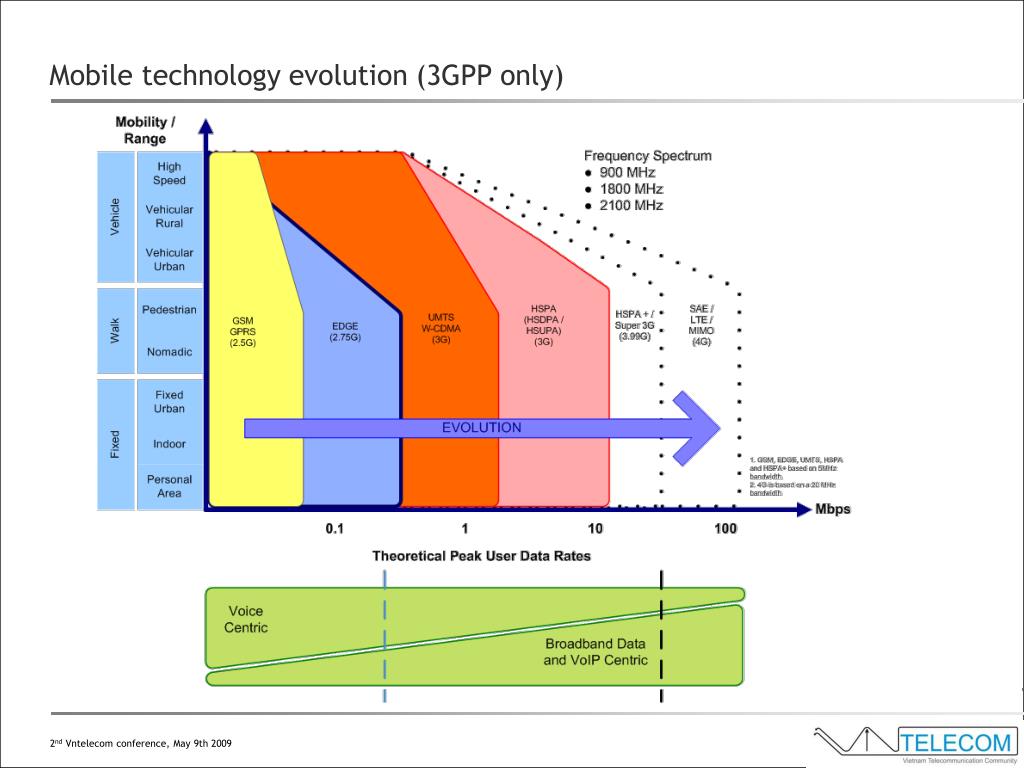

Mobile technology evolution (3GPP only)


Slide7 l.jpg

2

Introduction of IP in 3G/LTE solution


2g gsm l.jpg

PSTN

2G GSM

GSM BSS

GSMBTS

GSMBSC

A

MS

MSCSwitch

GMSCSwitch

Um

A

Abis

GSMBTS

GSMBSC


2g gsm to 2 5g gprs l.jpg

PSTN

GGSN

SGSN

2G (GSM) to 2.5G (GPRS)

GSM BSS

GSMBTS

GSMBSC

A

MS

MSCSwitch

GMSCSwitch

Um

A

Abis

GSMBTS

GSMBSC

Gb

Gi

Gn

Internet

IP


2 5g gprs to 3g umts r99 l.jpg

PSTN

GGSN

SGSN

2.5G (GPRS) to 3G (UMTS) R99

GSM BSS

GSMBTS

GSMBSC

A

MS

MSCSwitch

GMSCSwitch

Um

Abis

GSMBTS

GSMBSC

Iu-CS

Gb

Iub

Node B

RNC

Gi

Gn

Uu

Internet

Iur

IP

UE

Iu-PS

Iub

Node B

RNC

UTRAN


3g umts r99 to 3g r4 all ip core network l.jpg

PSTN

GGSN

CS-MGW

CS-MGW

SGSN

3G UMTS R99 to 3G R4: All-IP core network

  • Optimized networks for voice and data

  • Service integration requires unified network

    • no difference between media (voice, data, video)

    • no media dependent calls, but media independent sessions

  • Easier to manage

GSM BSS

GSMBTS

GSMBSC

A

MS

Nc

GMSC Server

MSC Server

Um

Abis

GSMBTS

GSMBSC

Mc

Iu-CS

Gb

Nb

IP

Iub

Node B

RNC

Gi

Gn

Uu

Internet

Iur

UE

Iu-PS

Iub

Node B

RNC

UTRAN


3g umts r99 to 3g r5 hsdpa ip in utran l.jpg

PSTN

GGSN

CS-MGW

CS-MGW

SGSN

3G UMTS R99 to 3G R5: HSDPA+IP in UTRAN

  • Key enhancements

    • Introduction of IMS

    • Introduction of IP transport option in UTRAN (Iub, Iur, IU-Ps, and Iu-Cs)

    • Introduction of HSDPA

GSM BSS

GSMBTS

GSMBSC

A

MS

Nc

GMSC Server

MSC Server

Um

Abis

GSMBTS

GSMBSC

Mc

Gb

Nb

Iu-CS/IP

IP

Iub/IP

Node B

RNC

Gi

Gn

Uu

Internet

IMS

Iur/IP

UE

Iu-PS/IP

Iub/IP

Node B

RNC

UTRAN


3g umts r6 r7 r8 l.jpg

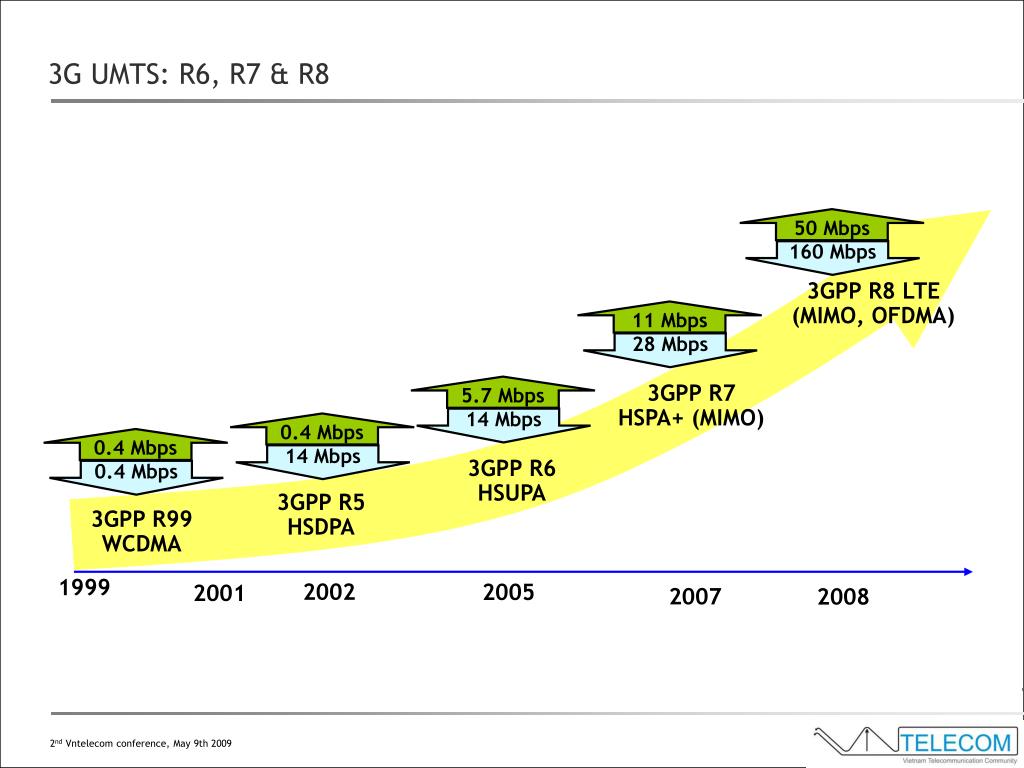

3GPP R8 LTE (MIMO, OFDMA)

3GPP R7 HSPA+ (MIMO)

3GPP R6 HSUPA

3GPP R5 HSDPA

3GPP R99 WCDMA

0.4 Mbps

0.4 Mbps

5.7 Mbps

11 Mbps

50 Mbps

28 Mbps

160 Mbps

0.4 Mbps

14 Mbps

14 Mbps

3G UMTS: R6, R7 & R8

1999

2002

2005

2001

2007

2008


W cdma markets views summary l.jpg

2009

2010

2008

2011

2012

2013+

W-CDMA Markets views Summary

Data growth

HSDPA - HSUPA performance

Advanced HSPA+ features

HSPA accelerating data adoption

HSPA+ aligned with full HSPA+

ecosystem ramp up

HSPA+ enhancements

HSPA+ introduction

IP transport

IP interface addressing Packet data traffic

Step by Step approach :

Smooth E2E evolution towards

full IP of transport architecture

IP interfaces customization & optimization

Full IP transport

Voice over

HSPA

CS Voice over HSPA+ as a first step.

VoIP over HSPA+ and LTE will be deployed in a convergence step

Utran sharing

UMTS 900Mhz

Utran Sharing

MOCN


Benefit of ip transport migration l.jpg

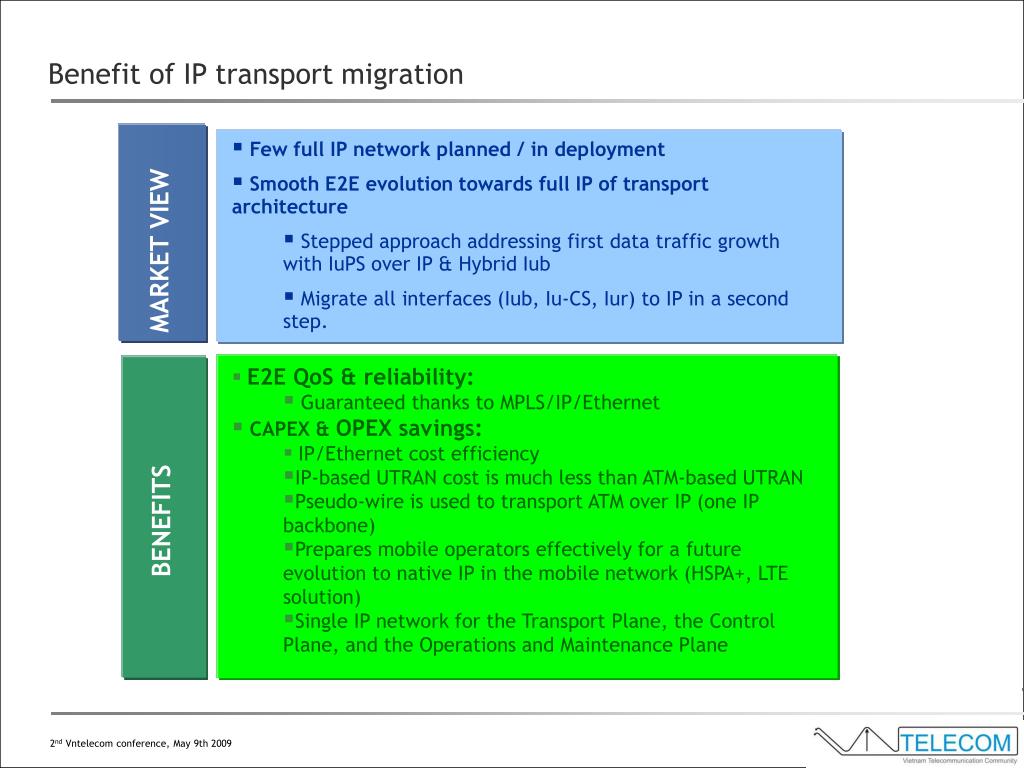

Benefit of IP transport migration

  • Few full IP network planned / in deployment

  • Smooth E2E evolution towards full IP of transport architecture

    • Stepped approach addressing first data traffic growth with IuPS over IP & Hybrid Iub

    • Migrate all interfaces (Iub, Iu-CS, Iur) to IP in a second step.

MARKET VIEW

  • E2E QoS & reliability:

    • Guaranteed thanks to MPLS/IP/Ethernet

  • CAPEX & OPEX savings:

    • IP/Ethernet cost efficiency

    • IP-based UTRAN cost is much less than ATM-based UTRAN

    • Pseudo-wire is used to transport ATM over IP (one IP backbone)

    • Prepares mobile operators effectively for a future evolution to native IP in the mobile network (HSPA+, LTE solution)

    • Single IP network for the Transport Plane, the Control Plane, and the Operations and Maintenance Plane

BENEFITS


Slide16 l.jpg

3

China Unicom: 3G HSPA deployment


China s telecom market overview l.jpg

China’s telecom market overview


China unicom 3rd largest mobile operator in the world l.jpg

China Unicom: 3rd largest mobile operator in the world

  • 3G in China : Three licenses

    • China Mobile: TD-SCDMA

    • China Telecom: Pursue CDMA2000 EV-DO path (howeverchoose LTE for 4G)

    • China Unicom: Choose 3G WCDMA

      • WCDMA vendor: Alcatel-Lucent, in fact Alcatel Shanghai Bell (ASB)

      • WCDMA HSxPA product: last version with hybrid Iub & Iu-PS over IP

      • Core network: Huawei’s MSTP solution

Mobile business market share

Fixed business market share


How can the alu win the contract l.jpg

How can the ALU win the contract?

  • Procurement: ALU (ASB), Ericsson, Huawei, ZTE

    • Each vendor did a trial  China Unicom then made a choice

  • To win this contract, ALU must propose very low price (the same as the one proposed by Huawei)

    • Consider the gain for the long term and from the support

  • The following steps were taken to secure the deal …..

    • Persuade customers

    • Lobby customers

    • Set reasonable price

    • No ASB, ALU cannot win the contract due to political issue (local vendor)


Slide20 l.jpg

Thank you for your attention
