Presentation Transcript


Bose einstein condensation l.jpg

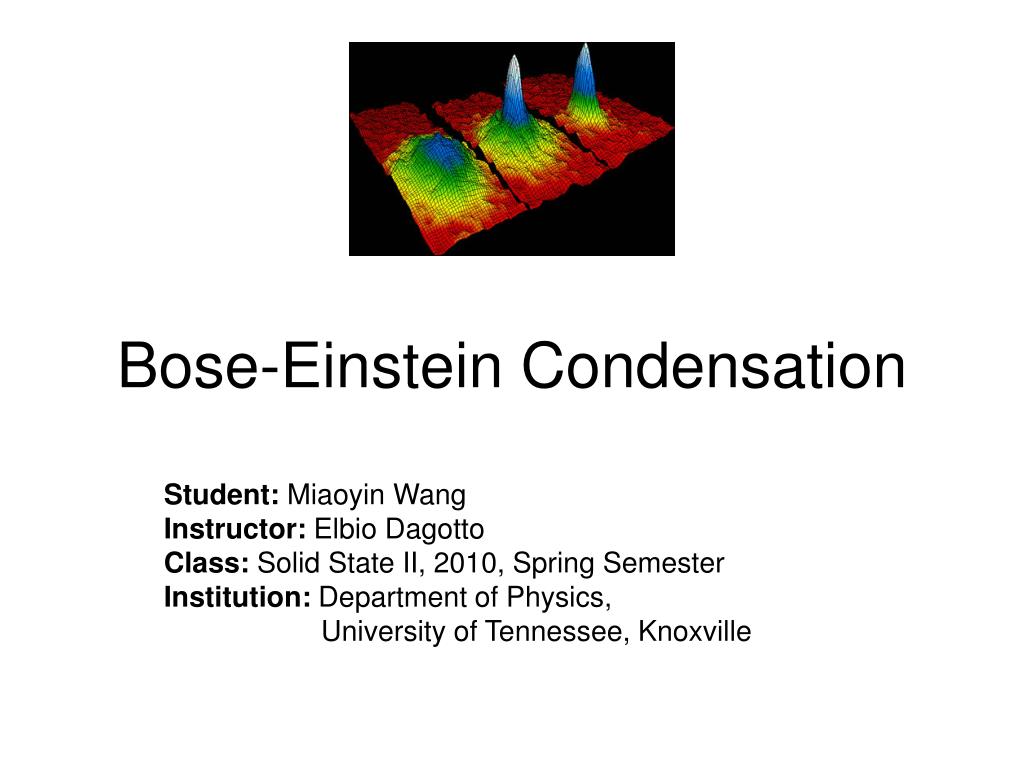

Bose-Einstein Condensation

Student: Miaoyin Wang

Instructor: Elbio Dagotto

Class: Solid State II, 2010, Spring Semester

Institution: Department of Physics,

University of Tennessee, Knoxville


0 structure of presentaton l.jpg

0. Structure of Presentaton

  • Bosons and Bose-Einstein Distribution

  • Bose-Einstein Condensation

  • Experiment Realization of BEC

  • Summary


1 bosons bose einstein distribution l.jpg

1. Bosons & Bose-Einstein Distribution

Bosons!

Q: How to distinguish one object from another?

- Think of daily life object

-Think of microscopic particles


1 bosons bose einstein distribution4 l.jpg

1. Bosons & Bose-Einstein Distribution

Bosons vs Fermions

Bosons – integer spin / no Pauli exclusion

Fermions – half integer spin / Pauli exclusion

Fermions - 1 wayBosons – 10 ways

Classical?


Slide5 l.jpg

1. Bosons & Bose-Einstein Distribution

Bose-Einstein Distribution

For N identical bosons with M available quantum states, there are

ways that the particle can be distributed.

For quantum states with different energies:


Slide6 l.jpg

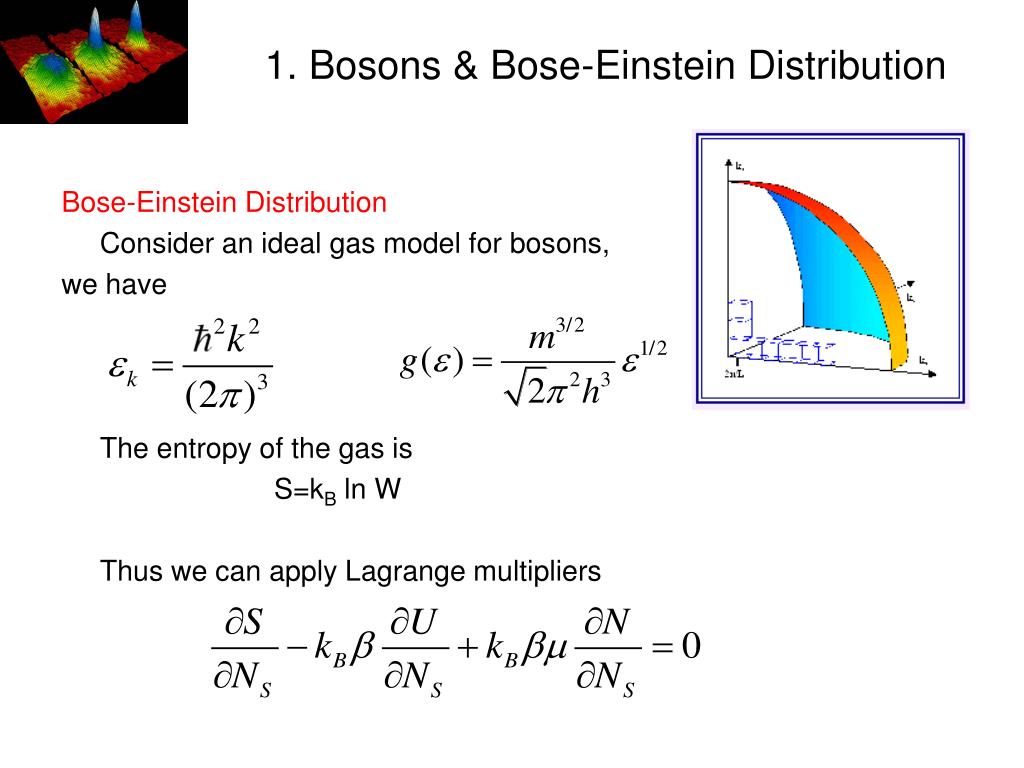

1. Bosons & Bose-Einstein Distribution

Bose-Einstein Distribution

Consider an ideal gas model for bosons,

we have

The entropy of the gas is

S=kB ln W

Thus we can apply Lagrange multipliers


Slide7 l.jpg

1. Bosons & Bose-Einstein Distribution

Bose-Einstein Distribution

Finally, after some calculation, we get

for each energy shell and thus

Bose-Einstein Distribution


Slide8 l.jpg

2. Bose-Einstein Condensation (BEC)

Observe the equation:

>= 0

>= 0

>= 1

(always!)


Slide9 l.jpg

2. Bose-Einstein Condensation (BEC)

Since f(E) is a distribution, it also fulfills

Suppose there is a temperature that

(we are not sure about it!)

Have a try

Temperature


Slide10 l.jpg

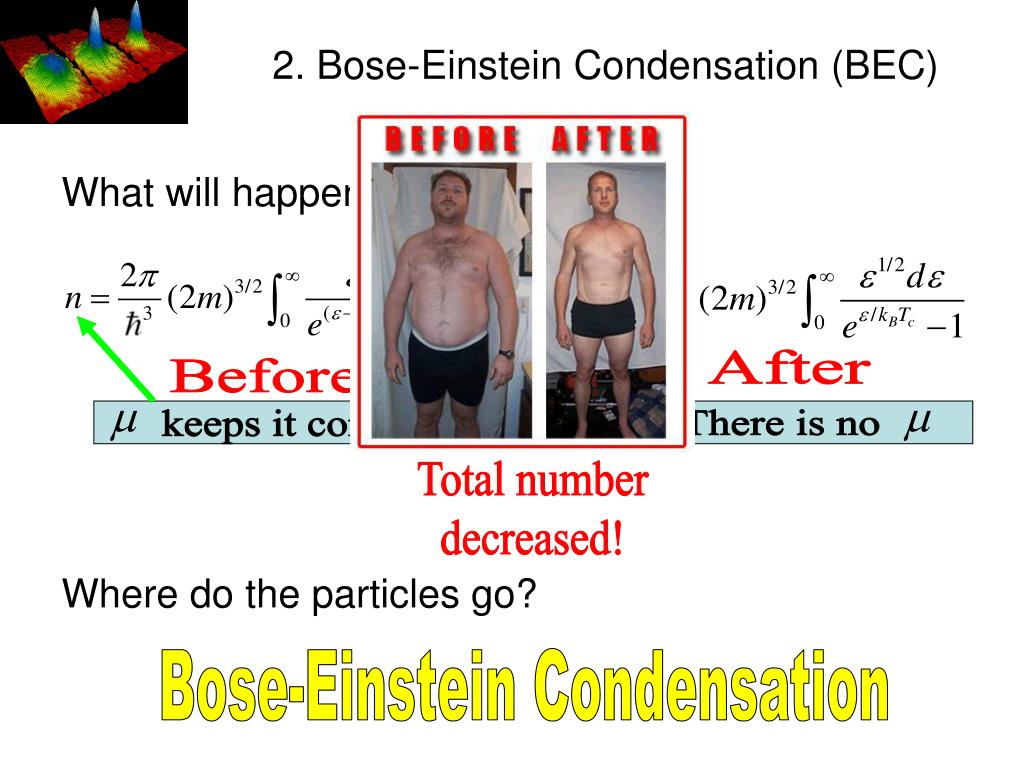

2. Bose-Einstein Condensation (BEC)

What will happen below Tc?

Where do the particles go?

: (

After

Before

keeps it constant

There is no

Total number

decreased!

Bose-Einstein Condensation


Slide11 l.jpg

2. Bose-Einstein Condensation (BEC)

Where do the particles go?


Slide12 l.jpg

3. Experimental BEC

How Tc changes upon n?

To achieve BEC, one can either decrease the temperature or increase the particle density.

A temperature-density phase diagram will help a lot!


Slide13 l.jpg

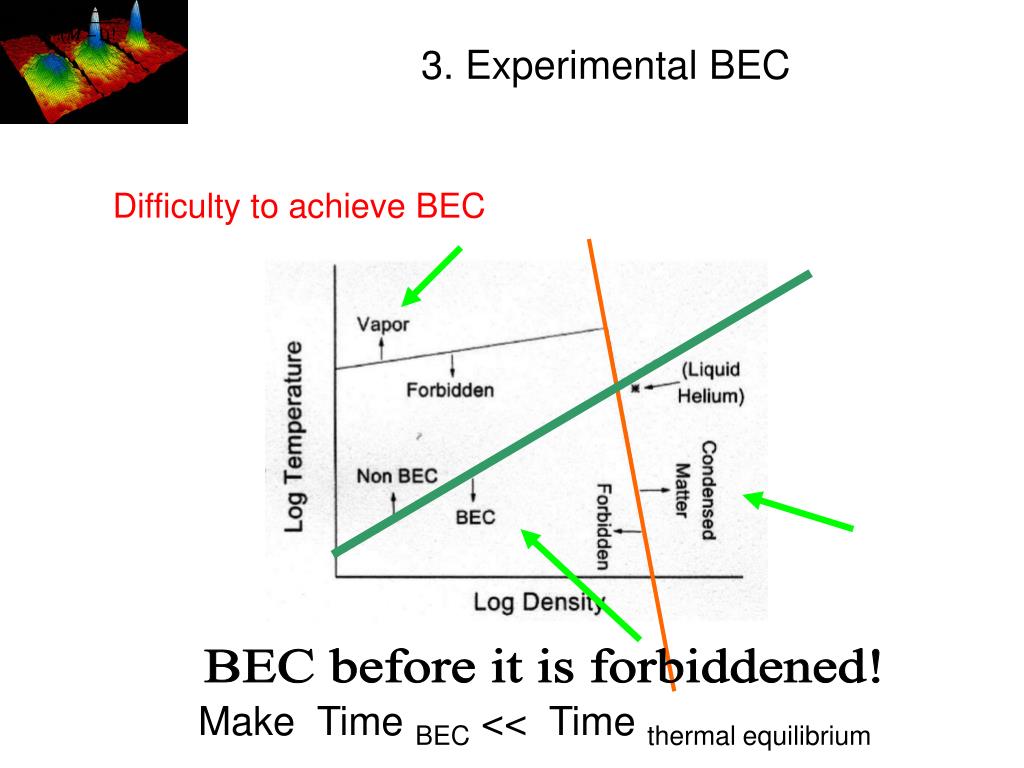

3. Experimental BEC

Difficulty to achieve BEC

BEC before it is forbiddened!

Make Time BEC << Time thermal equilibrium


Slide14 l.jpg

3. Experimental BEC

So: have to do it in a hurry

- Pulsed laser beam as detector

- Magneto-Optical Trap (MOT)

Also: make thermal equilibrium time scale larger

- Choice of atoms – Rubidium 87

Still: very very cold!

- MOT cooling

- Cool by expand


Slide15 l.jpg

3. Experimental BEC

Procedure

Normal method

Laser

MOT

Expand


Slide16 l.jpg

3. Experimental BEC

Result: velocity distribution data

50nK

180nk

1600nk

200nK

400nK


Slide17 l.jpg

3. Experimental BEC

Anisotropy of the data

Due to

Heisenberg Uncertainty Principle (h~x*p)

+

Anisotropy of the space distribution


Slide18 l.jpg

3. Experimental BEC

Other type of BEC in Experiment

  • Superfluid

    ~Helium-4 @ 2.17K

    ~only about 8% of the atoms accumulate in ground state - not a “pure” BEC.

  • Fermions

    ~extremely low temperature

    ~must “pair up” to form compound particles (like molecules or Cooper pairs) that are bosons.

  • Magnons

    ~ a BEC transmission temperature at room temperature

    ~achieved by pumping the magnons into the system and form a high density n


Slide19 l.jpg

4. Summary

  • BEC is predicted early and achieved tens of years later, inspiring a lot of related technologies.

  • BEC in lab is very fragile. Extremely low temperature and density is required.

  • BEC can be useful in very basic physics.

  • It can also be used in ultra-sensitive measurements. (Think of laser)


Slide20 l.jpg

5. References

[1] Superconductivity, Superfluids and Condensates, J.F.Annett, ISBN 7-03-023624-1

[2] Thermodynamics and Statistical Mechanics, Zhicheng Wang, ISBN 7-04-011574-3

[3] Levi, Barbara Goss (2001). "Cornell, Ketterle, and Wieman Share Nobel Prize for Bose–Einstein Condensates". Search & Discovery. Physics Today online. http://www.physicstoday.org/pt/vol-54/iss-12/p14.html.

[4] Bose-Einstein Condensation, Wikipedia,

http://en.wikipedia.org/wiki/Bose%E2%80%93Einstein_condensate#cite_note-nobel-4

[5] M.H. Anderson, J.R. Ensher, M.R. Matthews, C.E. Wieman, and E.A. Cornell (1995). "Observation of Bose–Einstein Condensation in a Dilute Atomic Vapor". Science 269 (5221): 198–201.

[6 ] S. Jochim, M. Bartenstein, A. Altmeyer, G. Hendl, S. Riedl, C. Chin, J. Hecker Denschlag, and R. Grimm (2003). "Bose–Einstein Condensation of Molecules". Science 302 (5653): 2101–2103

[7] Demokritov, S.O.; Demidov, VE; Dzyapko, O; Melkov, GA; Serga, AA; Hillebrands, B; Slavin, AN (2006). "Bose–Einstein condensation of quasi-equilibrium magnons at room temperature under pumping". Nature 443 (7110): 430–433


Thank you l.jpg

Thank you!

Student: Miaoyin Wang

Instructor: Elbio Dagotto

Class: Solid State II, 2010, Spring Semester

Institution: Department of Physics,

University of Tennessee, Knoxville
