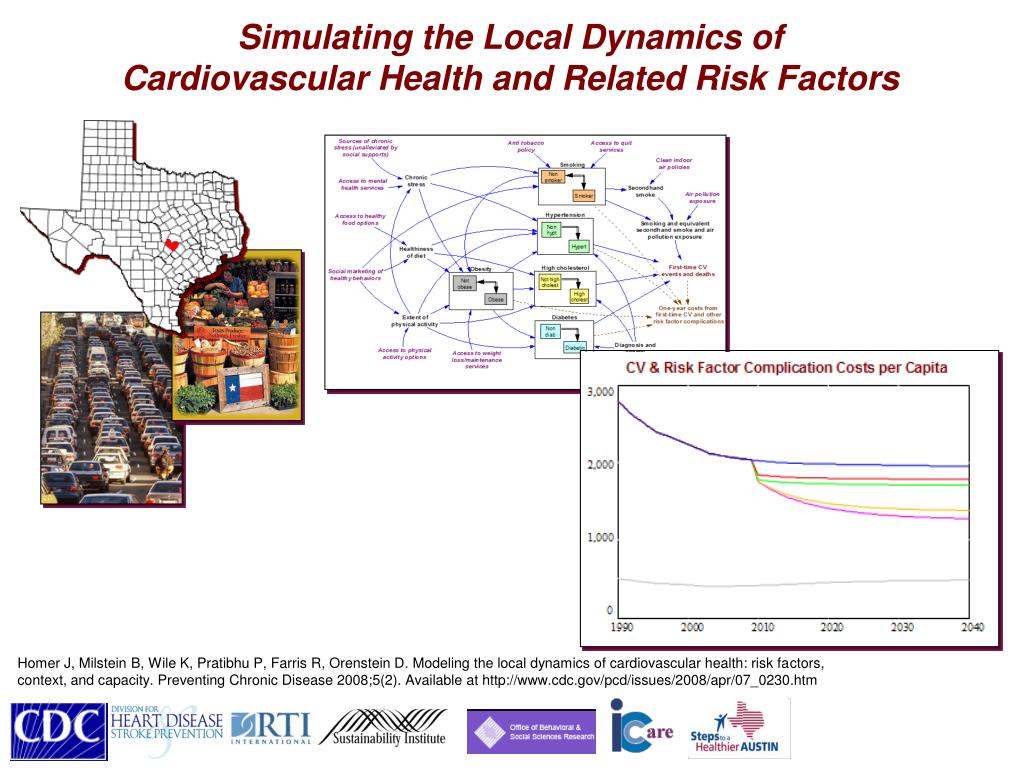

Work in progress simulating the local dynamics of cardiovascular health and related risk factors

Work in ProgressSimulating the Local Dynamics of Cardiovascular Health and Related Risk Factors

Jack Homer

Homer Consulting

[email protected]

Bobby Milstein

Centers for Disease Control and Prevention

[email protected]

University of Michigan Tobacco Modeling Meeting

May 2008

This work was funded by the CDC’s Division for Heart Disease and Stroke Prevention and by the National Institutes of Health’s Office of Behavioral and Social Science Research. The work was done in collaboration with the Health and Human Services Department of Austin/Travis County, Texas, and with Indigent Care Collaboration of Central Texas. The external contractors are Sustainability Institute and RTI International.


Contributors

Core Design Team

CDC: Darwin Labarthe, Diane Orenstein, Bobby Milstein, Marilyn Metzler, Rosanne Farris

Austin: Adolfo Valadez, Phil Huang, Karina Loyo, Rick Schwertfeger, Cindy Batcher, Ella Pugo, Josh Vest

NIH: Patty Mabry

Consultants: Kristina Wile, Jack Homer, Justin Trogdon

Contributors

Organizational Sponsors

  • Austin/Travis County Health and Human Services Department

  • CDC Division for Heart Disease and Stroke Prevention

  • CDC Division of Adult and Community Health

  • CDC Division of Nutrition, Physical Activity, and Obesity

  • CDC Division of Diabetes Translation

  • CDC Office on Smoking and Health

  • CDC NCCDPHP Office of the Director

  • Indigent Care Collaborative (Austin, TX)

  • NIH Office of Behavioral and Social Science Research

  • RTI International

  • Sustainability Institute

  • Texas Department of Health

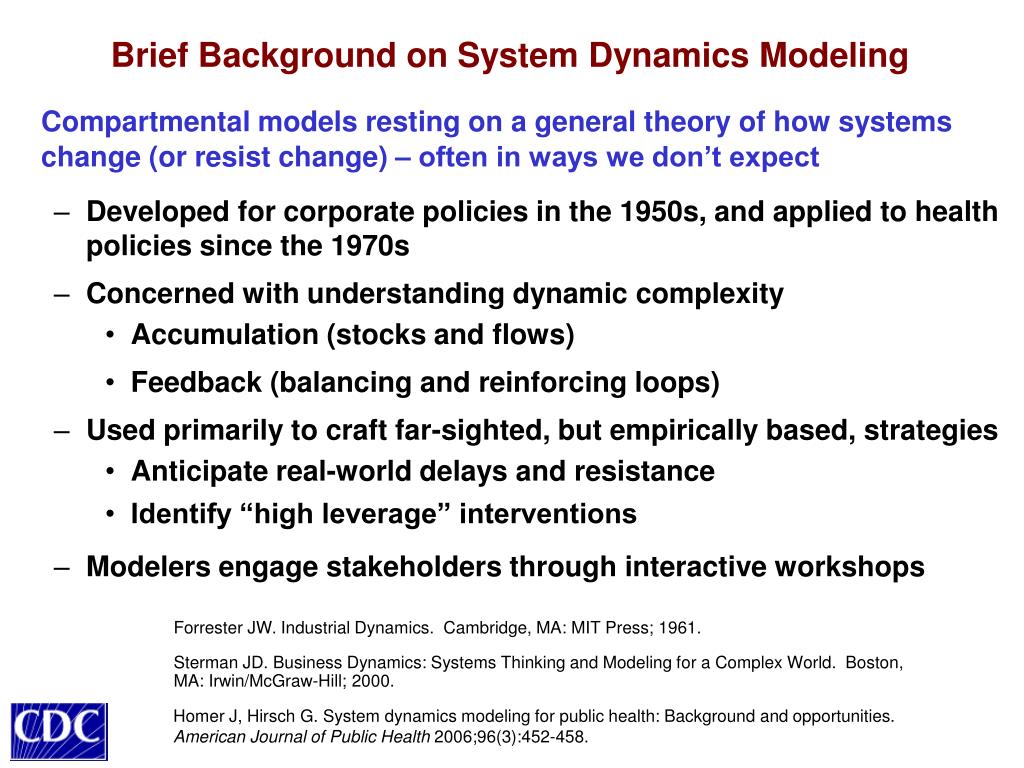

Brief background on system dynamics modeling
Brief Background on System Dynamics Modeling

Compartmental models resting on a general theory of how systems change (or resist change) – often in ways we don’t expect

  • Developed for corporate policies in the 1950s, and applied to health policies since the 1970s

  • Concerned with understanding dynamic complexity

    • Accumulation (stocks and flows)

    • Feedback (balancing and reinforcing loops)

  • Used primarily to craft far-sighted, but empirically based, strategies

    • Anticipate real-world delays and resistance

    • Identify “high leverage” interventions

  • Modelers engage stakeholders through interactive workshops

Forrester JW. Industrial Dynamics. Cambridge, MA: MIT Press; 1961.

Sterman JD. Business Dynamics: Systems Thinking and Modeling for a Complex World. Boston, MA: Irwin/McGraw-Hill; 2000.

Homer J, Hirsch G. System dynamics modeling for public health: Background and opportunities. American Journal of Public Health 2006;96(3):452-458.

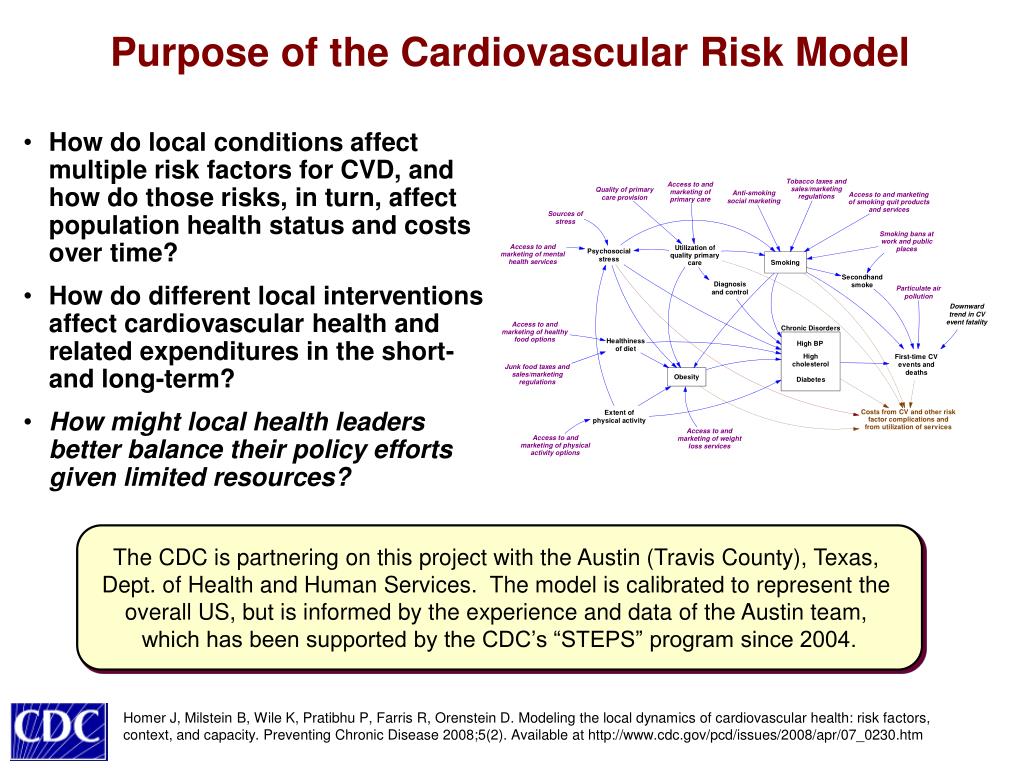

Purpose of the cardiovascular risk model
Purpose of the Cardiovascular Risk Model

  • How do local conditions affect multiple risk factors for CVD, and how do those risks, in turn, affect population health status and costs over time?

  • How do different local interventions affect cardiovascular health and related expenditures in the short- and long-term?

  • How might local health leaders better balance their policy efforts given limited resources?

The CDC is partnering on this project with the Austin (Travis County), Texas,

Dept. of Health and Human Services. The model is calibrated to represent the

overall US, but is informed by the experience and data of the Austin team,

which has been supported by the CDC’s “STEPS” program since 2004.

Homer J, Milstein B, Wile K, Pratibhu P, Farris R, Orenstein D. Modeling the local dynamics of cardiovascular health: risk factors, context, and capacity. Preventing Chronic Disease 2008;5(2). Available at http://www.cdc.gov/pcd/issues/2008/apr/07_0230.htm

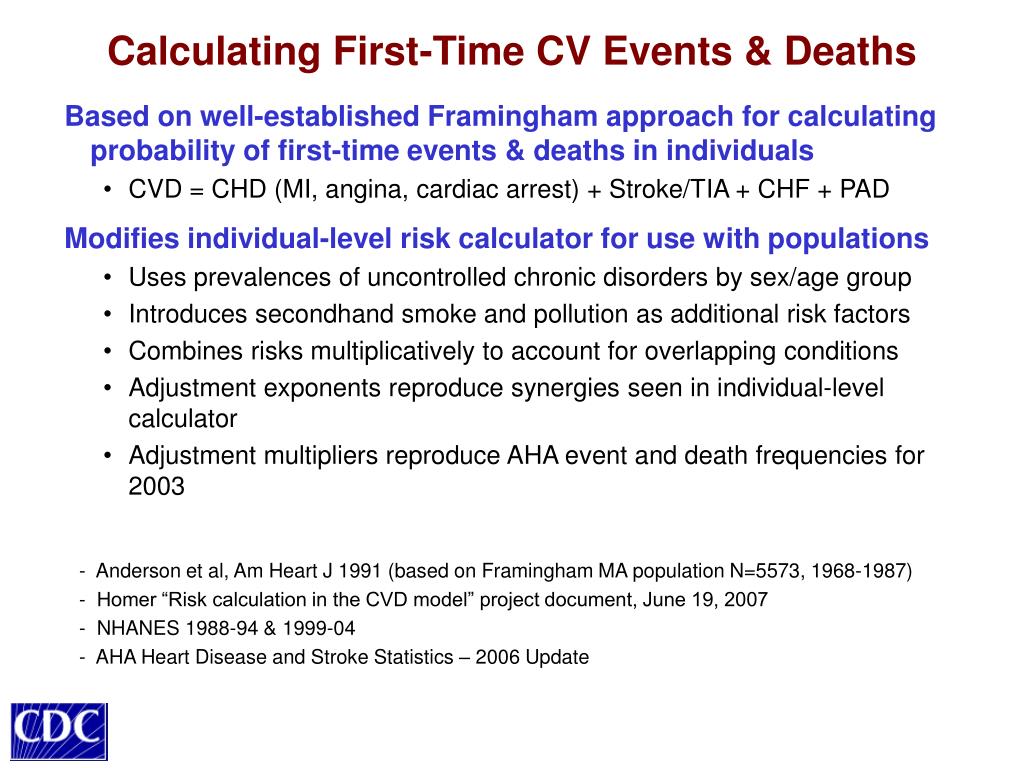

Calculating first time cv events deaths

Based on well-established Framingham approach for calculating probability of first-time events & deaths in individuals

CVD = CHD (MI, angina, cardiac arrest) + Stroke/TIA + CHF + PAD

Modifies individual-level risk calculator for use with populations

Uses prevalences of uncontrolled chronic disorders by sex/age group

Introduces secondhand smoke and pollution as additional risk factors

Combines risks multiplicatively to account for overlapping conditions

Adjustment exponents reproduce synergies seen in individual-level calculator

Adjustment multipliers reproduce AHA event and death frequencies for 2003

- Anderson et al, Am Heart J 1991 (based on Framingham MA population N=5573, 1968-1987)

- Homer “Risk calculation in the CVD model” project document, June 19, 2007

- NHANES 1988-94 & 1999-04

- AHA Heart Disease and Stroke Statistics – 2006 Update

Calculating First-Time CV Events & Deaths

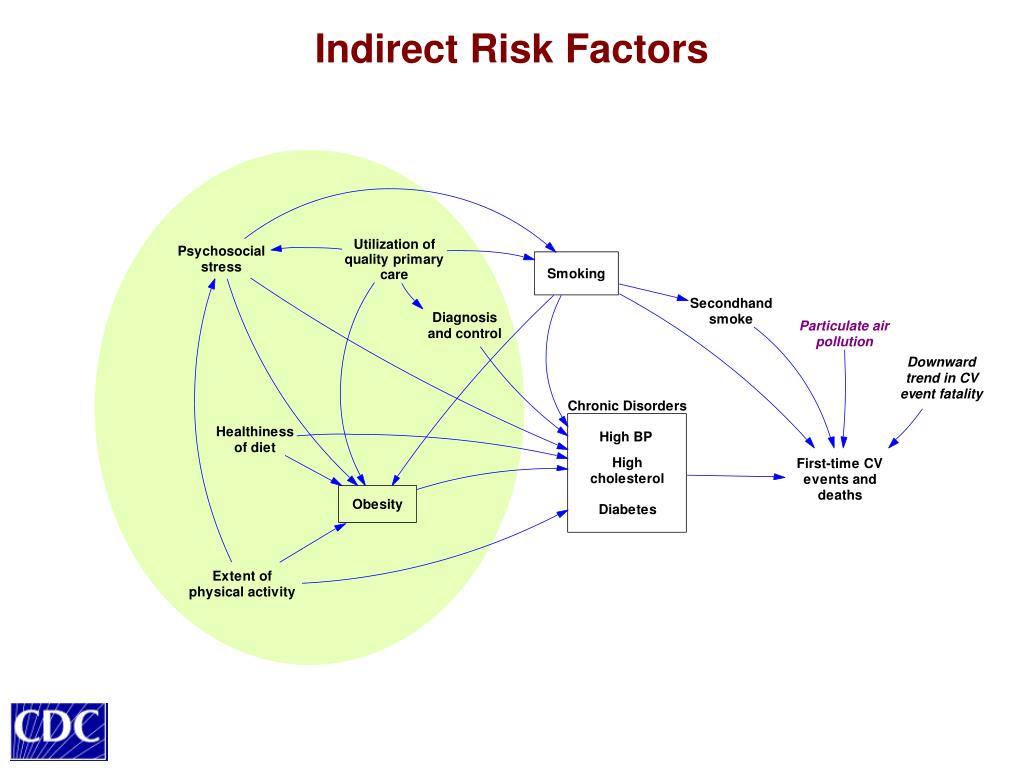

Indirect risk factors
Indirect Risk Factors calculating probability of first-time events & deaths in individuals

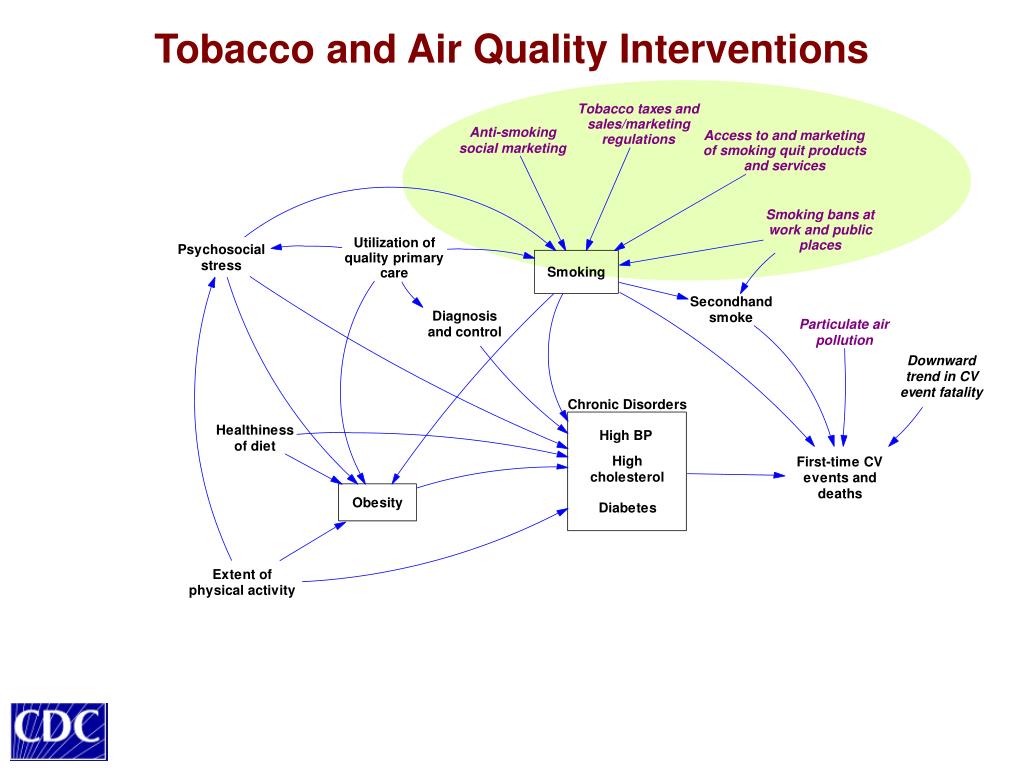

Tobacco and air quality interventions
Tobacco and Air Quality Interventions calculating probability of first-time events & deaths in individuals

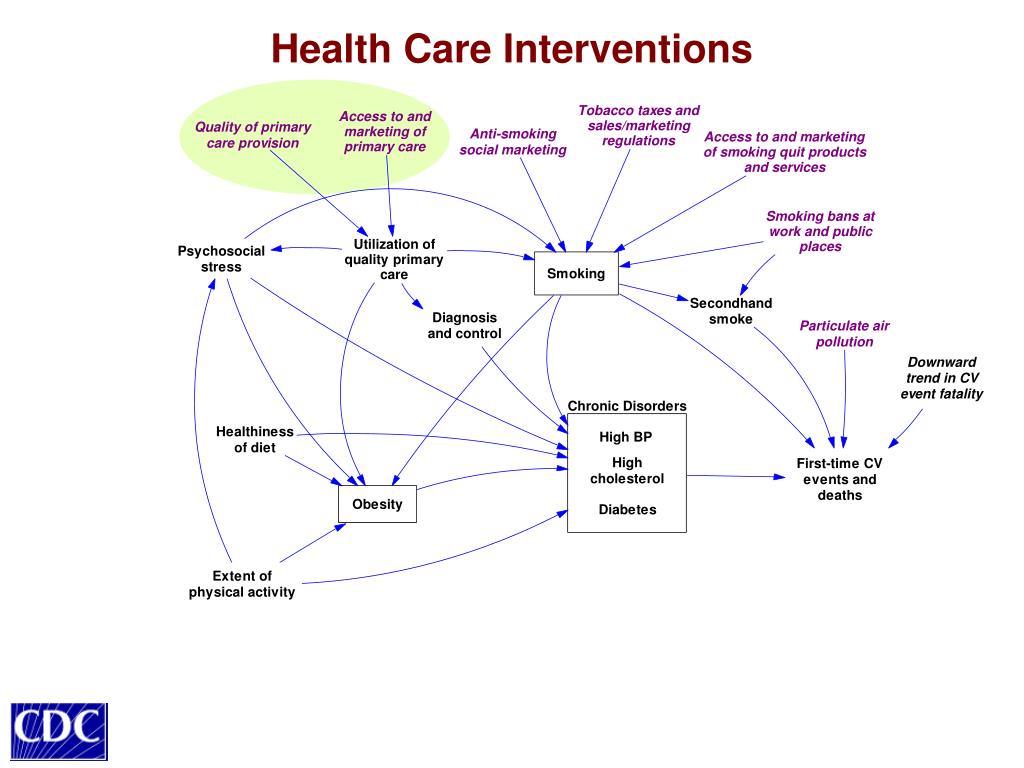

Health care interventions
Health Care Interventions calculating probability of first-time events & deaths in individuals


Interventions affecting stress
Interventions Affecting Stress calculating probability of first-time events & deaths in individuals

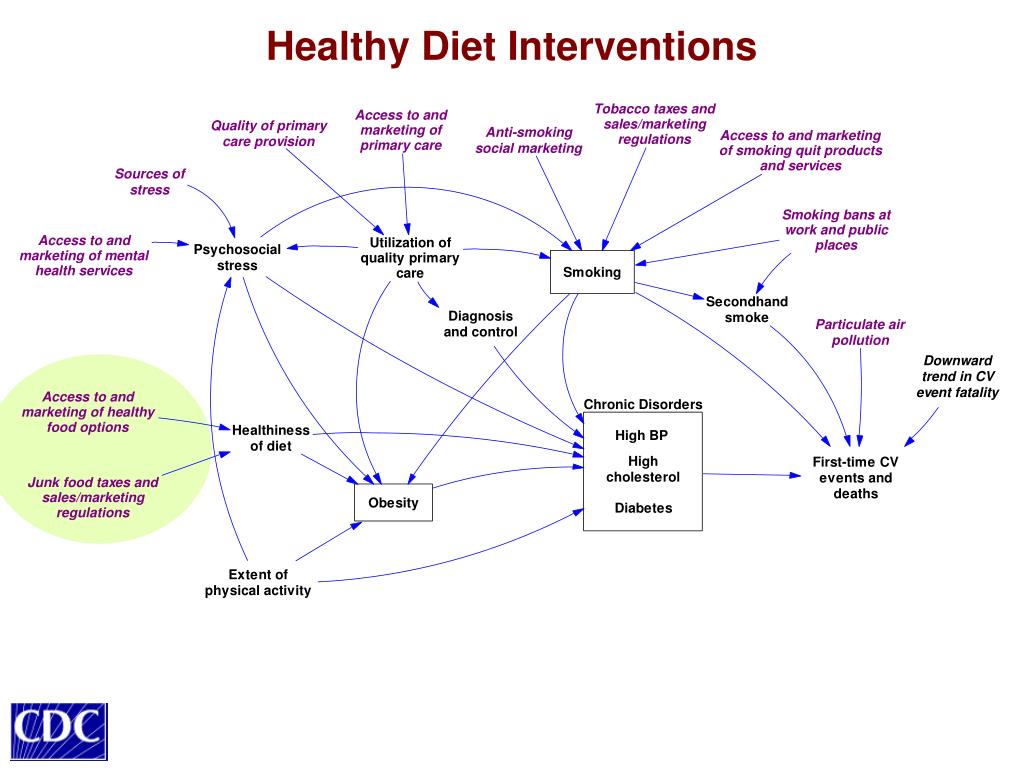

Healthy diet interventions
Healthy Diet Interventions calculating probability of first-time events & deaths in individuals

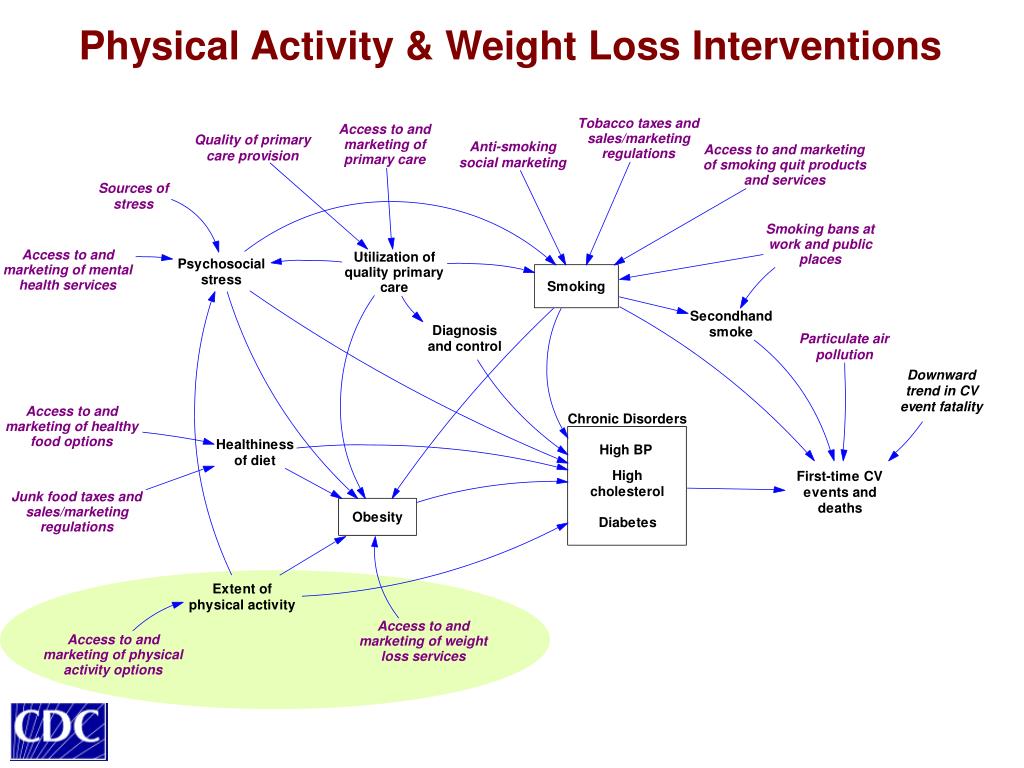

Physical activity weight loss interventions
Physical Activity & Weight Loss Interventions calculating probability of first-time events & deaths in individuals

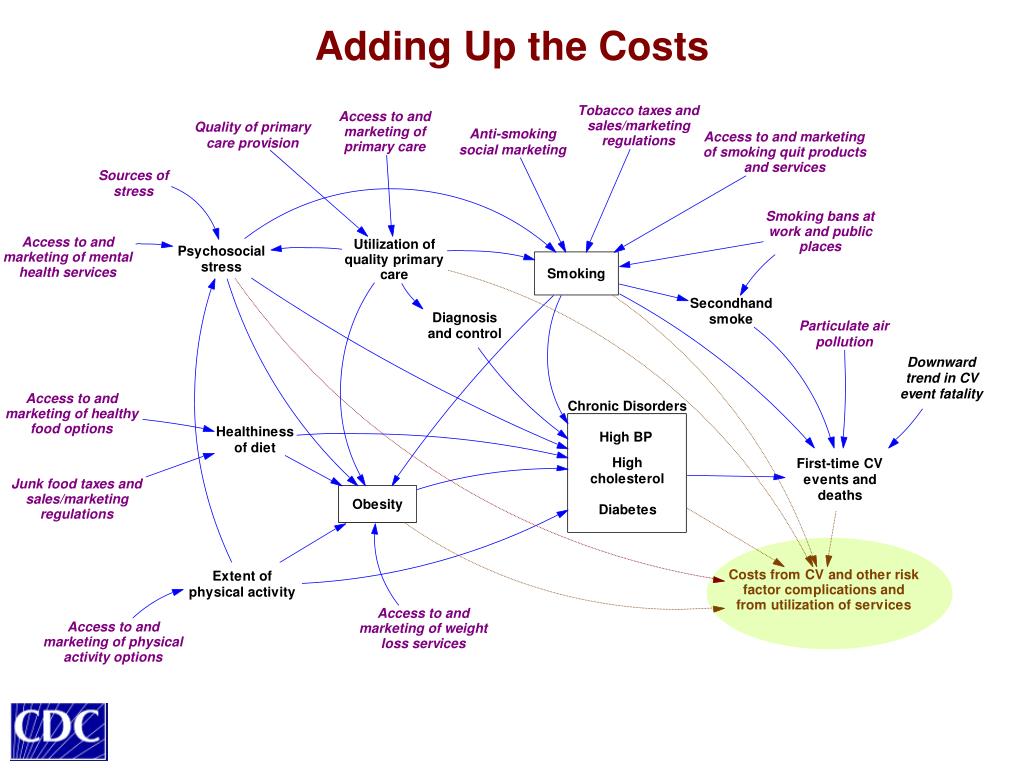

Adding up the costs
Adding Up the Costs calculating probability of first-time events & deaths in individuals

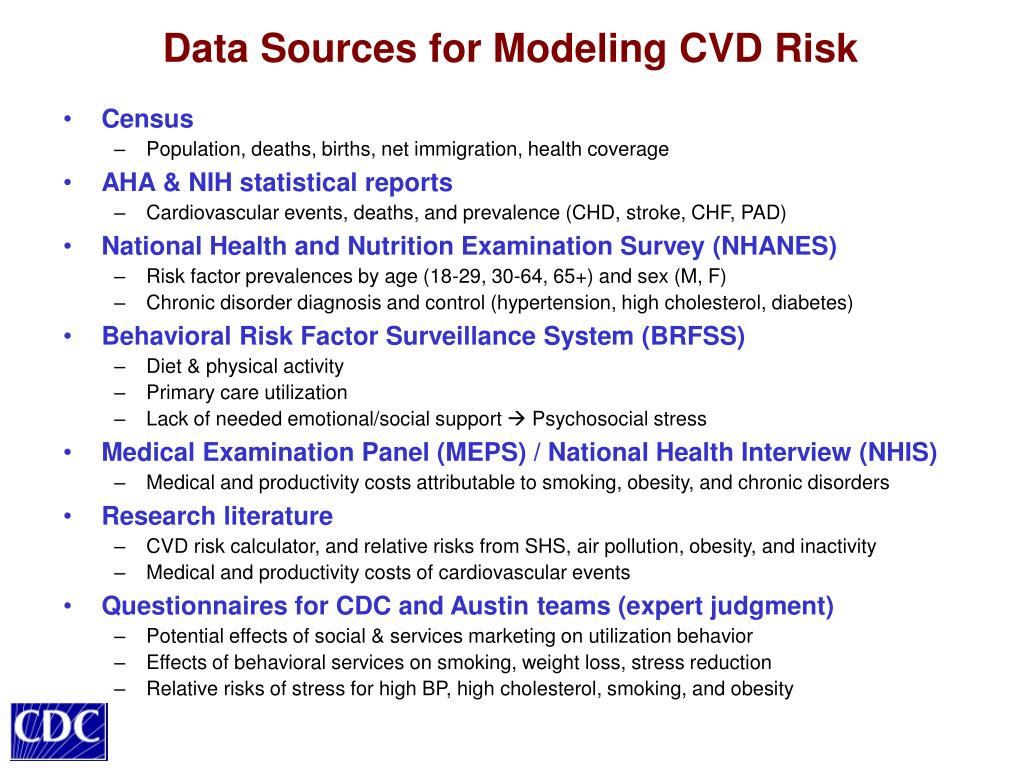

Data sources for modeling cvd risk
Data Sources for Modeling CVD Risk calculating probability of first-time events & deaths in individuals

  • Census

    • Population, deaths, births, net immigration, health coverage

  • AHA & NIH statistical reports

    • Cardiovascular events, deaths, and prevalence (CHD, stroke, CHF, PAD)

  • National Health and Nutrition Examination Survey (NHANES)

    • Risk factor prevalences by age (18-29, 30-64, 65+) and sex (M, F)

    • Chronic disorder diagnosis and control (hypertension, high cholesterol, diabetes)

  • Behavioral Risk Factor Surveillance System (BRFSS)

    • Diet & physical activity

    • Primary care utilization

    • Lack of needed emotional/social support  Psychosocial stress

  • Medical Examination Panel (MEPS) / National Health Interview (NHIS)

    • Medical and productivity costs attributable to smoking, obesity, and chronic disorders

  • Research literature

    • CVD risk calculator, and relative risks from SHS, air pollution, obesity, and inactivity

    • Medical and productivity costs of cardiovascular events

  • Questionnaires for CDC and Austin teams (expert judgment)

    • Potential effects of social & services marketing on utilization behavior

    • Effects of behavioral services on smoking, weight loss, stress reduction

    • Relative risks of stress for high BP, high cholesterol, smoking, and obesity


A status quo baseline scenario
A “status quo” baseline scenario calculating probability of first-time events & deaths in individuals

  • A straightforward starting point for “what if” analysis

    • Assume no changes after 2000 in contextual factors or in risk factor inflow and outflow rates

    • Any changes in risk prevalences after 2000 are due to “bathtub” adjustment and population aging

Obese % of non-CVD popn

  • Result: Past trends continue after 2000, but decelerate and level off

    • Increasing obesity, high BP, and diabetes

    • Decreasing smoking

    • High cholesterol mixed bag by age and sex, flat overall

Uncontrolled hypertension %

of non-CVD popn

Smoking % of non-CVD popn

The model is calibrated to reproduce data from NHANES 1988-94 and 1999-2004 on risk factor prevalences in the non-CVD population by age and sex.

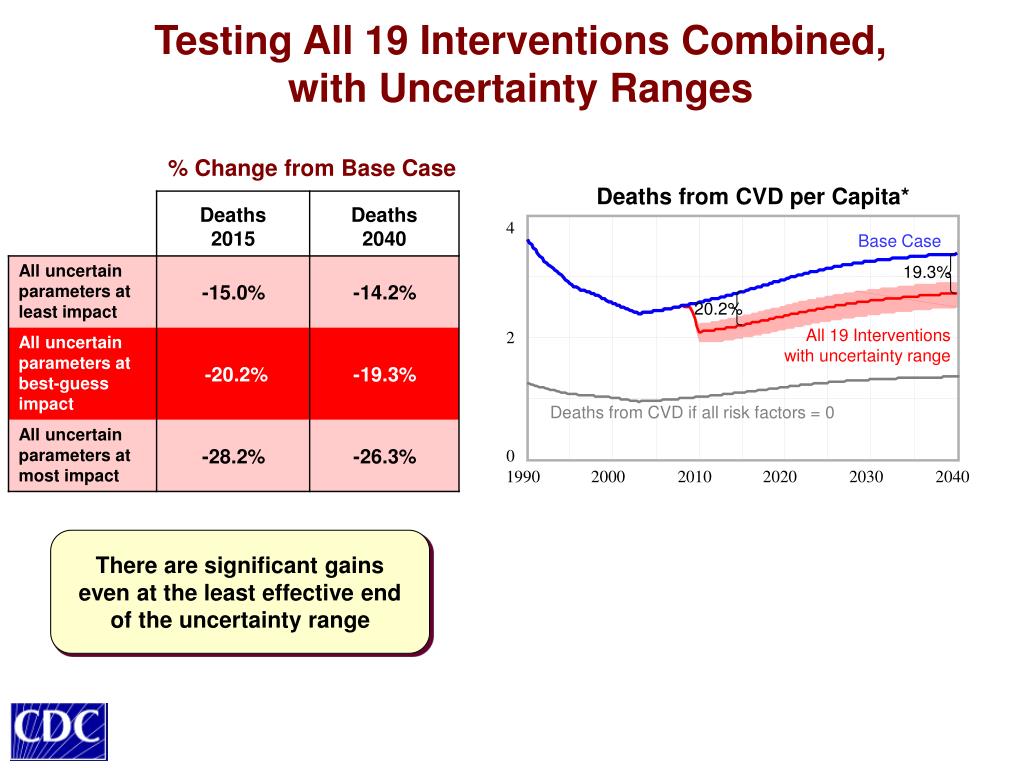

Testing all 19 interventions combined with uncertainty ranges
Testing All 19 Interventions Combined, calculating probability of first-time events & deaths in individualswith Uncertainty Ranges

% Change from Base Case

Deaths from CVD per Capita*

4

Base Case

19.3%

20.2%

All 19 Interventions

with uncertainty range

2

Deaths from CVD if all risk factors = 0

0

1990

2000

2010

2020

2030

2040

There are significant gains even at the least effective end of the uncertainty range

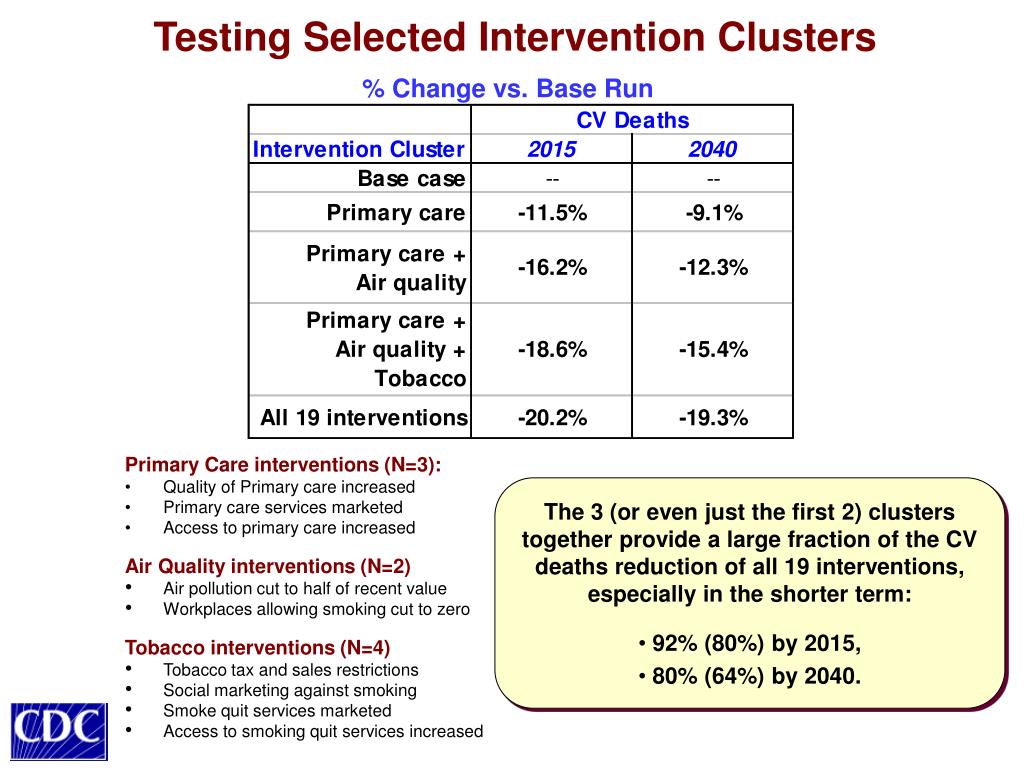

Testing selected intervention clusters
Testing Selected Intervention Clusters calculating probability of first-time events & deaths in individuals

% Change vs. Base Run

Primary Care interventions (N=3):

  • Quality of Primary care increased

  • Primary care services marketed

  • Access to primary care increased

    Air Quality interventions (N=2)

  • Air pollution cut to half of recent value

  • Workplaces allowing smoking cut to zero

    Tobacco interventions (N=4)

  • Tobacco tax and sales restrictions

  • Social marketing against smoking

  • Smoke quit services marketed

  • Access to smoking quit services increased

  • The 3 (or even just the first 2) clusters together provide a large fraction of the CV deaths reduction of all 19 interventions, especially in the shorter term:

  • 92% (80%) by 2015,

  • 80% (64%) by 2040.

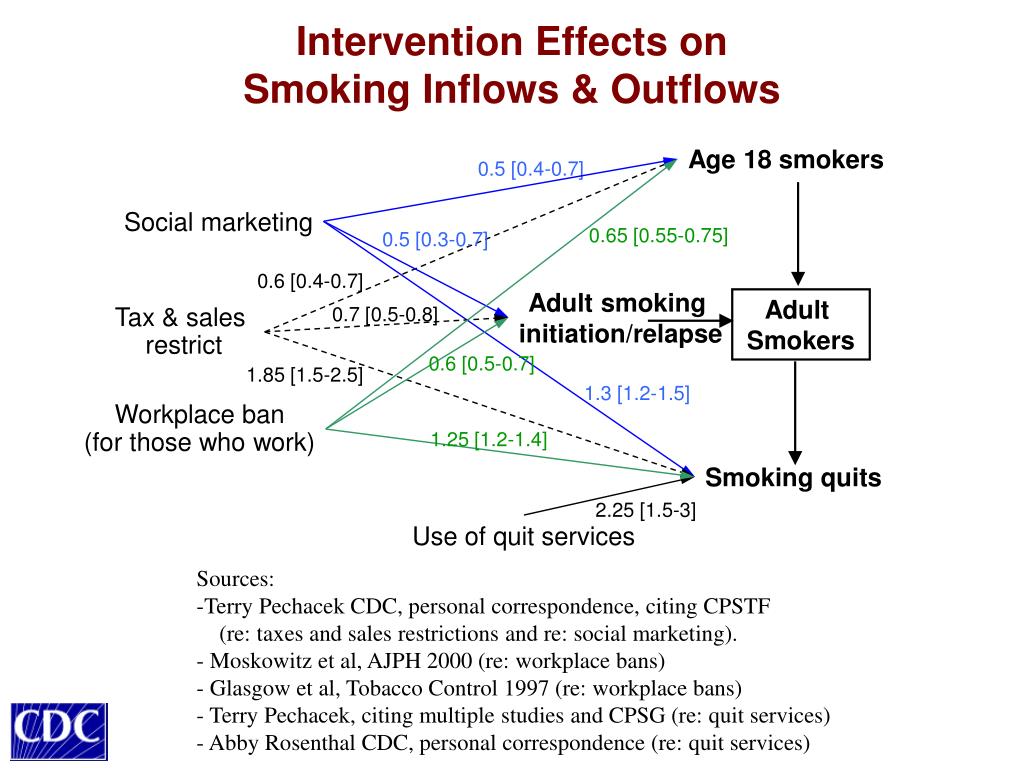

Intervention effects on smoking inflows outflows
Intervention Effects on calculating probability of first-time events & deaths in individualsSmoking Inflows & Outflows

Age 18 smokers

0.5 [0.4-0.7]

Social marketing

0.65 [0.55-0.75]

0.5 [0.3-0.7]

0.6 [0.4-0.7]

Adult smoking

initiation/relapse

Adult

Smokers

0.7 [0.5-0.8]

Tax & sales

restrict

0.6 [0.5-0.7]

1.85 [1.5-2.5]

1.3 [1.2-1.5]

Workplace ban

(for those who work)

1.25 [1.2-1.4]

Smoking quits

2.25 [1.5-3]

Use of quit services

  • Sources:

  • Terry Pechacek CDC, personal correspondence, citing CPSTF

  • (re: taxes and sales restrictions and re: social marketing).

  • Moskowitz et al, AJPH 2000 (re: workplace bans)

  • Glasgow et al, Tobacco Control 1997 (re: workplace bans)

  • Terry Pechacek, citing multiple studies and CPSG (re: quit services)

  • Abby Rosenthal CDC, personal correspondence (re: quit services)

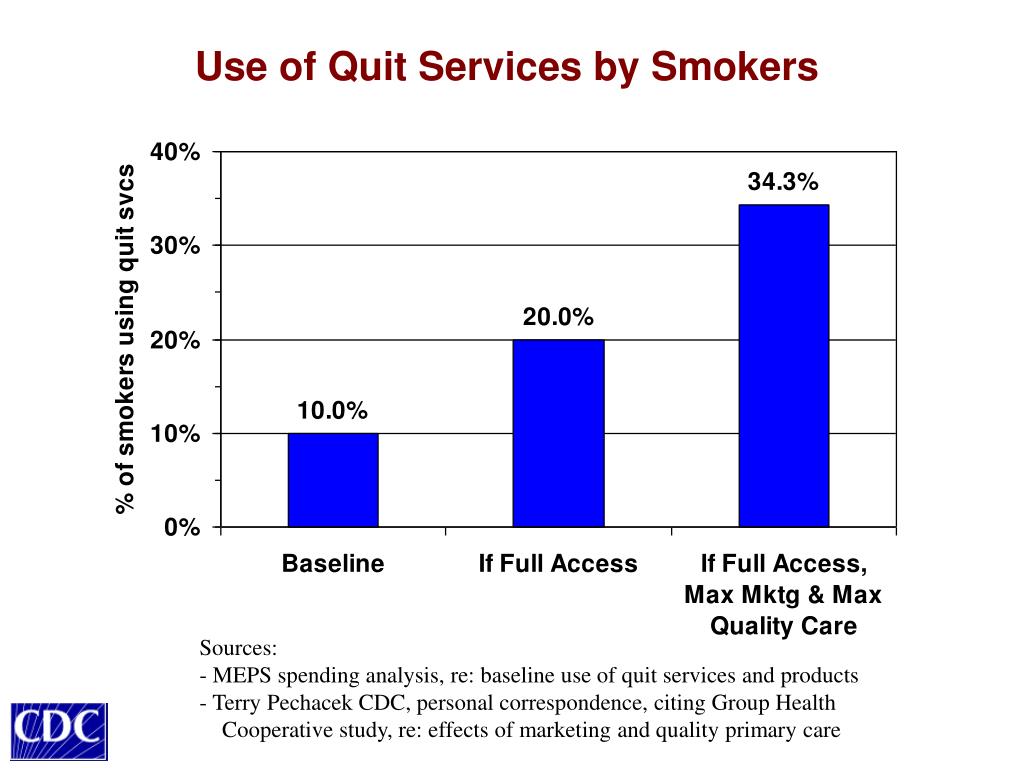

Use of quit services by smokers
Use of Quit Services by Smokers calculating probability of first-time events & deaths in individuals

  • Sources:

  • - MEPS spending analysis, re: baseline use of quit services and products

  • Terry Pechacek CDC, personal correspondence, citing Group Health

  • Cooperative study, re: effects of marketing and quality primary care

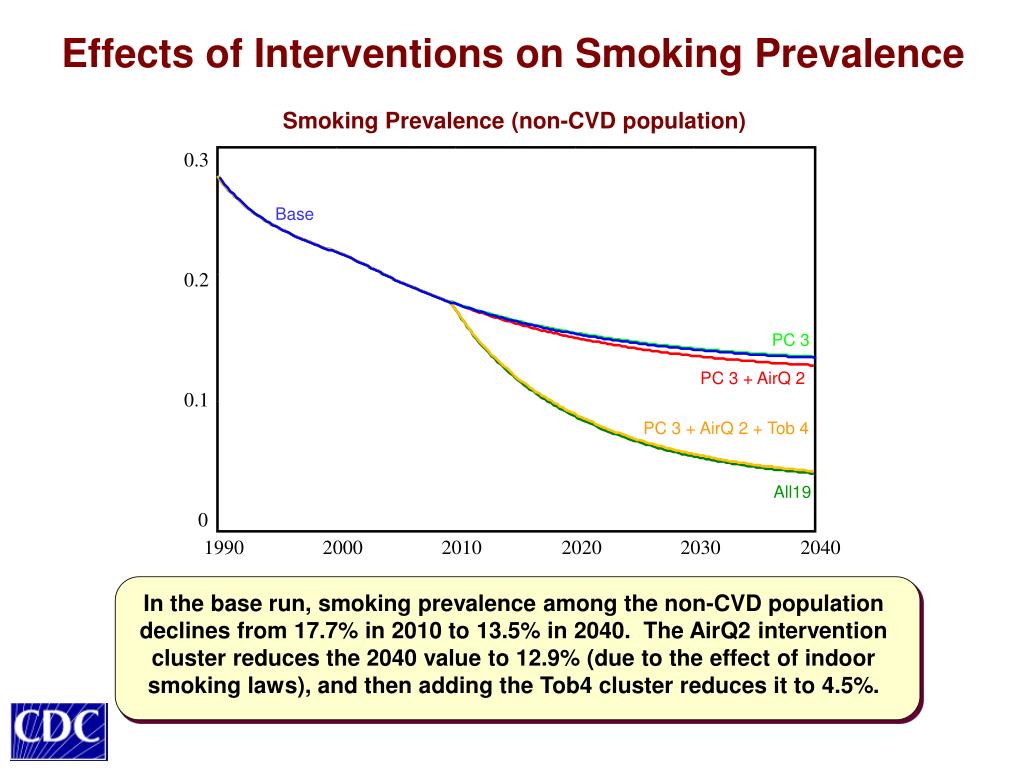

Effects of interventions on smoking prevalence
Effects of Interventions on Smoking Prevalence calculating probability of first-time events & deaths in individuals

Smoking Prevalence (non-CVD population)

0.3

Base

0.2

PC 3

PC 3 + AirQ 2

0.1

PC 3 + AirQ 2 + Tob 4

All19

0

1990

2000

2010

2020

2030

2040

In the base run, smoking prevalence among the non-CVD population declines from 17.7% in 2010 to 13.5% in 2040. The AirQ2 intervention cluster reduces the 2040 value to 12.9% (due to the effect of indoor smoking laws), and then adding the Tob4 cluster reduces it to 4.5%.

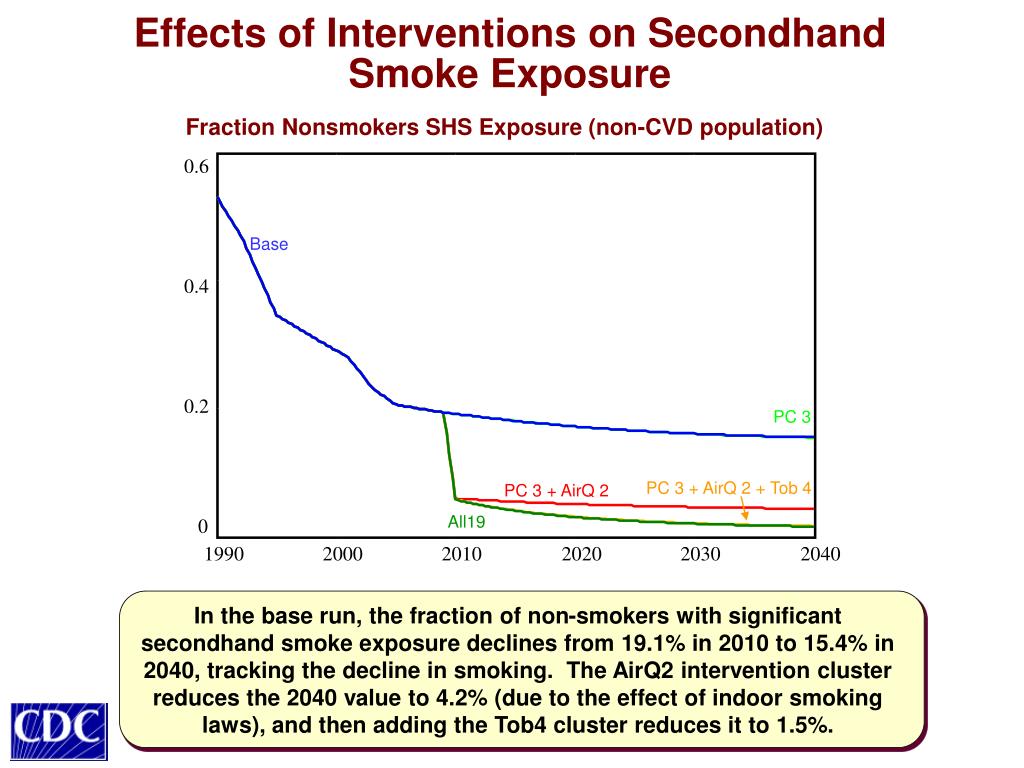

Effects of interventions on secondhand smoke exposure
Effects of Interventions on Secondhand Smoke Exposure calculating probability of first-time events & deaths in individuals

Fraction Nonsmokers SHS Exposure (non-CVD population)

0.6

Base

0.4

0.2

PC 3

PC 3 + AirQ 2 + Tob 4

PC 3 + AirQ 2

All19

0

1990

2000

2010

2020

2030

2040

In the base run, the fraction of non-smokers with significant secondhand smoke exposure declines from 19.1% in 2010 to 15.4% in 2040, tracking the decline in smoking. The AirQ2 intervention cluster reduces the 2040 value to 4.2% (due to the effect of indoor smoking laws), and then adding the Tob4 cluster reduces it to 1.5%.

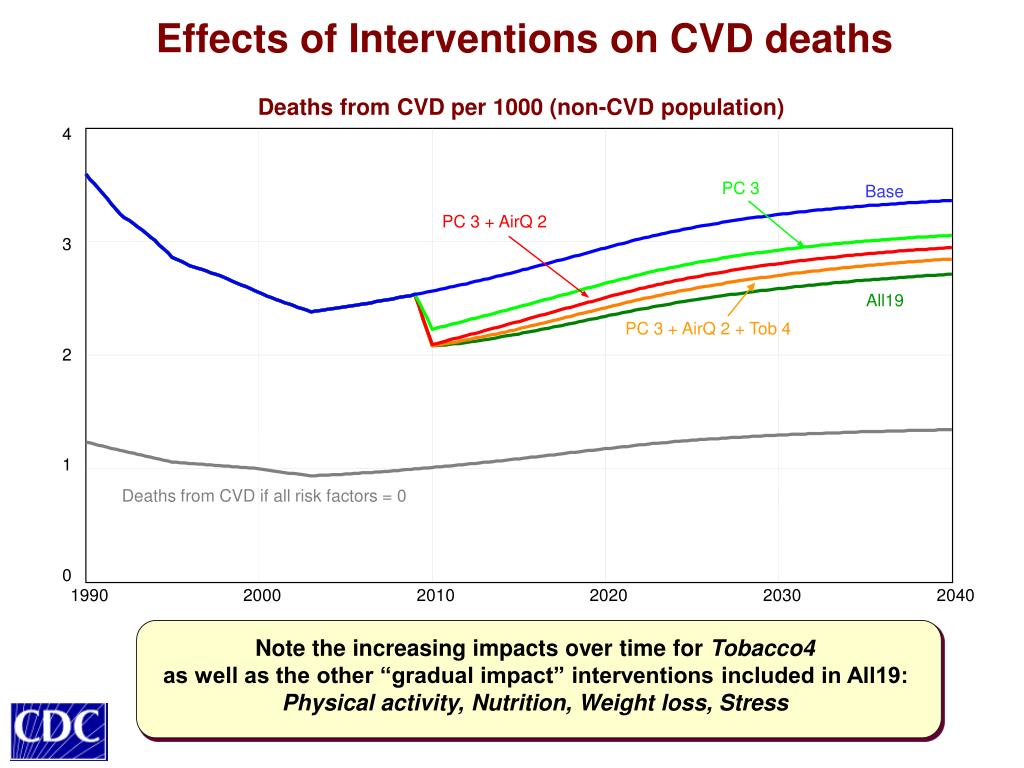

Effects of interventions on cvd deaths
Effects of Interventions on CVD deaths calculating probability of first-time events & deaths in individuals

Note the increasing impacts over time for Tobacco4 as well as the other “gradual impact” interventions included in All19:

Physical activity, Nutrition, Weight loss, Stress

Deaths from CVD per 1000 (non-CVD population)

4

PC 3

Base

PC 3 + AirQ 2

3

All19

PC 3 + AirQ 2 + Tob 4

2

1

Deaths from CVD if all risk factors = 0

0

1990

2000

2010

2020

2030

2040

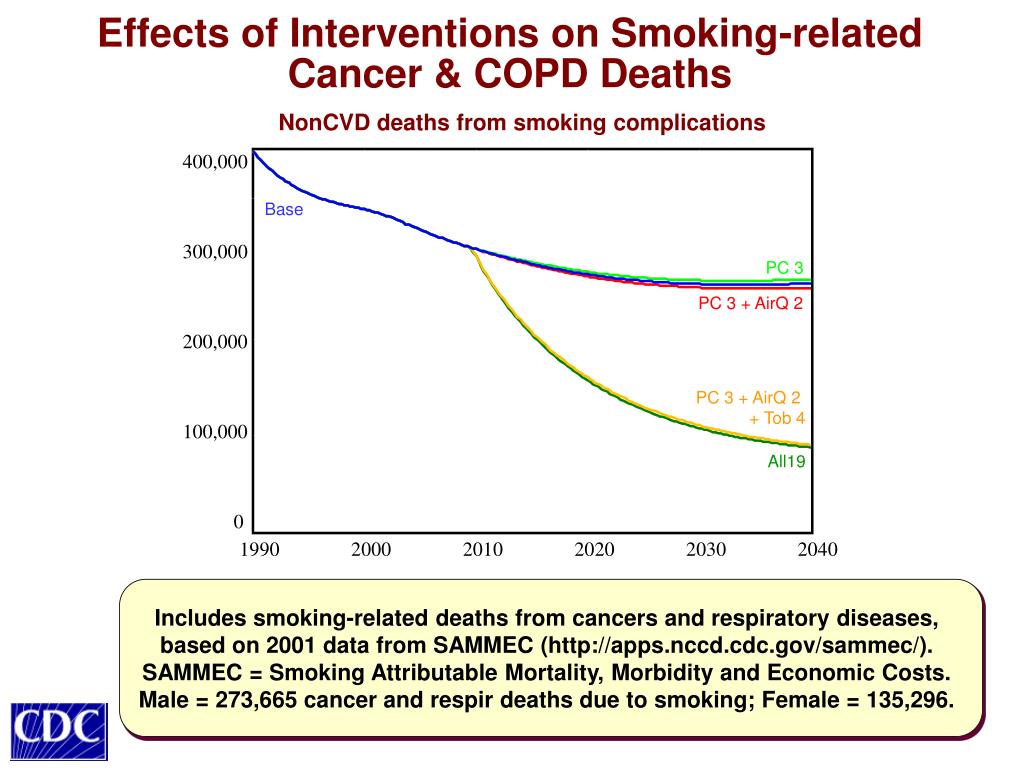

Effects of interventions on smoking related cancer copd deaths
Effects of Interventions on Smoking-related Cancer & COPD Deaths

NonCVD deaths from smoking complications

400,000

Base

300,000

PC 3

PC 3 + AirQ 2

200,000

PC 3 + AirQ 2 + Tob 4

100,000

All19

0

1990

2000

2010

2020

2030

2040

Includes smoking-related deaths from cancers and respiratory diseases, based on 2001 data from SAMMEC (http://apps.nccd.cdc.gov/sammec/). SAMMEC = Smoking Attributable Mortality, Morbidity and Economic Costs. Male = 273,665 cancer and respir deaths due to smoking; Female = 135,296.

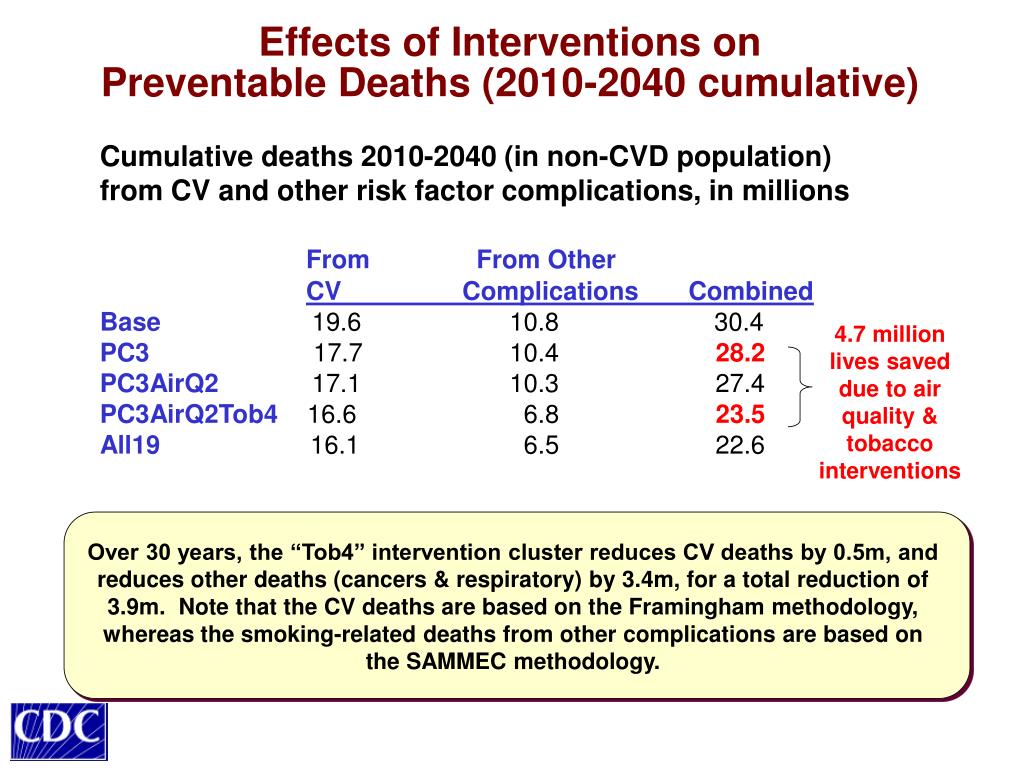

Effects of interventions on preventable deaths 2010 2040 cumulative
Effects of Interventions on DeathsPreventable Deaths (2010-2040 cumulative)

Cumulative deaths 2010-2040 (in non-CVD population)

from CV and other risk factor complications, in millions

From From Other

CV Complications Combined

Base 19.6 10.8 30.4

PC3 17.7 10.4 28.2

PC3AirQ2 17.1 10.3 27.4

PC3AirQ2Tob4 16.6 6.8 23.5

All19 16.1 6.5 22.6

4.7 million lives saved due to air quality & tobacco interventions

Over 30 years, the “Tob4” intervention cluster reduces CV deaths by 0.5m, and reduces other deaths (cancers & respiratory) by 3.4m, for a total reduction of 3.9m. Note that the CV deaths are based on the Framingham methodology, whereas the smoking-related deaths from other complications are based on the SAMMEC methodology.


Effects of interventions on costs of cv events and related risk factor complications
Effects of Interventions on Costs of CV Events Deathsand Related Risk Factor Complications

Complication and Risk Factor Management Costs per Capita

3,000

An average of $321 per capita could be saved—and justified for intervention spending—due to air quality and tobacco interventions

Base

PC 3

PC 3 + AirQ 2

2,000

PC 3 + AirQ2 + Tob 4

All19

1,000

All risk factors = 0

0

1990

2000

2010

2020

2030

2040


Extras
EXTRAS Deaths


Comparing air pollution vs tobacco 5 interventions on deaths and costs
Comparing Air Pollution vs. Tobacco-5 Interventions on Deaths and Costs

CVD and NonCVD deaths from RF complications per 1000

8

6

Base

Air Pollution

4

Tobacco-5

2

0

1990

2000

2010

2020

2030

2040

Complication and Risk Factor Management Costs per Capita

3,000

Base

Air Pollution

2,000

Tobacco-5

1,000

All Risk Factors = 0

0

1990

2000

2010

2020

2030

2040

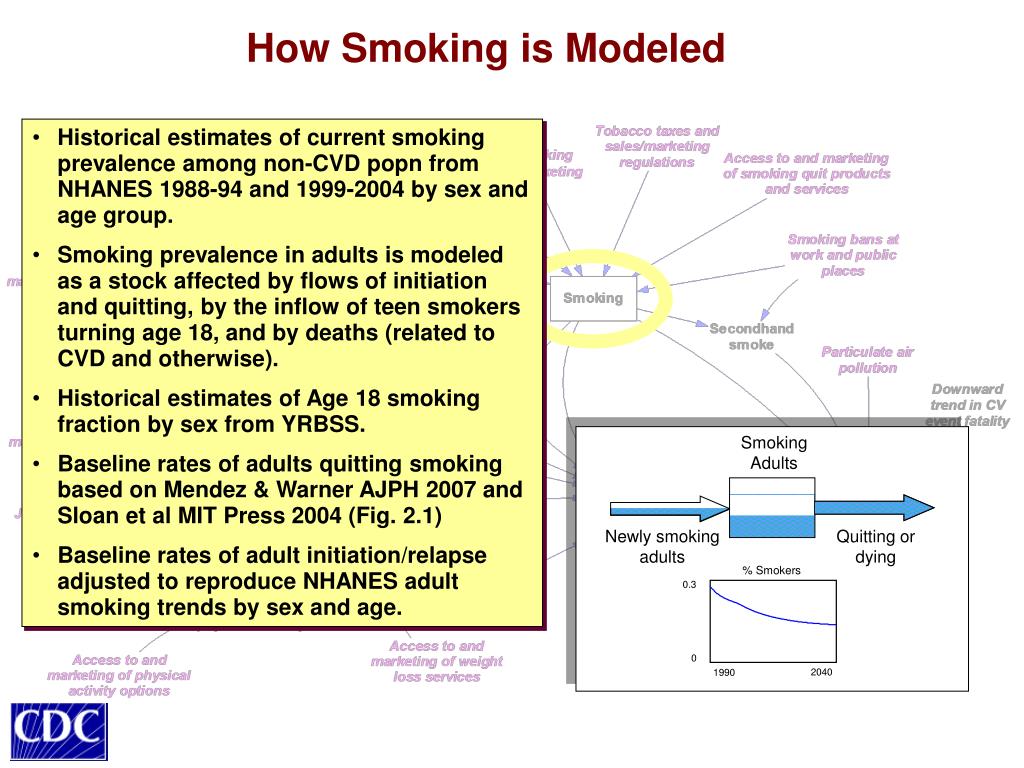

How smoking is modeled
How Smoking is Modeled Deaths and Costs

  • Historical estimates of current smoking prevalence among non-CVD popn from NHANES 1988-94 and 1999-2004 by sex and age group.

  • Smoking prevalence in adults is modeled as a stock affected by flows of initiation and quitting, by the inflow of teen smokers turning age 18, and by deaths (related to CVD and otherwise).

  • Historical estimates of Age 18 smoking fraction by sex from YRBSS.

  • Baseline rates of adults quitting smoking based on Mendez & Warner AJPH 2007 and Sloan et al MIT Press 2004 (Fig. 2.1)

  • Baseline rates of adult initiation/relapse adjusted to reproduce NHANES adult smoking trends by sex and age.

Smoking

Adults

Newly smoking

adults

Quitting or

dying

% Smokers

0.3

0

2040

1990

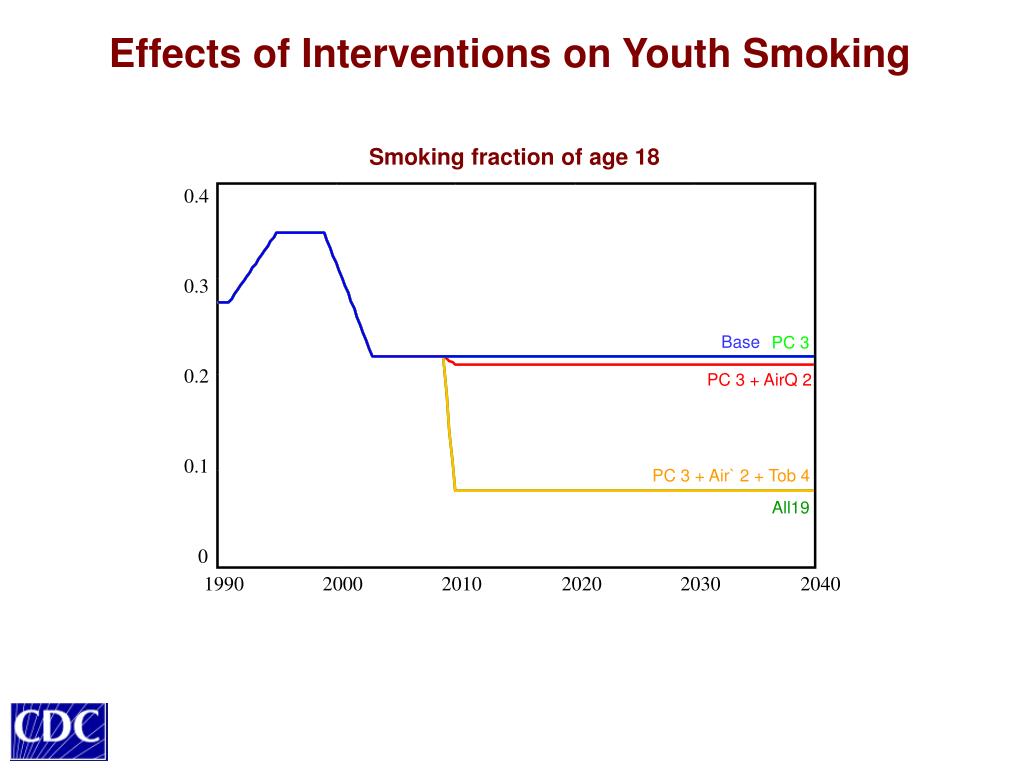

Effects of interventions on youth smoking
Effects of Interventions on Youth Smoking Deaths and Costs

Smoking fraction of age 18

0.4

0.3

Base

PC 3

0.2

PC 3 + AirQ 2

0.1

PC 3 + Air` 2 + Tob 4

All19

0

1990

2000

2010

2020

2030

2040

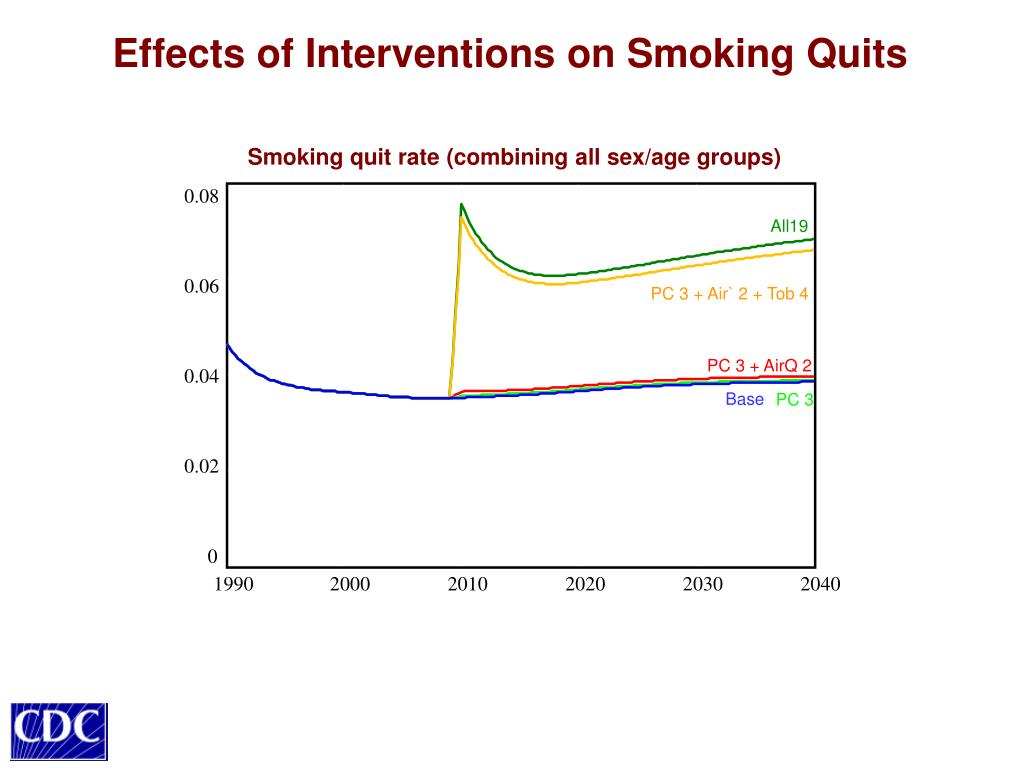

Effects of interventions on smoking quits
Effects of Interventions on Smoking Quits Deaths and Costs

Smoking quit rate (combining all sex/age groups)

0.08

All19

0.06

PC 3 + Air` 2 + Tob 4

PC 3 + AirQ 2

0.04

Base

PC 3

0.02

0

1990

2000

2010

2020

2030

2040


Effects of interventions on use of quit services products by smokers
Effects of Interventions on Use of Quit Services & Products by Smokers

Use of Quit Services & Products by Smokers

0.4

All19

0.3

PC 3 + Air` 2 + Tob 4

0.2

PC 3

0.1

PC 3 + AirQ 2

Base

0

1990

2000

2010

2020

2030

2040


Simulating the local dynamics of cardiovascular health and related risk factors

Simulating the Local Dynamics of by SmokersCardiovascular Health and Related Risk Factors

Homer J, Milstein B, Wile K, Pratibhu P, Farris R, Orenstein D. Modeling the local dynamics of cardiovascular health: risk factors, context, and capacity. Preventing Chronic Disease 2008;5(2). Available at http://www.cdc.gov/pcd/issues/2008/apr/07_0230.htm


ad
