  1. Security of Wireless LAN ’01. 9. 20 Seongtaek Chee (NSRI) NSRI

  2. Contents • Introduction • WEP • 802.11 Security • What’s Wrong • Solutions • Conclusions NSRI

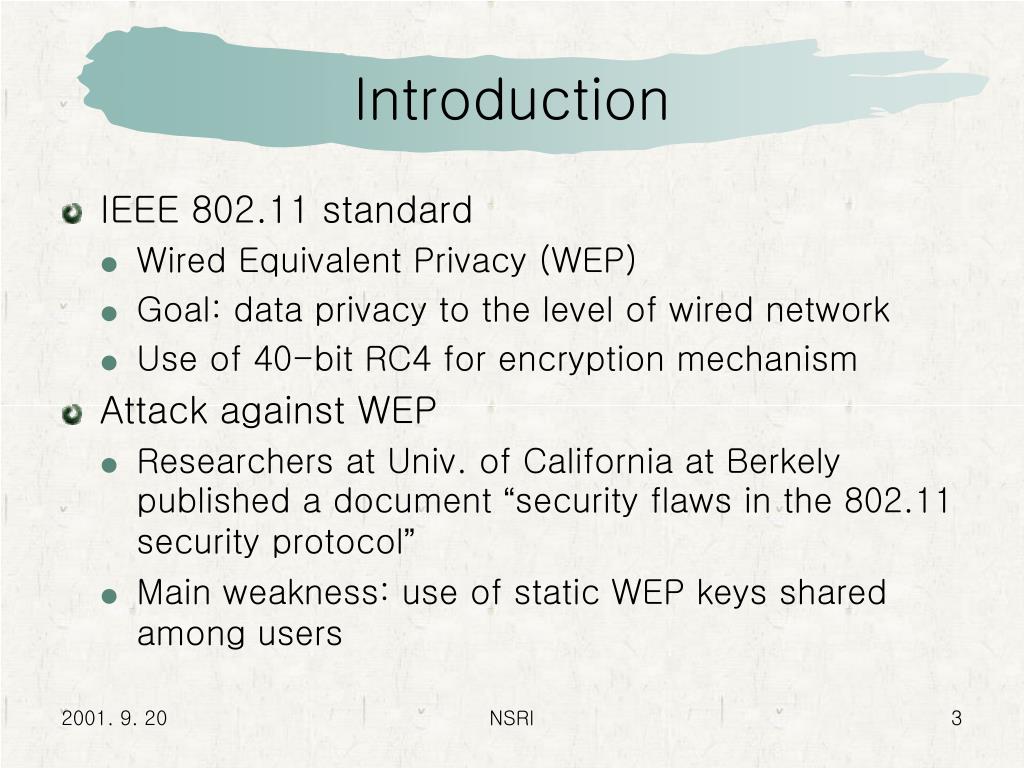

  3. Introduction • IEEE 802.11 standard • Wired Equivalent Privacy (WEP) • Goal: data privacy to the level of wired network • Use of 40-bit RC4 for encryption mechanism • Attack against WEP • Researchers at Univ. of California at Berkely published a document “security flaws in the 802.11 security protocol” • Main weakness: use of static WEP keys shared among users NSRI

  4. Wireless LAN WEP (wireless network infrastructure) NSRI

  5. Security Goal • Confidentiality: the fundamental goal of WEP is to prevent casual eavesdropping • Access control: to protect access to a wireless network infrastructure* • Data integrity: to prevent tampering with transmitted messages** * 802.11 standard includes an optional feature to discard all packets that are not properly encrypted using WEP, and manufacturers advertise the ability of WEP to provide access control ** the integrity checksum field is included for this purpose NSRI

  6. WEP Encryption RC4 IV(24-bit) K(40-bit) Plain-text Cipher-text NSRI

  7. Encrypted WEP Frame Plain-text Message CRC Keystream = RC4(IV, K) IV Cipher-text Transmitted Data NSRI

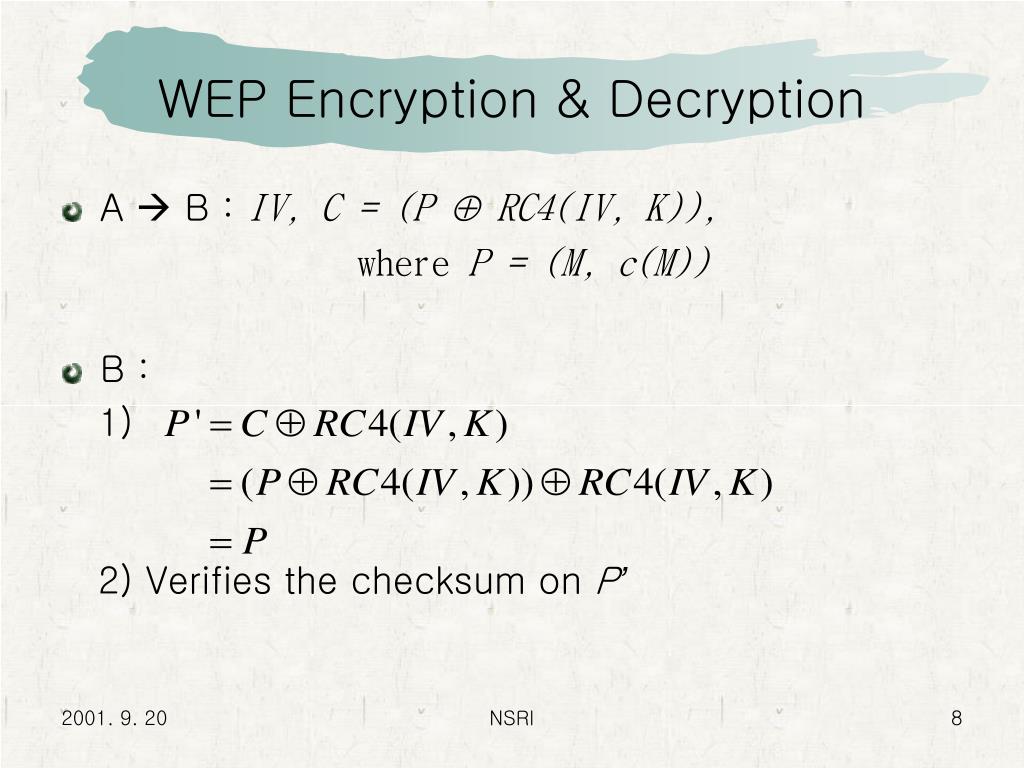

  8. WEP Encryption & Decryption • A  B : IV, C = (P  RC4(IV, K)), where P = (M, c(M)) • B : 1) 2) Verifies the checksum on P’ NSRI

  9. WEP Encapsulation Summary • Encryption Algorithm = RC4 • Per-packet encryption key = 24-bit IV concatenated to a pre-shared key • WEP allows IV to be reused with any frame • Data integrity provided by CRC-32 of the plaintext data (the “IV”) • Data and IV are encrypted under the per-packet encryption key NSRI

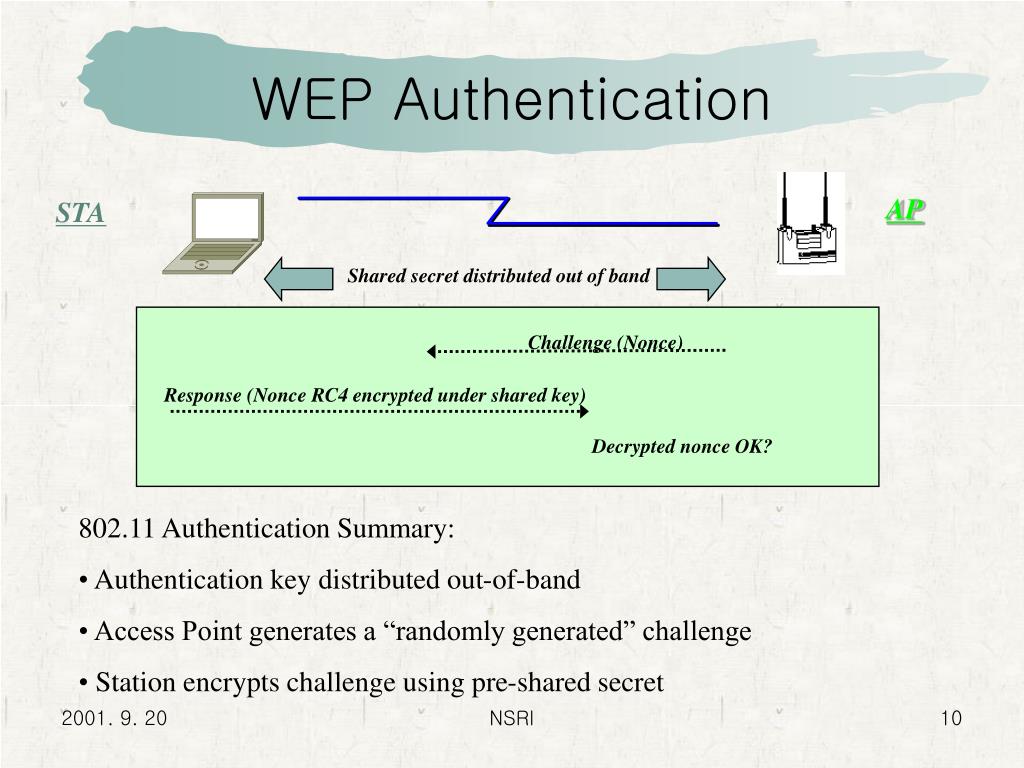

  10. Shared secret distributed out of band Challenge (Nonce) Response (Nonce RC4 encrypted under shared key) WEP Authentication AP STA Decrypted nonce OK? • 802.11 Authentication Summary: • Authentication key distributed out-of-band • Access Point generates a “randomly generated” challenge • Station encrypts challenge using pre-shared secret NSRI

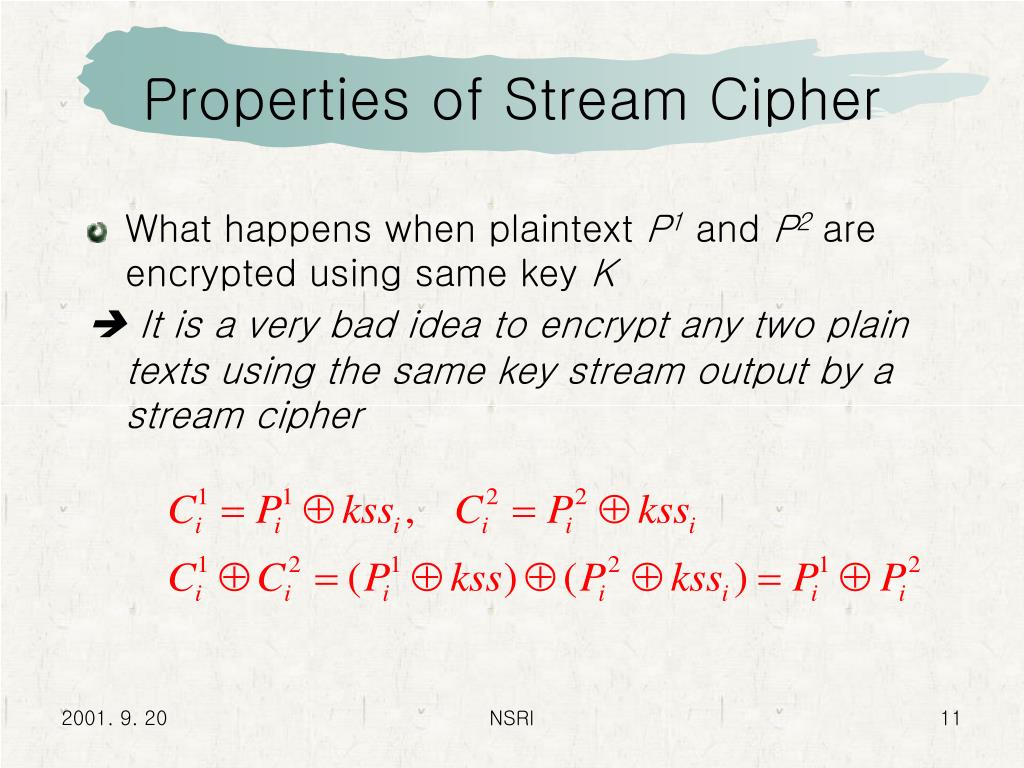

  11. Properties of Stream Cipher • What happens when plaintext P1 and P2 are encrypted using same key K  It is a very bad idea to encrypt any two plain texts using the same key stream output by a stream cipher NSRI

  12. Keystream reuse • Key is fixed shared secret, that changes rarely if ever • In fact, in many setups, every user shares the same key • So the keystream depends only on IV • If two packets ever get transmitted with the same IV, you reuse the keystream value, which is bad • Since IV gets transmitted in the clear for each packet, the adversary can even easily tell when a value of IV is reused(a “collision”) NSRI

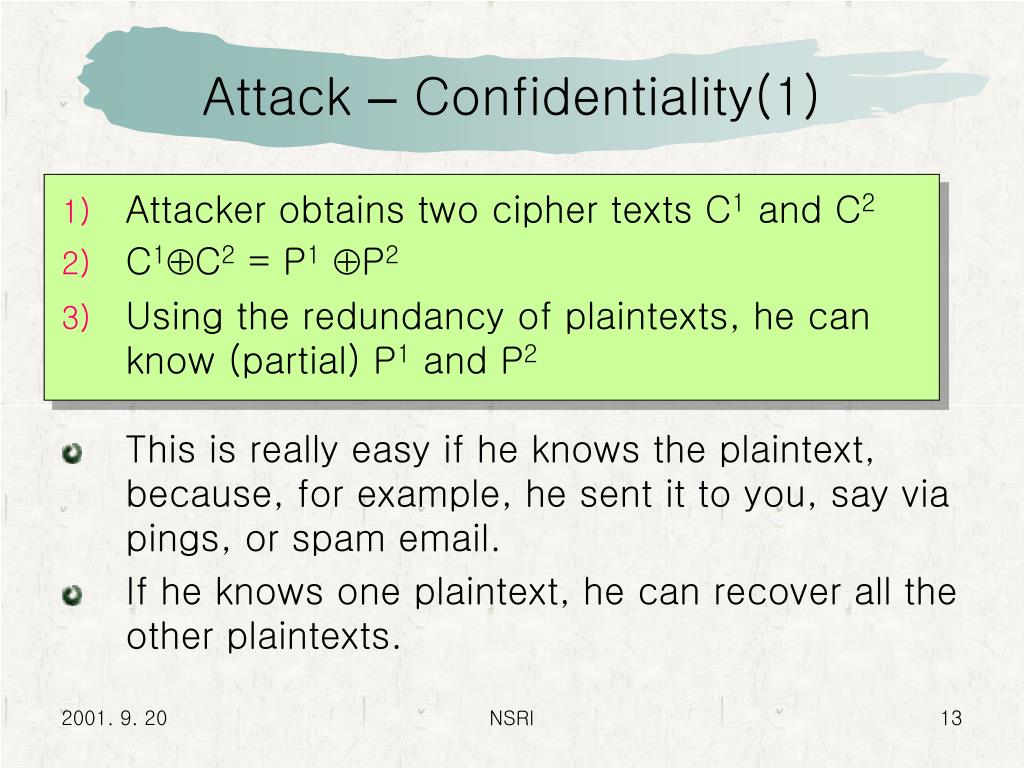

  13. Attack – Confidentiality(1) • Attacker obtains two cipher texts C1 and C2 • C1C2 = P1 P2 • Using the redundancy of plaintexts, he can know (partial) P1 and P2 • This is really easy if he knows the plaintext, because, for example, he sent it to you, say via pings, or spam email. • If he knows one plaintext, he can recover all the other plaintexts. NSRI

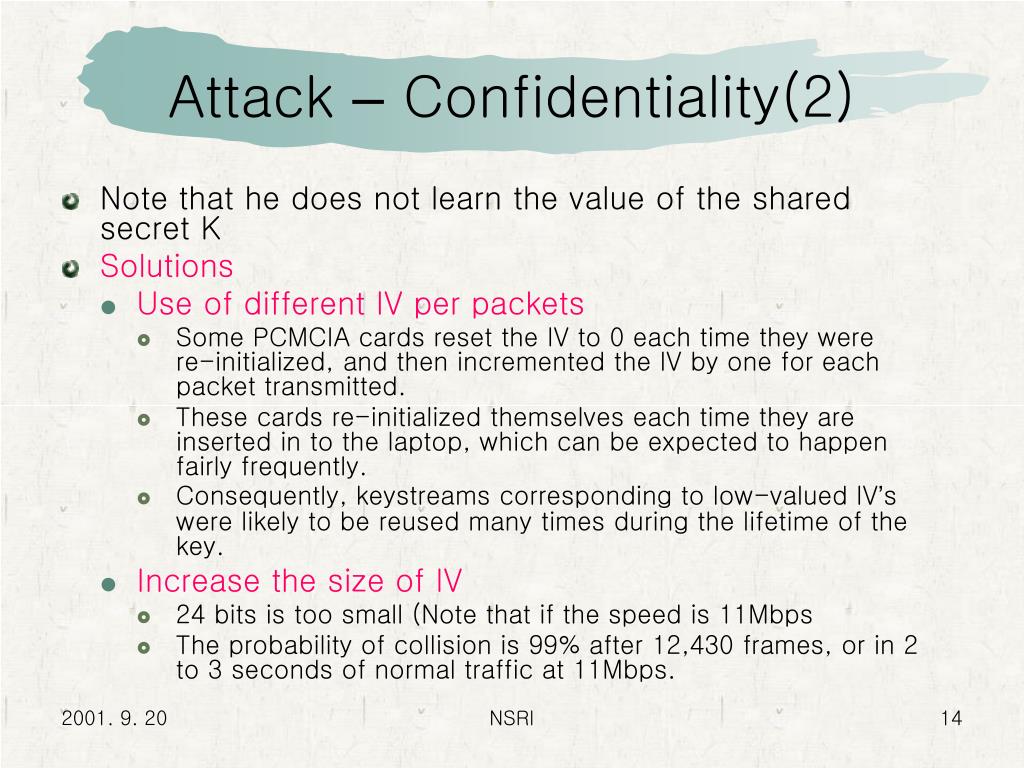

  14. Attack – Confidentiality(2) • Note that he does not learn the value of the shared secret K • Solutions • Use of different IV per packets • Some PCMCIA cards reset the IV to 0 each time they were re-initialized, and then incremented the IV by one for each packet transmitted. • These cards re-initialized themselves each time they are inserted in to the laptop, which can be expected to happen fairly frequently. • Consequently, keystreams corresponding to low-valued IV’s were likely to be reused many times during the lifetime of the key. • Increase the size of IV • 24 bits is too small (Note that if the speed is 11Mbps • The probability of collision is 99% after 12,430 frames, or in 2 to 3 seconds of normal traffic at 11Mbps. NSRI

  15. Attack – Message modification(1) • Attacker intercept a ciphertext C before it could reach its destination: • Assume that C corresponds to some unknown message M, so that • Claim: it is possible to find a new ciphertext C’ that decrypts to M’, where and △ may be chosen arbitrarily by the attacker. • Then we will be able to replace the original transmission with our new ciphertext by spoofing the source, and upon decryption, the recipient B will obtain the modified message M’ with the correct checksum. NSRI

  16. Attack – Message modification(2) • How to obtain C’ from C so that C’ decrypts to M’ instead of M. CRC is linear • Note that this attack can be applied without full knowledge of M: the attacker only needs to know the original ciphertext C and the desired plaintext difference △ in order to calculate C’=C(△,c(△)). NSRI

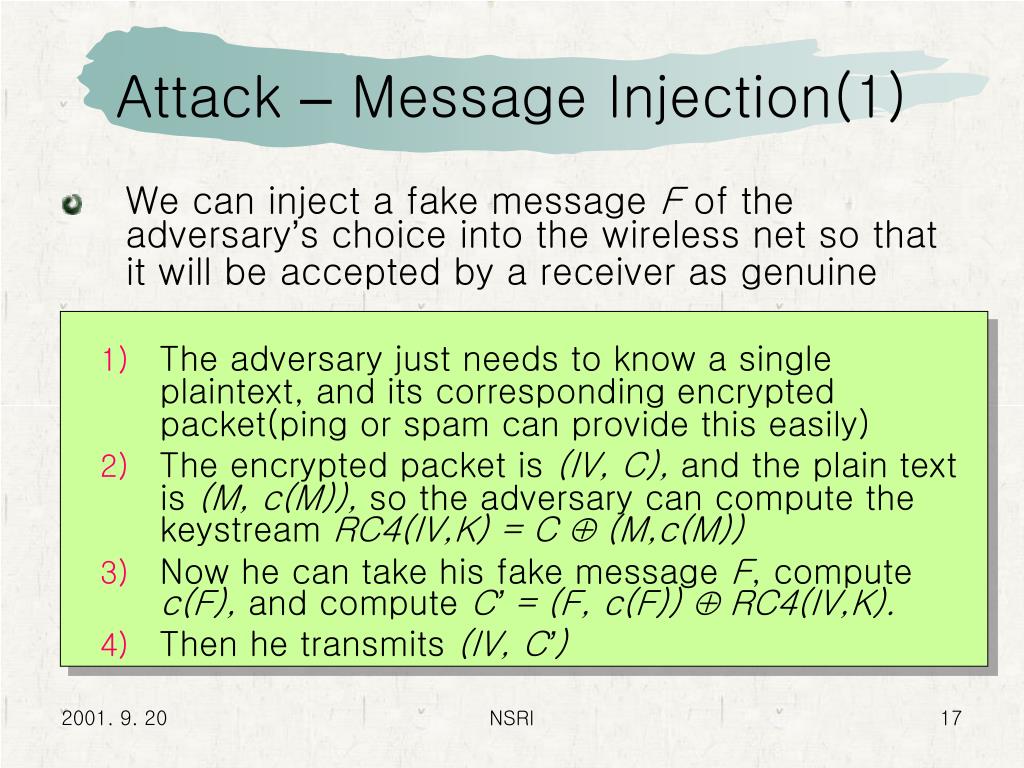

  17. Attack – Message Injection(1) • We can inject a fake message F of the adversary’s choice into the wireless net so that it will be accepted by a receiver as genuine • The adversary just needs to know a single plaintext, and its corresponding encrypted packet(ping or spam can provide this easily) • The encrypted packet is (IV, C), and the plain text is (M, c(M)), so the adversary can compute the keystream RC4(IV,K) = C  (M,c(M)) • Now he can take his fake message F, compute c(F), and compute C’ = (F, c(F))  RC4(IV,K). • Then he transmits (IV, C’) NSRI

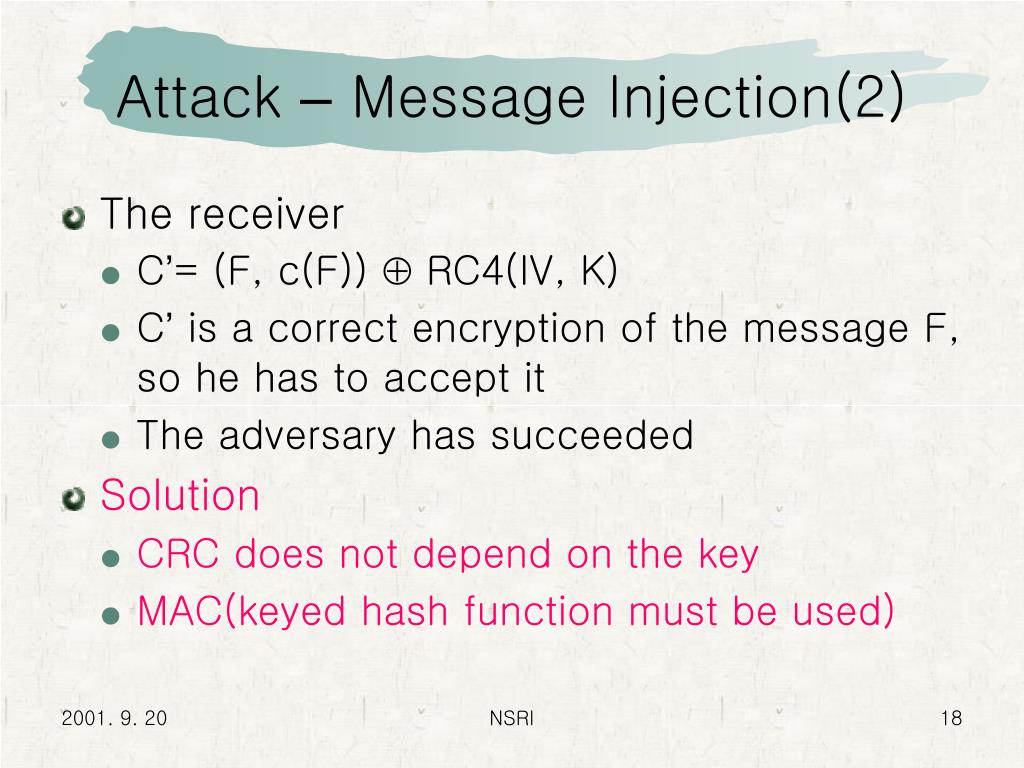

  18. Attack – Message Injection(2) • The receiver • C’= (F, c(F))  RC4(IV, K) • C’ is a correct encryption of the message F, so he has to accept it • The adversary has succeeded • Solution • CRC does not depend on the key • MAC(keyed hash function must be used) NSRI

  19. Attack – Authentication(1) • Authentication: client to AP • AP  M: send a challenge string R(128-bit) to the client • M  AP: WEP-encrypted ciphertext (RC4(IV, K)  R) • AP: checks if the challenge is correctly encrypted, and if so, accepts the client • Goal: verify that a client joining the network really knows the shared secret key K • So the adversary has now just seen both the plaintext and the ciphertext of the challenge • This is enough not only to inject packets (as in the previous attack), but to execute the authentication protocol himself. NSRI

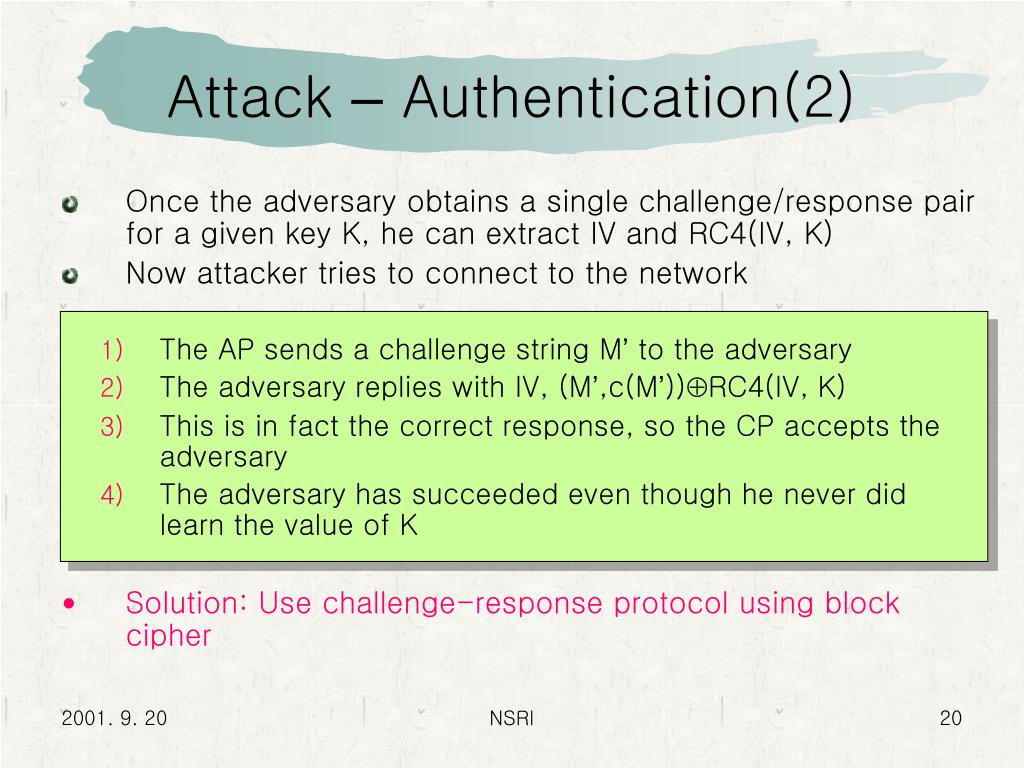

  20. Attack – Authentication(2) • Once the adversary obtains a single challenge/response pair for a given key K, he can extract IV and RC4(IV, K) • Now attacker tries to connect to the network • The AP sends a challenge string M’ to the adversary • The adversary replies with IV, (M’,c(M’))RC4(IV, K) • This is in fact the correct response, so the CP accepts the adversary • The adversary has succeeded even though he never did learn the value of K • Solution: Use challenge-response protocol using block cipher NSRI

  21. How to make secure WEP • RC4  128-bit block cipher • Precise decryptions • Setup procedure of Key • Generation method of IV • Detail of “mode of operation” • Never reuse of IV (if K is fixed) • Size of IV > 56 bit(??) • CRC  MAC • Challenge-response Authentication protocol based on block cipher NSRI

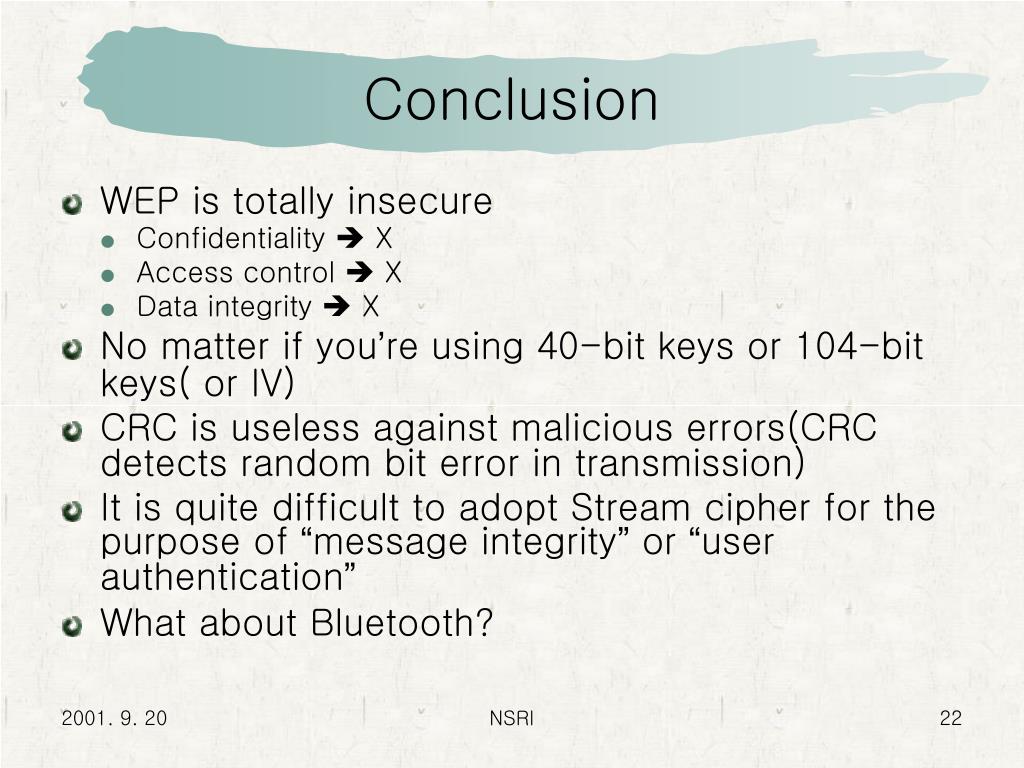

  22. Conclusion • WEP is totally insecure • Confidentiality  X • Access control  X • Data integrity  X • No matter if you’re using 40-bit keys or 104-bit keys( or IV) • CRC is useless against malicious errors(CRC detects random bit error in transmission) • It is quite difficult to adopt Stream cipher for the purpose of “message integrity” or “user authentication” • What about Bluetooth? NSRI
