Next beam installation massdot bridge replacement route 19 over mill brook brimfield

E.T.& L. CORP.

NEXT BEAM

INSTALLATION

MASSDOT BRIDGE REPLACEMENT

ROUTE 19 OVER MILL BROOK

BRIMFIELD


Next beams

NEXT BEAMS

E.T.& L. CORP.

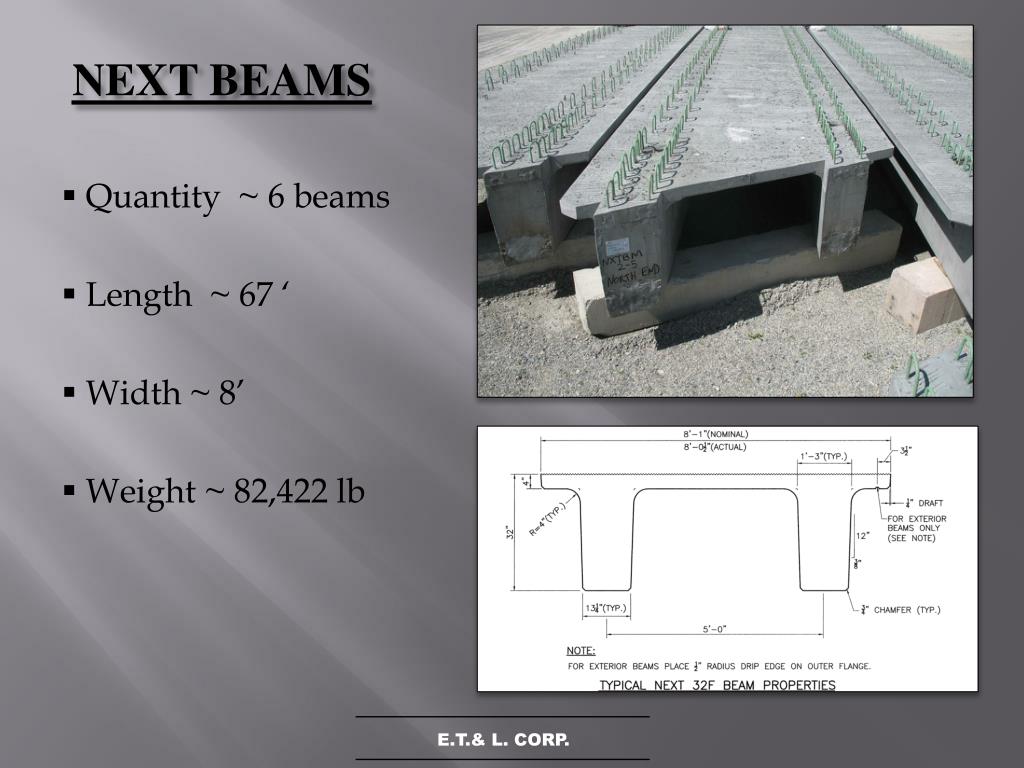

Quantity ~ 6 beams

Length ~ 67 ‘

Width ~ 8’

Weight ~ 82,422 lb


Next beam benefits

NEXT BEAM BENEFITS

E.T.& L. CORP.

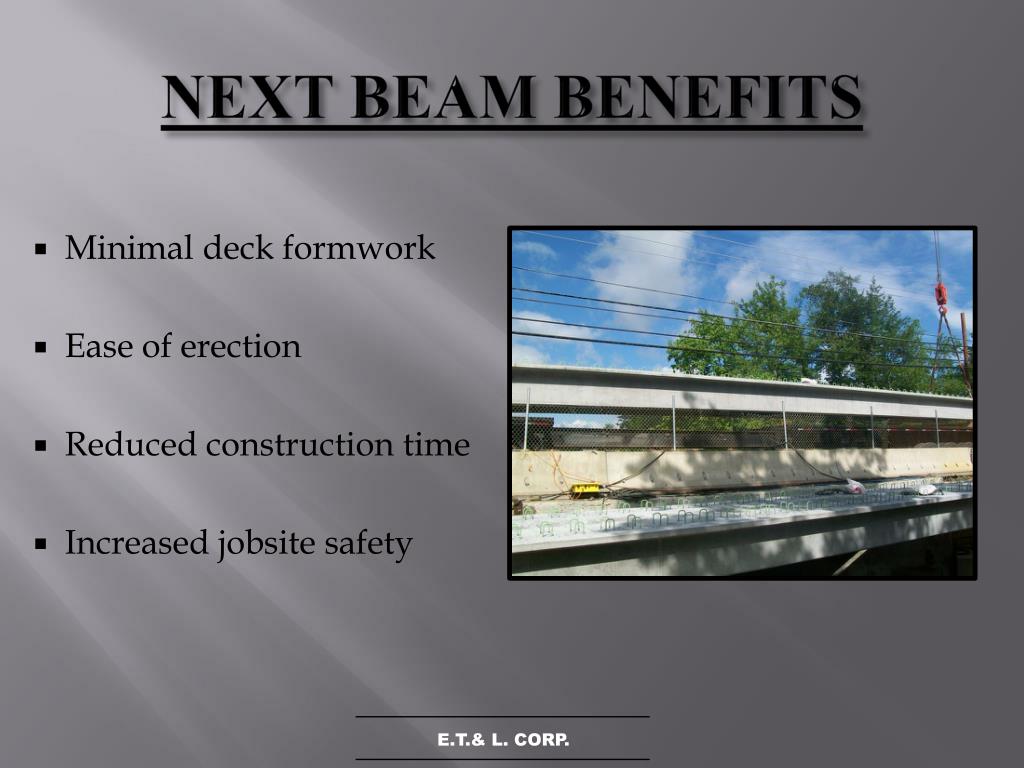

  • Minimal deck formwork

  • Ease of erection

  • Reduced construction time

  • Increased jobsite safety


Next beam issues

NEXT BEAM ISSUES

E.T.& L. CORP.

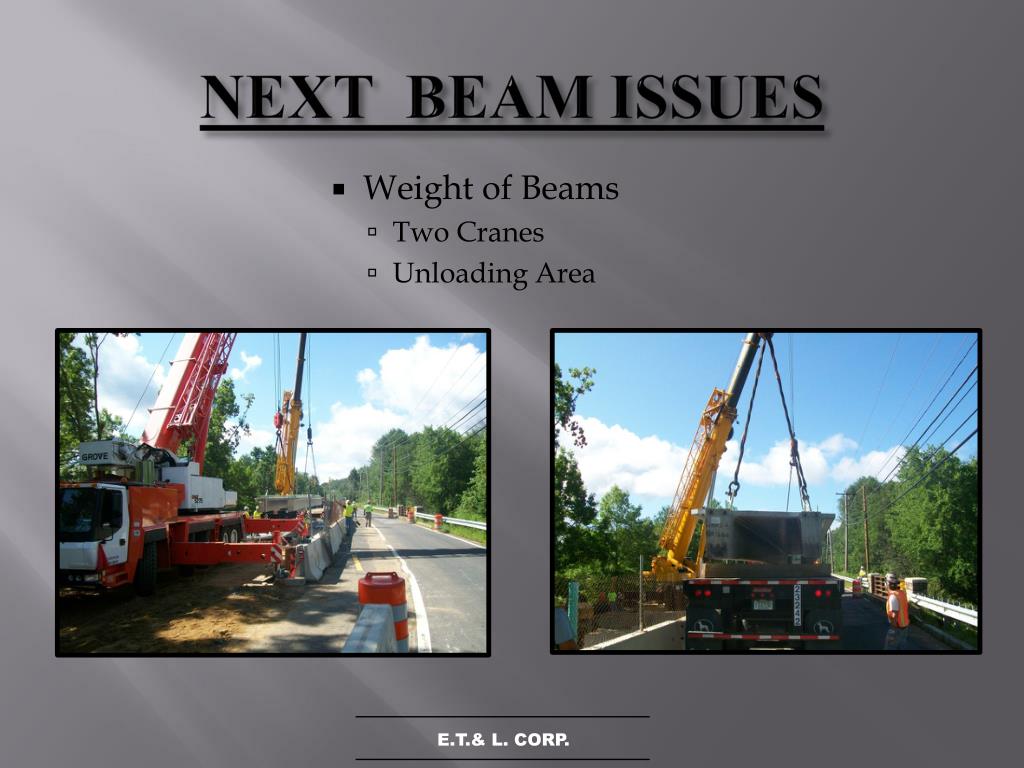

  • Weight of Beams

    • Two Cranes

    • Unloading Area


Next beam issues1

NEXT BEAM ISSUES

E.T.& L. CORP.

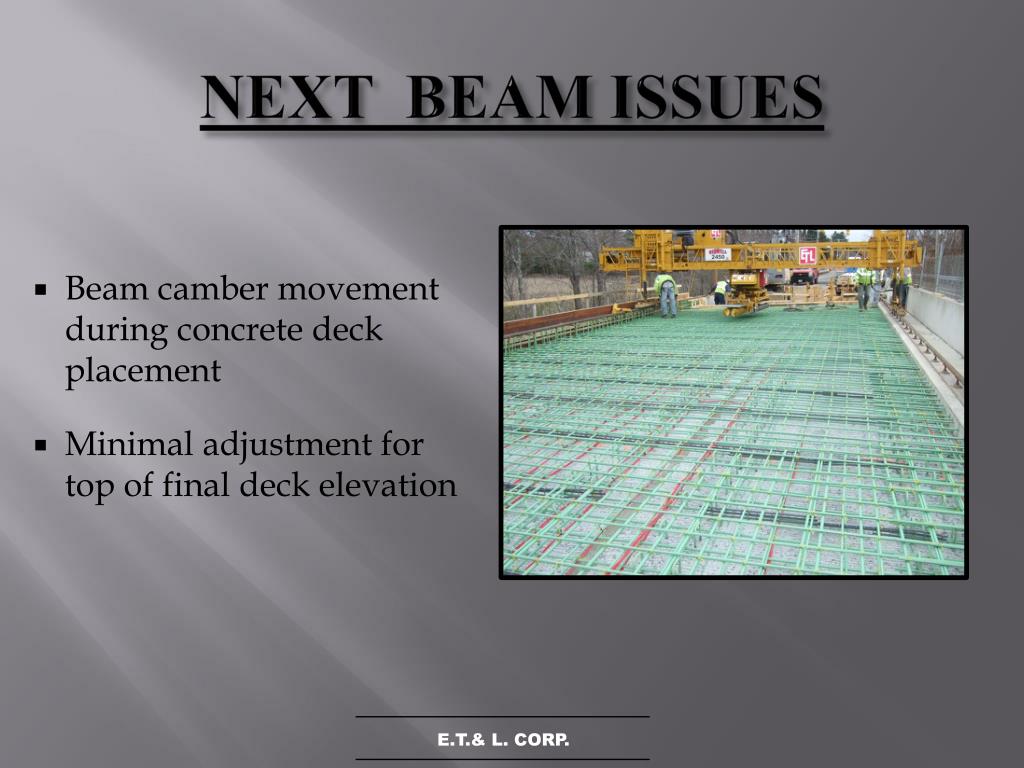

  • Beam camber movement during concrete deck placement

  • Minimal adjustment for top of final deck elevation


Next beam issues2

NEXT BEAM ISSUES

E.T.& L. CORP.

  • Concrete clearance

    • 6” Stirrups

    • Overhang bracket clips

  • Bidwell Setup


Questions comments

QUESTIONS / COMMENTS
