Chemistry 2. Lecture 6 Vibrational Spectroscopy. Learning outcomes from lecture 5. Be able to draw the wavefunctions for the first few solutions to the Schrödinger equation for the harmonic oscillator

Download Presentation

Chemistry 2

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Chemistry 2

Chemistry 2

Lecture 6

Vibrational Spectroscopy


Chemistry 2

Learning outcomes from lecture 5

  • Be able to draw the wavefunctions for the first few solutions to the Schrödinger equation for the harmonic oscillator

  • Be able to calculate the energy separation between the vibrational levels for the harmonic oscillator

  • Be able to explain the dependence of this separation on the masses of the atoms and the strength of the bond

  • Be aware of and be able to calculate the zero point energy of a vibrating molecule

  • Be able to draw the potential energy curve for a real molecule and explain why it is different to the harmonic potential

Assumed knowledge

Light behaves like an oscillating electromagnetic field. The electric field interacts with charges. Two charges separated in space represent a dipole moment which can interact with an electric field. Energy can only be taken or added to the electric field in units of hn (photons).


Revision light as a em field

Revision: Light as a EM field


Revision the electromagnetic spectrum

Revision: The Electromagnetic Spectrum


Revision fundamental equations

Revision: Fundamental equations


Classical absorption of light

Classical absorption of light

Because light is an oscillating electromagnetic field, it can cause charges to oscillate. If the charge can oscillate in resonancewith the field then energy can be absorbed.

Alternatively, an oscillating charge can emit radiation with frequency in resonance with the original oscillation.

For example, in a TV antenna, the oscillating EM field broadcast by the transmitter causes the electrons in your antenna to oscillate at the same frequency.


Classical absorption of light1

-

-

+

+

Classical absorption of light

What about a molecule as an antenna?

How can we get oscillating charges in a molecule?


Classical absorption of light2

-

+

+

-

Classical absorption of light

Rotating a permanent dipole causes an oscillation of charge


Classical absorption of light3

Classical absorption of light

-

+

Vibrating a permanent dipole causes an oscillation of charge

-

+


The quantum harmonic oscillator

n = 0,1,2,…

S.I. units

Need to know!

G(v) & w in cm-1

The Quantum Harmonic Oscillator

Solution of Schrödinger equation:

But:

Oscillation (vibrational) frequency

G(v) is the “energy” from the bottom of the well and w is the “harmonic frequency”


Anharmonic oscillator a h o

Molecules dissociates

“Anharmonic oscillator” (A.H.O.)

harmonic

anharmonic


Chemistry 2

The Morse Anharmonic Oscillator

all in wavenumber (cm-1) units:

This one you DO have to know how to use

In spectroscopy, we tend to use the letter “vee” to indicate the quantum number for vibration. The vibration frequency is indicated by we in cm-1. When solving the general quantum mechanical problem we used the letter n, to minimize confusion with “nu”, the vibrational frequency in s-1.


The morse energy levels

Harmonic frequency

Anharmonicity constant

Anharmonic term

Harmonic term

wexe is usually positive, so vibrational levels get closer together

The force constant for the AHO is the same as for the harmonic case:

The Morse energy levels

V (r)

or

r

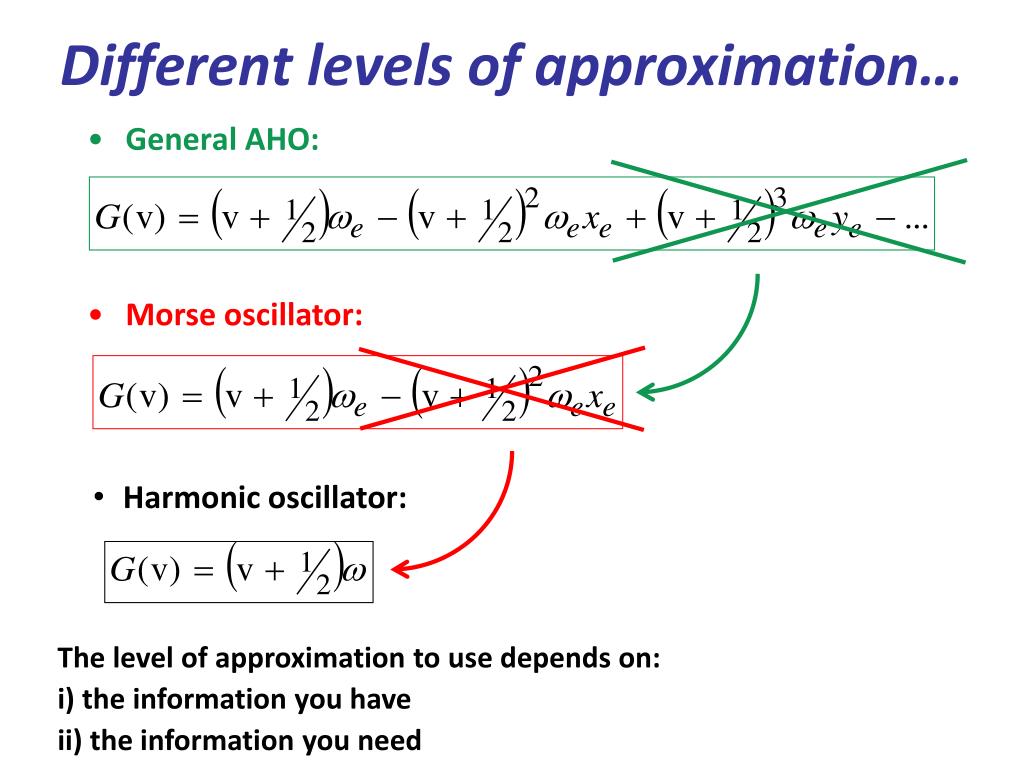

Different levels of approximation

Different levels of approximation…

  • General AHO:

  • Morse oscillator:

  • Harmonic oscillator:

The level of approximation to use depends on:

i) the information you have

ii) the information you need


The important equations

The important equations!

  • In wavenumber (cm-1) units:

The ones you DO have to know how to use


Dissociation energy

D0

But we know about zero-point energy, therefore slightly less energy is required to break the bond.

De

D0 = De – G(0)

We can estimate the bond dissociation energy from spectroscopic measurements!

Dissociation energy

V (r)

This is the energy from the bottom of the well to the dissociation limit.

G(0)

r

(Zero-point energy)


Selection rules

Upper state

lower state

molecular dipole

vibrationalcoordinate

Selection rules

  • All forms of spectroscopy have a set of selection rules that limit the number of allowed transitions.

  • Selection rules arise from the resonance condition, which may be expressed as a transition dipole moment:

  • Selection rules tell us when this integral is zero


Harmonic oscillator selection rules

selection rule:

Dv=±1

Dv=+1: absorption

Dv=-1: emission

Harmonic Oscillator Selection Rules

If an oscillator has only one frequency associated with it, then it can only interact with radiation of that frequency.

Selection rules limit the number of allowed transitions


Thermal population

Much of IR spectroscopy can understood from just these two results of the quantum harmonic oscillator:

E = (v+½)hn and Dv = ±1

Thermal population

At normal temperatures, only the lowest vibrationalstate(v =0 ) is usually populated, therefore, only the first transition is typically seen.

Transitions arising from v0 are called “hot bands”

(Their intensity is strongly temp. dependent)


For example

For example:

v = 1  0


More problems with harmonic model

More problems with harmonic model….

What are these?

CO


What are the new peaks

which suggests transitions

might be

0  1

0  2

0  3

What are the new peaks?

  • Three peaks…

    • 2143 cm-1

    • 4260 cm-1

    • 6352 cm-1

v=4

v=3

These are almost 1 : 2 : 3

v=2

v=1

v=0


Anharmonic oscillator a h o selection rules

Anharmonic oscillator (A.H.O.) selection rules:

H.O.

There are none!

But!...

Harmonic and anharmonic models are very similar at low energy, so selection rules of AHO converge on HO as the anharmonicity becomes less:

A.H.O.

A.H.O. selection rule:

Dv=±1,±2, ±3

Intensity gets weaker and weaker (typically 10× weaker for each)


Anharmonic oscillator a h o1

Anharmonic oscillator (A.H.O.)

A.H.O. selection rule:

Dv= ±1,±2, ±3

Dv = 1 : fundamental

Dv = 2 : first overtone

Dv = 3 : second overtone, etc


Typical exam question

Typical Exam Question

  • Consider the infrared absorption spectrum of CO below.

    • From the wavenumber measurements on the spectrum, assign the spectrum, hence determine the harmonic frequency, we (in cm-1) and the anharmonicity constant wexe (in cm-1).

    • Estimate the bond dissociation, D0, for this molecule. There is no absorption below 2000 cm-1.

Fundamental:

2143 = G(1) – G(0),

Overtone:

4260 = G(2) – G(0)


Using the spectra to get information

Using the spectra to get information…

G(1)-G(0) = [(1.5)we–(1.5)2wexe] - [(0.5)we– (0.5)2wexe]

2143= we– 2wexe …(1)

G(2)-G(0) = [(2.5)we–(2.5)2wexe] - [(0.5)we – (0.5)2wexe]

4260= 2we– 6wexe …(2)

Two simultaneous equations (simple to solve)

→we= 2169 cm-1, andwexe = 13 cm-1


Using the spectra to get information1

V (r)

D0

De

G(0)

r

(Zero-point energy)

Using the spectra to get information…

89,400 cm-1 = 1069 kJ/mol

c.f. exp. value: 1080 kJ/mol

Why the difference?

Remember Morse is still an approx. to the true intermolecular potential. Still 2% error is pretty good for just 2 measurements!


Equations to know how to use

m1 × m2

m

m1 + m2

Equations to know how to use…


Learning outcomes

Learning outcomes

  • Be able to manipulate and use the key equations given in the green box at the end of the lecture.

  • Utilize the harmonic oscillator and anharmonic oscillator as a model for the energy level structure of a vibrating diatomic molecule.

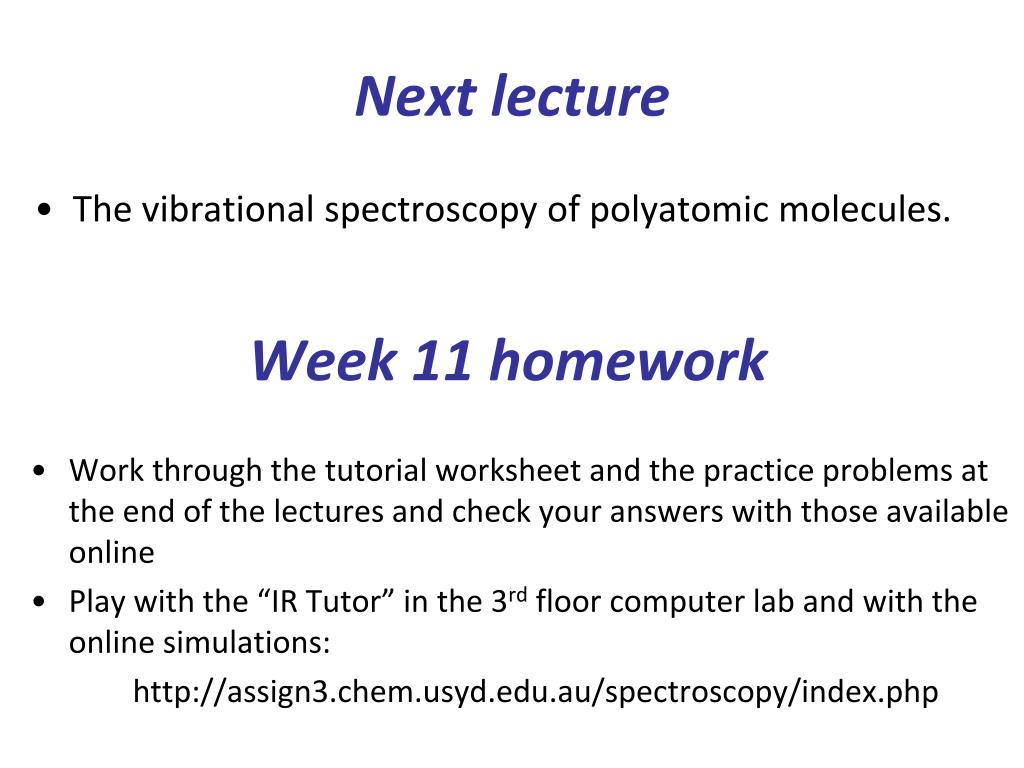

Next lecture

Next lecture

The vibrational spectroscopy of polyatomic molecules.

Week 11 homework

  • Work through the tutorial worksheet and the practice problems at the end of the lectures and check your answers with those available online

  • Play with the “IR Tutor” in the 3rd floor computer lab and with the online simulations:

  • http://assign3.chem.usyd.edu.au/spectroscopy/index.php


Practice questions

Practice Questions

  • 1.Which of the following diatomic molecules will exhibit an infrared spectrum?

    • HBr b) H2 c) CO d) I2

  • 2.An unknown diatomic oxide has a harmonic vibrational frequency of ω = 1904 cm−1 and a force constant of 1607 N m −1. Identify the molecule.

    • CO b) BrO c) NO d) 13CO

  • 3.As the energy increases, the vibrationallevel spacing for a harmonic oscillator is:

    • increases b) decreases c) stays constant

  • 4. As the energy increases, the vibrationallevel spacings for a Morse oscillator usually:

    • increase b) decrease c) stay constant

  • 5. As the energy increases, the vibrational level spacings for an anharmonicoscillator usually:

    • increase b) decrease c) stay constant


Practice questions1

Practice Questions

6.For a Morse oscillator the observed dissociation energy, D0, is related to the equilibrium vibrational frequency and the anharmonicity by the following expression:

a) ωe2/4ωexe b) [ωe2/4ωexe]-G(0) c) (v+½)ωe+(v+½)2ωexe d) (v+½)ωe

7.Which of the following statements about the classical and quantum harmonic oscillator (HO) are true (more than one possible answer here)?

a) The classical HO frequency is continuous, whereas the quantum frequency is discrete.

b) The classical HO has continuous energy levels, whereas the quantum HO levels are discrete.

c) The classical HO depends on the force constant, but the quantum HO does not.

d) The classical HO may have zero energy, but the quantum HO may not.

e) The classical HO does allow the bond to break, whereas the quantum HO does.


Practice questions2

Practice Questions

  • 8.Which of the following statements correctly describe features of the quantum Morse oscillator and energy levels associated with it?

  • a) The vibrational energy levels get more closely spaced with increasing v.

  • b) The vibrational energy levels approach a continuum as the dissociation energy is approached.

  • c) The Morse oscillator and HO are nearly the same at very low v

  • d) The Morse potential is steeper than the HO for r < re

  • e) The Morse potential exactly describes the interatomic potential.
