  1. Oxidation/Reduction& Batteries

  2. Oxidation • Combining with Oxygen – combustion • Gives off energy • Oxidation in the body – H2O and CO2 • Oxidation in an engine – above plus CO and NOx’s • Degree of oxidation – CO not totally oxidized • Rusting of Iron

  3. Oxidation • Gaining oxygen or loosing electrons 2Na + Br2→ 2Na+ + 2Br- → 2NaBr • Which looses electrons? • F, Cl, Br, I are common oxidizing agents • Oxidizing agents cause other substances to be oxidized

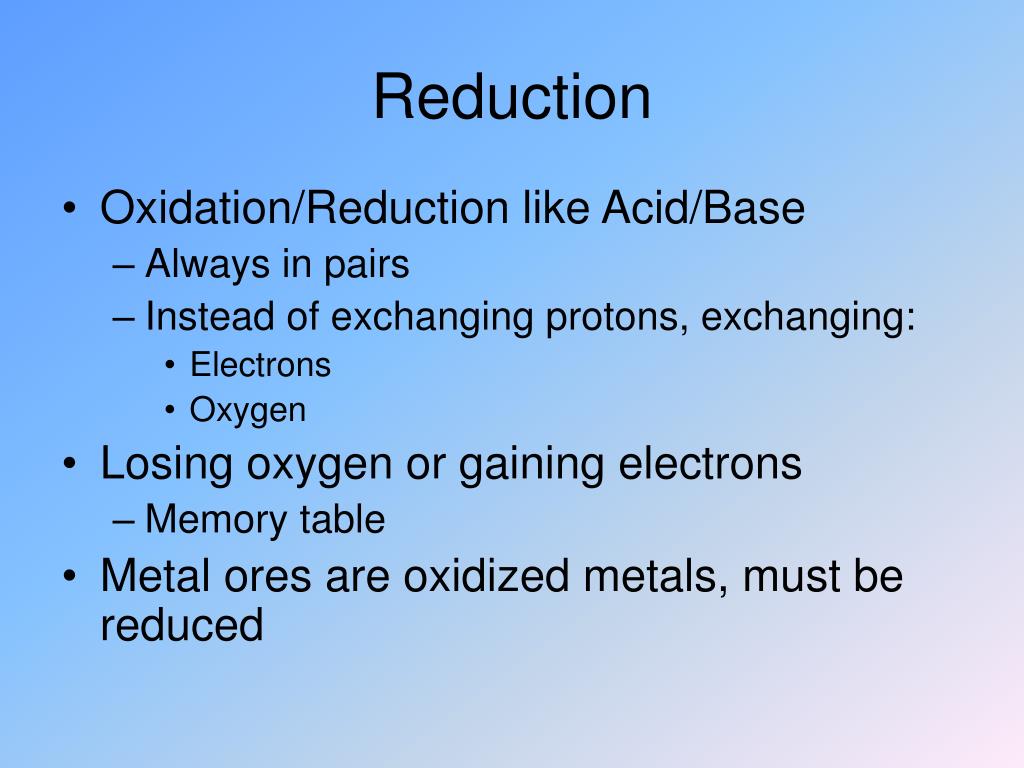

  4. Reduction • Oxidation/Reduction like Acid/Base • Always in pairs • Instead of exchanging protons, exchanging: • Electrons • Oxygen • Losing oxygen or gaining electrons • Memory table • Metal ores are oxidized metals, must be reduced

  5. Reduction • Reducing agents cause other substances to be reduced. • What are anti-oxidants?

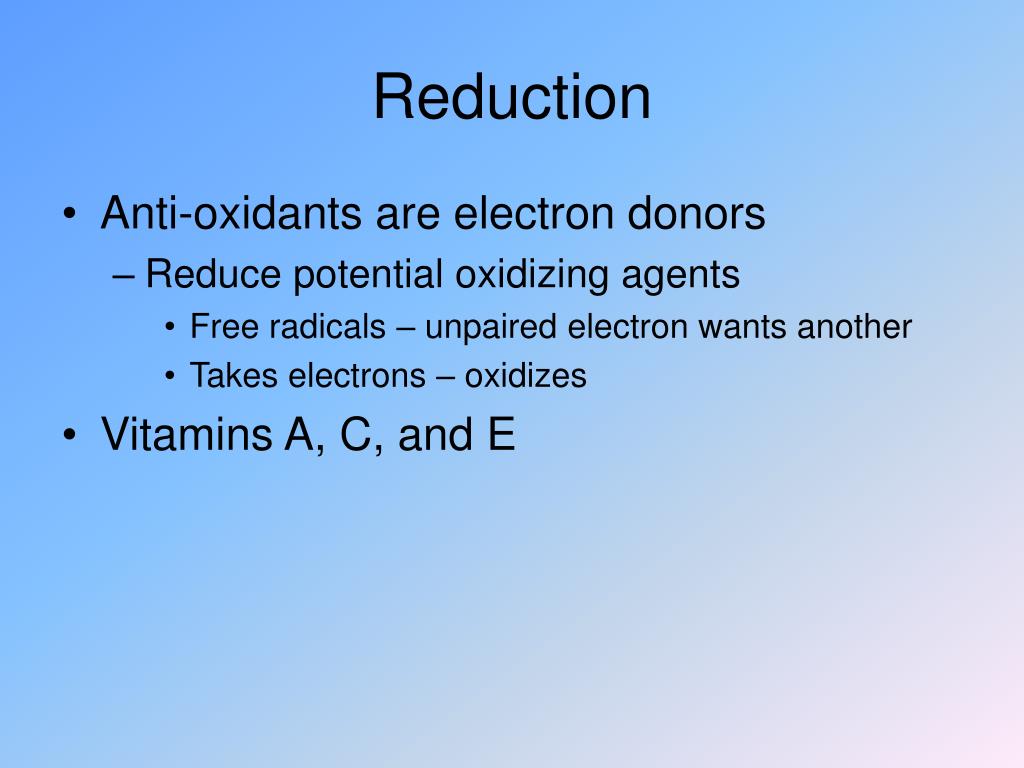

  6. Reduction • Anti-oxidants are electron donors • Reduce potential oxidizing agents • Free radicals – unpaired electron wants another • Takes electrons – oxidizes • Vitamins A, C, and E

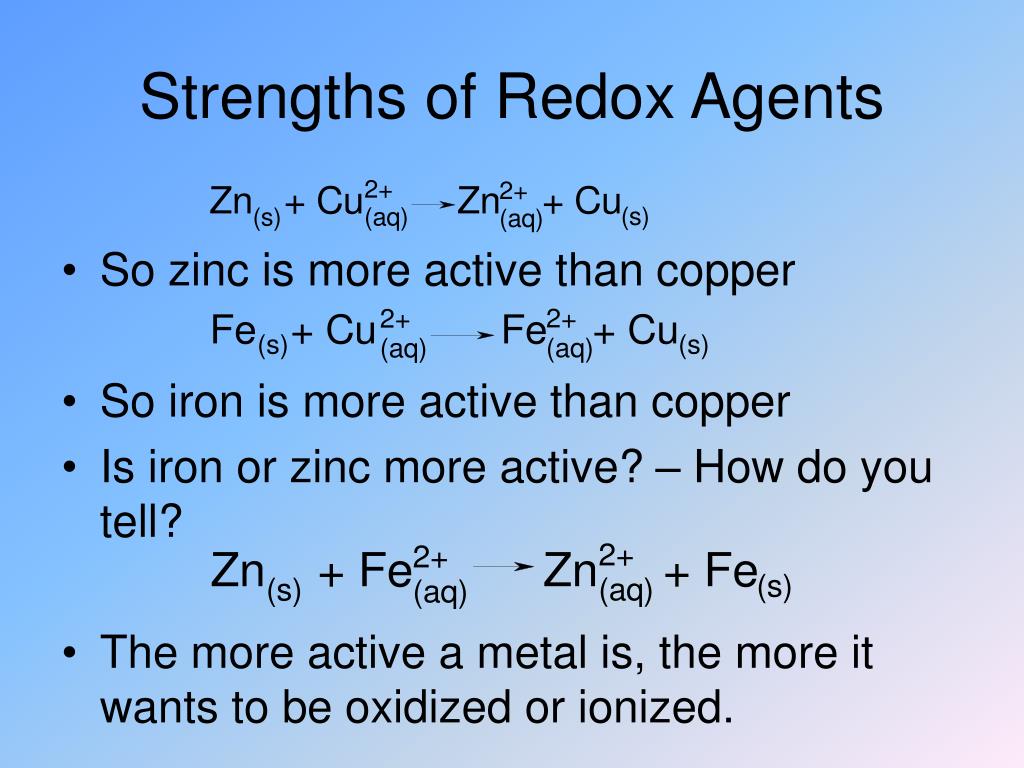

  7. Strengths of Redox Agents • So zinc is more active than copper • So iron is more active than copper • Is iron or zinc more active? – How do you tell? • The more active a metal is, the more it wants to be oxidized or ionized.

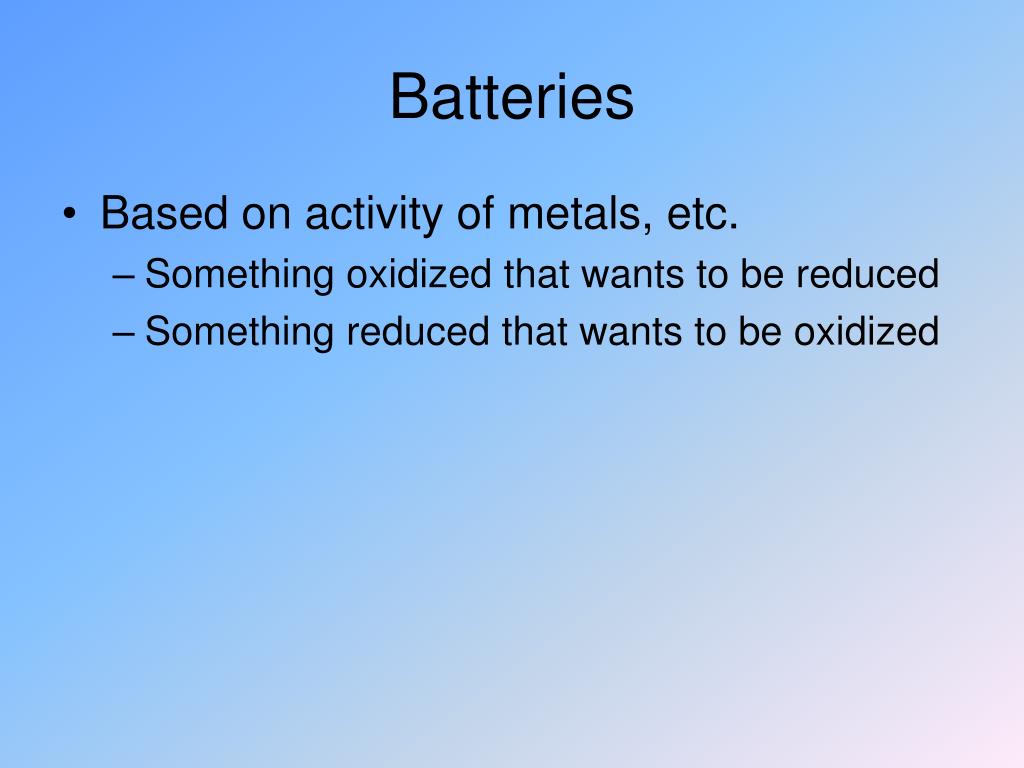

  8. Batteries • Based on activity of metals, etc. • Something oxidized that wants to be reduced • Something reduced that wants to be oxidized

  9. Batteries • Based on activity of metals, etc. • Something oxidized that wants to be reduced • Something reduced that wants to be oxidized • Store electricity as chemical energy • Primary batteries – cannot be recharged • Dry cells, alkaline, lithium • Secondary batteries – rechargeable • NiCad, NiMH, Lead acid, rechargeable alkaline, Lithium ion • Which is better for the environment?

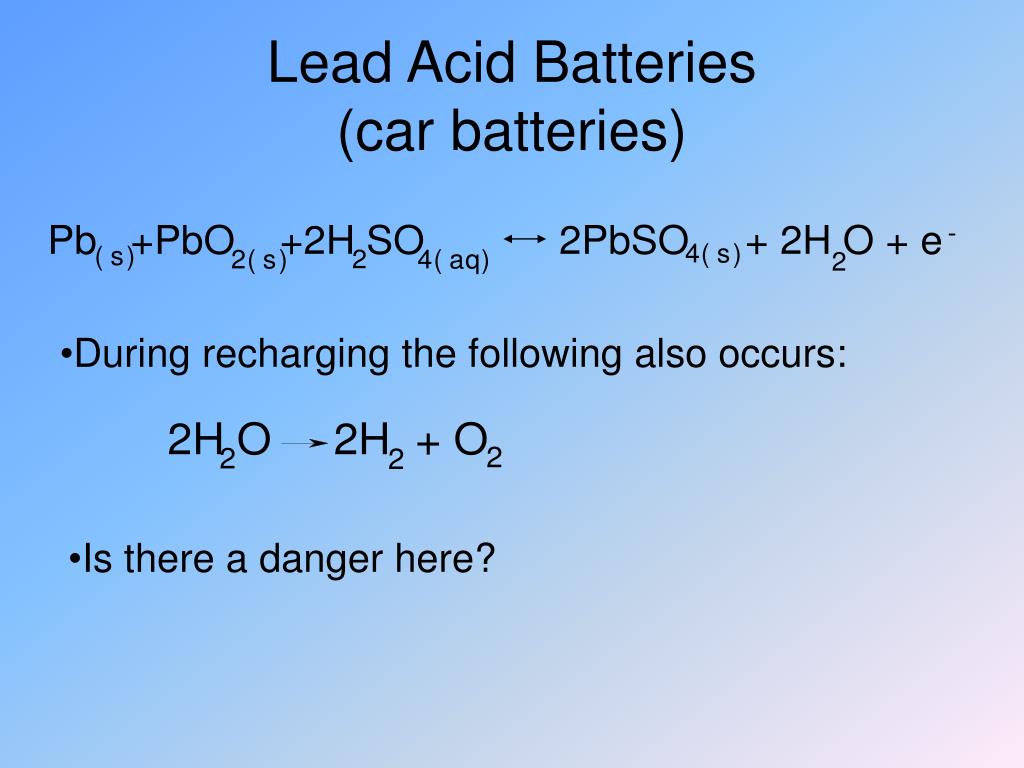

  10. Lead Acid Batteries(car batteries) • During recharging the following also occurs: • Is there a danger here?

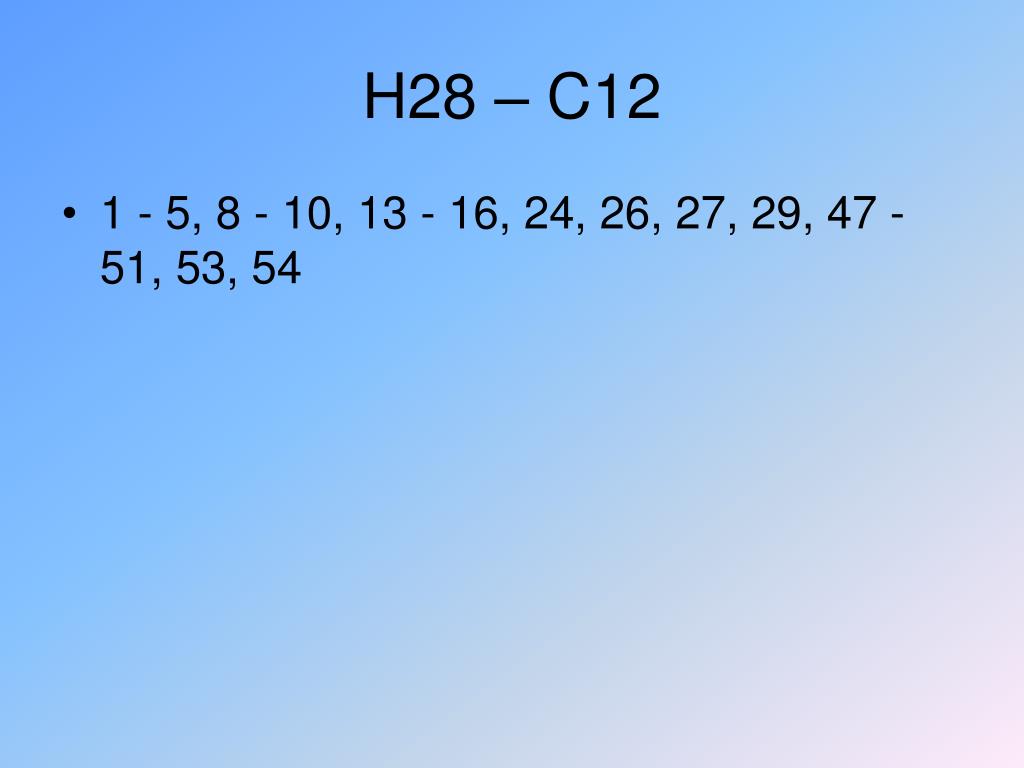

  11. H28 – C12 • 1 - 5, 8 - 10, 13 - 16, 24, 26, 27, 29, 47 - 51, 53, 54
