Networking Radiation Sensor SystemsNITRD WorkshopSeptember 20, 2012

Richard Vojtech, Ph.D.

Principal Deputy Assistant Director

Transformational and Applied Research Directorate Domestic Nuclear Detection Office


The questions

The Questions

  • Will a networked system of portable radiation detectors outperform the same number of individual detector operating independently?

  • Will the networked system improve the ability to:

    • detect anomalous radioactive materials?

    • locate the materials?

    • identify the materials?


The program goal

The Program Goal

  • To demonstrate advanced technologies that improve the ability to detect, localize, and identifyradiological sources by combining data from multiple radiation detector nodes.

  • Key Questions:

  • How does the performance of the ensemble compare to that of the

  • individual detectors?

  • What are the strengths and weaknesses of each system approach?

  • Do trends in the data suggest which types of scenarios will

  • benefit the most from a tightly coupled network?


Intelligent radiation sensor system

“Intelligent” Radiation Sensor System

Data Packet

~1 Hz

Advanced algorithms combine the radiation, spatial, and temporal

information from multiple sensors to make a collective assessment

about the presence and location of radiological sources

Sensor Array

  • Energy Spectrum

  • Sensor Position/Orientation

  • Timestamp

N1

N2

Wireless

Comms

N5

N3

N4


Detector devices

Detector Devices

Smiths Detection

General Electric

Passport Systems


System characterization

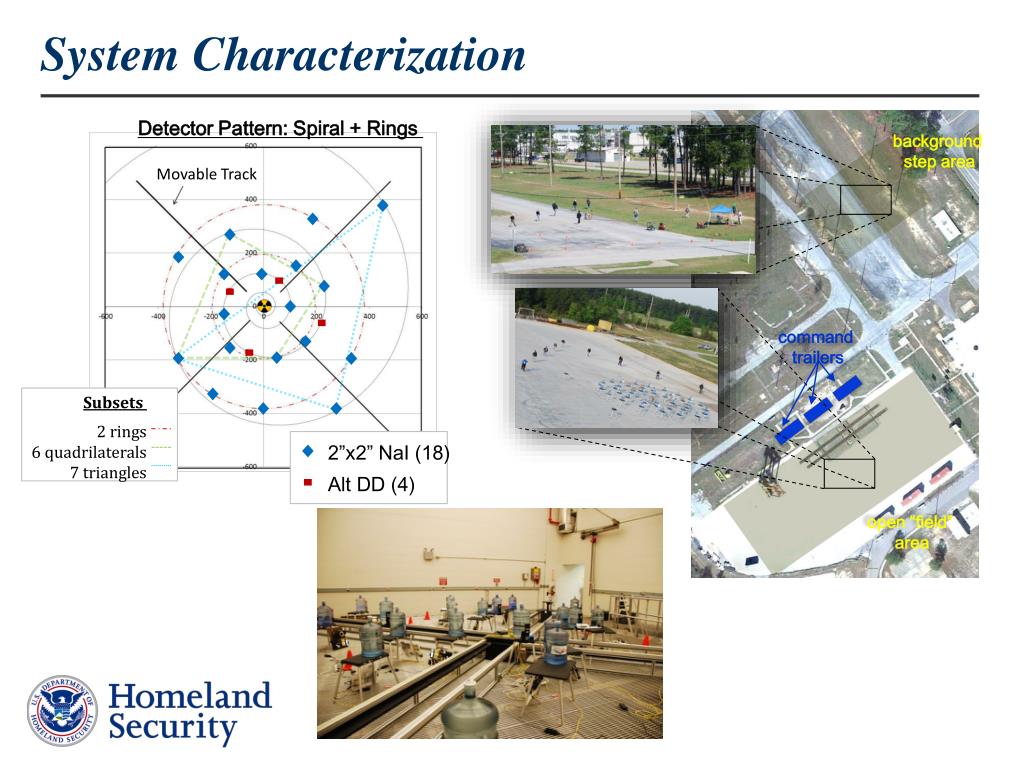

System Characterization

background

step area

Detector Pattern: Spiral + Rings

Movable Track

command

trailers

Subsetting

2 rings

6 quadrilaterals

7 triangles

2”x2” NaI (18)

open “field”

area

Alt DD (4)

Subsets

2 rings

6 quadrilaterals

7 triangles


Initial impressions from a networked system

Initial Impressions from a Networked System

  • In simple cases IRSS shows benefits of networking for detection and agrees well with theoretical expectations

  • Networking can provide reduction in false alarms at the system level compared to a collection of individual sensors

  • Tracking of moving sources (even with a single sensor) was achieved with non-directional sensors
