  1. Towards A Language for Metadata Schemas for Interoperability Vilas Wuwongse1and Masatoshi Yoshikawa2 1Asian Institute of Technology, Thailand 2Nagoya University, Japan

  2. Outline • Introduction and Motivation • Requirements for Metadata Schema Languages • OWL/XDD • Conclusions

  3. Introduction: Metadata • Metadata: the information required to make data useful and widely usable. • It is an important technology for the storage, management, discovery, access and utilization of data resources on the Internet. • Types: metadata for • cataloguing • usage terms and conditions • administration • content ratings • structural description • system/service objects • service/process management objects

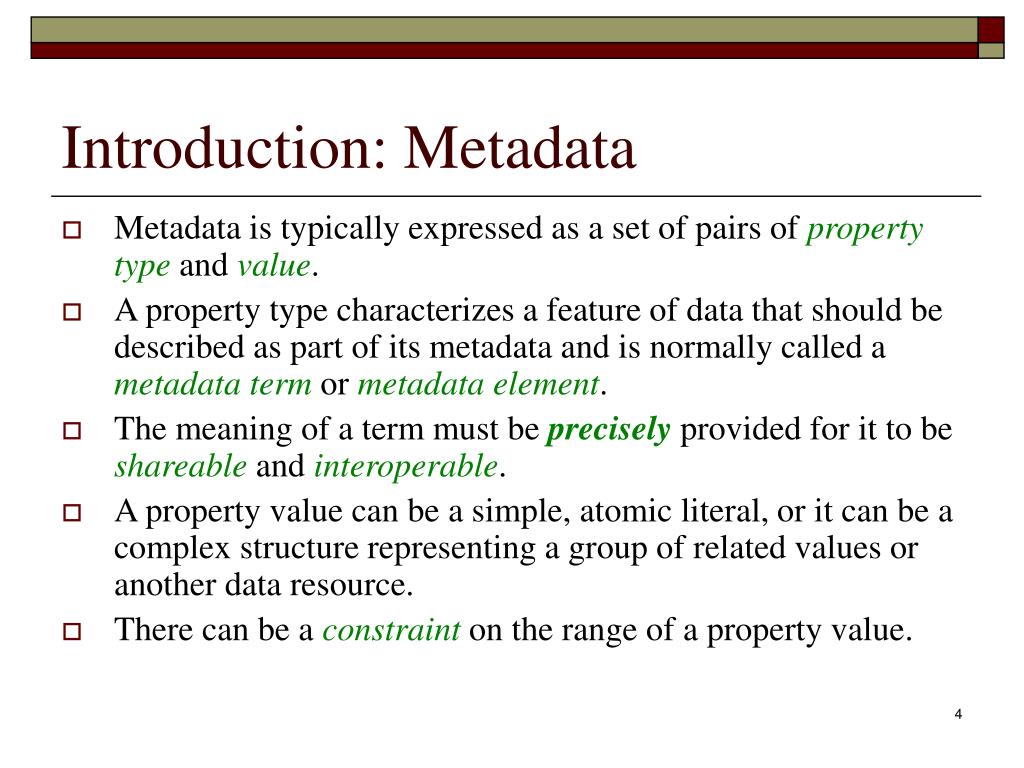

  4. Introduction: Metadata • Metadata is typically expressed as a set of pairs of property type and value. • A property type characterizes a feature of data that should be described as part of its metadata and is normally called a metadata term or metadata element. • The meaning of a term must be precisely provided for it to be shareable andinteroperable. • A property value can be a simple, atomic literal, or it can be a complex structure representing a group of related values or another data resource. • There can be a constraint on the range of a property value.

  5. Introduction: Metadata Schemas • All this underlying information about metadata, i.e., its terms and values as well as their semantics, syntaxes and constraints are described in its schema. • A metadata schema is required for metadata to be analyzed and understood by other applications.

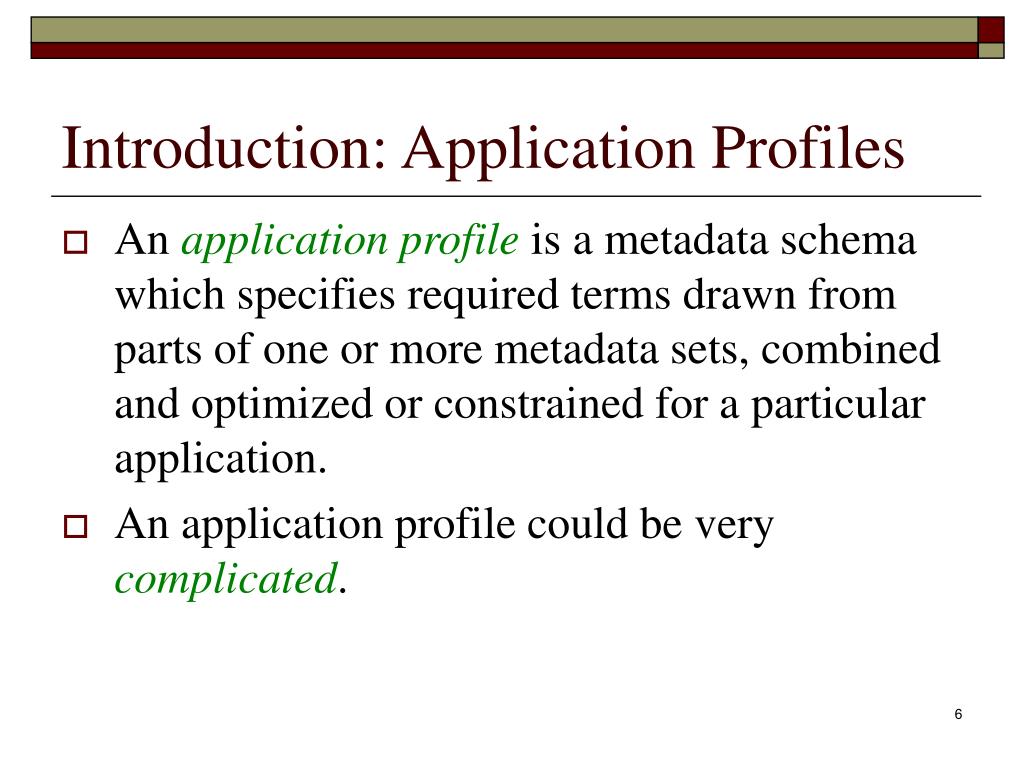

  6. Introduction: Application Profiles • An application profile is a metadata schema which specifies required terms drawn from parts of one or more metadata sets, combined and optimized or constrained for a particular application. • An application profile could be very complicated.

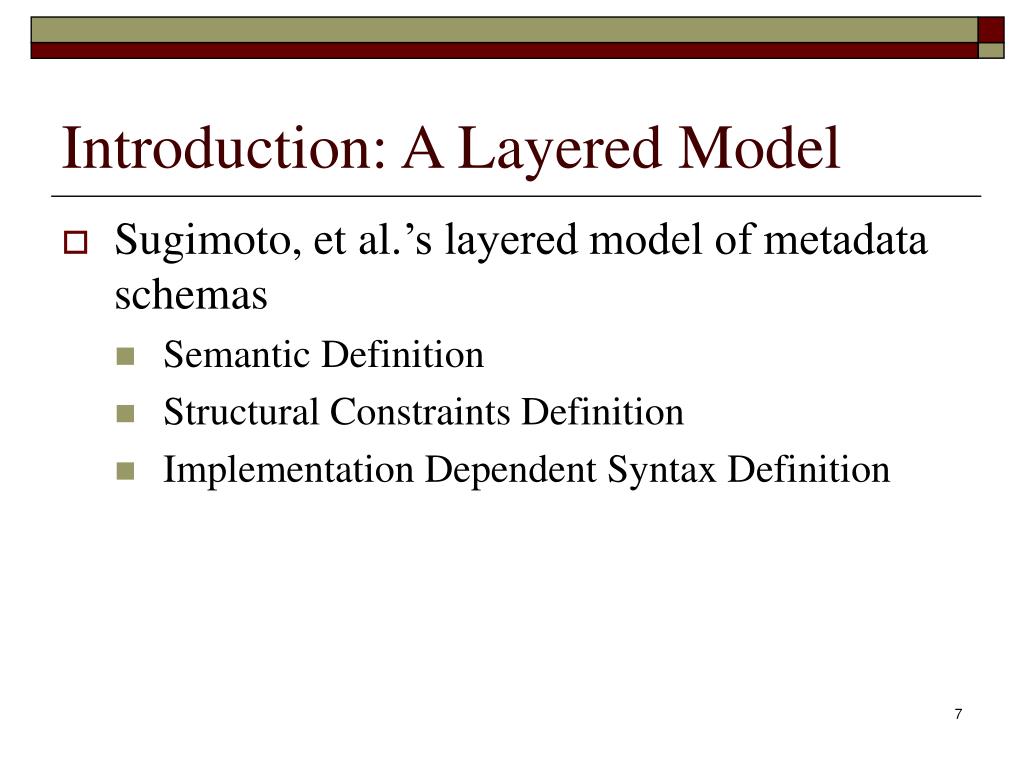

  7. Introduction: A Layered Model • Sugimoto, et al.’s layered model of metadata schemas • Semantic Definition • Structural Constraints Definition • Implementation Dependent Syntax Definition

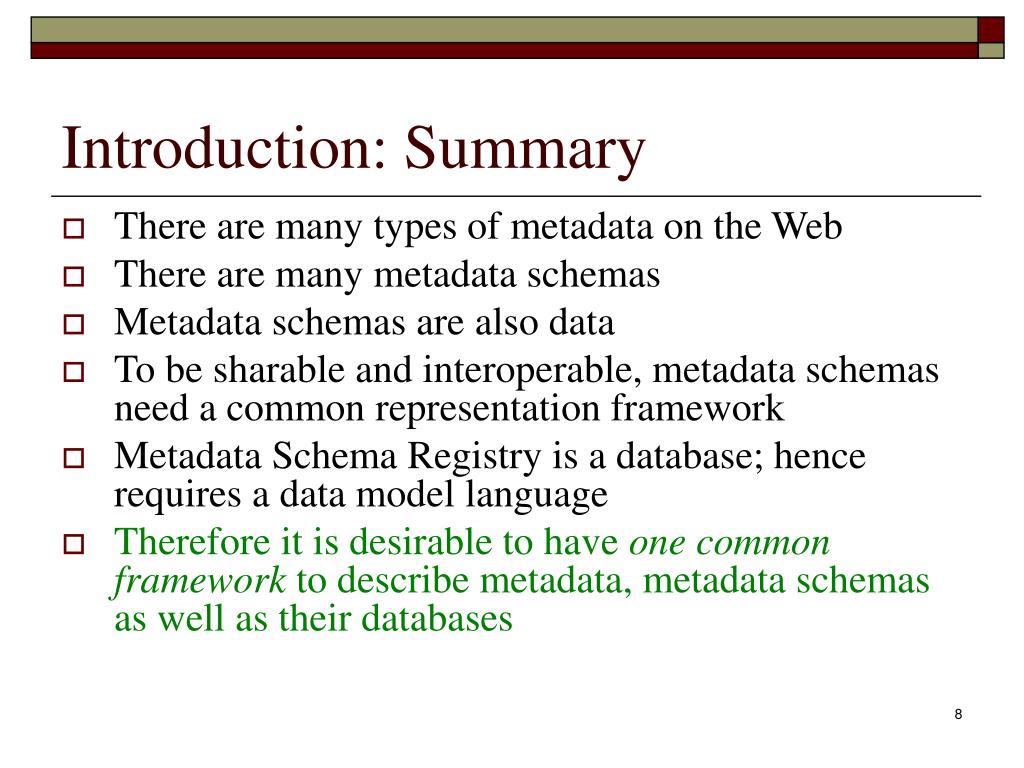

  8. Introduction: Summary • There are many types of metadata on the Web • There are many metadata schemas • Metadata schemas are also data • To be sharable and interoperable, metadata schemas need a common representation framework • Metadata Schema Registry is a database; hence requires a data model language • Therefore it is desirable to have one common framework to describe metadata, metadata schemas as well as their databases

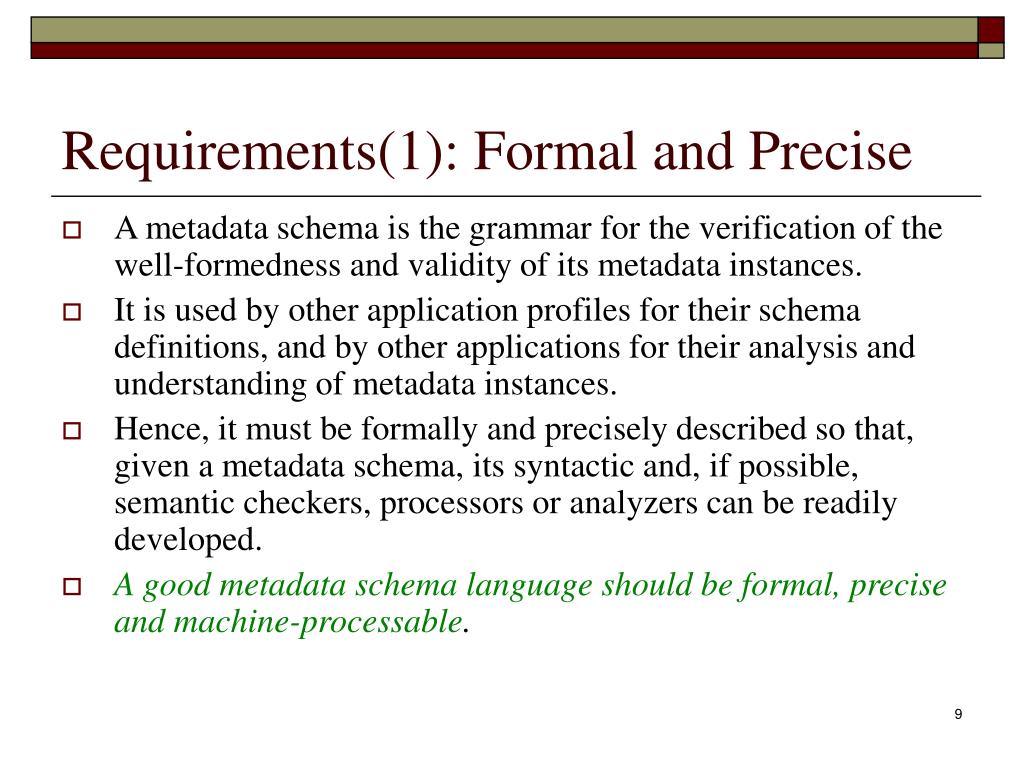

  9. Requirements(1): Formal and Precise • A metadata schema is the grammar for the verification of the well-formedness and validity of its metadata instances. • It is used by other application profiles for their schema definitions, and by other applications for their analysis and understanding of metadata instances. • Hence, it must be formally and precisely described so that, given a metadata schema,itssyntactic and, if possible, semantic checkers, processors or analyzers can be readily developed. • A good metadata schema language should be formal, precise and machine-processable.

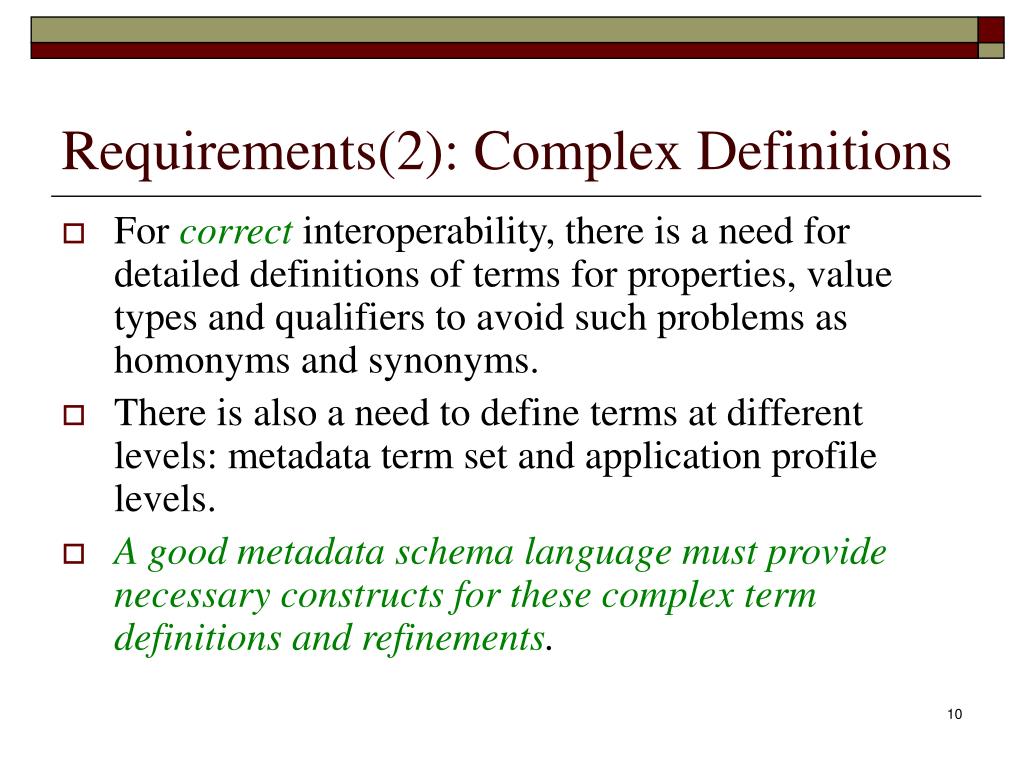

  10. Requirements(2): Complex Definitions • For correct interoperability, there is a need for detailed definitions of terms for properties, value types and qualifiers to avoid such problems as homonyms and synonyms. • There is also a need to define terms at different levels: metadata term set and application profile levels. • A good metadata schema language must provide necessary constructs for these complex term definitions and refinements.

  11. Requirements(3): Term Relationships • There can be relationships between terms in a metadata term set: • Inverse: IsRequiredBy vs. Requires • Subsumption: Descriptionsubsumes Subject • There can also exist relationships across different term types: • between a property type and a value type • Relationships among terms indifferent metadata sets in an application profile: • Equivalence • Composition • A good metadata schema language should be able to express these relationships.

  12. Requirements(4): Constraints, Conditions and Rules • An application profile may impose certain constraints on existing metadata terms: • the range of a value type may be narrowed down • An application profile may introduce conditions on how its adopted and refined terms can be used in metadata instances: • mandatory or optional • minimal and maximal occurrences • repeatable • Some general rules or guidelines may need to be described so that only proper metadata instances are created. • Dump-Down Principle • A good metadata schema language should be able to express these constraints, conditions and rules.

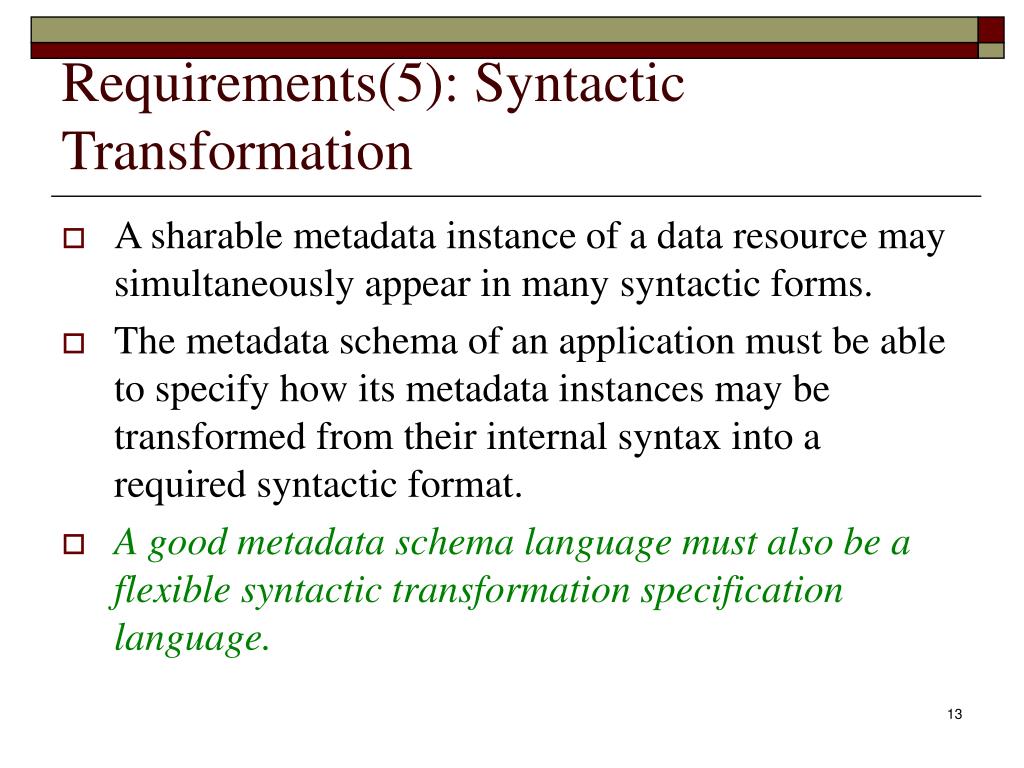

  13. Requirements(5): Syntactic Transformation • A sharable metadata instance of a data resource may simultaneously appear in many syntactic forms. • The metadata schema of an application must be able to specify how its metadata instances may be transformed from their internal syntax into a required syntactic format. • A good metadata schema language must also be a flexible syntactic transformation specification language.

  14. OWL/XDD • OWL/XDD is a language which combines OWL (Web Ontology Language) and XDD (XML Declarative Description). • OWL, a W3C’s recommendation released in Feb. 2004, is a language for describing ontologies as well as their schemas. • OWL can formally and precisely specify concepts or terms and their various relationships.

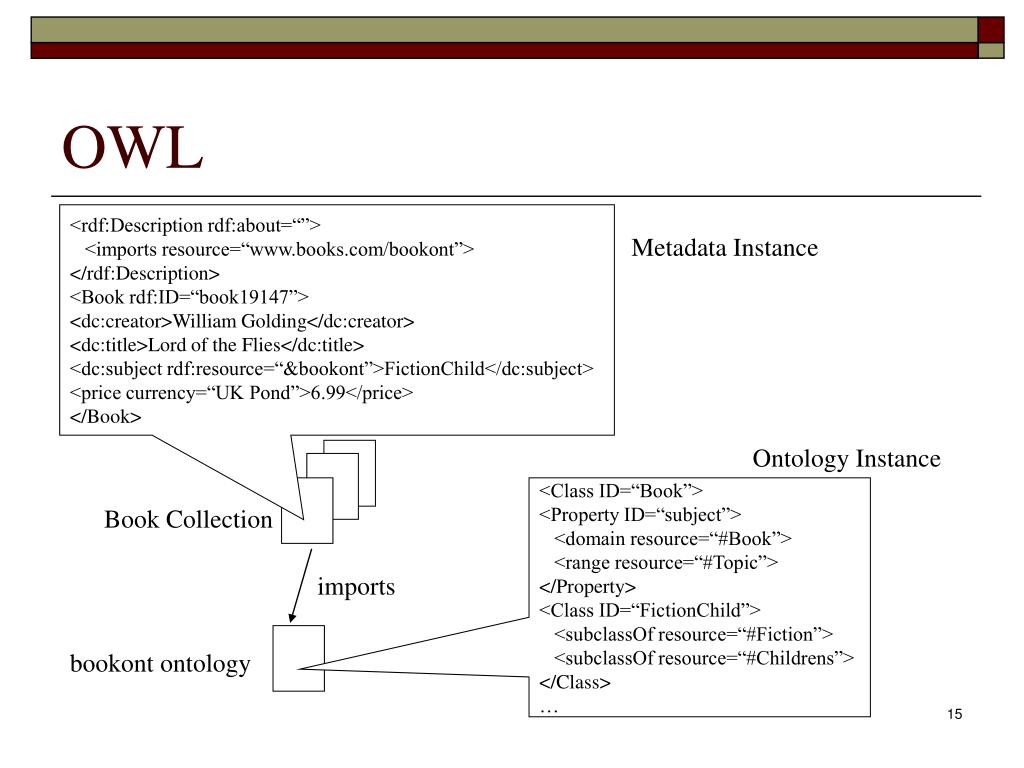

  15. OWL <rdf:Description rdf:about=“”> <imports resource=“www.books.com/bookont”> </rdf:Description> <Book rdf:ID=“book19147”> <dc:creator>William Golding</dc:creator> <dc:title>Lord of the Flies</dc:title> <dc:subject rdf:resource=“&bookont”>FictionChild</dc:subject> <price currency=“UK Pond”>6.99</price> </Book> Metadata Instance Ontology Instance <Class ID=“Book”> <Property ID=“subject”> <domain resource=“#Book”> <range resource=“#Topic”> </Property> <Class ID=“FictionChild”> <subclassOf resource=“#Fiction”> <subclassOf resource=“#Childrens”> </Class> … Book Collection imports bookont ontology

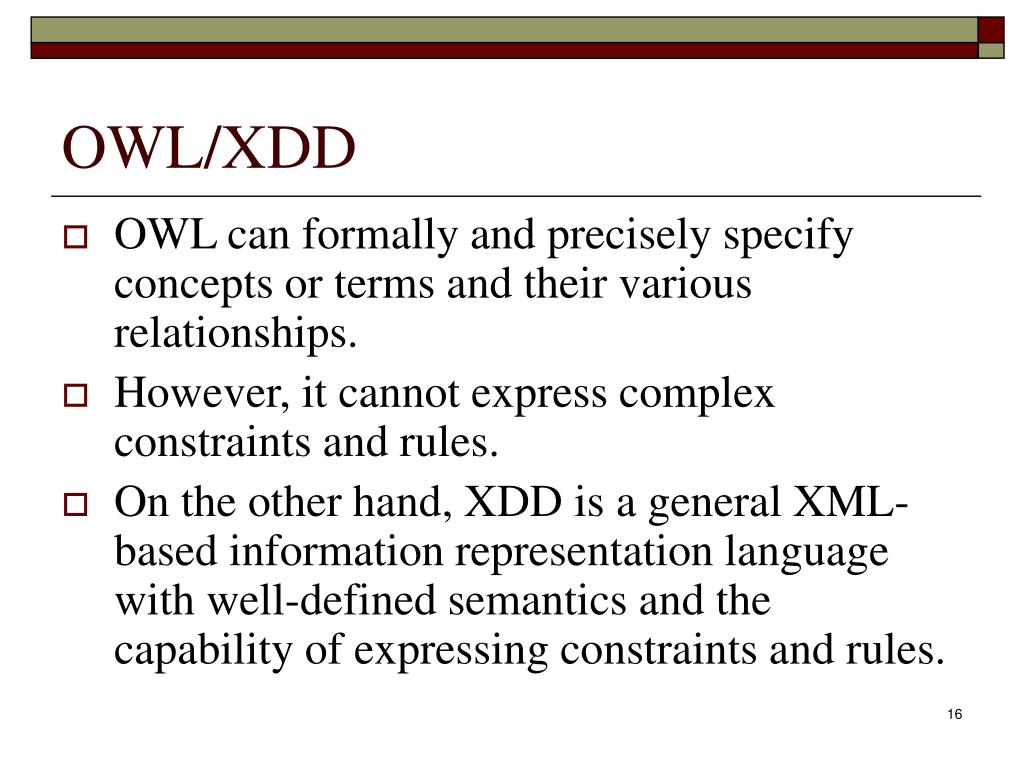

  16. OWL/XDD • OWL can formally and precisely specify concepts or terms and their various relationships. • However, it cannot express complex constraints and rules. • On the other hand, XDD is a general XML-based information representation language with well-defined semantics and the capability of expressing constraints and rules.

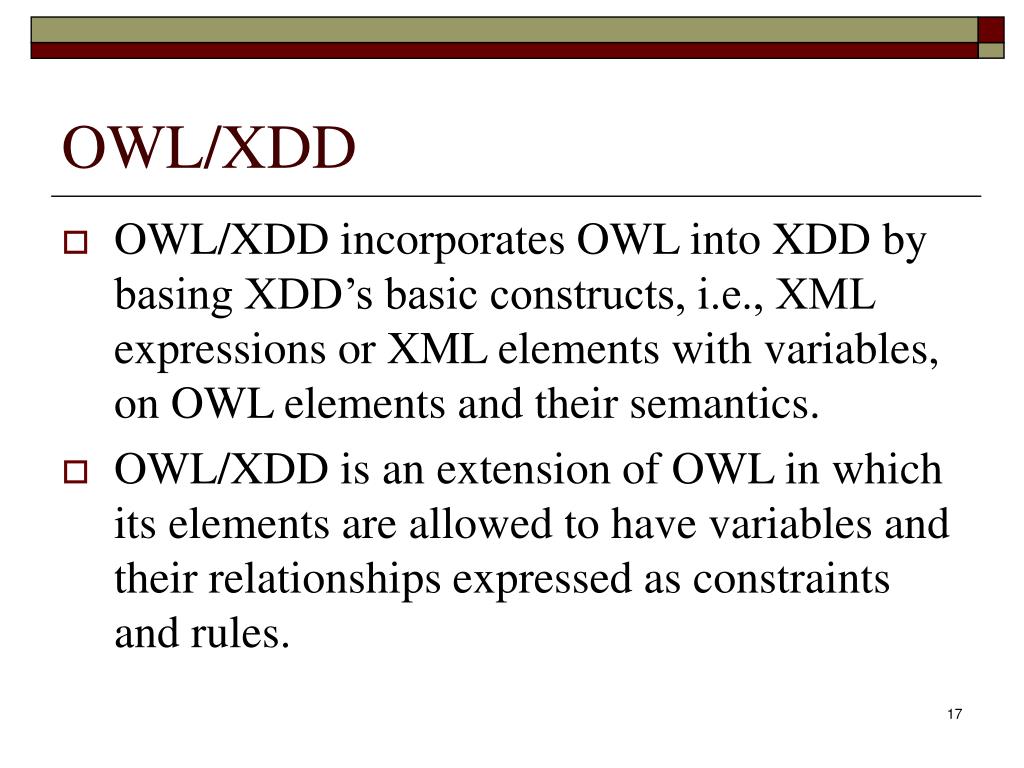

  17. OWL/XDD • OWL/XDD incorporates OWL into XDD by basing XDD’s basic constructs, i.e., XML expressions or XML elements with variables, on OWL elements and their semantics. • OWL/XDD is an extension of OWL in which its elements are allowed to have variables and their relationships expressed as constraints and rules.

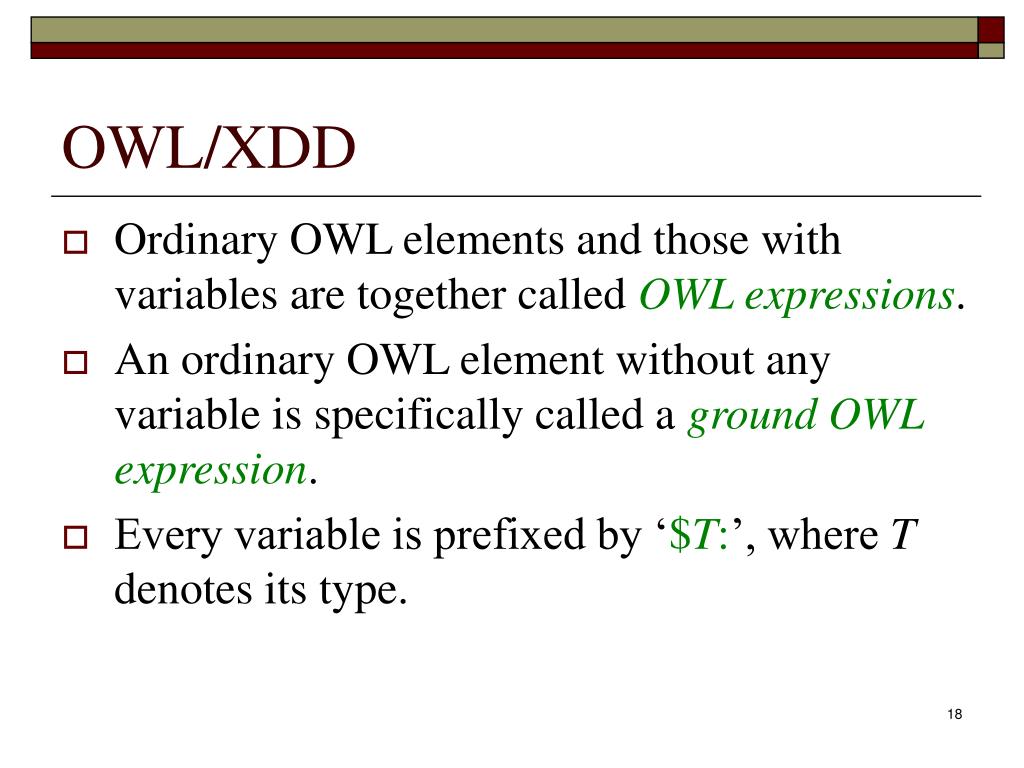

  18. OWL/XDD • Ordinary OWL elements and those with variables are together called OWL expressions. • An ordinary OWL element without any variable is specifically called a ground OWL expression. • Every variable is prefixed by ‘$T:’, where T denotes its type.

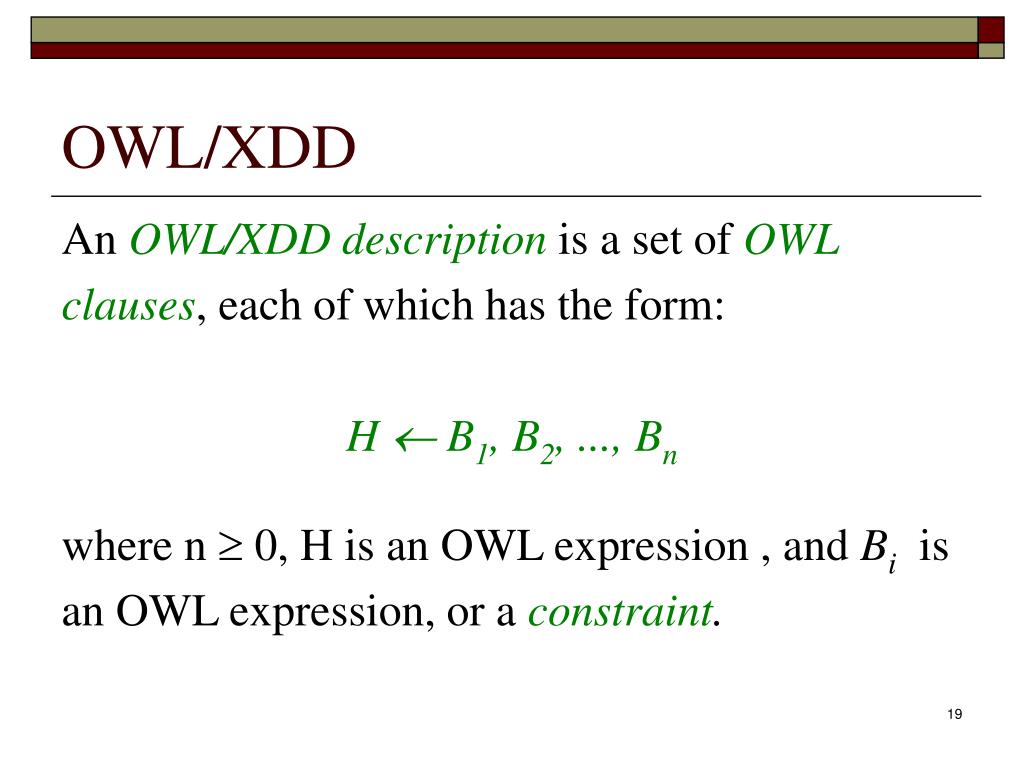

  19. OWL/XDD AnOWL/XDD descriptionis a set of OWL clauses, each of which has the form: H  B1, B2, ..., Bn where n  0, H is an OWL expression , and Bi is an OWL expression, or aconstraint.

  20. OWL/XDD As an example, if a property type R is an inverse of a property type P, then, for any resource X the value of a property type P of which is a resource Y, one can infer that Y also has a property type R the value of which is the resource X.

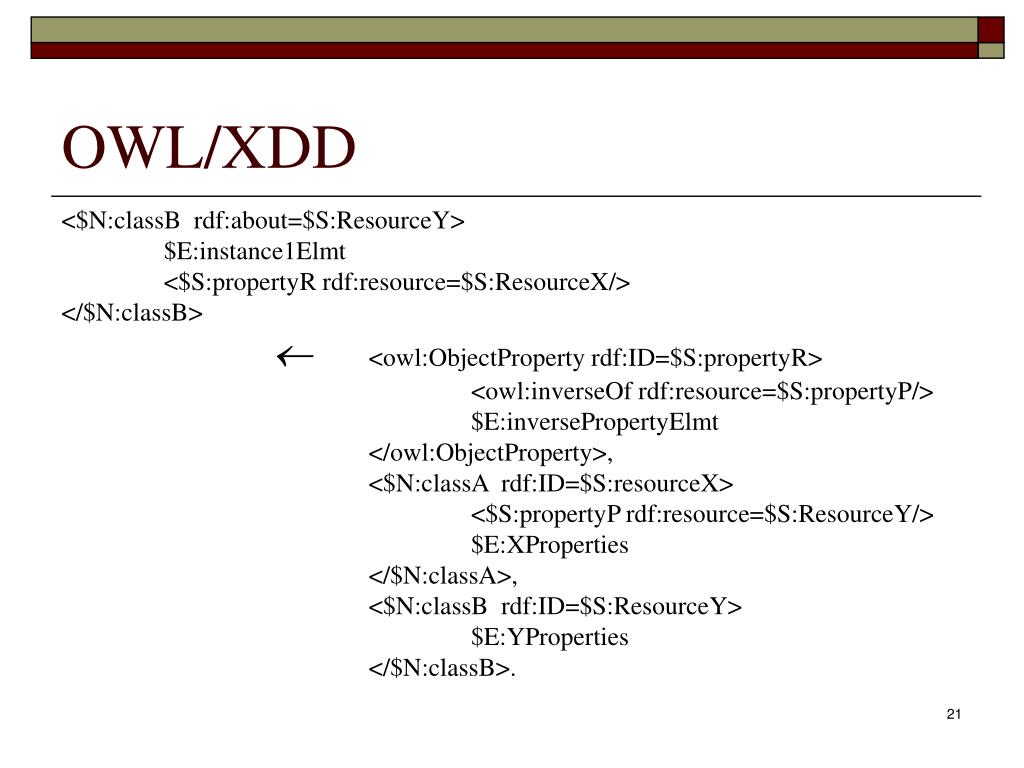

  21. OWL/XDD <$N:classB rdf:about=$S:ResourceY> $E:instance1Elmt <$S:propertyR rdf:resource=$S:ResourceX/> </$N:classB>  <owl:ObjectProperty rdf:ID=$S:propertyR> <owl:inverseOf rdf:resource=$S:propertyP/> $E:inversePropertyElmt </owl:ObjectProperty>, <$N:classA rdf:ID=$S:resourceX> <$S:propertyP rdf:resource=$S:ResourceY/> $E:XProperties </$N:classA>, <$N:classB rdf:ID=$S:ResourceY> $E:YProperties </$N:classB>.

  22. Satisfaction of Requirements (1) • As shown, OWL/XDD is a combination of two formal languages, both of which possess well-defined semantics. • Therefore, OWL/XDD is formal and precise.

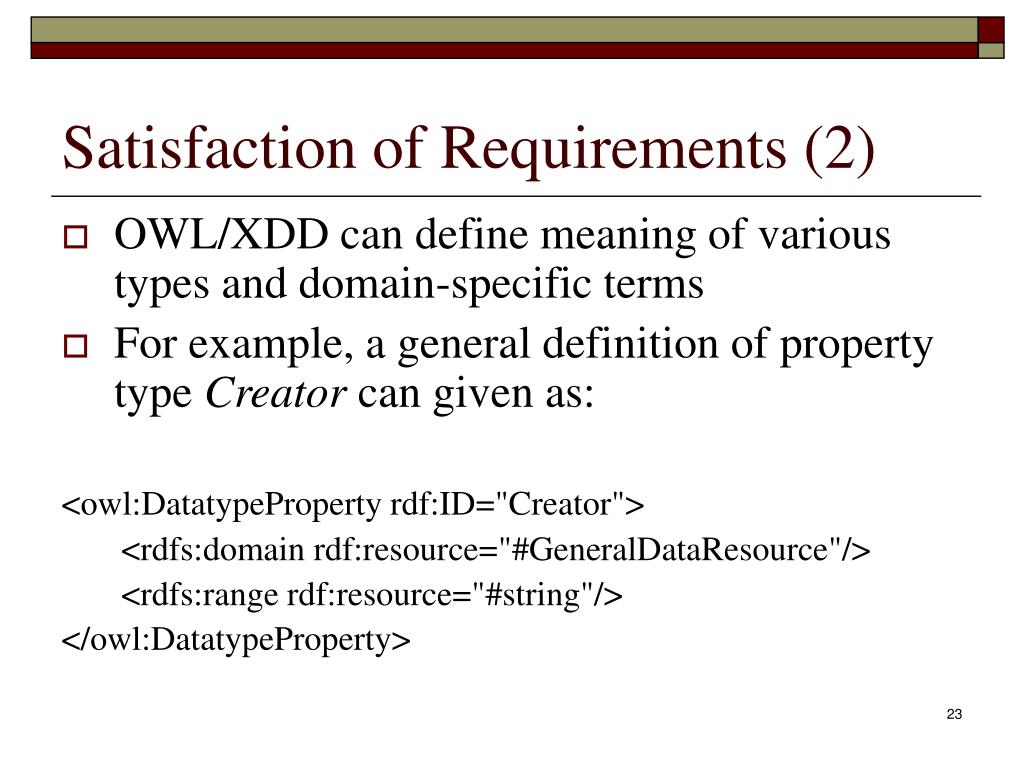

  23. Satisfaction of Requirements (2) • OWL/XDD can define meaning of various types and domain-specific terms • For example, a general definition of property type Creator can given as: <owl:DatatypeProperty rdf:ID="Creator"> <rdfs:domain rdf:resource="#GeneralDataResource"/> <rdfs:range rdf:resource="#string"/> </owl:DatatypeProperty>

  24. Satisfaction of Requirements (2) • An application profile component specifying Creator occurrence number <owl:Class rdf:ID="MyCollection"> <rdfs:subClassOf rdf:resource="#GeneralDataResource"/> <rdfs:subClassOf> <owl:Restriction> <owl:onProperty rdf:resource="#Creator"/> <owl:minCardinality rdf:datatype= "#nonNegativeInteger">0</owl:minCardinality> <owl:maxCardinality rdf:datatype="#nonNegativeInteger">5</owl:maxCardinality> </owl:Restriction> </rdfs:subClassOf> </owl:Class>

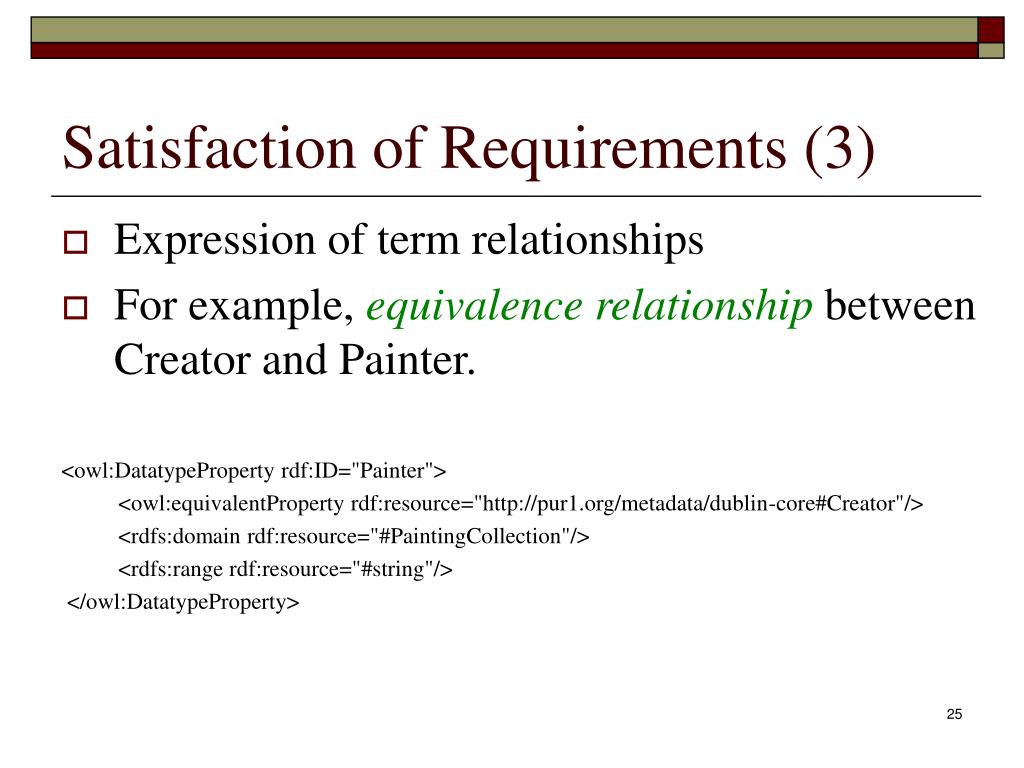

  25. Satisfaction of Requirements (3) • Expression of term relationships • For example, equivalence relationship between Creator and Painter. <owl:DatatypeProperty rdf:ID="Painter"> <owl:equivalentProperty rdf:resource="http://pur1.org/metadata/dublin-core#Creator"/> <rdfs:domain rdf:resource="#PaintingCollection"/> <rdfs:range rdf:resource="#string"/> </owl:DatatypeProperty>

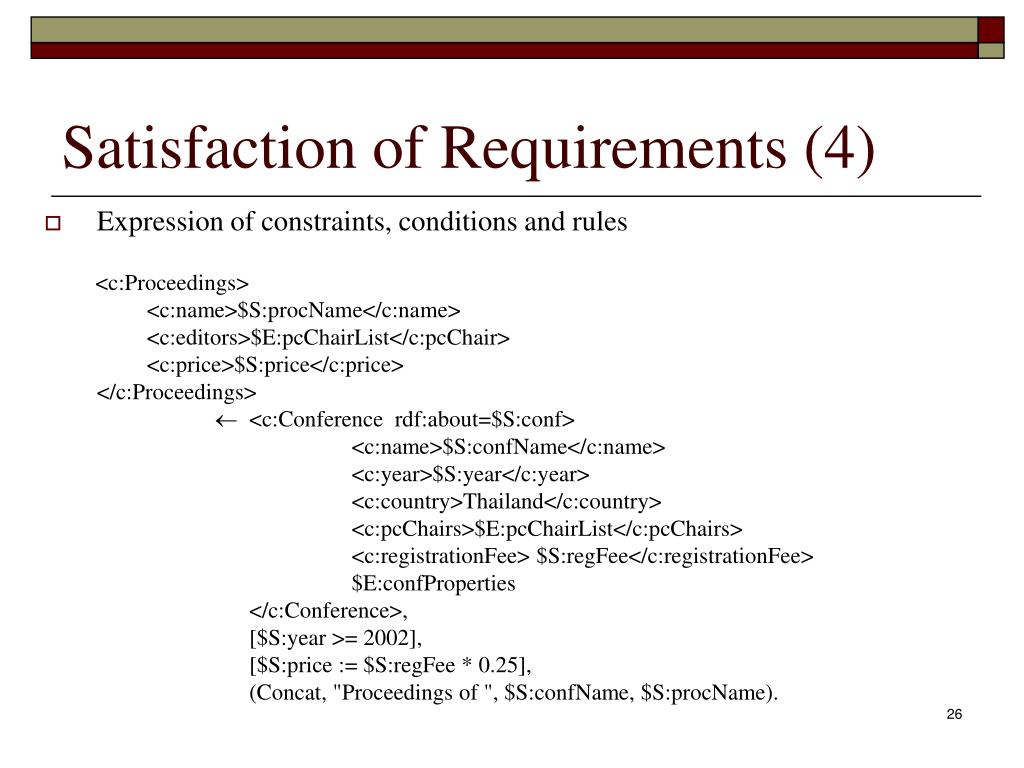

  26. Satisfaction of Requirements (4) • Expression of constraints, conditions and rules <c:Proceedings> <c:name>$S:procName</c:name> <c:editors>$E:pcChairList</c:pcChair> <c:price>$S:price</c:price> </c:Proceedings>  <c:Conference rdf:about=$S:conf> <c:name>$S:confName</c:name> <c:year>$S:year</c:year> <c:country>Thailand</c:country> <c:pcChairs>$E:pcChairList</c:pcChairs> <c:registrationFee> $S:regFee</c:registrationFee> $E:confProperties </c:Conference>, [$S:year >= 2002], [$S:price := $S:regFee * 0.25], (Concat, "Proceedings of ", $S:confName, $S:procName).

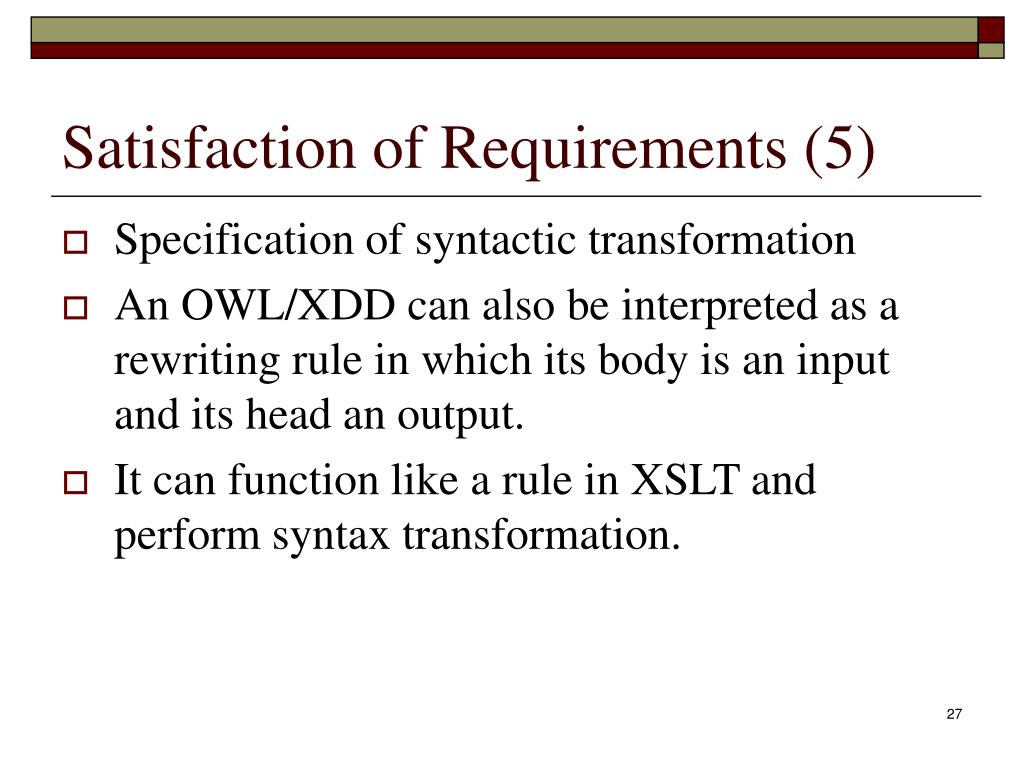

  27. Satisfaction of Requirements (5) • Specification of syntactic transformation • An OWL/XDD can also be interpreted as a rewriting rule in which its body is an input and its head an output. • It can function like a rule in XSLT and perform syntax transformation.

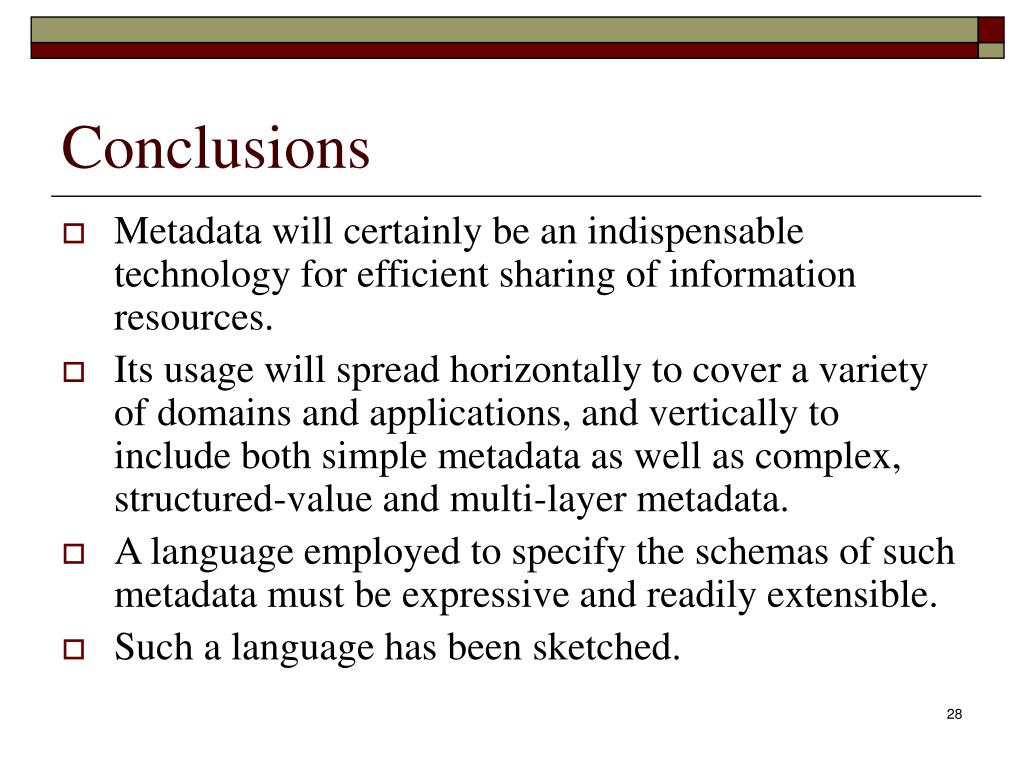

  28. Conclusions • Metadata will certainly be an indispensable technology for efficient sharing of information resources. • Its usage will spread horizontally to cover a variety of domains and applications, and vertically to include both simple metadata as well as complex, structured-value and multi-layer metadata. • A language employed to specify the schemas of such metadata must be expressive and readily extensible. • Such a language has been sketched.
