Uml profile to support requirements engineering with kaos

UML Profile to Support Requirements Engineering with KAOS

Presented by Chin-Yi Tsai


Outline

Outline

  • Introduction

  • The Stereotypes of the KAOS Profile

  • Model Integration

  • Case Study

  • Conclusion


Introduction

Introduction

  • One of the most important approaches to requirement engineering of the ten year is the KAOS model.

Nonstandard graphical notation

The notation and tool are not familiar to many.


Introduction cont d

Introduction (cont’d)

  • Introduce a profile that allows the KAOS model to be represented in the UML.

  • A UML profile can increase the usefulness of KAOS.

  • The ability to model the KAOS approach in the UML offers the potential for extra tool support.

Informal representation of the profile

Stereotype

tag


Introduction cont d1

KAOS Model

Meta-level

Domain-level

Instance-level

UML

Meta-model layer

Model layer

User model (=instance) layer

Introduction (cont’d)

  • KAOS

    • Goal-oriented methodology

    • Rich ontology for capturing and modeling requirement

    • Refinement and operationalization

    • Temporal logic for verification

  • KAOS and the UML


Introduction cont d2

Introduction (cont’d)

  • A KAOS model is s semantic network in which the nodes are concepts and the connection between nodes are associations between the concepts.

  • There are two parts to a KAOS model

    • A graphical representation of the semantic network together with a supplementary textural definition

    • The optional formal representation expressed in a temporal logic

  • KAOS semantic network

    • stereotyped classes

    • association

  • The informal and formal descriptions

    • tags of these stereotyped class

    • association.


Introduction cont d3

<<refines>>

<<reduces>>

Introduction (cont’d)

  • Formal expressions need to be rewritten using only ASCII characters since most UML editors do not support the symbol of the KAOS temporal logic.

    • OCL

  • The UML is extended by introducing new stereotypes to the language.

  • A particular extension of the UML is packaged as profile.

    • We can think of a profile as an extension of the UML meta-model layer


Introduction cont d4

Introduction (cont’d)

The stereotype <<reduces>> is a specialisation of the existing UML abstraction stereotype <<refines>>.


Stereotype

Stereotype

  • <<kobject>>

  • <<kentity

  • <kevent>>

  • <<kagent>>

  • <<goal>>

  • <<requisite>>

  • <<requirement>>

  • <<input>>

  • <<output>>

  • <<capability>>

  • <<performs>>

  • <<monitors>>

  • <<controls>>

  • <<concerns>>

  • <<reduces>>

  • <<conflicts>>

  • <<assumption>>

  • <<operationalises>>

  • <<responsibility>>

Association

Class


Uml profile to support requirements engineering with kaos

Tags

  • informalDef

  • formalDef

  • form

  • soft

  • instanceOf

  • priority

  • category

  • invariant

  • strengthenInv

  • frequency

  • domPrecondition

  • domPostcondition

  • reqPrecondition

  • reqPostcondition

  • reqTriggercondition

  • realm


The stereotypes of the kaos profile

The Stereotypes of the KAOS Profile

stereotype

tags

form:

Achieve

Main

Avoid

Cease

Minimise

Maximise


Goal reduction

Goal Reduction


Requisites

Requisites

  • A goal that can be reduced no further and is assignable to an individual agent either in the domain (Requirement) or in the software-to-be (Assumption) is a requisite.


Agent entities and events

Agent, entities and events


Actions

Actions


Model integration

Model Integration

  • Modeled in the UML, a KAOS model may be incorporated into the reset of a system’s UML design documentation, seamlessly linking the documentation for the requirements elicitation part of a project to the whole.


Requirements traceability

Requirement Model

Design Model

Traceability

Requirements Traceability

  • <<operationalises>>

  • <<responsibility>>

  • <<ensures>>

  • <<requisite>>

  • <<kaction>>

  • <<kagent>>

  • <kobject>>


Interleaving models

Interleaving Models

  • A more interesting possibility resulting from the profile is the interleaving of KAOS models with standard UML models.


Case study

Case Study

  • A portion of the advanced automatic train control (AATC) system used in San Francisco’s Bay Area Rapid Transit (BART) rail service.

  • To serve more passengers by running trains more closely spaced.

  • Steps:

    • Identification and Formalisation of Primary Goals

    • Identification of Objects

    • Identification of Requirements and Agent Assignments

    • Goal Operationalisation


Identification and formalisation of primary goals

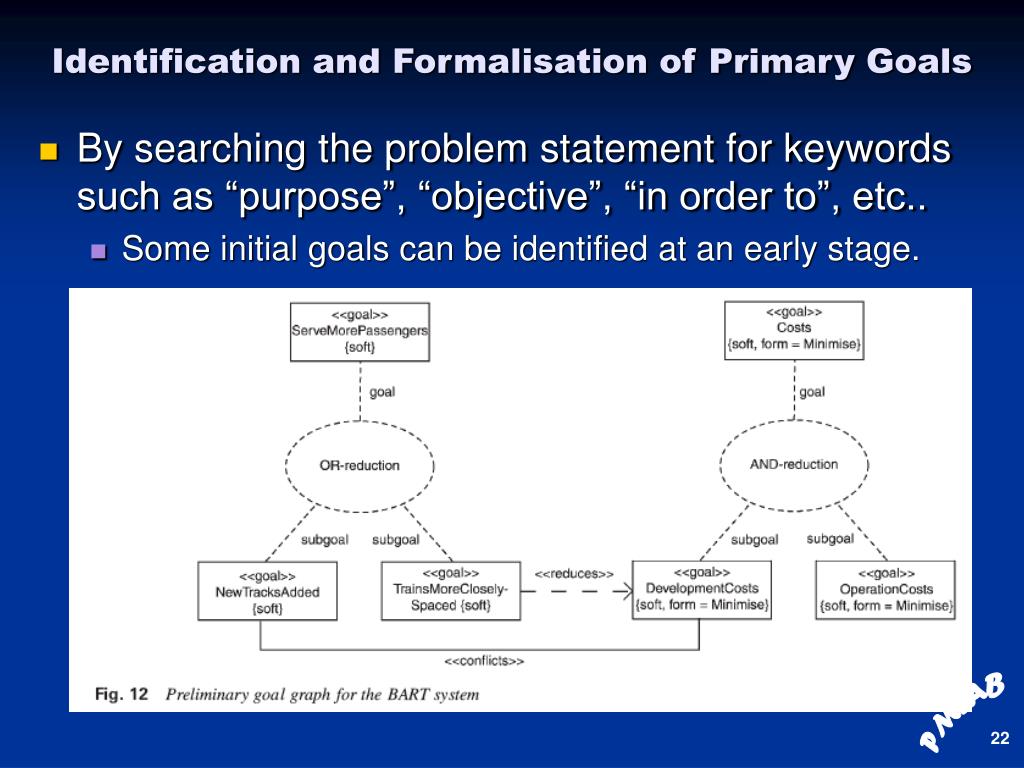

Identification and Formalisation of Primary Goals

  • By searching the problem statement for keywords such as “purpose”, “objective”, “in order to”, etc..

    • Some initial goals can be identified at an early stage.


Identification and formalisation of primary goals1

Identification and Formalisation of Primary Goals


Identification and formalisation of primary goals2

Identification and Formalisation of Primary Goals


Identification of objects

Identification of Objects

  • The definition of goals derives the identification of objects.


Identification of objects1

Identification of Objects


Identification of requirements and agent assignments

Identification of Requirements and Agent Assignments


Goal operationalisation

Goal Operationalisation


Conclusion

Conclusion


Stereotype1

Stereotype


Uml profile to support requirements engineering with kaos

Tags
