Remote Replication

1. Section 3 : Business Continuity Remote Replication Chapter 14

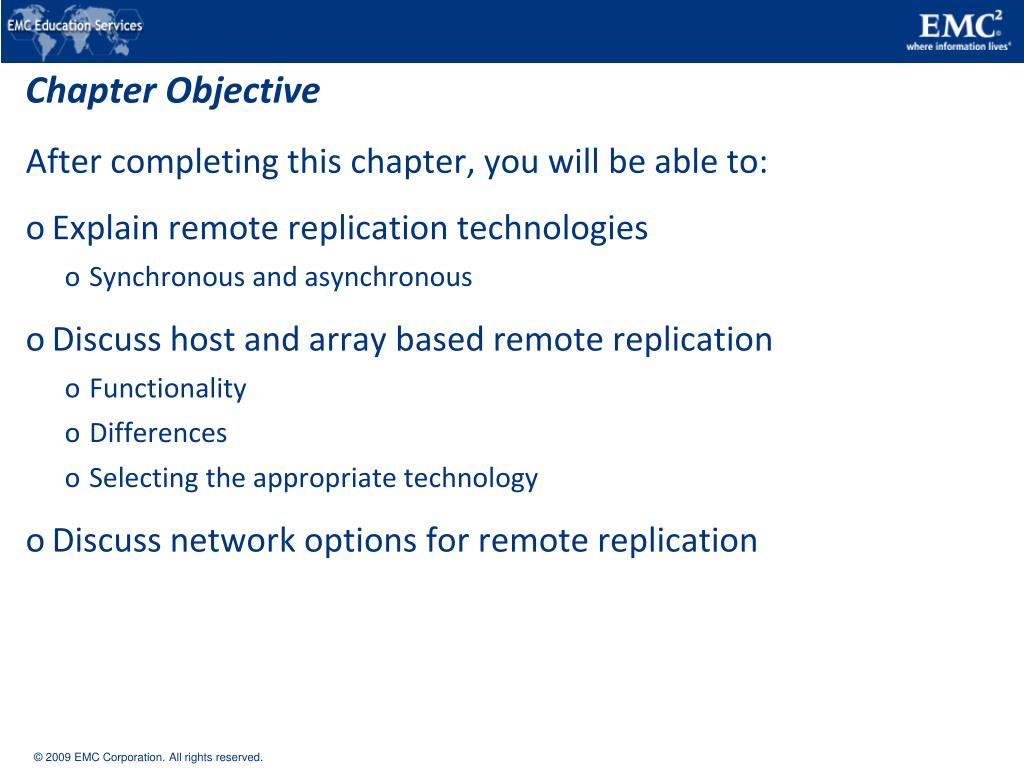

2. Chapter Objective After completing this chapter, you will be able to: • Explain remote replication technologies • Synchronous and asynchronous • Discuss host and array based remote replication • Functionality • Differences • Selecting the appropriate technology • Discuss network options for remote replication

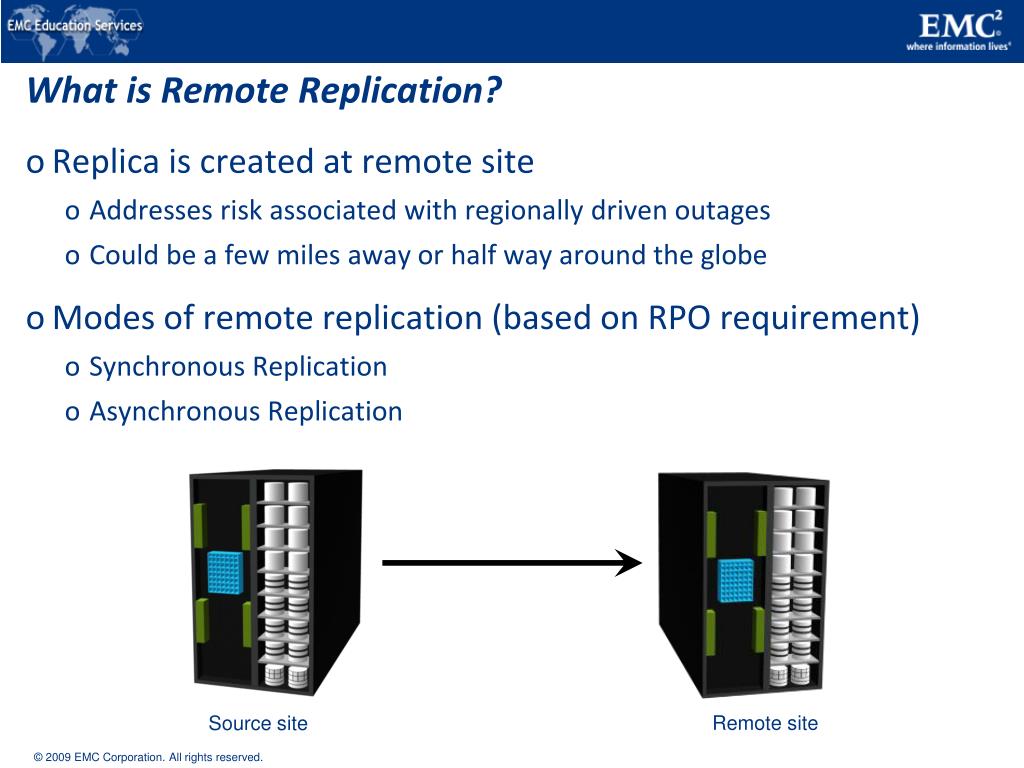

3. What is Remote Replication? • Replica is created at remote site • Addresses risk associated with regionally driven outages • Could be a few miles away or half way around the globe • Modes of remote replication (based on RPO requirement) • Synchronous Replication • Asynchronous Replication Remote site Source site

4. 1 4 2 3 Synchronous Replication • A write must be committed to the source and remote replica before it is acknowledged to the host • Ensures source and remote replica have identical data at all times • Write ordering is maintained • Replica receives writes in exactly the same order as the source • Synchronous replication provides the lowest RPO and RTO • Goal is zero RPO • RTO is as small as the time it takes to start application on the target site Source Host Data Write Data Acknowledgement Target

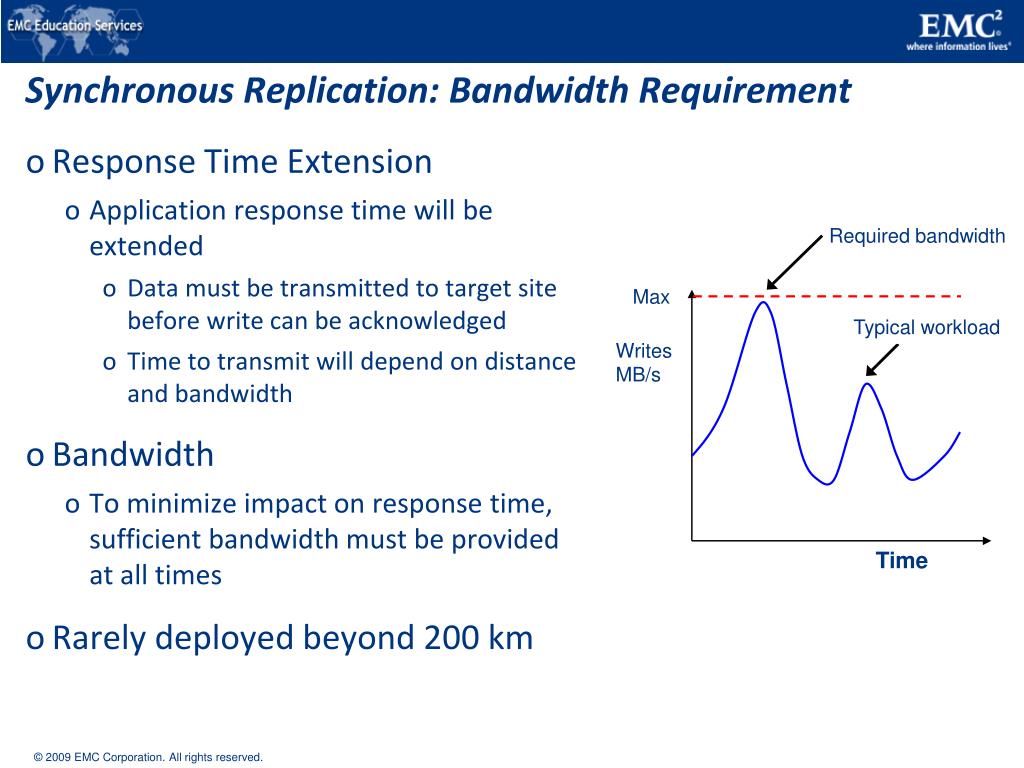

5. Required bandwidth Typical workload Synchronous Replication: Bandwidth Requirement • Response Time Extension • Application response time will be extended • Data must be transmitted to target site before write can be acknowledged • Time to transmit will depend on distance and bandwidth • Bandwidth • To minimize impact on response time, sufficient bandwidth must be provided at all times • Rarely deployed beyond 200 km Max Writes MB/s Time

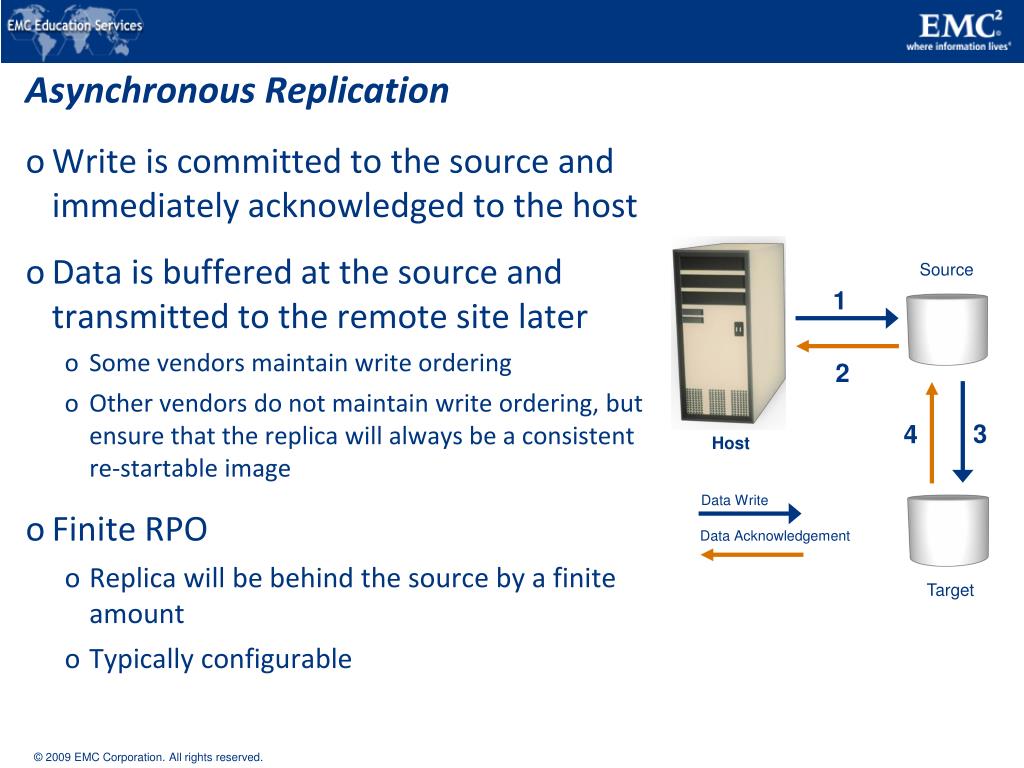

6. 1 2 3 4 Asynchronous Replication • Write is committed to the source and immediately acknowledged to the host • Data is buffered at the source and transmitted to the remote site later • Some vendors maintain write ordering • Other vendors do not maintain write ordering, but ensure that the replica will always be a consistent re-startable image • Finite RPO • Replica will be behind the source by a finite amount • Typically configurable Source Host Data Write Data Acknowledgement Target

7. Typical workload Asynchronous Replication: Bandwidth Requirement • Response time unaffected • Bandwidth • Need average bandwidth • Buffers • Need sufficient buffers at the source to hold data before transmission to remote site • Can be deployed over long distances Required bandwidth Writes MB/s Average Time

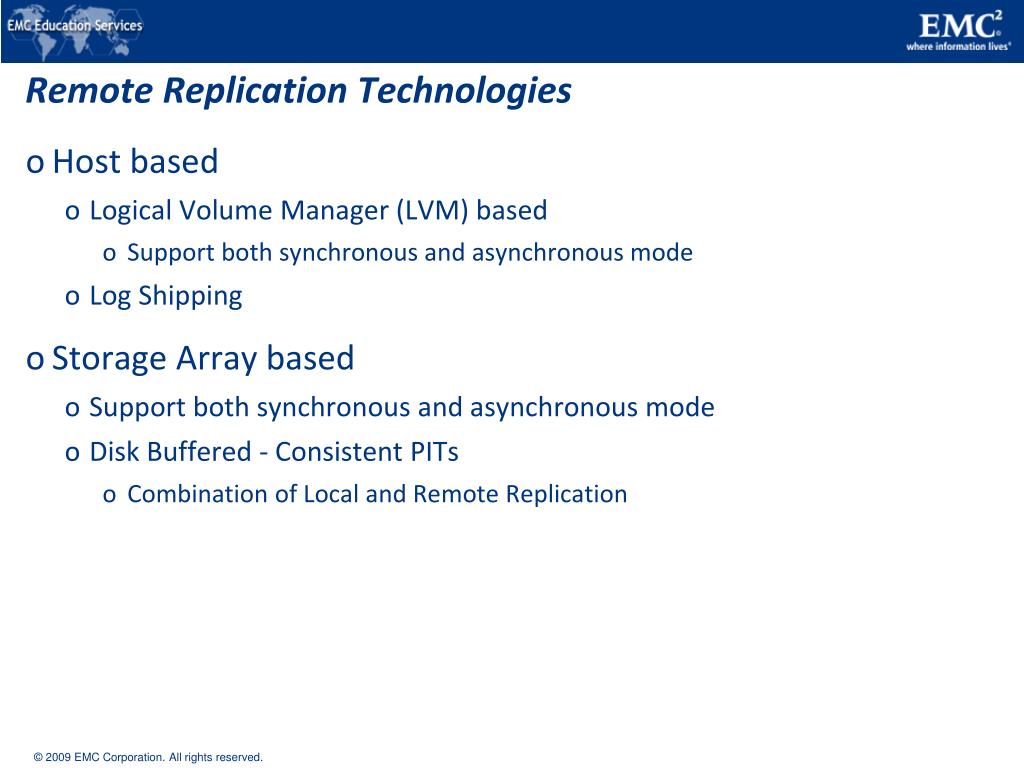

8. Remote Replication Technologies • Host based • Logical Volume Manager (LVM) based • Support both synchronous and asynchronous mode • Log Shipping • Storage Array based • Support both synchronous and asynchronous mode • Disk Buffered - Consistent PITs • Combination of Local and Remote Replication

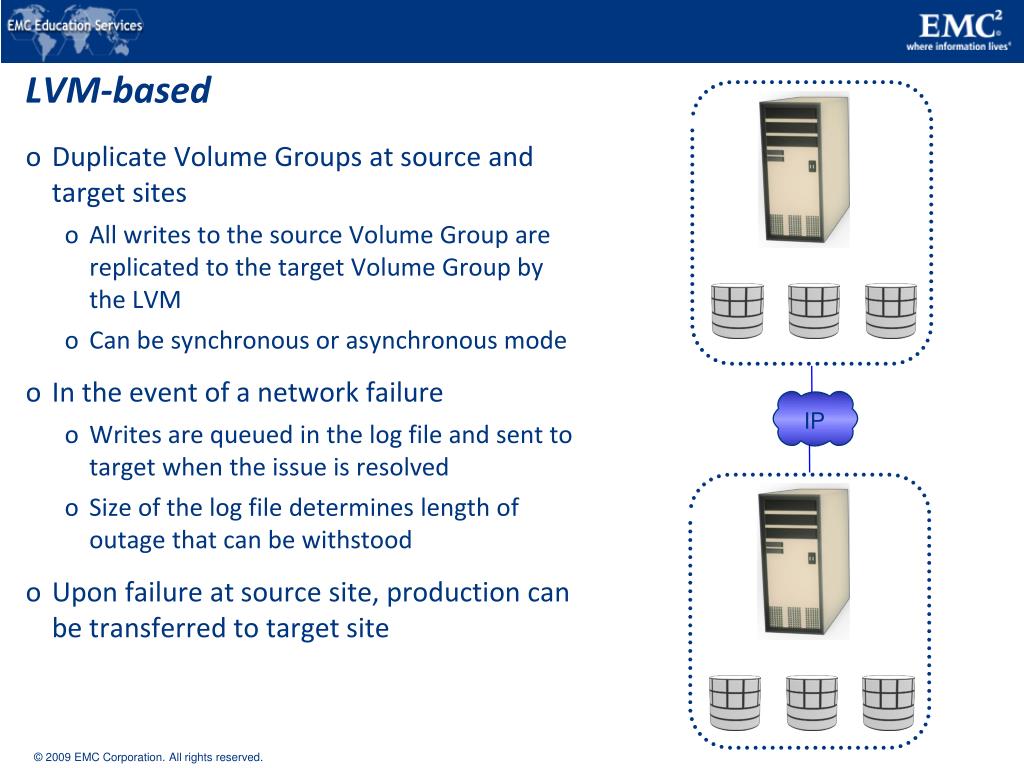

9. LVM-based • Duplicate Volume Groups at source and target sites • All writes to the source Volume Group are replicated to the target Volume Group by the LVM • Can be synchronous or asynchronous mode • In the event of a network failure • Writes are queued in the log file and sent to target when the issue is resolved • Size of the log file determines length of outage that can be withstood • Upon failure at source site, production can be transferred to target site IP

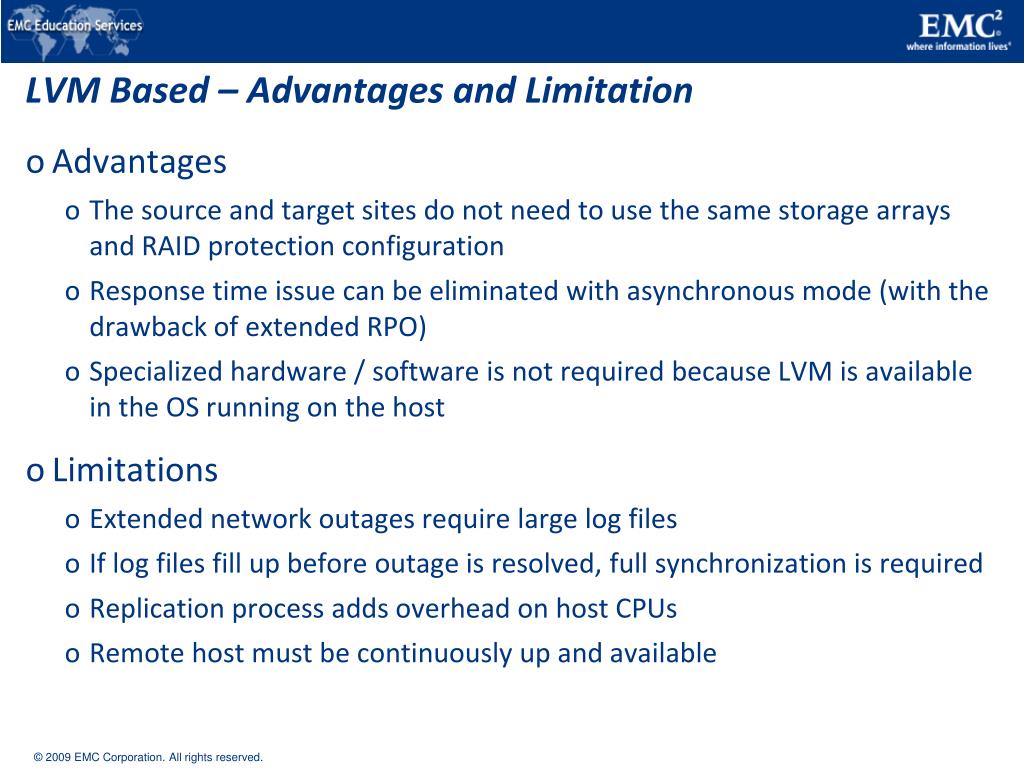

10. LVM Based – Advantages and Limitation • Advantages • The source and target sites do not need to use the same storage arrays and RAID protection configuration • Response time issue can be eliminated with asynchronous mode (with the drawback of extended RPO) • Specialized hardware / software is not required because LVM is available in the OS running on the host • Limitations • Extended network outages require large log files • If log files fill up before outage is resolved, full synchronization is required • Replication process adds overhead on host CPUs • Remote host must be continuously up and available

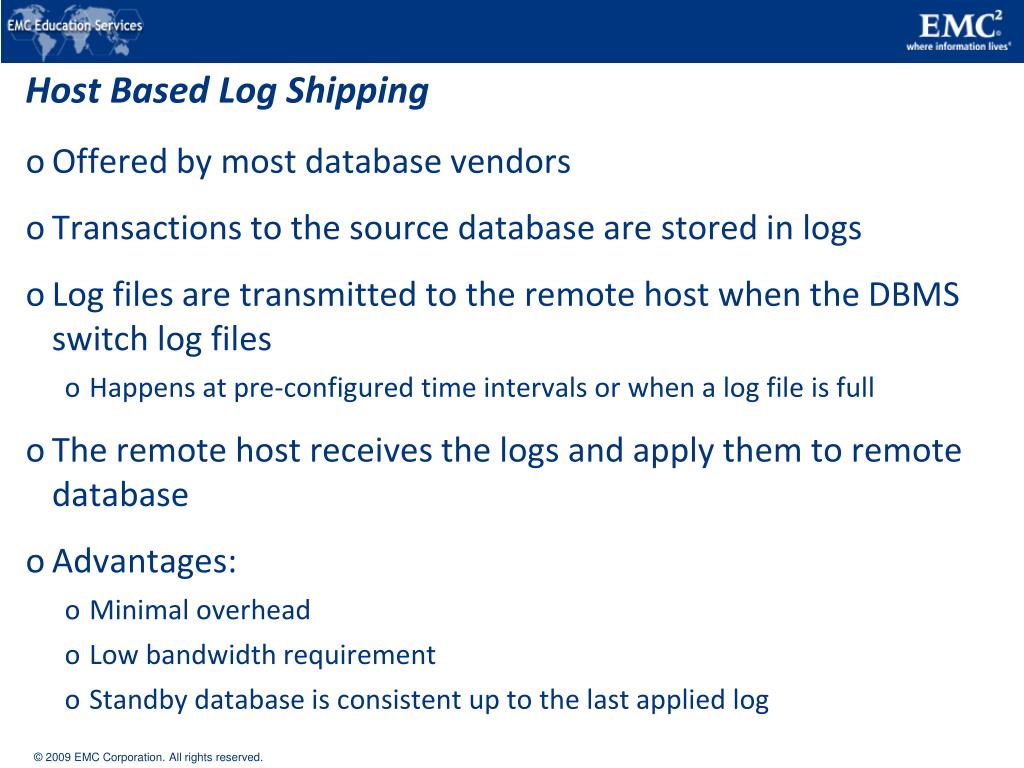

11. Host Based Log Shipping • Offered by most database vendors • Transactions to the source database are stored in logs • Log files are transmitted to the remote host when the DBMS switch log files • Happens at pre-configured time intervals or when a log file is full • The remote host receives the logs and apply them to remote database • Advantages: • Minimal overhead • Low bandwidth requirement • Standby database is consistent up to the last applied log

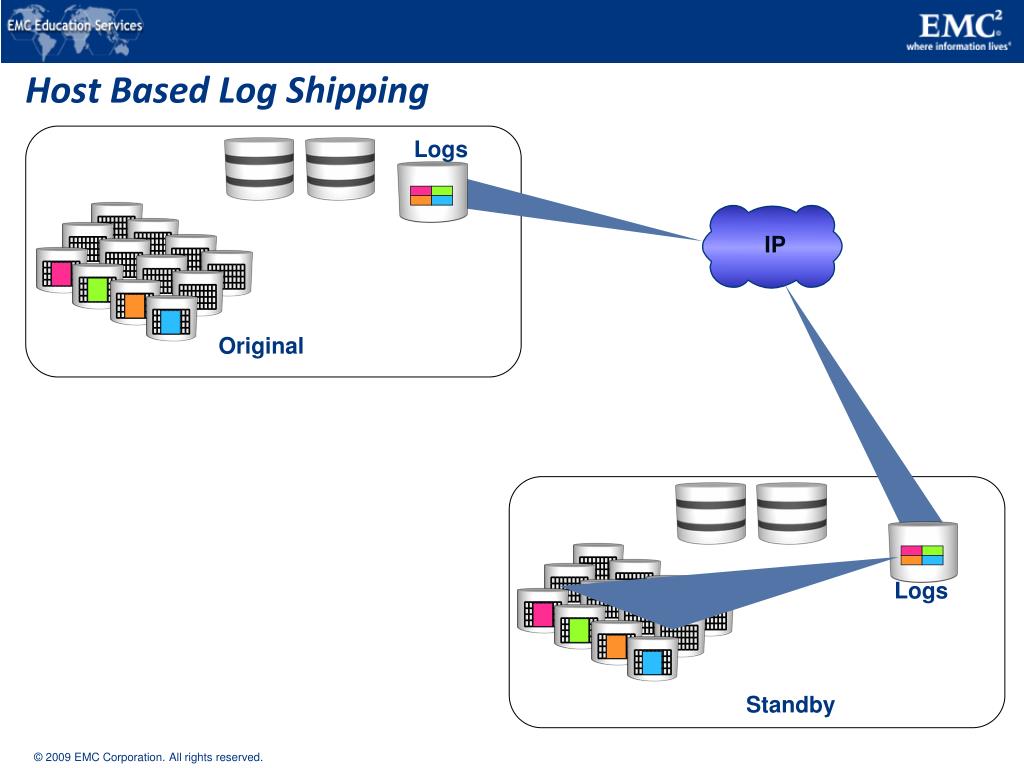

12. Host Based Log Shipping Logs IP Original Logs Standby

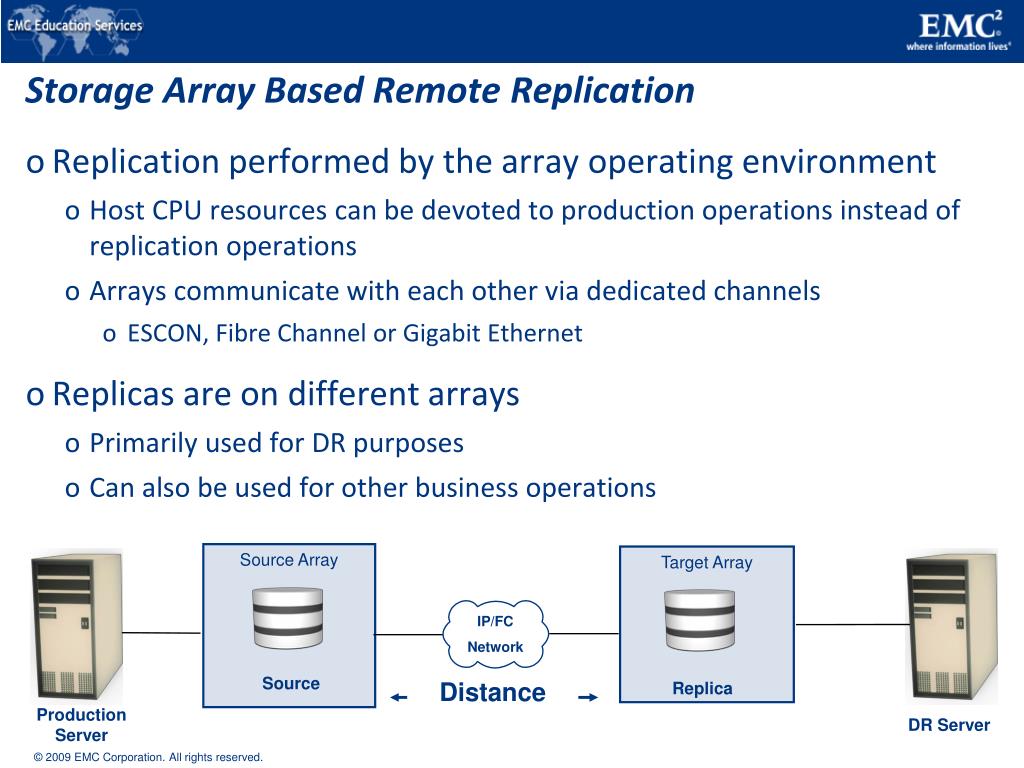

13. Storage Array Based Remote Replication • Replication performed by the array operating environment • Host CPU resources can be devoted to production operations instead of replication operations • Arrays communicate with each other via dedicated channels • ESCON, Fibre Channel or Gigabit Ethernet • Replicas are on different arrays • Primarily used for DR purposes • Can also be used for other business operations Source Array Target Array IP/FC Network Distance Source Replica Production Server DR Server

14. Write is received by the source array from host/server Write is transmitted by source array to the target array Target array sends acknowledgement to the source array Source array signals write complete to host/server Array Based – Synchronous Replication Network links Source Target

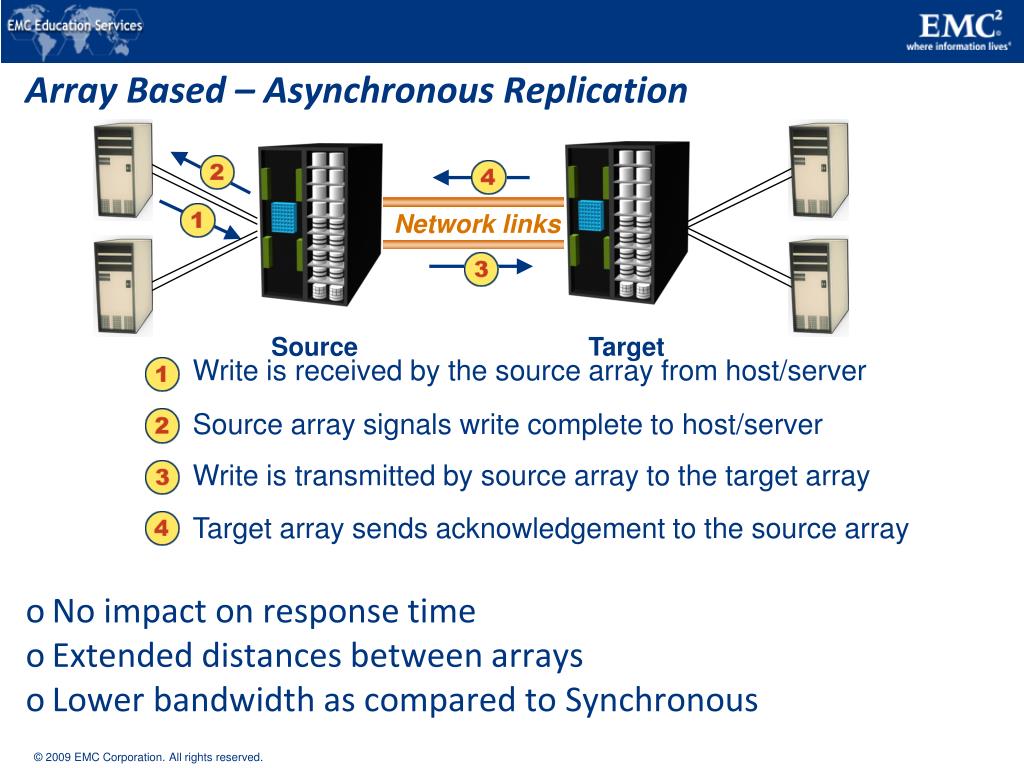

15. Write is received by the source array from host/server Source array signals write complete to host/server Target array sends acknowledgement to the source array Write is transmitted by source array to the target array Array Based – Asynchronous Replication • No impact on response time • Extended distances between arrays • Lower bandwidth as compared to Synchronous Network links Source Target

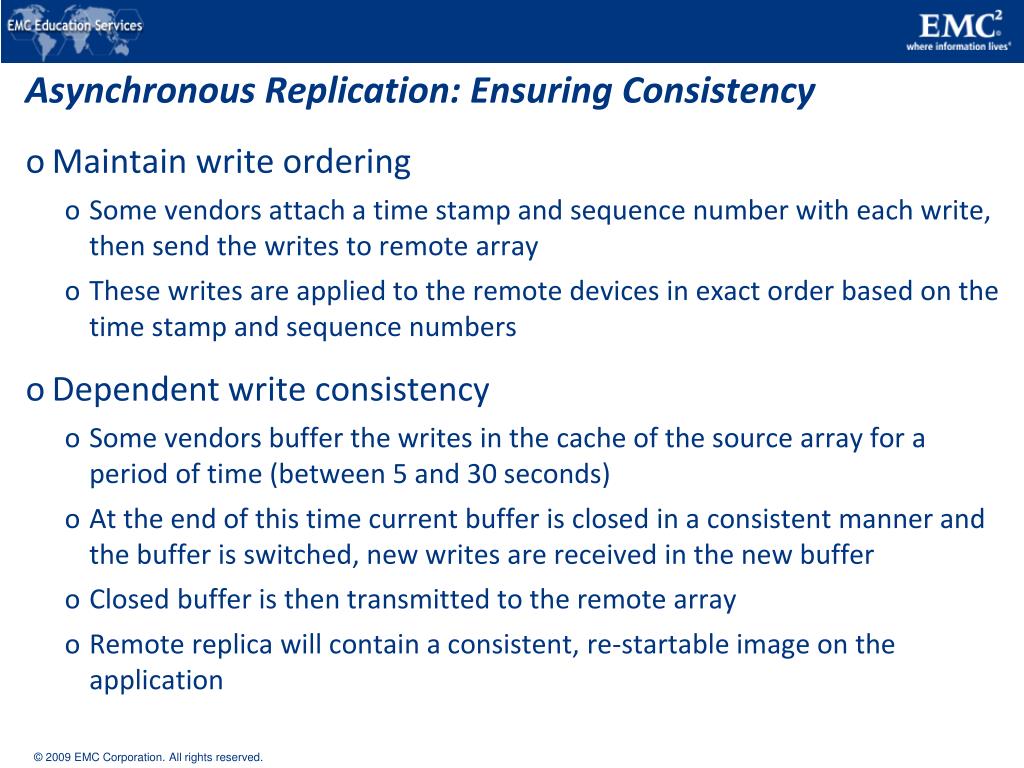

16. Asynchronous Replication: Ensuring Consistency • Maintain write ordering • Some vendors attach a time stamp and sequence number with each write, then send the writes to remote array • These writes are applied to the remote devices in exact order based on the time stamp and sequence numbers • Dependent write consistency • Some vendors buffer the writes in the cache of the source array for a period of time (between 5 and 30 seconds) • At the end of this time current buffer is closed in a consistent manner and the buffer is switched, new writes are received in the new buffer • Closed buffer is then transmitted to the remote array • Remote replica will contain a consistent, re-startable image on the application

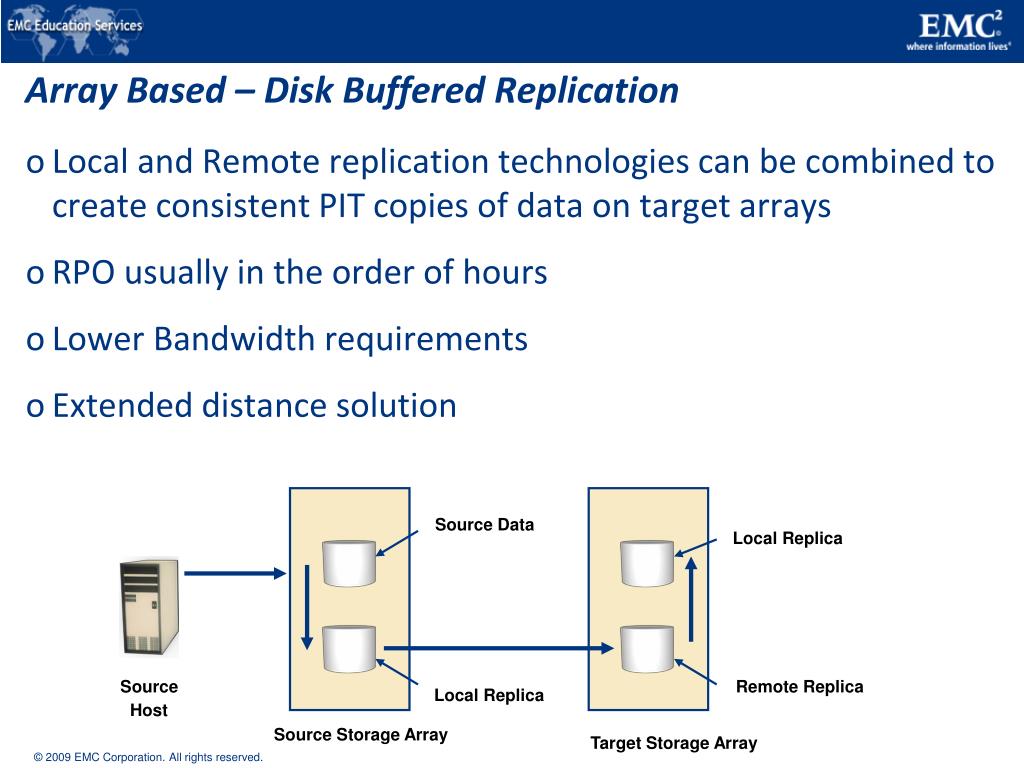

17. Array Based – Disk Buffered Replication • Local and Remote replication technologies can be combined to create consistent PIT copies of data on target arrays • RPO usually in the order of hours • Lower Bandwidth requirements • Extended distance solution Source Data Local Replica Source Remote Replica Local Replica Host Source Storage Array Target Storage Array

18. Remote Replicas – Tracking Changes • Remote replicas can be used for BC operations • Typically remote replication operations will be suspended when the remote replicas are used for BC operations • During business operations changes will/could happen to both the source and remote replicas • Most remote replication technologies have the ability to track changes made to the source and remote replicas to allow for incremental re-synchronization • Resuming remote replication operations will require re-synchronization between the source and replica

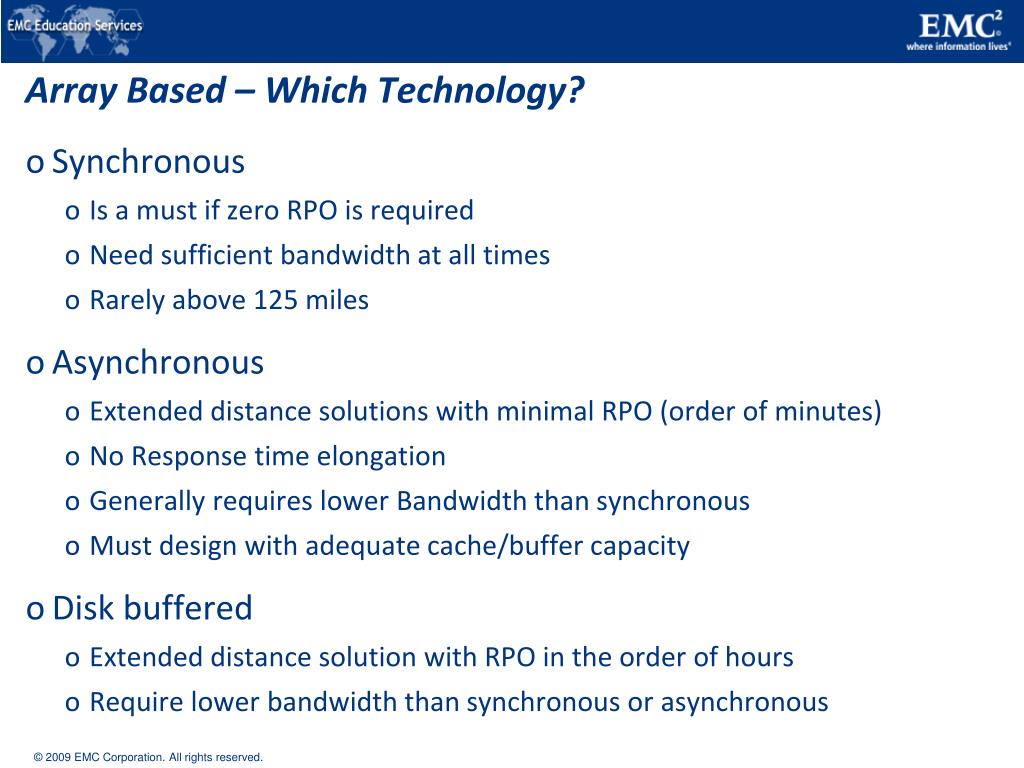

19. Array Based – Which Technology? • Synchronous • Is a must if zero RPO is required • Need sufficient bandwidth at all times • Rarely above 125 miles • Asynchronous • Extended distance solutions with minimal RPO (order of minutes) • No Response time elongation • Generally requires lower Bandwidth than synchronous • Must design with adequate cache/buffer capacity • Disk buffered • Extended distance solution with RPO in the order of hours • Require lower bandwidth than synchronous or asynchronous

20. Three Site Replication • Eliminates disadvantages of two site replication • Single site disaster leads to a window when there is no DR protection • Data replicated to two remote sites • Implemented in two ways • Three Site Cascade/Multi-hop • Three Site Triangle/Multi-target

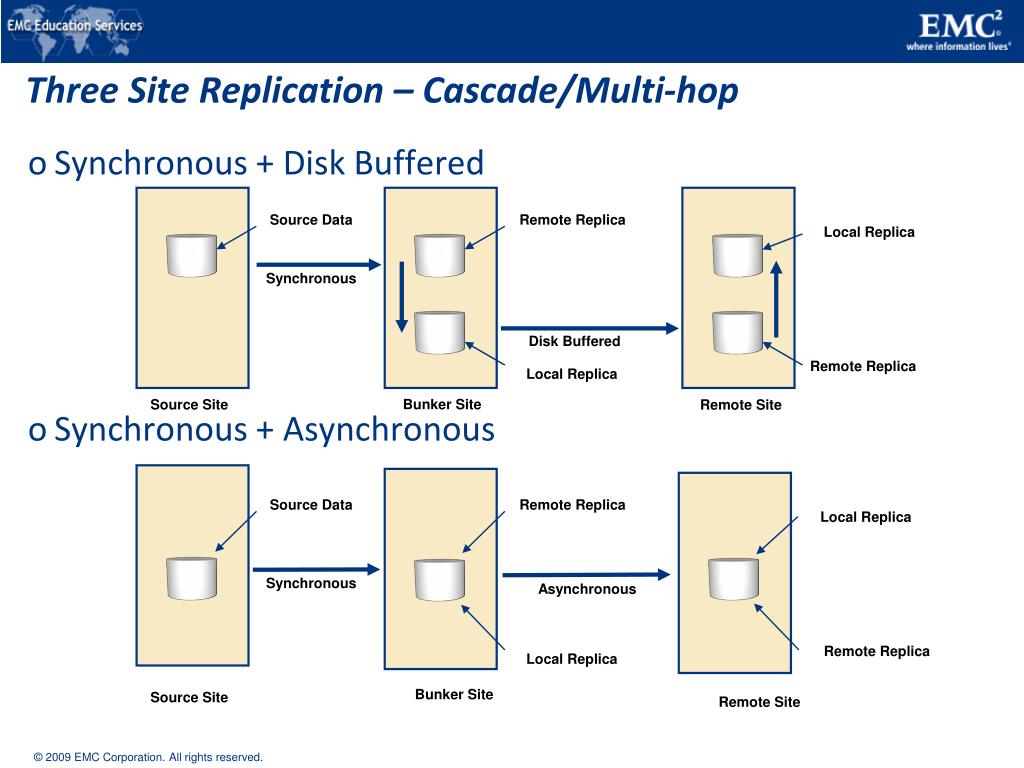

21. Three Site Replication – Cascade/Multi-hop • Synchronous + Disk Buffered • Synchronous + Asynchronous Source Data Remote Replica Local Replica Synchronous Disk Buffered Remote Replica Local Replica Bunker Site Source Site Remote Site Source Data Remote Replica Local Replica Synchronous Asynchronous Remote Replica Local Replica Bunker Site Source Site Remote Site

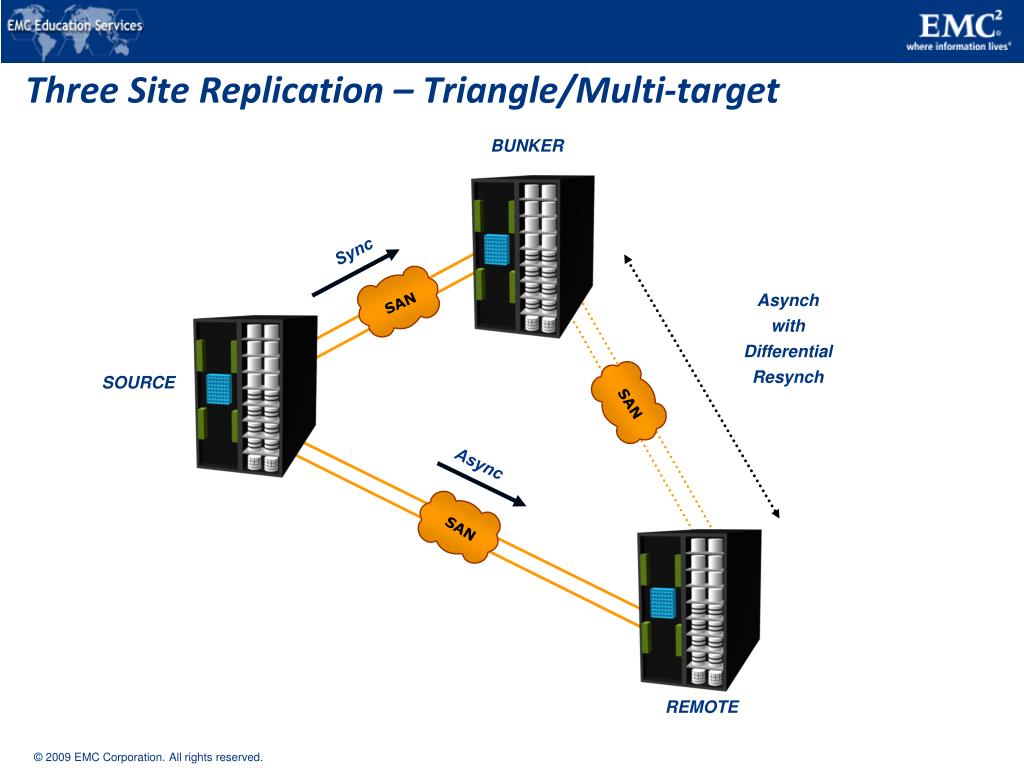

22. Asynch with Differential Resynch Three Site Replication – Triangle/Multi-target BUNKER Sync SAN SOURCE SAN Async SAN REMOTE

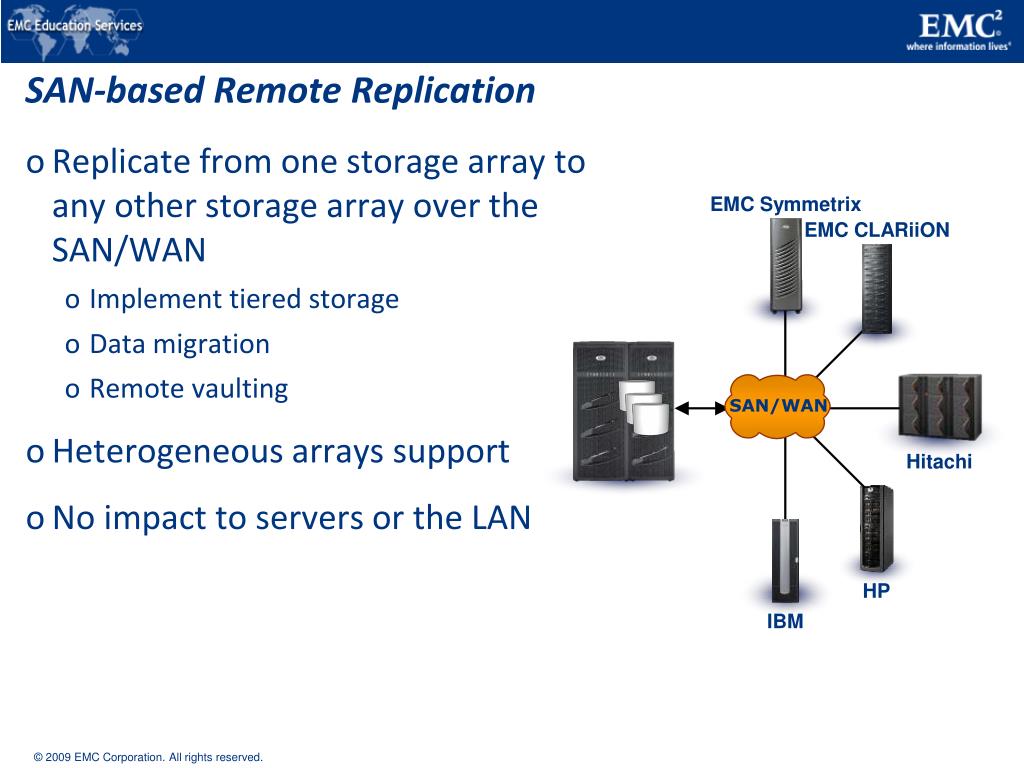

23. SAN-based Remote Replication • Replicate from one storage array to any other storage array over the SAN/WAN • Implement tiered storage • Data migration • Remote vaulting • Heterogeneous arrays support • No impact to servers or the LAN EMC Symmetrix EMC CLARiiON SAN/WAN Hitachi HP IBM

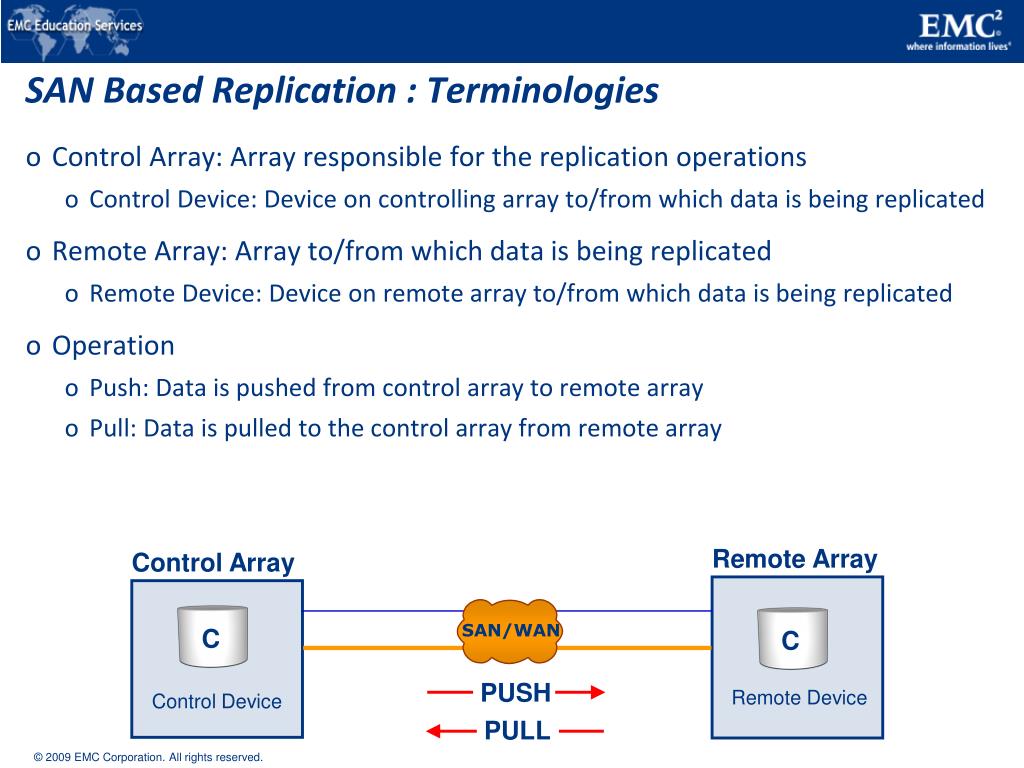

24. SAN Based Replication : Terminologies • Control Array: Array responsible for the replication operations • Control Device: Device on controlling array to/from which data is being replicated • Remote Array: Array to/from which data is being replicated • Remote Device: Device on remote array to/from which data is being replicated • Operation • Push: Data is pushed from control array to remote array • Pull: Data is pulled to the control array from remote array Remote Array Control Array SAN/WAN C C PUSH Remote Device Control Device PULL

25. Network Options for Remote Replication • A dedicated or a shared network must be in place for remote replication • Use ESCON (Enterprise System Connectivity) or FC (Fibre Channel) for shorter distance • For extended distances, an optical or IP network must be used • Example of optical network: DWDM and SONET • Protocol converters may require to connect ESCON or FC adapters from the arrays to these networks • Native GigE adapters allows array to be connected directly to IP Networks

26. Optical Channels ESCON Fibre Channel Gigabit Ethernet Optical Lambda λ Electrical Optical Dense Wavelength Division Multiplexing (DWDM) • DWDM is a technology that puts data from different sources together on an optical fiber with each signal carried on its own separate light wavelength • Up to 32 protected and 64 unprotected separate wavelengths of data can be multiplexed into a light stream transmitted on a single optical fiber

27. Synchronous Optical Network (SONET) • SONET is Time Division Multiplexing (TDM) technology • Traffic from multiple sources of different speeds are organized into a frame and sent out onto SONET ring as an optical signal • Synchronous Digital Hierarchy (SDH) similar to SONET but is the European standard • SONET/SDH offers the ability to service multiple locations, and provides reliability/availability, automatic protection switching and restoration OC48 OC3 SONET STM-16 STM-1 SDH

28. Chapter Summary Additional Task Research on EMC Remote Replication products Key points covered in this chapter: • Modes of remote replication • Synchronous and asynchronous mode • Host based remote replication • LVM based and log shipping • Array based remote replication • Synchronous, asynchronous and disk buffered • Three site replication • SAN based remote replication • Network options for remote replication

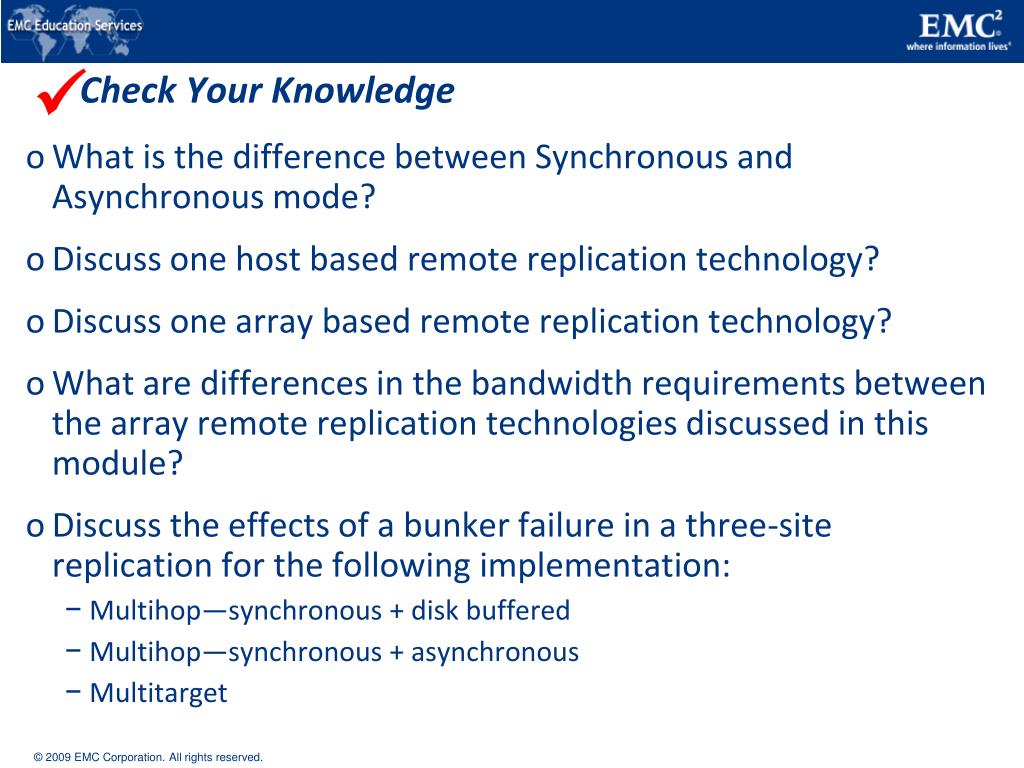

29.  Check Your Knowledge • What is the difference between Synchronous and Asynchronous mode? • Discuss one host based remote replication technology? • Discuss one array based remote replication technology? • What are differences in the bandwidth requirements between the array remote replication technologies discussed in this module? • Discuss the effects of a bunker failure in a three-site replication for the following implementation: • Multihop—synchronous + disk buffered • Multihop—synchronous + asynchronous • Multitarget
