AP Chapter 9. Molecular Geometry and Bonding Theories. Molecular Shapes. The 3-dimensional shapes and sizes of molecules are determined by their bond angles and bond lengths.

Download Presentation

AP Chapter 9

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Ap chapter 9

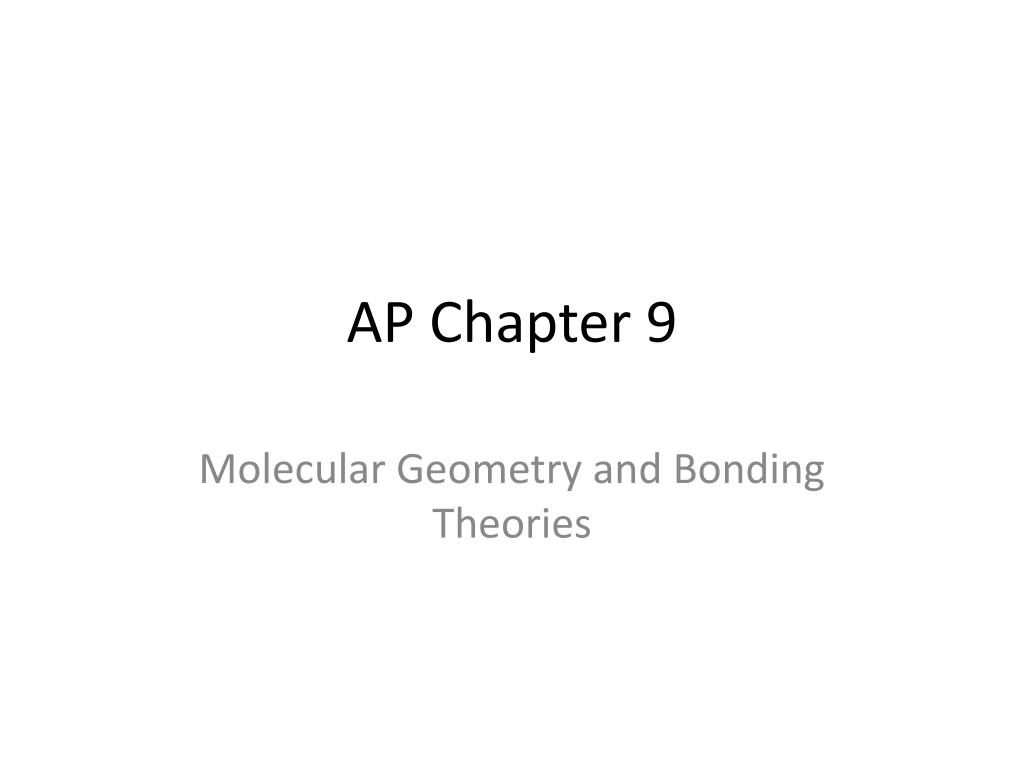

AP Chapter 9

Molecular Geometry and Bonding Theories


Molecular shapes

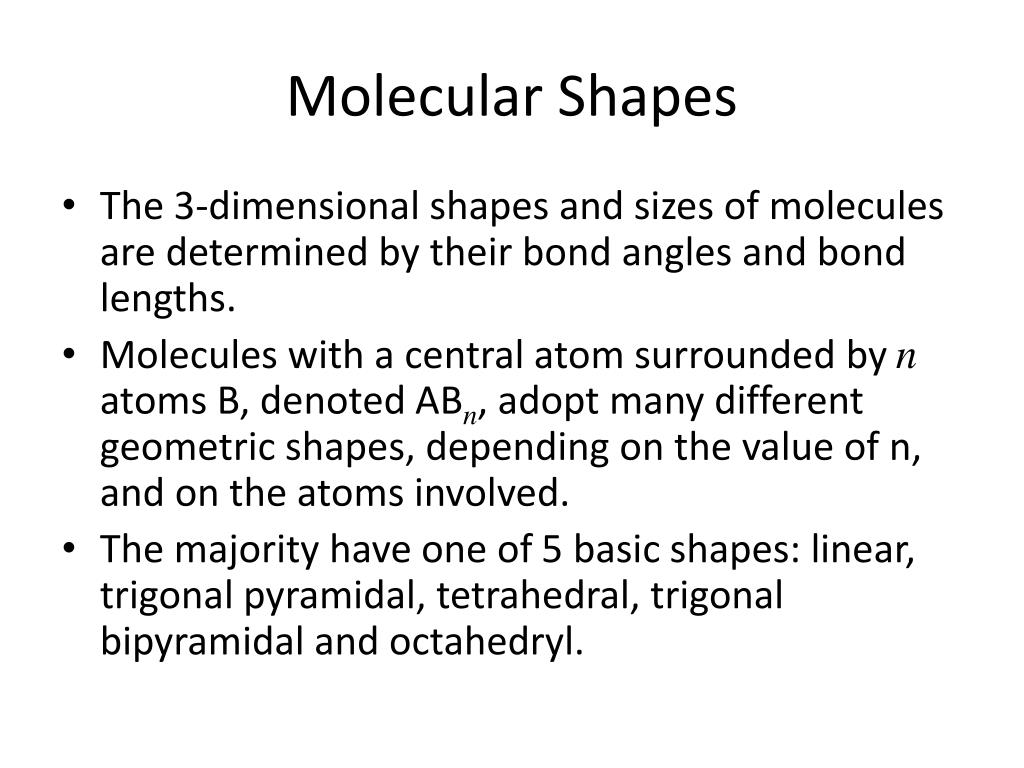

Molecular Shapes

  • The 3-dimensional shapes and sizes of molecules are determined by their bond angles and bond lengths.

  • Molecules with a central atom surrounded by n atoms B, denoted ABn, adopt many different geometric shapes, depending on the value of n, and on the atoms involved.

  • The majority have one of 5 basic shapes: linear, trigonal pyramidal, tetrahedral, trigonalbipyramidal and octahedryl.


Ap chapter 9

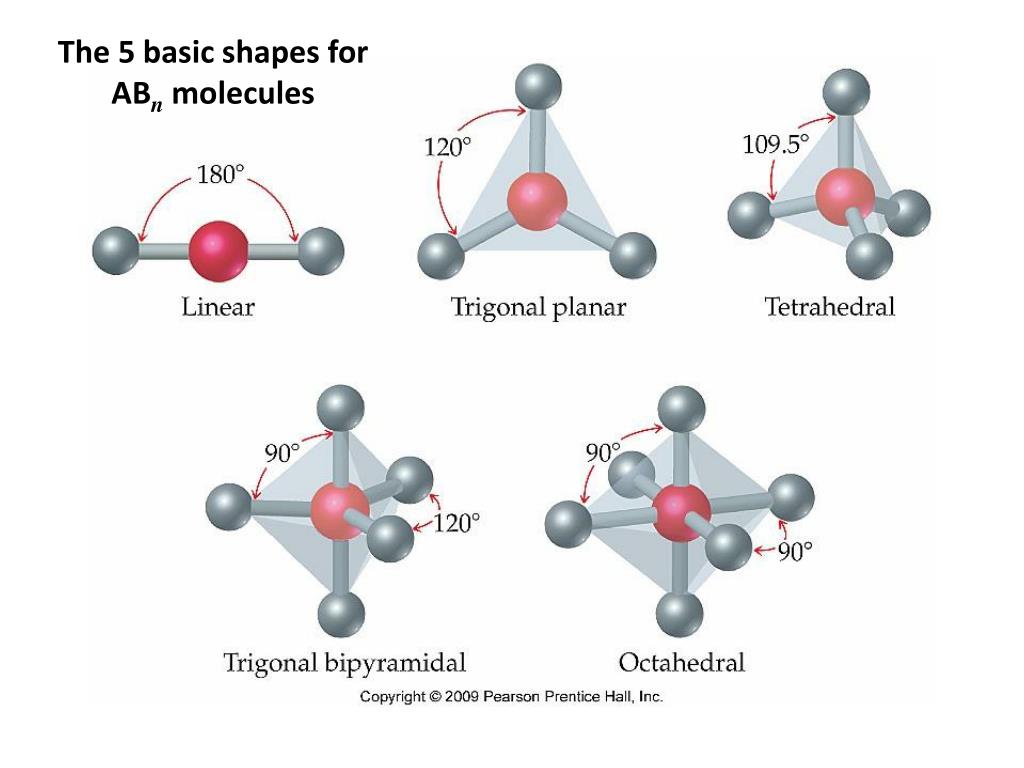

The 5 basic shapes for ABn molecules


Ap chapter 9

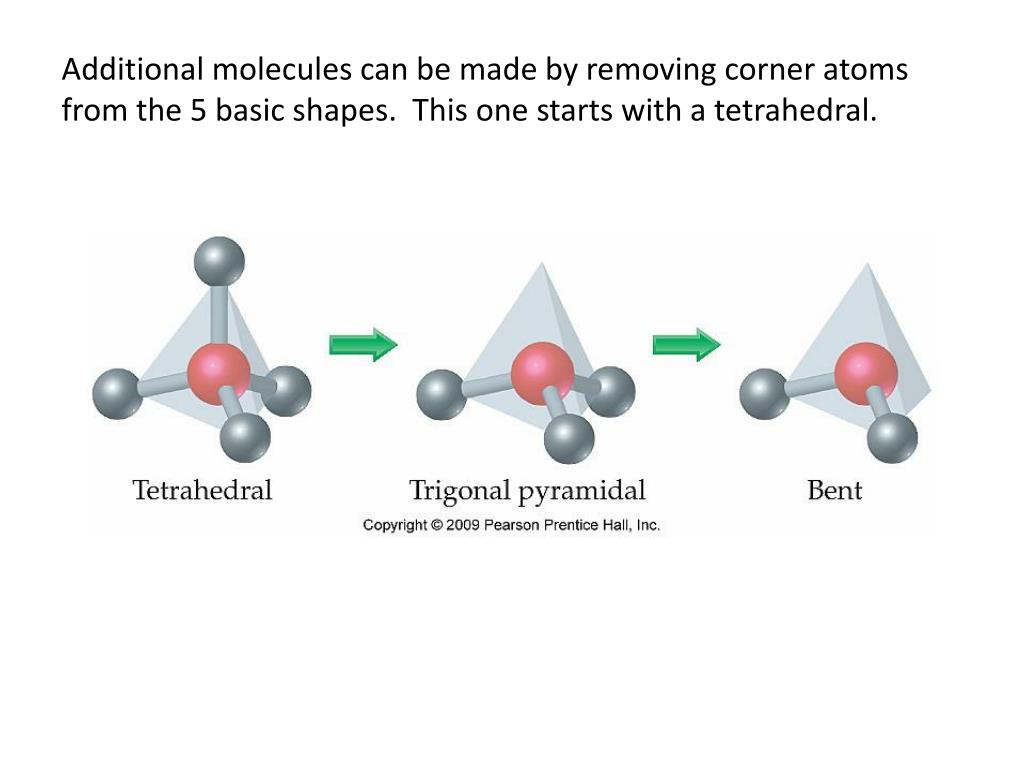

Additional molecules can be made by removing corner atoms from the 5 basic shapes. This one starts with a tetrahedral.


The vsepr model

The VSEPR Model

  • VSEPR – valence shell electron-pair repulsion model.

  • Molecular geometries are based on the repulsions between electron domains. (Like charges repel.)

  • Shared pairs (bonded pairs) and unshared pairs (nonbonding pairs) create electron domains around the central atom.


Vsepr

VSEPR

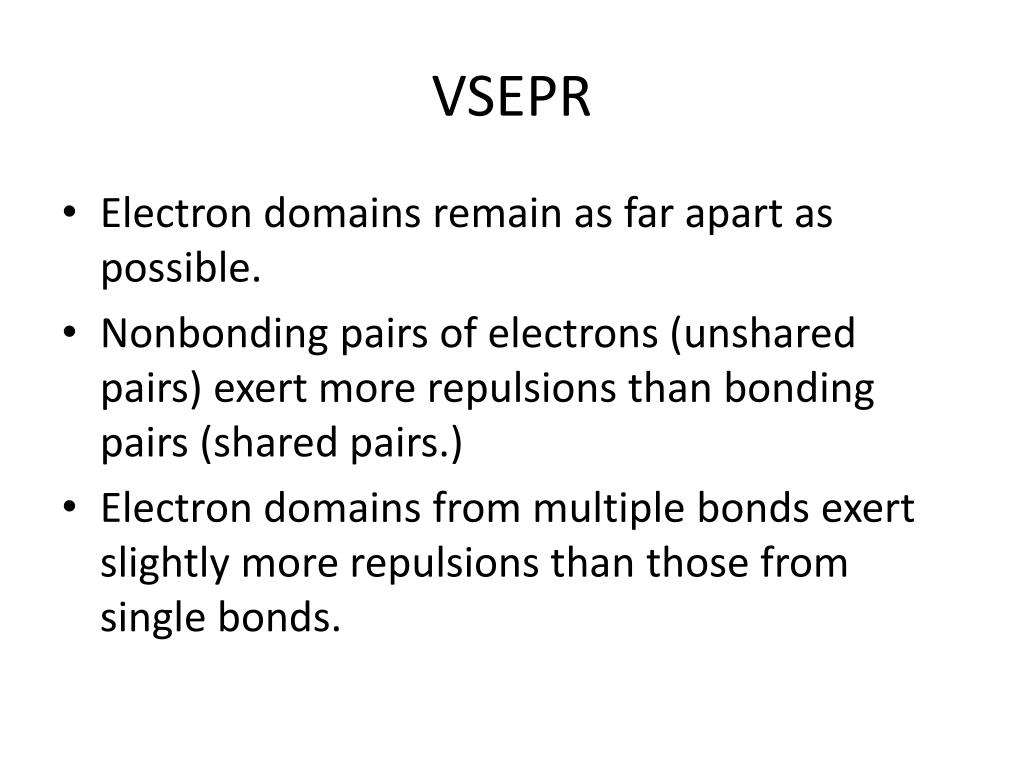

  • Electron domains remain as far apart as possible.

  • Nonbonding pairs of electrons (unshared pairs) exert more repulsions than bonding pairs (shared pairs.)

  • Electron domains from multiple bonds exert slightly more repulsions than those from single bonds.


Vsepr1

VSEPR

  • The arrangement of electrons around a central atom is called electron-domain geometry.

  • The arrangement of atoms is called the molecular geometry.


Ap chapter 9

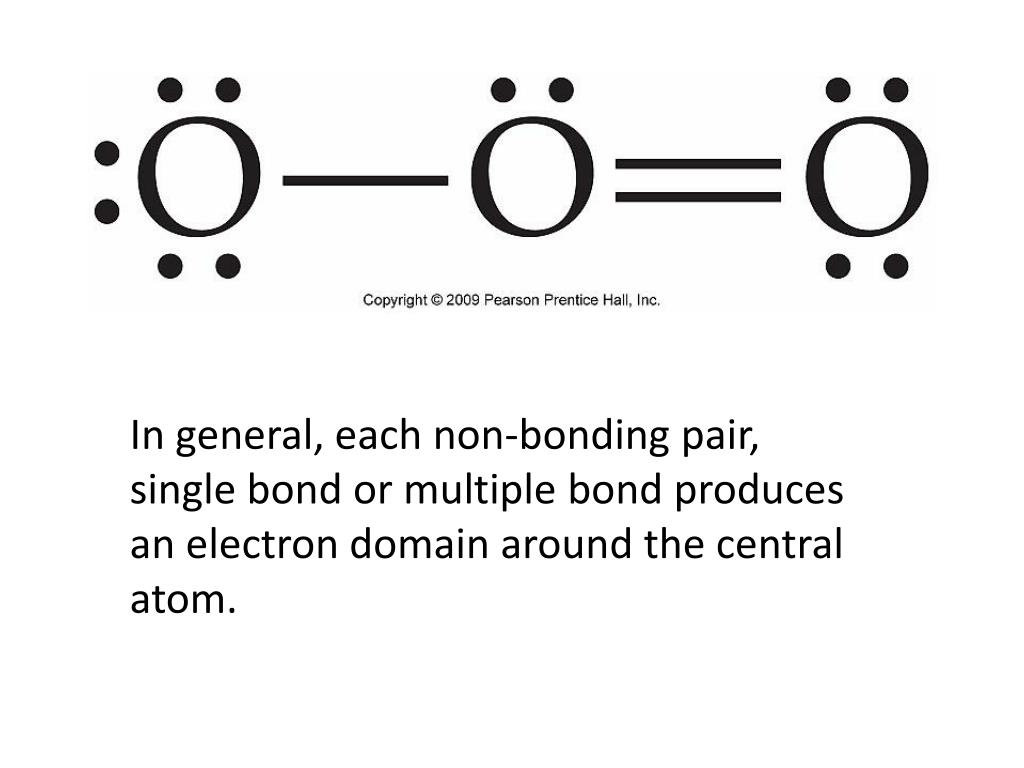

In general, each non-bonding pair, single bond or multiple bond produces an electron domain around the central atom.


Ap chapter 9

Balloons tied together at their ends naturally adopt their lowest-energy arrangement.


Electron domains

Electron Domains

  • The best arrangement of a given number of electron domains is one that minimizes the repulsions among them. This is why the balloon analogy – they have similar preferred geometries.


Predicting shapes

Predicting Shapes

  • Draw the Lewis structure of the molecule or ion and count the total number of electron domains around the central atom.

  • Determine the electron-domain geometry by arranging the electron domains around the central atom so repulsions are minimized. (Table 9.1)

  • Use the arrangement of the bonded atoms to determine the molecular geometry.


The effect of nonbonding electrons and multiple bonds on bond angles

The Effect of Nonbonding Electrons and Multiple Bonds on Bond Angles

The bond angles decrease as the number of nonbonding electron pairs increase.


Nonbonding pairs of electrons

Nonbonding pairs of electrons

  • Nonbonding pairs of electrons take up more space than bonding pairs.

  • The electron domains for nonbonding electron pairs exert greater repulsive forces on adjacent electron domains and tend to compress the bond angles.


Ap chapter 9

Electron domains for multiple bonds exert greater repulsive forces on adjacent electron domains than single bonds.

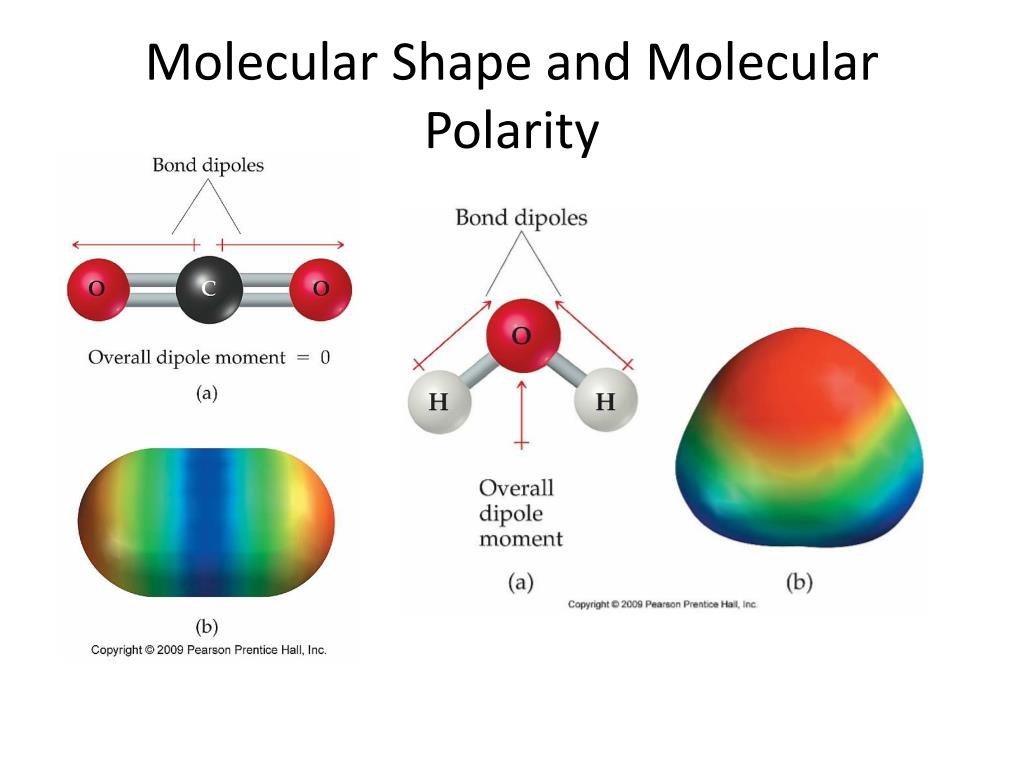

Molecular shape and molecular polarity

Molecular Shape and Molecular Polarity


Covalent bonding and orbital overlap

Covalent Bonding and Orbital Overlap

  • Valence bond theory states that covalent bonds are formed when atomic orbitals on neighboring atoms overlap one another.


Hybrid orbitals

Hybrid Orbitals

  • This involves mixing s, p and sometimes d orbitals.

  • Linear = sp

  • Trigonal planar = sp2

  • Tetrahedral = sp3

  • Trigonal bipyramidal = sp3d

  • Octahedral = sp3d2


Multiple bonds

Multiple Bonds

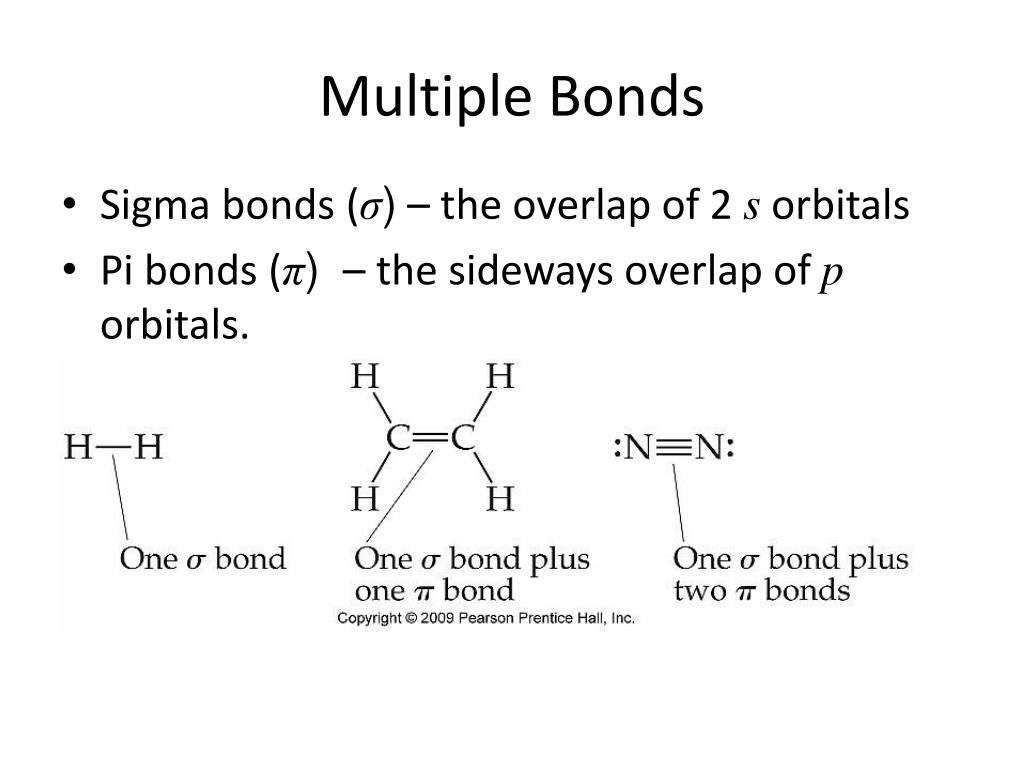

  • Sigma bonds (σ) – the overlap of 2 s orbitals

  • Pi bonds (π) – the sideways overlap of p orbitals.


Ap chapter 9

πbonds in Benzene rings and resonance structures

Resonance structures


Ap chapter 9

  • Hybridization Involving Triple Bonds


Sigma and pi bonds

Sigma and Pi Bonds

  • Double bonds consist of one δ bond and one π bond

  • A triple bond consists of one δ bond and two π bonds

  • π bonds must lie in the same plane, therefore, the presence of π bonds makes the molecule slightly rigid.


Molecular orbitals

Molecular Orbitals

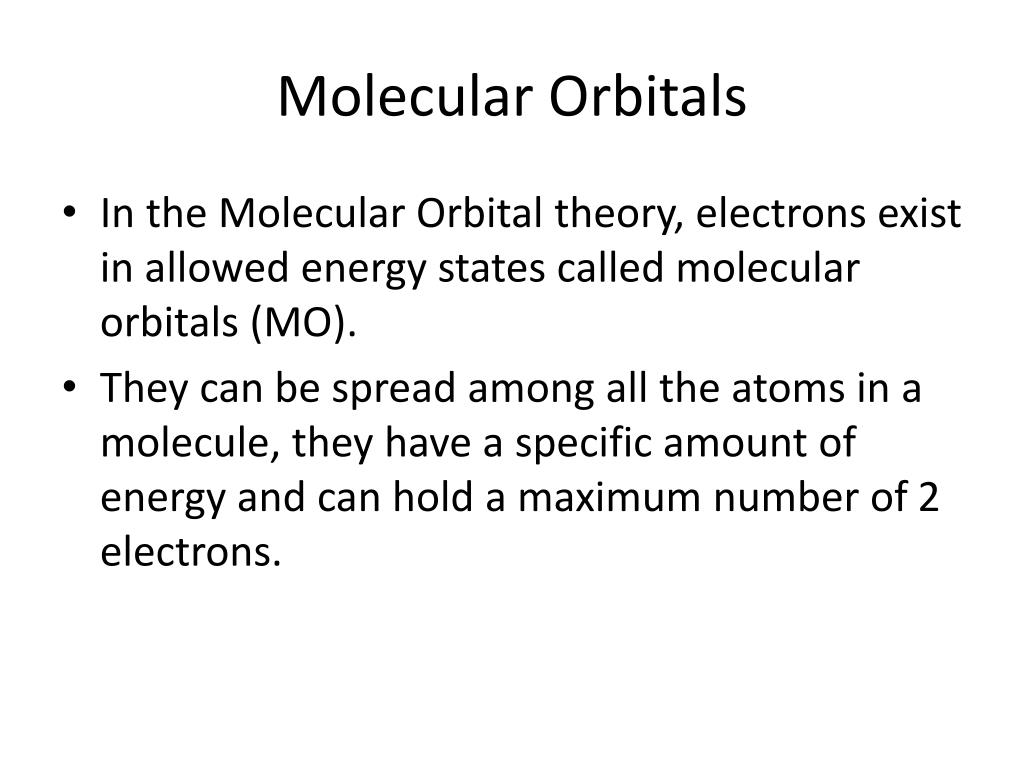

  • In the Molecular Orbital theory, electrons exist in allowed energy states called molecular orbitals (MO).

  • They can be spread among all the atoms in a molecule, they have a specific amount of energy and can hold a maximum number of 2 electrons.


Molecular orbitals1

Molecular Orbitals

  • The combination of two atomic orbitals leads to 2 MOs, one with low energy and one with higher energy.

  • The lower energy MO concentrates the charge density in the region between the nuclei and is called a bonding molecular orbital.

  • The higher energy MO excludes electrons from the region between the nuclei and is called antibonding molecular orbitals.


Bond orders

Bond orders

  • When the appropriate number or electrons are placed into the MOs, bond orders can be calculated, which is half the distance between the number of electrons in bonding MOs and the number of electrons in the antibonding MOs.

  • A bond order of 1 corresponds to a single bond and so on. They can be fractions!


Paramagnetism and diamagnetism

Paramagnetism and Diamagnetism

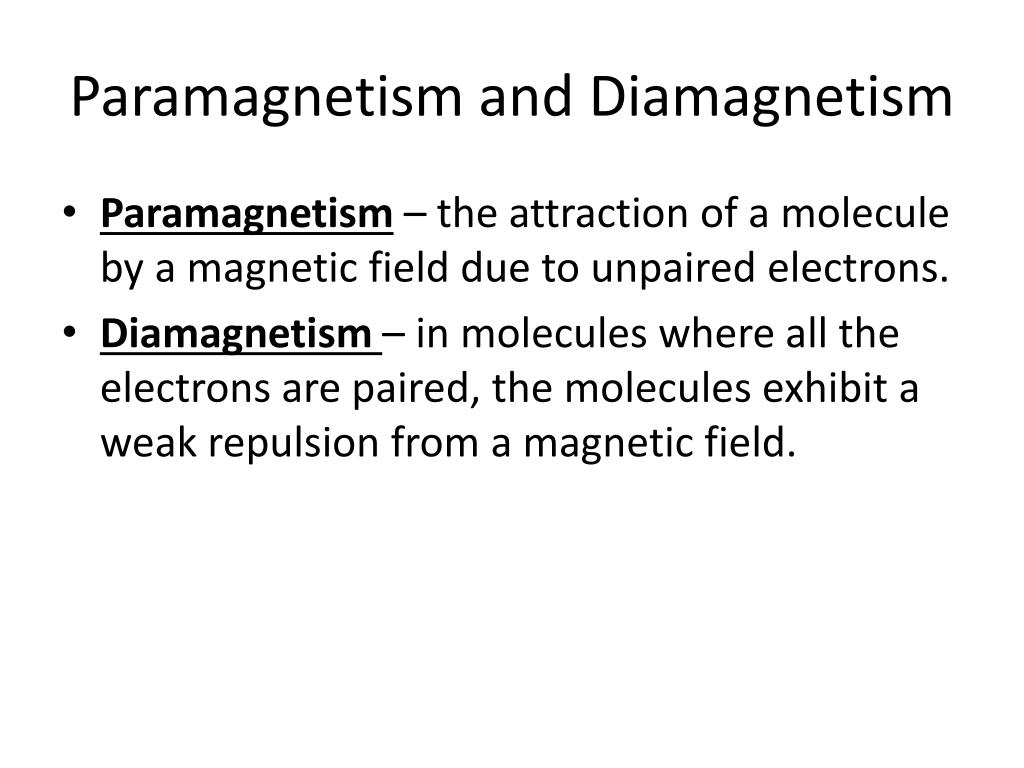

  • Paramagnetism – the attraction of a molecule by a magnetic field due to unpaired electrons.

  • Diamagnetism – in molecules where all the electrons are paired, the molecules exhibit a weak repulsion from a magnetic field.
