  1. CARATAccess Control and Quality of service in ATM Networks Sylvain Gombault Gwenn Gueguen Maryline Laurent Olivier Paul ENST de Bretagne CELAR France Telecom - RD

  2. CARAT - Goals • Filtering at the ATM and TCP/IP levels. • High Speed. • 622 Mb/s on cells. • QoS preservation. • Delay on the ATM cells filtering can be pre-computed. • Easy to manage.

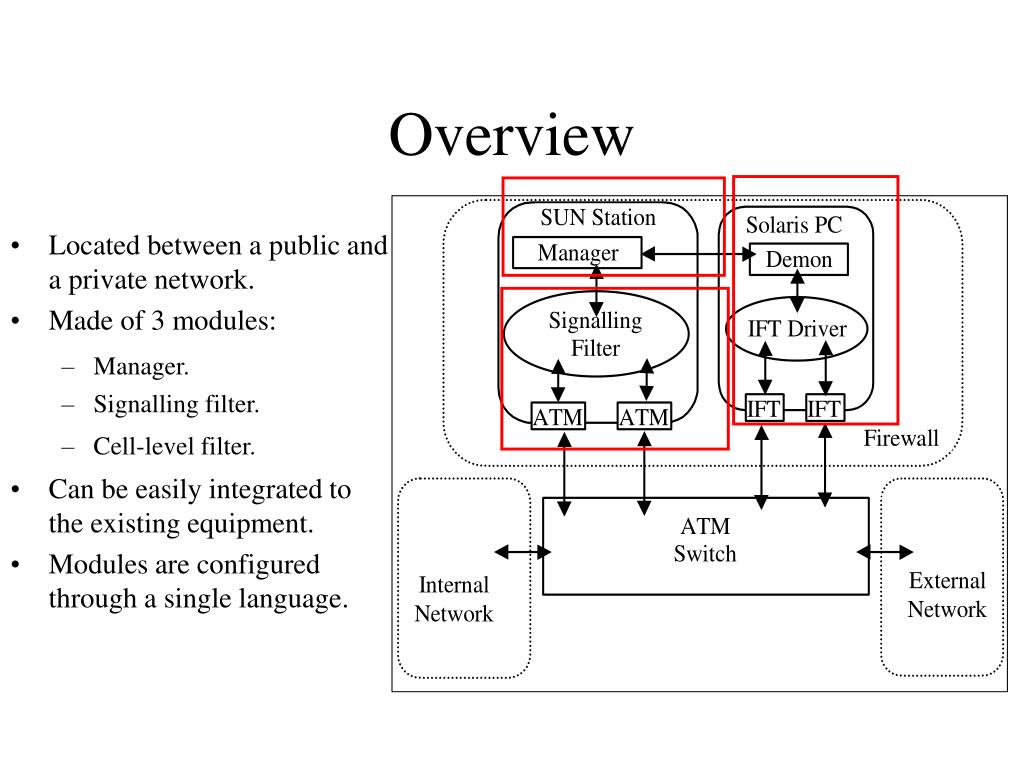

  3. Located between a public and a private network. Made of 3 modules: • Manager. • Signalling filter. • Cell-level filter. Overview • Can be easily integrated to the existing equipment. • Modules are configured through a single language.

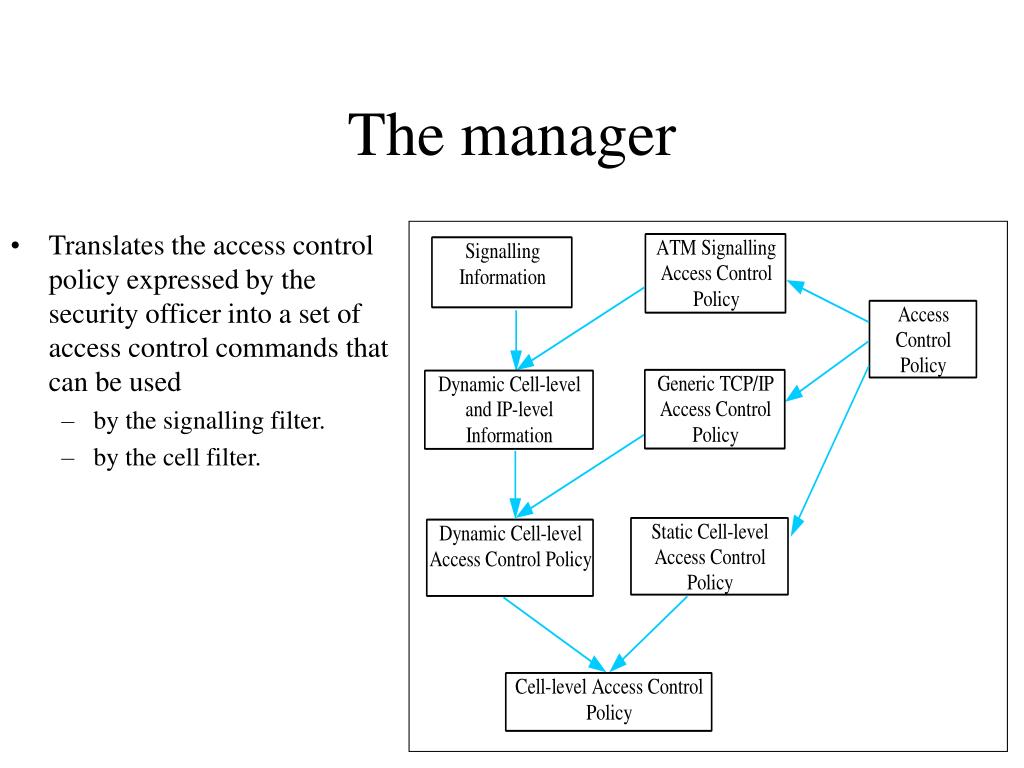

  4. Translates the access control policy expressed by the security officer into a set of access control commands that can be used by the signalling filter. by the cell filter. The manager

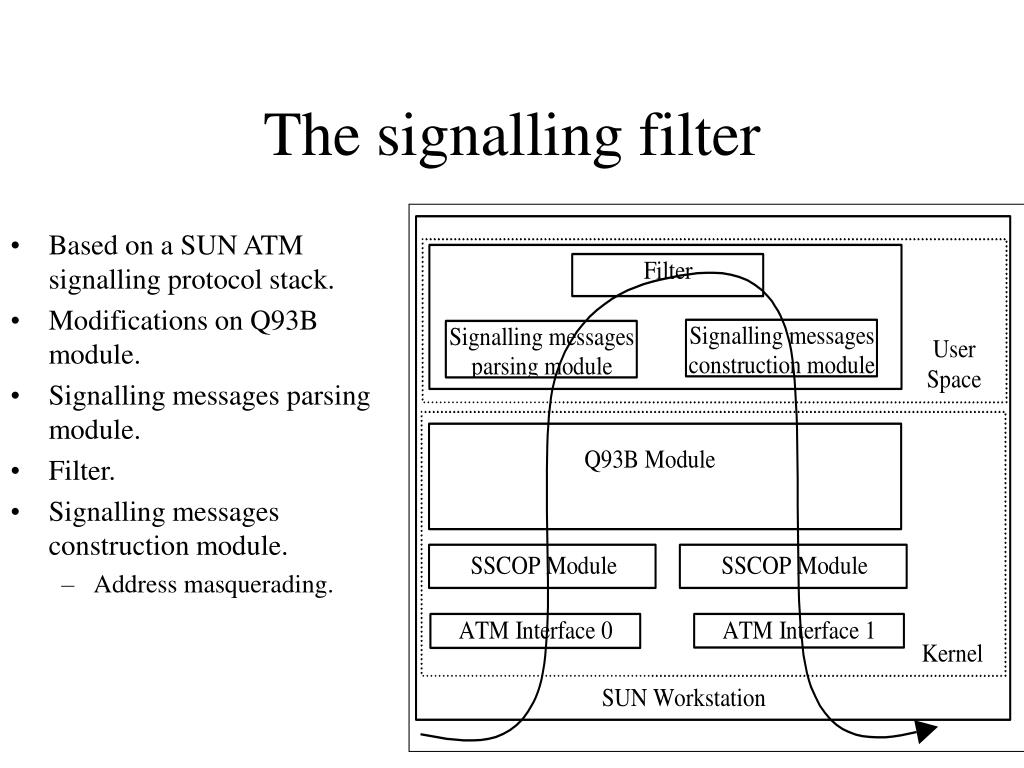

  5. Based on a SUN ATM signalling protocol stack. Modifications on Q93B module. Signalling messages parsing module. Filter. Signalling messages construction module. Address masquerading. The signalling filter

  6. IFT/CNET NICs 622 Mb/s mono-directional. Analyse of the first AAL5 frame cell Possible action: commutation Reject : Trash VC. Accept : Leave VC unchanged. Deterministic cell analysis time. On the fly configuration modification. RPC Demon IFT Driver • IFT Driver • Remote configuration. • Handles several managers. • Configuration library. Cell-level filter Solaris PC Filtering memory Filtering memory ATM Cells Extraction ATM Cells Extraction

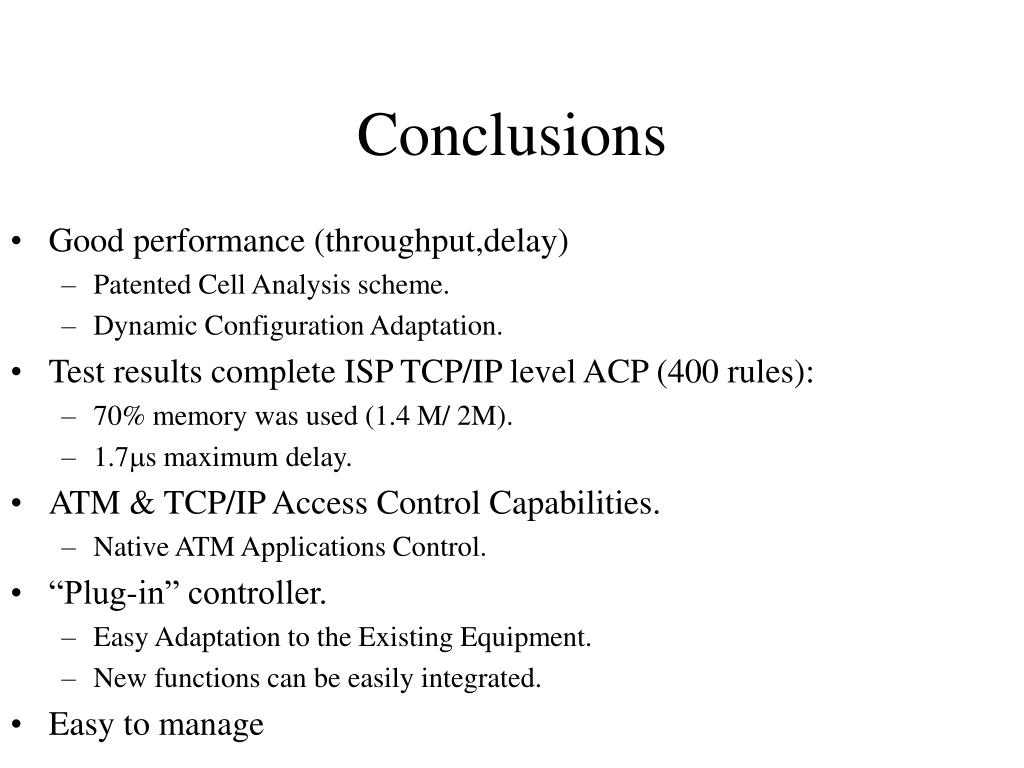

  7. Conclusions • Good performance (throughput,delay) • Patented Cell Analysis scheme. • Dynamic Configuration Adaptation. • Test results complete ISP TCP/IP level ACP (400 rules): • 70% memory was used (1.4 M/ 2M). • 1.7s maximum delay. • ATM & TCP/IP Access Control Capabilities. • Native ATM Applications Control. • “Plug-in” controller. • Easy Adaptation to the Existing Equipment. • New functions can be easily integrated. • Easy to manage
