  1. Network Security Footprint & Scan

  2. Content • What is Footprinting? • Relationship between Ports and Services • Several Scan Techniques • Firewall and IDS (Intrusion Detection System) • Operating System Detection Footprinting & Scan

  3. Footprinting 개인정보 게시판 ID 개인정보 개인정보 ID 게시판 ID 개인정보 Footprinting & Scan

  4. Ports FTP Applications TFTP Telnet 20 POP3 23 SMTP 25 53 RPC DNS 80 161 HTTP IMAP SNMP Daemon: 서비스가 요청되었을 때, 이에 반응할 수 있도록 항상 실행되어 있는 프로그램 Footprinting & Scan

  5. Let’s Practice • Telnet 동작시키기 • Windows: [내컴퓨터] – [관리] – [서비스] Footprinting & Scan

  6. Footprinting & Scan

  7. Footprinting & Scan

  8. Disable = no 로 변경 telnet service 접속 telnet service 시작 Footprinting & Scan

  9. Scan • What’s Scan? • 서비스를 제공하는 서버의 작동 여부와 그 서버가 제공하고 있는 서비스를 확인하는 것. • 종류 • Ping과 ICMP Scan • Echo Request & Reply • Timestamp Request & Reply • Information Request & Reply • ICMP Address Mask Request & Reply • TCP와 UDP를 이용한 Scan • UDP Scan • TCP Open Scan • TCP Half Open Scan • Stealth Scan Footprinting & Scan

  10. Ping과 ICMP Scan 1 1 2 4 3 2 3 4 5 5 6 6 • Echo Request & Reply 1: ICMP 패킷의 길이 2: ICMP Echo Reply 패킷의 크기 3: Echo Request 패킷이 보내진 뒤 Reply 패킷을 받기까지의 시간 4: TTL 값 5: Request 패킷의 개수와 Reply 패킷의 개수, 손실된 패킷의 갯수 6: Request 패킷을 보낸 후 Reply 패킷이 오기까지의 시간 정보 Footprinting & Scan

  11. 운영체제별 ICMP 패킷 지원 여부 Footprinting & Scan

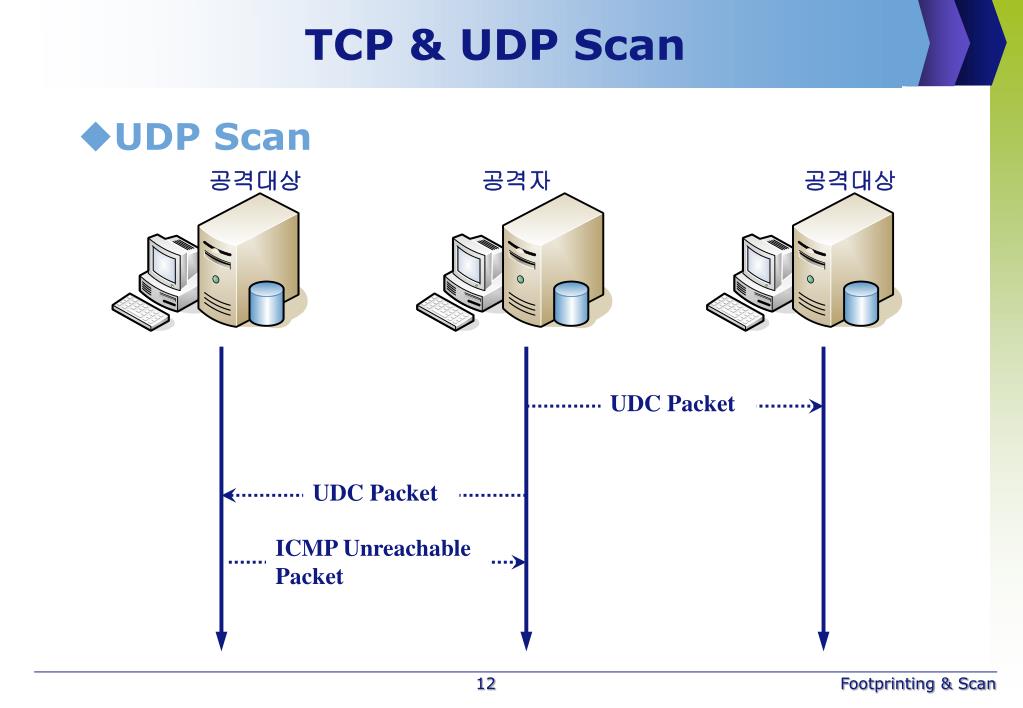

  12. TCP & UDP Scan • UDP Scan 공격대상 공격자 공격대상 UDC Packet UDC Packet ICMP Unreachable Packet Footprinting & Scan

  13. TCP Open Scan 공격대상 공격자 공격대상 SYN RST + ACK SYN SYN + ACK ACK 113 ort TCP 접속 생성 Ident Query 전송 Ident Scan Username/UID 정보 Open Ident Scan: 세션을 확립한 상태에서 원격지 서버에서 데몬을 실행하고 있는 프로세스의 소유자를 확인 Footprinting & Scan

  14. TCP Half Open Scan 공격대상 공격자 공격대상 SYN RST + ACK SYN SYN + ACK RST Footprinting & Scan

  15. Stealth Scan 공격대상 공격자 공격대상 FIN, NULL, XMAS Packets FIN, NULL, XMAS Packets RST Packet ACK Packet TTL: on OS, window size: 0 ACK Packet TTL: < 64, window size: !0 10 bytes of TCP The other 10 bytes of TCP Footprinting & Scan

  16. IDS (Intrusion Detection System) 회피 • 짧은 시간 동안 많은 패킷을 전송 • 방화벽과 IDS의 처리 용량 한계를 넘김 • 긴 시간 동안에 걸쳐서 패킷 전송 • 방화벽과 IDS가 패턴에 대한 정보를 얻기 힘듦 Footprinting & Scan

  17. Let’s Practice • Installing fping Footprinting & Scan

  18. Results of fping Footprinting & Scan

  19. Installing sing Footprinting & Scan

  20. Results of sing Footprinting & Scan

  21. Installing nmap Footprinting & Scan

  22. Footprinting & Scan

  23. Footprinting & Scan

  24. Detection of Operation System • Banner Grabbing • 원격지 시스템에서 로그인하면 보이는 안내문 • TCP/IP 프로토콜의 반응 • FIN Scan 적용 유무 • Session 연결 시 TCP 패킷의 시퀀스 넘버 생성 • Windows • 시간에 따른 시퀀스 넘버 • Linux • 완전한 랜덤 • FreeBSD, Digital-Unix, IRIX, Solaris • 시간에 따른 랜던한 증분 Footprinting & Scan

  25. Banner Grabbing Footprinting & Scan
