  1. WORLD NAVIGATION FROM OUR MINDS TO YOURS: A Lecture by Shift Our Bits

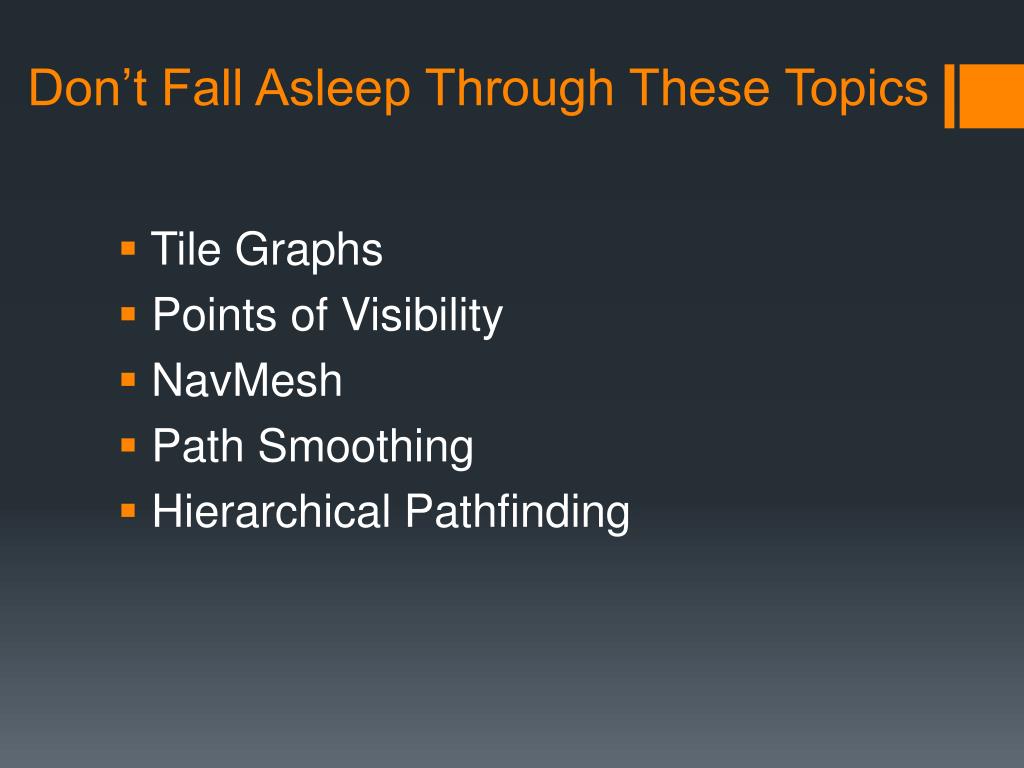

  2. Don’t Fall Asleep Through These Topics • Tile Graphs • Points of Visibility • NavMesh • Path Smoothing • Hierarchical Pathfinding

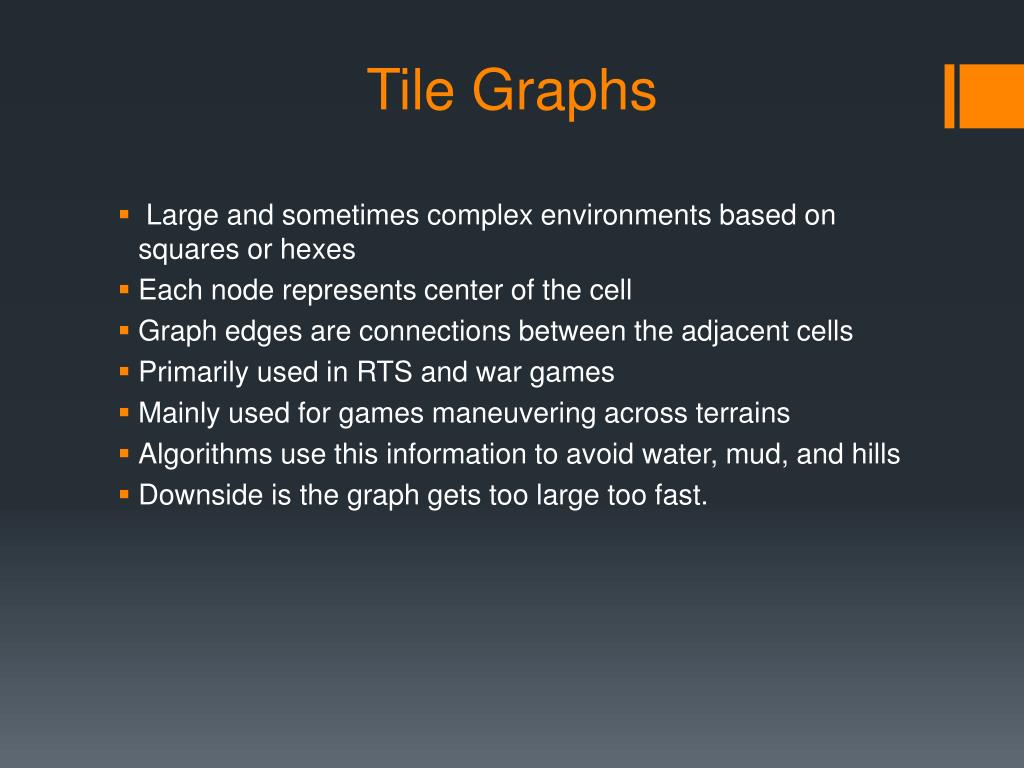

  3. Tile Graphs • Large and sometimes complex environments based on squares or hexes • Each node represents center of the cell • Graph edges are connections between the adjacent cells • Primarily used in RTS and war games • Mainly used for games maneuvering across terrains • Algorithms use this information to avoid water, mud, and hills • Downside is the graph gets too large too fast.

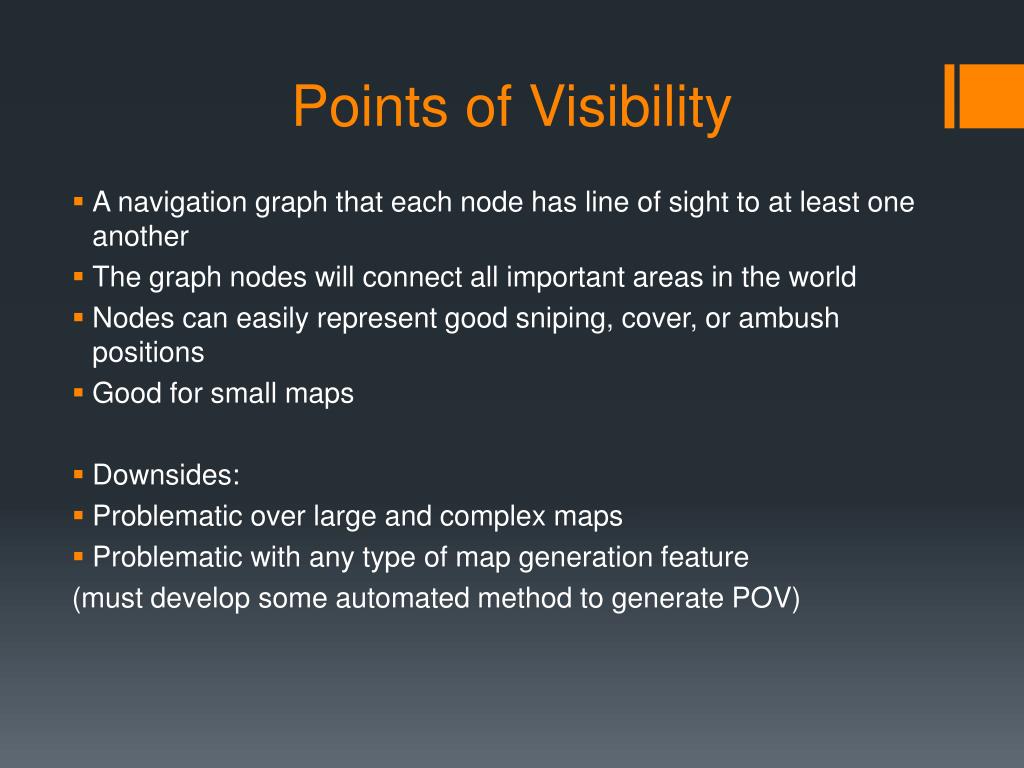

  4. Points of Visibility • A navigation graph that each node has line of sight to at least one another • The graph nodes will connect all important areas in the world • Nodes can easily represent good sniping, cover, or ambush positions • Good for small maps • Downsides: • Problematic over large and complex maps • Problematic with any type of map generation feature (must develop some automated method to generate POV)

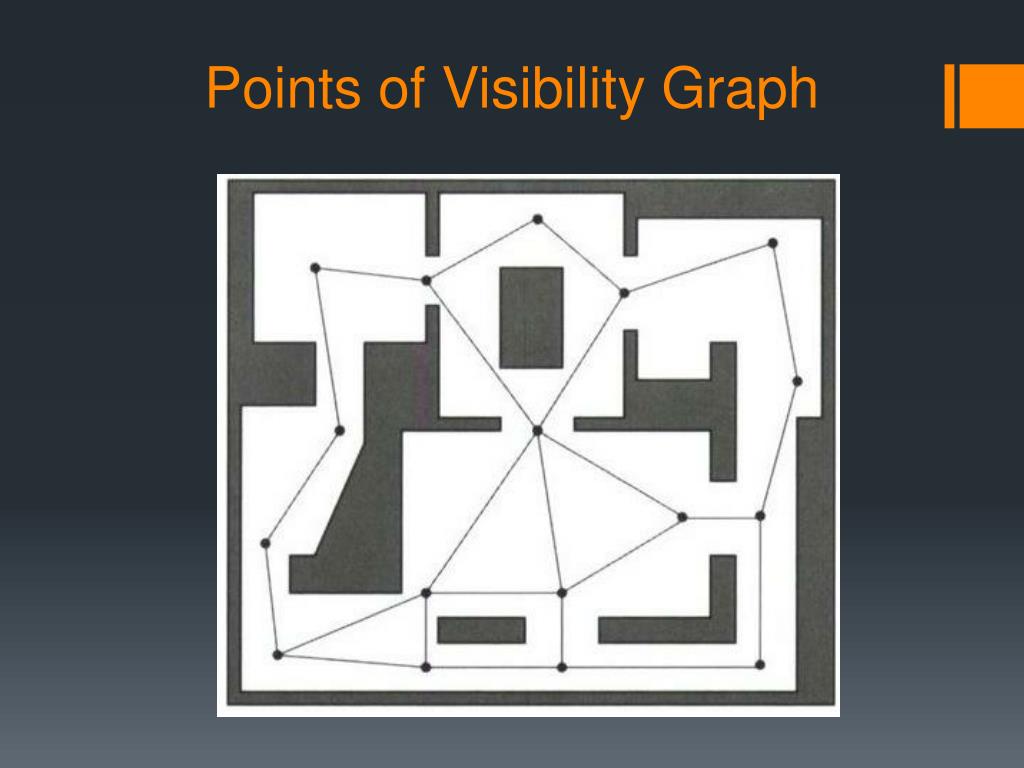

  5. Points of Visibility Graph

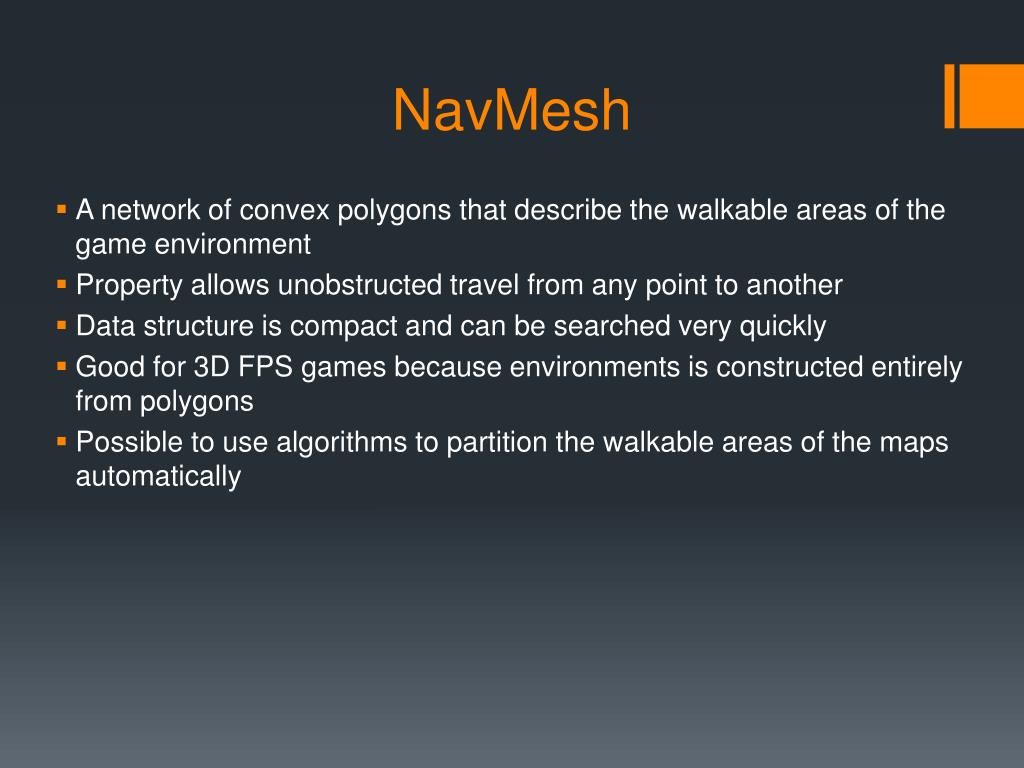

  6. NavMesh • A network of convex polygons that describe the walkable areas of the game environment • Property allows unobstructed travel from any point to another • Data structure is compact and can be searched very quickly • Good for 3D FPS games because environments is constructed entirely from polygons • Possible to use algorithms to partition the walkable areas of the maps automatically

  7. WORLD OF WARCRAFT HAND CHECK

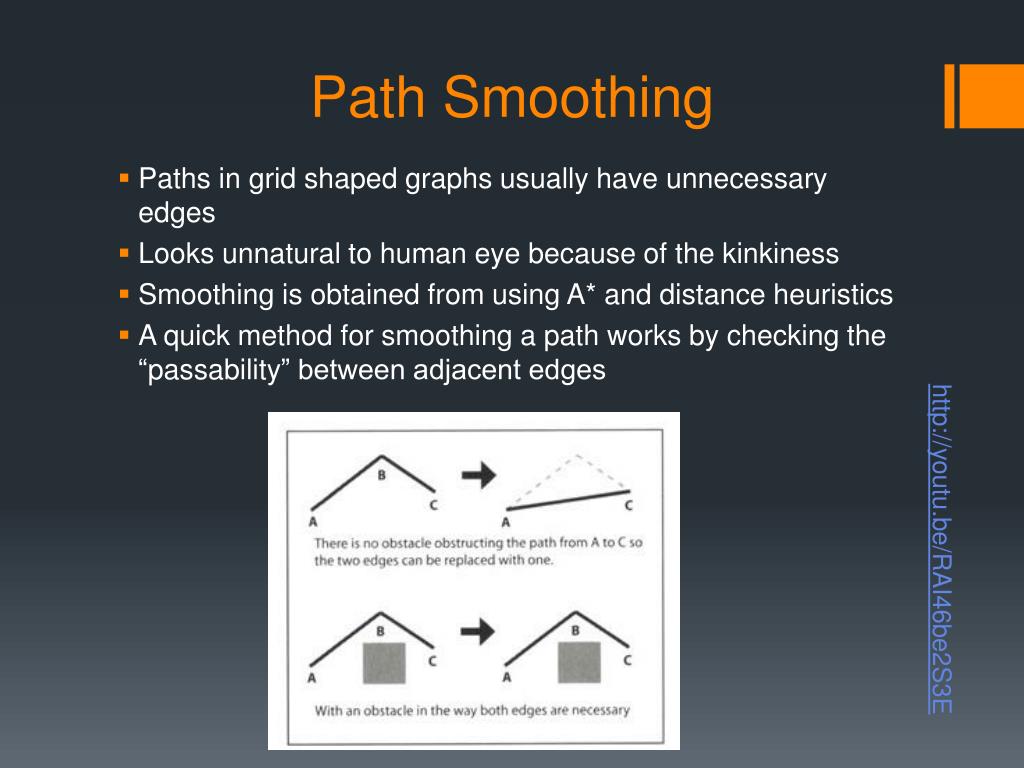

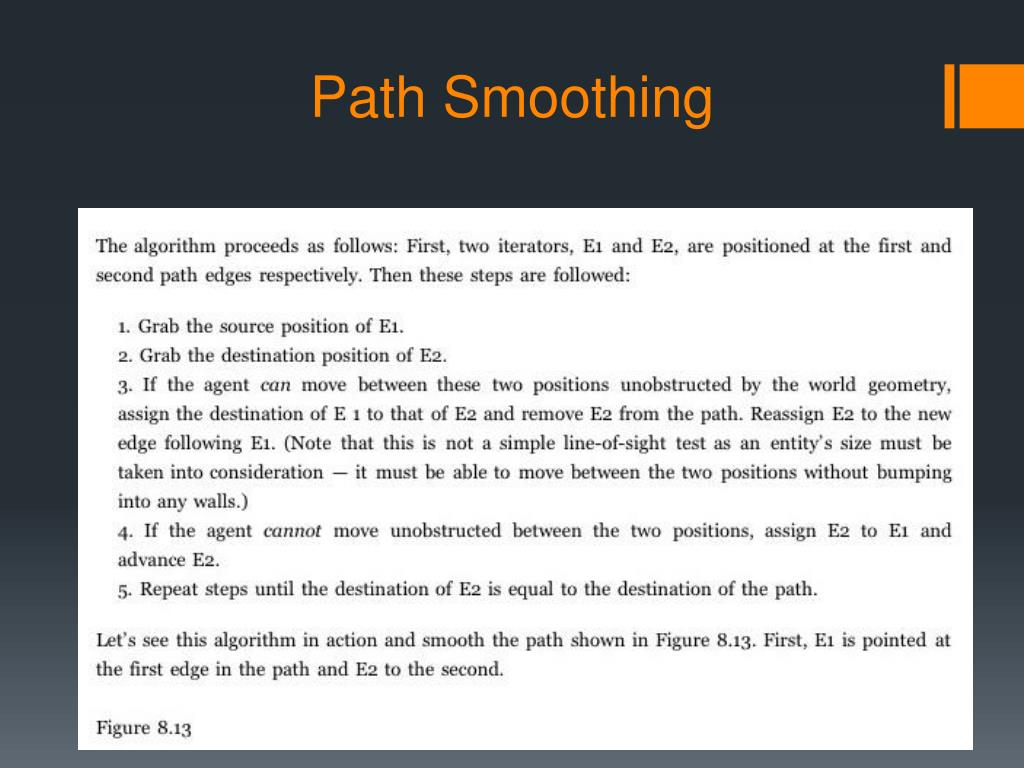

  8. Path Smoothing • Paths in grid shaped graphs usually have unnecessary edges • Looks unnatural to human eye because of the kinkiness • Smoothing is obtained from using A* and distance heuristics • A quick method for smoothing a path works by checking the “passability” between adjacent edges http://youtu.be/RAI46be2S3E

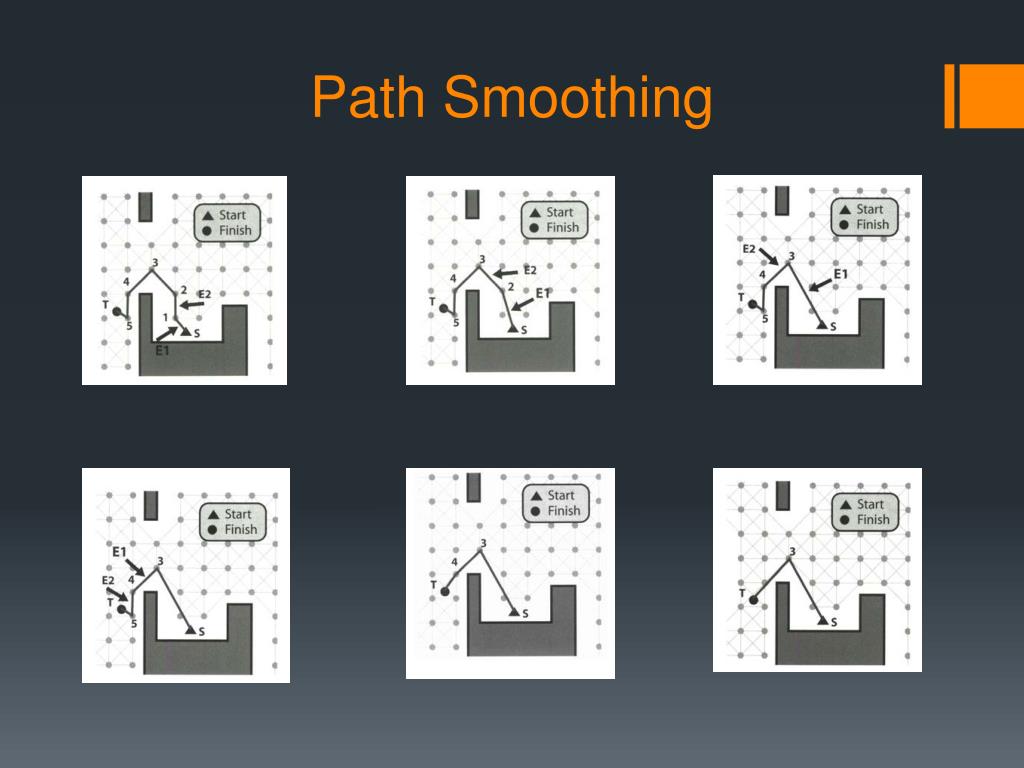

  9. Path Smoothing

  10. Path Smoothing

  11. Hierarchical Pathfinding • Similar to how humans move around in their environment • Two levels • One level is the path is planned using a series of areas (IE: dining room, kitchen) • The lower level is planned using a series of points through those areas

  12. You can stop pretending to pay attention now.
