2. SCEA Exam 1 : Objectives - Module 3 • Module/Section 3: Integration and Messaging • Explain possible approaches for communicating with an external system from a Java EE technology-based system given an outline description of those systems and outline the benefits and drawbacks of each approach. • Explain typical uses of web services and XML over HTTP as mechanisms to integrate distinct software components. • Explain how JCA and JMS are used to integrate distinct software components as part of an overall Java EE application. • Today’s Agenda • Webservice (JAX-WS) • JMS • JCA • Choosing between JMS,JCA and Webservice

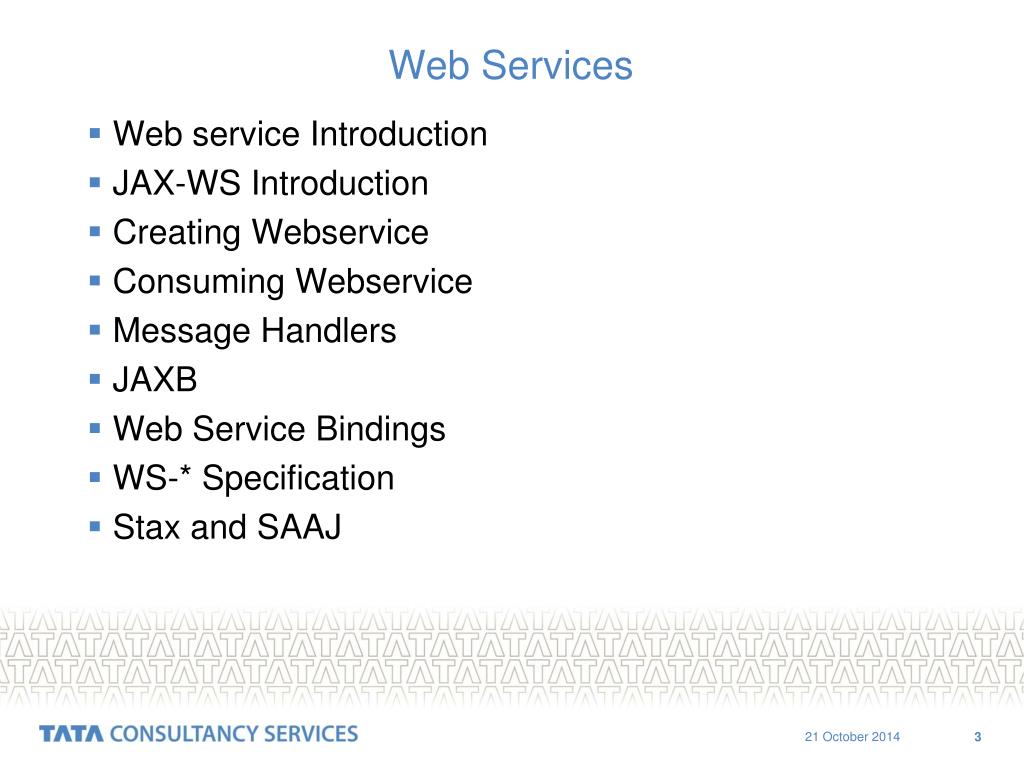

3. Web Services • Web service Introduction • JAX-WS Introduction • Creating Webservice • Consuming Webservice • Message Handlers • JAXB • Web Service Bindings • WS-* Specification • Stax and SAAJ

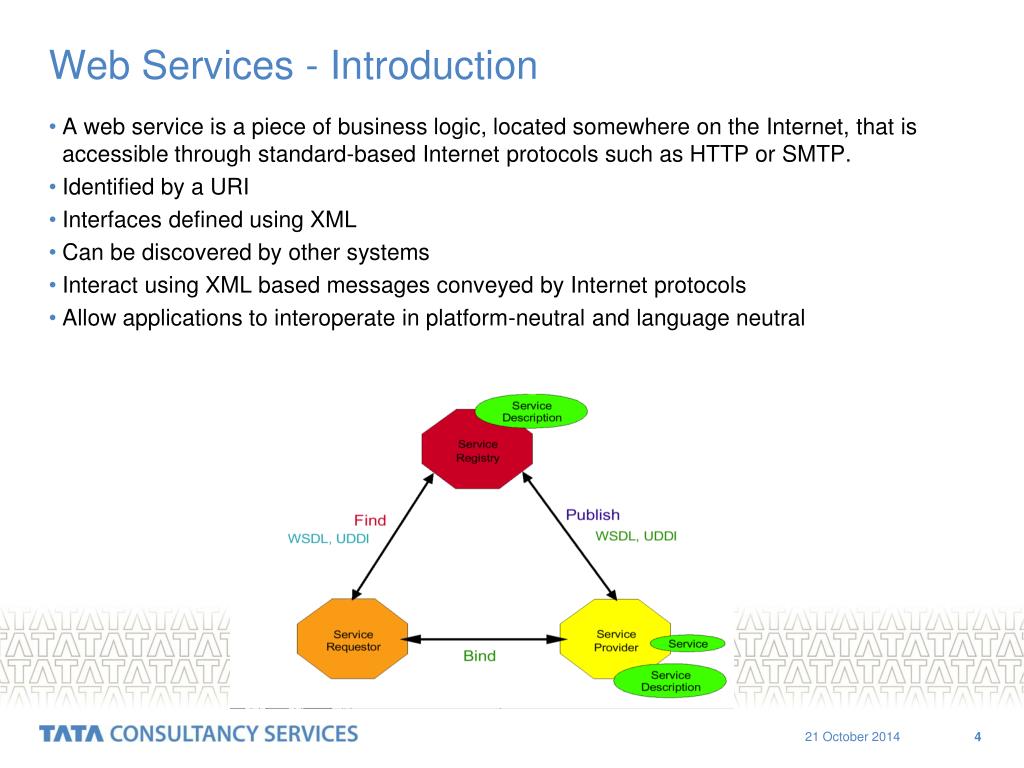

4. Web Services - Introduction • A web service is a piece of business logic, located somewhere on the Internet, that is accessible through standard-based Internet protocols such as HTTP or SMTP. • Identified by a URI • Interfaces defined using XML • Can be discovered by other systems • Interact using XML based messages conveyed by Internet protocols • Allow applications to interoperate in platform-neutral and language neutral

5. Java API for XML Web Services • The Java API for XML Web Services (JAX-WS) is a Java programming language API for creating and consuming web services. • JAX-WS 2.0 replaced the JAX-RPC API in Java Platform, Enterprise Edition 5. The name change reflected the move away from RPC-style and toward document-style web services. • JAX-WS uses annotations, to simplify the development and deployment of web service clients and endpoints. JAX-WS JAX-RPC Image Source: JAX-WS Tutorial

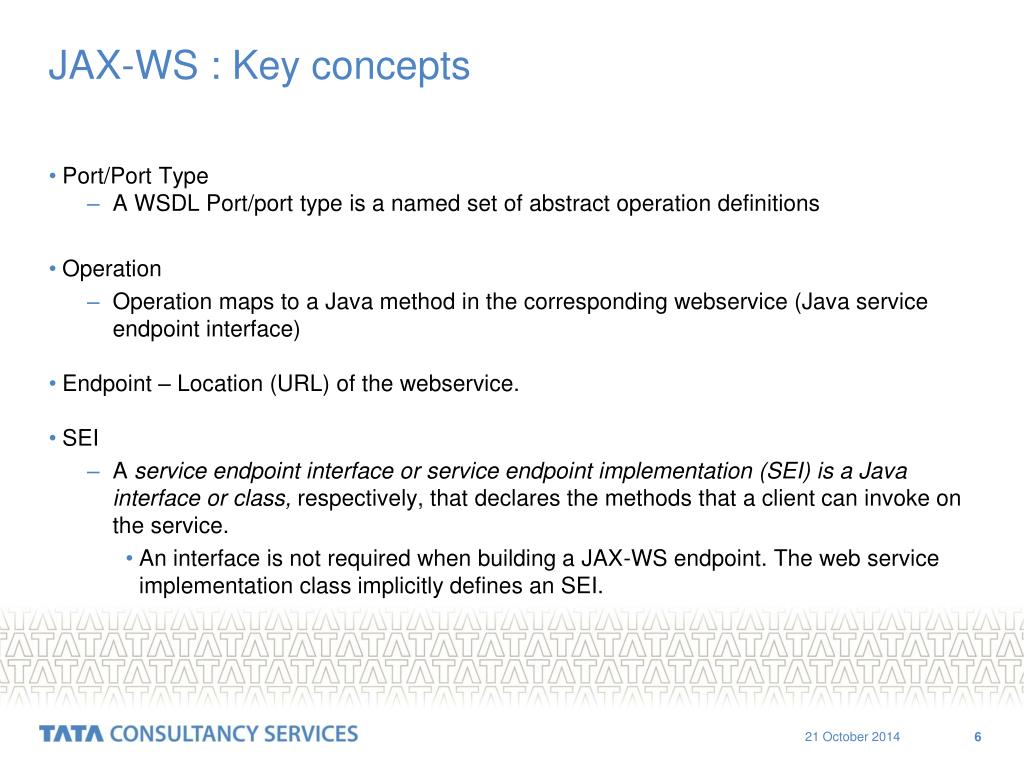

6. JAX-WS : Key concepts • Port/Port Type • A WSDL Port/port type is a named set of abstract operation definitions • Operation • Operation maps to a Java method in the corresponding webservice (Java service endpoint interface) • Endpoint – Location (URL) of the webservice. • SEI • A service endpoint interface or service endpoint implementation (SEI) is a Java interface or class, respectively, that declares the methods that a client can invoke on the service. • An interface is not required when building a JAX-WS endpoint. The web service implementation class implicitly defines an SEI.

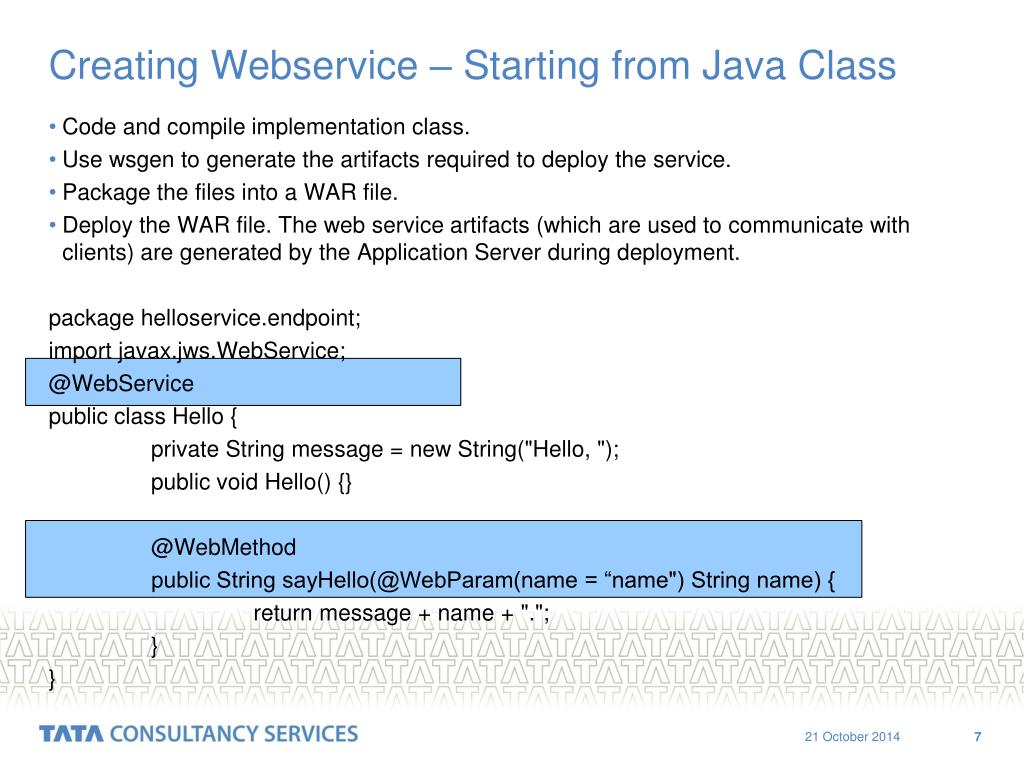

7. Creating Webservice – Starting from Java Class • Code and compile implementation class. • Use wsgen to generate the artifacts required to deploy the service. • Package the files into a WAR file. • Deploy the WAR file. The web service artifacts (which are used to communicate with clients) are generated by the Application Server during deployment. package helloservice.endpoint; import javax.jws.WebService; @WebService public class Hello { private String message = new String("Hello, "); public void Hello() {} @WebMethod public String sayHello(@WebParam(name = “name") String name) { return message + name + "."; } }

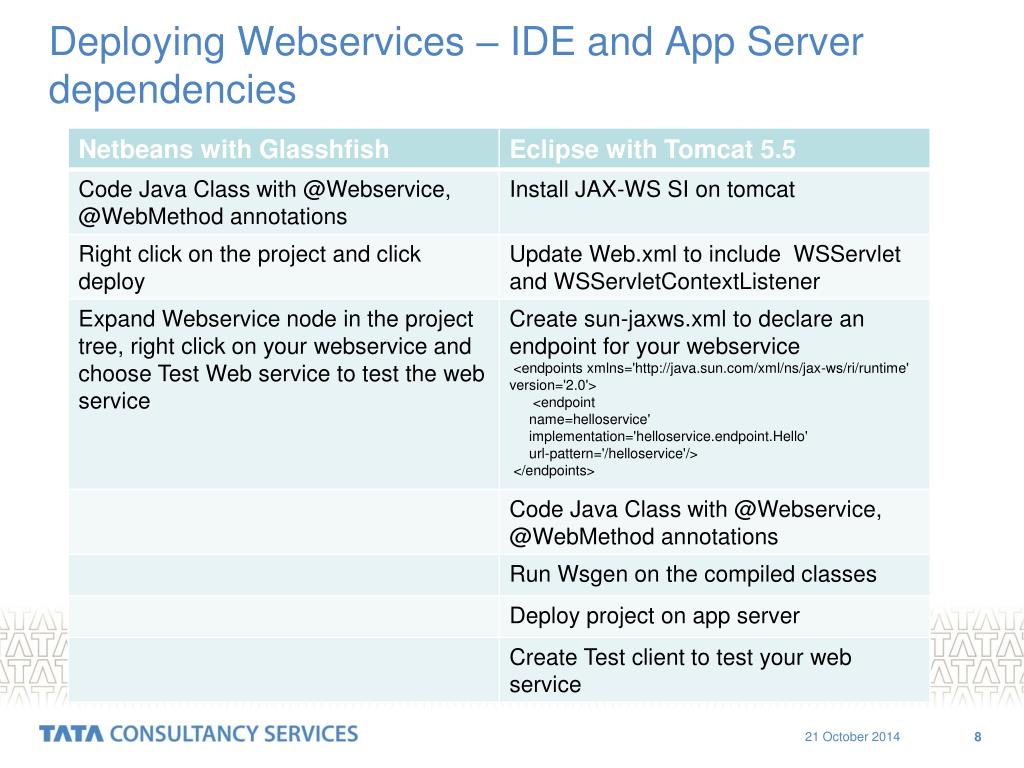

8. Deploying Webservices – IDE and App Server dependencies

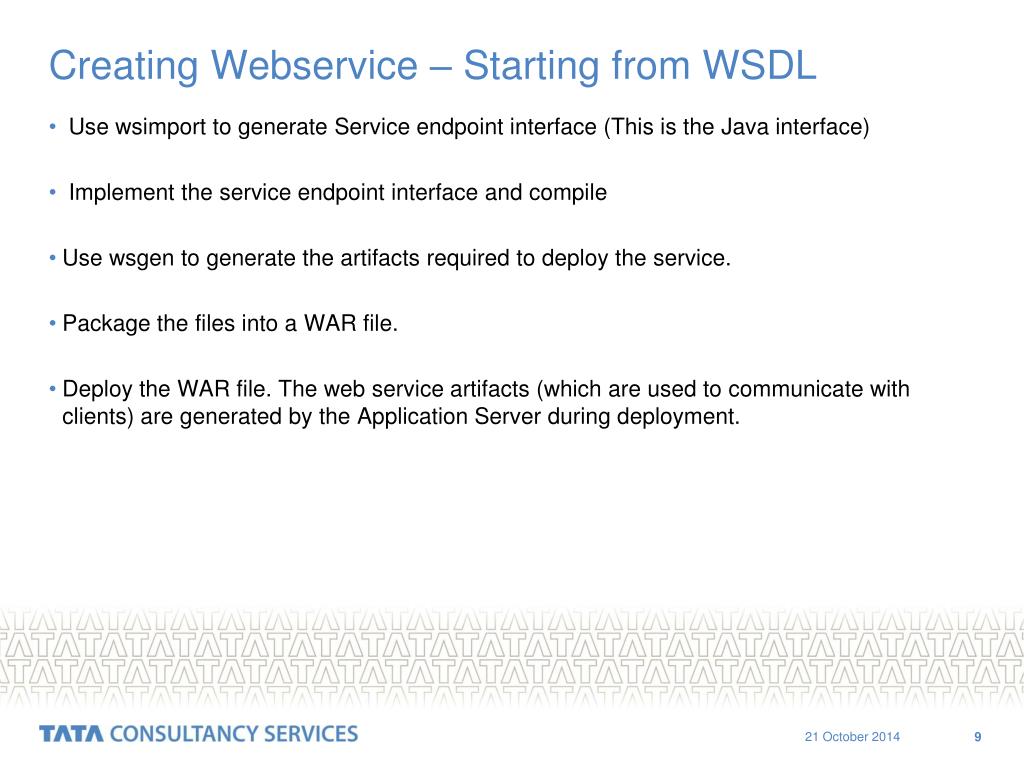

9. Creating Webservice – Starting from WSDL • Use wsimport to generate Service endpoint interface (This is the Java interface) • Implement the service endpoint interface and compile • Use wsgen to generate the artifacts required to deploy the service. • Package the files into a WAR file. • Deploy the WAR file. The web service artifacts (which are used to communicate with clients) are generated by the Application Server during deployment.

10. Creating Webservice Client • Three options available for creating webservice clients • Annotations • Use this option if you are calling from container (E.g. Web container, Client container) • Dynamic Proxy APIs • Use this option if you are not calling from container and do not want to process XML in the program • Dispatch Client APIs • Use this option if you need to process the XML in your program • Using annotations • Use wsimport to tool to create Port (Client side proxy/stub) • Use Annotations public class HelloClient { @WebServiceRef(wsdlLocation="http://localhost:8080/helloservice/hello?wsdl") static HelloService service; public void doTest(String[] args) { Hello port = service.getHelloPort(); port.sayHello(); }

11. Dynamic Proxy Client • Dynamic Proxy APIs • Dynamic Proxy client is similar to the stub client in the Java API for XML-based RPC (JAX-RPC) programming model. • The Dynamic Proxy client is dynamically generated at run time using the Java 5 Dynamic Proxy functionality, while the JAX-RPC-based stub client is a non-portable Java file that is generated by tooling. • The Dynamic Proxy client invokes a Web service based on a Service Endpoint Interface (SEI) which must be provided. • Using Dynamic Proxy APIs • Use wsimport to tool to create Port (Client side proxy/stub) • Use the following code URL wsdlLocation = new URL(" http://localhost:8080/helloservice/hello?wsdl"); javax.xml.namespace.QName serviceName = new QName("http://localhost:8080/helloservice/hello", “HelloService"); javax.xml.ws.Service s = Service.create(wsdlLocation, serviceName); helloservice.endpoint.Hello proxy = service.getPort(portName, helloservice.endpoint.Hello.class) proxy.sayHello();

12. Dispatch Client API • Use Dispatch Client API when you need to work at the XML message level. • The Dispatch client API, javax.xml.ws.Dispatch, is a dynamic JAX-WS client programming interface. • Two Modes • Message - Your code is responsible for providing the entire SOAP envelope including the <soap:Envelope>, <soap:Header>, and <soap:Body> elements. • Payload - Your code is only responsible for providing the contents of the <soap:Body> and JAX-WS includes the payload in a <soap:Envelope> element. • To construct XML the following types of objects are supported • javax.xml.transform.Source: Use Source objects to enable clients to use XML APIs directly. You can use Source objects with SOAP or HTTP bindings. • JAXB objects: Use JAXB objects so that clients can use JAXB objects that are generated from an XML schema to create and manipulate XML with JAX-WS applications. JAXB objects can only be used with SOAP or HTTP bindings. • javax.xml.soap.SOAPMessage: Use SOAPMessage objects so that clients can work with SOAP messages. You can only use SOAPMessage objects with SOAP bindings. • javax.activation.DataSource: Use DataSource objects so that clients can work with Multipurpose Internet Mail Extension (MIME) messages. Use DataSource only with HTTP bindings.

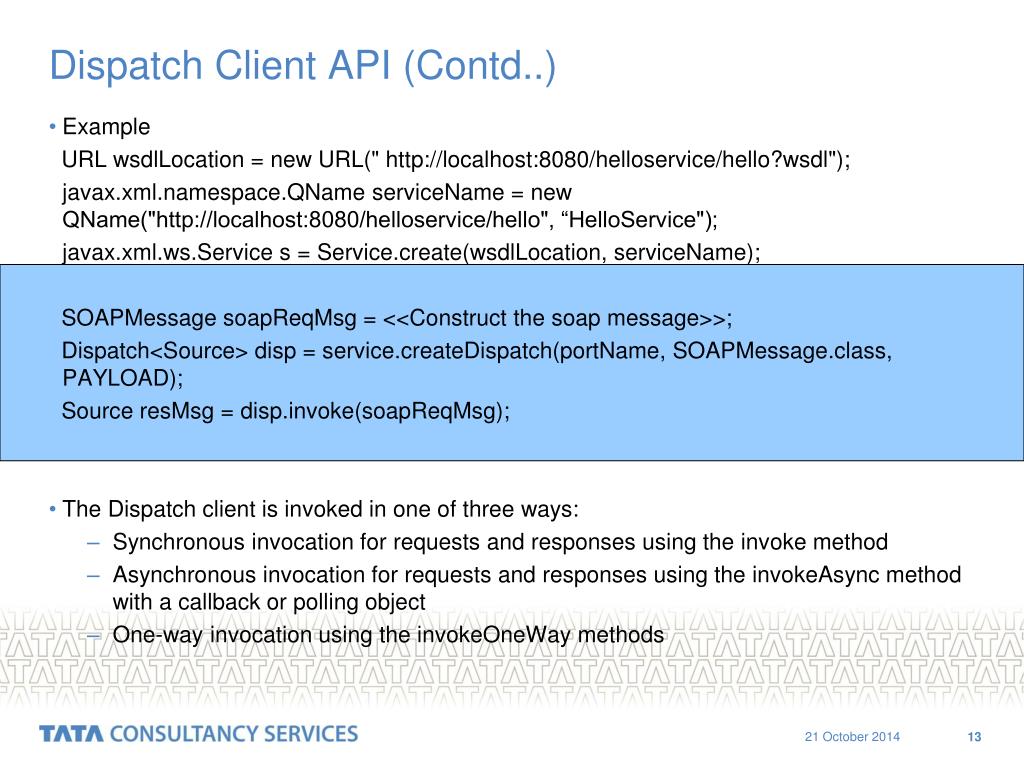

13. Dispatch Client API (Contd..) • Example URL wsdlLocation = new URL(" http://localhost:8080/helloservice/hello?wsdl"); javax.xml.namespace.QName serviceName = new QName("http://localhost:8080/helloservice/hello", “HelloService"); javax.xml.ws.Service s = Service.create(wsdlLocation, serviceName); SOAPMessage soapReqMsg = <<Construct the soap message>>; Dispatch<Source> disp = service.createDispatch(portName, SOAPMessage.class, PAYLOAD); Source resMsg = disp.invoke(soapReqMsg); • The Dispatch client is invoked in one of three ways: • Synchronous invocation for requests and responses using the invoke method • Asynchronous invocation for requests and responses using the invokeAsync method with a callback or polling object • One-way invocation using the invokeOneWay methods

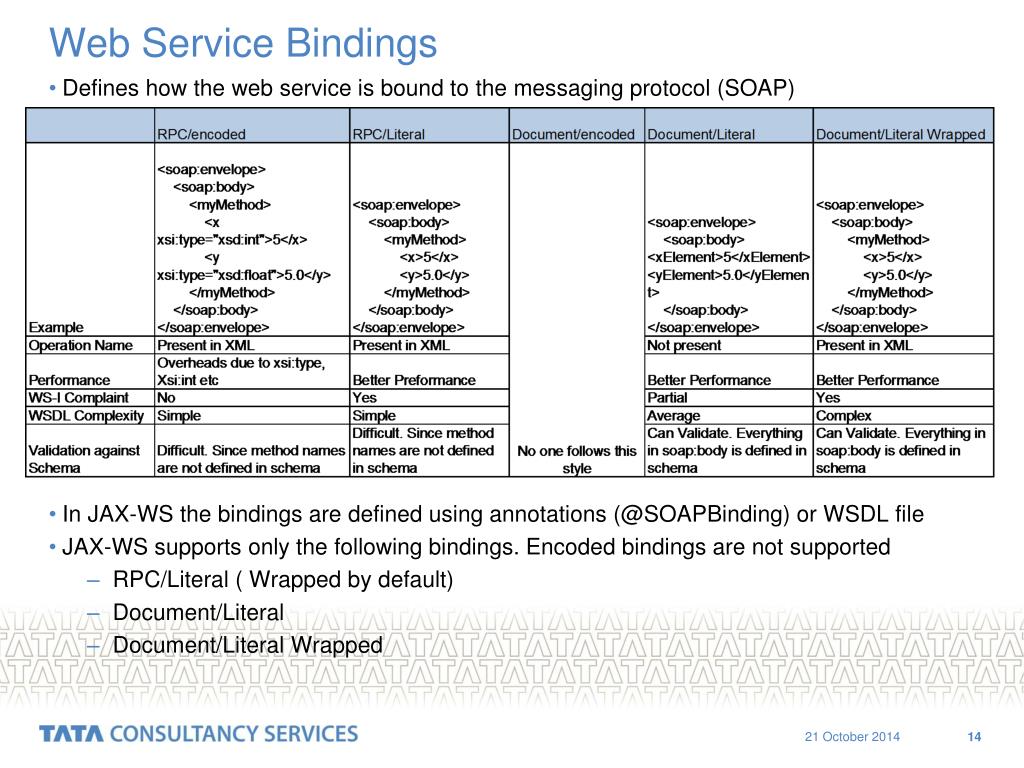

14. Web Service Bindings • Defines how the web service is bound to the messaging protocol (SOAP) • In JAX-WS the bindings are defined using annotations (@SOAPBinding) or WSDL file • JAX-WS supports only the following bindings. Encoded bindings are not supported • RPC/Literal ( Wrapped by default) • Document/Literal • Document/Literal Wrapped

15. WS-* Specifications WS-* specifications describes how to attach additional capabilities to the SOAP messages

16. JAXB • The Java Architecture for XML Binding (JAXB) provides a fast and convenient way to bind between XML schemas and Java representations • It makes easy for Java developers to incorporate XML data and processing functions in Java applications • JAXB provides methods for unmarshalling XML instance documents into Java content trees • Also provides methods for marshalling Java content trees back into XML instance documents. • JAX-WS uses JAXB internally to marshal and unmarshall the XML. • The bindings (Binding declarations) are fully customizable using annotations like @XmlRootElement, @XmlAttribute and so on. Image Source: JAX-WS Tutorial

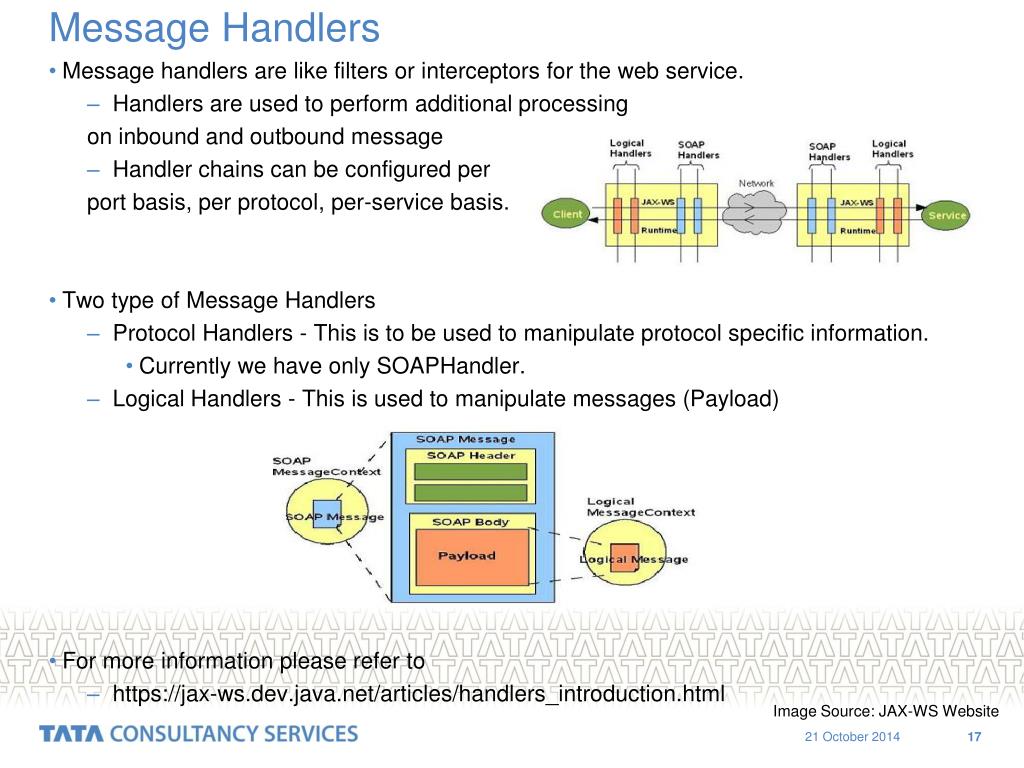

17. Message Handlers • Message handlers are like filters or interceptors for the web service. • Handlers are used to perform additional processing on inbound and outbound message • Handler chains can be configured per port basis, per protocol, per-service basis. • Two type of Message Handlers • Protocol Handlers - This is to be used to manipulate protocol specific information. • Currently we have only SOAPHandler. • Logical Handlers - This is used to manipulate messages (Payload) • For more information please refer to • https://jax-ws.dev.java.net/articles/handlers_introduction.html Image Source: JAX-WS Website

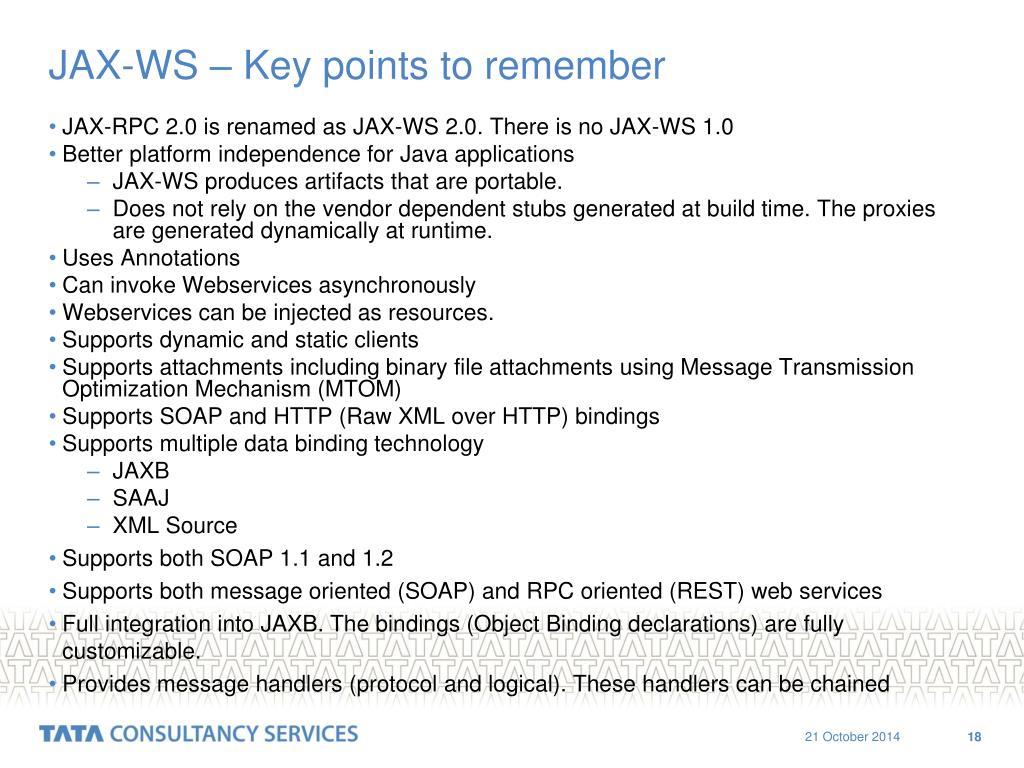

18. JAX-WS – Key points to remember • JAX-RPC 2.0 is renamed as JAX-WS 2.0. There is no JAX-WS 1.0 • Better platform independence for Java applications • JAX-WS produces artifacts that are portable. • Does not rely on the vendor dependent stubs generated at build time. The proxies are generated dynamically at runtime. • Uses Annotations • Can invoke Webservices asynchronously • Webservices can be injected as resources. • Supports dynamic and static clients • Supports attachments including binary file attachments using Message Transmission Optimization Mechanism (MTOM) • Supports SOAP and HTTP (Raw XML over HTTP) bindings • Supports multiple data binding technology • JAXB • SAAJ • XML Source • Supports both SOAP 1.1 and 1.2 • Supports both message oriented (SOAP) and RPC oriented (REST) web services • Full integration into JAXB. The bindings (Object Binding declarations) are fully customizable. • Provides message handlers (protocol and logical). These handlers can be chained

19. StAX • StAX provides a standard, bidirectional pull parser interface for streaming XML  processing. • Streaming pull parsing refers to a programming model in which a client application calls  methods on an XML parsing library when it needs to interact with an XML infoset • Streaming push parsing refers to a programming model in which an XML parser sends (pushes)   XML data to the client as the parser encounters elements in an XML infoset • Pull parsing provides several advantages over push parsing when working with XML streams:   • Pull parsing libraries can be much smaller and the client code to interact with those libraries are much simpler than with push libraries, even for more complex documents.   • With pull parsing, the client controls the application thread, and can call methods on the   parser when needed. • By contrast, with push processing, the parser controls the application   thread, and the client can only accept invocations from the parser.   • Pull clients can read multiple documents at one time with a single thread.   • A StAX pull parser can filter XML documents such that elements unnecessary to the client   can be ignored, and it can support XML views of non-XML data • .

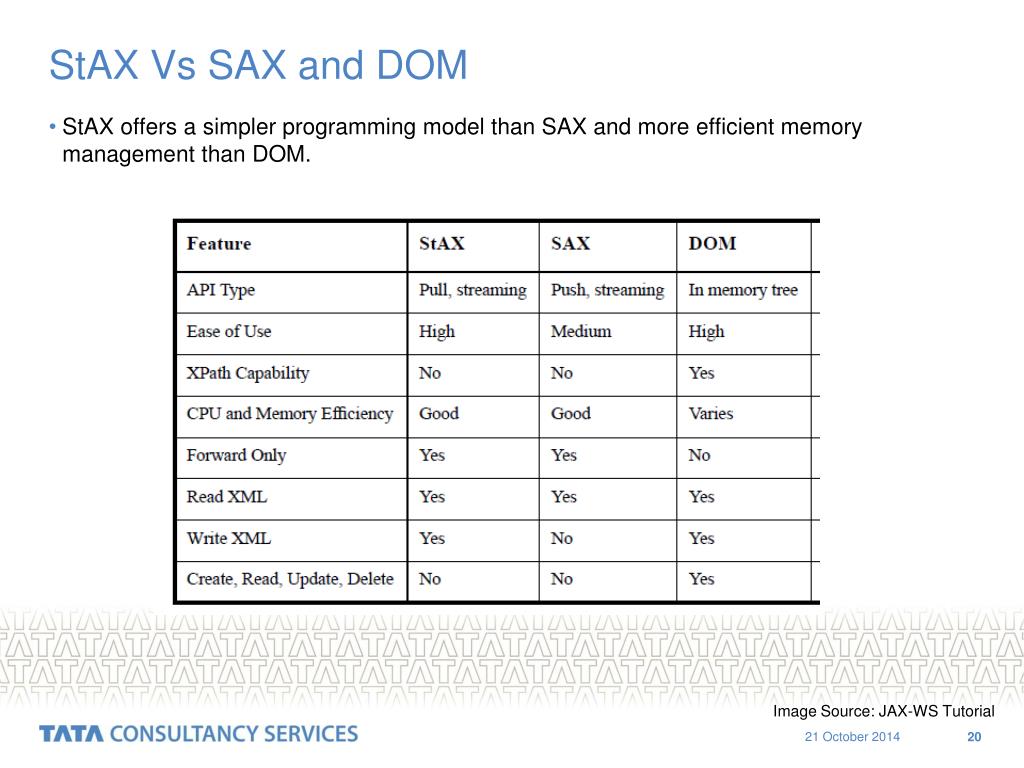

20. StAX Vs SAX and DOM • StAX offers a simpler programming model than SAX and more efficient memory management than DOM. Image Source: JAX-WS Tutorial

21. SAAJ • SAAJ – SOAP with Attachment API for Java • Use SAAJ instead of JAX-WS if you need to handle SOAP messages directly in your application. • With the SAAJ API, you can create XML messages that conform to the SOAP 1.1 or 1.2 specification and to the WS-I Basic Profile 1.1 specification simply by making Java API calls. • SAAJ also provides SOAPConnection object to send and receive SOAP messages as request-response paradigm.   Image Source: JAX-WS Tutorial

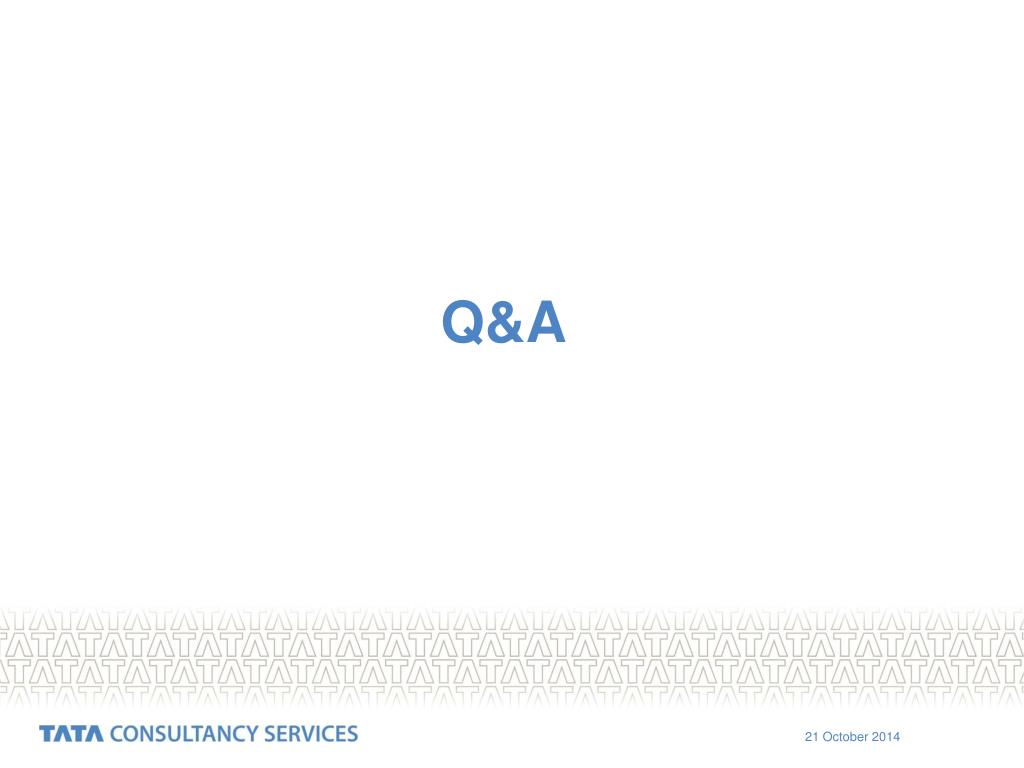

22. Q&A

23. Java Message Service (JMS) API

24. Introduction to JMS • Messaging is a method of communication between software components or applications. • A messaging system is a peer-to-peer facility: a messaging client can send messages to, and receive messages from, any other client. • Each client connects to a messaging agent that provides facilities for creating, sending, receiving, and reading messages. • The Java Message Service (JMS) API is a messaging standard that allows application components based on the Java Platform to create, send, receive, and read messages. • It enables distributed communication that is • Loosely coupled – Sender need not be aware about receiver and vice versa • Reliable - JMS API can ensure that a message is delivered once and only once. • Asynchronous – The sender and receiver need not be available at the same time to communicate • Message-driven beans can be used to consume JMS message asynchronously • Message sends and receives can participate in Java Transaction API (JTA) transactions. • JEE Connector Architecture interfaces that allow JMS implementations from different vendors to be externally plugged into a JEE application server.

25. Messaging – Key Concepts

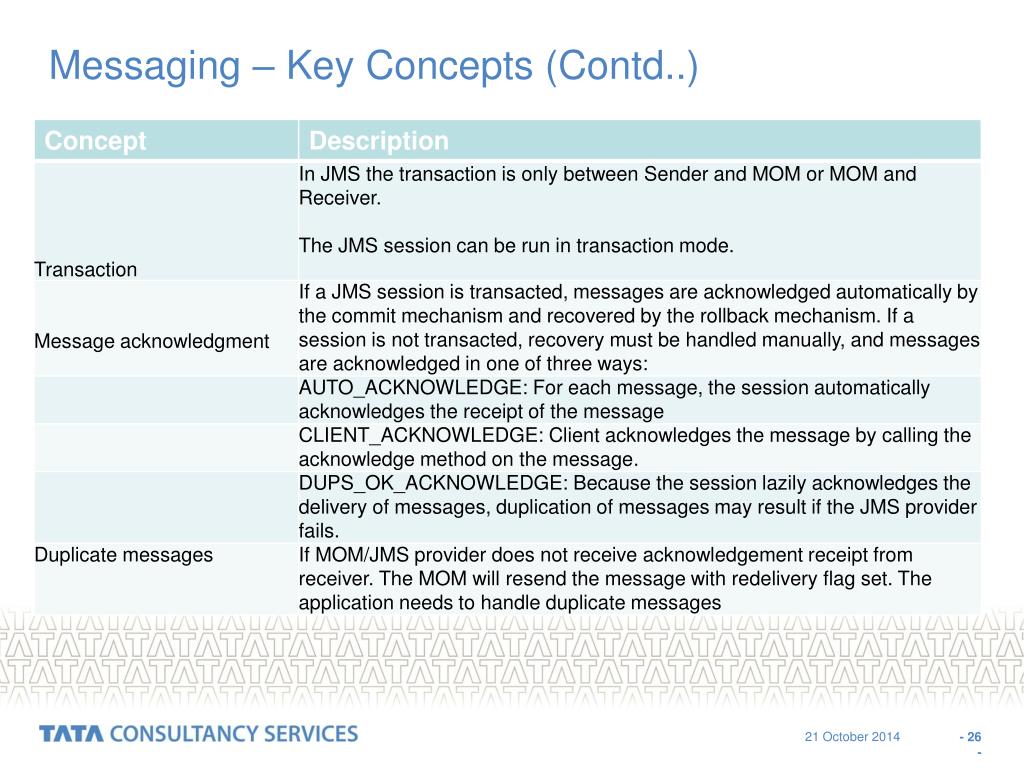

26. Messaging – Key Concepts (Contd..)

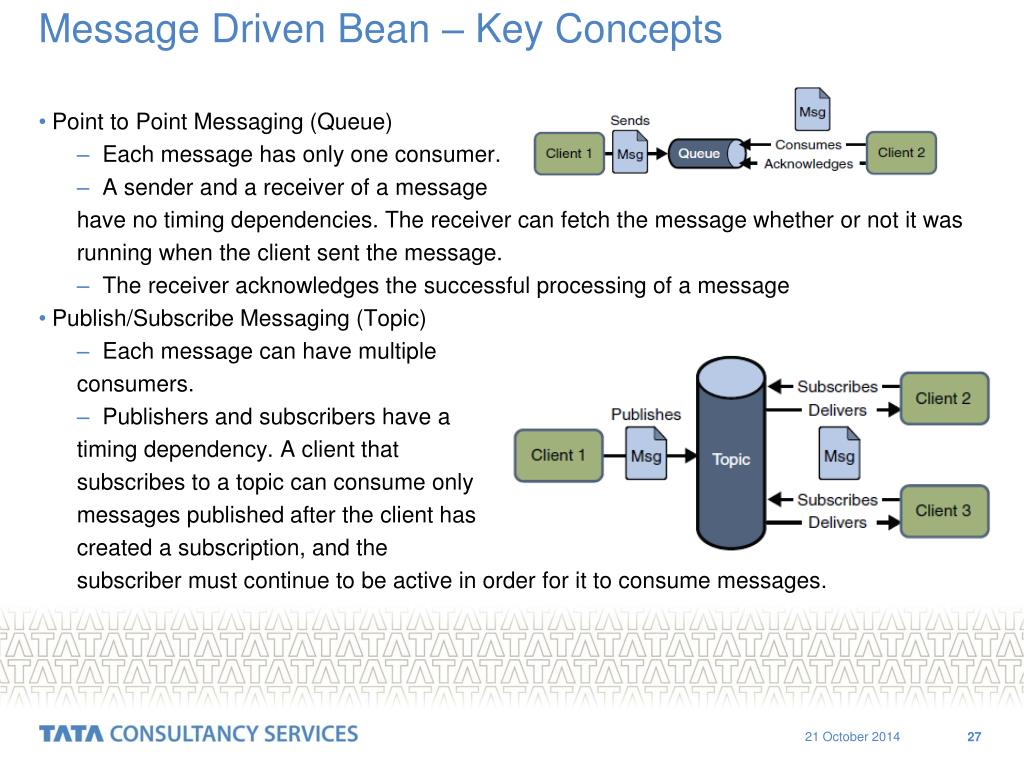

27. Message Driven Bean – Key Concepts Point to Point Messaging (Queue) Each message has only one consumer. A sender and a receiver of a message have no timing dependencies. The receiver can fetch the message whether or not it was running when the client sent the message. The receiver acknowledges the successful processing of a message Publish/Subscribe Messaging (Topic) Each message can have multiple consumers. Publishers and subscribers have a timing dependency. A client that subscribes to a topic can consume only messages published after the client has created a subscription, and the subscriber must continue to be active in order for it to consume messages.

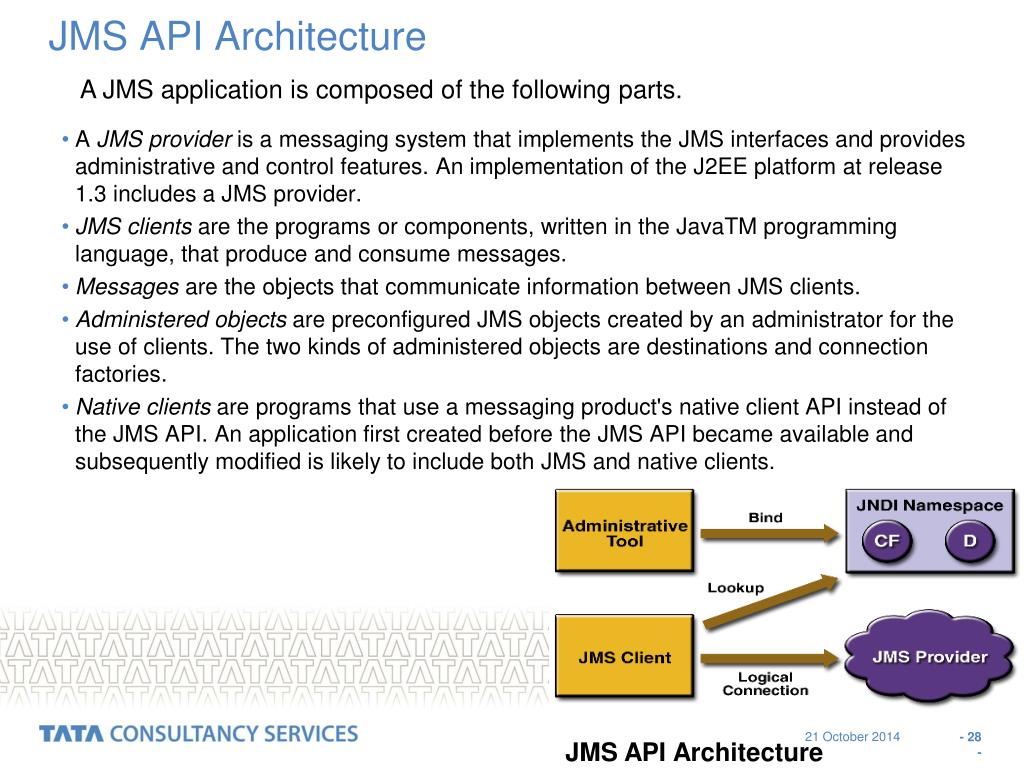

28. JMS API Architecture A JMS application is composed of the following parts. • A JMS provider is a messaging system that implements the JMS interfaces and provides administrative and control features. An implementation of the J2EE platform at release 1.3 includes a JMS provider. • JMS clients are the programs or components, written in the JavaTM programming language, that produce and consume messages. • Messages are the objects that communicate information between JMS clients. • Administered objects are preconfigured JMS objects created by an administrator for the use of clients. The two kinds of administered objects are destinations and connection factories. • Native clients are programs that use a messaging product's native client API instead of the JMS API. An application first created before the JMS API became available and subsequently modified is likely to include both JMS and native clients. JMS API Architecture

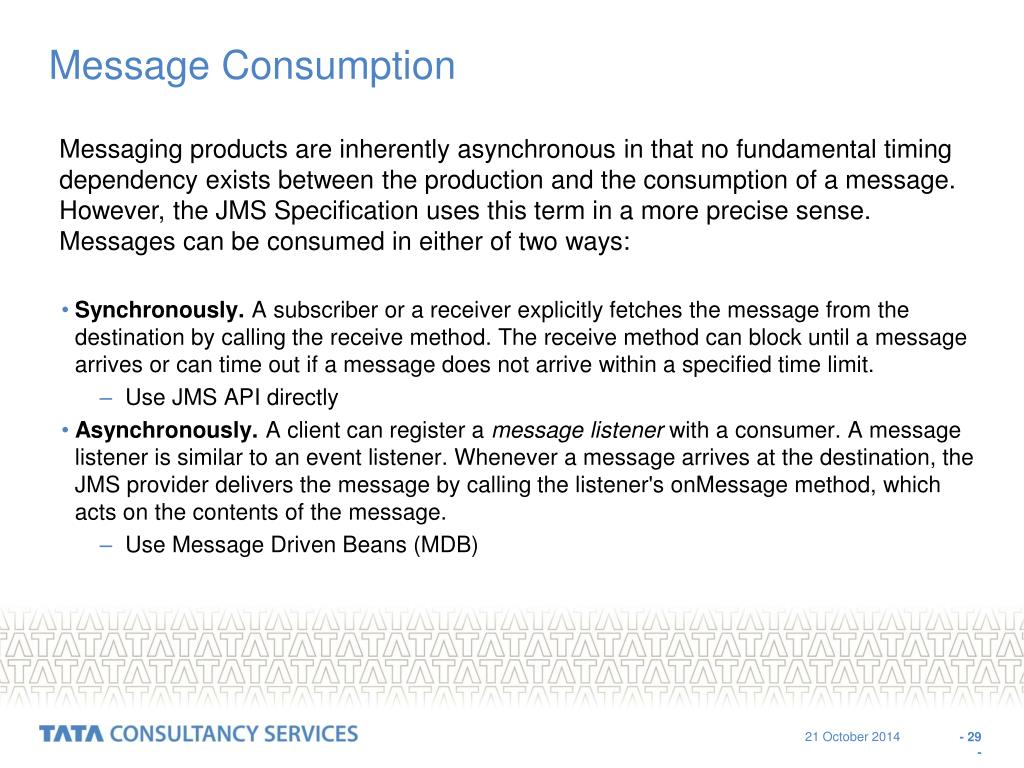

29. Message Consumption • Synchronously. A subscriber or a receiver explicitly fetches the message from the destination by calling the receive method. The receive method can block until a message arrives or can time out if a message does not arrive within a specified time limit. • Use JMS API directly • Asynchronously. A client can register a message listener with a consumer. A message listener is similar to an event listener. Whenever a message arrives at the destination, the JMS provider delivers the message by calling the listener's onMessage method, which acts on the contents of the message. • Use Message Driven Beans (MDB) Messaging products are inherently asynchronous in that no fundamental timing dependency exists between the production and the consumption of a message. However, the JMS Specification uses this term in a more precise sense. Messages can be consumed in either of two ways:

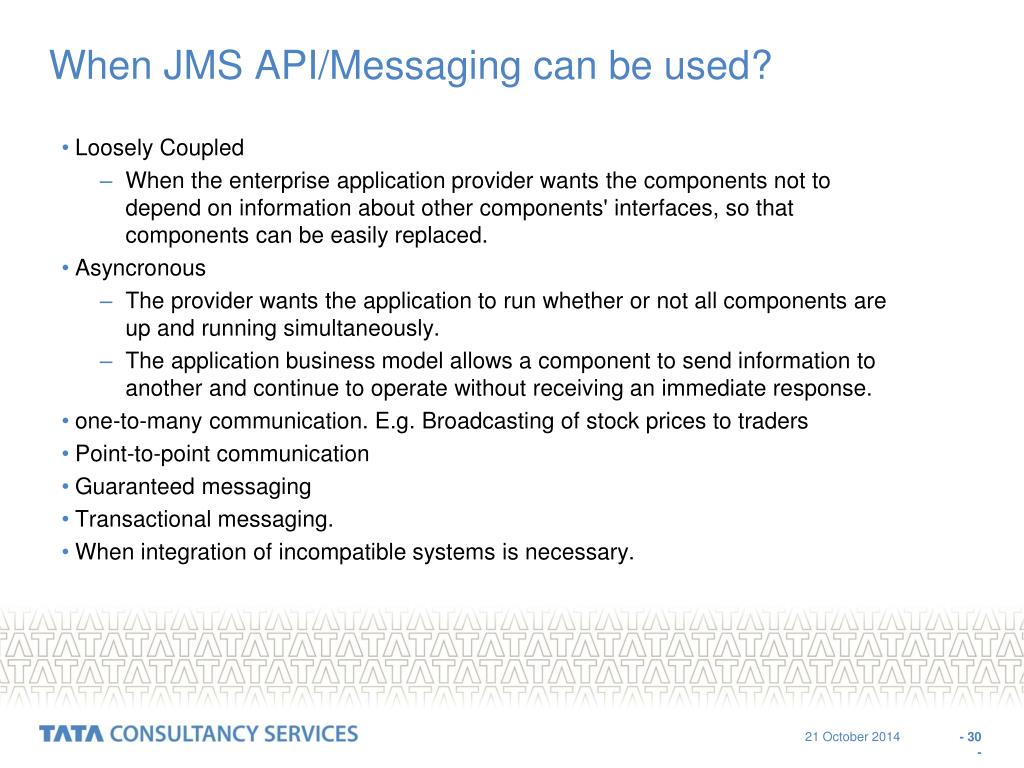

30. When JMS API/Messaging can be used? • Loosely Coupled • When the enterprise application provider wants the components not to depend on information about other components' interfaces, so that components can be easily replaced. • Asyncronous • The provider wants the application to run whether or not all components are up and running simultaneously. • The application business model allows a component to send information to another and continue to operate without receiving an immediate response. • one-to-many communication. E.g. Broadcasting of stock prices to traders • Point-to-point communication • Guaranteed messaging • Transactional messaging. • When integration of incompatible systems is necessary.

31. JMS API - Example

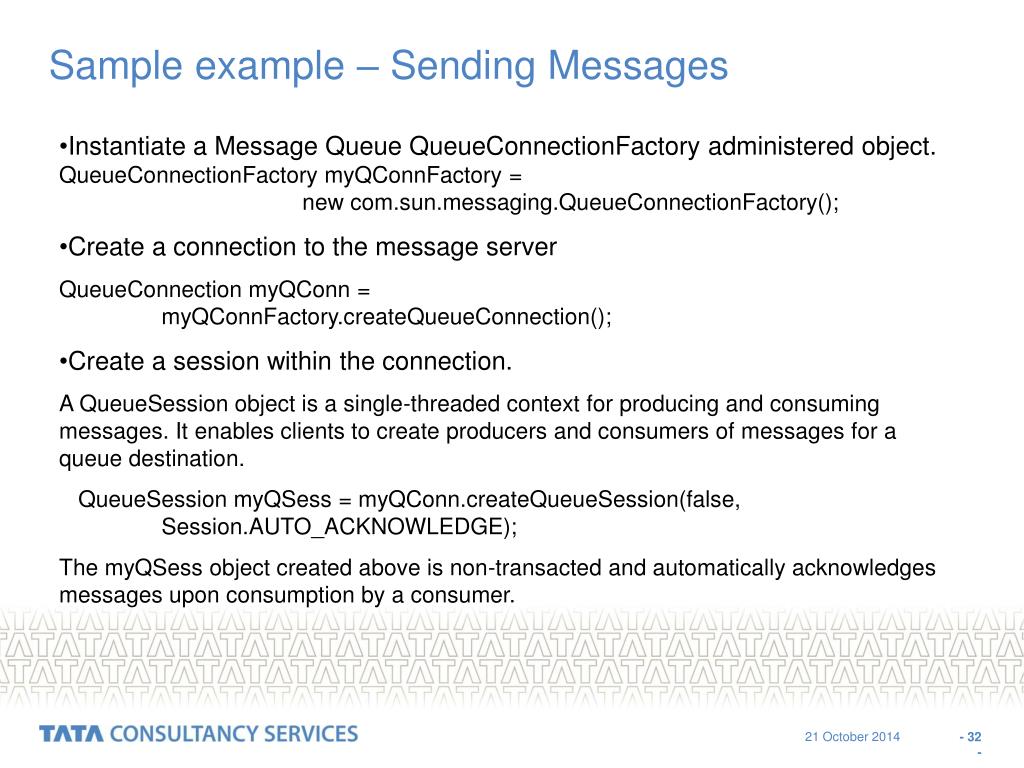

32. Sample example – Sending Messages • Instantiate a Message Queue QueueConnectionFactory administered object. • QueueConnectionFactory myQConnFactory =   new com.sun.messaging.QueueConnectionFactory(); • Create a connection to the message server • QueueConnection myQConn =   myQConnFactory.createQueueConnection(); • Create a session within the connection. • A QueueSession object is a single-threaded context for producing and consuming messages. It enables clients to create producers and consumers of messages for a queue destination. • QueueSession myQSess = myQConn.createQueueSession(false,   Session.AUTO_ACKNOWLEDGE); • The myQSess object created above is non-transacted and automatically acknowledges messages upon consumption by a consumer.

33. Sample example – Sending Messages (Contd..) • Instantiate a Message Queue administered object that corresponds to a queue destination in the message server. • Queue myQueue = new.com.sun.messaging.Queue("world"); • Create a QueueSender message producer • QueueSender myQueueSender = myQSess.createSender(myQueue); • Create and send a message to the queue. • TextMessage myTextMsg = myQSess.createTextMessage(); myTextMsg.setText("Hello World"); System.out.println(“Sending Message: “ + myTextMsg.getText()); myQueueSender.send(myTextMsg);

34. Sample example – Receiving Messages (Contd..) • Create the Message Sessiona and Queue as shown in the sending messages example • Create a QueueReceiver message consumer. • QueueReceiver myQueueReceiver = myQSess.createReceiver(myQueue); • Start the QueueConnection you created • myQConn.start(); • Receive a message from the queue • Message msg = myQueueReceiver.receive(); • Process the Message • if (msg instanceof TextMessage) {  TextMessage txtMsg = (TextMessage) msg;   System.out.println("Read Message: " + txtMsg.getText()); }

35. Java Connector Architecture (JCA)

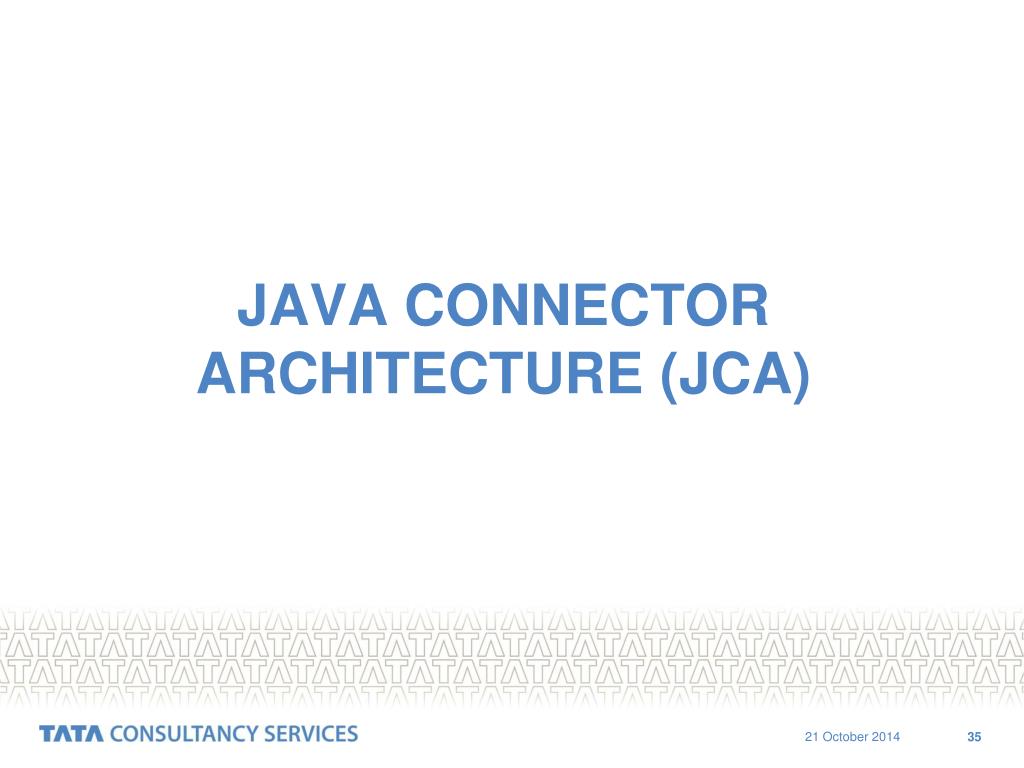

36. Java Connector Architecture • Java EE Connector Architecture (JCA) is a Java-based technology solution for connecting application servers and enterprise information systems (EIS) as part of enterprise application integration (EAI) solutions. • This defines a standard architecture for connecting J2EE compliant applications to heterogeneous information systems. • While JDBC is specifically used to connect Java EE applications to databases, JCA is a more generic architecture for connection to legacy systems (including databases).

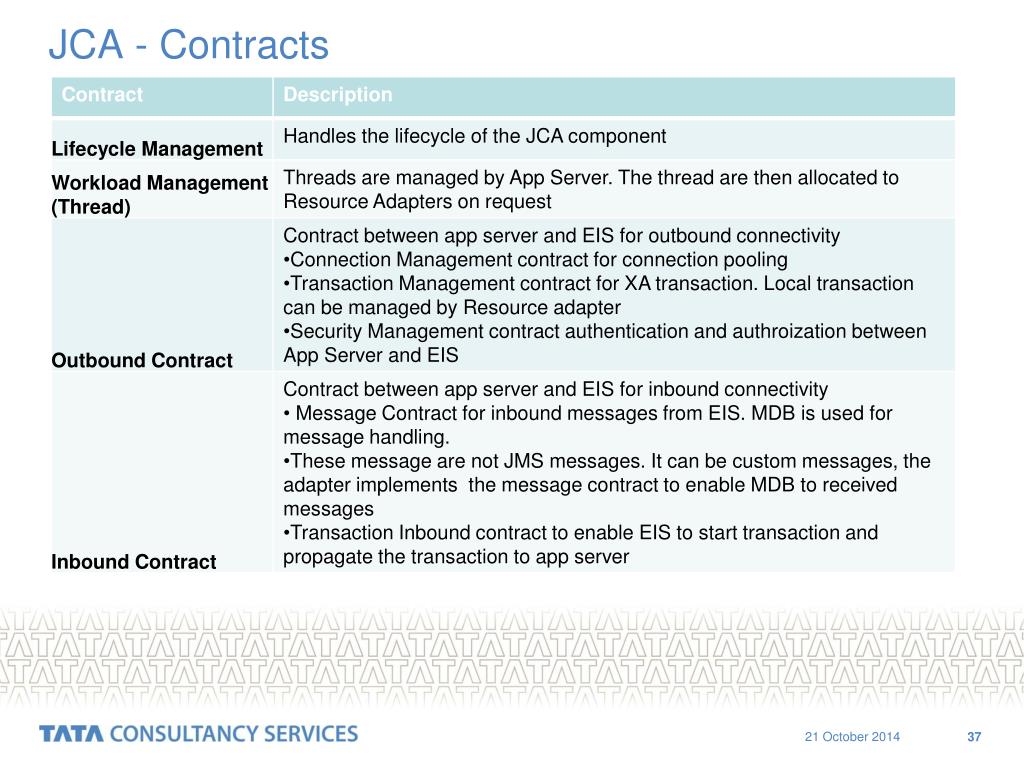

37. JCA - Contracts

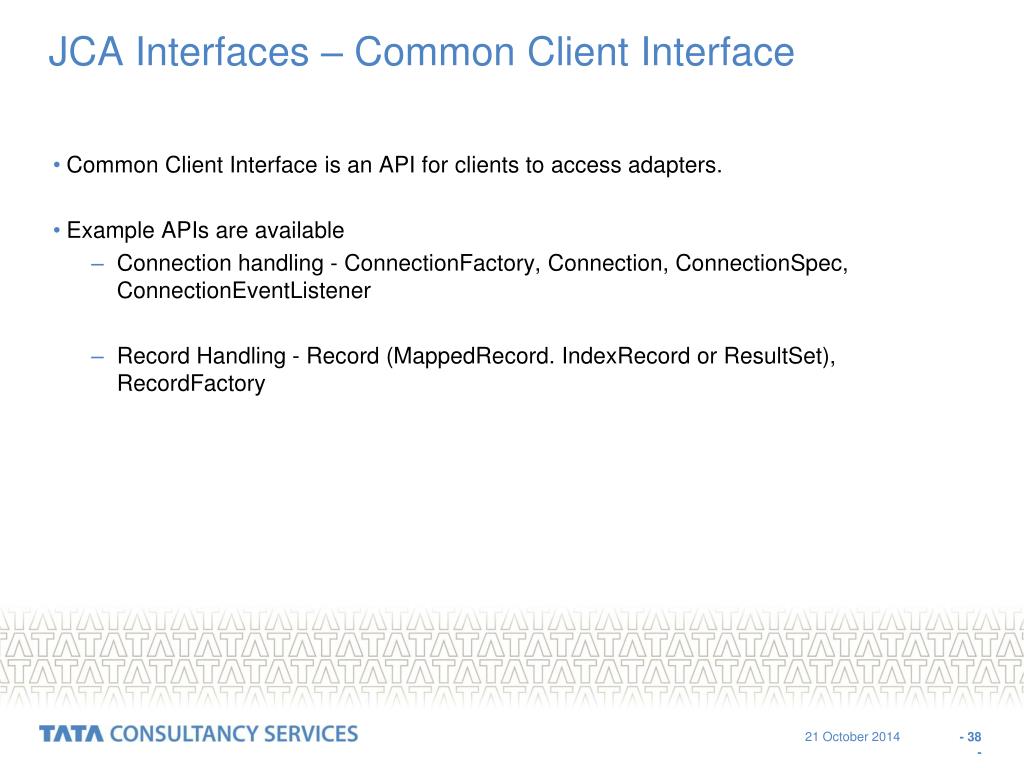

38. JCA Interfaces – Common Client Interface • Common Client Interface is an API for clients to access adapters. • Example APIs are available • Connection handling - ConnectionFactory, Connection, ConnectionSpec, ConnectionEventListener • Record Handling - Record (MappedRecord. IndexRecord or ResultSet), RecordFactory

39. Choosing between JMS,JCA and Webservice

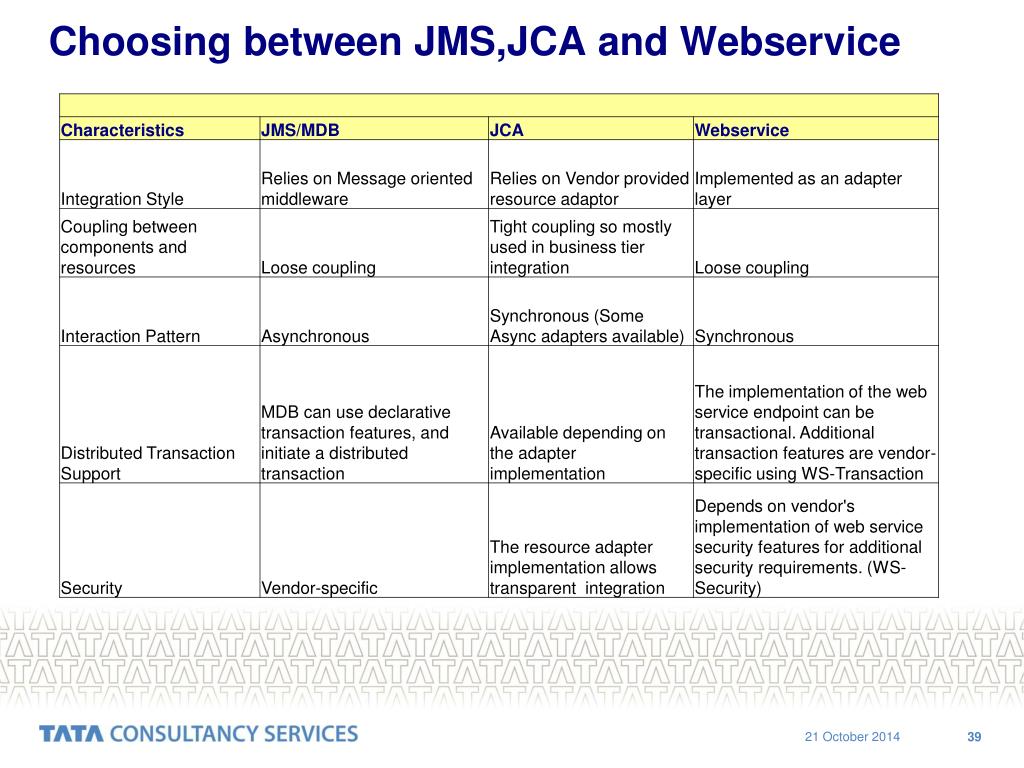

40. Q&A
