EET 450 - Advanced Digital

Chapter 8

Mass Storage


Technologies

Technologies

  • One of the primary ‘blocks’ of the computer system is Mass Storage.

  • Store large amounts of Data and Program information, available quickly

    • Not as fast as Main Memory

    • Speeds can be improved with Cache


Technologies1

Technologies

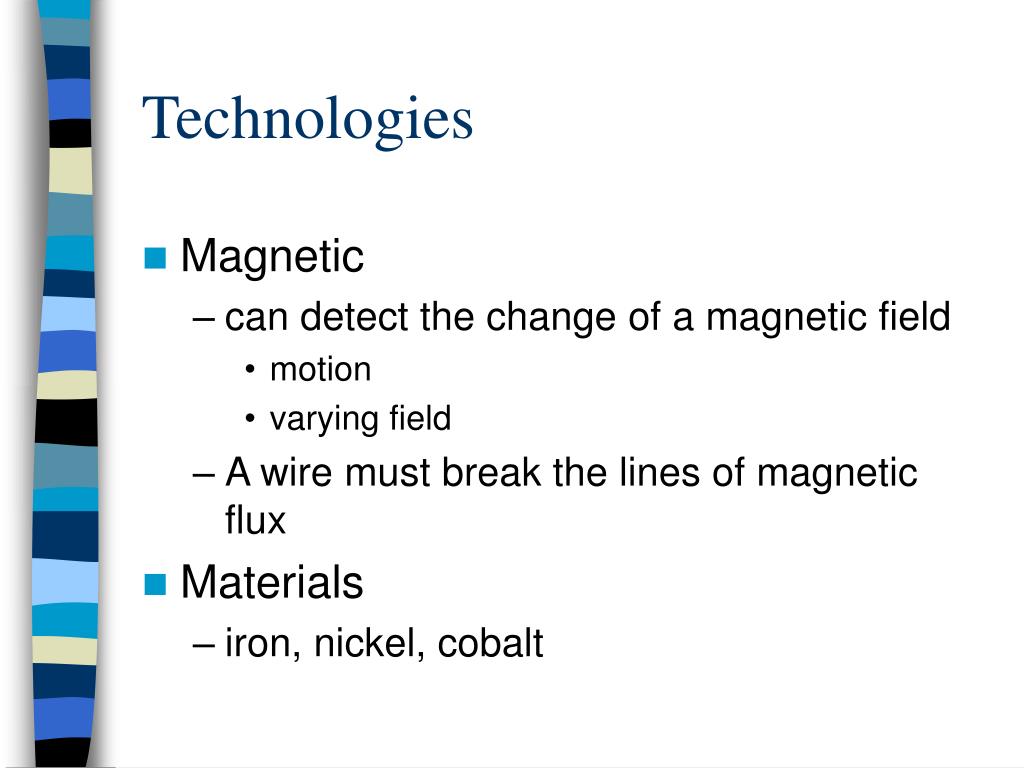

  • Magnetic

    • can detect the change of a magnetic field

      • motion

      • varying field

    • A wire must break the lines of magnetic flux

  • Materials

    • iron, nickel, cobalt


Technologies2

Technologies

  • materials dictate issues of speed (coercivity), life of stored information (retentivity)

  • Magneto-Optical

    • use laser to direct magnetic field in recording data image

    • laser alone is used to read

    • Very high storage density


  • Technologies3

    Technologies

    • Optical

      • CD technology used to optically record and read digital information.

        • CD

        • DVD

        • CDR

        • CDRW


    Types of mass storage

    Types of Mass Storage

    • Hard Disks

    • Floppy Disks

    • PC Cards

    • Magneto-optical Drives

    • CD-Rom/CDR/CDRW

      • DVD ROM / DVD Ram

    • Tape Drives


    Eet 450 advanced digital

    • Magnetic

    • Optical

    • Solid State


    Access

    Access

    • Random Access

      • Any bit w/in access time for device

    • Sequential

      • Tape drive

    • New Technologies

      • DVD - optimized for sequential access, but does random


    Magnetic media

    Magnetic Media

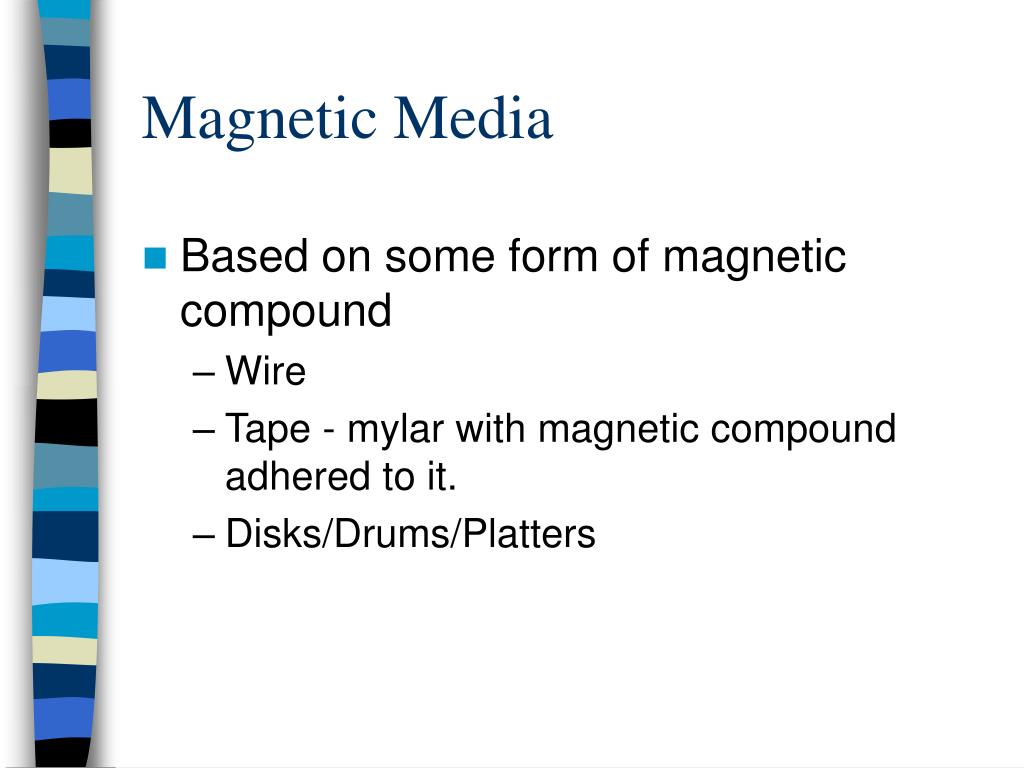

    • Based on some form of magnetic compound

      • Wire

      • Tape - mylar with magnetic compound adhered to it.

      • Disks/Drums/Platters


    Magnetic media1

    Magnetic Media

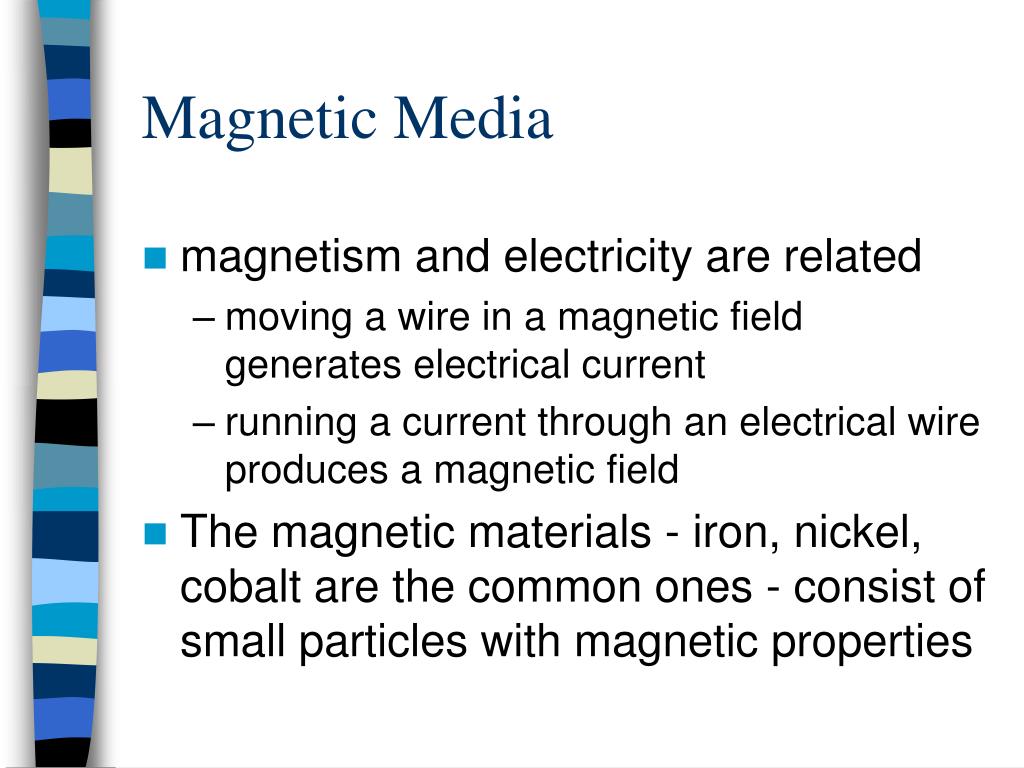

    • magnetism and electricity are related

      • moving a wire in a magnetic field generates electrical current

      • running a current through an electrical wire produces a magnetic field

    • The magnetic materials - iron, nickel, cobalt are the common ones - consist of small particles with magnetic properties


    Magnetic media2

    Magnetic Media

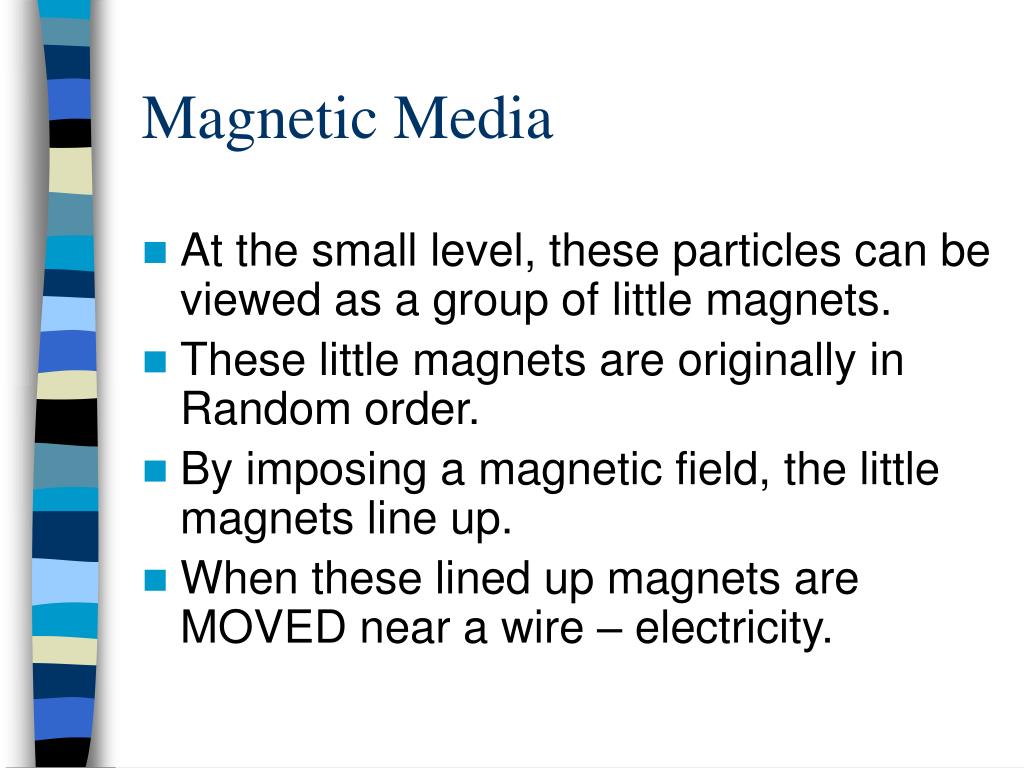

    • At the small level, these particles can be viewed as a group of little magnets.

    • These little magnets are originally in Random order.

    • By imposing a magnetic field, the little magnets line up.

    • When these lined up magnets are MOVED near a wire – electricity.


    Magnetic media3

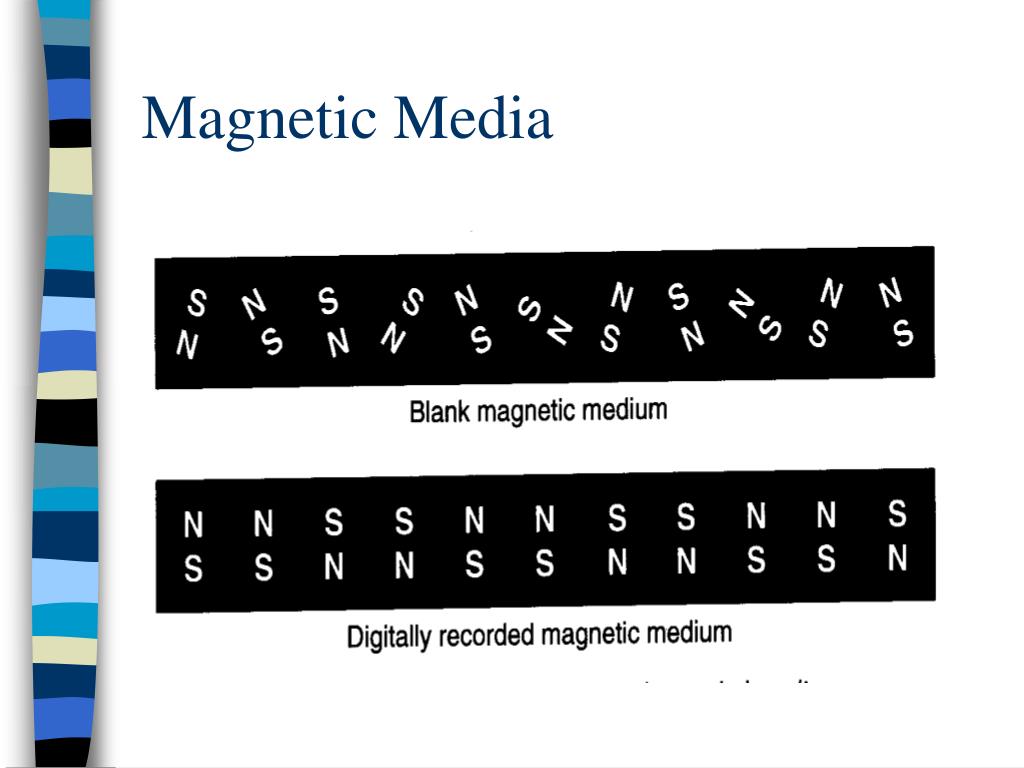

    Magnetic Media


    Magnetic media4

    Magnetic Media

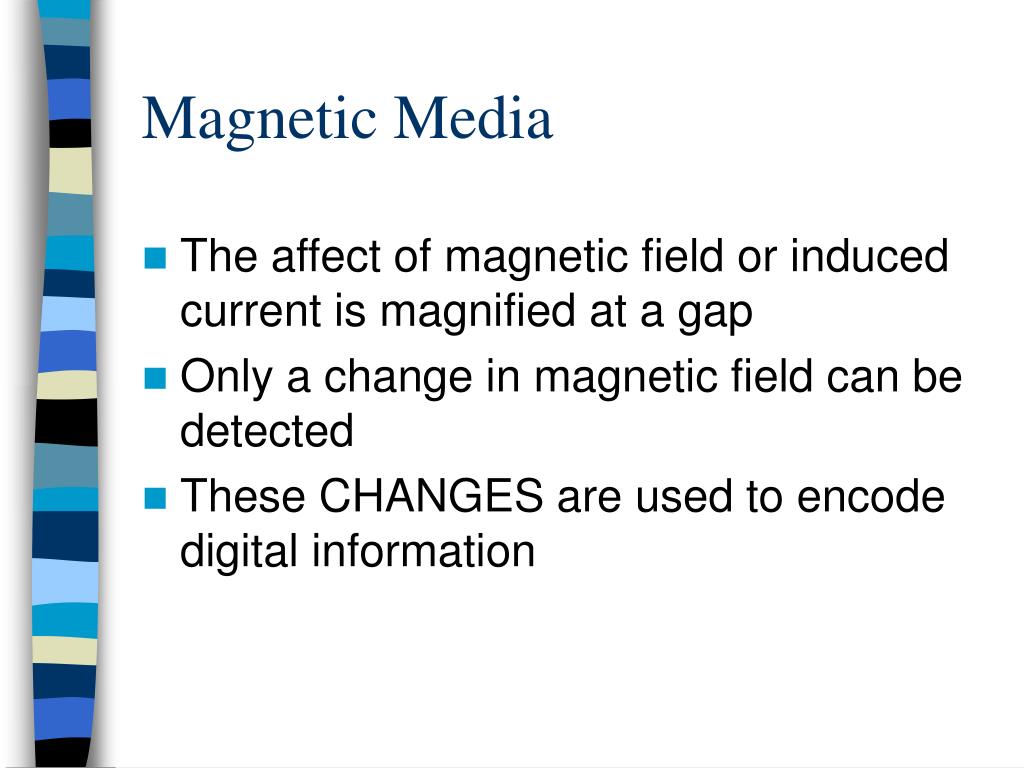

    • The affect of magnetic field or induced current is magnified at a gap

    • Only a change in magnetic field can be detected

    • These CHANGES are used to encode digital information


    Recording methods

    Recording Methods

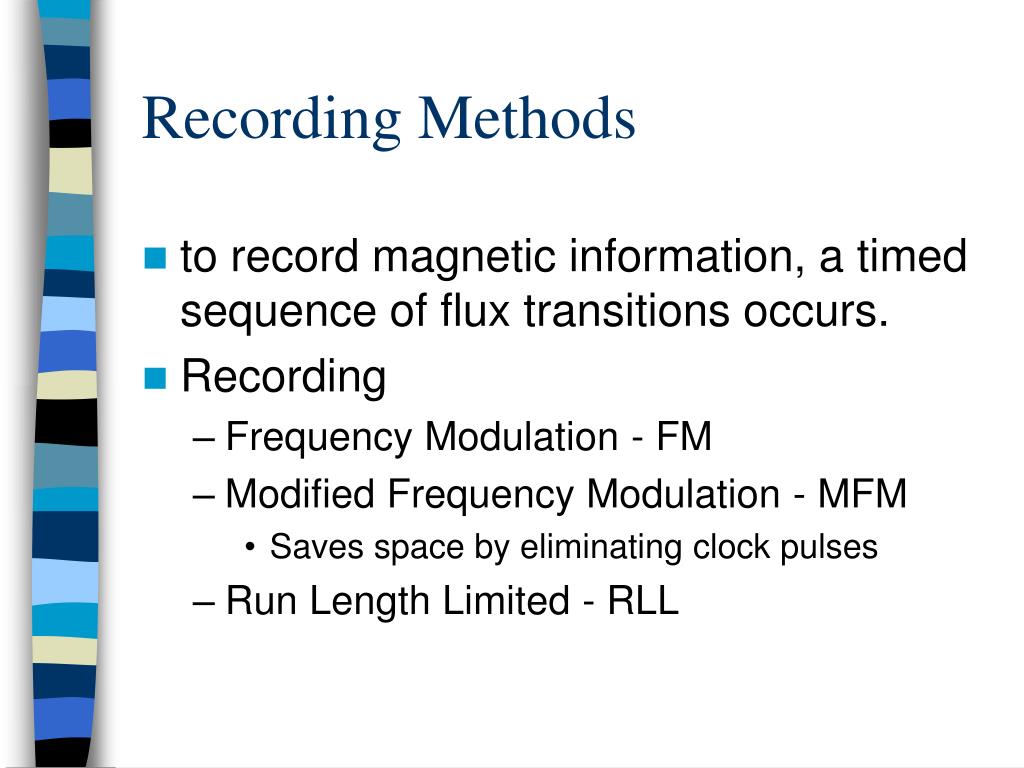

    • to record magnetic information, a timed sequence of flux transitions occurs.

    • Recording

      • Frequency Modulation - FM

      • Modified Frequency Modulation - MFM

        • Saves space by eliminating clock pulses

      • Run Length Limited - RLL


    Drives

    Drives

    • Older technology drives were delivered unformatted

      • Using a low level program, the drive was formatted - writing sector information and tracks

      • The disk would then be partitioned

      • The OS must then format the partition

    • Current versions - IDE, Ultra, SCSI, etc. do not require low level formatting.


    Drives1

    Drives

    • Various methods of data compression have been used to increase storage space

    • compression, typically software based, took up speed by loading the main processor with compression/decompression responsibilities.


    Hard drives

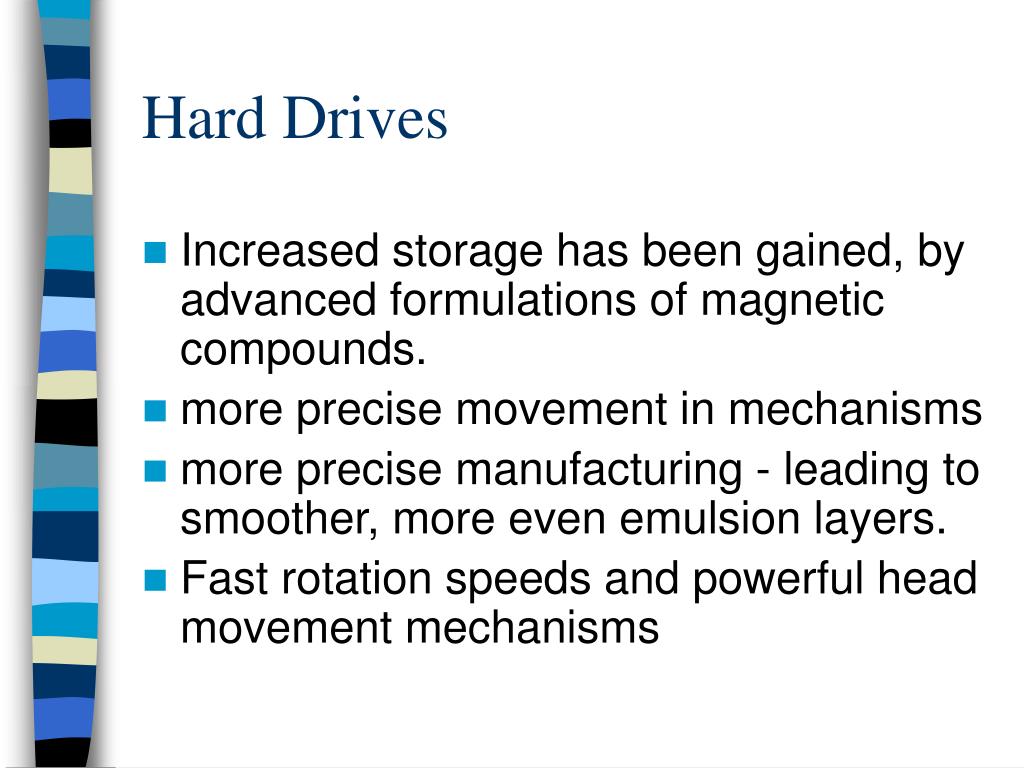

    Hard Drives

    • Increased storage has been gained, by advanced formulations of magnetic compounds.

    • more precise movement in mechanisms

    • more precise manufacturing - leading to smoother, more even emulsion layers.

    • Fast rotation speeds and powerful head movement mechanisms


    Advanced storage systems

    Advanced Storage Systems

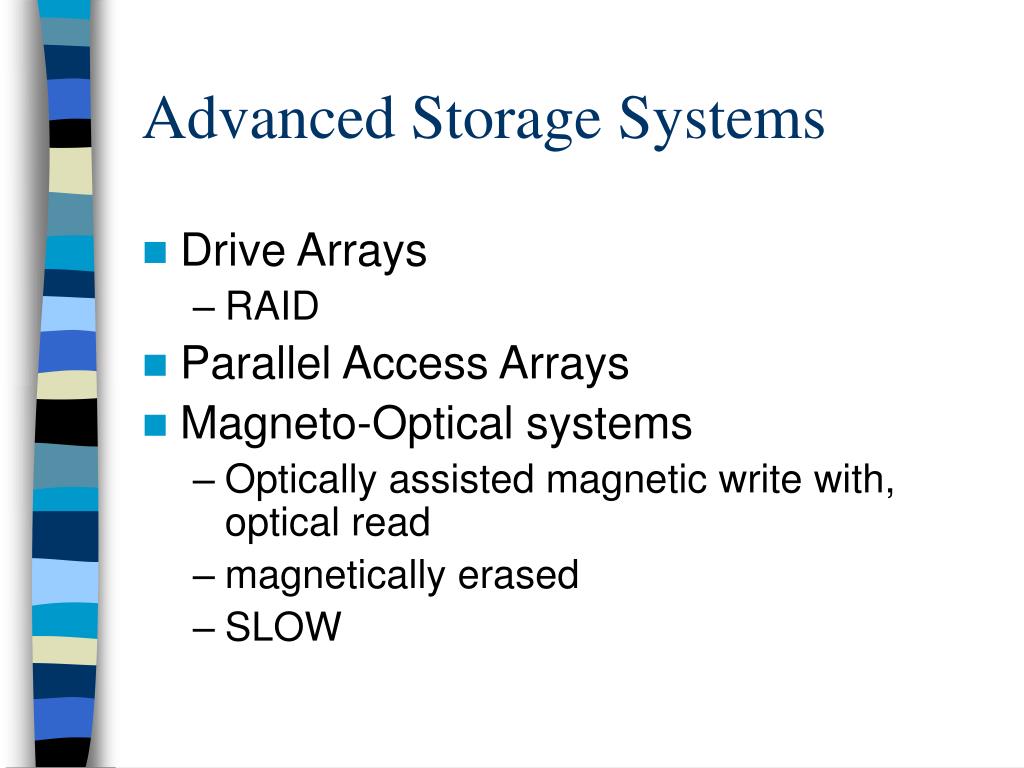

    • Drive Arrays

      • RAID

    • Parallel Access Arrays

    • Magneto-Optical systems

      • Optically assisted magnetic write with, optical read

      • magnetically erased

      • SLOW


    Drive interfaces

    Drive Interfaces

    • The physical drive has limitations for size and speed.

    • The electronic connection to the ‘system’ imposes it’s own limitations.

    • See Table 9.1

      • note that transfer rate is the only figure of merit in this table (besides # of devices)


    Table 9 1

    Table 9.1


    Drive interfaces1

    Drive interfaces

    • Note P1394 - fire wire

    • FC-AL: Fiber Channel-Arbitrated Loop

      • SSA System Storage Arch.

    • Aaron -a blend of fiber connections

    • Current USB is being used

      • see Apple G3


    Performance of at drives

    Performance of AT drives

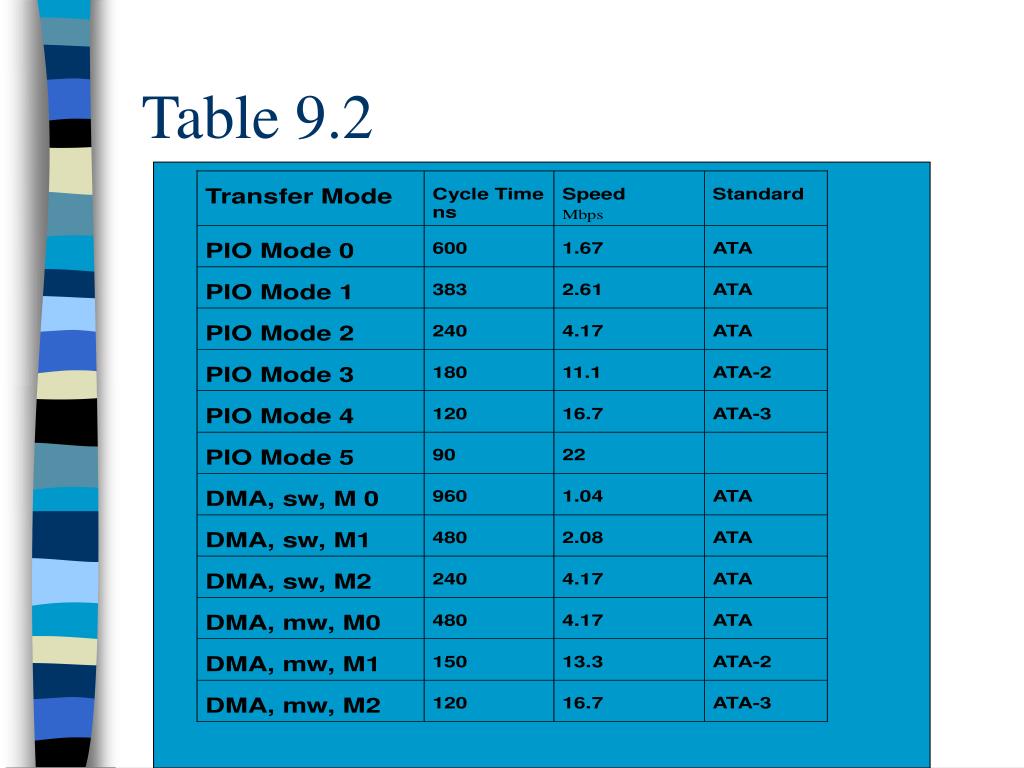

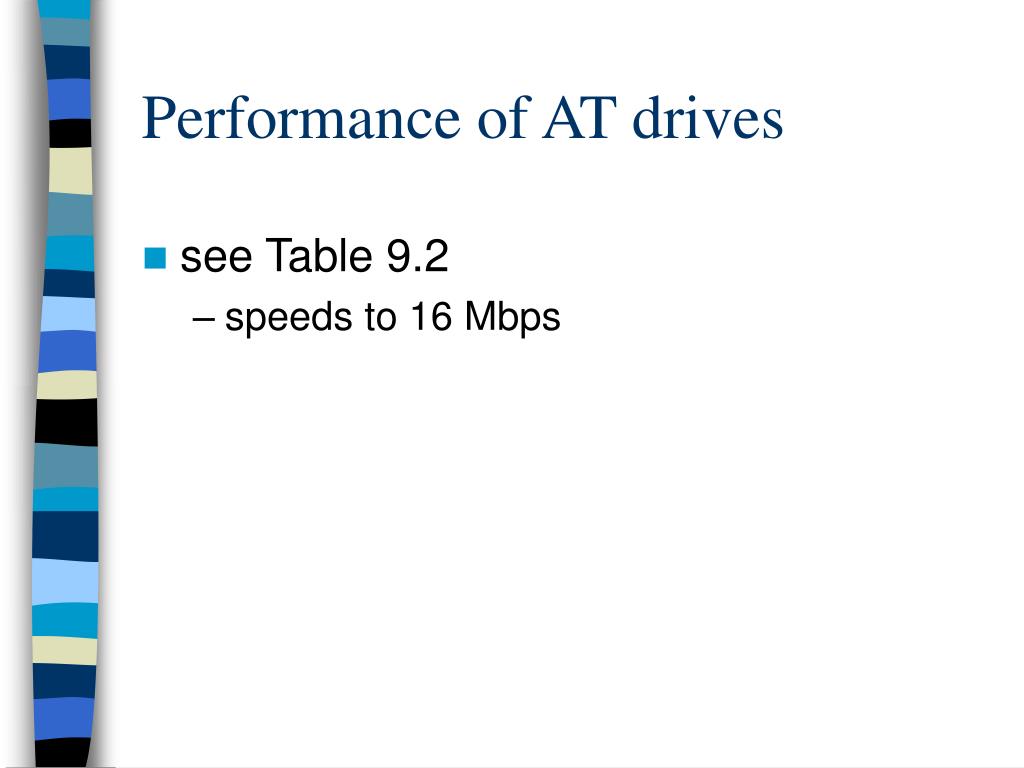

    • see Table 9.2

      • speeds to 16 Mbps


    Table 9 2

    Table 9.2


    Addressing limit

    Addressing Limit

    • Legacy limit of drive size -

      • DOS imposed

    • 504Mb limit

    • Solution - bypass INT13h access of drives


    Atapi

    ATAPI

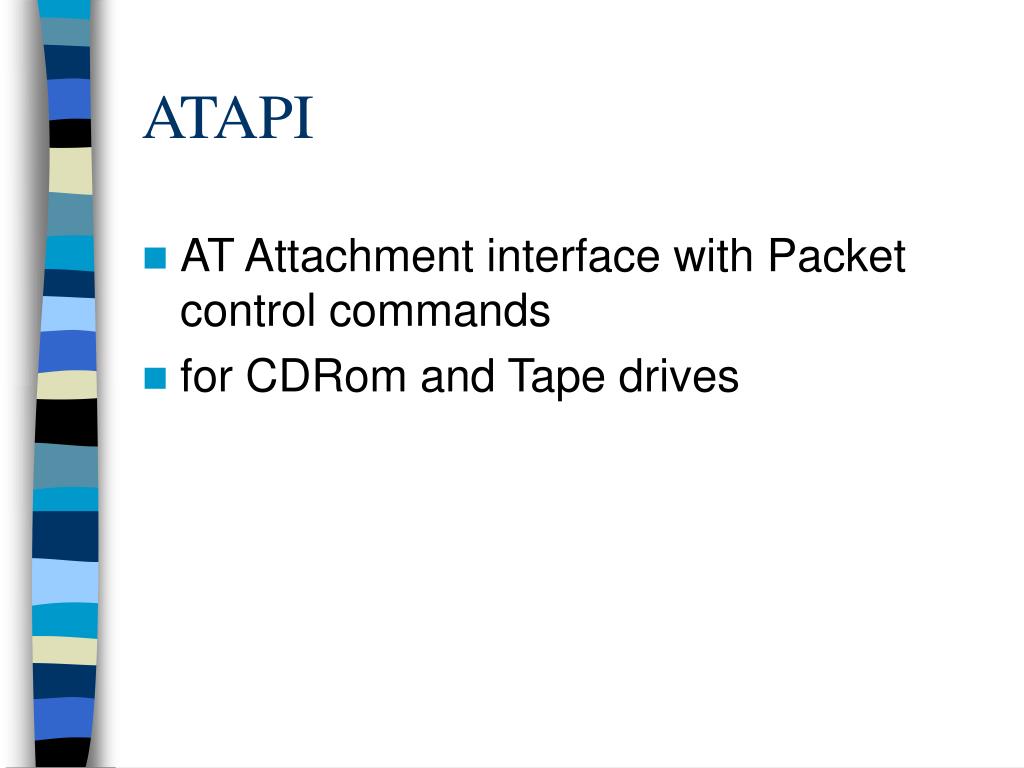

    • AT Attachment interface with Packet control commands

    • for CDRom and Tape drives


    Implementations

    Implementations

    • ATA

    • EIDE

    • ATA-2 (Fast-ATA)

      • Up to 137.4 GB

    • ATA-3

      • Added S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology)


    Ata atapi

    ATA/ATAPI

    • ATA/ATAPI-4 – Packet Int. Ext

      • Defined 80 cond. 40 pin cable

      • UDMA/33

      • Enhanced BIOS for over 9.4 trillion gigabytes (ATA is still <= 137.4GB)

    • ATA/ATAPI-5 – w/ Packet Int.

      • Requires 80 conductor cable for UDMA/66


    Physical wiring

    Physical Wiring

    • Drive Cables

      • Terminated cable end

      • 40 pin cable - ribbon

      • 44 pin connector - pins 41-44 provide power

        • 50 pin variant - provides drive selection

      • 68 pin connector - PC Card

    • Pin assignments - see table 9.7

    • Power


    Master slave selection

    Master/Slave selection

    • ATA - supports two drives per channel

    • Choices

      • Master

      • Slave

      • Only Drive


    Eet 450 advanced digital

    SCSI

    • Small Computer System Interface

    • SCSI-1,2,3

    • Advanced SCSI

      • Wide SCSI - 32 bit wide

      • Ultra SCSI 10 MHz timing - 40 Mb/sec transfer

    • Table 9.11 - transfer rate versus Cable length

    • Addressing 15 devices


    Table 9 11

    Table 9.11


    Eet 450 advanced digital

    SCSI

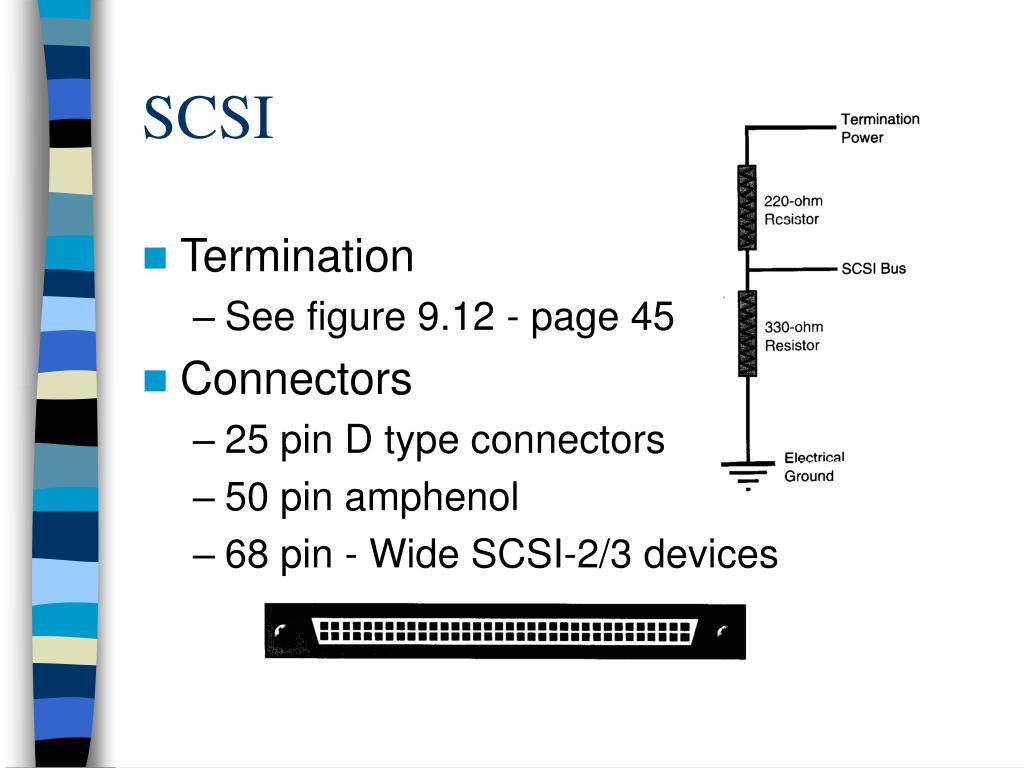

    • Termination

      • See figure 9.12 - page 459

    • Connectors

      • 25 pin D type connectors

      • 50 pin amphenol

      • 68 pin - Wide SCSI-2/3 devices


    Floppy drive connections

    Floppy Drive connections

    • 34 pin ribbon

    • termination

    • twist


    Power connections

    Power Connections

    • + 12 V for motor controls on some drives

    • + 5 V for logic

    • Some older drives with ROM on board may require -12v, etc. but this is not typical in today’s systems.

    • Two connector types - D shaped, ‘3.5 inch drive’ type


    Other connections

    Other connections

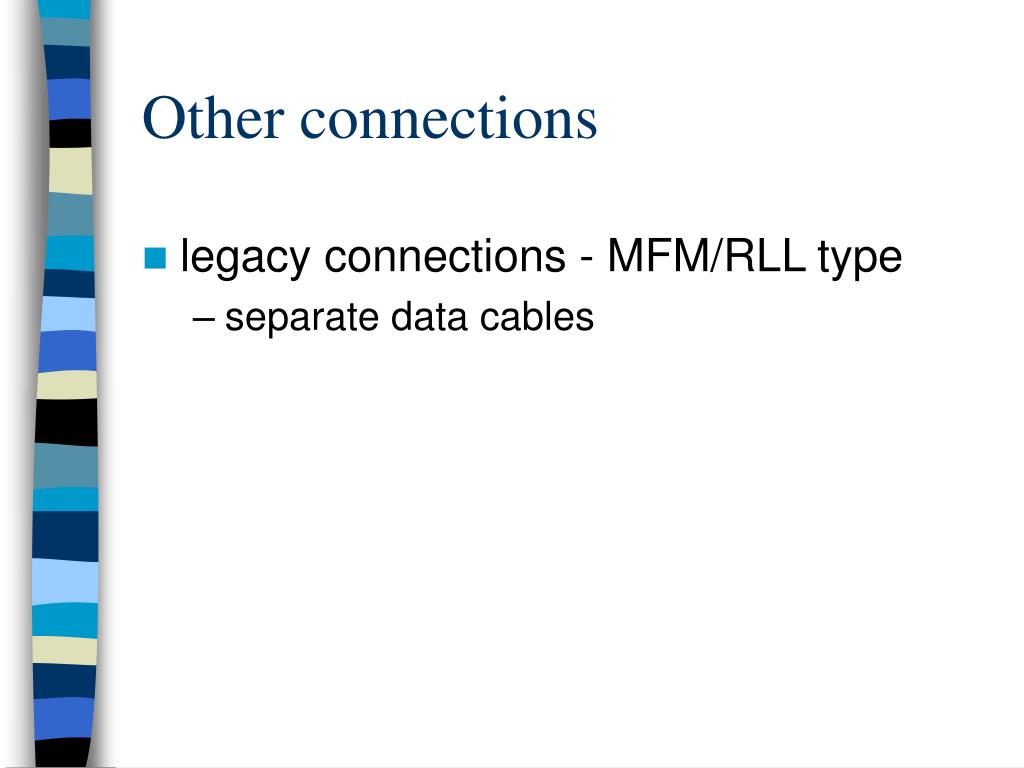

    • legacy connections - MFM/RLL type

      • separate data cables
