  1. CRKit R4 Architecturerev 0.23 WINLAB – Rutgers University Date : August 25, 2011

  2. R4 - top level

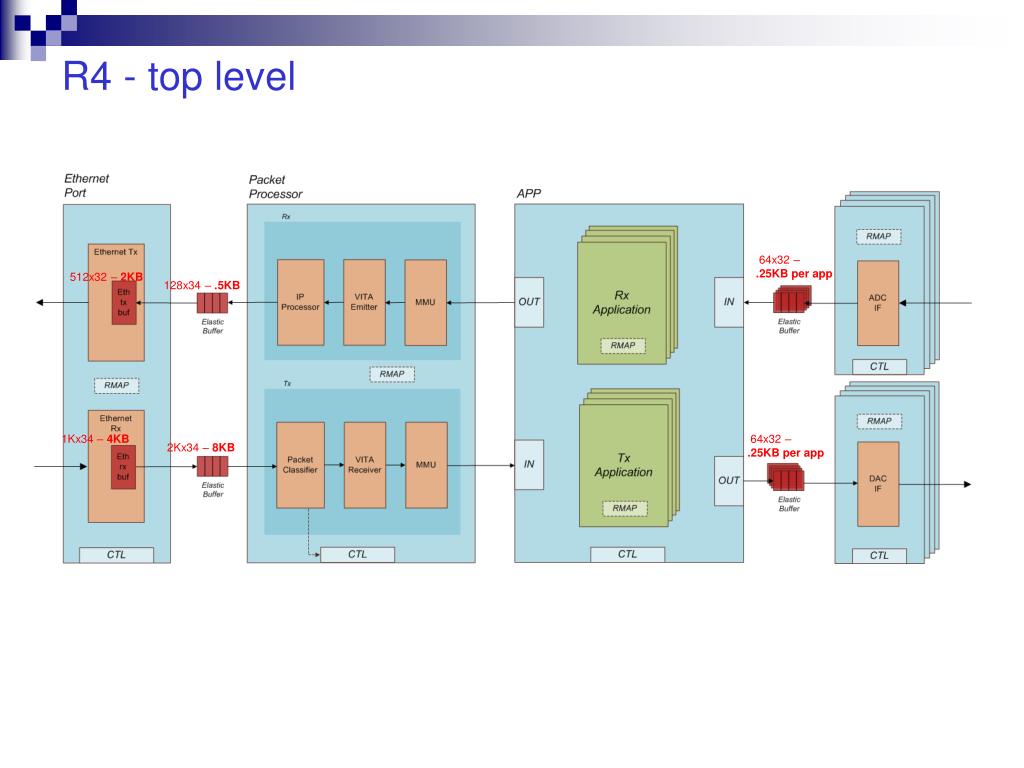

  3. R4 - top level 64x32 – .25KB per app 512x32 – 2KB 128x34 – .5KB 1Kx34 – 4KB 64x32 – .25KB per app 2Kx34 – 8KB

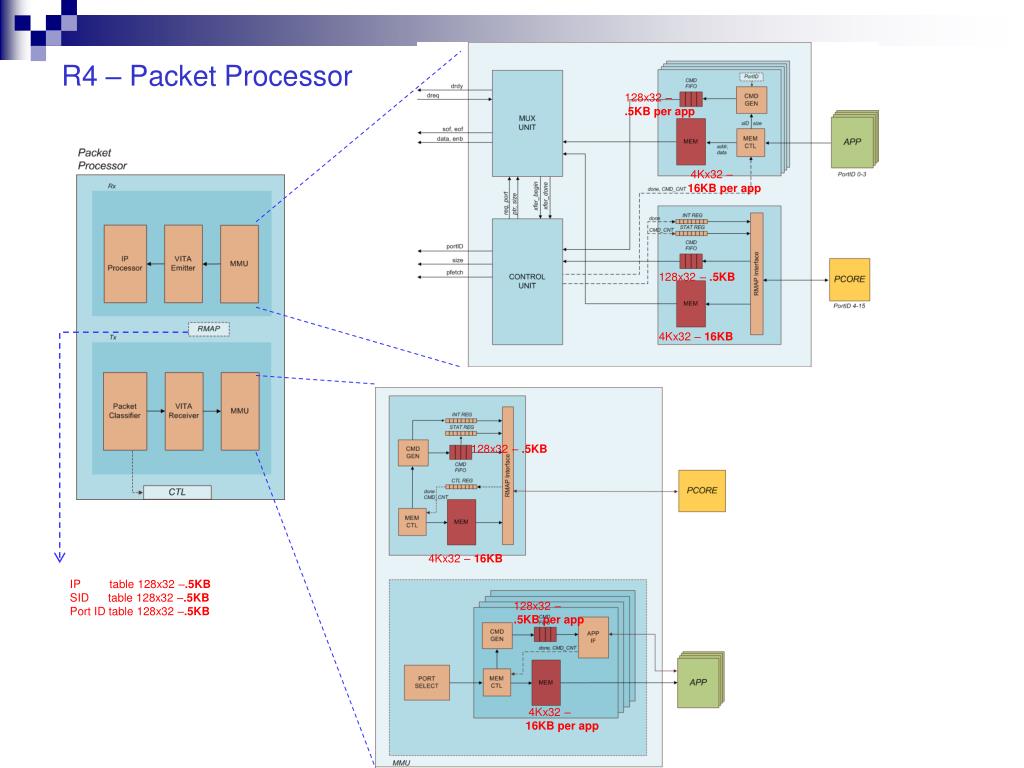

  4. R4 – Packet Processor 128x32 – .5KB per app 4Kx32 – 16KB per app 128x32 – .5KB 4Kx32 – 16KB 128x32 – .5KB 4Kx32 – 16KB IP table 128x32 –.5KB SID table 128x32 –.5KB Port ID table 128x32 –.5KB 128x32 – .5KB per app 4Kx32 – 16KB per app
