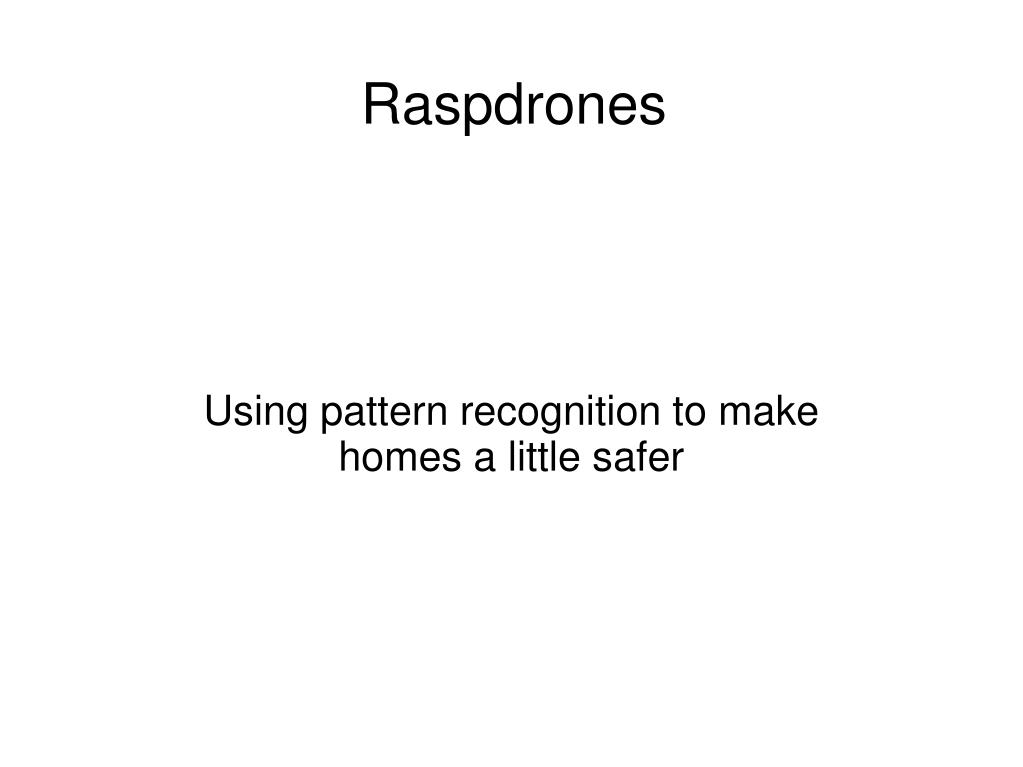

  1. Using pattern recognition to make homes a little safer Raspdrones

  2. What is pattern recognition? • Extract features from data • Use features in equations • Equations give likelyhood of recognition

  3. The problem • Some people are not welcome in my home • Politicians, Tax people, bailiff, salesmen • I want to keep them out • But how?

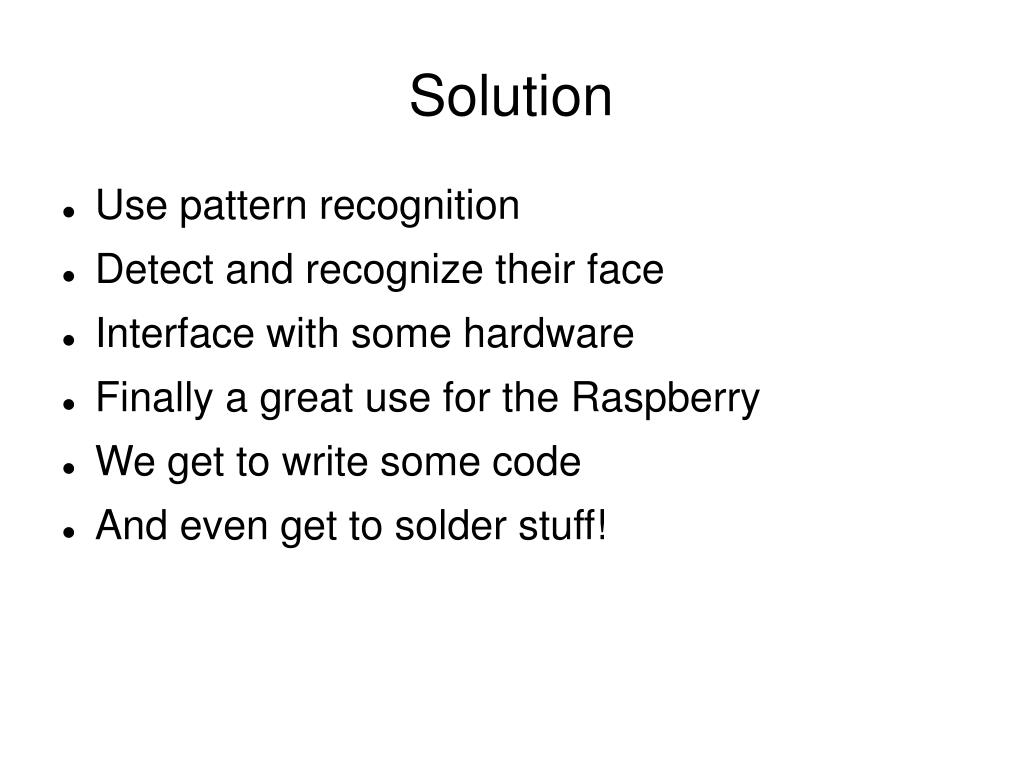

  4. Solution • Use pattern recognition • Detect and recognize their face • Interface with some hardware • Finally a great use for the Raspberry • We get to write some code • And even get to solder stuff!

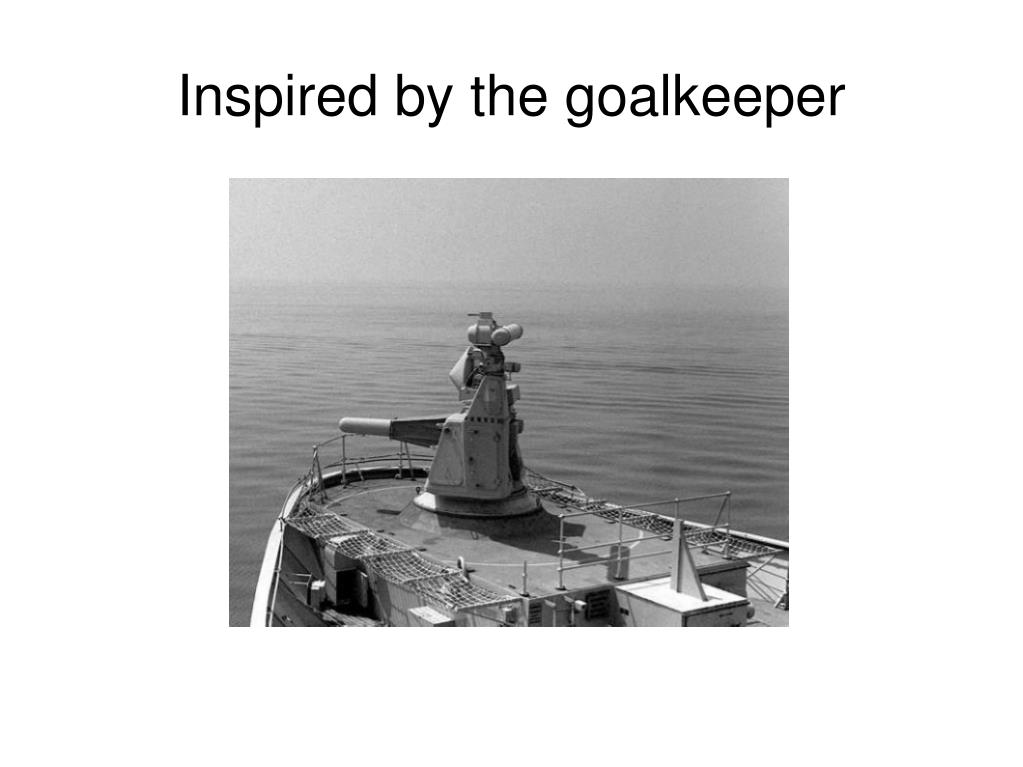

  5. Inspired by the goalkeeper

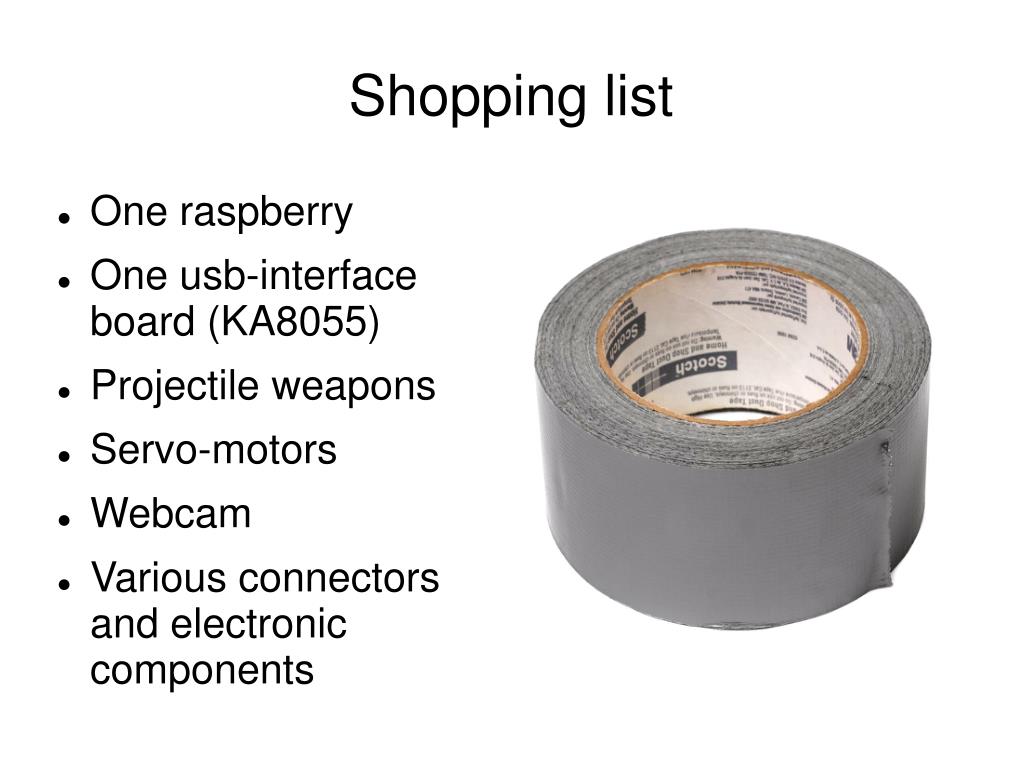

  6. Shopping list • One raspberry • One usb-interface board (KA8055) • Projectile weapons • Servo-motors • Webcam • Various connectors and electronic components

  7. Prepping the raspberry • Opencv • And required libraries • Compilers • Waiting for the installation to finish... • Add powered usb-hub • And wait some more

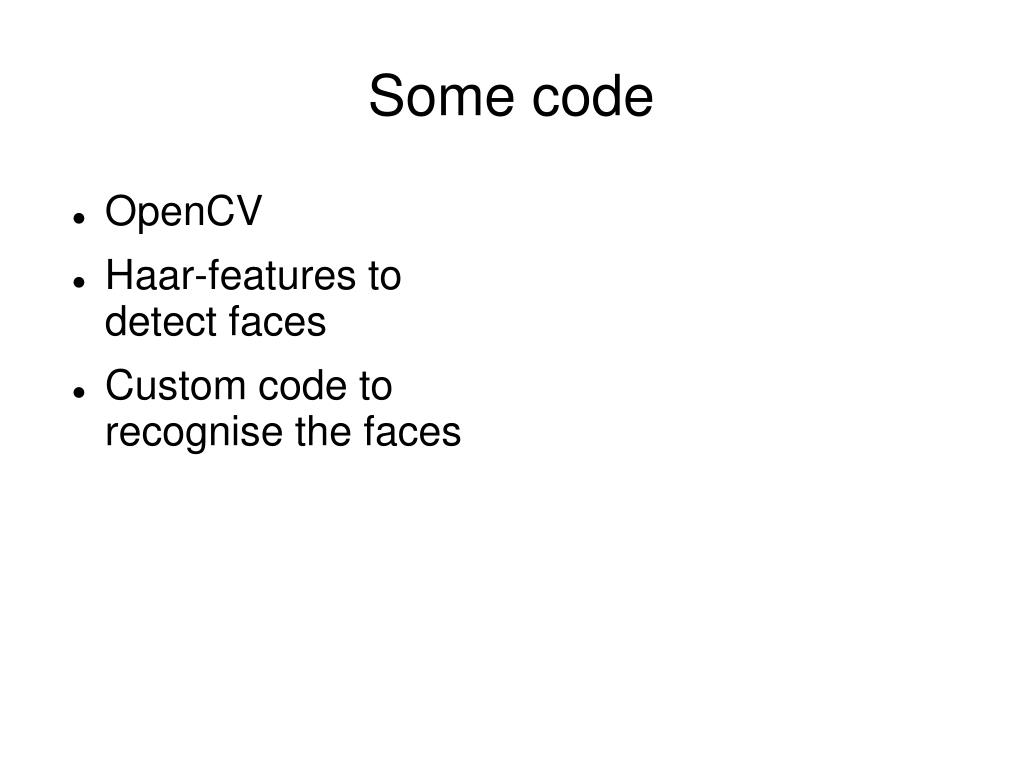

  8. Some code • OpenCV • Haar-features to detect faces • Custom code to recognise the faces

  9. Training the recognizer • It watches online videos of course • And classics from my own collection

  10. Extracting the faces • Haar-cascades • Getting thousands of images • Storing them • (Manual) sorting them

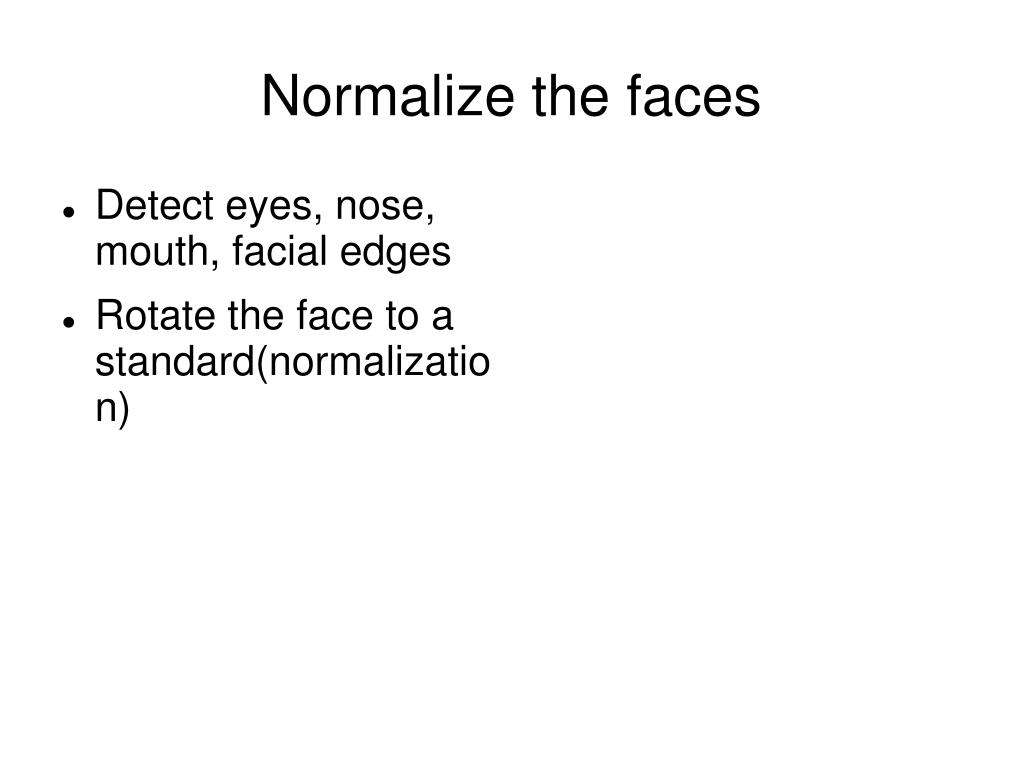

  11. Normalize the faces • Detect eyes, nose, mouth, facial edges • Rotate the face to a standard(normalization)

  12. Extract meaningful data • Measuring distances • That's it! • Well, actually we have to store it somewhere • Lots of generic code

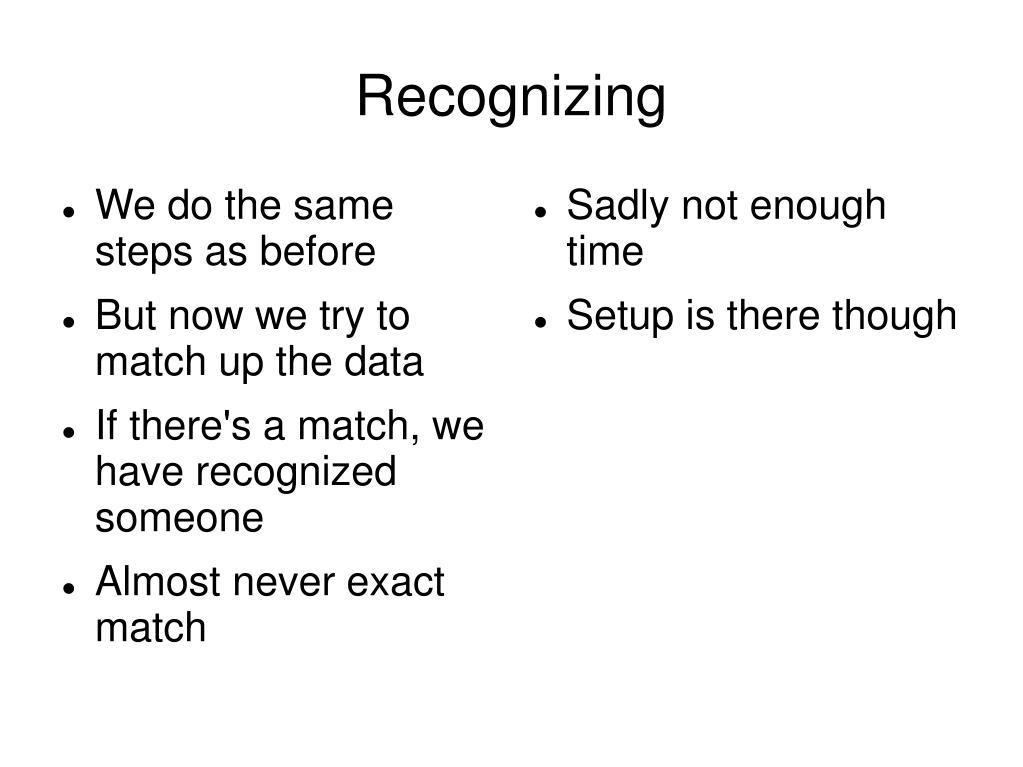

  13. Sadly not enough time Setup is there though Recognizing • We do the same steps as before • But now we try to match up the data • If there's a match, we have recognized someone • Almost never exact match

  14. (De-)Soldering • Also not enough time

  15. Connecting it all • Just attach it to the usb-ports • Run the code • And get one frame per 10s • Lowering video quality should improve this

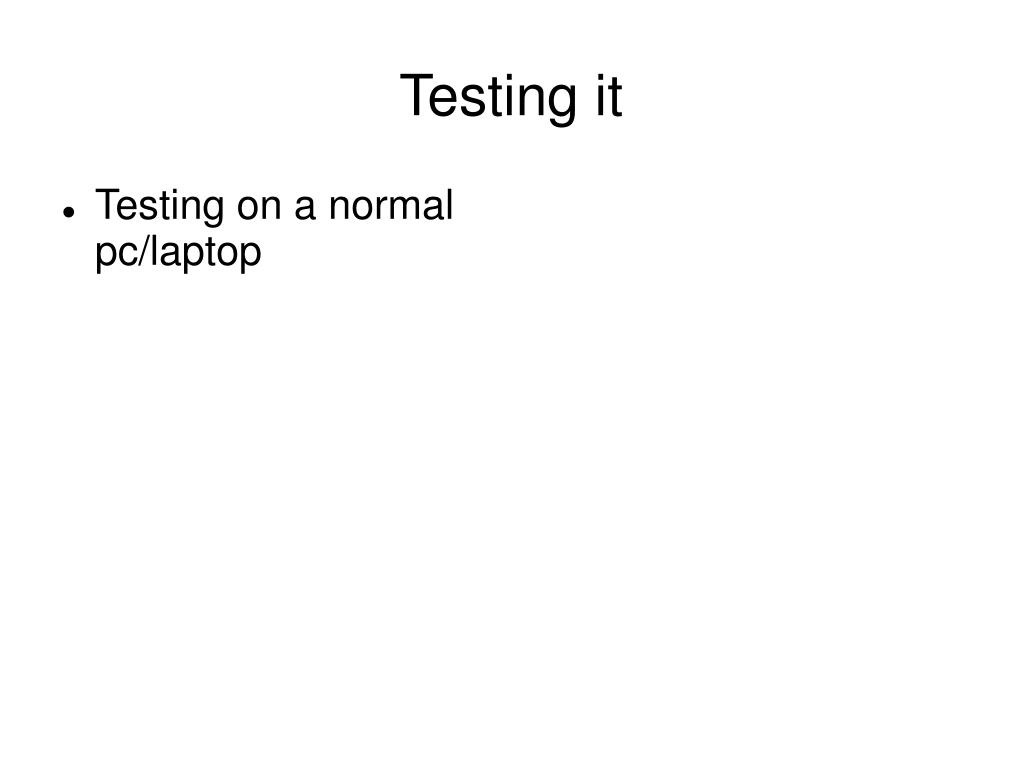

  16. Testing it • Testing on a normal pc/laptop

  17. Problems... • Avoiding friendly fire • Making it cat safe • Make it run faster • Better recognition • Tons of libraries • Friend or Foe?

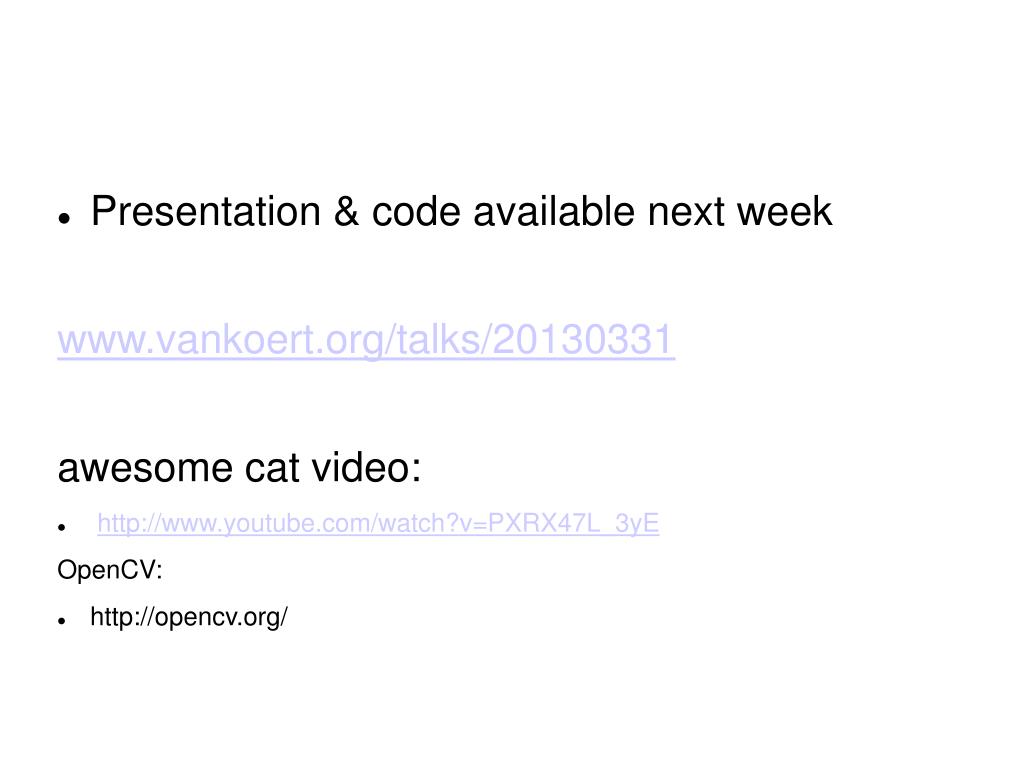

  18. Presentation & code available next week www.vankoert.org/talks/20130331 awesome cat video: • http://www.youtube.com/watch?v=PXRX47L_3yE OpenCV: • http://opencv.org/
