Chapter 13: Solid Shapes and their Volume & Surface Area. Section 13.1: Polyhedra and other Solid Shapes. Basic Definitions. A polyhedron is a closed, connected shape in space whose outer surfaces consist of polygons

Download Presentation

Chapter 13: Solid Shapes and their Volume & Surface Area

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Chapter 13 solid shapes and their volume surface area

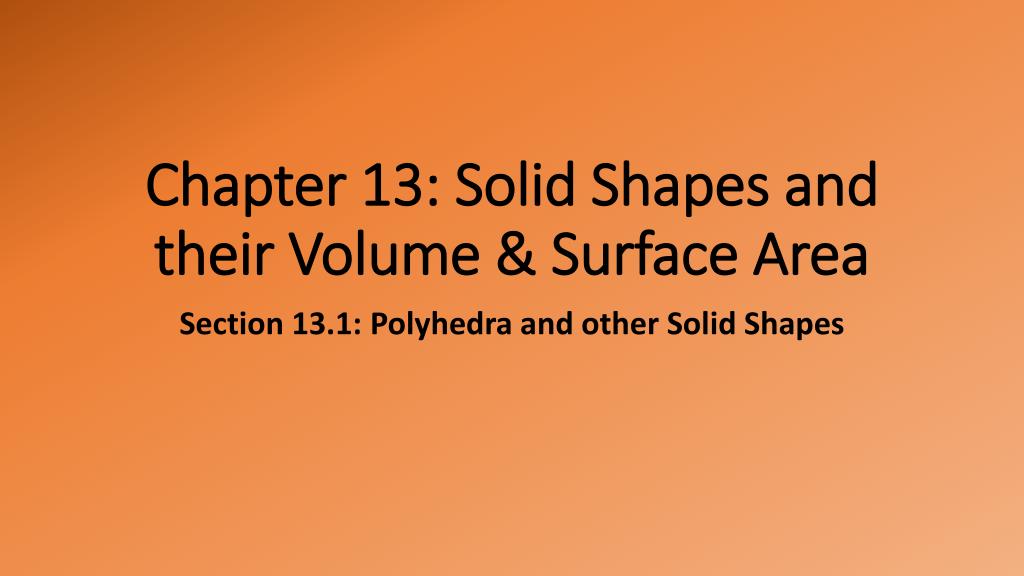

Chapter 13: Solid Shapes and their Volume & Surface Area

Section 13.1: Polyhedra and other Solid Shapes


Basic definitions

Basic Definitions

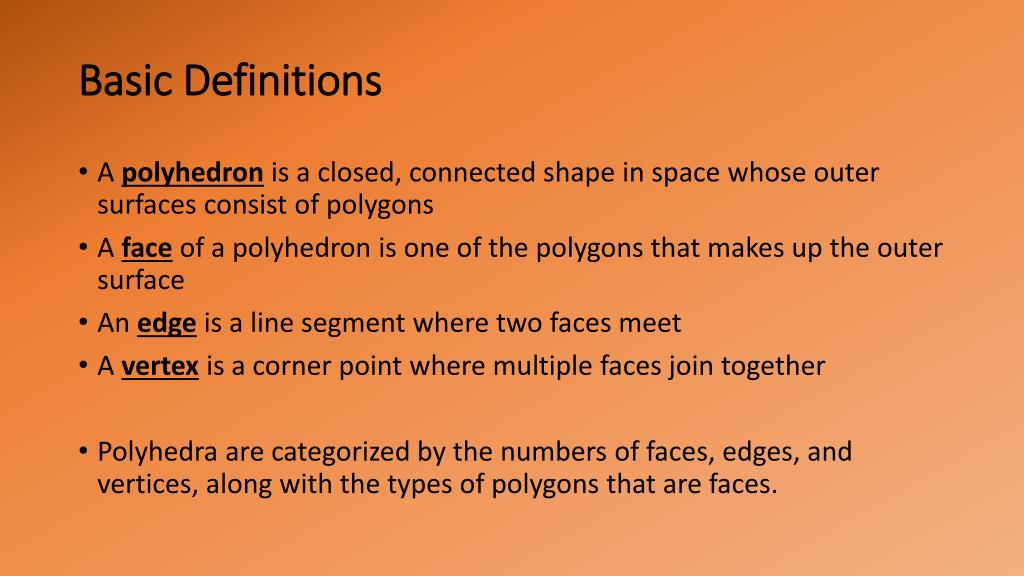

  • A polyhedron is a closed, connected shape in space whose outer surfaces consist of polygons

  • A face of a polyhedron is one of the polygons that makes up the outer surface

  • An edge is a line segment where two faces meet

  • A vertex is a corner point where multiple faces join together

  • Polyhedra are categorized by the numbers of faces, edges, and vertices, along with the types of polygons that are faces.


Examples of polyhedra

Examples of Polyhedra

Cube

PyramidIcosidodecahedron


Example 1

Example 1

  • Find the number of and describe the faces of the following octahedron, and then find the number of edges and vertices.


Example 2

Example 2

  • Find the number of and describe the faces of the following icosidodecahedron, and then find the number of edges and vertices.


Non examples

Non-Examples

  • Spheres and cylinders are not polyhedral because their surfaces are not made of polygons.


Special types of polyhedra

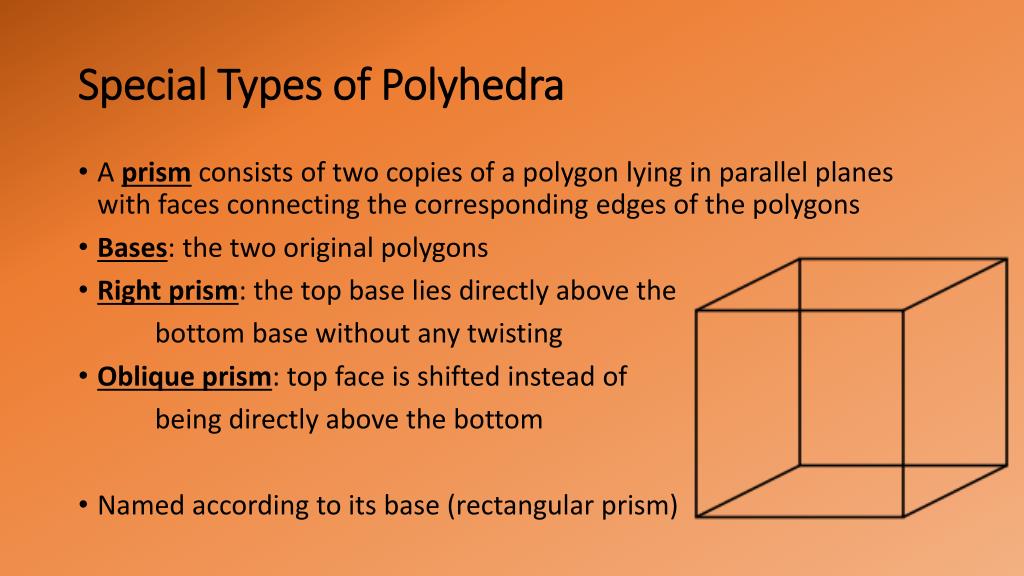

Special Types of Polyhedra

  • A prism consists of two copies of a polygon lying in parallel planes with faces connecting the corresponding edges of the polygons

  • Bases: the two original polygons

  • Right prism: the top base lies directly above the

    bottom base without any twisting

  • Oblique prism: top face is shifted instead of

    being directly above the bottom

  • Named according to its base (rectangular prism)


Prism examples

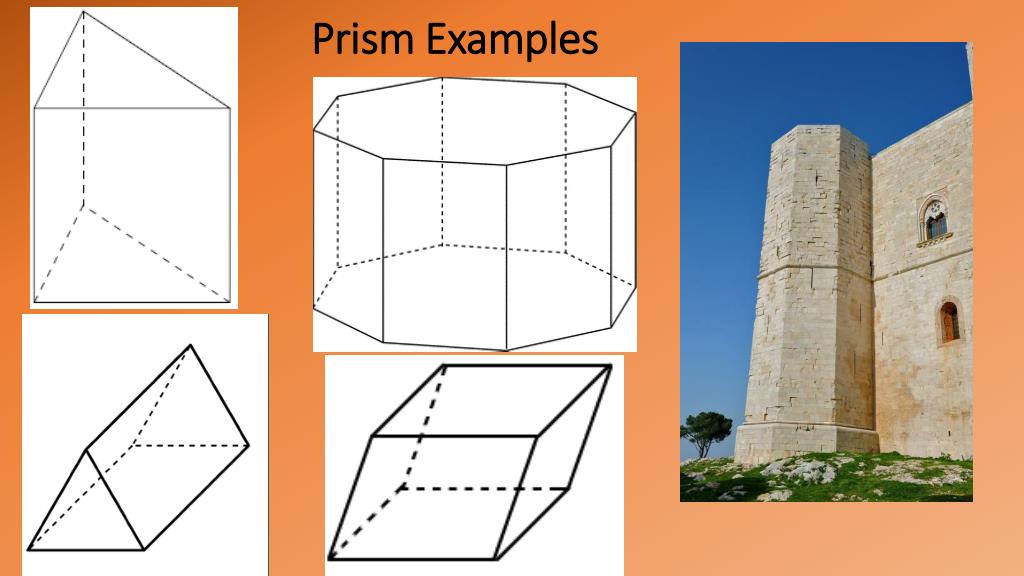

Prism Examples


More special polyhedra

More Special Polyhedra

  • A pyramid consists of a base that is a polygon,

    a point called the apex that lies on a different

    plane, and triangles that connect the apex to

    the base’s edges

  • Right pyramid: apex lies directly above the

    center of the base

  • Oblique pyramid: apex is not above the center


Pyramid examples

Pyramid Examples


A very complicated example

A very complicated example

  • Adding a pyramid to each pentagon of an icosidodecahedron creates a new polyhedron with 80 triangular faces called a pentakisicosidodecahedron.


See activity 13b

See Activity 13B


Similar solid shapes

Similar Solid Shapes

  • A cylinder consists of 2 copies of a closed curve (circle, oval, etc) lying in parallel planes with a 2-dimensional surface wrapped around to connect the 2 curves

  • Right and oblique cylinders are defined similarly to those of prisms


Other similar solid shapes

Other Similar Solid Shapes

  • A cone consists of a closed curve, a point in a different plane, and a surface joining the point to the curve


Platonic solids

Platonic Solids

  • A Platonic Solid is a polyhedron with each face being a regular polygon of the same number of sides, and the same number of faces meet at every vertex.

  • Only 5 such solids:

    • Tetrahedron: 4 equilateral triangles as faces, 3 triangles meet at each vertex

    • Cube: 6 square faces, 3 meet at each vertex

    • Octahedron: 8 equilateral triangles as faces, 4 meet at each vertex

    • Dodecahedron: 12 regular pentagons as faces, 3 at each vertex

    • Icosahedron: 20 equilateral triangles as faces, 5 at each vertex


Platonic solids1

Platonic Solids

Pyrite crystal

Scattergories

die


Section 13 2 patterns and surface area

Section 13.2: Patterns and Surface Area


Making polyhedra from 2 dimensional surfaces

Making Polyhedra from 2-dimensional surfaces

  • Many polyhedral can be constructed by folding and joining two-dimensional patterns (called nets) of polygons.

  • Helpful for calculating surface area of a 3-D shape, i.e. the total area of its faces, because you can add the areas of each polygon in the pattern (as seen on the homework)


How to create a dodecahedron calendar

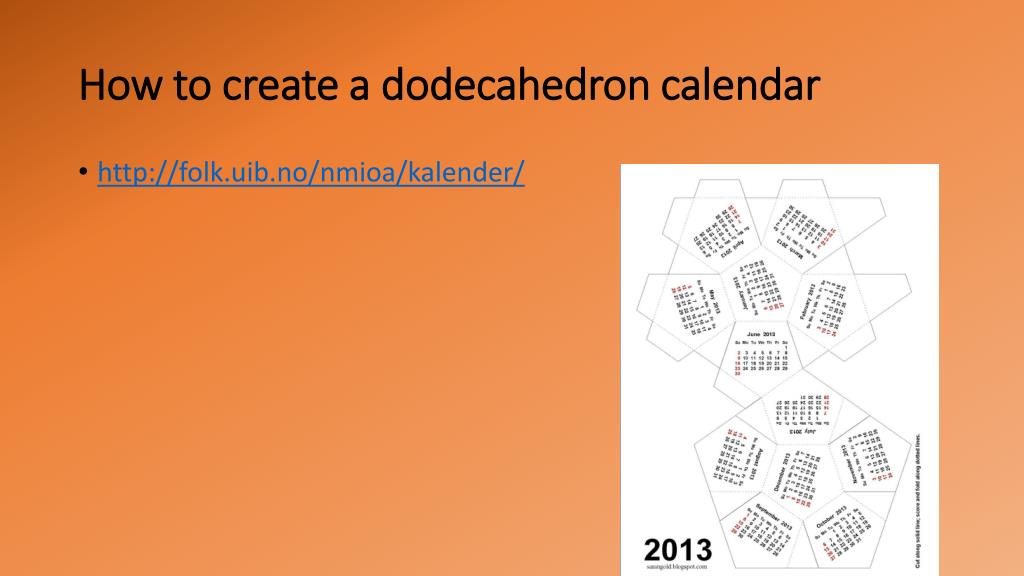

How to create a dodecahedron calendar

  • http://folk.uib.no/nmioa/kalender/


Cross sections

Cross Sections

  • Given a solid shape, a cross-section of that shape is formed by slicing it with a plane.

  • The cross-sections of polyhedral are polygons.

  • The direction and location of the plane can result in several different cross-sections

  • Examples of cross-sections of the cube: https://www.youtube.com/watch?v=Rc8X1_1901Q


Section 13 3 volumes of solid shapes

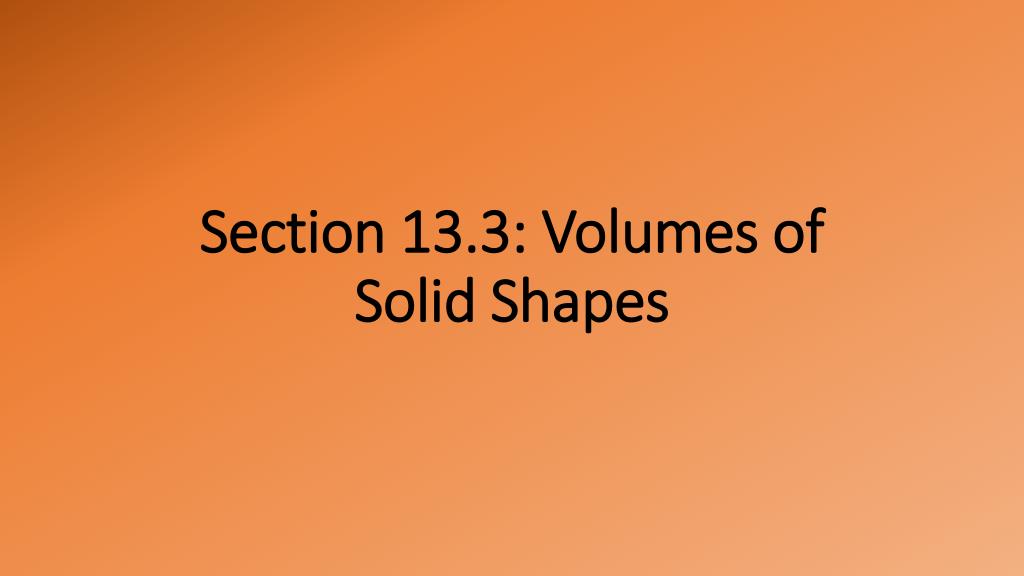

Section 13.3: Volumes of Solid Shapes


Definitions and principles

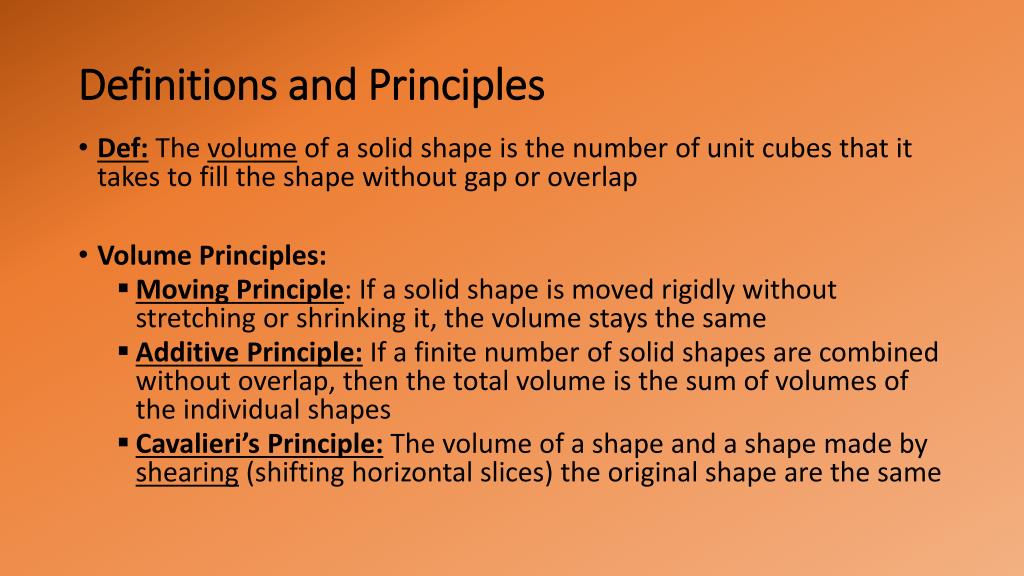

Definitions and Principles

  • Def: The volume of a solid shape is the number of unit cubes that it takes to fill the shape without gap or overlap

  • Volume Principles:

    • Moving Principle: If a solid shape is moved rigidly without stretching or shrinking it, the volume stays the same

    • Additive Principle: If a finite number of solid shapes are combined without overlap, then the total volume is the sum of volumes of the individual shapes

    • Cavalieri’s Principle: The volume of a shape and a shape made by shearing (shifting horizontal slices) the original shape are the same


Volumes of prisms and cylinders

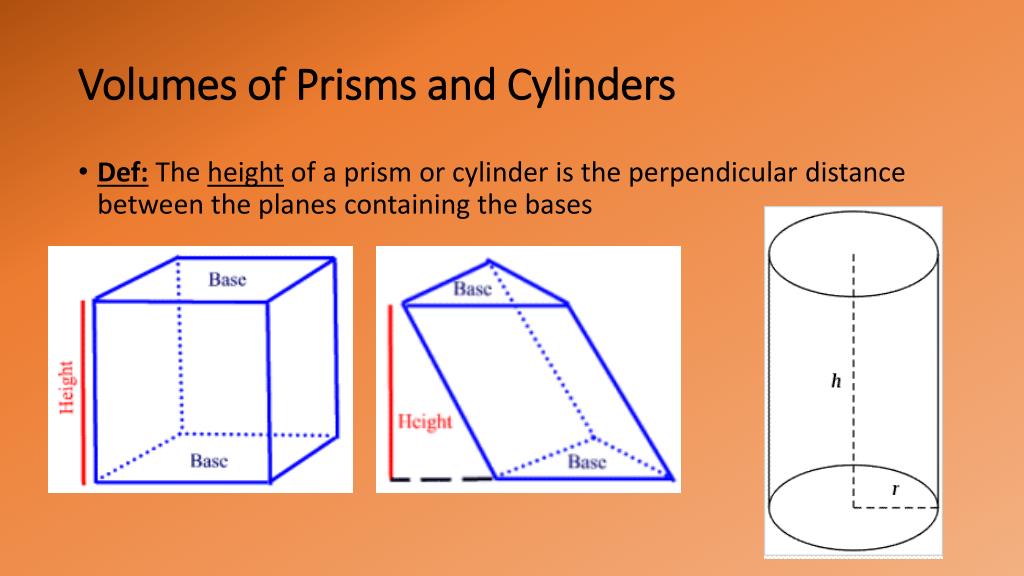

Volumes of Prisms and Cylinders

  • Def: The height of a prism or cylinder is the perpendicular distance between the planes containing the bases


Volumes of prisms and cylinders1

Volumes of Prisms and Cylinders

  • Formula: For a prism or cylinder, the volume is given by

  • The formula doesn’t depend on whether the shape is right or oblique.


Volumes of particular prisms and cylinders

Volumes of Particular Prisms and Cylinders

  • Ex 1: The volume of a rectangular box with length , width , and height is

  • Ex 2: The volume of a circular cylinder with the radius of the base being and height is


Volumes of pyramids and cones

Volumes of Pyramids and Cones

  • Def: The height of a pyramid or cone is the perpendicular length between the apex and the base.


Volumes of pyramids and cones1

Volumes of Pyramids and Cones

  • Formula:For a pyramid or cone, the volume is given by

  • Again, the formula works whether the shape is right or oblique


Volume example

Volume Example

  • Ex 3: Calculate the volume of the

    following octahedron.


Volume of a sphere

Volume of a Sphere

  • Formula: The volume of a sphere with radius is given by

  • See Activity 13O for explanation of why this works.


Volume vs surface area

Volume vs. Surface Area

  • As with area and perimeter, increasing surface area generally increases volume, but not always.

  • With a fixed surface area, the cube has the largest volume of any rectangular prism (not of any polyhedron) and the sphere has the largest volume of any 3-dimensional object.


See examples problem in activity 13n

See examples problem in Activity 13N


Section 13 4 volumes of submerged objects

Section 13.4: Volumes of Submerged Objects


Volume of submerged objects

Volume of Submerged Objects

  • The volume of an 3-dimensional object can be calculated by determining the amount of displaced liquid when the object is submerged.

  • Ex: If a container has 500 mL of water in it, and the water level rises to 600 mL after a toy is submerged, how many is the volume of the toy?


Volume of objects that float

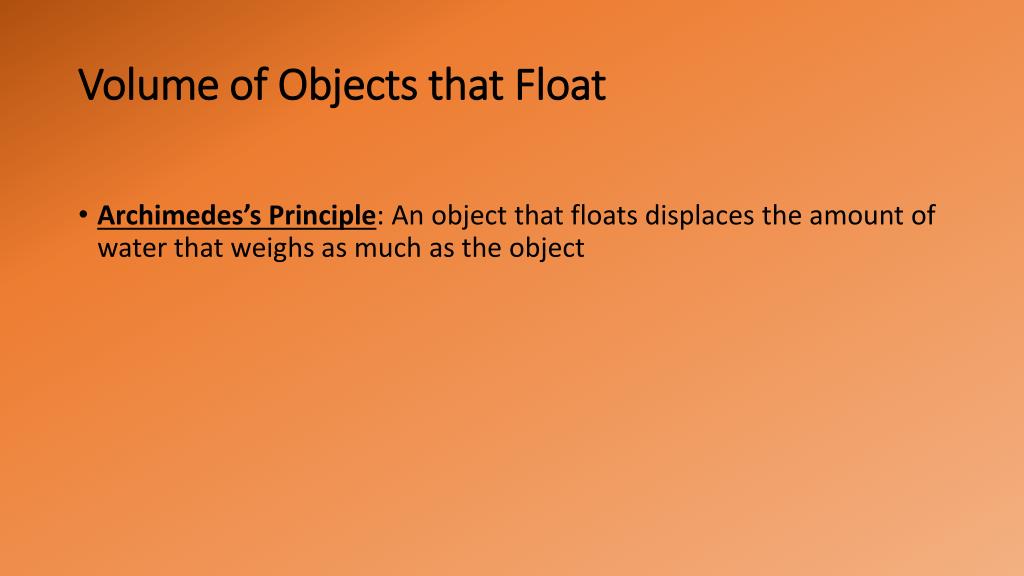

Volume of Objects that Float

  • Archimedes’s Principle: An object that floats displaces the amount of water that weighs as much as the object


See example problems in activity 13q

See example problems in Activity 13Q
