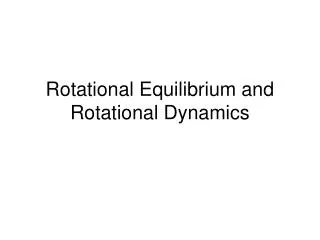

Rotational Equilibrium and Rotational Dynamics

- By
**apria** - Follow User

- 419 Views
- Uploaded on

Rotational Equilibrium and Rotational Dynamics. Read introduction page 226

Download Presentation
## PowerPoint Slideshow about ' Rotational Equilibrium and Rotational Dynamics' - apria

**An Image/Link below is provided (as is) to download presentation**

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript

- Read introduction page 226
- If F is the force acting on an object, and r is position vector from a chosen point O to the point of application of the force, with F perpendicular to r. The magnitude of the TORQUE σ exerted by the force F is:
τ = r F

SI unit : Newton-meter (Nm)

- When an applied force causes an object to rotate clockwise, the torque is positive
- When the forces causes an objet to rotate counterclockwise, the torque of the object is negative
- When two or more torques act on an object at rest the torques are added
- The rate of rotation of an object doesn’t change, unless the object is acted on by a torque

- The magnitude of the torque the torque is positiveτ exerted by the force F is:
τ = F r sinθ

Where r-

F-

θ-

The value of τdepends on the chosen axis of rotation

- The direction of the torque is positiveσ is given by the right-hand-rule
- An object in mechanical equilibrium must satisfy:
1. The net external forces must be zero:

ΣF = 0

2. The net external torque must be zero:

Στ = 0

- We wish to locate the point of application of the single force of magnitude w=Fg where the effect on the rotation of the object is the same as that of the individual particles – center of gravity
(m1g+m2g+..mng)xcg= m1gx1+m2gx2+…mn g xn

xcg=Σmixi / Σmi

ycg=Σmiyi / Σmi

zcg=Σmizi / Σmi

- Problem solving strategy for objects in equilibrium force of magnitude w=Fg where the effect on the rotation of the object is the same as that of the individual particles –
- Diagram system
- Draw the free body diagram
- Apply Στ = 0, the second condition of equilibrium
- Apply ΣF = 0 (on x axis and y axis)
- Solve the system of ecuation

- Relationship between torque and angular acceleration: force of magnitude w=Fg where the effect on the rotation of the object is the same as that of the individual particles –
Ft = mat.

Ft r = mat r

at = r α

Ft r = m r2α

τ = m r2α

m r2is called momentum of inertia

- Torque on a rotational object force of magnitude w=Fg where the effect on the rotation of the object is the same as that of the individual particles – : Στ =(Σm r2)α
Σm r2= m1r12+m2r22+…

The momentum of inertia of the whole body: I= Σm r2

Στ = I α = I α

The angular acceleration of an extended rigid object is proportional to the net torque acting on it

M = force of magnitude w=Fg where the effect on the rotation of the object is the same as that of the individual particles – m1+m2+…

I= Σm r2= m1r12+m2r22+…

I = (m1+m2+…) R2

I = MR2

- An object roatating about some axis with an angular speed force of magnitude w=Fg where the effect on the rotation of the object is the same as that of the individual particles – ω has rotational kinetic energy: ½ I ω2.
v = r ω

KEτ= Σ(½ m v2)

= Σ(½ mr2ω2)

= Σ(½ mr2 )ω2

=½ I ω2.

- Conservation of mechanical energy force of magnitude w=Fg where the effect on the rotation of the object is the same as that of the individual particles – :
(Ex. a bowling ball rolling down the ramp)

(KEt + KEτ +PE)i = (KEt + KEτ +PE)f

KEt – translational KE

KEτ– rotational KE

PE – gravitational potential energy

Work –Energy of mechanical energy:

Wnc = ΔKEt + Δ KEτ + Δ PE

- Problem solving strategy (energy and rotation) force of magnitude w=Fg where the effect on the rotation of the object is the same as that of the individual particles –
- Choose two points of interest
- Identify conservative and nonconservative forces
- Write the work energy theorem
- Substitute general expression
- Use v = r ω
- Solve the unknown

- Angular momentum: force of magnitude w=Fg where the effect on the rotation of the object is the same as that of the individual particles –
An object of mass m roatates in an circular path of radius r, acted by a net force F, resulting a net torque τ

Στ= Iα = I (Δω/Δt)

= I(ω –ω0) /Δt

= (Iω –Iω0) /Δt

Angular momentum: L = Iω

Στ=ΔL /Δt = change in angular momentum / time interval

If Στ= 0, angular momentum is conserved : Li =Lf
