Presentation Transcript
Analysis and digital implementation of the talk box effect

Analysis and Digital Implementation of the Talk Box Effect

Yuan Chen

Advisor: Professor Paul Cuff


Introduction
Introduction

  • What is a talk box?

    • Allows a musician to add diction and intelligibility to an instrument’s sound

  • Motivation?

    • Popular as an analog device

    • Application of signal processing

  • Goals?

    • Analyze output

    • Digital implementation

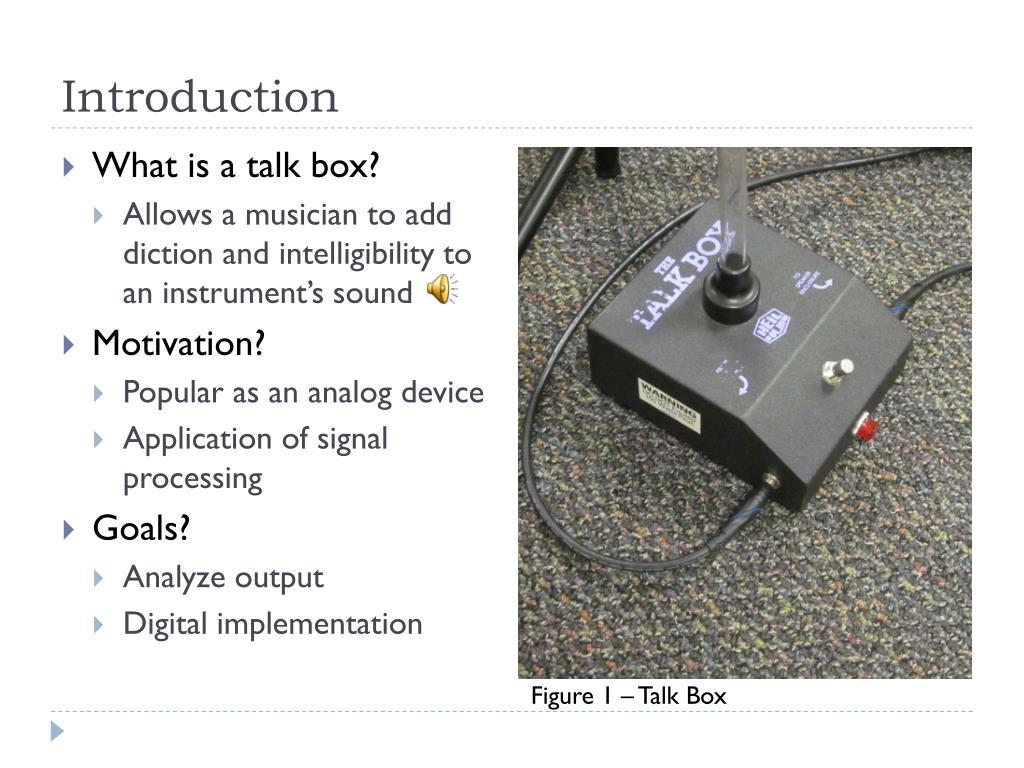

Figure 1 – Talk Box


Background speech and intelligibility
Background – Speech and Intelligibility

  • Human speech production of convolution between source and filter (1)

    • Not really time invariant

    • Only valid for voiced speech

  • Frequencies of formant peaks account for intelligibility of speech (Lingard, McLoughlin)

    • Most important are F2, F3 formants which occur in frequency band 800 Hz – 3 kHz


Complex cepstrum
Complex Cepstrum

  • Formant peaks arise from , need a way to “deconvolve”

  • Intuitively source excitation varies quickly in frequency, vocal tract response varies slowly in frequency (Deller)

  • Complex Cepstrum (eq. 2) (Deller):

  • Apply a low quefrency lifter to separate source and filter


Analysis results vowel sounds
Analysis Results – Vowel Sounds

  • Talk box most successfully impresses F2, F3 peaks

    • Relative Error in peak frequency: F1 – 19.6%, F2 – 9.33%, F3 – 6.22%

    • Error due to inability to replicate sound

  • For voice, ~90% of energy in 0 Hz – 1000 Hz

  • For talk box, ~10% of energy in 0 Hz – 1000 Hz


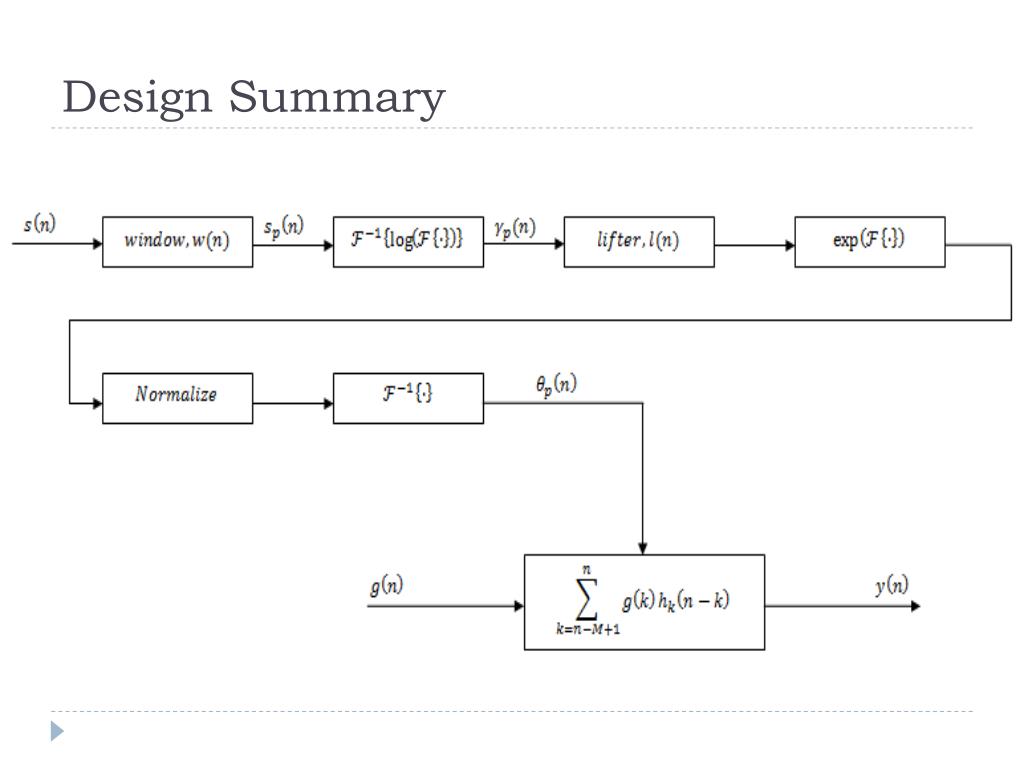

Design overview

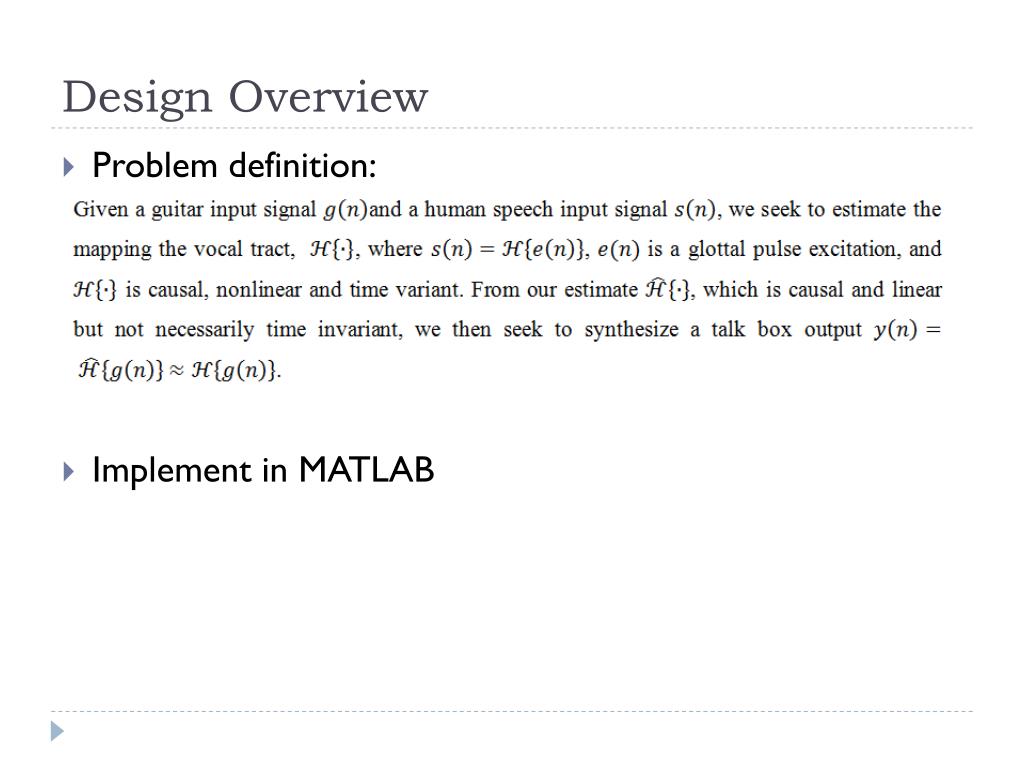

Design Overview

  • Problem definition:

  • Implement in MATLAB


Vocal tract impulse response extraction

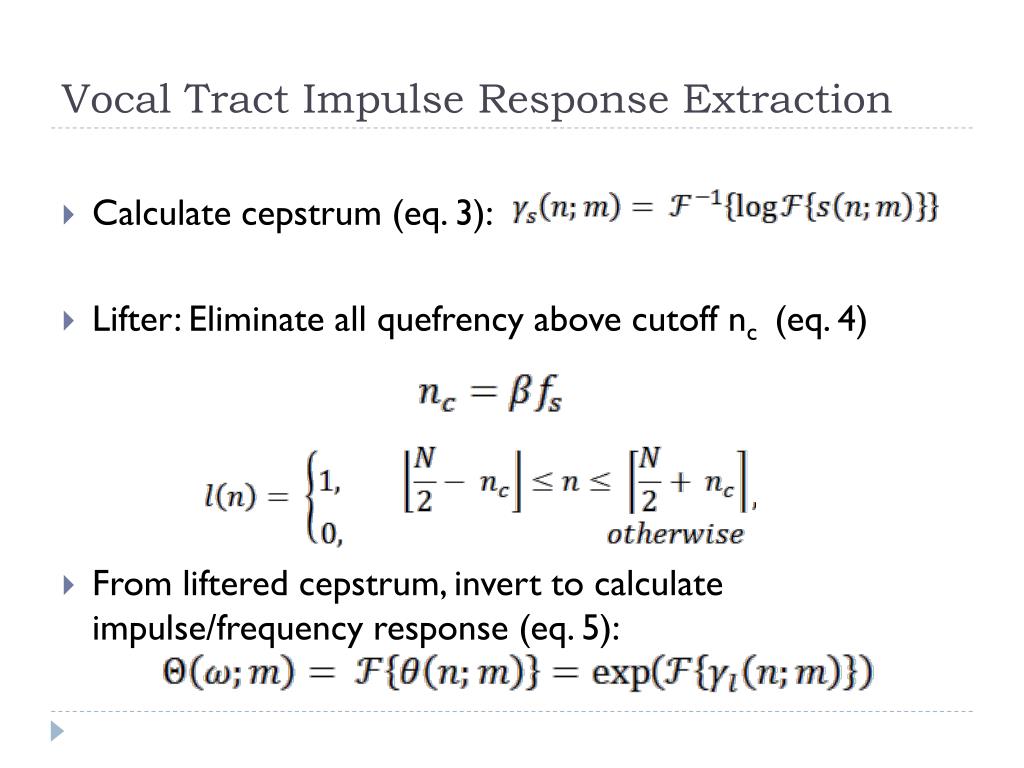

Vocal Tract Impulse Response Extraction

  • Calculate cepstrum (eq. 3):

  • Lifter: Eliminate all quefrency above cutoff nc (eq. 4)

  • From liftered cepstrum, invert to calculate impulse/frequency response (eq. 5):


Impulse response preprocessing

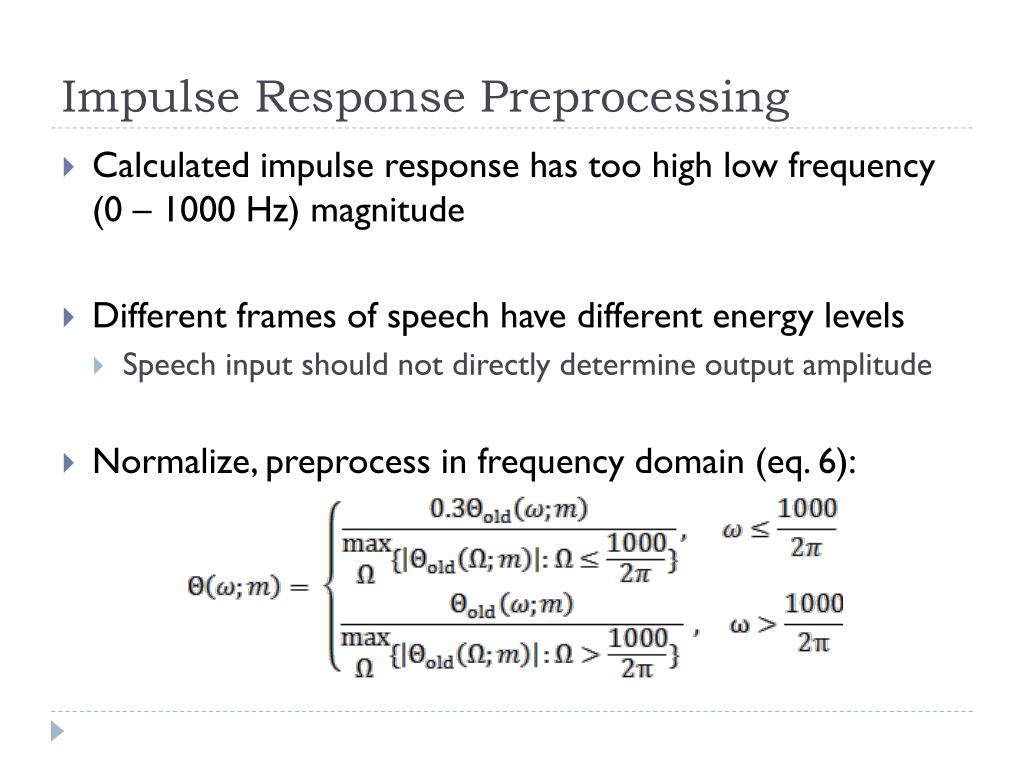

Impulse Response Preprocessing

  • Calculated impulse response has too high low frequency (0 – 1000 Hz) magnitude

  • Different frames of speech have different energy levels

    • Speech input should not directly determine output amplitude

  • Normalize, preprocess in frequency domain (eq. 6):


Synthesis

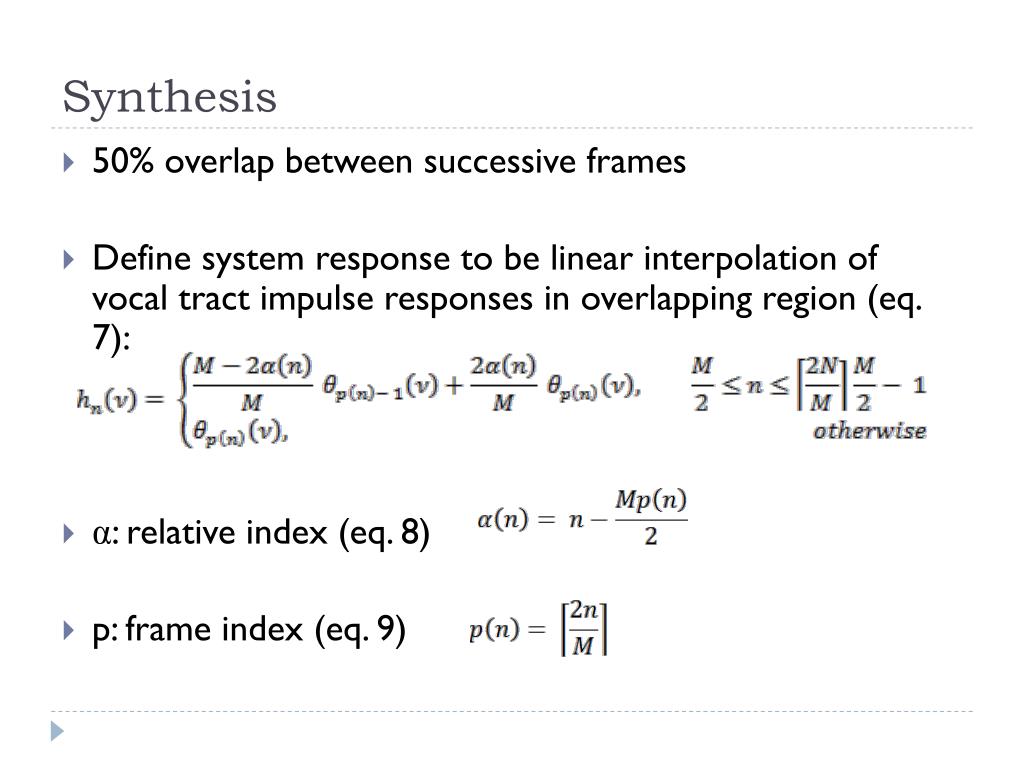

Synthesis

  • 50% overlap between successive frames

  • Define system response to be linear interpolation of vocal tract impulse responses in overlapping region (eq. 7):

  • α: relative index (eq. 8)

  • p: frame index (eq. 9)


Synthesis1
Synthesis

  • From causality, output at time n0 depends only on input occurring no later than n0

  • From finite-length impulse response, output at time n0 depends only on input occurring no earlier than n0 – M + 1

  • Closed Form expression for y(n) (eq.11):



Performance

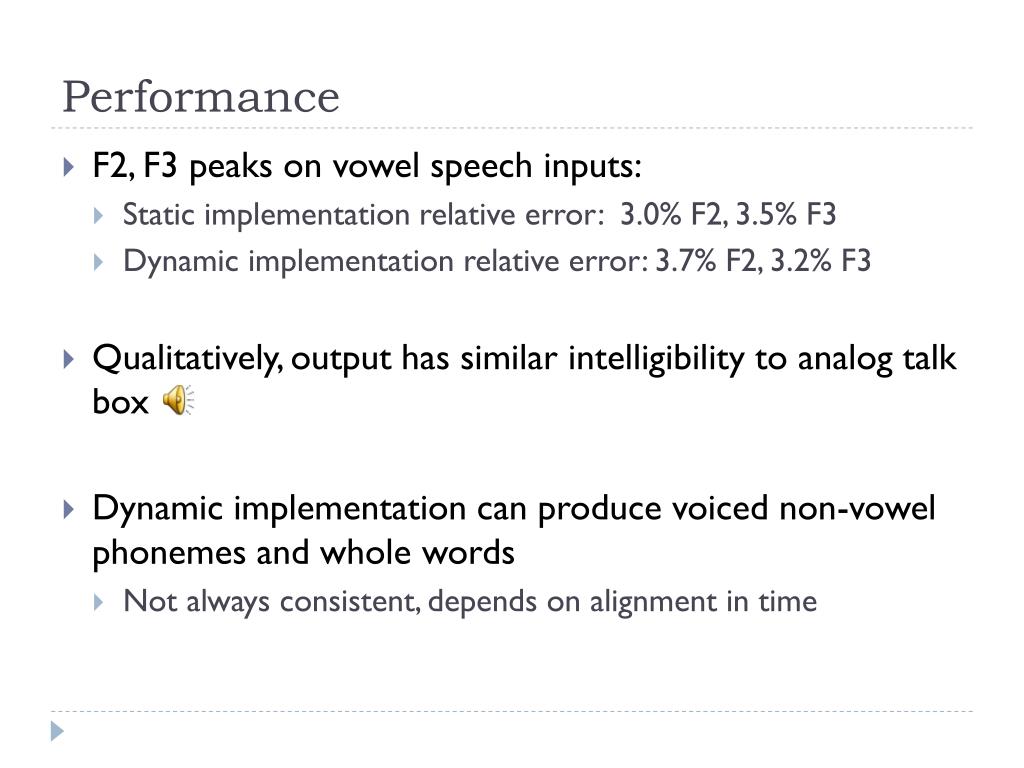

Performance

  • F2, F3 peaks on vowel speech inputs:

    • Static implementation relative error: 3.0% F2, 3.5% F3

    • Dynamic implementation relative error: 3.7% F2, 3.2% F3

  • Qualitatively, output has similar intelligibility to analog talk box

  • Dynamic implementation can produce voiced non-vowel phonemes and whole words

    • Not always consistent, depends on alignment in time


Performance issues
Performance Issues

  • Even with linearly-interpolated system impulse response, noticeable transitions between frames

  • Computationally expensive: 2 FFTs, 2 IFFTs per frame

    • In MATLAB, computation time takes longer than duration of the frame

  • Performance dependent on alignment of input signals


Conclusions and further considerations

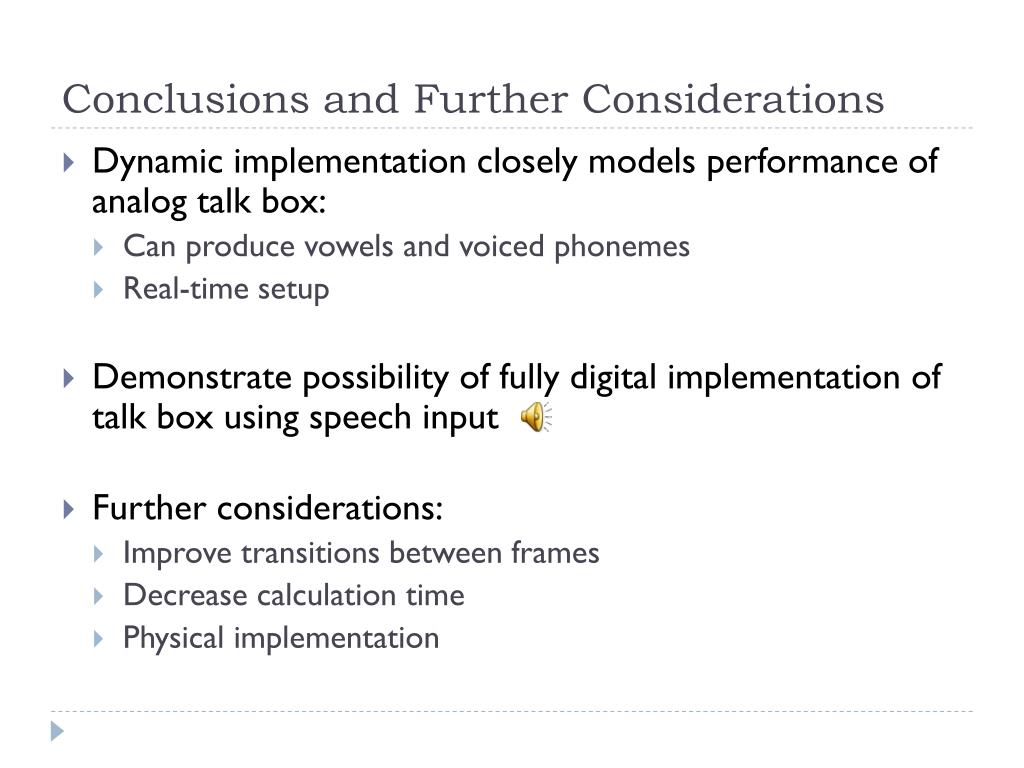

Conclusions and Further Considerations

  • Dynamic implementation closely models performance of analog talk box:

    • Can produce vowels and voiced phonemes

    • Real-time setup

  • Demonstrate possibility of fully digital implementation of talk box using speech input

  • Further considerations:

    • Improve transitions between frames

    • Decrease calculation time

    • Physical implementation
