1 / 10

Software untuk EAI

Software untuk EAI. Setting environment variables. Set JAVA_HOME Dan masukkan JAVA_HOME/bin ke PATH. 1 . Install microsoft visual c++ 2008 redistributables. vcredist_x86.exe. 2. OpenSSL. Win32OpenSSL-1_0_1c.exe. 3. Xampp 1.7.1 (zip). Extract “xampp-win32-1.7.1.zip” to C:/.

anoush
Download Presentation

Software untuk EAI

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

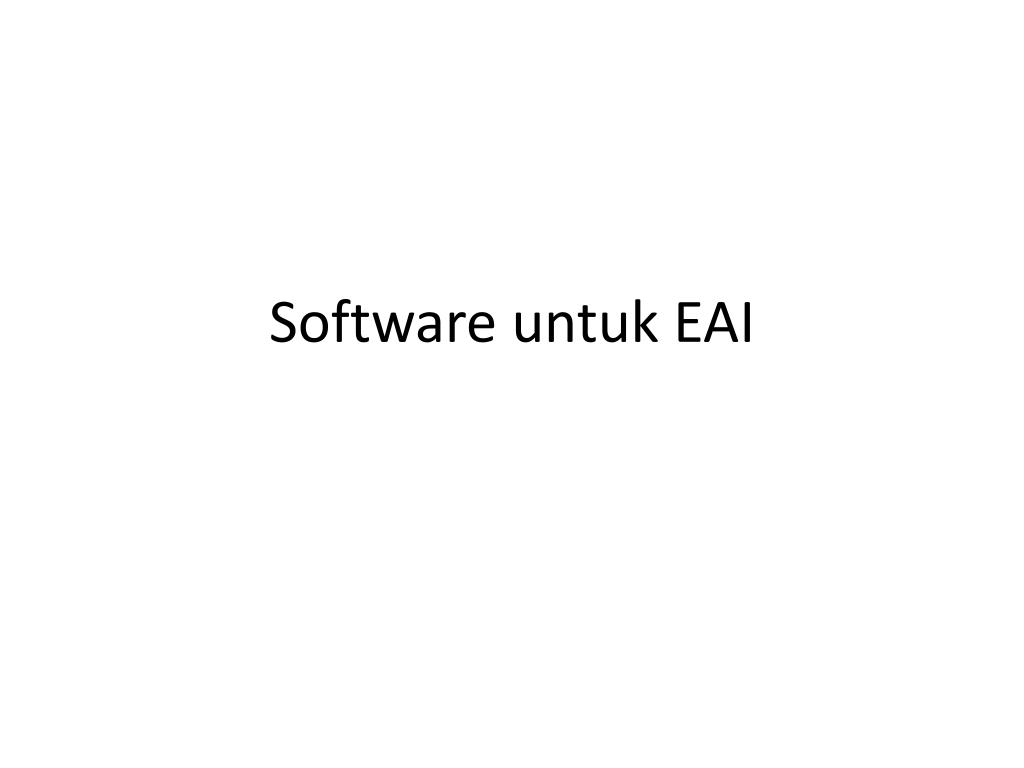

  1. Software untuk EAI

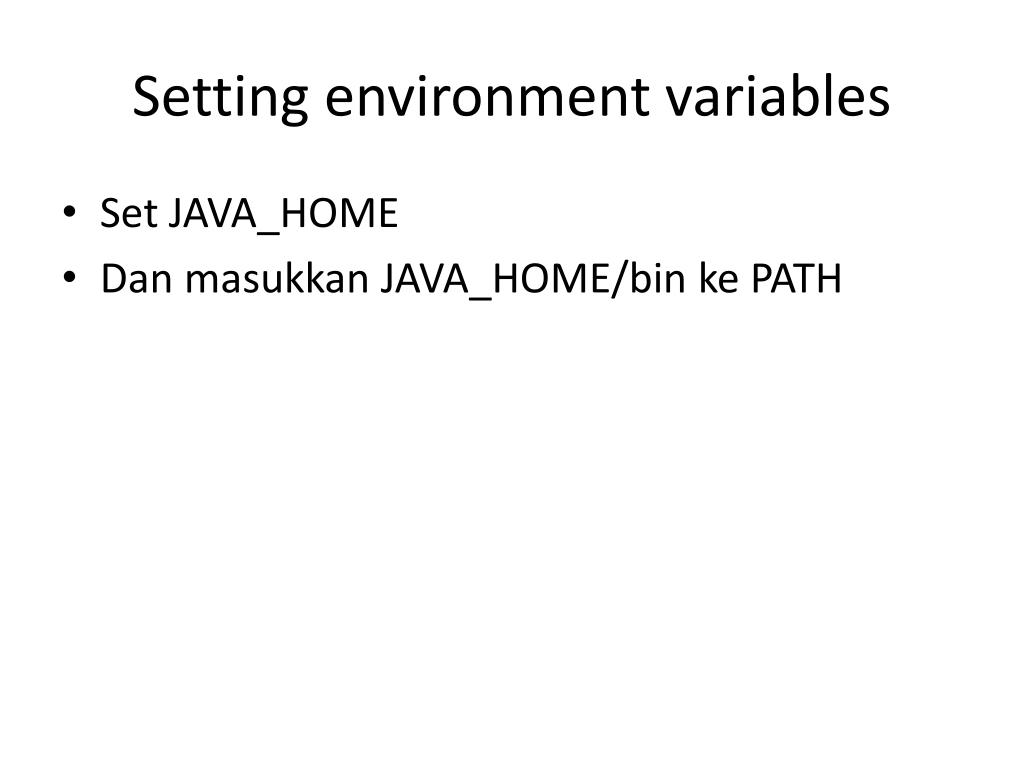

  2. Setting environment variables • Set JAVA_HOME • Dan masukkan JAVA_HOME/bin ke PATH

  3. 1. Install microsoft visual c++ 2008 redistributables • vcredist_x86.exe

  4. 2. OpenSSL • Win32OpenSSL-1_0_1c.exe

  5. 3. Xampp 1.7.1 (zip) • Extract “xampp-win32-1.7.1.zip” to C:/

  6. 4. Wsfphp • Extract “xampp-win32-1.7.1.zip” to C:/ • Extract “wso2-wsf-php-bin-2.0.0-win32.zip” to C:/ , rename to “wsf” • Copy wsf.dll ( from C:\wsf ) to “C:\xampp\php\ext” • Tambahkan “C:\wsf\wsf_c\lib” ke PATH environment variable. • Edit “C:\xampp\php\php.ini” , • rubah= extension_dir = “C:\xampp\php\ext“ include_path = ".;\xampp\php\pear\;C:\wsf\scripts\“ - Tambahkan extension=wsf.dll [wsf] wsf.home=“C:\wsf\wsf_c" wsf.log_path=“C:\wsf\wsf_c\logs" wsf.log_level=3 wsf.rm_db_dir=“C:\wsf\wsf_c" • Copy “C:\wsf\samples” to “C:\xampp\htdocs” • Restart komputer, jalankanxampp control, start apache danmysql, cobabukahttp://localhost/samples

  7. 5. + Axis1 • Install apache-tomcat-7.0.26.exe to C:\Tomcat7.0 • Download axis1, copy folder axis (inside webapss folder) into tomcat webapps folder • Open localhost:8080/axis/ klik validate • Put Activation.jar, mail.jar, xmlsec-1.5.1.jar into webapps/axis/WEB-INF/lib folder • Copy %JAVA_HOME%\lib\tools.jar file into C:\Tomcat7.0\lib folder and restart tomcat.

  8. 6. eclipse • Extract eclipse-jee-indigo-SR1-win32.zip ke C:\ • Taruh shortcut di start menu, rename menjadi “eclipse-jee-indigo-SR1-win32” • Jalankan eclipse, set server runtime = tomcat 7 danarahkankedirektoriinstalasi tomcat

  9. Ws02 prerequisite • Extract apache-ant-1.8.3-bin.zip ke C:\ • Set environmental variables ANT_HOME to the directory you uncompressed Ant to, • and add %ANT_HOME%/bin (Windows) to your PATH. • Extract apache-activemq-5.6.0-bin.zip ke C:\

  10. Android SDK • Install installer_r20.0.3-windows.exe • Setelahselesai, jalankan android SDK manager as administrator, set proxy • Install minimum android sdk tools, Android 4.1 (all), 4.0 (all) dan 2.3 (all) dangoogleusb driver. Kalaubisasemuanya… • Extract eclipse-SDK-4.2-win32.zip ke C:\ • Taruhshortcut di start menu, rename menjadi “eclipse-SDK-4.2-win32” • Jalankan eclipse nya, install plugin ADT-20.0.3.zip
