Cs 6560 operating system design

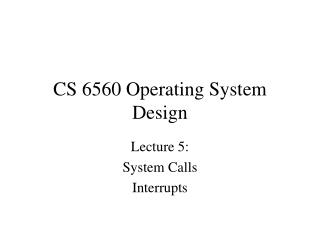

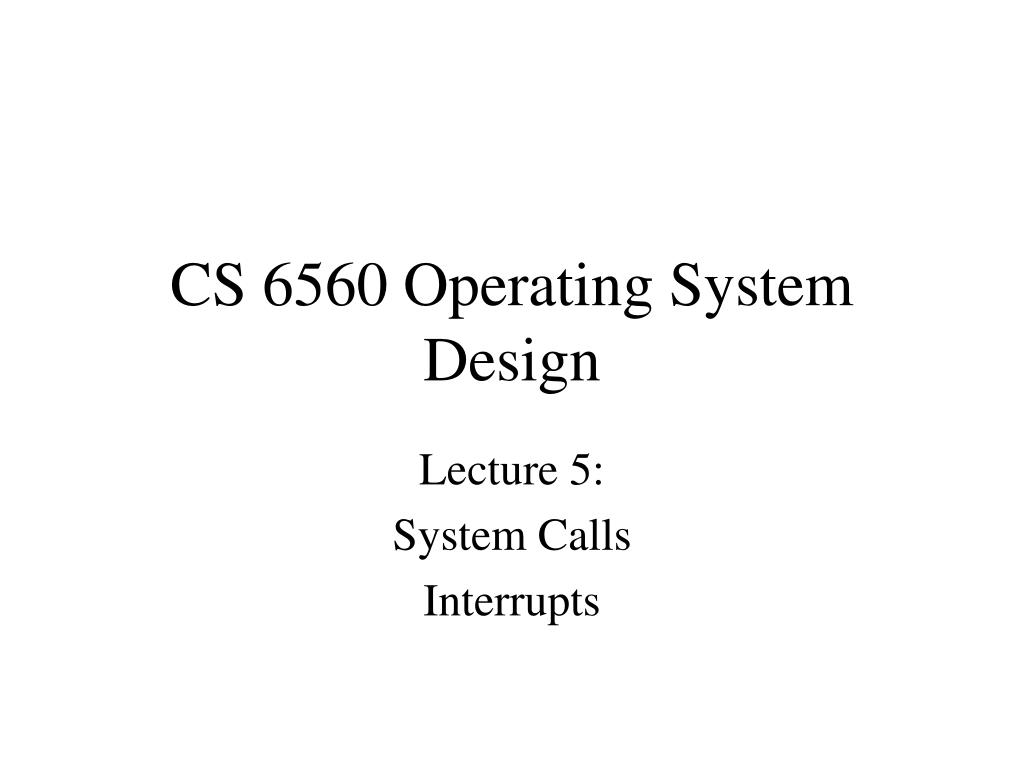

CS 6560 Operating System Design

Lecture 5:

System Calls

Interrupts


System calls

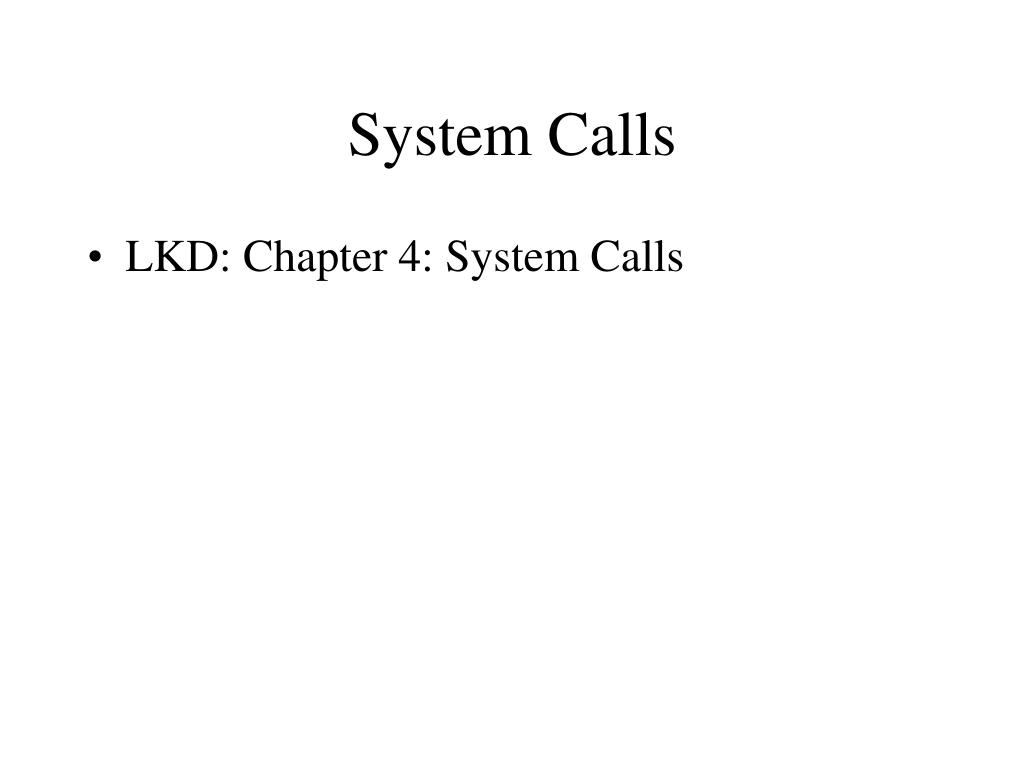

System Calls

  • LKD: Chapter 4: System Calls


References
References

  • Our textbook: Robert Love, Linux Kernel Development, 2nd edition, Novell Press, 2005.

  • Understanding the LINUX Kernel, 3rd. edition, O’Reilly, 2005. (covers 2.6)

  • Class notes at Georga Tech:

    • http://www-static.cc.gatech.edu/classes/AY2001/cs3210_spring/

  • Intel Documentation:

    • http://developer.intel.com/design/index.htm


Why system calls
Why System Calls?

  • Need a model and a mechanism for users to access system resources, which is

    • User portable: abstracts kernel to users

    • Device portable: abstracts kernel to devices

    • Safe: protects users and devices

    • Efficient: simple and fast


Standardization
Standardization

  • POSIX: IEEE 1003

    • Describes Kernel Application Interface (API) (more at the level of a C library)


How?

  • User program calls a C function which jumps into the kernel

  • Architecture dependent, for x86, two ways:

    • Software interrupt

    • Sysenter instruction: see Intel Docs


Design principles
Design Principles

  • System calls should

    • Have a single purpose

    • Implement method, not policy


Steps for system call
Steps for System Call

  • 1) Push registers on stack

  • 2) call library function

  • 3) place function # in register (register eax on x86) (or stack)

  • 4) execute INT instruction (INT 80h on x86 machines) or special sys call instruction

  • 5) dispatch to sys call interrupt handler, change to privileged mode

  • 6) runs sys_xx function in the kernel

  • 7) return to library function in user mode

  • 8) return back to program

  • 9) clean up the stack


Function call numbers

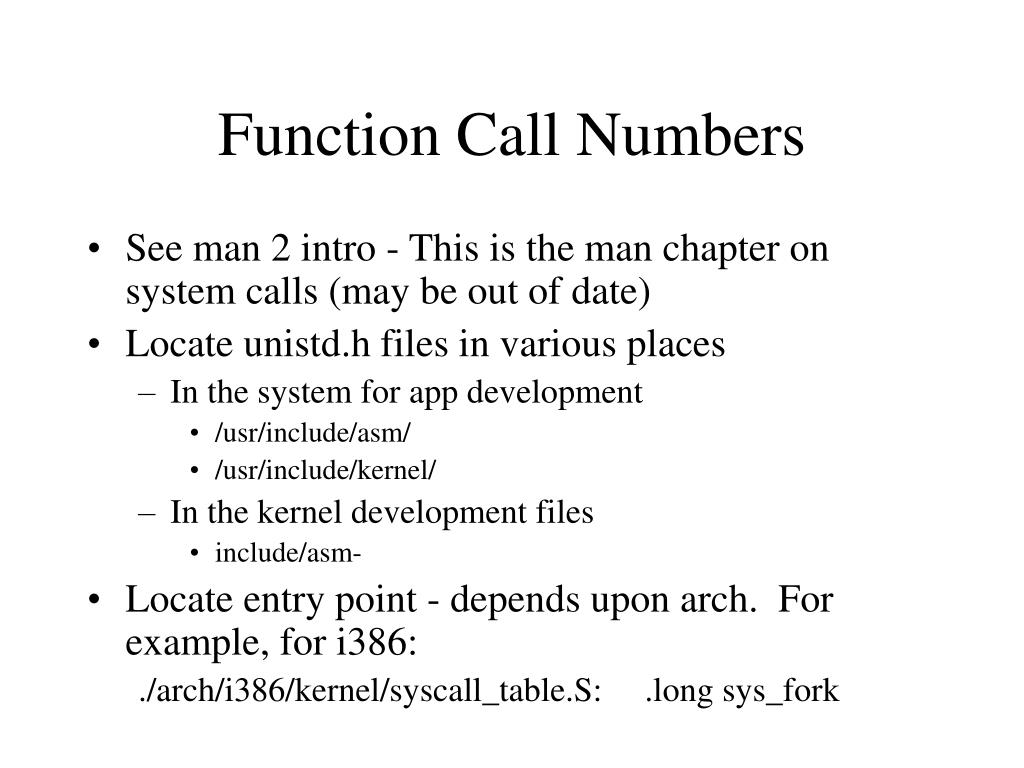

Function Call Numbers

  • See man 2 intro - This is the man chapter on system calls (may be out of date)

  • Locate unistd.h files in various places

    • In the system for app development

      • /usr/include/asm/

      • /usr/include/kernel/

    • In the kernel development files

      • include/asm-

  • Locate entry point - depends upon arch. For example, for i386:

    ./arch/i386/kernel/syscall_table.S: .long sys_fork


Entry points
Entry Points

  • ENTRY(sys_call_table)

  • .long sys_restart_syscall /* 0 - old "setup()" system call, used for restarting */

  • .long sys_exit

  • .long sys_fork

  • .long sys_read

  • .long sys_write

  • .long sys_open /* 5 */

  • .long sys_close

  • .long sys_waitpid

  • .long sys_creat

  • .long sys_link

  • .long sys_unlink /* 10 */

  • .long sys_execve

  • .long sys_chdir

  • .long sys_time


Numbers correspond
Numbers correspond

  • #ifndef _ASM_I386_UNISTD_H_

  • #define _ASM_I386_UNISTD_H_

  • /*

  • * This file contains the system call numbers.

  • */

  • #define __NR_restart_syscall 0

  • #define __NR_exit 1

  • #define __NR_fork 2

  • #define __NR_read 3

  • #define __NR_write 4

  • #define __NR_open 5

  • #define __NR_close 6

  • #define __NR_waitpid 7

  • #define __NR_creat 8

  • #define __NR_link 9

  • #define __NR_unlink 10


Include asm i386 unistd h same as usr include

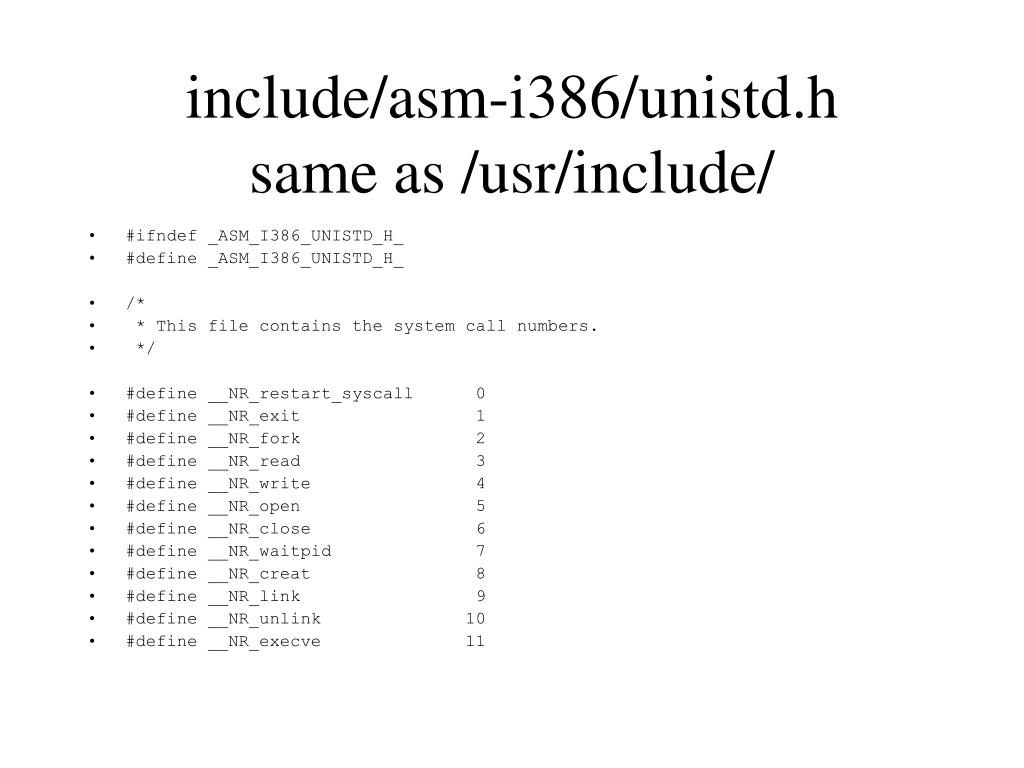

include/asm-i386/unistd.hsame as /usr/include/

  • #ifndef _ASM_I386_UNISTD_H_

  • #define _ASM_I386_UNISTD_H_

  • /*

  • * This file contains the system call numbers.

  • */

  • #define __NR_restart_syscall 0

  • #define __NR_exit 1

  • #define __NR_fork 2

  • #define __NR_read 3

  • #define __NR_write 4

  • #define __NR_open 5

  • #define __NR_close 6

  • #define __NR_waitpid 7

  • #define __NR_creat 8

  • #define __NR_link 9

  • #define __NR_unlink 10

  • #define __NR_execve 11


Details
Details

  • Read in the book:

    • How it works

    • How to make one

  • Look at Georgia Tech class notes

    • Diagrams

    • More details

    • Strace function

  • HW assignment next week to make and install a system call


Final point
Final point

  • Don’t just add more system calls - keep the kernel interface simple


Interrupts
Interrupts

  • LKD Ch6


Why interupts
Why Interupts?

  • Allow CPU to exchange data with slow devices

  • Handle exceptions - error conditions

  • Provide protected access to resources such as the kernel


How do interrupts work
How do Interrupts Work?

  • Use Interrupt handlers: Interrupt service routines (ISR)

    • Just C functions that can be called at any time

    • Must return quickly

    • Run in special context

    • Must be registered (Use: request_itq)


Example isr
Example ISR

  • See the text for an example


Interrupt context
Interrupt Context

  • Context (while in kernel):

    • Process Context

      • Executing a system call on behalf of a process

      • current points to task_struct of current process

    • Interrupt Context

      • Reponding to an interrupt

      • current points to task_struct of whatever process was interrupted


Top and bottom halves
Top and Bottom Halves

  • Conflicting needs:

    • Return quickly

    • Get lots of work done

  • Solution: Break up the interrupt processing into two parts

    • Top half: returns quickly, after setting up work to be done

    • Bottom half: scheduled by the kernel to get work done at a later time (see next chapter)


Proc entry
/proc entry

  • Look at /proc/interrupts


Details1
Details

  • Read the book for more details

    • Disabling and enabling interrupts

    • Knowing status of an interrupt

  • More needed: must know a lot more before writing any code, see /usr/src/linux/Documentation

  • Next time: look at example and study deferred work: top and bottom halves
