Wireless NetworkingWLAN Site SurveyModule-07

Jerry Bernardini

Community College of Rhode Island

6/3/2014

Wireless Networking J. Bernardini

Wireless Networking J. Bernardini

1


Presentation reference material

Presentation Reference Material

CWNA Certified Wireless Network Administration Official Study Guide, Fourth Edition, Tom Carpenter, Joel Barrett – Chapter 6

6/3/2014

Wireless Networking J. Bernardini

Wireless Networking J. Bernardini

2


What is a site survey

What is a Site Survey?

Process of planning a WLAN to meet design goals

When installing a WLAN for an organization, areas of dead space might not be tolerated

Ensure blanket coverage, meet per-user bandwidth requirements, minimize “bleeding” of signal

Factors affecting wireless coverage goals:

Devices emitting RF signals

Building structure (walls, construction materials)

Open or closed office doors

Stationary versus mobile machinery/equipment

Movement of mobile walls (e.g., cubicles)

Wireless Networking J. Bernardini


What is a site survey1

What is a Site Survey?

Factors affecting wireless coverage goals (continued):

Expansion of physical plant or growth of organization

Existing WLANs

Both inside organization, and within nearby organizations

Site survey: Process of planning a WLAN to meet design goals

Effectiveness of a WLAN often linked to thoroughness of the site survey

Wireless Networking J. Bernardini


Design goals for a site survey

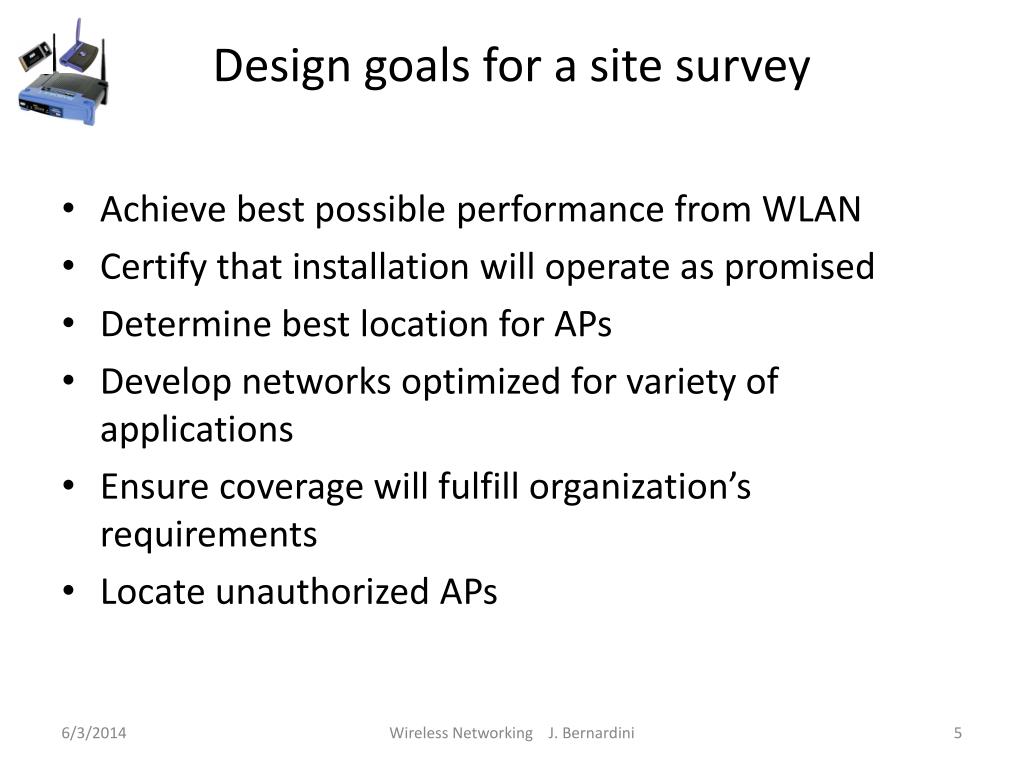

Design goals for a site survey

Achieve best possible performance from WLAN

Certify that installation will operate as promised

Determine best location for APs

Develop networks optimized for variety of applications

Ensure coverage will fulfill organization’s requirements

Locate unauthorized APs

Wireless Networking J. Bernardini


More site survey goals

More Site Survey Goals

Map nearby wireless networks to determine existing radio interference

Reduce radio interference as much as possible

Make wireless network secure

Survey provides realistic understanding of infrastructure required for proposed wireless link

Assists in predicting network capability and throughput

Helps determine exact location of APs and power levels required

Wireless Networking J. Bernardini


When to perform a site survey

When to perform a site survey

Before installing a new wireless network

Before changing an existing wireless network

When there are significant changes in personnel

When there are changes in network needs

After making physical changes to a building

Wireless Networking J. Bernardini


Physical and rf site surveys

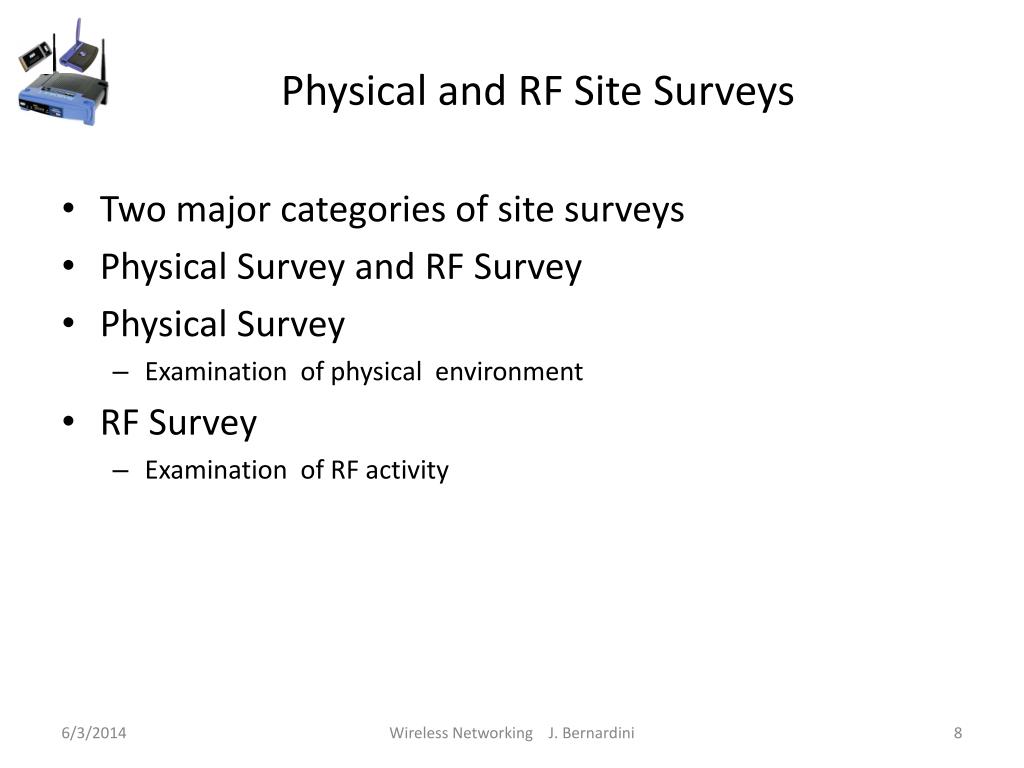

Physical and RF Site Surveys

  • Two major categories of site surveys

  • Physical Survey and RF Survey

  • Physical Survey

    • Examination of physical environment

  • RF Survey

    • Examination of RF activity

Wireless Networking J. Bernardini


Questions answered by physical site surveys

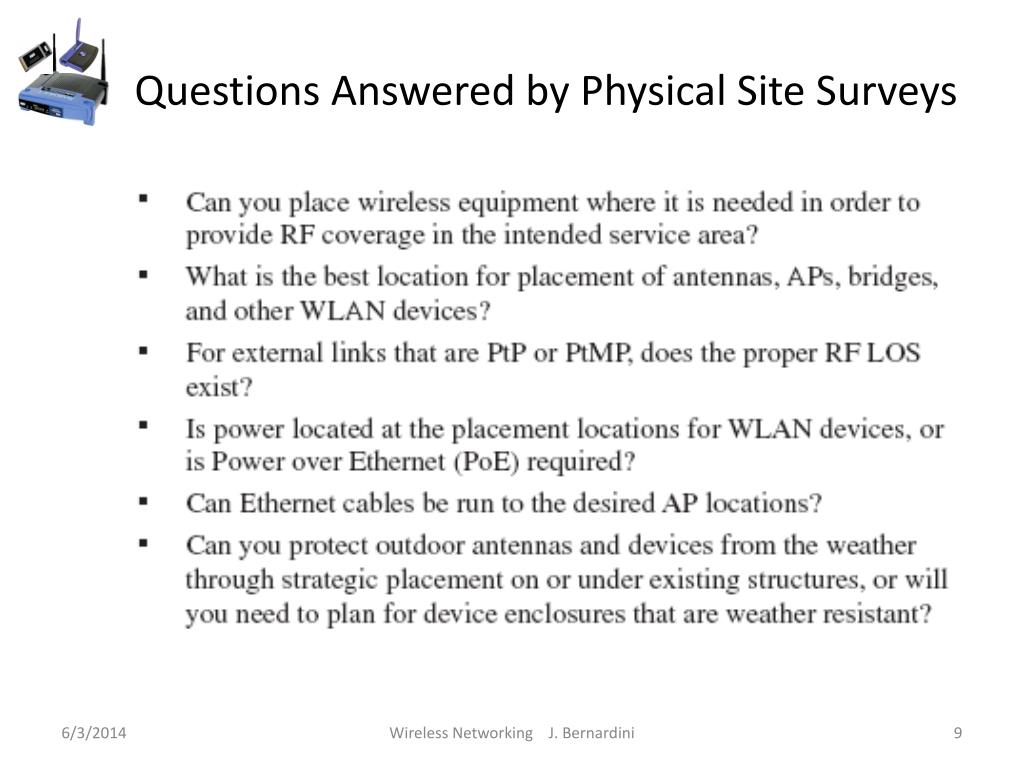

Questions Answered by Physical Site Surveys

Wireless Networking J. Bernardini


Questions answered by rf site survey

Questions Answered by RF Site Survey

Wireless Networking J. Bernardini


Manual rf site survey breakdown

Manual RF Site Survey Breakdown

Wireless Networking J. Bernardini


Obtaining business requirements

Obtaining Business Requirements

Determine business reasons why WLAN being proposed or extended

If this step skipped, almost impossible to properly design and implement the network

Primary data gathering method is interviewing

Must determine type of mobility required within organization

Must determine per-user bandwidth requirements

May be different “types” of users with different bandwidth requirements

Wireless Networking J. Bernardini


Overall business objectives

Overall Business Objectives

  • Quality improvement (Better)

  • Efficiency improvement ( Faster)

  • Cost reduction (Cheaper)

  • Increased production (More)

  • Organizational continuity (Continue to exist)

  • Sarbanes-Oxley (accountability)

Wireless Networking J. Bernardini


Organization s needs and objectives

Organization’s Needs and Objectives

  • Determine business requirements

  • User requirements-bandwidth related

  • Functional requirements

  • Budgetary Constraints

  • Regulatory Constraints

Wireless Networking J. Bernardini


Site survey tools wireless tools

Site Survey Tools: Wireless Tools

Most basic tool is AP itself:

Position AP in various locations, monitor signal as you move

APs should have ability to adjust output power

APs should have external antenna connectors

Test effectiveness of different antenna types in different situations

May need DC-to-AC converter for testing

Notebook computer with wireless NIC also essential for testing

Previously configured and tested

Wireless Networking J. Bernardini


Site survey tools measurement tools

Site Survey Tools: Measurement Tools

Site Survey Analyzers: Specifically designed for conducting WLAN site surveys

Software often built into AP

Receive Signal Strength Indicator (RSSI) value

Full-featured site survey analyzer software settings:

Destination MAC Address

Continuous Link Test

Number of Packets

Packet Size

Data Retries

Wireless Networking J. Bernardini


Site survey tools measurement tools continued

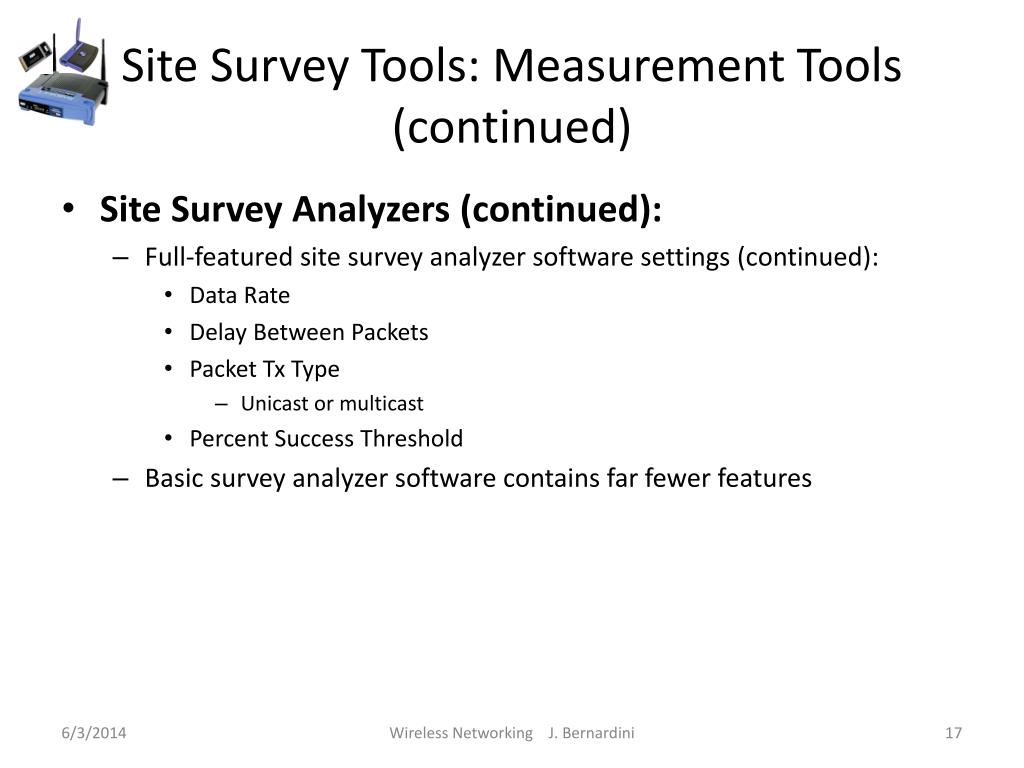

Site Survey Tools: Measurement Tools (continued)

Site Survey Analyzers (continued):

Full-featured site survey analyzer software settings (continued):

Data Rate

Delay Between Packets

Packet Tx Type

Unicast or multicast

Percent Success Threshold

Basic survey analyzer software contains far fewer features

Wireless Networking J. Bernardini


Spectrum analyzers

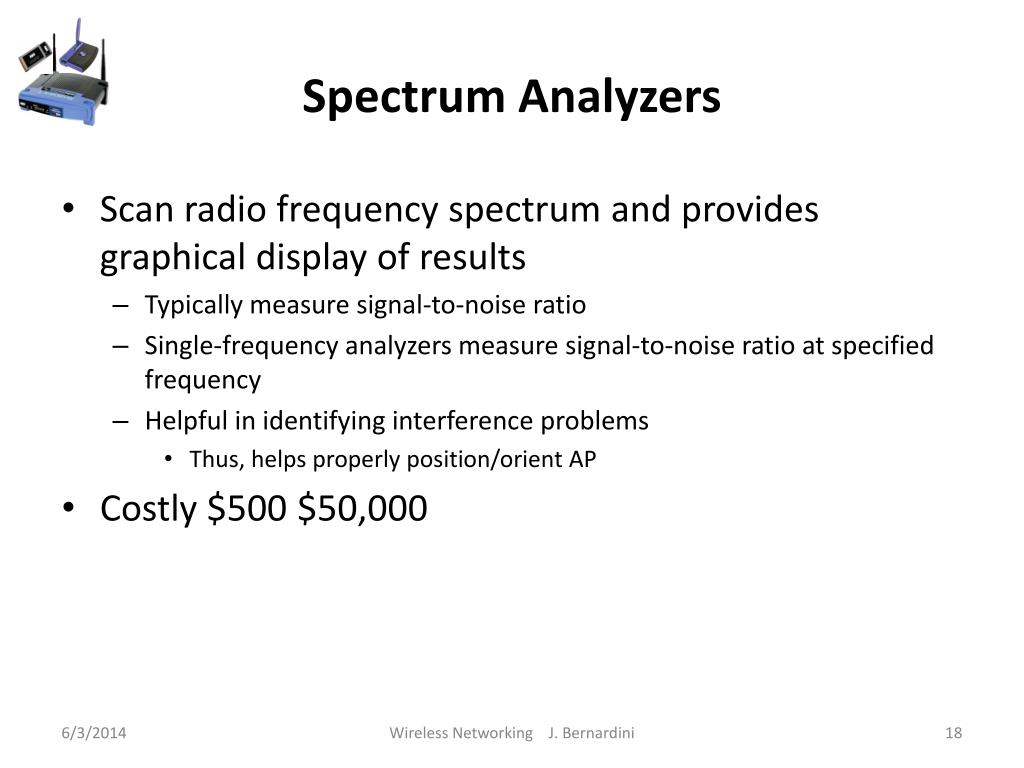

Spectrum Analyzers

Scan radio frequency spectrum and provides graphical display of results

Typically measure signal-to-noise ratio

Single-frequency analyzers measure signal-to-noise ratio at specified frequency

Helpful in identifying interference problems

Thus, helps properly position/orient AP

Costly $500 $50,000

Wireless Networking J. Bernardini


Site survey tools single frequency analyzer

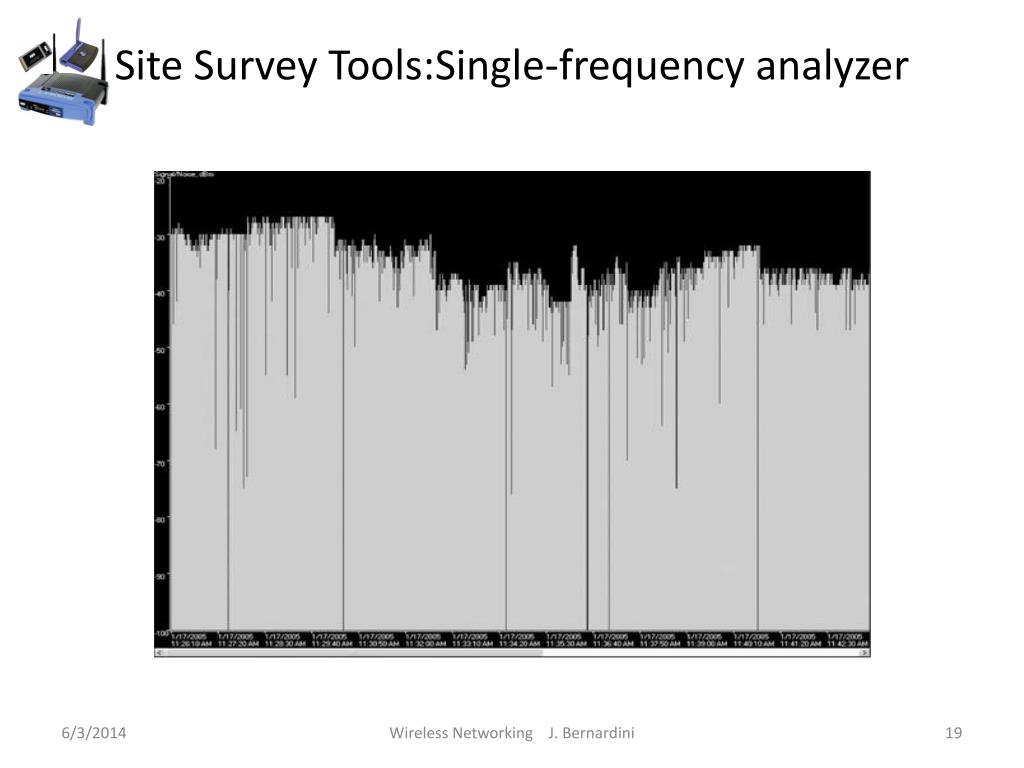

Site Survey Tools:Single-frequency analyzer

Wireless Networking J. Bernardini


Spectrum analyzer measures rf energy

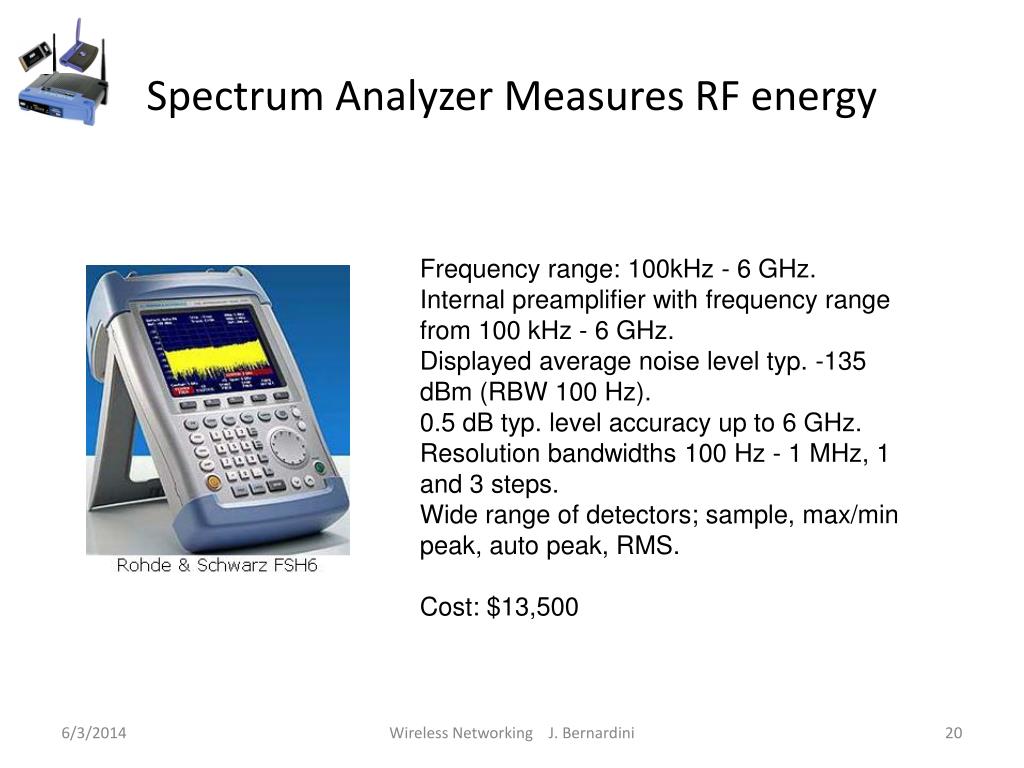

Spectrum Analyzer Measures RF energy

Frequency range: 100kHz - 6 GHz.

Internal preamplifier with frequency range from 100 kHz - 6 GHz.

Displayed average noise level typ. -135 dBm (RBW 100 Hz).

0.5 dB typ. level accuracy up to 6 GHz.

Resolution bandwidths 100 Hz - 1 MHz, 1 and 3 steps.

Wide range of detectors; sample, max/min peak, auto peak, RMS.

Cost: $13,500

Wireless Networking J. Bernardini


Wireless networking wlan site survey module 07

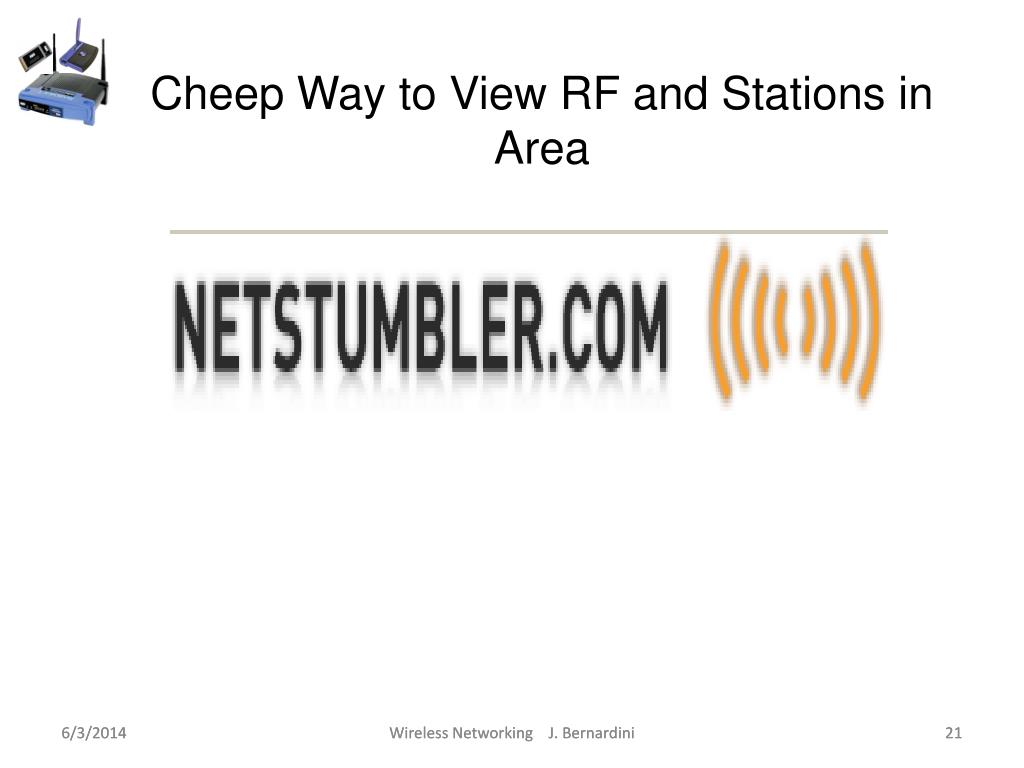

Cheep Way to View RF and Stations in Area

6/3/2014

Wireless Networking J. Bernardini

Wireless Networking J. Bernardini

21


Wifi hopper

WiFi Hopper

Website: http://wifihopper.com/overview.html

Wireless Networking J. Bernardini


Airmagnet site survey tool

Airmagnet Site Survey Tool

6/3/2014

Wireless Networking J. Bernardini

Wireless Networking J. Bernardini

23


Airmagnet survey

AirMagnet Survey

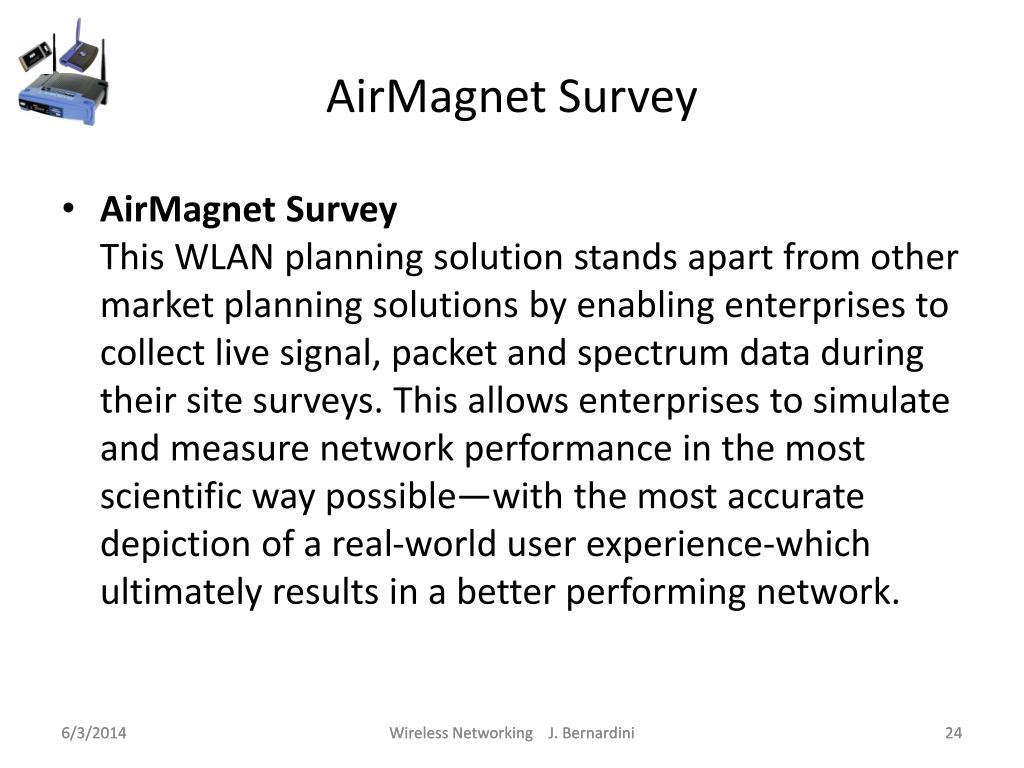

AirMagnet SurveyThis WLAN planning solution stands apart from other market planning solutions by enabling enterprises to collect live signal, packet and spectrum data during their site surveys. This allows enterprises to simulate and measure network performance in the most scientific way possible—with the most accurate depiction of a real-world user experience-which ultimately results in a better performing network.

6/3/2014

Wireless Networking J. Bernardini

Wireless Networking J. Bernardini

24


Site survey tools measurement tools continued1

Site Survey Tools: Measurement Tools (continued)

Network Analyzers: Can be used to pick up packets being transmitted by other WLANs in area

Provide additional information on transmissions

Packet sniffers or protocol analyzers

Not used in placement of AP

Wireless Networking J. Bernardini


Site survey tools documentation tools

Site Survey Tools: Documentation Tools

Create a “hard copy” of site survey results

Make available for future reference

No industry-standard form for site survey documentation

Site survey report should include:

Purpose of report

Survey methods

RF coverage details (frequency and channel plan)

Throughput findings

Sources of interference

Wireless Networking J. Bernardini


Site survey report material

Site Survey Report Material

Site survey report should include (continued):

Problem zones

Marked-up facility drawings with access point placement

Access point configuration

Use plain paper and building layout blueprints as tools

Advisable to create database to store site survey information and generate reports

Wireless Networking J. Bernardini


Sample site survey form

Sample site survey form

Wireless Networking J. Bernardini


Survey security and site documents

Survey Security and Site Documents

Defining Security Requirements: Consider type of data encryption and type of authentication that will take place across WLAN

Consider existing security policies and procedures

Gathering Site-Specific Documentation:

Blueprints, facility drawings, and other documents

Show specific building infrastructure components

Inspecting the site

Document changes to blueprints and get visual perspective

Behind-the-scenes site inspection

Documenting Existing Network Characteristics: New or expanded WLAN will “dovetail” into network already in place

Determine degree to which WLAN will interact with other wired networks

Legacy systems may require additional equipment to support WLAN

Wireless Networking J. Bernardini


Performing a site survey gathering data continued

Performing a Site Survey: Gathering Data (continued)

Wireless Networking J. Bernardini


Performing a site survey performing the survey

Performing a Site Survey: Performing the Survey

Collecting RF Information:

Note objects in and layout of room

Use digital camera

Position AP

Initial location will depend on antenna type

Document starting position of AP

Using notebook computer with site survey analyzer software running, walk slowly away from AP

Observe data displayed by analyzer program

Data rate, signal strength, noise floor, and signal-to-noise ratio

Wireless Networking J. Bernardini


Position of aps

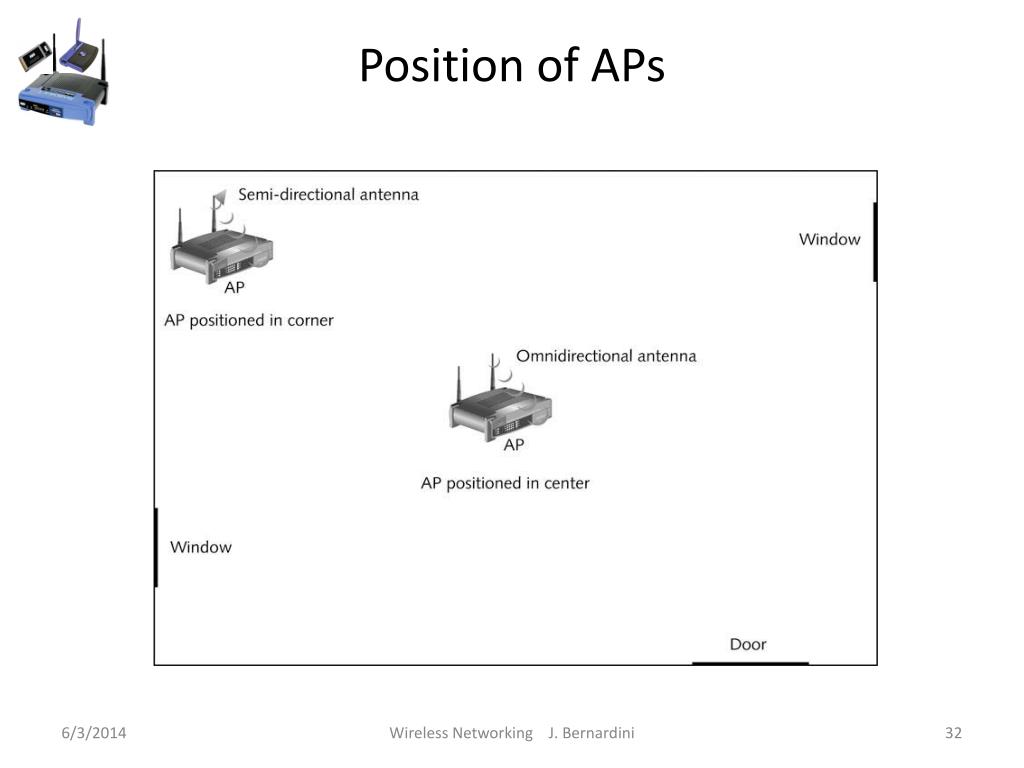

Position of APs

Wireless Networking J. Bernardini


Collecting rf information

Collecting RF Information

Continue moving until data collected for all areas

Data collected used to produce:

Coverage pattern: Area where signal can be received from the AP

Data rate boundaries: Range of coverage for a specific transmission speed

Throughput: Number of packets sent and received and data rates for each

Total transmission range: Farthest distance at which signal can be received by wireless device

Wireless Networking J. Bernardini


Survey coverage pattern

Survey Coverage Pattern

Wireless Networking J. Bernardini


Survey data rate boundaries

Survey Data rate boundaries

Wireless Networking J. Bernardini


Rf data collection

RF Data Collection

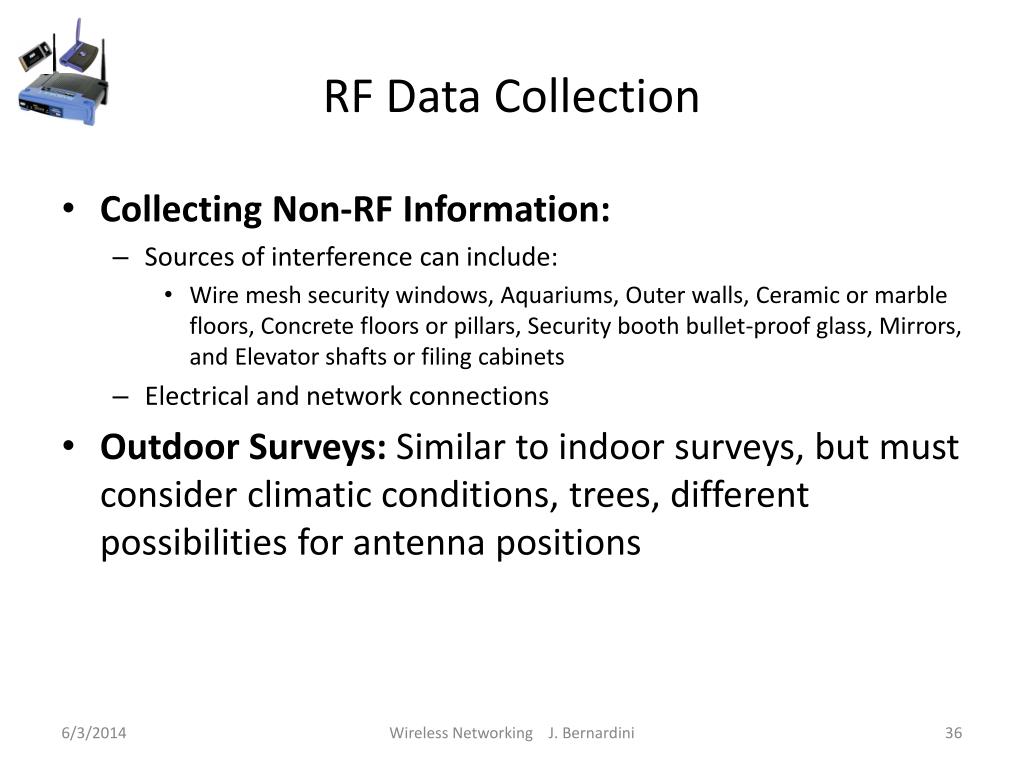

Collecting Non-RF Information:

Sources of interference can include:

Wire mesh security windows, Aquariums, Outer walls, Ceramic or marble floors, Concrete floors or pillars, Security booth bullet-proof glass, Mirrors, and Elevator shafts or filing cabinets

Electrical and network connections

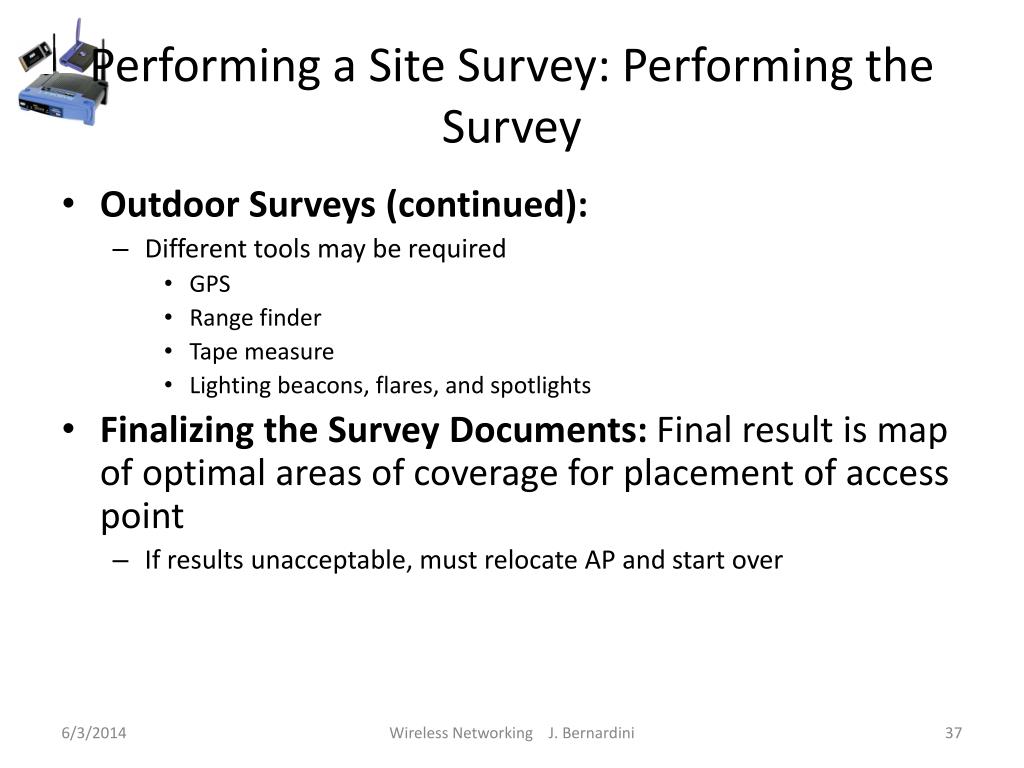

Outdoor Surveys: Similar to indoor surveys, but must consider climatic conditions, trees, different possibilities for antenna positions

Wireless Networking J. Bernardini


Performing a site survey performing the survey1

Performing a Site Survey: Performing the Survey

Outdoor Surveys (continued):

Different tools may be required

GPS

Range finder

Tape measure

Lighting beacons, flares, and spotlights

Finalizing the Survey Documents: Final result is map of optimal areas of coverage for placement of access point

If results unacceptable, must relocate AP and start over

Wireless Networking J. Bernardini


Creating the site survey report

Creating the Site Survey Report

Narrative section:

State customer requirements

Outline methodology

Outline all steps taken during survey

Clearly state results of measurements

May have tables of measurements

Recommendations

Should always address security

Graphic section:

Generally includes maps and diagrams of coverage area

Data rate coverage map

Signal-to-noise ratio plot

Wireless Networking J. Bernardini


Table of measurements

Table of measurements

Wireless Networking J. Bernardini


Data rate coverage map

Data rate coverage map

Wireless Networking J. Bernardini

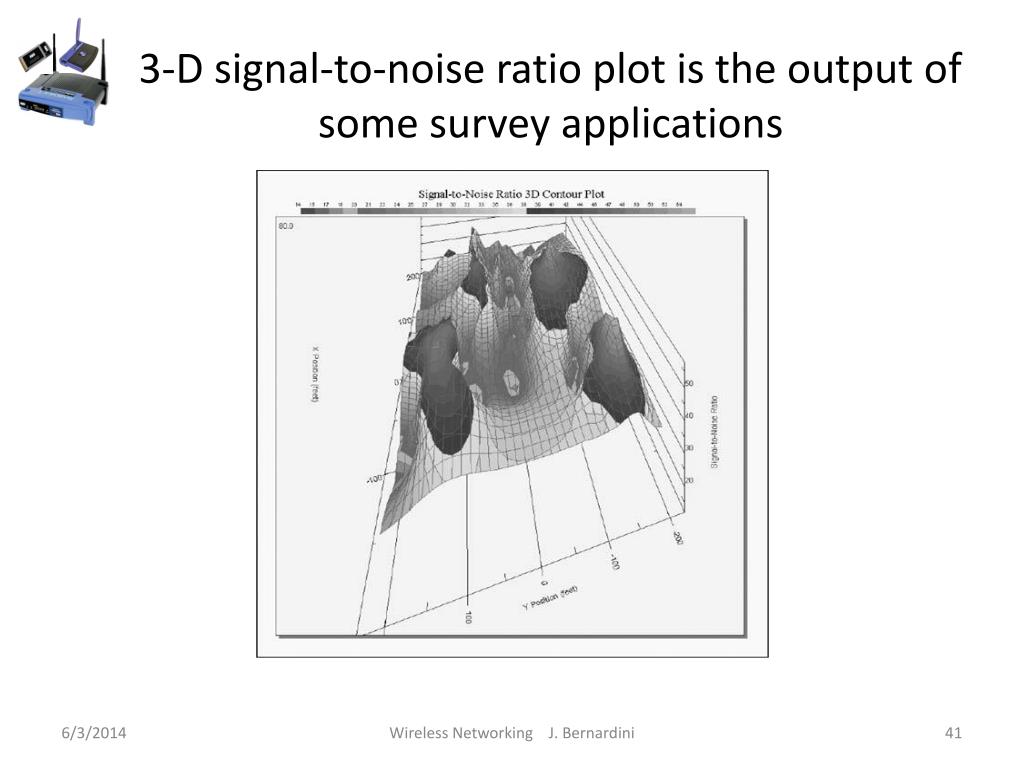

3 d signal to noise ratio plot is the output of some survey applications

3-D signal-to-noise ratio plot is the output of some survey applications

Wireless Networking J. Bernardini

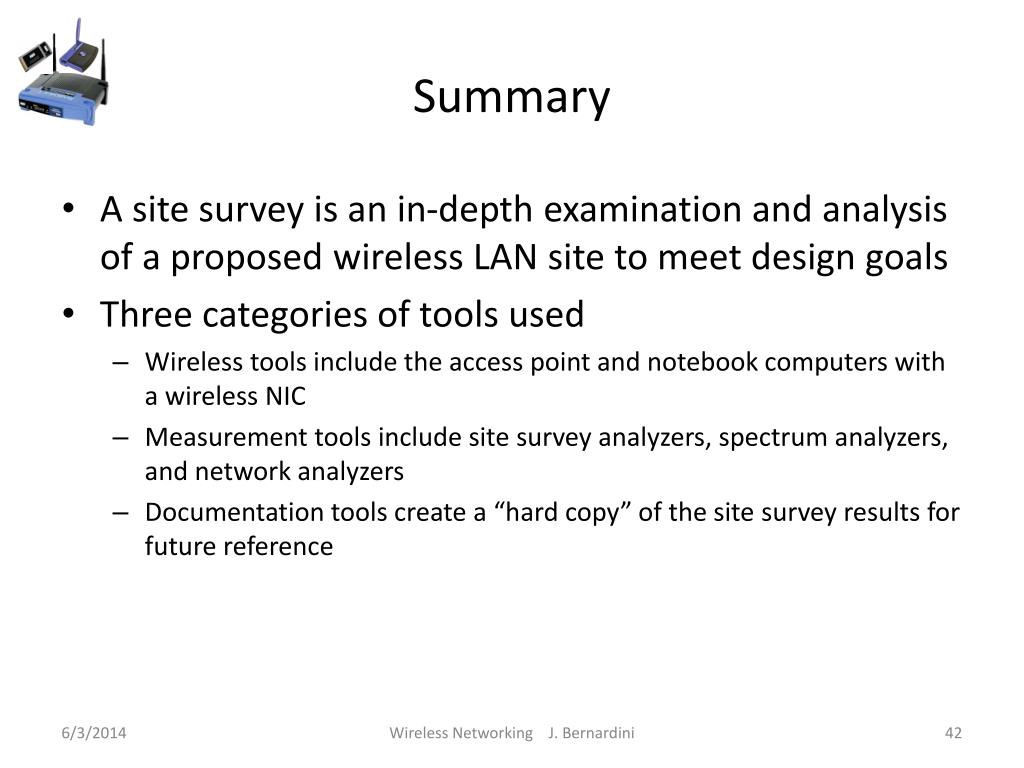

Summary

Summary

A site survey is an in-depth examination and analysis of a proposed wireless LAN site to meet design goals

Three categories of tools used

Wireless tools include the access point and notebook computers with a wireless NIC

Measurement tools include site survey analyzers, spectrum analyzers, and network analyzers

Documentation tools create a “hard copy” of the site survey results for future reference

Wireless Networking J. Bernardini


  • Login
