Presentation Transcript


Bredt s rule

Bredt’s Rule

(Ok)

(Not happening)


History and background

History and Background

  • Discovered in 1924 by Julius Bredt while investigating the chemistry of naturally occurring bicyclic terpenes

  • He’s German

  • Bredt also was the first to determine the structure of camphor (1893)

    • Camphor contains a bridged ring

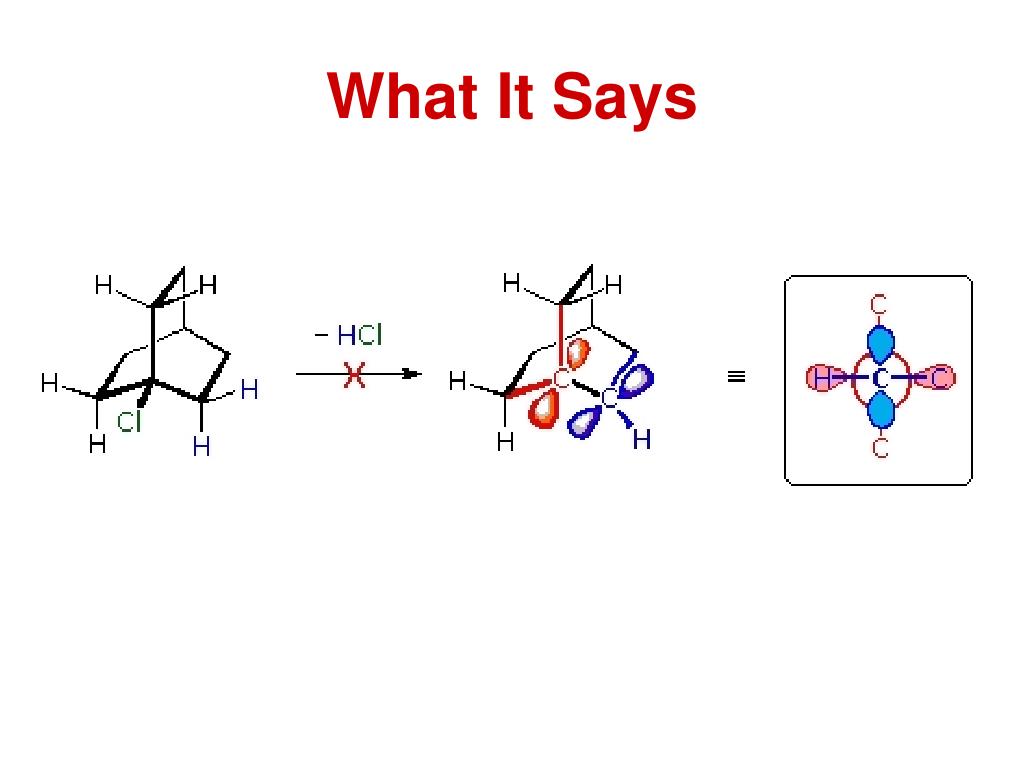

What it says

What It Says

  • You can’t have a double bond connected to the bridgehead of a bridged ring system

    • UNLESS the ring is big enough

  • Having a double bond as part of the bridgehead would be the equivalent of having a trans double bond on the ring

    • This would create massive angular strain on the ring


What it says1

What It Says


What it s good for

H

H

B

r

H

H

H

H

H

100%

What It’s Good For

  • Good for predicting the product resulting from elimination reactions of bridged ring systems

Bredt’s

Rule

NaOEt

EtOH

+

110 oC

0%

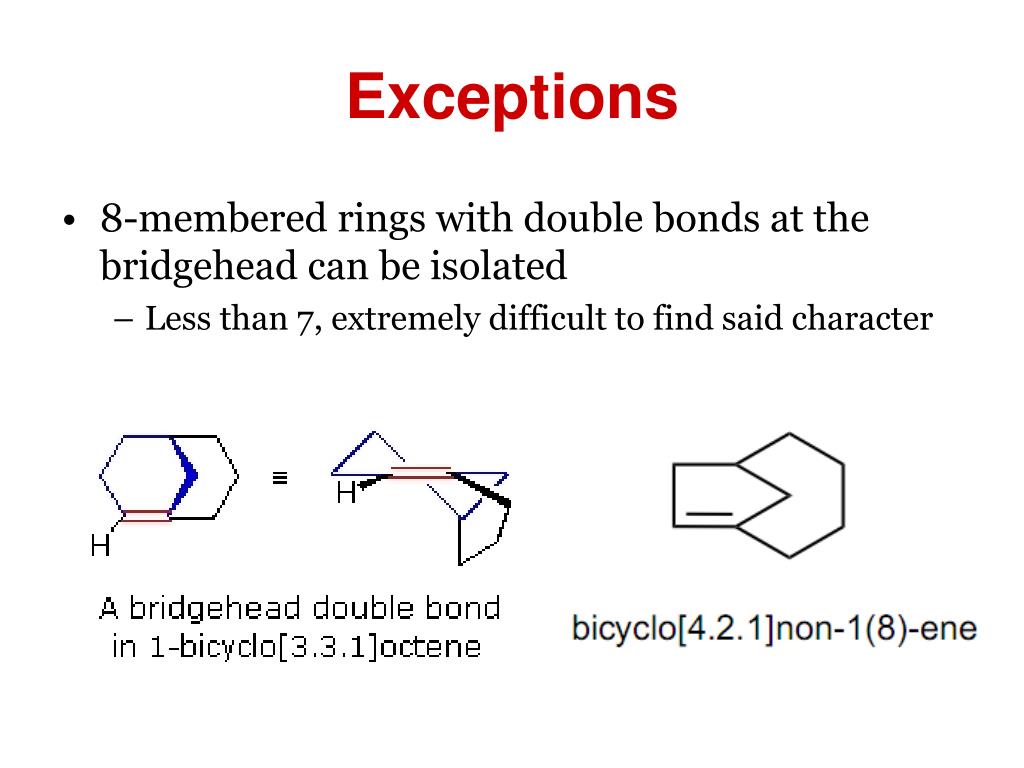

Exceptions

Exceptions

  • 8-membered rings with double bonds at the bridgehead can be isolated

    • Less than 7, extremely difficult to find said character


Exceptions1

Exceptions

  • Anti-Bredt Molecules

    • 7 membered (or less) rings that do have double bonds located at the bridgehead

    • Example: 2-quinuclidonium tetrafluoroborate


Exceptions2

Exceptions
