Presentation Transcript


Tetralogy of fallot l.jpg

Tetralogy of Fallot

Seoul National University Hospital

Department of Thoracic & Cardiovascular Surgery


Tetralogy of fallot2 l.jpg

Tetralogy of Fallot

  • 1. Definition

  • Tetralogy of Fallot is characterized by underdevelopment of right

  • ventricular infundibulum with anterior & leftward displacement

  • (malalignment) of infundibular(conal, outlet) septum & it’s parietal

  • extension. This displacement of septum is associated with right

  • ventricular outflow stenosis & ventricular septal defect.

  • 2. History

  • Stensen : 1st description in 1672

  • Fallot : Known tetralogy in 1888

  • Blalock & Taussig : 1st surgical intervention in 1945

  • Sellors & Brock : Closed valvotomy & infundibulectomy in 1948

  • Lillehei & Varco : 1st repair by cross circulation in 1954

  • Mayo group : 1st repair by pump oxygenator in 1955

  • Kirklin : Conduit use for TOF+PA in 1966


Tetralogy of fallot3 l.jpg

Tetralogy of Fallot

  • Pathophysiology

  • Tetralogy of Fallot consists of a large VSD, RVOTO, aorta overriding the VSD, and right ventricular hypertrophy.

  • RVOTO leads to right-to-left shunting across a nonrestrictive VSD, resulting in adequate pulmonary blood flow and varying degrees of cyanosis.

  • It comprises 10% of CHD & the most common among the cyanotic defect(50%)


Pulmonary infundibulum l.jpg

Pulmonary Infundibulum

  • Role & its function

  • The outlet portion of the right ventricle had not only a passive role in right ventricular contraction, and the peristaltic mode may be crucial to achieving a complete emptying of the right ventricular cavity.

  • The delayed opening of pulmonary valve might be more suitably explained by the peristaltic mode of function of right ventricle than by its intrinsic power

  • The pulmonary infundibulum ejecting the blood that it had accumulated at a time when the rest of the right ventricle was already relaxing.


Ventricular interaction l.jpg

Ventricular Interaction

  • RV & LV interaction -Cross-talk-

  • While the deeper layer of myocardial fibers are separated, there are shared superficial fibers that encircle the normal LV and RV.

  • Furthermore, in some forms of CHD, such as TOF, the deeper layers of RV and LV may be contiguous within the interventricular septum.

  • The function of the two ventricles is therefore linked, in both the structurally normal and abnormal heart.


Tetralogy of fallot6 l.jpg

Tetralogy of Fallot

  • Surgical morphology

  • 1. Right ventricular outflow tract

  • . Infundibulum, pulmonary valve, ring

  • 2. Pulmonary artery

  • . Trunk, bifurcation, distal PA, iatrogenic problem,

  • collateral blood flow

  • 3. VSD & conduction system

  • 4. Aorta, aortic arch & ductus arteriosus

  • 5. Right & left ventricle

  • 6. Coronary arteries

  • 7. Major associated cardiac anomalies

  • PDA, multiple VSD, A-V canal, ASD, AR


Tetralogy of fallot7 l.jpg

Tetralogy of Fallot

  • Surgical anatomy


Slide8 l.jpg

TOF

Aorta

PA

VSD

VSD


Tetralogy of fallot9 l.jpg

Tetralogy of Fallot

  • Genetic syndromes & outcome

  • Approximately 10% to 15% of TOF patients carry a 22q11deletion (del22q11) and that 7% of TOF have trisomy 21

  • Teralogy of Fallot patients with Alagille syndrome carrya mutation in JAG1 (jagged1 gene) and VACTERL, CHARGE,or other syndromes can be associated with TOF

  • Patientswith TOF and an associated genetic defect may face additional risk for primaryrepair; for example, if there is the need of extracardiac surgeryfor associated anomalies or because of immunodeficiency or alteredcompliance of the pulmonary vasculature.


Tetralogy of fallot10 l.jpg

Tetralogy of Fallot

  • Clinical features & diagnosis

  • 1. Clinical presentation

  • Cyanosis ; varies with severity of PS

  • CHF ; 10 % of patients in 2-3 months, and gradual increase in cyanosis

  • 2. Physical examination

  • Cyanosis of variable degree & clubbing, systolic ejection murmur

  • 3. Laboratory studies

  • Polycythemia , platelet depression, prolonged coagulation

  • 4. Chest radiography & electrocardiography

  • 5. Echocardiography, CT angio, MRI

  • 6. Cardiac catheterization & angiocardiography


Tetralogy of fallot11 l.jpg

Tetralogy of Fallot

  • Natural history

  • 1. Incidence : One of the most common CHD

  • 3~6/10000 births (5%~10% of CHD)

  • 2. Symptoms & survival : 25% death in 1 yr

  • 40% death in 3 yrs

  • 70% death in 7 yrs

  • 95% death in 40 yrs

  • 3. Hypoxic spell : Hyperactivity of infundibulum

  • in the 1st year of life & sudden

  • reduction of SVR

  • 4. Pulmonary artery thrombosis ; in severely polycythemia

  • 5. Pulmonary vascular disease ; rarely

  • 6. Genetic history ; more likely ( x 15 )


Tetralogy of fallot12 l.jpg

Tetralogy of Fallot

  • Operative indications

  • Diagnosis is generally an indication for repair.

  • 1. When asymptomatic & uncomplicated, repair is

  • deferred until 3 to 24 months of age.

  • 2. Initial shunting operation for symptomatic patient

  • less than about 6 months of age, & definitive

  • repair some time between 6 & 24 months of age.

  • 3. Early primary repair when the infant is importantly

  • symptomatic in the first 3 months.

  • 4. Early repair is advisable, particularly in the first

  • year of life


Tetralogy of fallot13 l.jpg

Tetralogy of Fallot

  • Aim of repair

  • First, the procedure must relieve the right ventricular hypertension ( PS ) by mobilizing, transecting, and infrequently, resecting parietal and septal extensions (bands) of the crista supraventricularis.

  • The aim of infundibular dissection is to increase the circumference of the infundibulum by enlarging each lateral recess in front of the conal septum

  • Second, the VSD must be closed completely while avoiding the conduction system

  • When the first criterion is met by a right atrial approach, it is considered the method of choice.

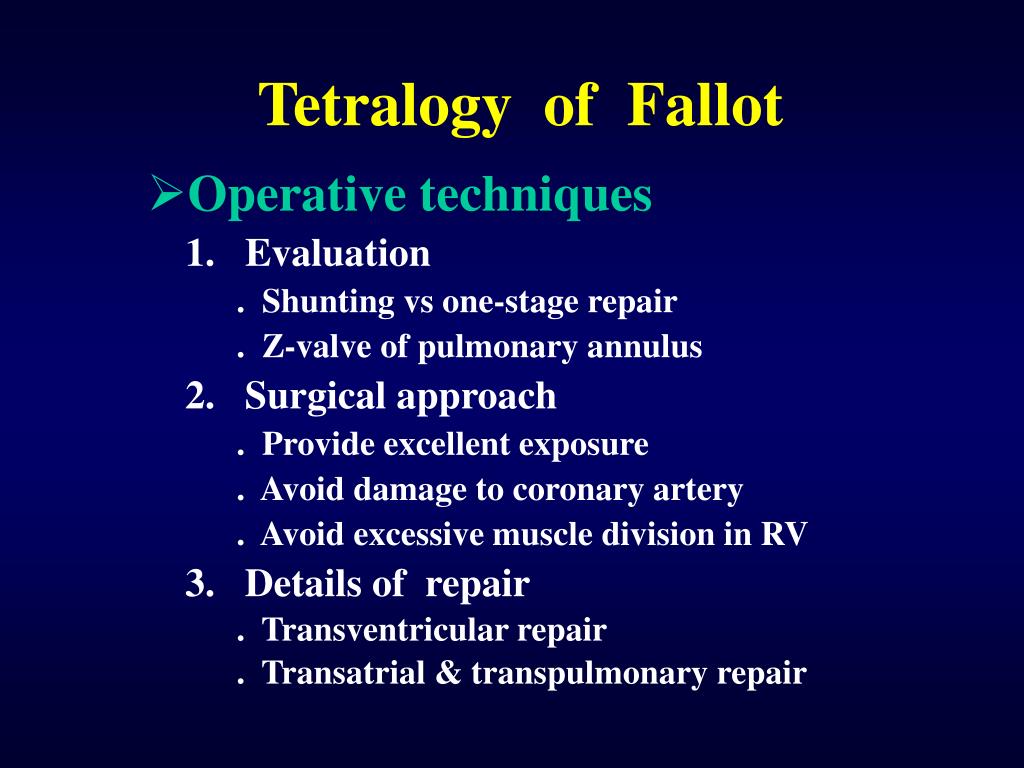

Tetralogy of fallot14 l.jpg

Tetralogy of Fallot

  • Operative techniques

  • 1. Evaluation

  • . Shunting vs one-stage repair

  • . Z-valve of pulmonary annulus

  • 2. Surgical approach

  • . Provide excellent exposure

  • . Avoid damage to coronary artery

  • . Avoid excessive muscle division in RV

  • 3. Details of repair

  • . Transventricular repair

  • . Transatrial & transpulmonary repair


Systemic pulmonary shunts l.jpg

Tetralogy of Fallot

Systemic-pulmonary shunts

  • Various positions of the usual systemic-pulmonary

  • arterial shunts for augmenting pulmonary blood flow


Systemic pulmonary shunts16 l.jpg

Systemic-Pulmonary Shunts

  • Via median sternotomy

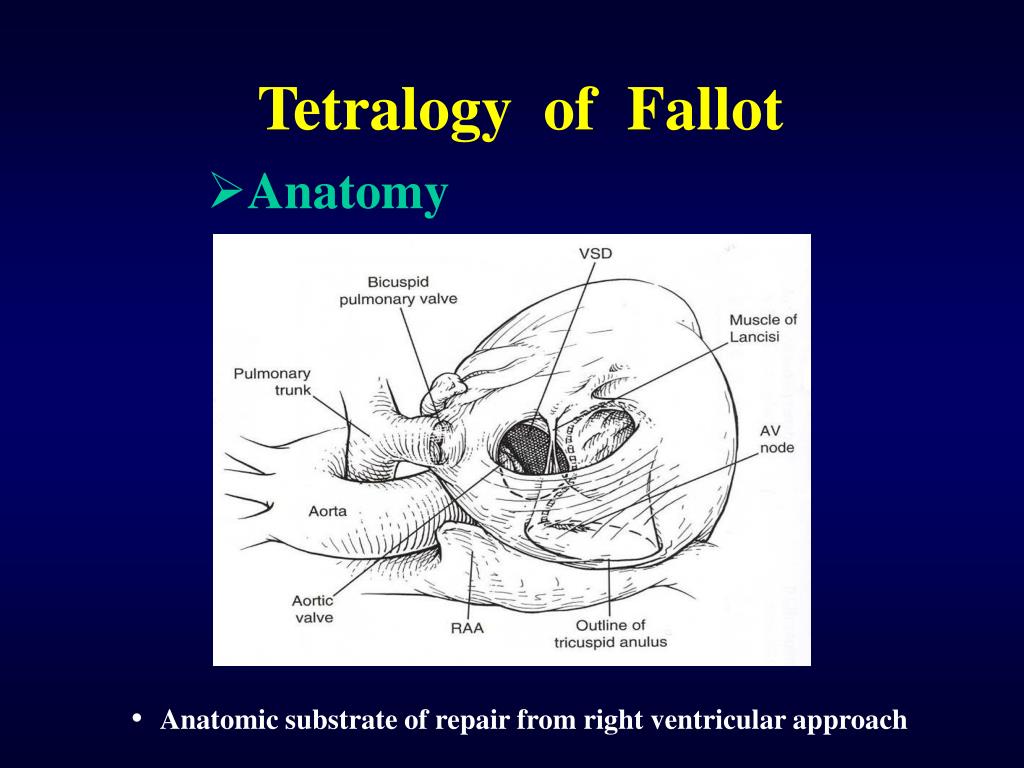

Tetralogy of fallot17 l.jpg

Tetralogy of Fallot

  • Anatomy

  • Anatomic substrate of repair from right ventricular approach


Tetralogy of fallot18 l.jpg

Tetralogy of Fallot

  • Anatomy

  • Anatomic substrate of repair from right atrial approach


Rvot reconstruction l.jpg

RVOT Reconstruction

  • Principles

  • The diameter of annulus with a Hegar dilator that passes snugly but not tightly through it.

  • Generally, a transannular patch should not be placed when Z value is larger than -3.

  • When a polyester tube is used, one is selected whose diameter corresponds to a Z value of 0 to +2.

  • The patch when properly trimmed, its convexity is ensured in all direction, as is a relatively square cut of its distal end.

  • To widen the LPA stenosis, a rectangular piece of pericardium is cut about one and a half times wider than the apparent diameter of the LPA and about one and a half times longer than the incision in the LPA.


Rvot reconstruction20 l.jpg

RVOT Reconstruction

  • Application of monocusp patch

  • Transannular patching is often necessary for reconstruction of right ventricular outflow tract obstruction, but it leads to transvalvular regurgitation.

  • Acute pulmonary valve regurgitation of higher degrees impairs right ventricular function, and seems to be associated with increased perioperative mortality.

  • Regurgitation fraction after reconstruction is dependent on the length of the monocusp patch relative to the length of the hypoplastic pulmonary root.

  • The best result was obtained with a monocusp patch roughly two times as wide as the hypoplastic pulmonary root


Rvot patch widening l.jpg

RVOT Patch Widening

  • Principles

  • The width of the patch across the pulmonary annulus must be generous enough to eliminate most of the gradient.

  • It is better to accept a mild to moderate gradient than to create wide open pulmonic insufficiency.

  • The new annulus diameter should not be much greater than the Z-zero pulmonary annular size for the patient.

  • The toe of the patch must be oval or square to minimize the risk of subsequent anastomotic stenosis


Tetralogy of fallot22 l.jpg

Tetralogy of Fallot

  • Surgical repair


Tetralogy of fallot23 l.jpg

Tetralogy of Fallot

  • Operative technique

  • The rectangular patch when properly trimmed, its convexity is

  • ensured in all direction, as relatively “square cut” of its distal end.


Patch enlargement l.jpg

Tetralogy of Fallot

Patch enlargement

  • Extension of a pulmonary arteriotomy onto the left

  • pulmonary artery and correct patch configuration


Rvot reconstruction 1 l.jpg

Tetralogy of Fallot

RVOT reconstruction(1)

  • Monocuspid valve


Rvot reconstruction 2 l.jpg

Tetralogy of Fallot

RVOT reconstruction(2)

  • Monocuspid valve may be attached to the pericardial roofing patch.

  • The cusp diameter is fashioned somewhat larger than the planned

  • roofed RV outflow.


Rvot reconstruction 3 l.jpg

Tetralogy of Fallot

RVOT reconstruction(3)

  • It is cut more or less circular and sutured to the patch when

  • the latter suturing from distally reaches the valve annulus.


Pulmonary valve saving l.jpg

Pulmonary valve saving

Tetralogy of Fallot


Tetralogy of fallot29 l.jpg

Tetralogy of Fallot

  • Pulmonary valve saving


Pulmonary valve sparing l.jpg

Pulmonary valve-sparing

Tetralogy of Fallot

(A) Pulmonary arteriotomy. (B) Autologous pantaloon pericardial patch. (C) Completed pulmonary artery pantaloon patch.


Tetralogy of fallot31 l.jpg

Tetralogy of Fallot

  • Postoperative care

  • Patients have a tendency to increase their interstitial, pleural, & peritoneal fluids early postoperatively.

  • The hemodynamic state is assessed continuously and management constantly reviewed.

  • Care lest loss of intravascular plasma to extravascular spaces produces undesirable hemoconcentration early postoperatively.

  • Bleeding because of preoperative polycythemia and depletion of many clotting factors, extensive collateral circulation, and damaging effects of CPB.

  • Body weight is followed closely because transient fluid retention is common, especially transannular patch.


Postrepair rv pressure l.jpg

Postrepair RV Pressure

  • Factors of PRV/LV

  • Pulmonary arteriolar resistance

  • Size of the LPA and RPA

  • Presence & severity of localized or segmental stenosis or incomplete distributions of pulmonary arteries

  • Residual pulmonary trunk or RV outflow obstruction

  • Increased flow through RVOT by residual shunting and by pulmonary regurgitation


Tetralogy of fallot33 l.jpg

Tetralogy of Fallot

  • Special situation & controversies

  • Rationale for use of postrepair PRV/LV

  • Initial palliative operations preferred median sternotomy in all age

  • Palliation by beta-adrenergic blockade 2-6mg/kg/day

  • Initial palliation by balloon valvotomy

  • Monocusp valves beneath patches


Tetralogy of fallot34 l.jpg

Tetralogy of Fallot

  • Neurodevelopmental impairment

  • Neurodevelopmental impairment is known in children afterpalliative or corrective surgery for cyanotic heart diseasebeyond infancy

  • Preoperative impairment,however, due to prolonged chronic cyanosis with thromboembolicor septic brain damage, should be markedly reduced in Fallotpatients without preoperative complications and operated onduring infancy

  • Influences of preoperative & perioperativeconditions with elevated circulating levels of proinflammatorycytokines in hypoxemic patients might bealso in part responsible for damage to the brain


Tetralogy of fallot35 l.jpg

Tetralogy of Fallot

  • Surgical results

  • 1. Survival

  • Early death ; recently less than 1%

  • Time-related survival ; good

  • 2. Modes of death ; subacute heart failure

  • 3. Risk factors for premature death

  • 4. Heart block, arrhythmia, sudden death

  • 5. Right ventricular function & aneurysm

  • 6. Residual outflow tract obstruction

  • 7. Left ventricular function & functional status

  • 8. Residual VSDs & bacterial endocarditis

  • 9. Pulmonary function

  • 10. Reoperation & other reintervention


Risk factors for premature death l.jpg

Postrepair Tetralogy of Fallot

Risk Factors for Premature Death

  • 1. Very young age at repair

  • 2. Older age at repair

  • 3. Severity of “annulus” hypoplasia

  • 4. Size of pulmonary artery

  • 5. Transannular patch

  • 6. Postrepair pRV/LV

  • 7. Previous palliative operations

  • 8. Multiple VSD ; 1-3%

  • 9. Coexisting related cardiac anomalies

  • ECD, Down syndrome, MAPCA

  • 10. Other risk factors ; small LV


Primary repair of tof l.jpg

Primary Repair of TOF

  • Advantages in early infancy

  • 1. Avoidance of the risk of palliative operation

  • 2. Prevention of shunt-induced PA stenosis

  • 3. Obviation of the need to take down shunt

  • 4. Early relief of RV hypertension

  • 5. Avoidance of excessive LV volume load

  • 6. Elimination of Rt-to-Lt shunting across VSD


Tetralogy of fallot38 l.jpg

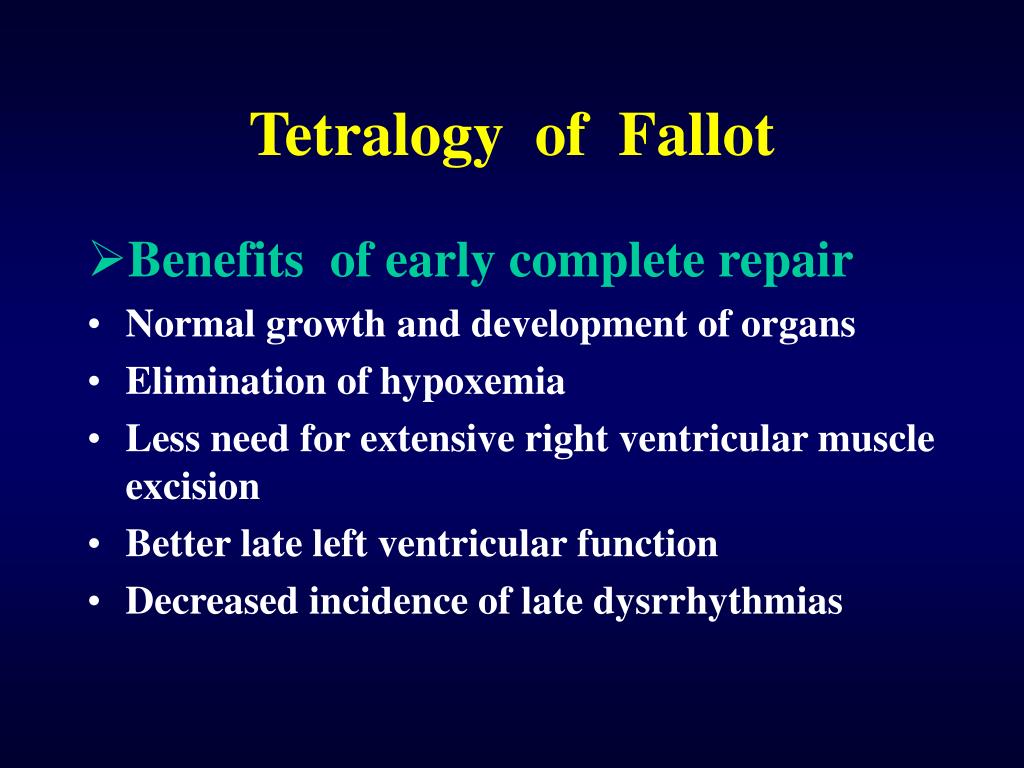

Tetralogy of Fallot

  • Benefits of early complete repair

  • Normal growth and development of organs

  • Elimination of hypoxemia

  • Less need for extensive right ventricular muscle excision

  • Better late left ventricular function

  • Decreased incidence of late dysrrhythmias


Tetralogy of fallot39 l.jpg

Tetralogy of Fallot

  • Late problems after repair

  • Late death, sudden cardiac death

  • Redo operation

  • Aortic root dilation, AR and AVR

  • Residua, sequelae ( PR, TR, RVOTO, VSD)

  • Arrhythmias (SSS, CAVB, AF, AFL, VT)

  • Impaired cardiopulmonary performance

  • Impaired autonomic nervous system

  • Ventricular dysfunction (RV, LV failure)

  • Infective endocarditis


Results after tof repair l.jpg

Results after TOF Repair

  • Risk factors for late death

  • Residual VSD

  • Residual RV outflow stenosis

  • Severe PR

  • Severe TR

  • Older age at repair

  • Previous Potts, or Waterston shunt


Tetralogy of fallot41 l.jpg

Tetralogy of Fallot

  • Considerations in adult

  • Collaterals or preexisting shunts lead to increased pulmonary blood flow, and togetherwith myocardial hypertrophy and myocardial hypoxia, they leadto reduced biventricular function.

  • Impaired ventricular function,severe hypoxemia, and tricuspid regurgitation are associatedwith a higher operative mortality, whereas the influenceof age at the time of operation is controversially

  • Cyanosis and erythrocytosis leadto thrombosis, infective endocarditis, stroke, brain abscess,myocardial fibrosis, impaired ventricular function, and multiorgan dysfunction could be the mostimportant risk factor


Tetralogy of fallot42 l.jpg

Tetralogy of Fallot

  • Risk factors in adult

  • Prolonged cyanosis causes myocardialand other organ dysfunction

  • Heart is chronically volumeoverloaded, especially in previous palliativeprocedures and aortopulmonary collaterals

  • Bleeding tendency is also important

  • The noncompliant hypertrophic adultright ventricle seems to tolerate pulmonary valve regurgitationpoorly, the second significant predictor of early mortalitybeing the need for right ventricular outflow patch

  • The native pulmonary valve is of course preserved andrepaired whenever possible


Results after tof repair43 l.jpg

Results after TOF Repair

  • Causes of sudden death

  • Bradyarrhythmias such as complete AV block, bifascicular block, SSS

  • VT and residual RVOTO and RV dysfunction

  • Complex ventricular arrhythmias by Holter monitoring

  • Monomorphic VT and severe PR, peripheral PS, RV dilation, QRS duration more than 180ms


Arrhythmia sudden death l.jpg

Arrhythmia & Sudden Death

  • Approaches after TOF repair

  • QRS

    Easy to measure

    Reflects RV size

    Dynamic nature, QRS change important

    New QRS cutoff values for contemporary cohorts

  • QT dispersion

    Refines risk stratification

    Less dynamic

    May reflect initial ventriculotomy scar/ VSD closure


Sudden cardiac death l.jpg

Sudden Cardiac Death

  • Mechanisms of SCD after TOF repair

    1. SCD & sustained VT in common

    Electrophysiologic profile

    Long QRS

    QRS change

    QT dispersion

    Hemodynamic substrate

    PR moderate/ severe

    Cardiomegaly/RV dilation

    2. SCD different from sustained VT patient;

    olde age at repair

    3. Overlap between AF/AFL/sustained VT & SCD


Tetralogy of fallot46 l.jpg

Tetralogy of Fallot

  • Causes of ventricular dysfunction

  • LV dysfunction

  • Secondary to inadequate myocardial protection during initial repair

  • LV volume overload due to longstanding palliative shunt or residual VSD

  • Myocardial fibrosis because of longstanding cyanosis or RVOTO

  • RV dysfunction

  • Residual RVOTO

  • Longstanding PR , TR

  • Surgical scar, RV and /or RVOT patching, aneurysm


Autonomic nerve system l.jpg

Autonomic Nerve System

  • Impairment after TOF repair

  • Reports demonstrating depressed heart rate variability and baroreflex sensitivity suggest that the autonomic nervous system change may also involved in arrhythmogenesis

  • Also depressed heart rate was observed in repaired TOF patients during exercise and pregnancy


Aortic root dilation l.jpg

Aortic Root Dilation

  • Late after TOF repair

  • Shunt to repair time interval

  • Male gender

  • Pulmonary atresia

  • Right aortic arch

  • Aortic regurgitation

  • LV enlargement


Tetralogy of fallot49 l.jpg

Tetralogy of Fallot

  • Mechanisms of aortic root dilation

  • Underlying abnormality

  • Reciprocal morphogenesis of Aorta/PA

  • Increased flow from both ventricle

  • Abnormal morphology

  • Intrinsic medial abnormality

  • Acquired hemodynamic influences

  • Increased flow through aorta

  • Increased volume/ pulsatility

  • Infective endocarditis

  • Surgical damage

  • Residual VSD


Pulmonary artery lesions l.jpg

Pulmonary Artery Lesions

  • After TOF repair

  • Incidence of reoperation ; 5~14%

  • Reasons of restenosis of RVOT

    1. Restricted growth of RVOT

    2. Miscalculated sizing of RVOT

    3. Angulation & stenosis of LPA

    4. Compression/angulation of PA caused by

    RV hypertrophy or dilation

    5. Most common location is pulmonary

    bifurcation or origin of PA branch.


Pulmonary artery stenosis l.jpg

Pulmonary Artery Stenosis

  • Branch stenosis after TOF repair

  • 1. RV dilation, pulmonary regurgitation after

  • transannular patch is primary phenomenon.

  • 2. Pulmonary outflow dilate & elongate craniad,

  • and rotate to left resulting in kinking and

  • obstruction of previous normal left pulmonary

  • artery.


Left pulmonary artery stenosis l.jpg

Left pulmonary Artery Stenosis

  • Operative principle

  • 1. Removal of redundancy at the kinking point

  • 2. Effective shortening of the dilated and elongated

  • pulmonary trunk by reduction angioplasty or

  • conduit of shorter length

  • 3. Division of intact ligamentum arteriosum

  • 4. Conduit reconstruction of the RVOT with shortening

  • pulmonary trunk allowing LPA to be pulled down,

  • or reimplant LPA proximally with favorable angle.


Rvot aneurysm l.jpg

RVOT Aneurysm

  • Complications

  • Airway compression

  • Pulmonary perfusion asymmetry

  • Thromboembolism

  • Ventricular dysfunction

  • Increase of pulmonary insufficiency

  • Rupture


Unilateral absence of pa l.jpg

Unilateral Absence of PA

  • Pathogenesis

  • The proximal pulmonary artery branches develop from the proximal sixth pharyngeal arches.

  • Nonconfluence of the pulmonary arteries may be due to regression of the sixth arch segment as part of conotruncal abnormalities.

  • There was no channel from the right ventricle to a main branch pulmonary artery with a disconnected PA

  • Dissection to pulmonary hilus revealed an identifiable patent artery.

  • There is high incidence in this postmortem study of right aortic arch and an aberrant subclavian artery


Unilateral absence of pa55 l.jpg

Unilateral Absence of PA

  • Pathophysiology

  • The importance of previous ductal flow and the loss of pulmonary arterial flow with duct closure after birth.

  • The prevalence of a diverticulum of the innominate artery was viewed as evidence of previous duct-dependent arterial flow.

  • The diverticulum represented a fetal systemic blood supply to the affected lung through the distal part of the sixth aortic arch.

  • Early repair is the key in treating this anomaly because of the risk of early obstructive pulmonary disease and to avoid pulmonary hypertension or ultimate sacrifice of the affected lung.


Tof with flap valve vsd l.jpg

TOF with Flap Valve VSD

  • Definition

    A subset of TOF characterized by a thick, fibrous flap hinged on the right side of a large VSD that narrows the interventricular communication and thereby limits right-to-left shunting

  • Morphology

  • A fibrous flap is attached posteriorly to the aortic margin of VSD, and its inferior margin may or may not be fused with the base and superior margin of the anterior tricuspid leaflet.

  • Elsewhere, the flap is unattached, and it rarely plays any part in tricuspid function

  • It can hinge freely toward the right, but its thickness and bulk prevent movement through the VSD


  • Login
