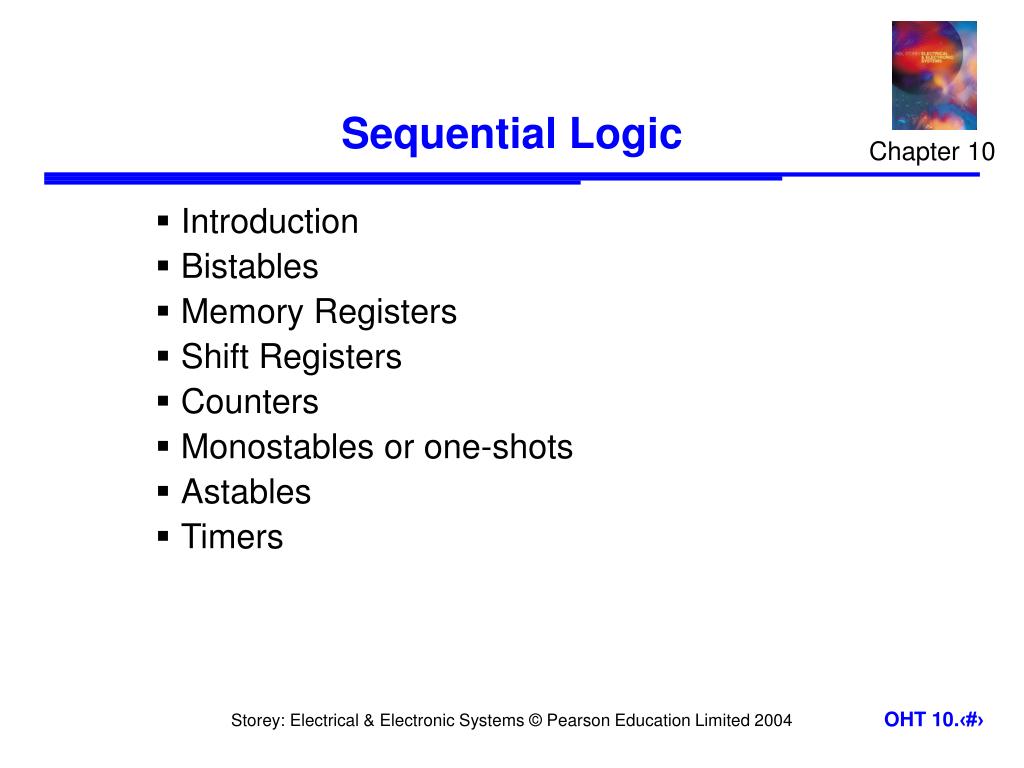

  1. Chapter 10 Sequential Logic • Introduction • Bistables • Memory Registers • Shift Registers • Counters • Monostables or one-shots • Astables • Timers

  2. 10.1 Introduction • Sequential logic elements combine the characteristics of combinational logic with memory • When constructing sequential logic our building blocks are often some form of multivibrator • a term used to describe a range of circuits • these have two outputs that are the inverse of each other • the output are labelled Q and • three basic forms: • bistables • monstables • astables

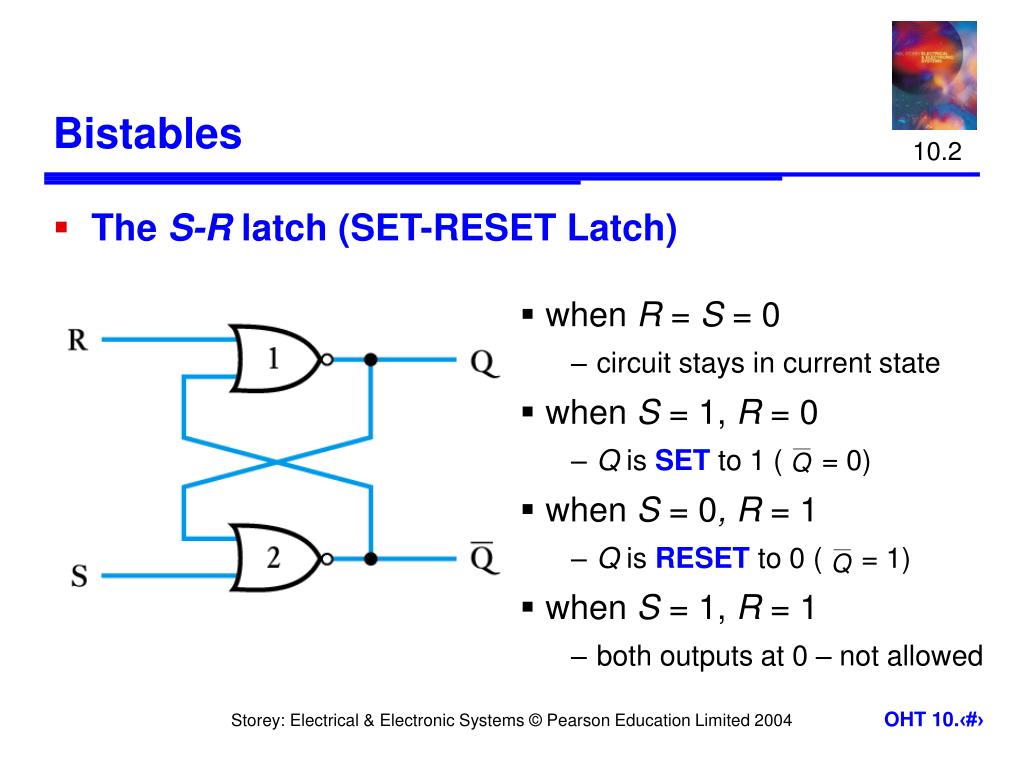

  3. 10.2 Bistables • The S-R latch (SET-RESET Latch) • when R = S = 0 • circuit stays in current state • when S = 1, R = 0 • Q is SET to 1 ( = 0) • when S = 0, R = 1 • Q is RESET to 0 ( = 1) • when S = 1, R = 1 • both outputs at 0 – not allowed

  4. The S-R latch Circuit symbols

  5. The S-R latch A waveform diagram

  6. A design example - see Example 10.1 in course text A Burglar Alarm • close all doors and window (closing switches) • open reset switch to initialise system • opening any of the door/windowswitches will activate alarm • alarm will continue if switch is then closed • alarm is silenced by opening reset switch

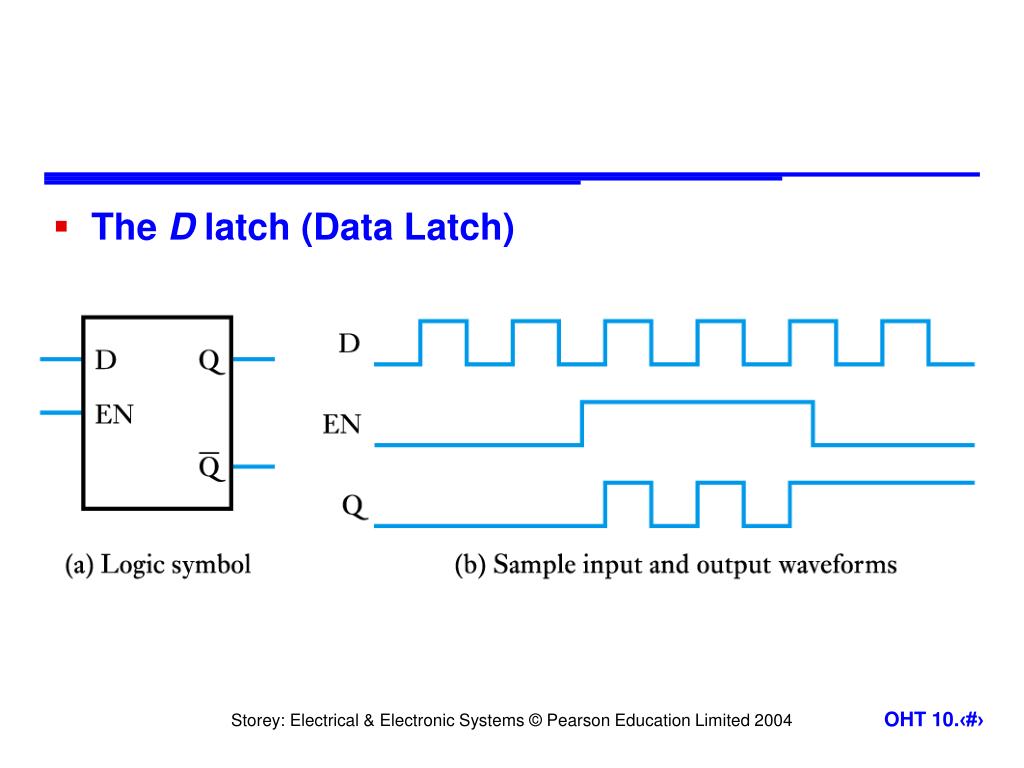

  7. The D latch (Data Latch)

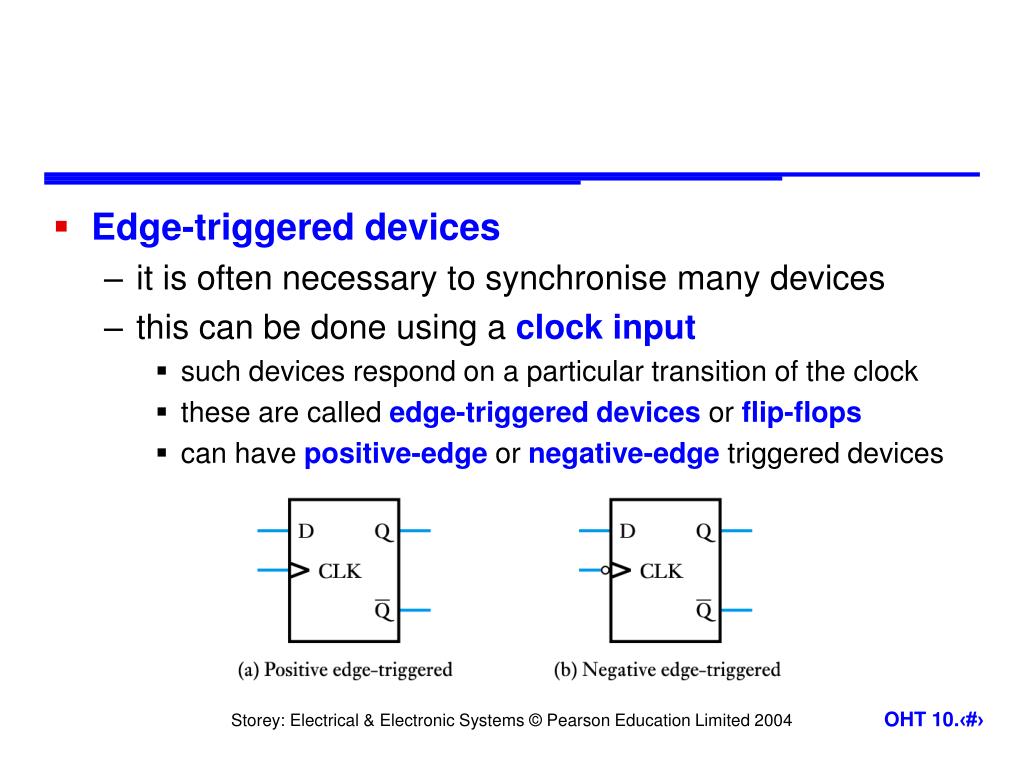

  8. Edge-triggered devices • it is often necessary to synchronise many devices • this can be done using a clock input • such devices respond on a particular transition of the clock • these are called edge-triggered devices or flip-flops • can have positive-edge or negative-edge triggered devices

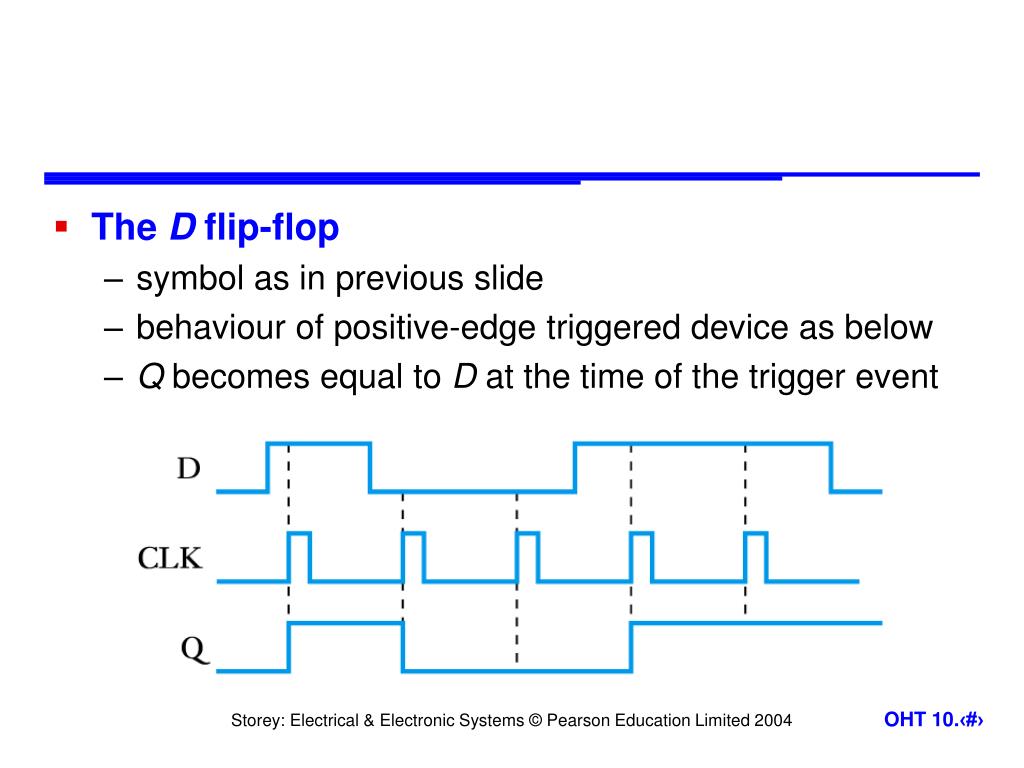

  9. The D flip-flop • symbol as in previous slide • behaviour of positive-edge triggered device as below • Q becomes equal to D at the time of the trigger event

  10. The J-K flip-flop • similar to S-R flip-flop but toggles when J = K = 1

  11. Asynchronous inputs • some flip-flops have asynchronous inputs

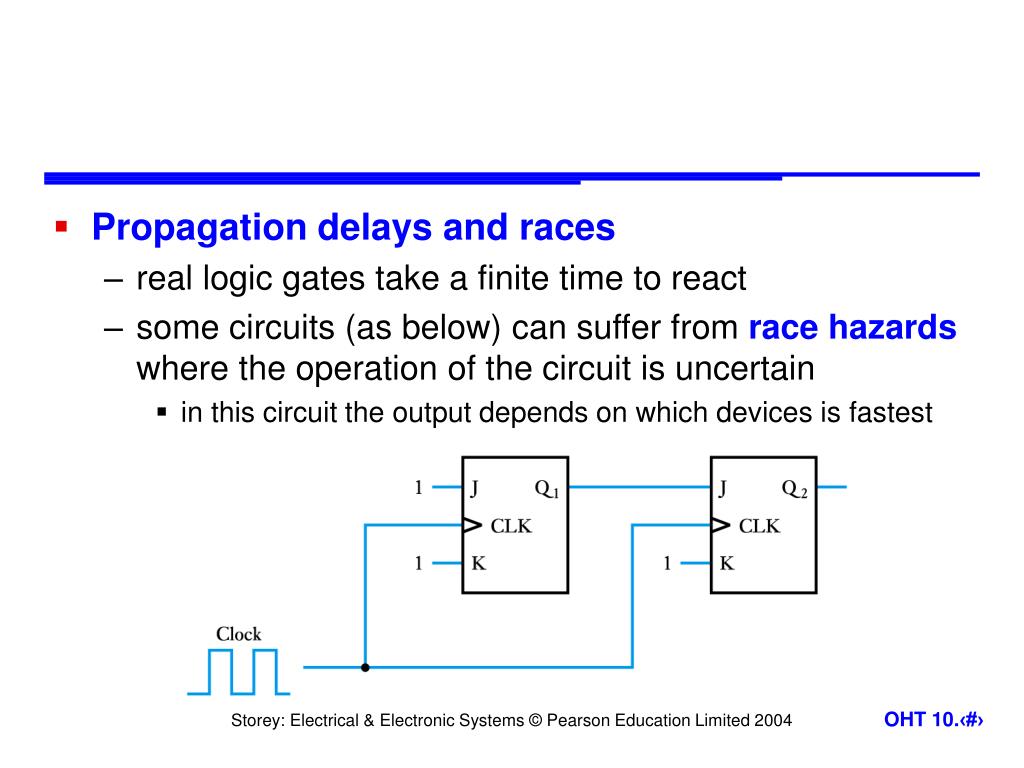

  12. Propagation delays and races • real logic gates take a finite time to react • some circuits (as below) can suffer from race hazards where the operation of the circuit is uncertain • in this circuit the output depends on which devices is fastest

  13. Pulse-triggered or master/slave bistables • these overcome race hazards by responding to the state of the inputs shortly before the clock trigger

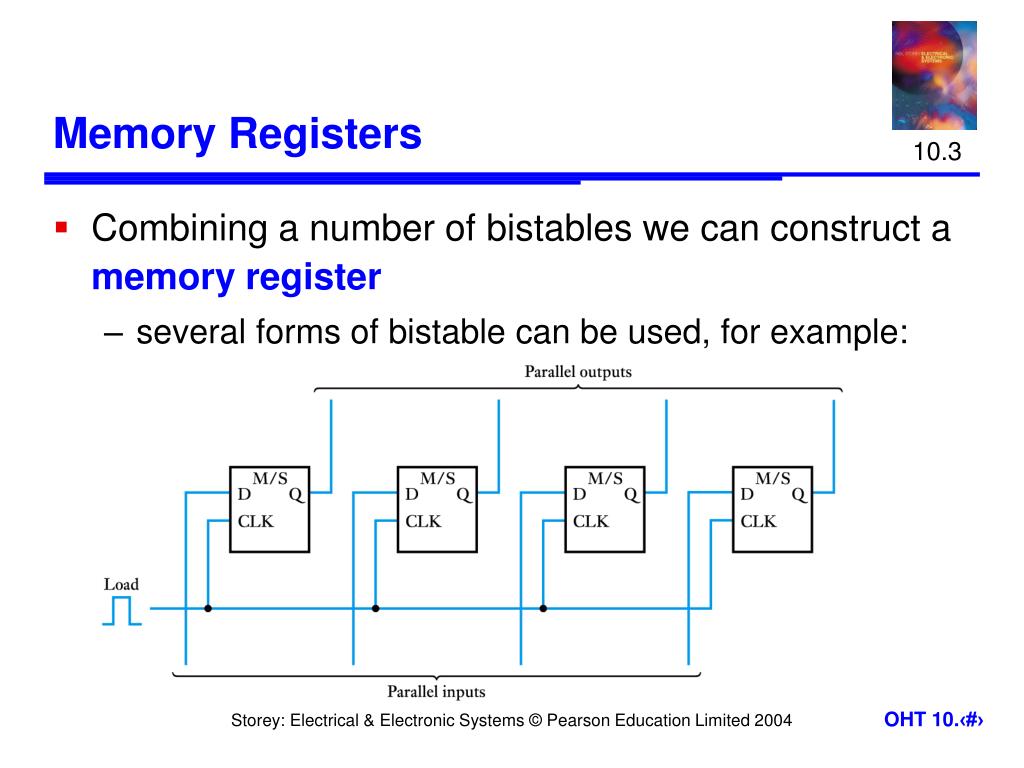

  14. 10.3 Memory Registers • Combining a number of bistables we can construct a memory register • several forms of bistable can be used, for example:

  15. Often we are not concerned with the internal construction of the register • they are a standard integrated component

  16. 10.4 Shift Registers • A slightly different configuration of bistables can produce a shift register

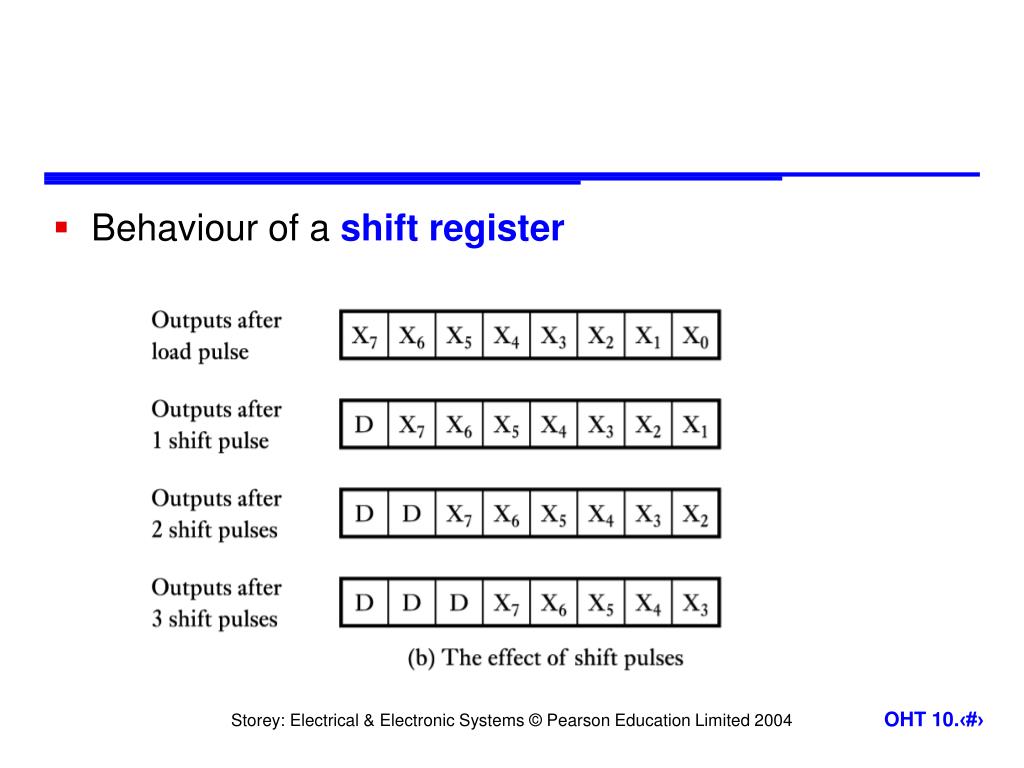

  17. Behaviour of a shift register

  18. An application of a shift register • in serial/parallel and parallel/serial conversion • used in serial communication

  19. 10.5 Counters • Ripple counters • can be constructed using several forms of bistable • consider the following arrangement • with J = K = 1 each bistable toggles on the falling edge of its clock input

  20. Each stage toggles at half the frequency of the previous stage • acts as a frequency divider • divides frequency by 2n (n is the number of stages)

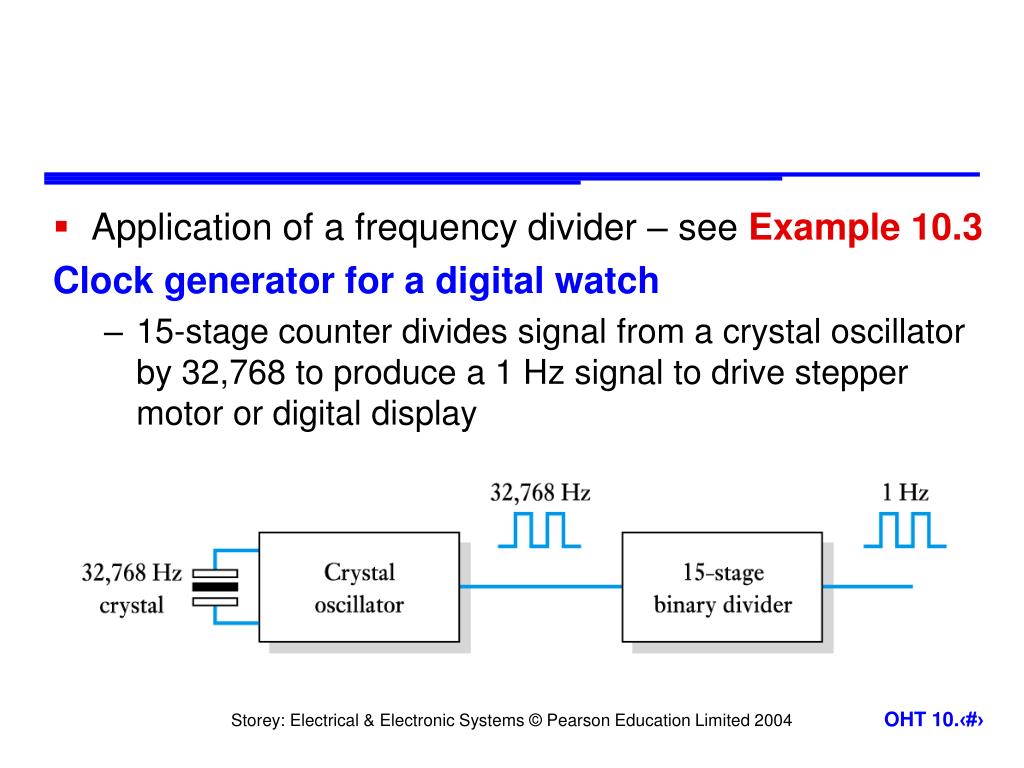

  21. Application of a frequency divider – see Example 10.3 Clock generator for a digital watch • 15-stage counter divides signal from a crystal oscillator by 32,768 to produce a 1 Hz signal to drive stepper motor or digital display

  22. Consider the pattern on the outputs of the counter shown earlier – displayed on the right • the outputs count in binary from0 to 2n-1 and then repeat • the circuit acts as a modulo-2ncounter • since the counting process propagates from one bistable to the next this is called a ripple counter • circuit shown is a 4-bit or modulo-16 (or mod-16) ripple counter

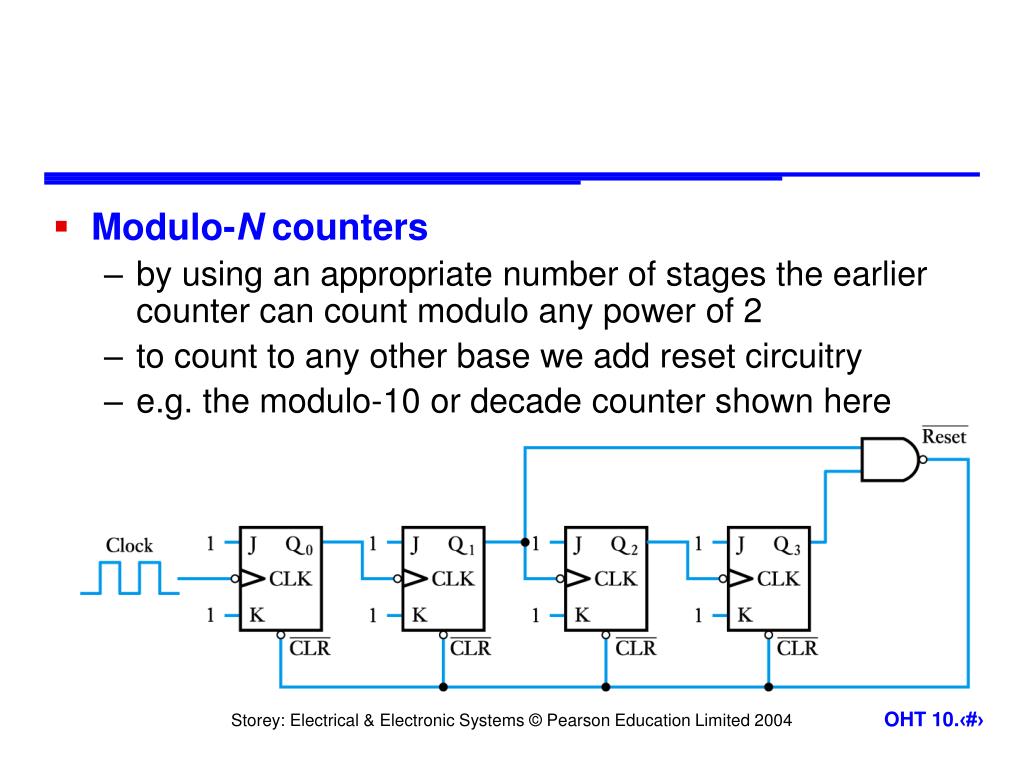

  23. Modulo-N counters • by using an appropriate number of stages the earlier counter can count modulo any power of 2 • to count to any other base we add reset circuitry • e.g. the modulo-10 or decade counter shown here

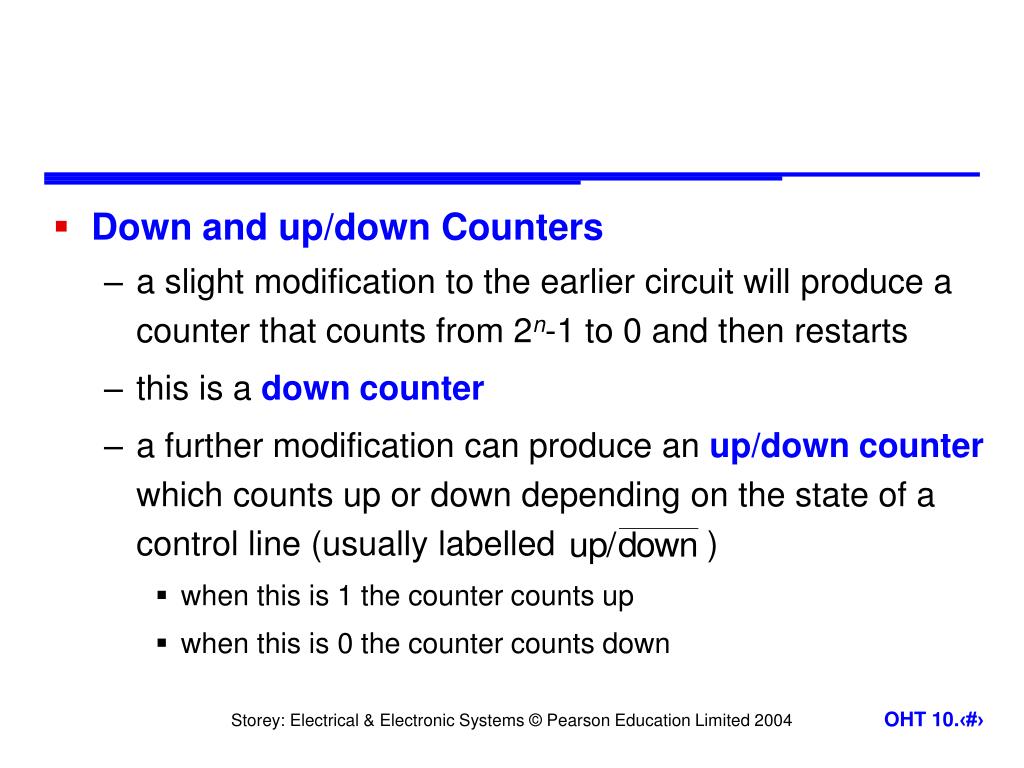

  24. Down and up/down Counters • a slight modification to the earlier circuit will produce a counter that counts from 2n-1 to 0 and then restarts • this is a down counter • a further modification can produce an up/down counter which counts up or down depending on the state of a control line (usually labelled ) • when this is 1 the counter counts up • when this is 0 the counter counts down

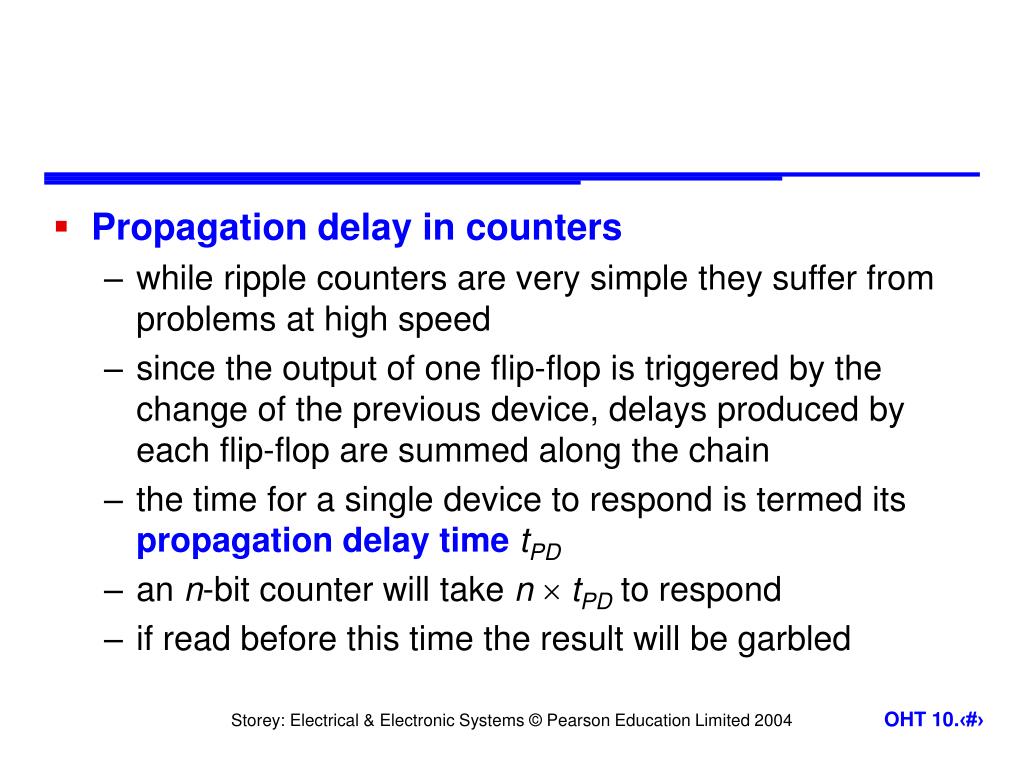

  25. Propagation delay in counters • while ripple counters are very simple they suffer from problems at high speed • since the output of one flip-flop is triggered by the change of the previous device, delays produced by each flip-flop are summed along the chain • the time for a single device to respond is termed its propagation delay timetPD • an n-bit counter will take n tPD to respond • if read before this time the result will be garbled

  26. Synchronous counters • these overcome the propagation delay in ripple counters by connecting all the flip-flops to the same clock signal • thus each stage changes state at the same time • additional circuitry is used to determine which stages change state on each clock pulse • faster than ripple counters but more complex • available in many forms including up, down, up/down and modulo-N counters

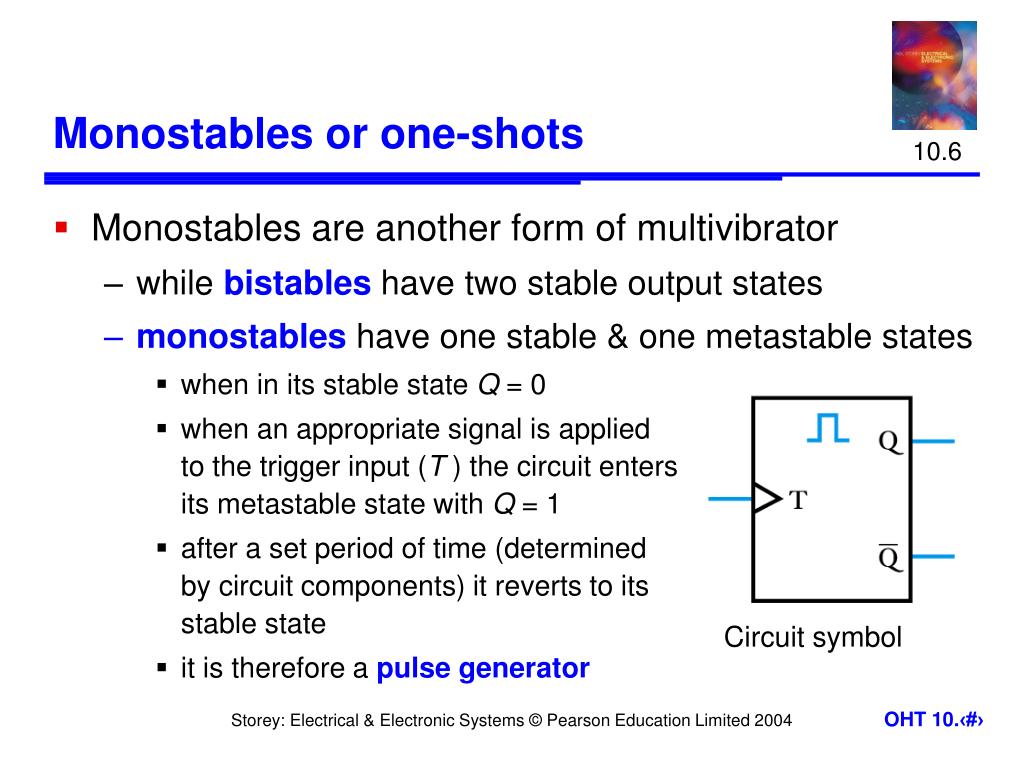

  27. 10.6 Monostables or one-shots • Monostables are another form of multivibrator • while bistables have two stable output states • monostables have one stable & one metastable states • when in its stable state Q = 0 • when an appropriate signal is applied to the trigger input (T ) the circuit enters its metastable state with Q = 1 • after a set period of time (determinedby circuit components) it reverts to itsstable state • it is therefore a pulse generator Circuit symbol

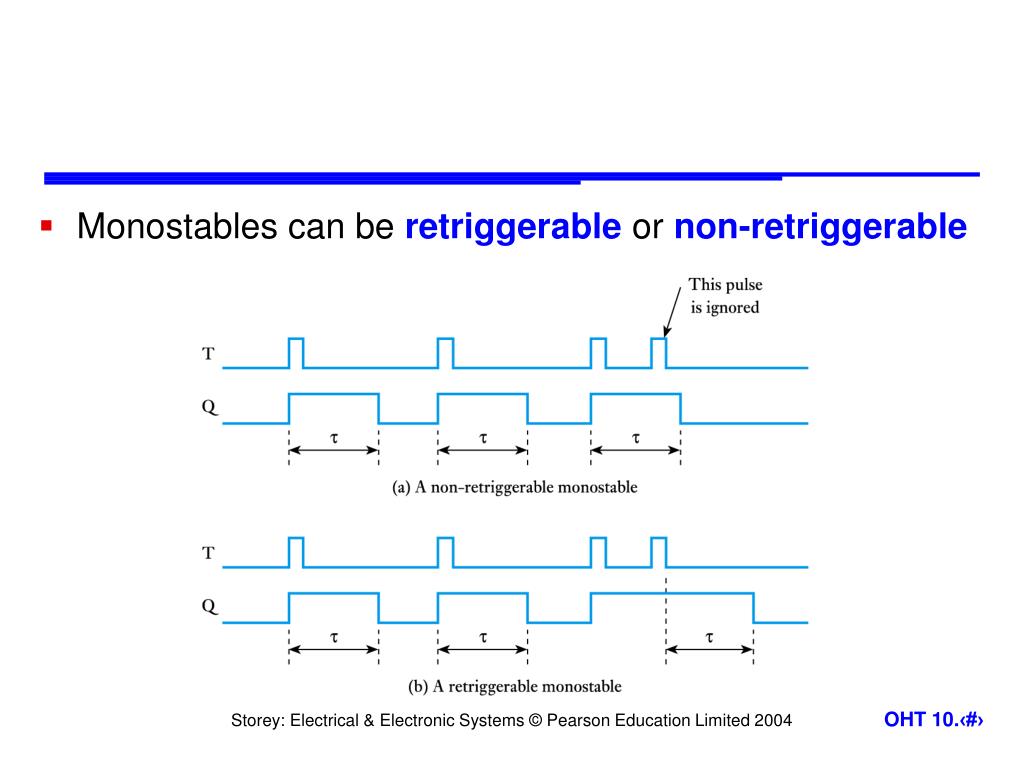

  28. Monostables can be retriggerable or non-retriggerable

  29. 10.7 Astables • The last member of the multivibrator family is the astable • this has two metastable states • has the function of a digital oscillator • circuit spends a fixed period in each state (determined by circuit components) • if the period in each state is set to be equal, this will produce a square waveform

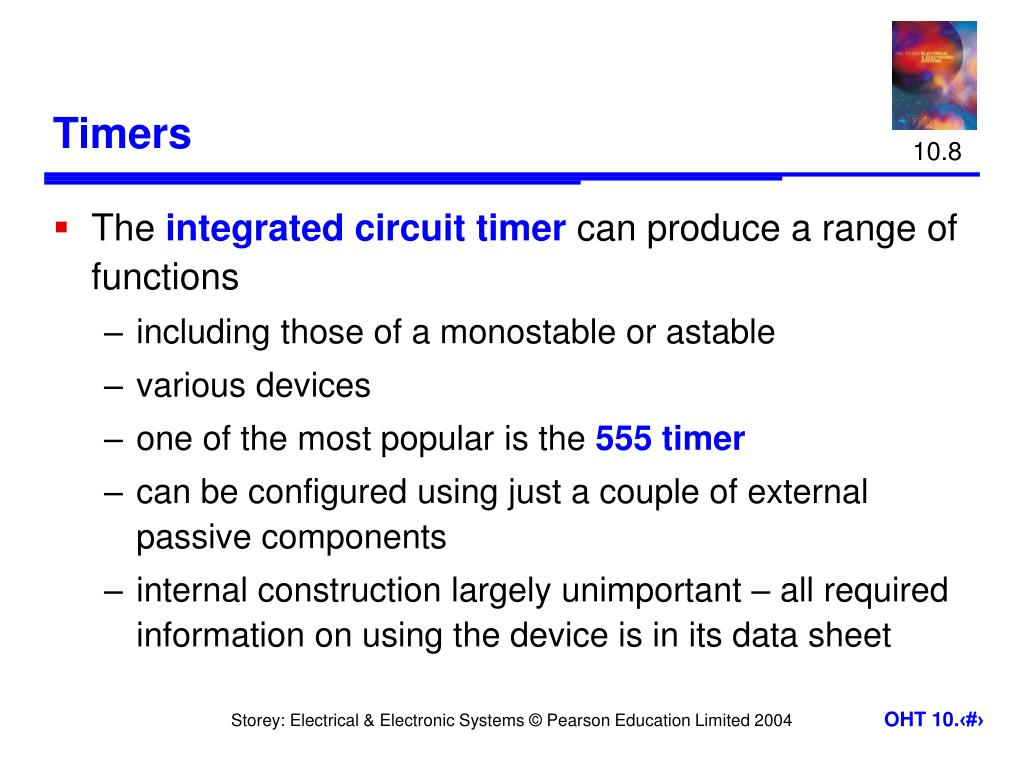

  30. 10.8 Timers • The integrated circuit timer can produce a range of functions • including those of a monostable or astable • various devices • one of the most popular is the 555 timer • can be configured using just a couple of external passive components • internal construction largely unimportant – all required information on using the device is in its data sheet

  31. Key Points • Sequential logic circuits have the characteristic of memory • Among the most important groups of sequential components are the various forms of multivibrator • bistables • monostables • astables • The most widely used form is the bistable which includes • latches, edge-triggered flip-flops and master/slave devices • Registers form the basis of various memories • Counters are widely used in a range of applications • Monostables and astables perform a range of functions
