ELEC 7770 Advanced VLSI Design Spring 2007 Logic Equivalence

1. ELEC 7770Advanced VLSI DesignSpring 2007Logic Equivalence Vishwani D. Agrawal James J. Danaher Professor ECE Department, Auburn University Auburn, AL 36849 vagrawal@eng.auburn.edu http://www.eng.auburn.edu/~vagrawal/COURSE/E7770_Spr07 ELEC 7770: Advanced VLSI Design (Agrawal)

2. Equivalence Checking • Definition: Establishing that two circuits are functionally equivalent. • Applications: • Verify that a design is identical to specification. • Verify that synthesis did not change the function. • Verify that corrections made to a design did not create new errors. ELEC 7770: Advanced VLSI Design (Agrawal)

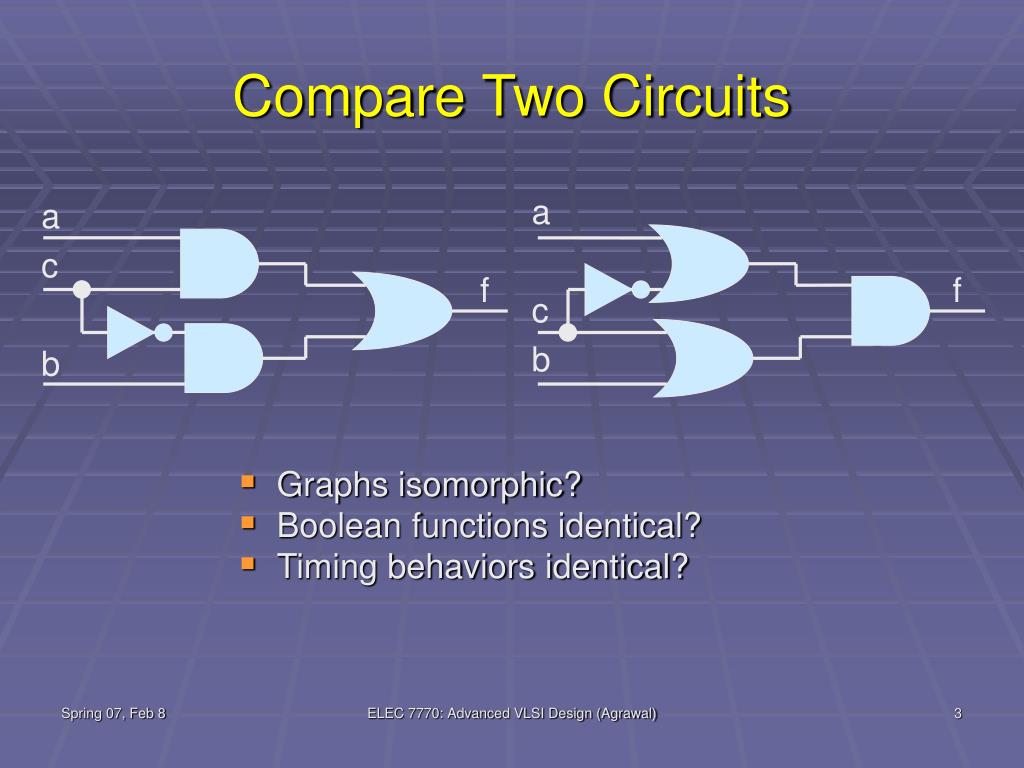

3. Compare Two Circuits • Graphs isomorphic? • Boolean functions identical? • Timing behaviors identical? a c b a c b f f ELEC 7770: Advanced VLSI Design (Agrawal)

4. ATPG Approach (Miter) Circuit 1 (Verified design) • Redundancy of a stuck-at-0 fault, checked by ATPG, establishes equivalence of the corresponding output pair. • If the fault is detectable, its tests are used to diagnose the differences. stuck-at-0 Circuit 2 (Sythesized or modified design) stuck-at-0 ELEC 7770: Advanced VLSI Design (Agrawal)

5. Difficulties with Miter • ATPG is NP-complete • When circuits are equivalent, proving redundancy of faults is computationally expensive. • When circuits are different, test vectors are quickly found, but diagnosis is difficult. ELEC 7770: Advanced VLSI Design (Agrawal)

6. A Heuristic Approach • Derive V1, test vectors for all faults in C1. • Derive V2, test vectors for all faults in C2. • If the combined set, V1+V2, produces the same outputs from the two circuits, then they are probably equivalent. • Reference: V. D. Agrawal, “Choice of Tests for Logic Verification and Equivalence Checking and the Use of Fault Simulation,” Proc. 13th International Conf. VLSI Design, January 2000, pp. 306-311. ELEC 7770: Advanced VLSI Design (Agrawal)

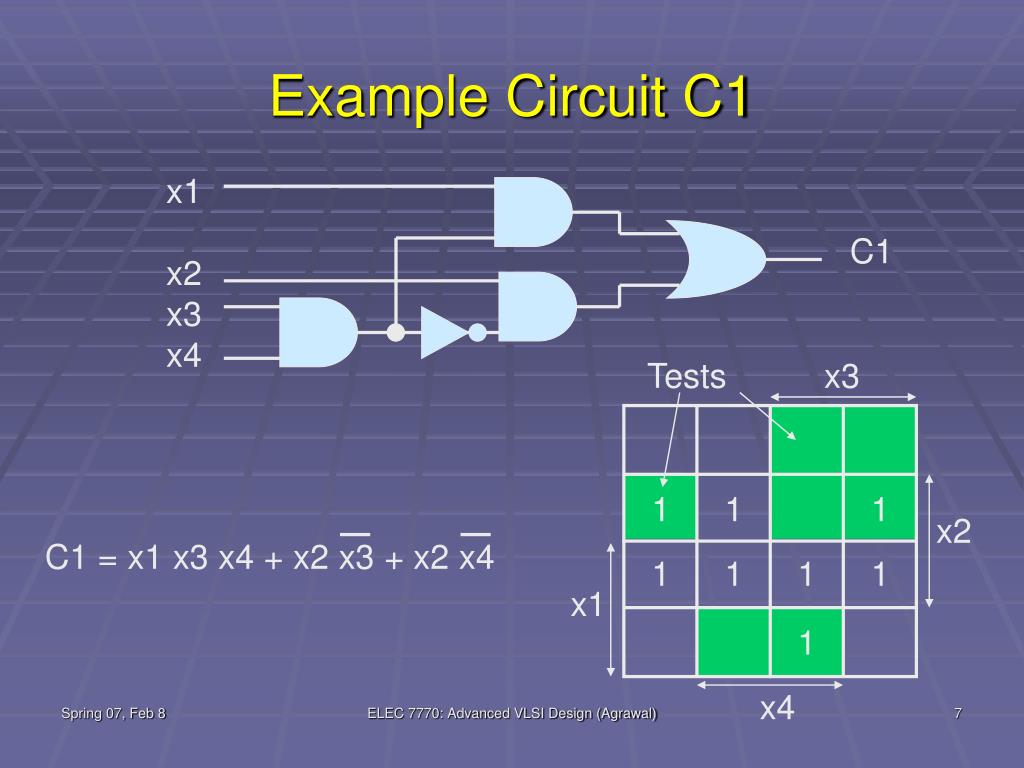

7. C1 = x1 x3 x4 + x2 x3 + x2 x4 Example Circuit C1 x1 x2 x3 x4 C1 Tests x3 1 1 1 x2 1 1 1 1 x1 1 x4 ELEC 7770: Advanced VLSI Design (Agrawal)

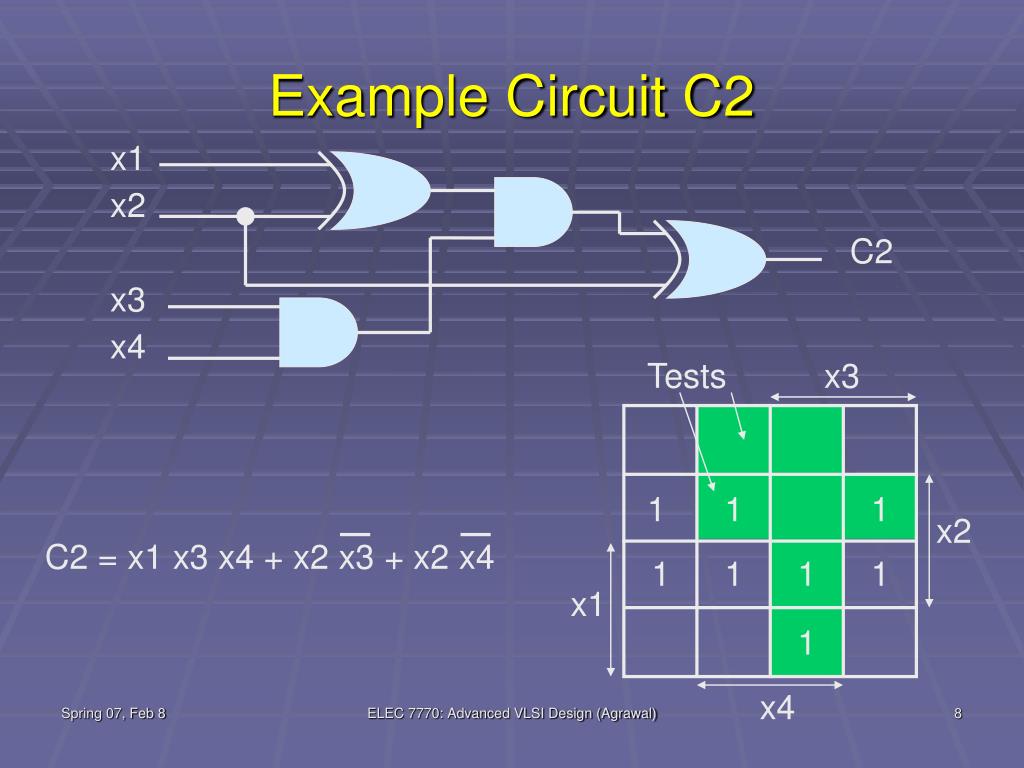

8. C2 = x1 x3 x4 + x2 x3 + x2 x4 Example Circuit C2 x1 x2 x3 x4 C2 Tests x3 1 1 1 x2 1 1 1 1 x1 1 x4 ELEC 7770: Advanced VLSI Design (Agrawal)

9. C1 ≡ C2 Tests x3 Tests x3 1 1 1 1 1 1 x2 x2 1 1 1 1 1 1 1 1 x1 x1 1 1 x4 x4 C1 C2 ELEC 7770: Advanced VLSI Design (Agrawal)

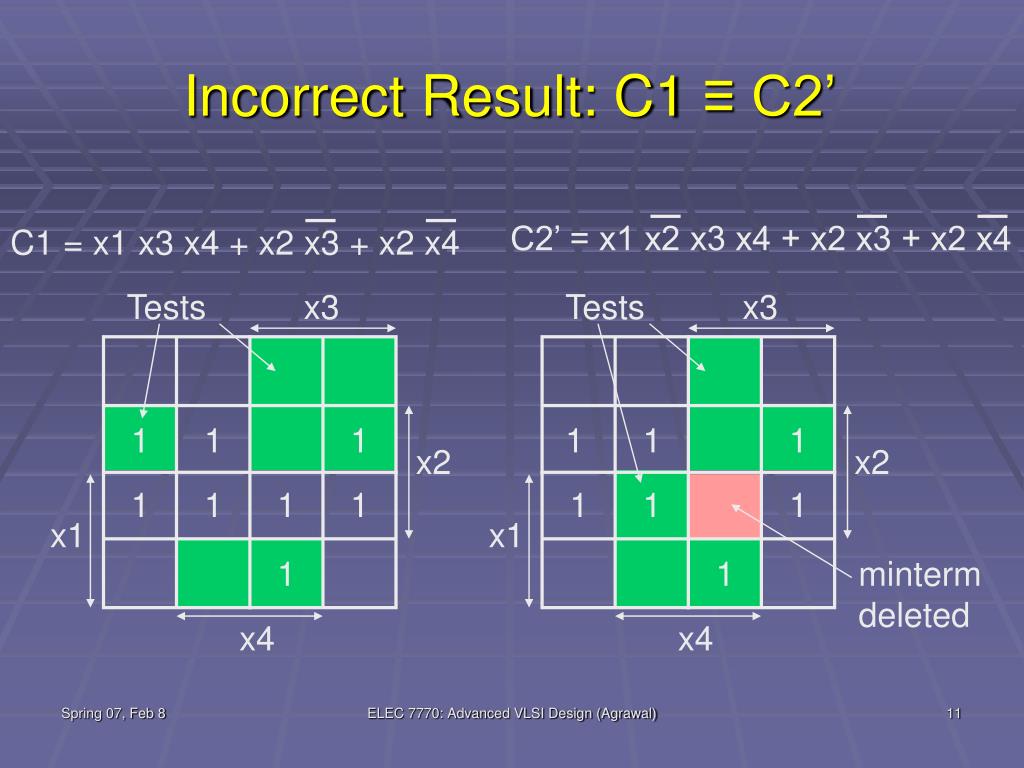

10. C2 = x1 x3 x4 + x2 x3 + x2 x4 C2’ = x1 x2 x3 x4 + x2 x3 + x2 x4 C2’: Erroneous Implementation of C2 x1 x2 x3 x4 C2’ Tests x3 1 1 1 x2 1 1 1 x1 1 minterm deleted x4 ELEC 7770: Advanced VLSI Design (Agrawal)

11. C1 = x1 x3 x4 + x2 x3 + x2 x4 C2’ = x1 x2 x3 x4 + x2 x3 + x2 x4 Incorrect Result: C1 ≡ C2’ Tests x3 Tests x3 1 1 1 1 1 1 x2 x2 1 1 1 1 1 1 1 x1 x1 1 1 minterm deleted x4 x4 ELEC 7770: Advanced VLSI Design (Agrawal)

12. Additional Safeguard s-a-0 C1 (Verified design) • Simulate V1+V2 for equivalence: • Output always 0 • No single fault on PI’s detected • Still not perfect 0 s-a-1 C2 (Sythesized or modified design) ELEC 7770: Advanced VLSI Design (Agrawal)

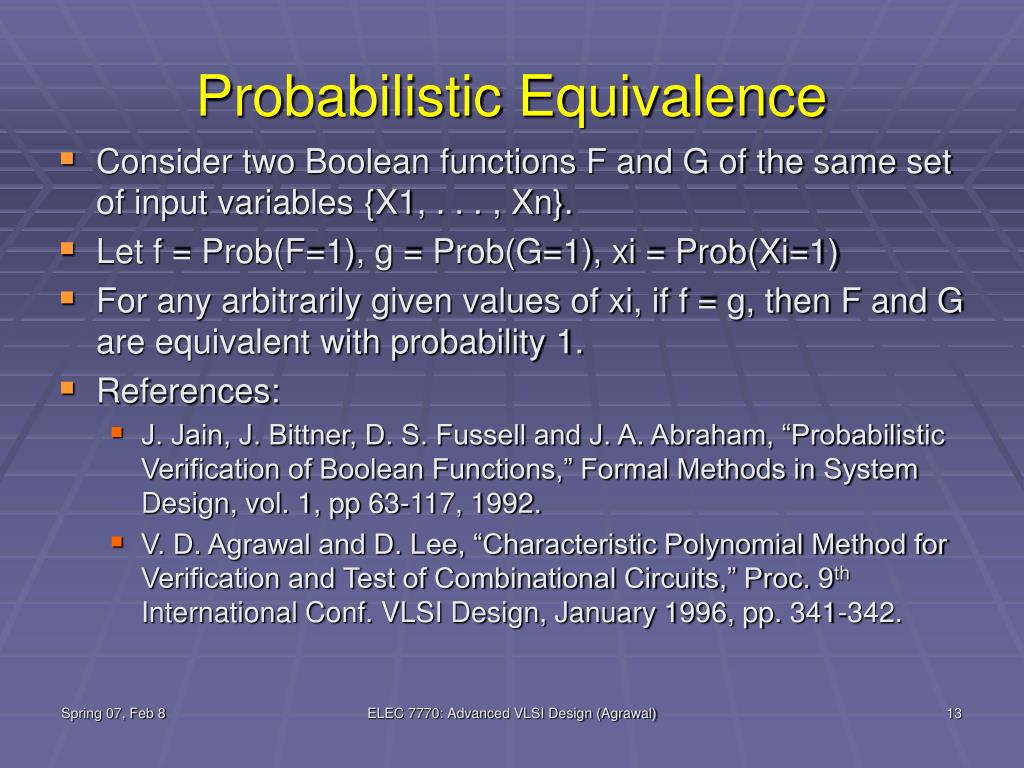

13. Probabilistic Equivalence • Consider two Boolean functions F and G of the same set of input variables {X1, . . . , Xn}. • Let f = Prob(F=1), g = Prob(G=1), xi = Prob(Xi=1) • For any arbitrarily given values of xi, if f = g, then F and G are equivalent with probability 1. • References: • J. Jain, J. Bittner, D. S. Fussell and J. A. Abraham, “Probabilistic Verification of Boolean Functions,” Formal Methods in System Design, vol. 1, pp 63-117, 1992. • V. D. Agrawal and D. Lee, “Characteristic Polynomial Method for Verification and Test of Combinational Circuits,” Proc. 9th International Conf. VLSI Design, January 1996, pp. 341-342. ELEC 7770: Advanced VLSI Design (Agrawal)

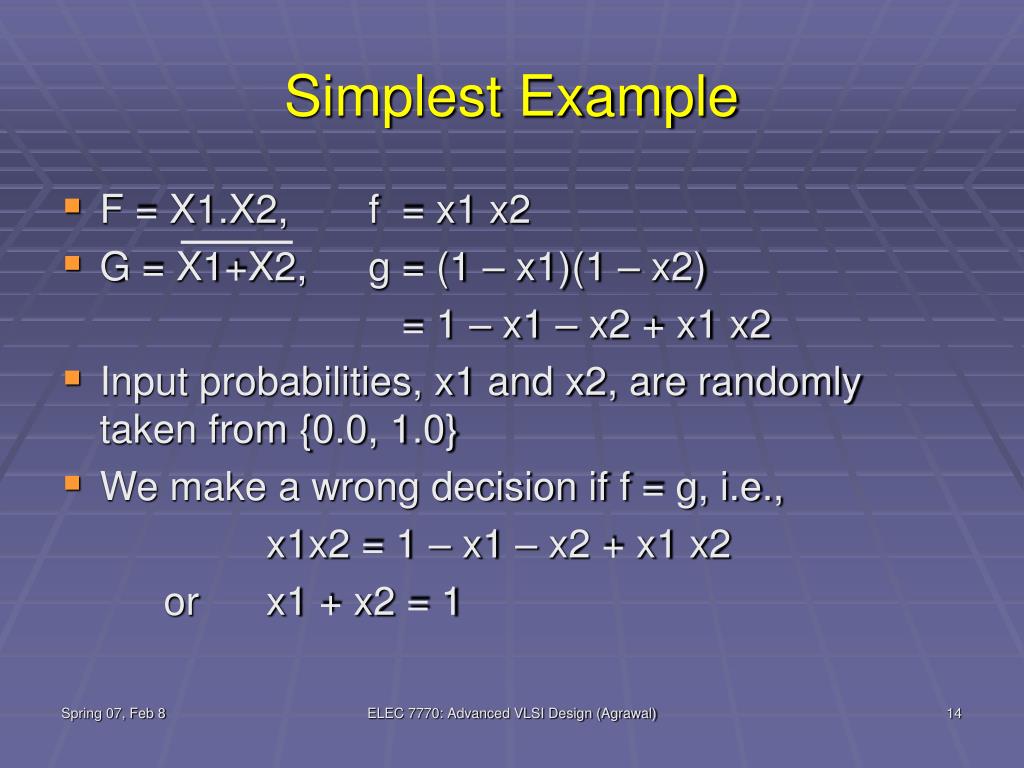

14. Simplest Example • F = X1.X2, f = x1 x2 • G = X1+X2, g = (1 – x1)(1 – x2) = 1 – x1 – x2 + x1 x2 • Input probabilities, x1 and x2, are randomly taken from {0.0, 1.0} • We make a wrong decision if f = g, i.e., x1x2 = 1 – x1 – x2 + x1 x2 or x1 + x2 = 1 ELEC 7770: Advanced VLSI Design (Agrawal)

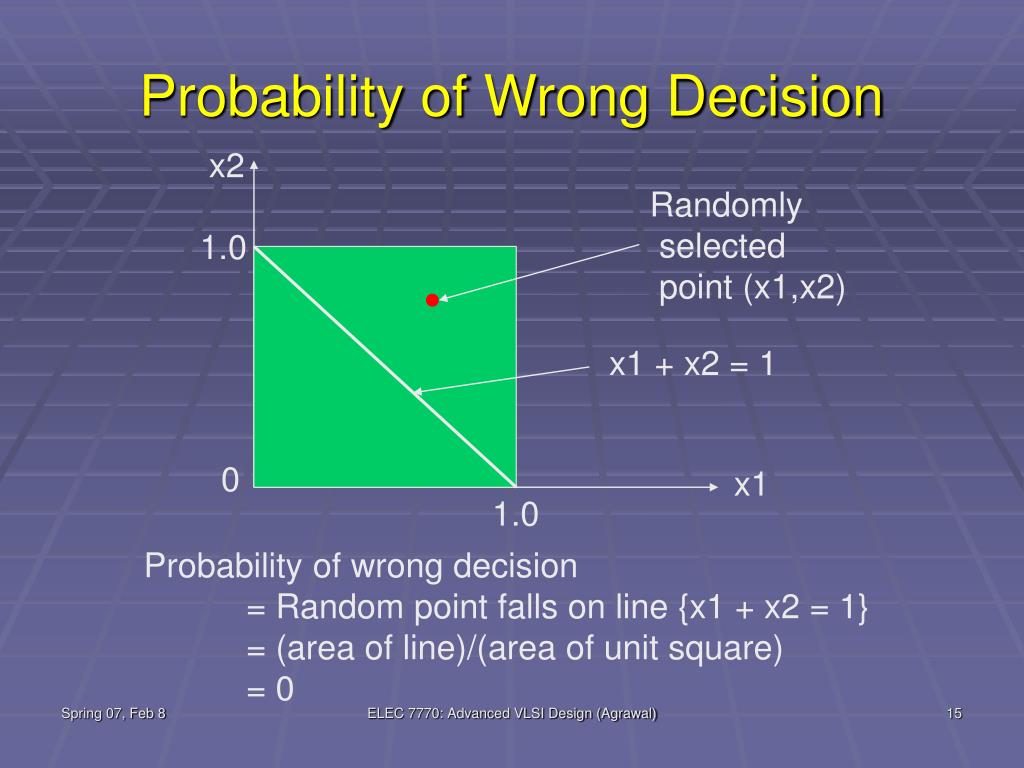

15. Probability of Wrong Decision x2 Randomly selected point (x1,x2) 1.0 x1 + x2 = 1 0 x1 1.0 Probability of wrong decision = Random point falls on line {x1 + x2 = 1} = (area of line)/(area of unit square) = 0 ELEC 7770: Advanced VLSI Design (Agrawal)

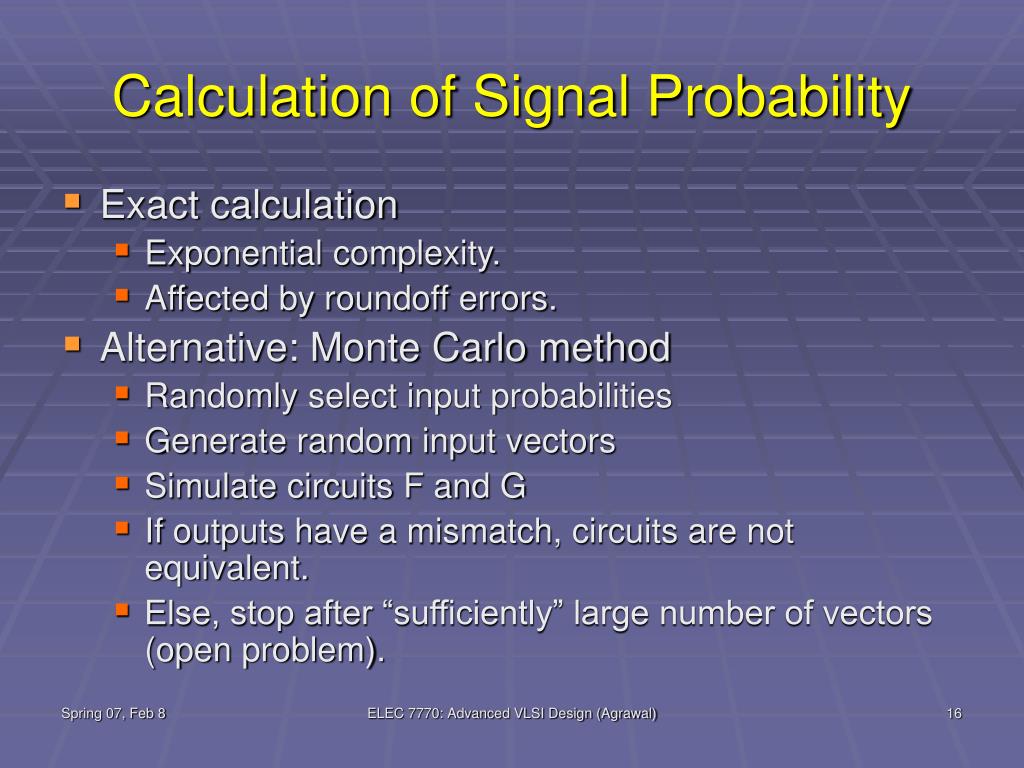

16. Calculation of Signal Probability • Exact calculation • Exponential complexity. • Affected by roundoff errors. • Alternative: Monte Carlo method • Randomly select input probabilities • Generate random input vectors • Simulate circuits F and G • If outputs have a mismatch, circuits are not equivalent. • Else, stop after “sufficiently” large number of vectors (open problem). ELEC 7770: Advanced VLSI Design (Agrawal)

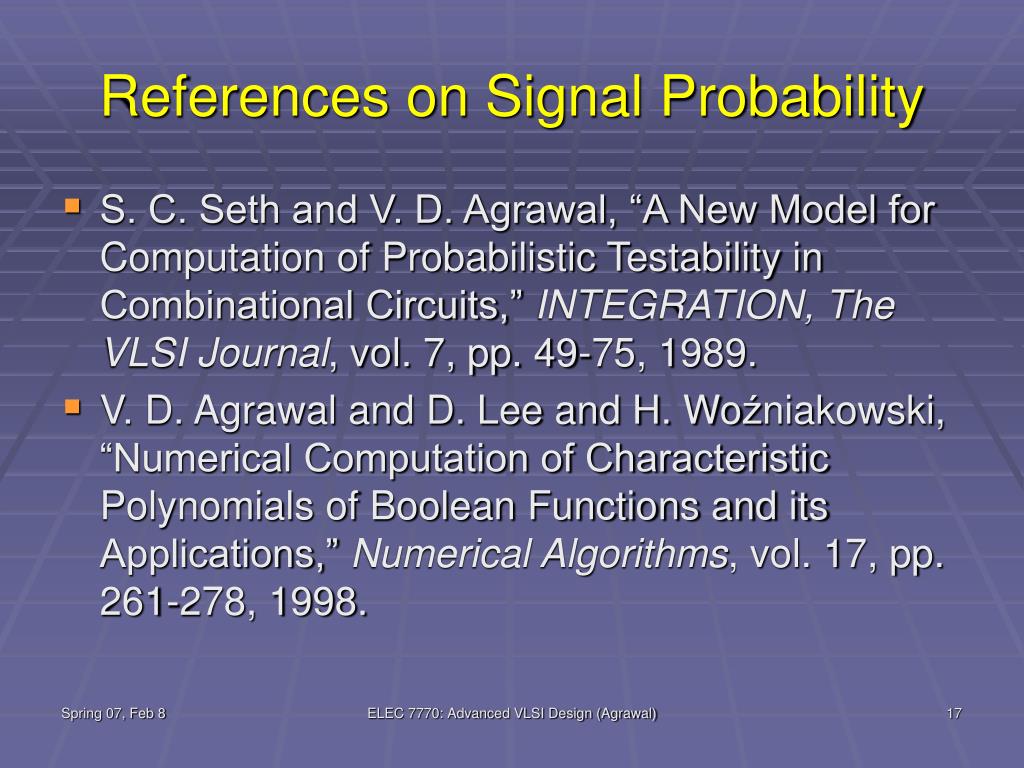

17. References on Signal Probability • S. C. Seth and V. D. Agrawal, “A New Model for Computation of Probabilistic Testability in Combinational Circuits,” INTEGRATION, The VLSI Journal, vol. 7, pp. 49-75, 1989. • V. D. Agrawal and D. Lee and H. Woźniakowski, “Numerical Computation of Characteristic Polynomials of Boolean Functions and its Applications,” Numerical Algorithms, vol. 17, pp. 261-278, 1998. ELEC 7770: Advanced VLSI Design (Agrawal)

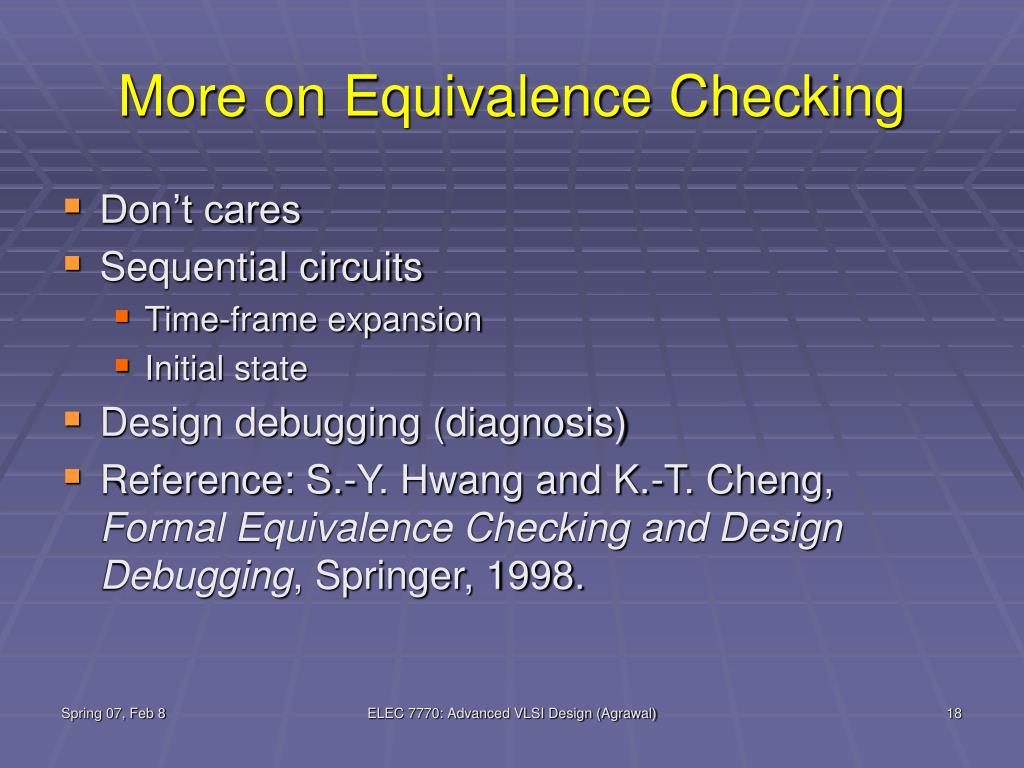

18. More on Equivalence Checking • Don’t cares • Sequential circuits • Time-frame expansion • Initial state • Design debugging (diagnosis) • Reference: S.-Y. Hwang and K.-T. Cheng, Formal Equivalence Checking and Design Debugging, Springer, 1998. ELEC 7770: Advanced VLSI Design (Agrawal)
