Presentation Transcript


Slide1 l.jpg

Next Experiment:

Western Blot of Myoglobin

Brief Overview

Intro to Immunology


Slide2 l.jpg

Figure 8-39bRepresentations of the X-ray structure of sperm whale myoglobin. (b)A diagram in which the protein is represented by its computer-generated Ca backbone.

Page 244


Slide3 l.jpg

Figure 8-39cRepresentations of the X-ray structure of sperm whale myoglobin. (c)A computer-generated cartoon drawing in an orientation similar to that of Part b.

Page 244

Mb structure

Protein Workshop


Slide4 l.jpg

http://www.merck.de/servlet/PB/menu/1141240/index.html


Slide5 l.jpg

  • Affinity Chromatography

  • Affinity chromatography can be used to purify proteins that have a high specific affinity to some chemical group

  • For example, concanavalin A is a sugar-binding protein with a high affinity for glucose (and mannose)

  • A column with glucose residues attached will retain concanavalin A, which can then be later released by adding a solution of free glucose

  • This technique is not always be applicable because the specific high-affinity groups are not always available

  • For certain categories of proteins such as transcription factors, the high affinity group can be a specific sequence of DNA, which is easily prepared


  • Slide6 l.jpg

    • Affinity Chromatography

  • Affinity chromatography can be used to purify proteins that have a high specific affinity to some chemical group

    • For example, concanavalin A is a sugar-binding protein with a high affinity for glucose (and mannose)

    • A column with glucose residues attached will retain concanavalin A, which can then be later released by adding a solution of free glucose

    • This technique is not always be applicable because the specific high-affinity groups are not always available

    • For certain categories of proteins such as transcription factors, the high affinity group can be a specific sequence of DNA, which is easily prepared


    Slide7 l.jpg

    Immobilized Metal Ion Affinity Chromatography (IMAC)

    Immobilized Metal Ion Affinity Chromatography (IMAC) with Ni2+ is the standard method for purifying proteins with a lot of surface histidine or for engineered His-tagged proteins.

    The (His)6-tag has become the most used affinity tag due to its small size, strong metal ion binding and ability to bind also under denaturing conditions.

    How could you create a his tag?


    Slide10 l.jpg

    In our experiment, the immobilized metal is Zn+2


    Slide11 l.jpg

    Mb has 12 inherent his

    with high Zn+2 affinity


    Antibody binding is highly specific l.jpg

    Antibody binding is highly specific

    How is this specificity mediated?

    Complementarity: receptor/ligand binding is essentially pattern recognition between two complementary surfaces.

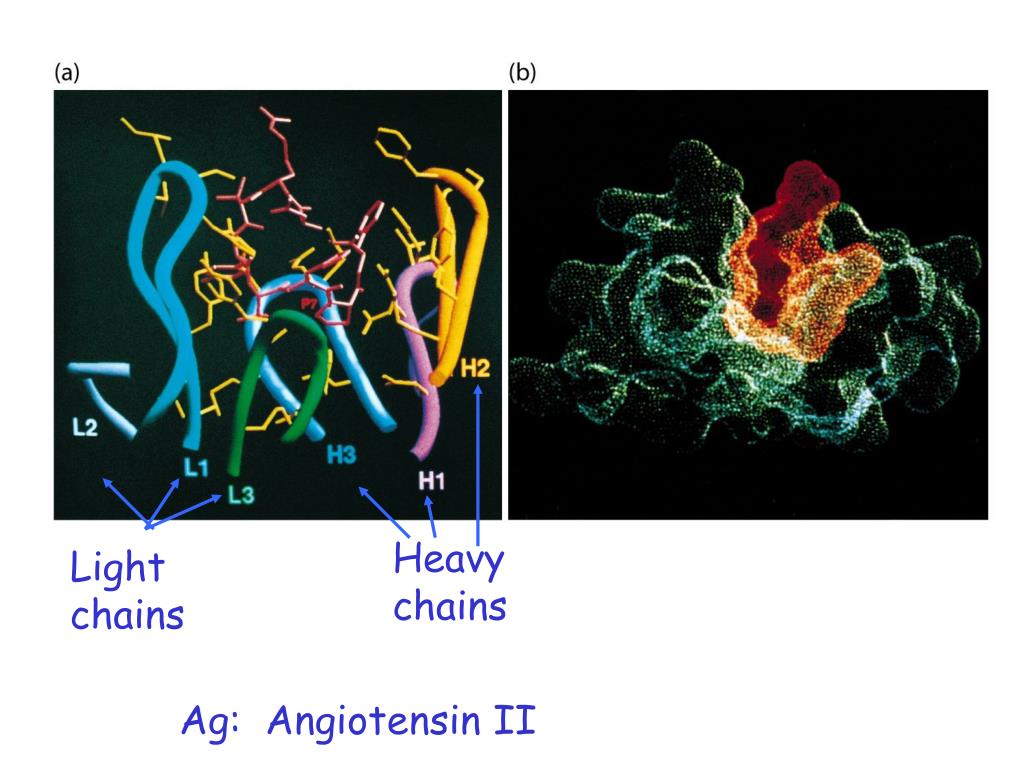

    Slide17 l.jpg

    Heavy

    chains

    Light

    chains

    Ag: Angiotensin II


    Slide18 l.jpg

    Ag: HIV protease fragment


    Slide23 l.jpg

    Stryer Fig. 4.36 Western blot.


    Slide26 l.jpg

    Antibodies make great

    antigens!


    Slide28 l.jpg

    One antigen,

    many epitopes,

    many Ab classes

    One antigen,

    one epitope,

    one Ab class


    Slide40 l.jpg

    Enzyme Linked Immunosorbent Assay (ELISA)


    Slide43 l.jpg

    Immunotherapeutics
