Pertemuan 18 control unit 1

Pertemuan 18Control Unit 1

Matakuliah: H0344/Organisasi dan Arsitektur Komputer

Tahun: 2005

Versi: 1/1


Learning outcomes

Learning Outcomes

Pada akhir pertemuan ini, diharapkan mahasiswa

akan mampu :

  • Menjelaskan prinsip kerja control unit dalam mengeksekusi beberapa instruction


Outline materi

Outline Materi

  • Micro-Operations

  • Control of Processor

  • Hardwired Implementation


Pertemuan 18 control unit 1

Micro-operation

Constituent elements of a program execution


Pertemuan 18 control unit 1

Micro-operation

The fetch cycle

t1 : MAR  PC

t2 :MBR  Memory

PC  PC + 1

t3 : IR  MBR


Pertemuan 18 control unit 1

Micro-operation

The indirect cycle

t1 : MAR  IR(address)

t2 :MBR  Memory

t3 : IR(address)  MBR(address)

The interrupt cycle

t1 : MBR  PC

t2 :MAR  Save_address

PC  Routine_address

t3 : Memory  MBR


Pertemuan 18 control unit 1

Micro-operation

The execute cycle

t1 : MAR  IR(address)

t2 :MBR  Memory

t3 : R1  R1 + MBR

Add R1, X

t1 : MAR  IR(address)

t2 :MBR  Memory

t3 : MBR  MBR + 1

t4 :Memory  MBR

If (MBR = 0) then (PC  PC + 1)

Isz X

t1 : MAR  IR(address)

MBR  PC

t2 : PC  IR(address)

Memory  MBR

t3 :PC  PC + 1

Bsa X


Pertemuan 18 control unit 1

Micro-operation

Flowchart for instruction cycle


Pertemuan 18 control unit 1

Control of The processor

Model of the control unit


Pertemuan 18 control unit 1

Control of The processor

Data paths and control signals


Pertemuan 18 control unit 1

Control of The processor

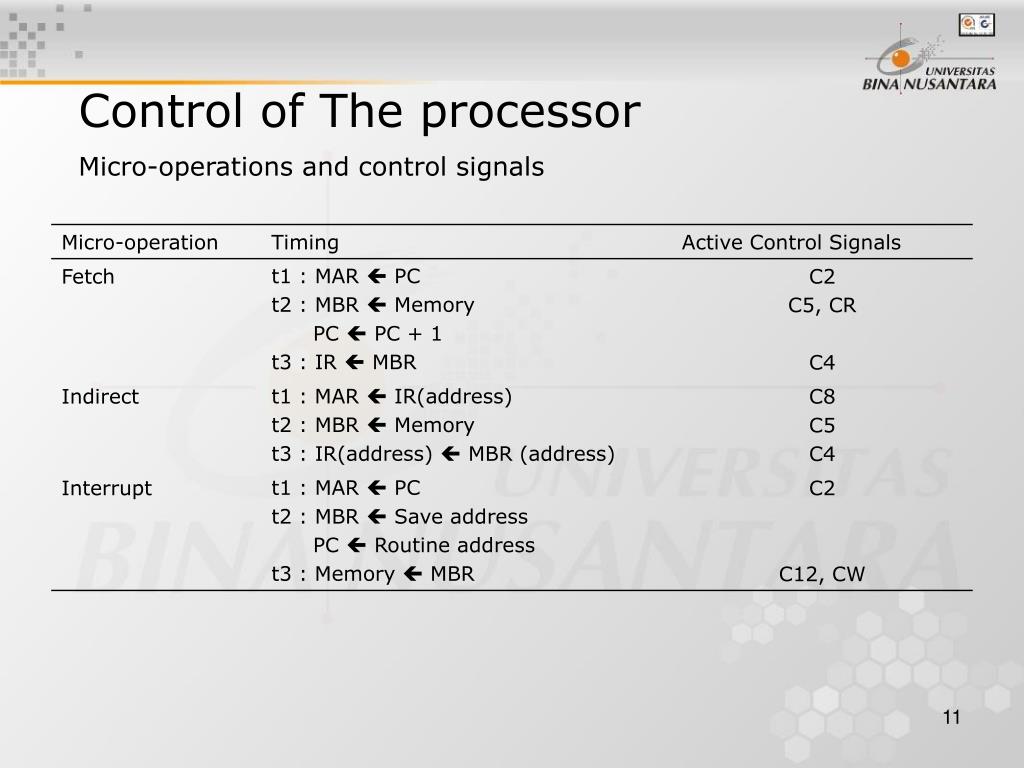

Micro-operations and control signals


Pertemuan 18 control unit 1

Control of the processor

Internal Processor Organization


Pertemuan 18 control unit 1

Hardwired implementation
