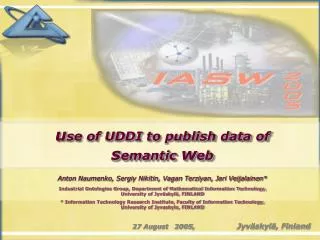

U se of uddi to publish data of s emantic w eb

use of UDDI to publish data of semantic web

Anton Naumenko, Sergiy Nikitin, Vagan Terziyan, Jari Veijalainen*

Industrial Ontologies Group, Department of Mathematical Information Technology, University of Jyväskylä, FINLAND

* Information Technology Research Institute, Faculty of Information Technology, University of Jyvaskyla, FINLAND

Jyväskylä, Finland

27 August   2005,


Asg project

ASG project

”Combine the Services”

  • Interlock

  • the performance-oriented

  • grid community

  • and

  • the application-services-oriented

  • W3C-world

  • using

  • the advantages of

  • - Open Grid Service Interface

  • - Web Service Description Language

  • and

  • Web Service Resource Framework

  • to develop an

  • Open Platform for adaptive services

  • discovery, creation, composition, and

  • enactment with business-oriented

  • Quality of Service functionality

  • = Adaptive Services Grid

asg-platform.org / [email protected]


Scenarios

Scenarios

  • Three application areas:

    • Telecommunication

    • Car Problem Solving Service

    • Enterprise IT

  • Common in these scenarios is the need to create advanced services, based on service components from different actors.

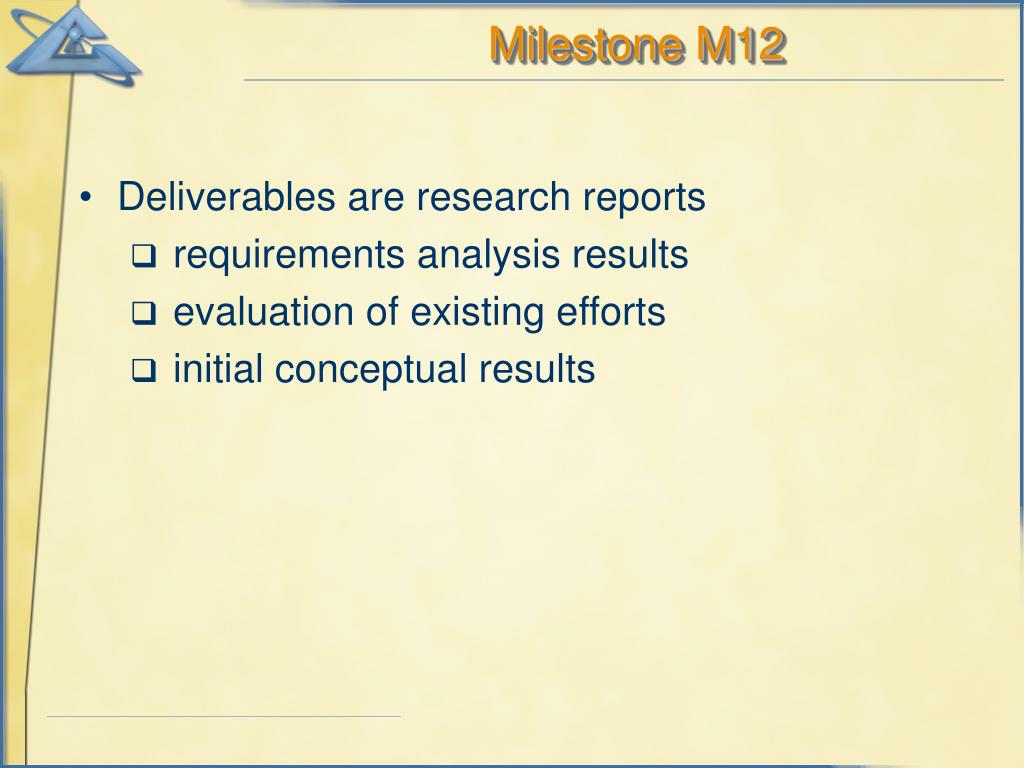

Milestone m12

Milestone M12

  • Deliverables are research reports

    • requirements analysis results

    • evaluation of existing efforts

    • initial conceptual results


Milestone m18

Milestone M18

  • The most important conceptual results have been prototypically implemented in tools integrated to build the core ASG platform.

  • Deliverables of this milestone

    • research reports

    • prototypical tool implementations

    • scenarios

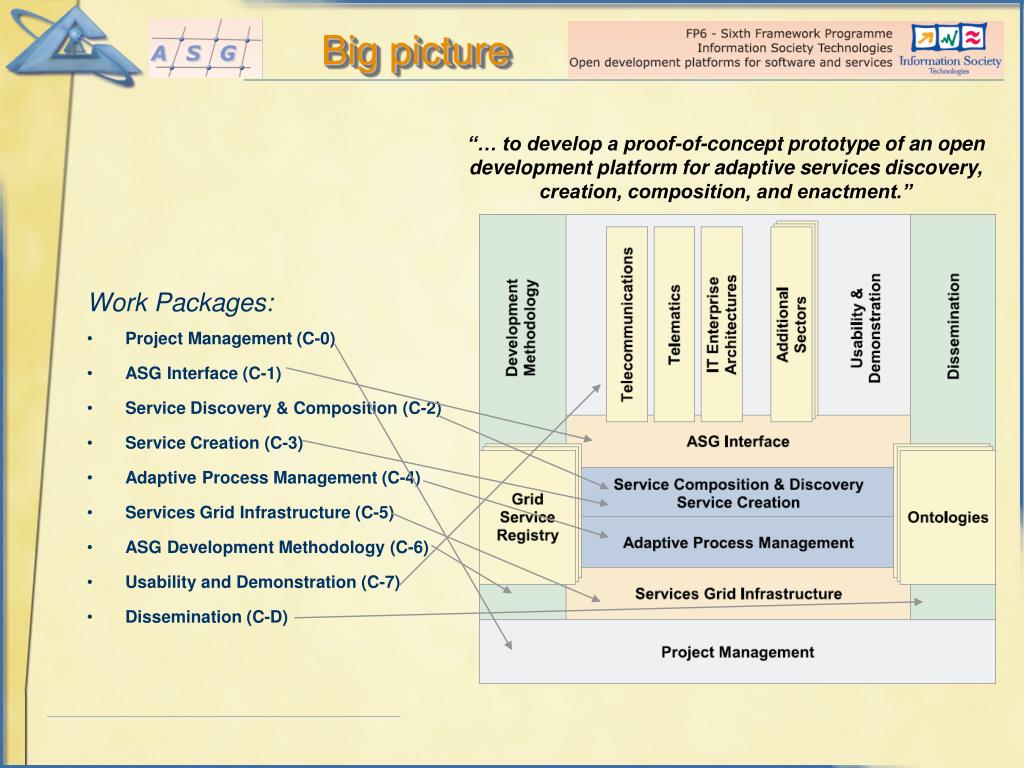

Big picture

Big picture

“… to develop a proof-of-concept prototype of an open development platform for adaptive services discovery, creation, composition, and enactment.”

Work Packages:

  • Project Management (C-0)

  • ASG Interface (C-1)

  • Service Discovery & Composition (C-2)

  • Service Creation (C-3)

  • Adaptive Process Management (C-4)

  • Services Grid Infrastructure (C-5)

  • ASG Development Methodology (C-6)

  • Usability and Demonstration (C-7)

  • Dissemination (C-D)

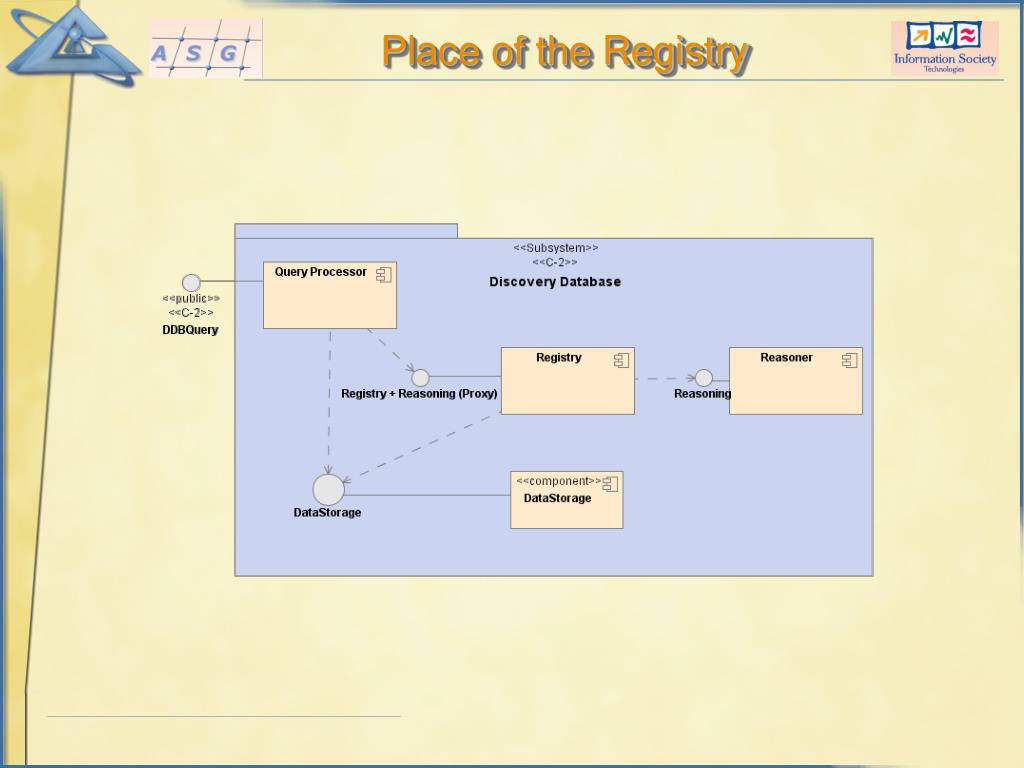

Place of the registry

Place of the Registry


Asg project1

ASG project

Role of the Registry in composed service invocation


U se of uddi to publish data of s emantic w eb

Labelled data

Labelled data

Smart Resource 2005 Scenario

“Expert”

“Knowledge Transfer from Expert to Service”

Labelled data

Watching and querying diagnostic data

Querying diagnostic results

“Device”

“Service”

Labelled data

History data

Querying data for learning

Learning sample and Querying diagnostic results

Diagnostic model


U se of uddi to publish data of s emantic w eb

GUN Concept:

All GUN resources “understand” each other…

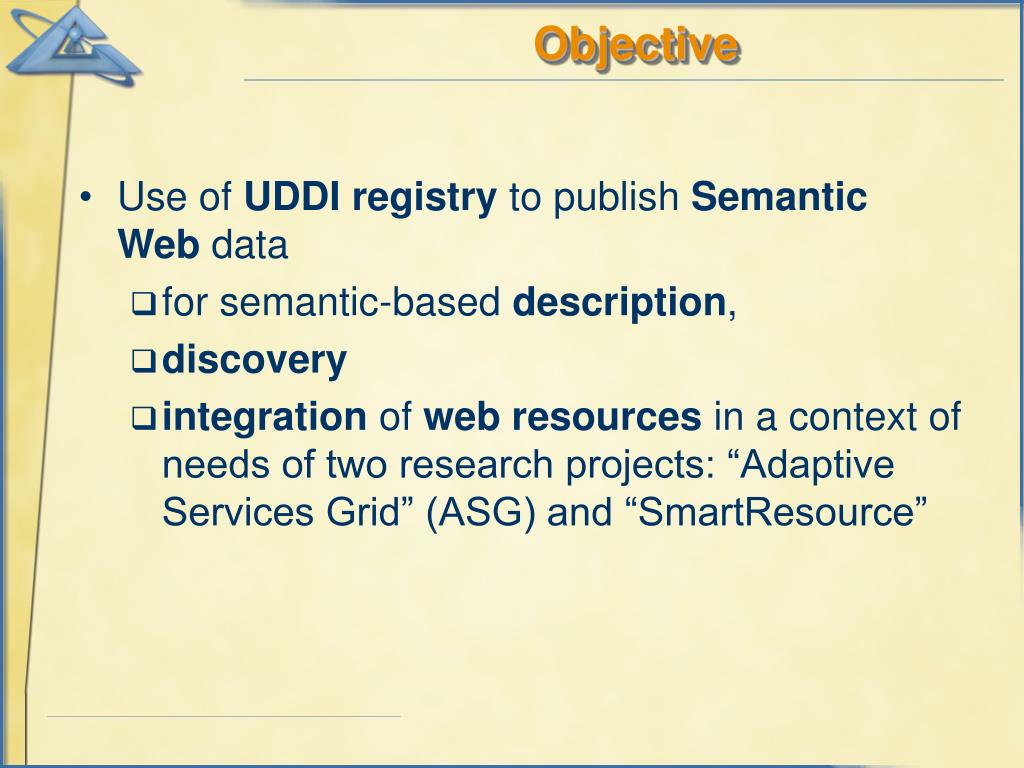

Objective

Objective

  • Use of UDDIregistry to publish Semantic Web data

    • for semantic-based description,

    • discovery

    • integration of web resources in a context of needs of two research projects: “Adaptive Services Grid” (ASG) and “SmartResource”


Approach

Approach

  • Mapping of RDFS upper concepts to UDDI data model using tModel structure, which makes possible to store semantically annotated resources internally in UDDI

  • UDDI as an enabling specification for creation of a semantic registry for web resources in general


Semantic annotation

Semantic Annotation

  • A description of entities using Semantic Web standards

  • A prerequisite to allow semantic discovering and integration.

  • In the context of UDDI, an entity of the semantic annotation would be a Web Service and businesses, business services and technical information that is a target of a binding.

  • Consider each resource entity (not just a web service) as a subject of the semantic annotation, registering, discovering, composition, enactment, integration, etc.


Related work 1

Related work 1

  • Solution extends service descriptions using RDF and changes UDDI APIs for support of semantic search.

L. Moreau, S. Miles, J. Papay, K. Decker, T. Payne,

“Publishing Semantic Descriptions of Services”, Semantic Grid Workshop at GGF9, 2005


Related work 2

Related work 2

UDDI+ server

  • introduces additional elements like

    • a matchmaker,

    • an ontology repository,

    • a proxy API to invoke UDDI APIs.

  • Mapping of DAML-S to UDDI publish message

  • Unchanged UDDI Publish and Inquiry interface

S. Pokraev, J. Koolwaaij, M. Wibbels,

“Extending UDDI with Context-Aware Features Based on Semantic Service Descriptions”,

Proceedings of the International Conference on Web Services, ICWS '03, June 23 - 26, 2003,

Las Vegas, Nevada, USA. CSREA Press 2003, ISBN 1-892512-49-1, pp. 184-190

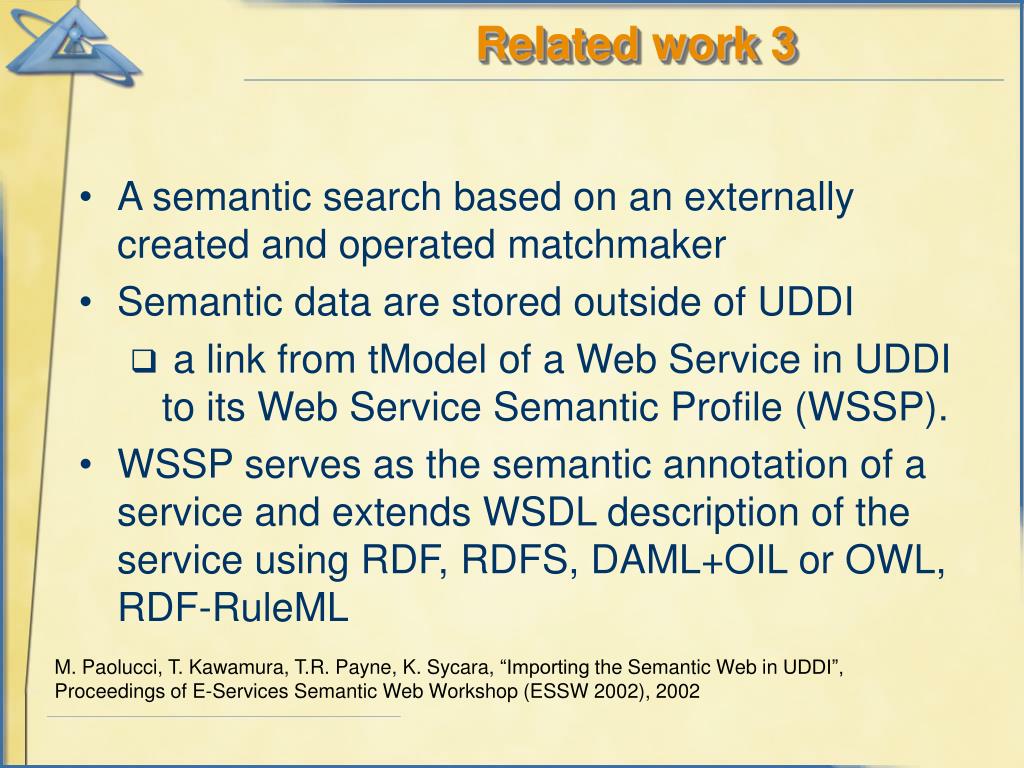

Related work 3

Related work 3

  • A semantic search based on an externally created and operated matchmaker

  • Semantic data are stored outside of UDDI

    • a link from tModel of a Web Service in UDDI to its Web Service Semantic Profile (WSSP).

  • WSSP serves as the semantic annotation of a service and extends WSDL description of the service using RDF, RDFS, DAML+OIL or OWL, RDF-RuleML

M. Paolucci, T. Kawamura, T.R. Payne, K. Sycara, “Importing the Semantic Web in UDDI”,

Proceedings of E-Services Semantic Web Workshop (ESSW 2002), 2002


Related work 4

Related work 4

  • A mapping of an OWL-S profile to the UDDI data model for a matchmaker architecture based on the Paolucci’s results (previous slide)

  • The difference from our approach:

    • OWL-S concepts to UDDI concepts

    • RDF triplet model to a data structure of tModel

N. Srinivasan, M. Paolucci, K. Sycara, “An Efficient Algorithm for OWL-S Based Semantic Search in UDDI”

Semantic Web Services and Web Process Composition, First International Workshop, SWSWPC 2004: 96-110


U se of uddi to publish data of s emantic w eb

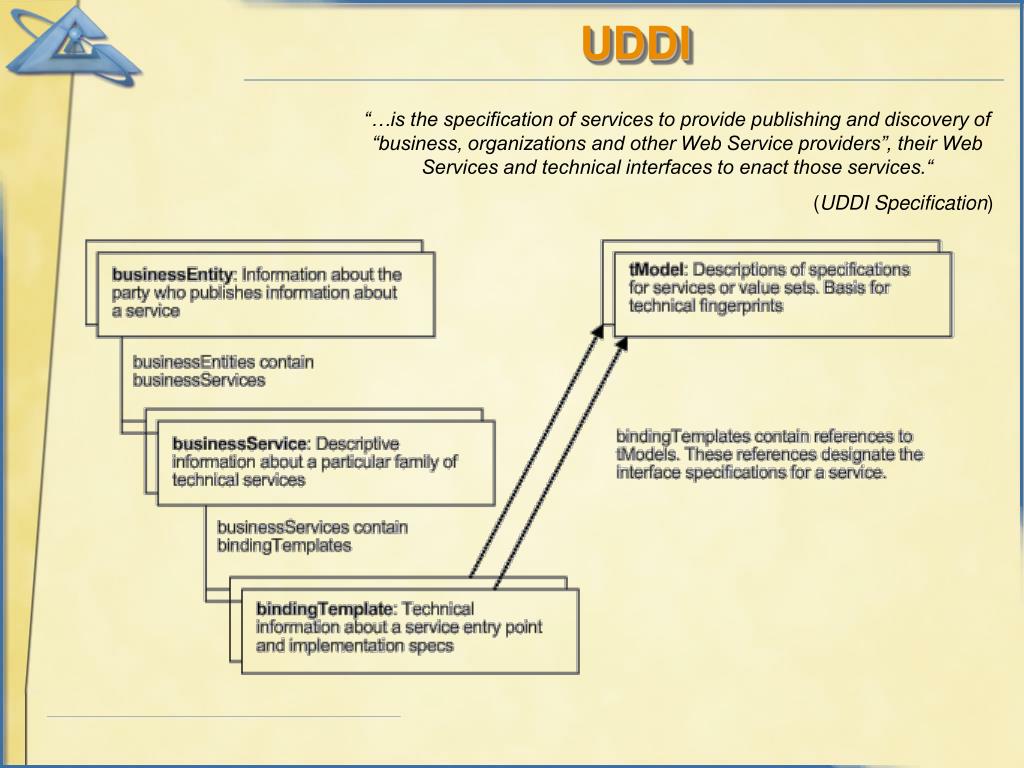

UDDI

“…is the specification of services to provide publishing and discovery of “business, organizations and other Web Service providers”, their Web Services and technical interfaces to enact those services.“

(UDDI Specification)


Tmodel structure

tModel Structure

Characteristics:

  • provides a reference system based on abstraction

  • provides the ability to describe compliance with specifications, concepts, or even shared design

  • is a keyed entity in UDDI


Mapping spo to uddi

Mapping SPO to UDDI

Predicate

Subject

Object


Mapping spo to uddi1

Mapping SPO to UDDI

Predicate

Subject

Object


Mapping spo to uddi 2

Mapping SPO to UDDI(2)

Predicate

Subject

Object


Mapping spo to uddi 3

Mapping SPO to UDDI(3)

Predicate

Subject

Object


Xml view

XML view


Publishing of rdf schema concepts

Publishing of RDF-Schema concepts


New concepts

New concepts

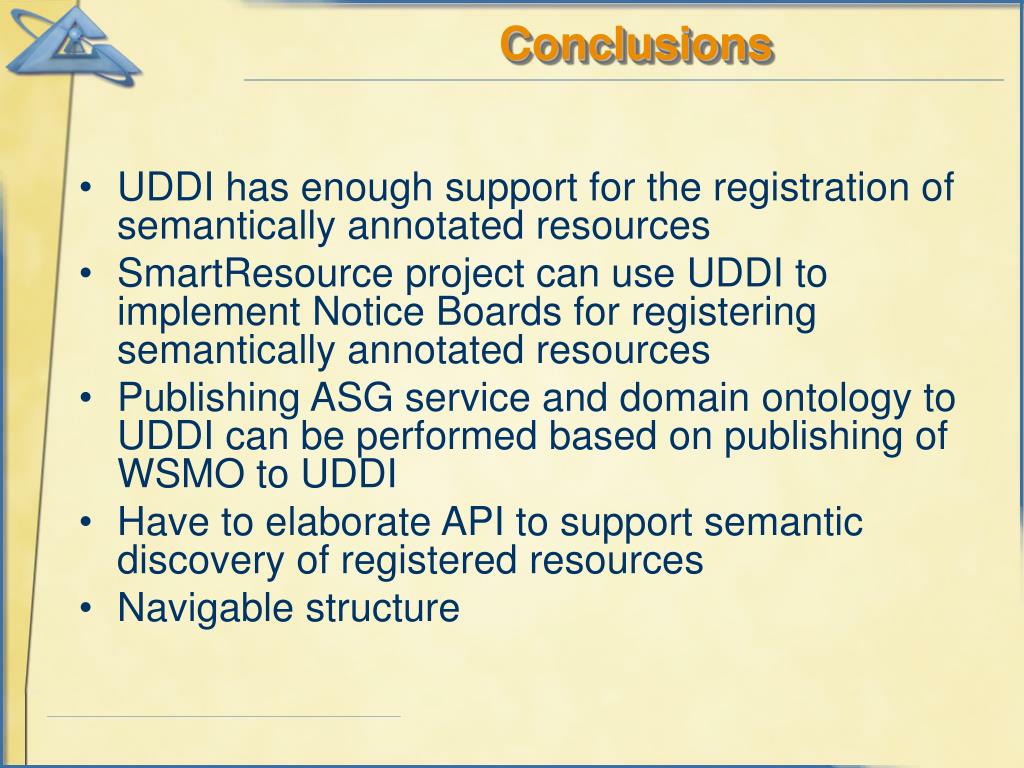

Conclusions

Conclusions

  • UDDI has enough support for the registration of semantically annotated resources

  • SmartResource project can use UDDI to implement Notice Boards for registering semantically annotated resources

  • Publishing ASG service and domain ontology to UDDI can be performed based on publishing of WSMO to UDDI

  • Have to elaborate API to support semantic discovery of registered resources

  • Navigable structure


Future work

Future Work

  • Further research is needed to elaborate semantic discovery algorithms and UDDI APIs based on proposed way of storing semantics in UDDI


U se of uddi to publish data of s emantic w eb

Thank you!

Questions please
