Vini virtual network infrastructure

VINI: Virtual Network Infrastructure

Nick FeamsterGeorgia Tech

Andy Bavier, Mark Huang, Larry Peterson, Jennifer RexfordPrinceton University


Vini overview

?

VINI Overview

Bridge the gap between “lab experiments” and live experiments at scale.

  • Runs real routing software

  • Exposes realistic network conditions

  • Gives control over network events

  • Carries traffic on behalf of real users

  • Is shared among many experiments

Emulation

VINI

Simulation

Small-scale

experiment

Live

deployment


Goal control and realism

Traffic

Synthetic or traces

Real clients, servers

Goal: Control and Realism

Topology

Arbitrary, emulated

Actual network

Traffic

Synthetic or traces

Real clients, servers

  • Control

    • Reproduce results

    • Methodically change or relax constraints

  • Realism

    • Long-running services attract real users

    • Connectivity to real Internet

    • Forward high traffic volumes (Gb/s)

    • Handle unexpected events

Network Events

Inject faults, anomalies

Observed in operational network


Overview

Overview

  • VINI characteristics

    • Fixed, shared infrastructure

    • Flexible network topology

    • Expose/inject network events

    • External connectivity and routing adjacencies

  • PL-VINI: prototype on PlanetLab

  • Preliminary Experiments

  • Ongoing work


Fixed infrastructure

Fixed Infrastructure


Shared infrastructure

Shared Infrastructure


Arbitrary virtual topologies

Arbitrary Virtual Topologies


Exposing and injecting failures

Exposing and Injecting Failures


Carry traffic for real end users

c

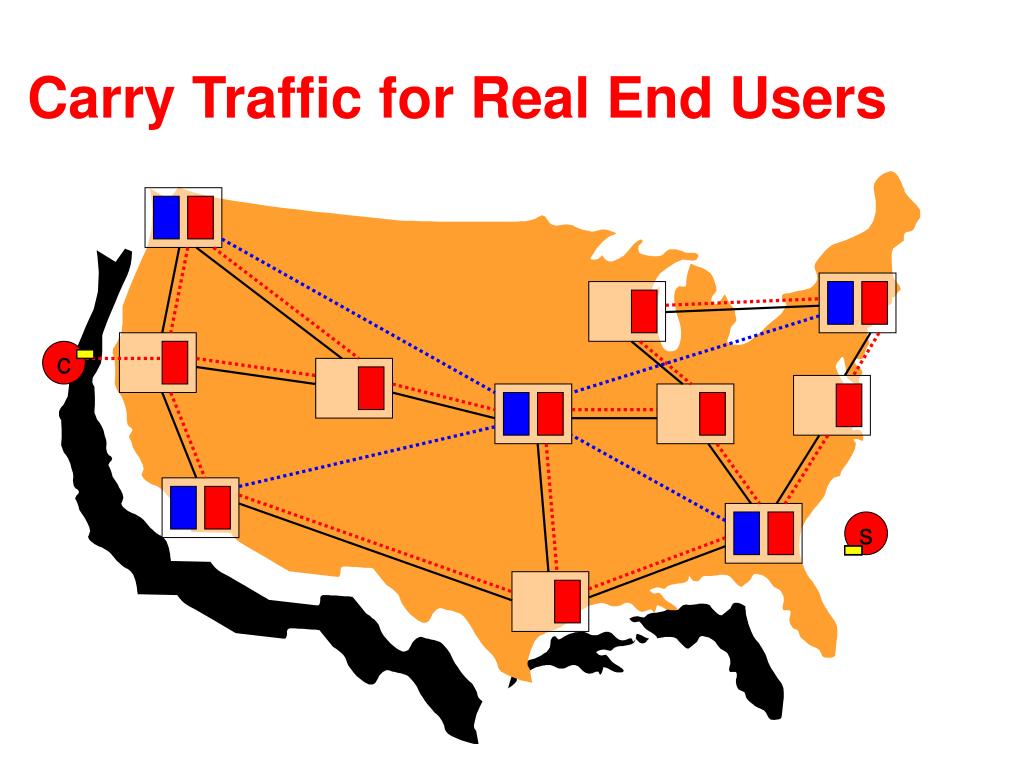

Carry Traffic for Real End Users

s


Participate in internet routing

BGP

BGP

c

BGP

BGP

Participate in Internet Routing

s


Pl vini prototype on planetlab

PL-VINI: Prototype on PlanetLab

  • First experiment: Internet In A Slice

    • XORP open-source routing protocol suite (NSDI ’05)

    • Click modular router (TOCS ’00, SOSP ’99)

  • Clarify issues that VINI must address

    • Unmodified routing software on a virtual topology

    • Forwarding packets at line speed

    • Illusion of dedicated hardware

    • Injection of faults and other events


Pl vini prototype on planetlab1

Node

Mgr

Local

Admin

VM1

VM2

VMn

Virtual Machine Monitor (VMM)

(Linux++)

PL-VINI: Prototype on PlanetLab

  • PlanetLab: testbed for planetary-scale services

  • Simultaneous experiments in separate VMs

    • Each has “root” in its own VM, can customize

  • Can reserve CPU, network capacity per VM

PlanetLab node


Xorp control plane

XORP: Control Plane

  • BGP, OSPF, RIP, PIM-SM, IGMP/MLD

  • Goal: run real routing protocols on virtual network topologies

XORP

(routing protocols)


User mode linux environment

User-Mode Linux: Environment

  • Interface ≈ network

  • PlanetLab limitation:

    • Slice cannot create new interfaces

  • Run routing software in UML environment

  • Create virtual network interfaces in UML

UML

XORP

(routing protocols)

eth0

eth1

eth2

eth3


Click data plane

Click: Data Plane

  • Performance

    • Avoid UML overhead

    • Move to kernel, FPGA

  • Interfaces  tunnels

    • Click UDP tunnels correspond to UML network interfaces

  • Filters

    • “Fail a link” by blocking packets at tunnel

UML

XORP

(routing protocols)

eth0

eth1

eth2

eth3

Control

Data

Packet

Forward

Engine

UmlSwitch

element

Tunnel table

Click

Filters


Intra domain route changes

Intra-domain Route Changes

s

2095

856

700

260

233

1295

c

639

548

366

846

587

902

1893

1176


Ping during link failure

Routes converging

Link down

Link up

Ping During Link Failure


Close up of tcp transfer

Slow start

Retransmit

lost packet

Close-Up of TCP Transfer

PL-VINI enables a user-space virtual network

to behave like a real network on PlanetLab


Challenge attracting real users

Challenge: Attracting Real Users

  • Could have run experiments on Emulab

  • Goal: Operate our own virtual network

    • Carrying traffic for actual users

    • We can tinker with routing protocols

  • Attracting real users


Conclusion

Conclusion

  • VINI: Controlled, Realistic Experimentation

  • Installing VINI nodes in NLR, Abilene

  • Download and run Internet In A Slice

http://www.vini-veritas.net/


Tcp throughput

Link down

Link up

Zoom in

TCP Throughput


Ongoing work

Ongoing Work

  • Improving realism

    • Exposing network failures and changes in the underlying topology

    • Participating in routing with neighboring networks

  • Improving control

    • Better isolation

    • Experiment specification


Resource isolation

Resource Isolation

  • Issue: Forwarding packets in user space

    • PlanetLab sees heavy use

    • CPU load affects virtual network performance


Performance is bad

Performance is bad

  • User-space Click: ~200Mb/s forwarding


Vini should use xen

VINI should use Xen


Experimental results

Experimental Results

  • Is a VINI feasible?

    • Click in user-space: 200Mb/s forwarded

    • Latency and jitter comparable between network and IIAS on PL-VINI.

    • Say something about running on just PlanetLab? Don’t spend much time talking about CPU scheduling…


Low latency for everyone

Low latency for everyone?

  • PL-VINI provided IIAS with low latency by giving it high CPU scheduling priority


Internet in a slice

XORP

Run OSPF

Configure FIB

Click

FIB

Tunnels

Inject faults

OpenVPN & NAT

Connect clients and servers

C

Internet In A Slice

S

S

C

S

C


Pl vini iias router

UML

XORP

eth0

eth1

eth2

eth3

UmlSwitch

Control

Data

FIB

UmlSwitch

element

Encapsulation table

Click

tap0

PL-VINI / IIAS Router

  • Blue: topology

    • Virtual net devices

    • Tunnels

  • Red: routing and forwarding

    • Data traffic does not enter UML

  • Green: enter & exit IIAS overlay


Pl vini summary

PL-VINI Summary


Pl vini iias router1

PL-VINI / IIAS Router

  • XORP: control plane

  • UML: environment

    • Virtual interfaces

  • Click: data plane

    • Performance

      • Avoid UML overhead

      • Move to kernel, FPGA

    • Interfaces  tunnels

    • “Fail a link”

UML

XORP

(routing protocols)

eth0

eth1

eth2

eth3

Control

Data

Packet

Forward

Engine

UmlSwitch

element

Tunnel table

Click
