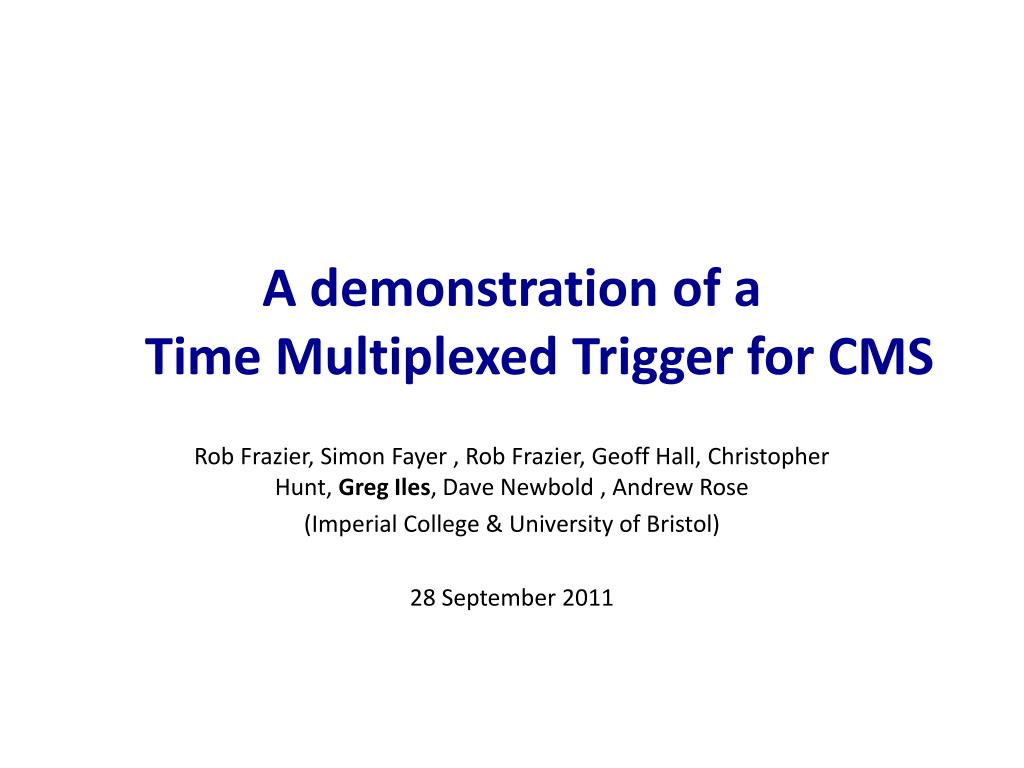

  1. A demonstration of a Time Multiplexed Trigger for CMS Rob Frazier, Simon Fayer , Rob Frazier, Geoff Hall, Christopher Hunt, Greg Iles, Dave Newbold , Andrew Rose (Imperial College & University of Bristol) 28 September 2011

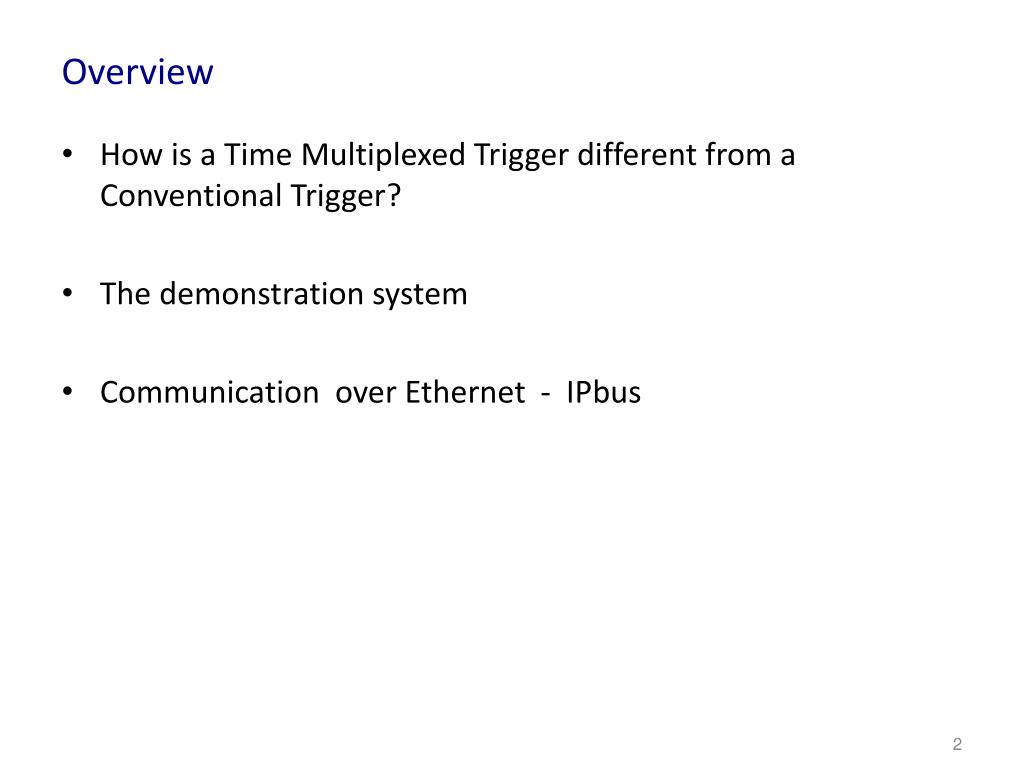

  2. Overview • How is a Time Multiplexed Trigger different from a Conventional Trigger? • The demonstration system • Communication over Ethernet - IPbus

  3. Concepts: Time Multiplexed Trigger Exploring alternative method of triggering. Time-Multiplex incoming data so that the entire calorimeter (~5Tb/s) can be processed in a single FPGA. Akin to the DAQ event builders, but all must be finished in ~1μs

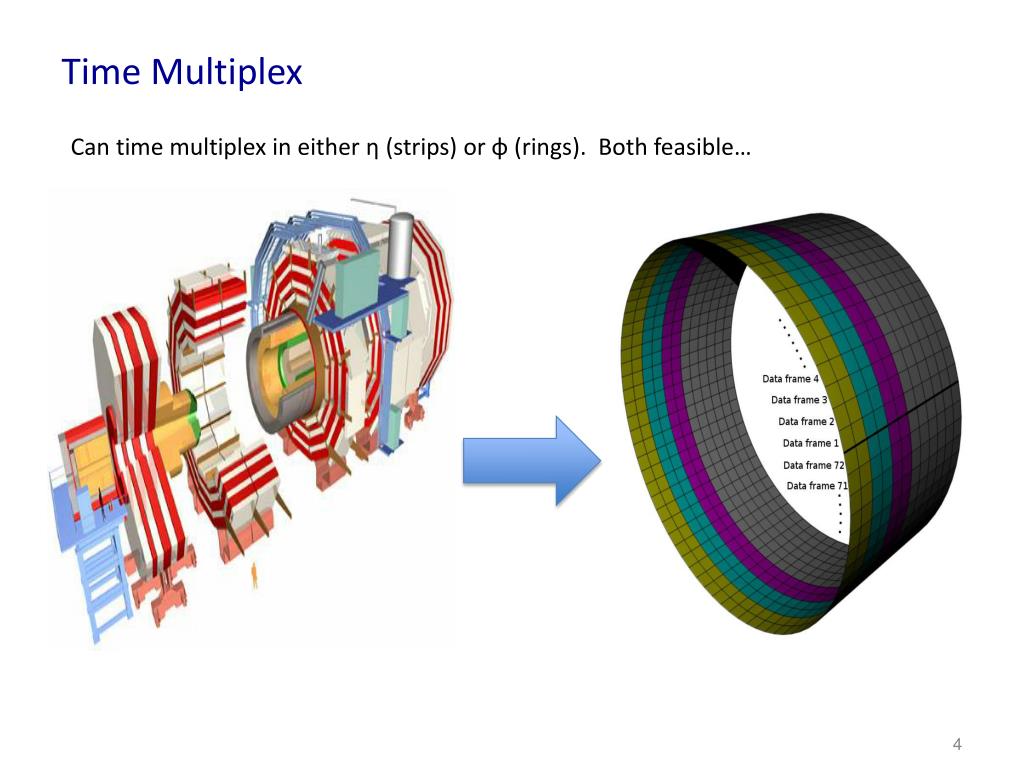

  4. Time Multiplex Can time multiplex in either η (strips) or φ (rings). Both feasible…

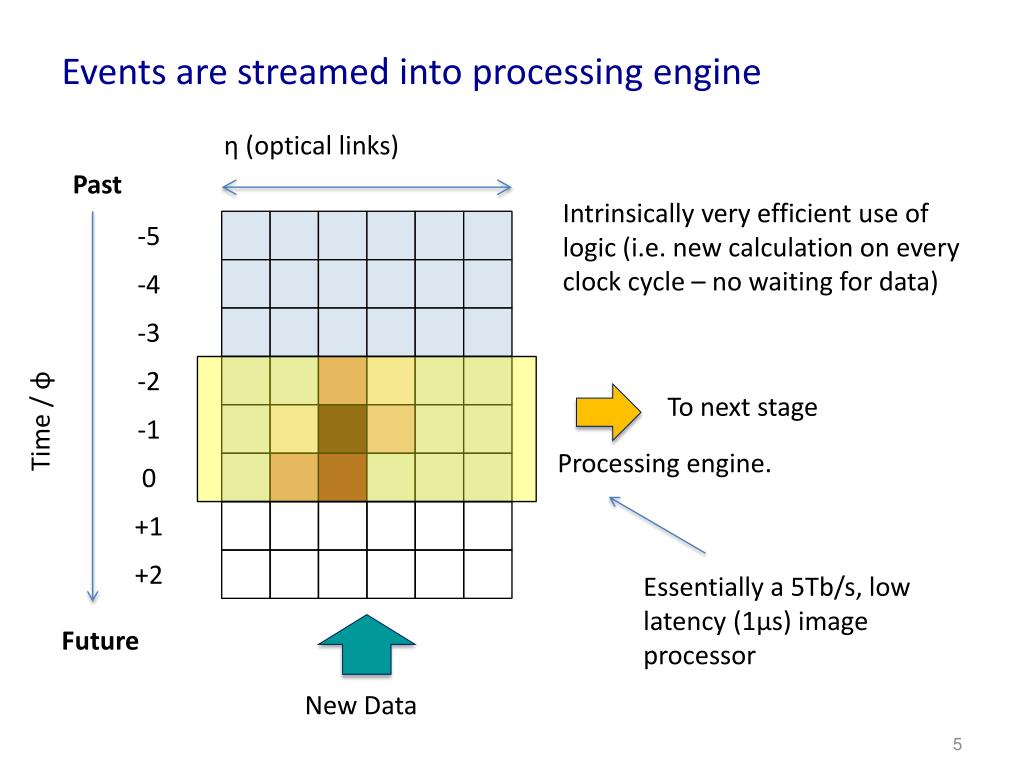

  5. Events are streamed into processing engine η (optical links) Past Intrinsically very efficient use of logic (i.e. new calculation on every clock cycle – no waiting for data) -5 -4 -3 -2 To next stage Time / φ -1 Processing engine. 0 +1 +2 Essentially a 5Tb/s, low latency (1μs) image processor Future New Data

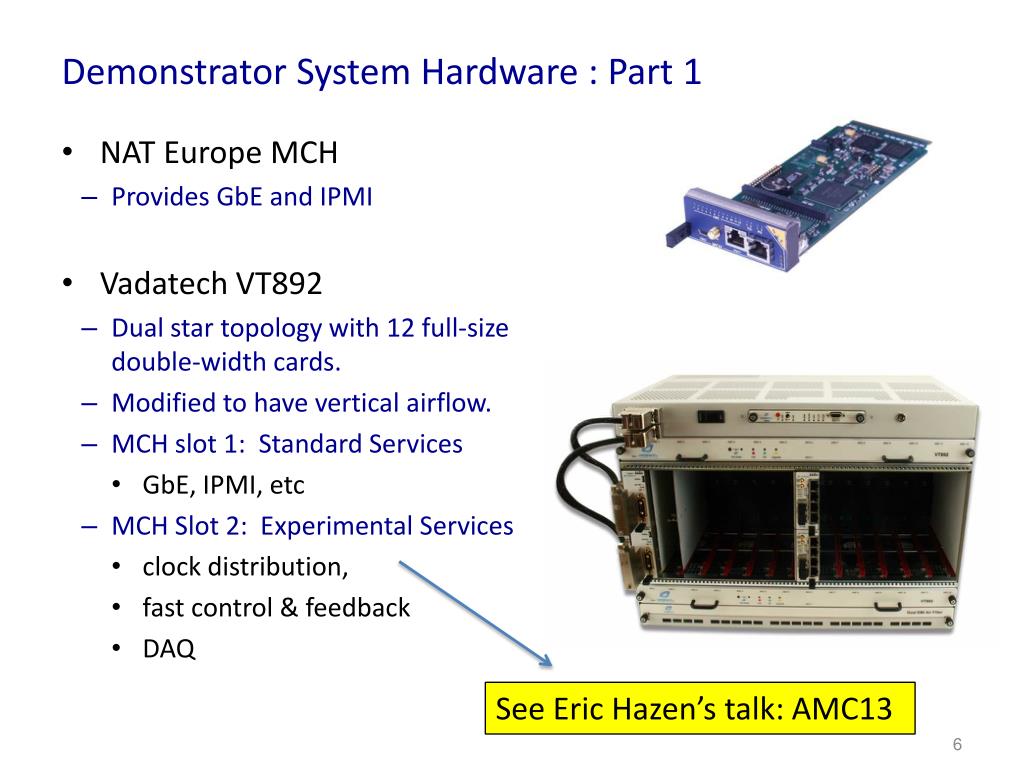

  6. Demonstrator System Hardware : Part 1 • NAT Europe MCH • Provides GbE and IPMI • Vadatech VT892 • Dual star topology with 12 full-size double-width cards. • Modified to have vertical airflow. • MCH slot 1: Standard Services • GbE, IPMI, etc • MCH Slot 2: Experimental Services • clock distribution, • fast control & feedback • DAQ See Eric Hazen’s talk: AMC13

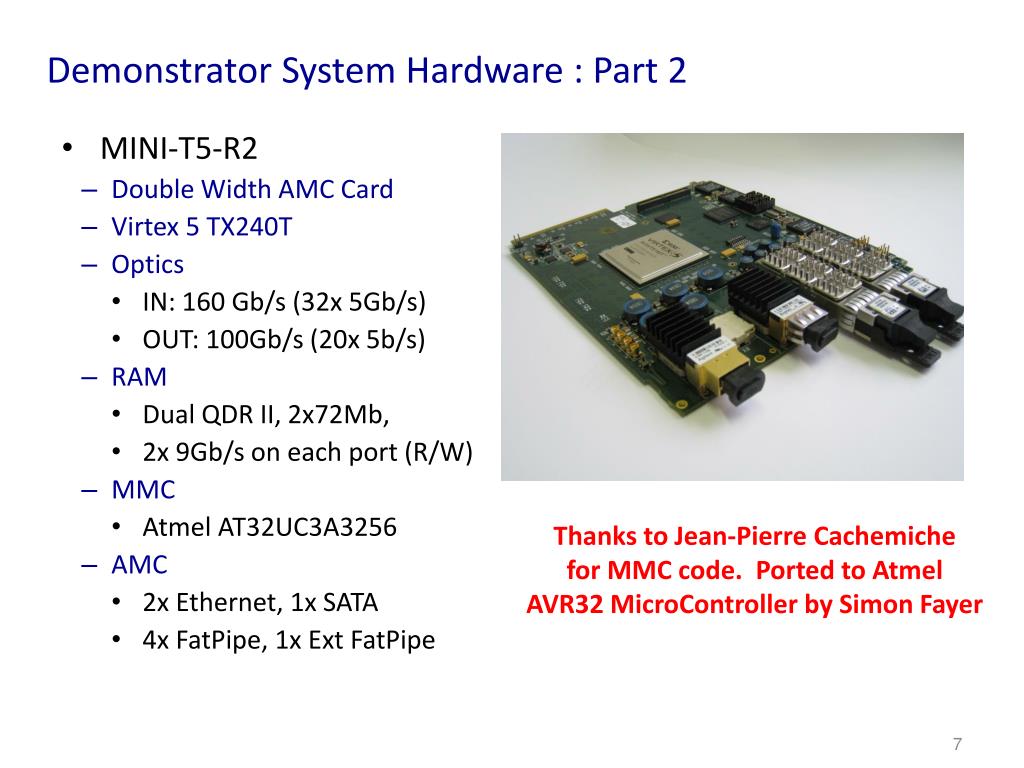

  7. Demonstrator System Hardware : Part 2 • MINI-T5-R2 • Double Width AMC Card • Virtex 5 TX240T • Optics • IN: 160 Gb/s (32x 5Gb/s) • OUT: 100Gb/s (20x 5b/s) • RAM • Dual QDR II, 2x72Mb, • 2x 9Gb/s on each port (R/W) • MMC • Atmel AT32UC3A3256 • AMC • 2x Ethernet, 1x SATA • 4x FatPipe, 1x Ext FatPipe Thanks to Jean-Pierre Cachemiche for MMC code. Ported to Atmel AVR32 MicroController by Simon Fayer

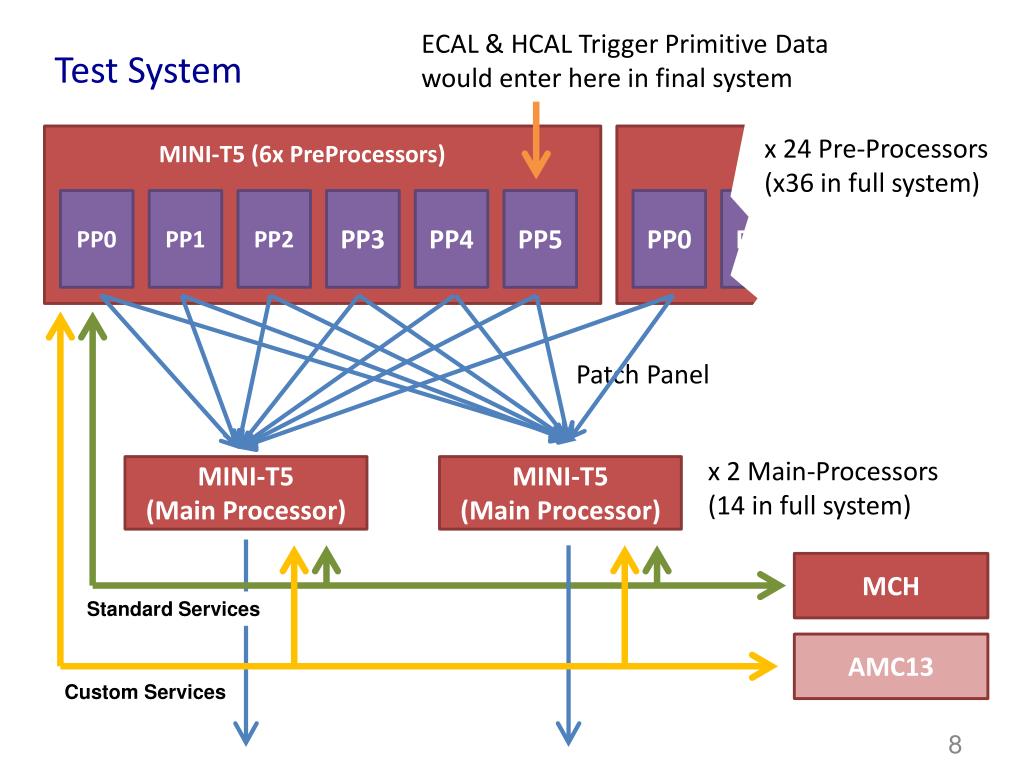

  8. ECAL & HCAL Trigger Primitive Data would enter here in final system Test System x 24 Pre-Processors (x36 in full system) MINI-T5 (6x PreProcessors) PP0 PP1 PP2 PP3 PP4 PP5 PP0 PP0 Patch Panel x 2 Main-Processors (14 in full system) MINI-T5 (Main Processor) MINI-T5 (Main Processor) MCH Standard Services AMC13 Custom Services

  9. Location for AMC13 Clock, Fast Control & Feedback, DAQ Main‑Processor Cards Simulates 6x Pre‑Processor Cards. Possible because we only need 2 Main‑Processors AMC13 Clock distributed via MCH Patch panel. One fibre from each Pre‑Processor routed to a Main‑Processor

  10. Test system internals Simulates 240 input links (1/4 of CMS Calorimeter Trigger) RAM #0 RAM #1 RAM #2 RAM #9 Time Mux Time Mux x 24 Pre-Processors x 24 Links Align Links DAQ Algorithm DAQ To Global Trigger To DAQ via AMC13 or alternatively Ethernet

  11. Header PP Ident RAM #0 (3 words) RAM #1 (3 words) All 24 channels aligned 8B/10B Commas CRC Checked then zeroed by fw

  12. Where next? • Current MINI-T5 can handle ¼ of CMS Calorimeter Trigger • Assumes a time multiplexing period of 14bx • Require x4 bandwidth to place entire Calo Trigger into a single FPGA • Link speed x2 (Virtex7 with 10Gb/s), Number of links x2 (48-72 Rx) V7 MicroPOD™: 8.2x7.8mm with LGA electrical interface MiniPOD™: 22x18.5mm with 9x9 MegArray™ connector MAXI-T7

  13. IPbus A method to communicate with cards over Ethernet

  14. Communication Requirements • Primary control path in MicroTCA is Ethernet • What protocol should we use UDP, TCP or something else? • Requirements • Robust • Scalable • Reasonable bandwidth (make good use of 1Gb/s crate interface) • Relatively simple • Not too onerous (10% of design, not 90%). • Maintainable over 10 years with different versions of the tools and different people. • Portable from one card to the next

  15. Communication Ideas • Primary advantage of TCP is not reliability, but throughput • Imagine UDP with retry capability • Ethernet has a large latency (packet based, CRCs, etc) • i.e. single transactions will be relatively slow • TCP allows multiple packets in flight simultaneously and ensures that all packets arrive, and in the correct order • Ideal, but powerful CPU or complex firmware core to reach 1Gb/s • Separate commands still slow (i.e. do A, then B, then C) Embedded CPU on the card either within FPGA or external Can get quite complex (i.e require CPU, RAM, Flash, etc)

  16. IPbus PHY • Originally created by Jeremy Mans et al in 2009/2010* • Protocol describes basic transactions needed to control h/w • A32/D32 Read/Write, Block Transfers, Auto Address Incrementing • Simple concatenation of commands • Single packet may contain write followed by block read EMAC UDP, or TCP Transaction Engine I2C Core GTX Core DAQ Core *John Jones implemented something similar

  17. IPbus Firmware Ethernet • Resource usage: • Xilinx SP601 Demo board • Costs £200/$350 • Small Spartan 6 (XC6LX16-CS324) • Uses 7% of registers, 18% of LUTs and 25% BRAM • Block RAM usage may increase slightly for v2.0 protocol • Additional features: • Firmware also includes interface to IPMI controller IPMI Firmware by Jeremy Mans Dave Newbold

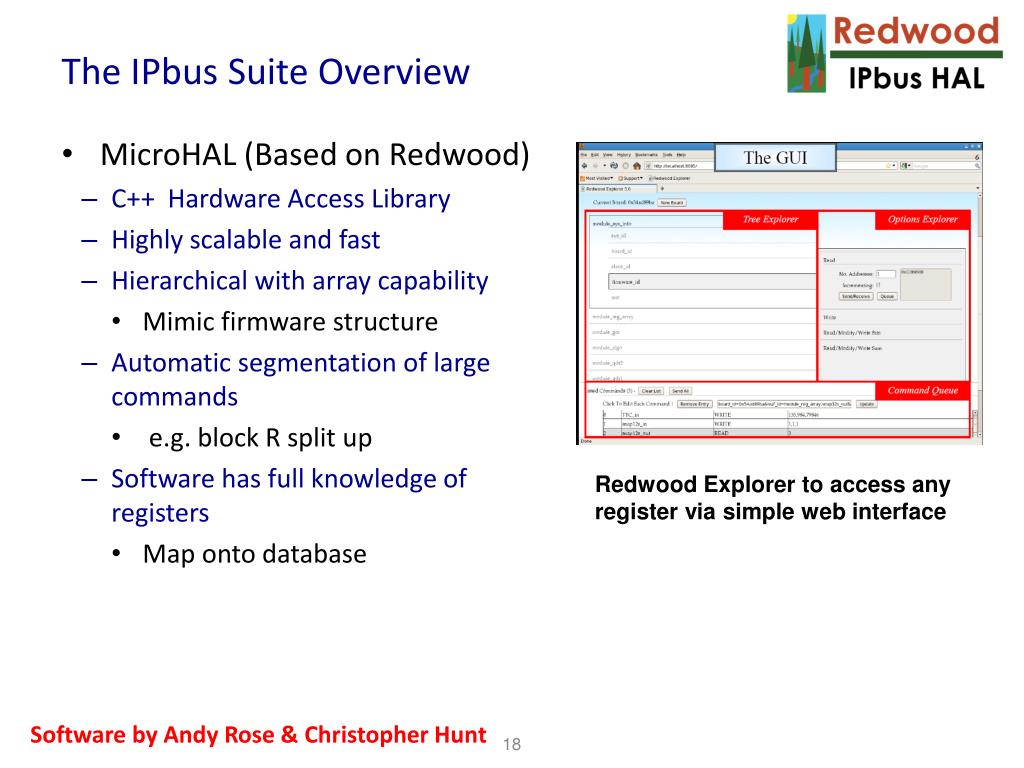

  18. The IPbus Suite Overview • MicroHAL (Based on Redwood) • C++ Hardware Access Library • Highly scalable and fast • Hierarchical with array capability • Mimic firmware structure • Automatic segmentation of large commands • e.g. block R split up • Software has full knowledge of registers • Map onto database Redwood Explorer to access any register via simple web interface Software by Andy Rose & Christopher Hunt

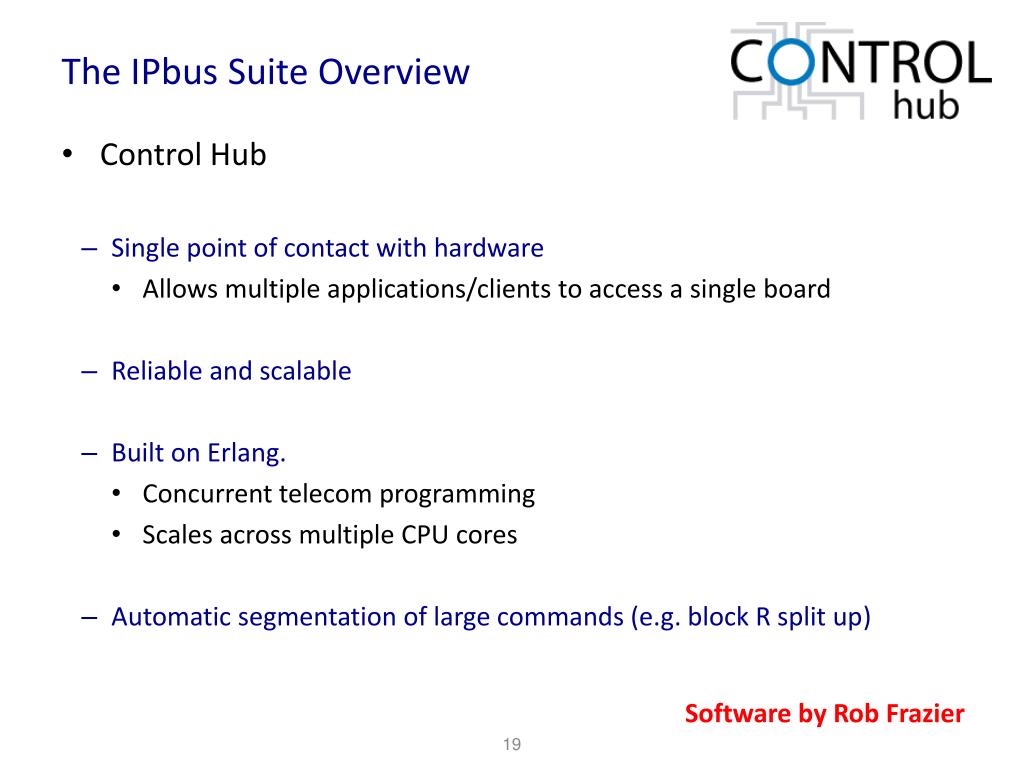

  19. The IPbus Suite Overview • Control Hub • Single point of contact with hardware • Allows multiple applications/clients to access a single board • Reliable and scalable • Built on Erlang. • Concurrent telecom programming • Scales across multiple CPU cores • Automatic segmentation of large commands (e.g. block R split up) Software by Rob Frazier

  20. Scalability with Redwood and the Control Hub

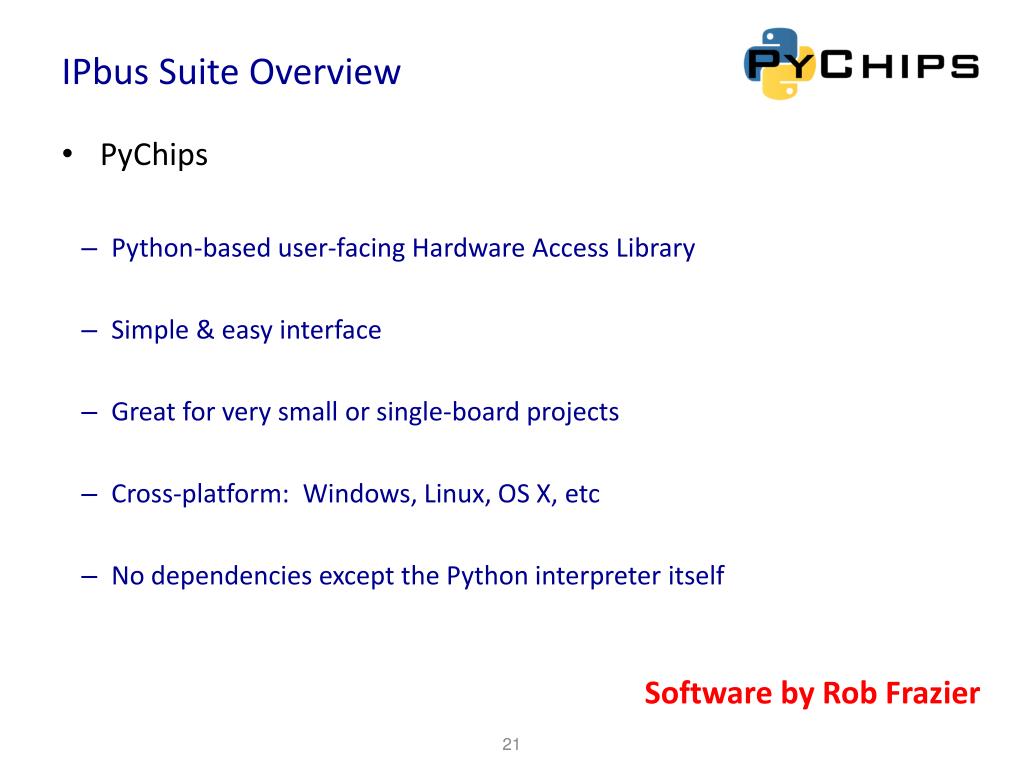

  21. IPbus Suite Overview • PyChips • Python-based user-facing Hardware Access Library • Simple & easy interface • Great for very small or single-board projects • Cross-platform: Windows, Linux, OS X, etc • No dependencies except the Python interpreter itself Software by Rob Frazier

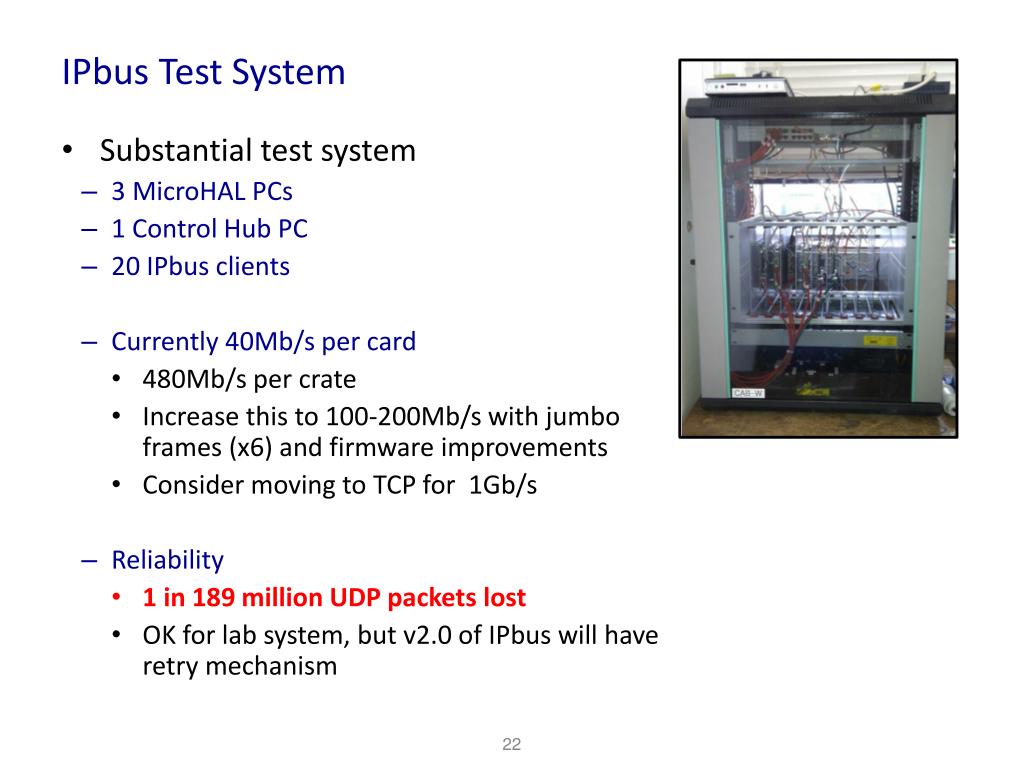

  22. IPbus Test System • Substantial test system • 3 MicroHAL PCs • 1 Control Hub PC • 20 IPbus clients • Currently 40Mb/s per card • 480Mb/s per crate • Increase this to 100-200Mb/s with jumbo frames (x6) and firmware improvements • Consider moving to TCP for 1Gb/s • Reliability • 1 in 189 million UDP packets lost • OK for lab system, but v2.0 of IPbus will have retry mechanism

  23. Links • IPbus SVN & Wiki hosted on CACTUS project • Website • http://projects.hepforge.org/cactus/index.php • HepForge repository • http://projects.hepforge.org/cactus/trac/browser/trunk • MicroHAL • The Software User Manual, Instant Start Tutorials and Developers Guide • http://projects.hepforge.org/cactus/trac/browser/trunk/doc/user_manual/Redwood.pdf?rev=head&format=txt • Firmware Chief: contact Dave Newbold: dave.newbold@cern.ch • Software Chief: Rob Frazier: robert.frazier@cern.ch • MicroHAL & Redwood: andrew.rose01@imperial.ac.uk

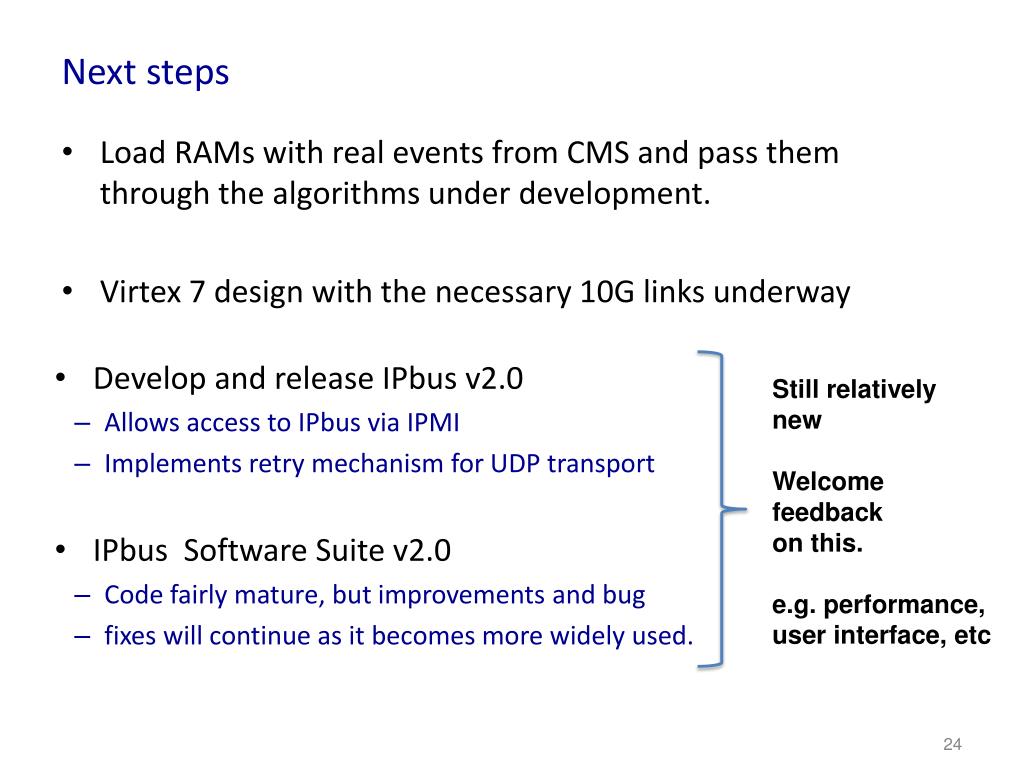

  24. Next steps • Load RAMs with real events from CMS and pass them through the algorithms under development. • Virtex 7 design with the necessary 10G links underway • Develop and release IPbus v2.0 • Allows access to IPbus via IPMI • Implements retry mechanism for UDP transport • IPbus Software Suite v2.0 • Code fairly mature, but improvements and bug • fixes will continue as it becomes more widely used. Still relatively new Welcome feedback on this. e.g. performance, user interface, etc

  25. Extra

  26. Just one example - hierarchical design +

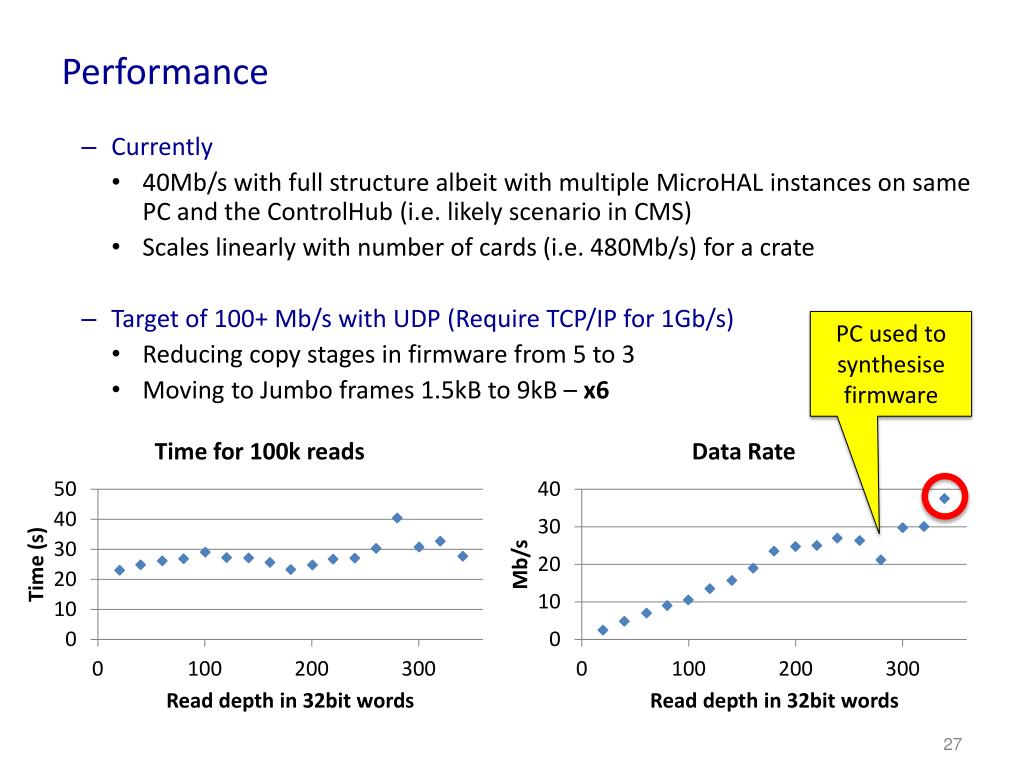

  27. Performance • Currently • 40Mb/s with full structure albeit with multiple MicroHAL instances on same PC and the ControlHub (i.e. likely scenario in CMS) • Scales linearly with number of cards (i.e. 480Mb/s) for a crate • Target of 100+ Mb/s with UDP (Require TCP/IP for 1Gb/s) • Reducing copy stages in firmware from 5 to 3 • Moving to Jumbo frames 1.5kB to 9kB – x6 PC used to synthesise firmware

  28. Reliability • Private network • All unnecessary network protocols switched off (spanning tree, etc) • Sent 5 billion block read requests • 10 billion packets total, 53 went missing. • 350 * 32-bit block read • 7 Terabytes IPbus payload data received • 19 IPbus clients used in test • Packet loss averages at 1 in 189 million UDP packets Version 2.0, Draft 2 Version 1.2 Retry mechanism 28
