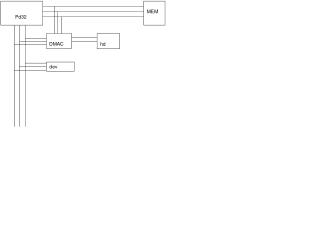

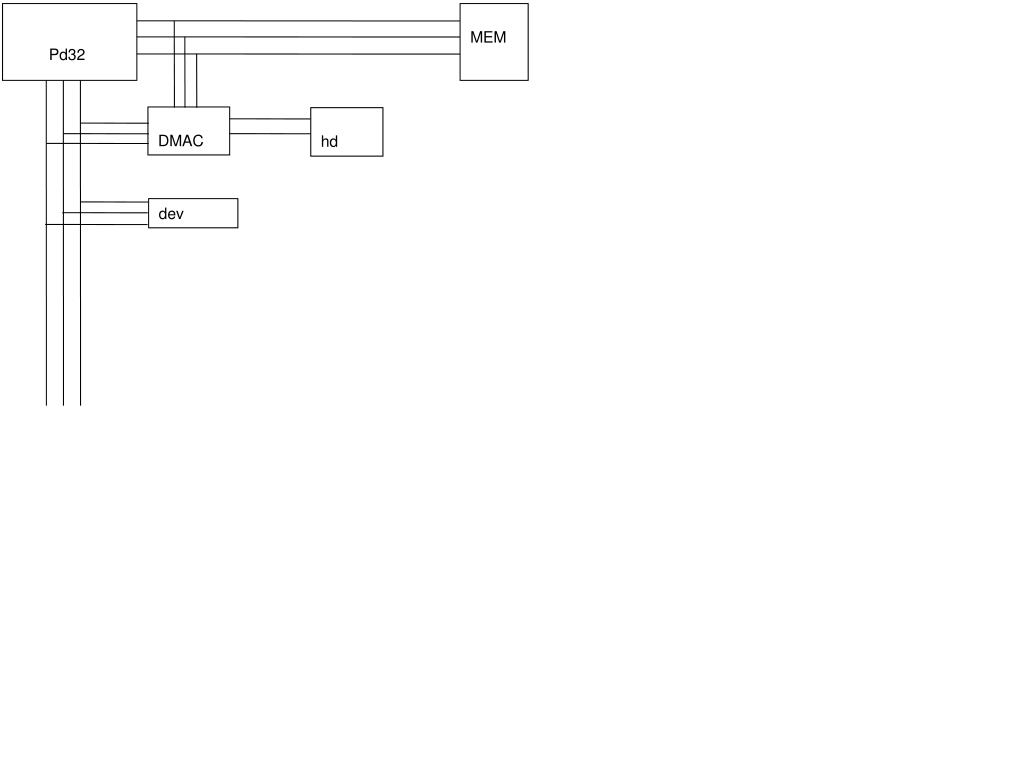

MEM

Pd32

DMAC

hd

dev


CLEAR

IACK

START

IRQ

IVN

R Q

S

REG

IACK OUT

SCO

SCA


pd32

IACK

CLEAR

IO WR

INC

MBR

START

IRQ

CAR

IVN

SEL CAR

R Q

S

DEC

IACK OUT

MBR

TC

MRD

SCO

DMAC

WC

MWR

MBG

SEL WC

REG

DATO

SCO

HD

MEM


ORG 400H

DEV EQU

DMAC EQU

CAR EQU

WC EQU

BUFFER EQU 00B0h

BUFFER_A EQU D0BBh

CODE

JSR INIT

MAIN:JMP MAIN

INIT: OUTL #1024,WC; IMPOSTO DMAC

OUTL #BUFFER_A, CAR;

SETI

START DMAC

RET

DRIVER 0,1600h; DRIVER DMAC

PUSH..

MOVL #BUFFER_A,BUFFER; MEMORIZZO IND PRIMA PAROLA NEL BUFFER DI LAVORO

MOVL #BUFFER,R0; CALCOLO INDIRIZZO CONTATORE

ADDL #4,R0 ; CALCOLO INDIRIZZO CONTATORE

MOVW #0,(R0); AZZERO CONTATORE

CLEAR DMAC; ELIMINO CAUSA INTERRUZIONE

START DEV

POP..

DRIVER 1,3200h;DRIVER DEV

PUSH..

CLEAR DEV; ELIMINO CAUSA INTERRUZIONE

SETI; ABILITO INTERRUZIONI

MOVL BUFFER, R0; INDIRIZZO DATO DA CONSUMARE IN R0

OUTL (R0)+,DEV; DATO DA CONSUMARE IN DEV

MOVL R0, BUFFER; AGGIORNO INDIRIZZO NEXT DATO DA CONSUMARE

MOVL #BUFFER,R0; CALCOLO INDIRIZZO CONTATORE

ADDL #4 ,R0; CALCOLO INDIRIZZO CONTATORE

MOVW(RO),R1; CONTATORE IN R1

ADDW #1, R1; AGGIORNO CONTATORE

MOVW R1,(RO); AGGIORNO CONTATORE IN MEMORIA

MOVW #1024,R2; CARICO IL DATO PER IL CONFRONTO

CMPW R1,R2; CONFRONTO CONTATORE CON 1024

JNZ FINE

OUTL #1024,WC; REIMPOSTO DMAC

OUTL#BUFFER_A,CAR;

START DMAC

FINE: START DEV_A

POP..

RTI
