  1. J. P. Pattern Type “C” Model review T Brown 11/4/03

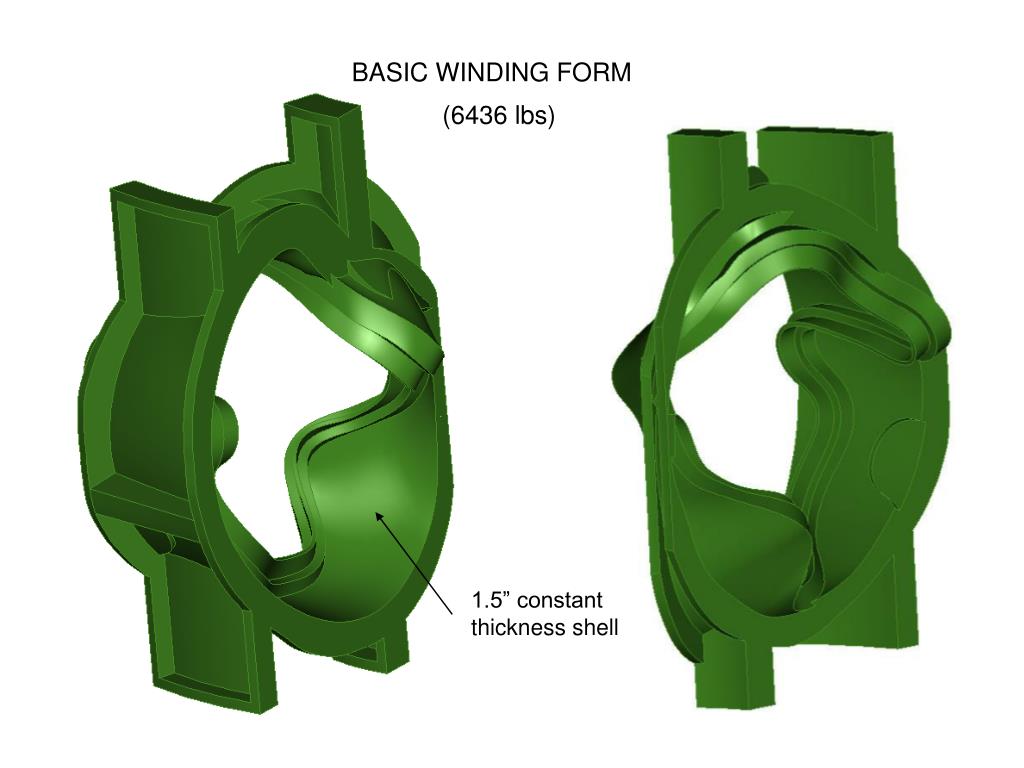

  2. BASIC WINDING FORM (6436 lbs) 1.5” constant thickness shell

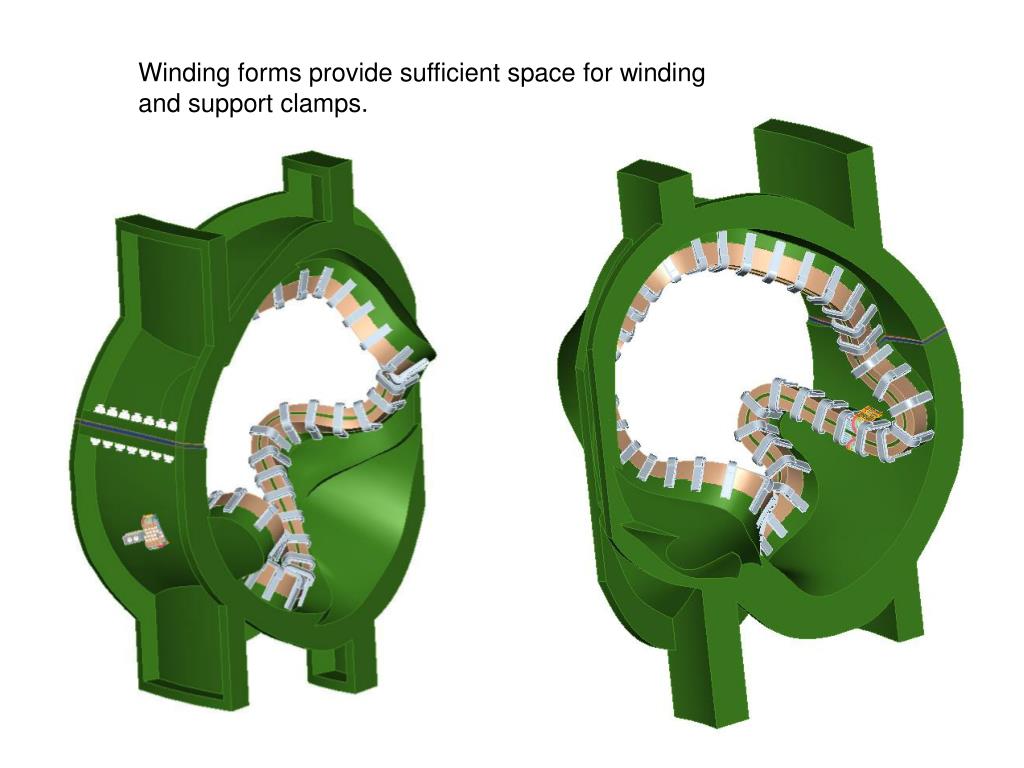

  3. Winding forms provide sufficient space for winding and support clamps.

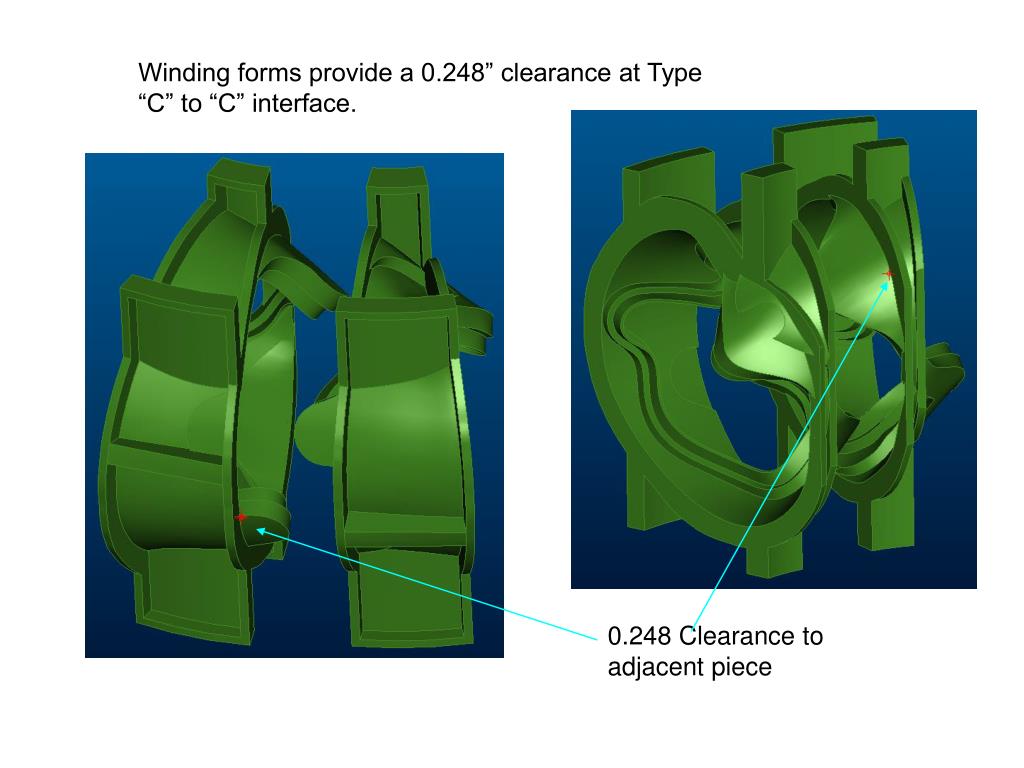

  4. Winding forms provide a 0.248” clearance at Type “C” to “C” interface. 0.248 Clearance to adjacent piece

  5. There appears to be sufficient space for winding and support clamps. May need to stager clamps in tight regions.

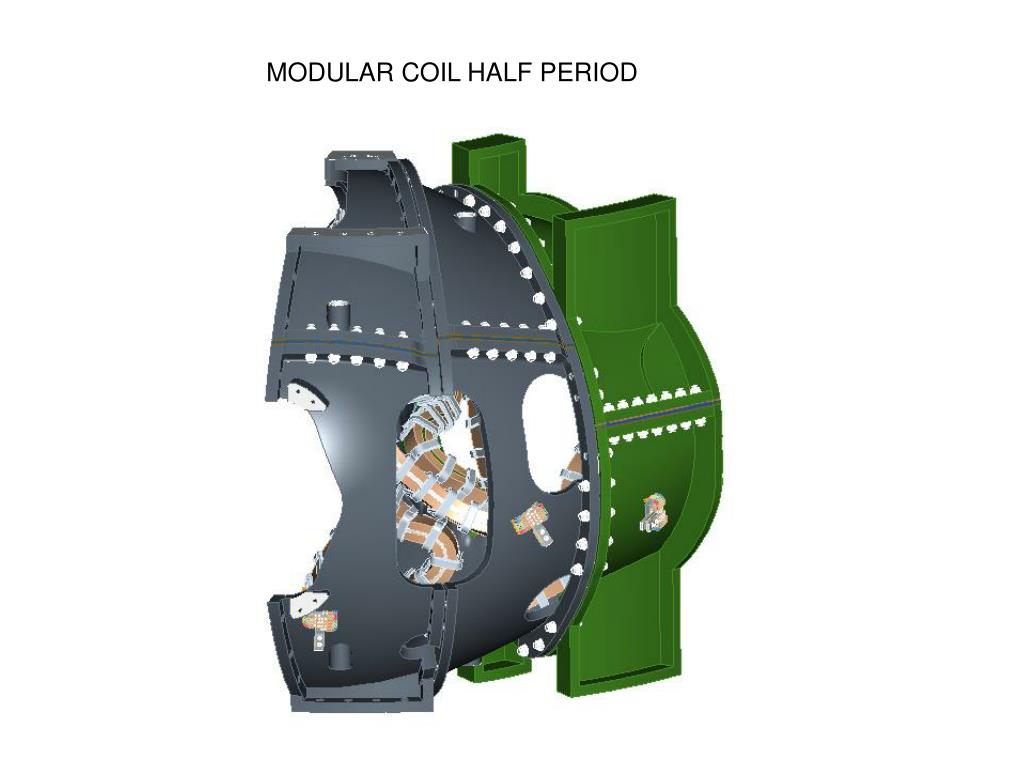

  6. MODULAR COIL HALF PERIOD

  7. There are interferences at the interface between the J. P. Pattern Type “C” and the baseline Type “B” winding form which should be expected since additional space was provided in the “wing” area. Interferences
