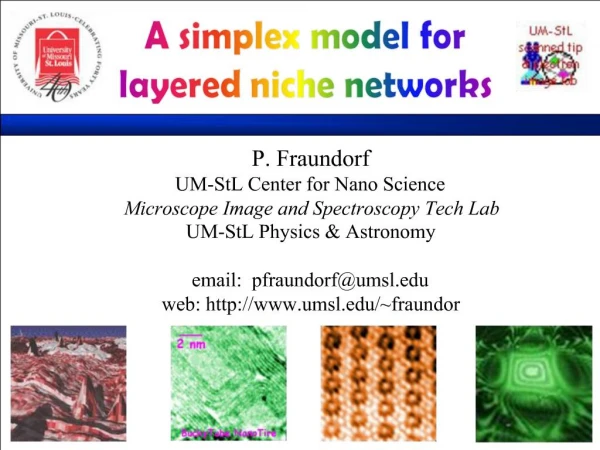

P. Fraundorf UM-StL Center for Nano Science Microscope Image and Spectroscopy Tech Lab UM-StL Physics Astronomy email:

1. Can anyone guess what these images are of, as well as what kinds of microscope took them? For example, in which might a nanophotographer have inadvertantly captured her own shadow on film, a 10-fold symmetry reveal something unexpected, or a pattern arise that looks like the glow-in-the dark footprint of a recent UFO landing? This slide was originally put together for an intro to nanomedicine. One goal of that talk was to convince folks that thinking on multiple scales of space and time is not just a fad. Nanoscale science includes cooking and sex, and is therefore hardly new. But it�s increasingly relevant as we uncover new tricks. Nanoscale insight is also important for us in taking responsibility for things like our own health. A community of scale-aware observers will respond to challenges (like epidemics) more effectively. An informed public might also put less energy into blaming others for their decisions, say of what to eat and breathe and touch. For example the perspective of a cell is as different from that of a virus molecule, as human perspectives are from the cell's. Recognizing the different relationship that these perspectives has to our life is a challenge for the observer of nature in each us. Nanoperspectives also bring the process of emerging complexity up close and personal. The magic of atoms organized into cellular engines, partnering with molecular codes, is perhaps our best cross-disciplinary training ground for understanding that even rarer phenomenon: multi-celled organisms partnering with idea codes. But I'm getting ahead of myself. Can anyone guess what these images are of, as well as what kinds of microscope took them? For example, in which might a nanophotographer have inadvertantly captured her own shadow on film, a 10-fold symmetry reveal something unexpected, or a pattern arise that looks like the glow-in-the dark footprint of a recent UFO landing? This slide was originally put together for an intro to nanomedicine. One goal of that talk was to convince folks that thinking on multiple scales of space and time is not just a fad. Nanoscale science includes cooking and sex, and is therefore hardly new. But it�s increasingly relevant as we uncover new tricks. Nanoscale insight is also important for us in taking responsibility for things like our own health. A community of scale-aware observers will respond to challenges (like epidemics) more effectively. An informed public might also put less energy into blaming others for their decisions, say of what to eat and breathe and touch. For example the perspective of a cell is as different from that of a virus molecule, as human perspectives are from the cell's. Recognizing the different relationship that these perspectives has to our life is a challenge for the observer of nature in each us. Nanoperspectives also bring the process of emerging complexity up close and personal. The magic of atoms organized into cellular engines, partnering with molecular codes, is perhaps our best cross-disciplinary training ground for understanding that even rarer phenomenon: multi-celled organisms partnering with idea codes. But I'm getting ahead of myself.

2. Outline Foundations of correlation-based complexity mutual information & reversible thermalization convergent disciplines & multiscale thought The attention-slice simplex for metazoans physical boundary-directed niche networks time/resource/attention slices conjectures and measurement Like the television series Seinfeld, this talk is about nothing new, except perhaps for an element or two of integrative synthesis. Since the second half is about things on which I am not a specialist, I�ll start with a few things that I do know. This will recall some early connections and a few recent developments. I then want to go over three themes that might help guide integrative work downstream.Like the television series Seinfeld, this talk is about nothing new, except perhaps for an element or two of integrative synthesis. Since the second half is about things on which I am not a specialist, I�ll start with a few things that I do know. This will recall some early connections and a few recent developments. I then want to go over three themes that might help guide integrative work downstream.

3. Converging threads... Nanoscience � where chemistry, physics, biology, engineering, medicine, CSI, ethics, and complex system studies of emergence run together... Astrobiology � where Chaisson�s cosmic evolution (the natural history of invention) intersects our distant past, and our distant future... Informatics � where the code-based sciences (genetics, computer science, linquistics), thermal physics, journalism, networks & statistical inference join up... Also referred to as elements of �disruptive science� because of the cognitive dissonance or culture shock that occurs when disciplines merge. Look for slow integration of these concepts throughout the education infrastructure in years ahead, with even more impact than the concepts of ecosystem, niche, and web of life that worked their way in (across disciplines) some years back.Also referred to as elements of �disruptive science� because of the cognitive dissonance or culture shock that occurs when disciplines merge. Look for slow integration of these concepts throughout the education infrastructure in years ahead, with even more impact than the concepts of ecosystem, niche, and web of life that worked their way in (across disciplines) some years back.

4. Foundations of correlation-based complexity� Gibbs/Jaynes/Tribus� Energy and Information: Availability = Free Energy plus Correlations Chaisson�s Cosmic Evolution: Atoms, Galaxies, Stars, Planets, GeoCycles, Microbes, and Metazoans, all convert free energy to correlations. Odum brothers, Watson/Crick, Lorenz: Complementary role for Steady-State Excitations and Replicable Molecular Codes; Metazoan Skins & Gene Pools as community subsystem boundaries. Shannon, McLuhan, Dawkins: Evolution of Memetic Codes and Electronic Media; emerging Meme Pool boundary structures. Margulis and others: Symbiosis and multiscale regulation of gene expression in eukaryotes. Boyd & Richerson, Diamond: Multiscale guidance of meme expression in metazoan communities => Crucial to Sustainability?

5. Gibbs/Jaynes/Tribus� Energy and Information: Generalized thermodynamic availability includes free energies, correlations between subsystems, as well as correlations between system and knower i.e. awareness of complexity.

6. What does thermal physics have to say about evolved complexity? We start with a text-only outline here.What does thermal physics have to say about evolved complexity? We start with a text-only outline here.

7. Gambling theory (MaxEnt) review Now a few well known equations. For each row, note the relationship discussed, and it�s units. If we define surprisal as the log of probability�s reciprocal for each accessible state, average surprisal (entropy, uncertainty) has information units (how many are familiar with this?); (ii) Max-ent best guesses (e.g. in micro-canonical, canonical, pressure and Gibbs ensembles) yield intensive Lagrange multipliers. These are typically derivatives that involve entropy and an extensive conserved quantity X, which �equilibrates� as initial conditions fade. For example, 1/kT = dS/dE makes temperature an energy derivative that�s not always proportional to total energy, much as acceleration is not always proportional to velocity, in spite of occasional textbook allusions to the contrary (how many have seen this?); (iii) Dimensionless integral and differential capacities (elaborate here) then have units of what? (Answer: bits per 2-fold increase in X or one of it�s multipliers); and (iv) Net-surprisals (AKA relative or cross-entropy) in information units measure finite deviations from expected, and reduce near equilibrium to availabilities (free energy over kT) and in the case of correlated subsystems to mutual information (now fashionable in the study of evolving codes, nonlinear dynamics, and quantum computing). Now a few well known equations. For each row, note the relationship discussed, and it�s units. If we define surprisal as the log of probability�s reciprocal for each accessible state, average surprisal (entropy, uncertainty) has information units (how many are familiar with this?); (ii) Max-ent best guesses (e.g. in micro-canonical, canonical, pressure and Gibbs ensembles) yield intensive Lagrange multipliers. These are typically derivatives that involve entropy and an extensive conserved quantity X, which �equilibrates� as initial conditions fade. For example, 1/kT = dS/dE makes temperature an energy derivative that�s not always proportional to total energy, much as acceleration is not always proportional to velocity, in spite of occasional textbook allusions to the contrary (how many have seen this?); (iii) Dimensionless integral and differential capacities (elaborate here) then have units of what? (Answer: bits per 2-fold increase in X or one of it�s multipliers); and (iv) Net-surprisals (AKA relative or cross-entropy) in information units measure finite deviations from expected, and reduce near equilibrium to availabilities (free energy over kT) and in the case of correlated subsystems to mutual information (now fashionable in the study of evolving codes, nonlinear dynamics, and quantum computing).

8. A UIUC intro-physics homework problem... A practical application of net surprisals involves a problem that my daughter was assigned in a physics course when she was a student here at U of I. Imagine a device which takes in a cup of boiling water, and outputs a cup of ice water. What is the maximum temperature at which such a device can operate without requiring an external source of available work? I�m told that chemists would tackle with problem using Carnot engine and heat pump efficiencies, we might use heat and entropy flows in introductory physics, but by far the simplest approach involves assuming that an unpowered device can�t increase the net surprisal of the water cup relative to ambient. As shown above, equating net surprisals yields a simple equation that shows that such a device is possible even if the ambient temperature is well above 100F.A practical application of net surprisals involves a problem that my daughter was assigned in a physics course when she was a student here at U of I. Imagine a device which takes in a cup of boiling water, and outputs a cup of ice water. What is the maximum temperature at which such a device can operate without requiring an external source of available work? I�m told that chemists would tackle with problem using Carnot engine and heat pump efficiencies, we might use heat and entropy flows in introductory physics, but by far the simplest approach involves assuming that an unpowered device can�t increase the net surprisal of the water cup relative to ambient. As shown above, equating net surprisals yields a simple equation that shows that such a device is possible even if the ambient temperature is well above 100F.

9. Graphical review of everyday enginesHeat engines and heat pumps are familiar from many introductory courses, but information engines that create correlations between subsystems by thermalizing available work are less familiar. They are, however, at least as important in our day-to-day lives. This approach to visualizing heat and entropy equations also works for heat engines, heat pumps. Information engines are less well known (primarily because thermodynamics traditionally avoids subsystem correlations). However, they are at least as ubiquitous.This approach to visualizing heat and entropy equations also works for heat engines, heat pumps. Information engines are less well known (primarily because thermodynamics traditionally avoids subsystem correlations). However, they are at least as ubiquitous.

10. Natural units for temperature & entropy facilitate the application ofthermal physics to information engines� For example, information engines that reversibly thermalize work to create correlated subsystems are quite topical in modern day studies of code replication (cf. Tom Schneider at NIH), of code origins (cf. the recent Scientific American article by Bennett and others on chain letters), and of quantum computing (cf. articles in the past decade on mutual information and it�s applications by Seth Lloyd).For example, information engines that reversibly thermalize work to create correlated subsystems are quite topical in modern day studies of code replication (cf. Tom Schneider at NIH), of code origins (cf. the recent Scientific American article by Bennett and others on chain letters), and of quantum computing (cf. articles in the past decade on mutual information and it�s applications by Seth Lloyd).
