Presentation Transcript
Slide2 l.jpg

  • Power Supply, Fan

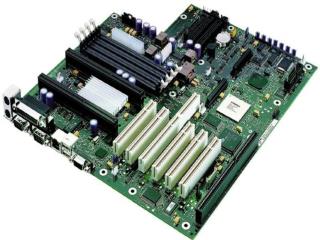

  • Motherboard

    • CPU, Co-processor

    • Heat Sinks

    • Memory Chips (RAM,ROM,CMOS)

    • Expansion Slots/Expansion Cards

      • Sound Card, Network Card, Video Card, Video Capture Card

    • System Clock

    • Buses (System and Expansion(ISA,PCI,AGP, USB and 1394 bus)

    • Ports (back side of system unit)

      • Serial, Parallel, Video,USB, USB 2.0,Midi, SCSI, Wireless,1394 or FireWire

      • keyboard/Mouse, Hard Drive, Monitor, Printer, other external devices

    • Hard Drives, Floppy Drives, Cables

    • Glue Chips


Slide3 l.jpg

CPU

CPU

  • Chip = a small piece of semi conducting material that integrated circuits are etched. An integrated circuit is a pathway capable of carrying electrical current and contains millions of transistors or gates that open or close the circuit for the signal

  • One of the most important ones is the CPU

8088 Chip

5 MgHz


Central processing unit l.jpg
Central Processing Unit

CPU

  • Interprets and carries out basic instructions that operate a computer

  • Also calledthe processor

What is the central processing unit (CPU) ?


Slide5 l.jpg

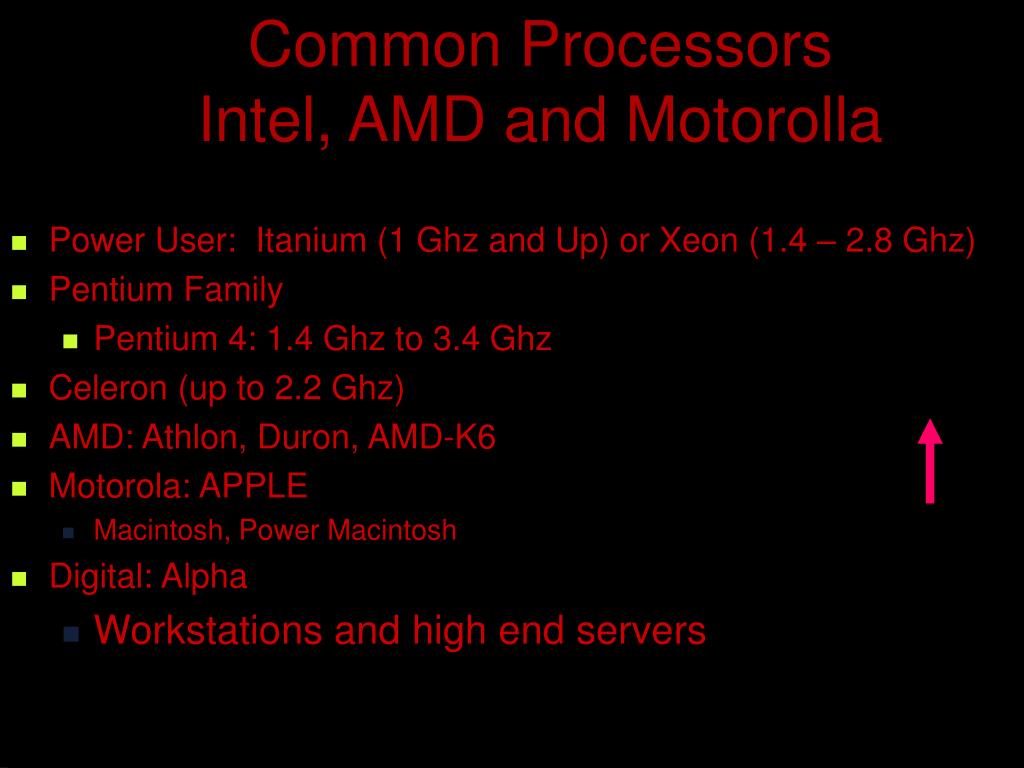

Common Processors

Intel, AMD and Motorolla

  • Power User: Itanium (1 Ghz and Up) or Xeon (1.4 – 2.8 Ghz)

  • Pentium Family

    • Pentium 4: 1.4 Ghz to 3.4 Ghz

  • Celeron (up to 2.2 Ghz)

  • AMD: Athlon, Duron, AMD-K6

  • Motorola: APPLE

    • Macintosh, Power Macintosh

  • Digital: Alpha

    • Workstations and high end servers


Central processing unit6 l.jpg
Central Processing Unit

CPU

Arithmetic/Logic Unit (ALU)

Control Unit

What are the components of the CPU?


Central processing unit7 l.jpg
Central Processing Unit

Control Unit

What is the control unit?

  • Directs and coordinates operations in computer

Control unit repeatsfour basic operations:

  • Fetch - obtain program instruction or data item from memory

  • Decode - translate instruction into commands

  • Execute - carry out command

  • Store - write result to memory


Central processing unit8 l.jpg
Central Processing Unit

  • Instruction time (i-time) - time taken to fetch and decode

  • Execution time (e-time) - time taken to execute and store

e-time

i-time

What is a machine cycle?

  • Four operations of the CPU comprise a machine cycle

  • Also called instruction cycle


Central processing unit9 l.jpg
Central Processing Unit

Comparison (greater than, equal to, or less than)

.and.

.or.

.not.

Arithmetic (addition, subtraction, multiplication, and division)

Logical (AND, OR, NOT)

What is the arithmetic/logic unit (ALU) ?

  • CPU component that performs execution part of the machine cycle


Central processing unit10 l.jpg
Central Processing Unit

What is pipelining?

  • CPU begins executing second instruction before completing first instruction

  • Results in faster processing

Machine Cycle (without pipelining)

Machine Cycle (with pipelining)

Instruction 1

Instruction 2

Instruction 3

Instruction 4


Central processing unit11 l.jpg
Central Processing Unit

Stores instruction while it is being decoded

Stores results of calculation

Stores location from where instruction was fetched

Stores data while ALU processes it

What is a register?

  • Temporary storage area that holds data and instructions


Central processing unit12 l.jpg
Central Processing Unit

MHz- one million ticks of system clock

GHz – one billion ticks of system clock

What is the system clock?

  • Synchronizes all computer operations

  • Each tick is clock cycle


Central processing unit13 l.jpg
Central Processing Unit

How do personal computer processors compare?


Data representation l.jpg
Data Representation

  • Two states

  • Binary numbering system

    • ASCII (American Standard Code for Information Interchange)

    • EBCDIC (Extended Binary Coded Decimal Interchange Code)


Data representation15 l.jpg
Data Representation

What are two popular coding systems to represent data?

  • ASCII - American Standard Code for Information Interchange

  • EBCDIC - Extended Binary Coded Decimal Interchange Code


Data representation16 l.jpg

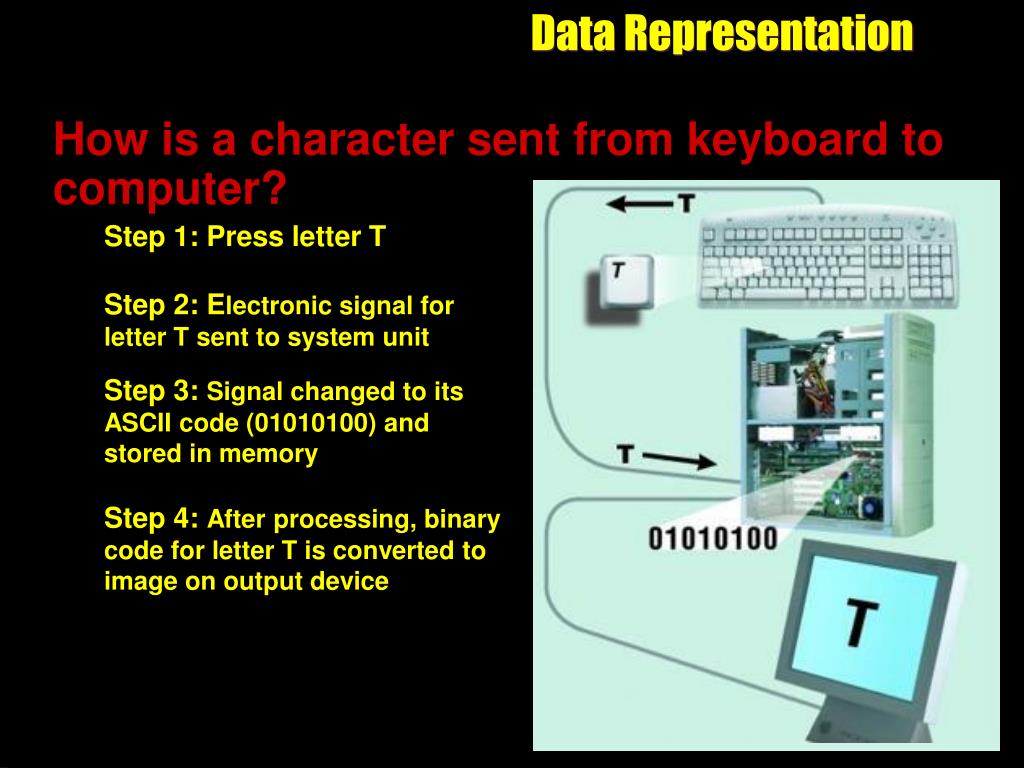

Data Representation

Step 2: Electronic signal for letter T sent to system unit

Step 3: Signal changed to its ASCII code (01010100) and stored in memory

Step 4: After processing, binary code for letter T is converted to image on output device

How is a character sent from keyboard to computer?

Step 1: Press letter T


Memory l.jpg
Memory

seat C22

seat A22

seat B22

What is memory?

  • Temporary storage area for operating system, application programs, and data

  • Consists of one or more chips on motherboard

  • Each byte stored in unique address


Memory18 l.jpg
Memory

How is memory measured?

  • By number of bytes available


Memory19 l.jpg
Memory

volatile memory

Loses its contents when the computer's power is turned off

volatile memory

Loses its contents when computer's poweris turned off

nonvolatile memory

Does NOT lose its contents when computer’s power is turned off

What are two types of system unit memory?


Memory20 l.jpg

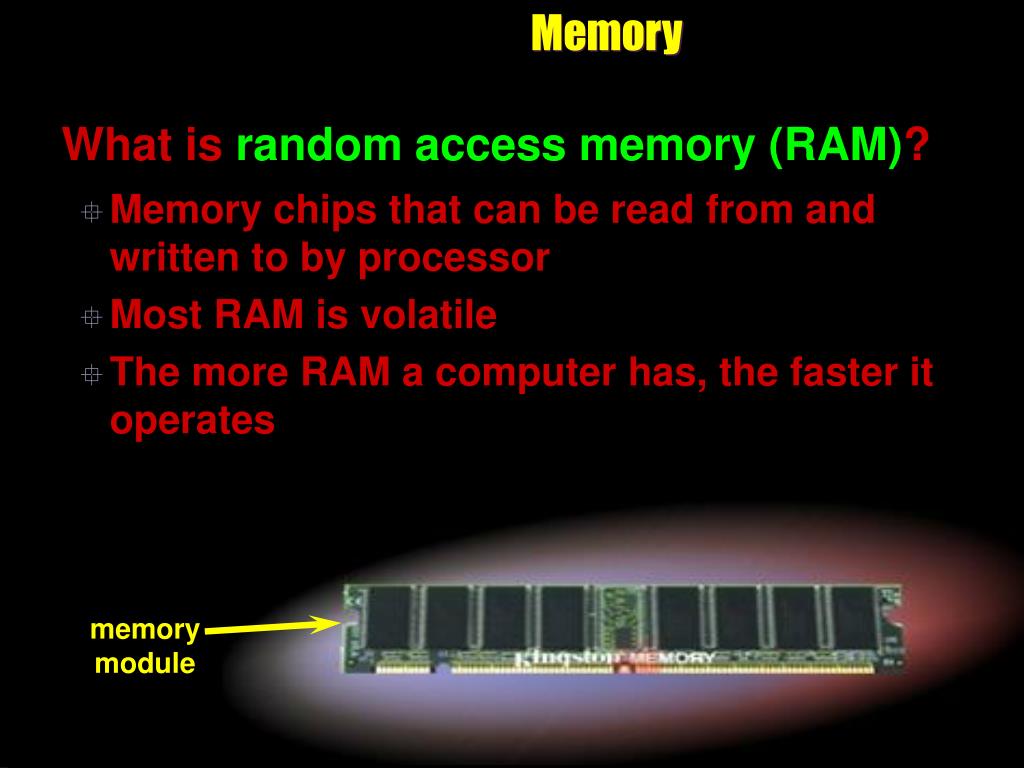

Memory

memory module

What is random access memory (RAM)?

  • Memory chips that can be read from and written to by processor

  • Most RAM is volatile

  • The more RAM a computer has, the faster it operates


Types of memory l.jpg
Types of Memory

  • RAM

    • Memory chips in the system unit

    • Stores programs and data

    • Volatile

    • Dynamic RAM (DRAM), must be re-energized

      • Synchronous DRAM (SDRAM) is faster because it is synchronized to the system clock, 7.5 ns

      • DDR SDRAM, 3ns

      • RDRAM (Intel and Rambus is trying to push), DDR (owned by Rambus – better than RDRAM, but expensive, 1.25ns

    • Static RAM (SRAM)

      • Faster and more reliable than DRAM

      • Does not have to be re-energized as frequently as DRAM

      • Used for special purposes


Slide22 l.jpg
RAM

  • Often smaller in size than processor chips

  • Packaged on circuit boards

    • SIMM (single in-line memory module) –old technology current computers use------

    • DIMM (dual in-line memory module)

    • RIMM (Rambus in-line memory module

  • Typically SDRAM chips


Memory23 l.jpg
Memory

What is cache?

  • Helps speed computer processes by storing frequently used instructions and data

  • Also called memory cache, cache store, or RAM cache

  • L1 cache built in processor

  • L2 and L3 cache not built in processor (depends on currency)

  • L2 advanced transfer cache most common


Cache l.jpg
Cache

  • Memory cache, cache store or RAM cache

    • Level 1 (L1), small capacity (8 Kb to 64 Kb), built directly on the processor

    • Level 2 (L2), external cache, on SRAM chips, slightly slower than L1 cache but has a larger capacity, 64 KB to 4 MB, newer machines L2 cache is built on the processor and called Advanced Transfer cache- these machines can also have L3 cache (external)

    • Machines with cache (10-40% faster)

    • Most current machines have 256K to 512K of cache


Memory25 l.jpg
Memory

BIOS

(basic input/output system)

Stored on ROM

Sequence of instructions computer follows to load operating system and other files when you turn on the computer

ROM is nonvolatile — Contents not lost when computer is turned off

Data can only be read; cannot be modified in ROM

What is read-only memory (ROM)?

  • Memory chips that contain data, instructions, or information that is recorded permanently


Memory26 l.jpg
Memory

Complementary metal-oxide semiconductor memory

Stores information about the computer

Uses battery to retain information when computer is turned off

  • type of disk drives

  • keyboard

  • monitor

  • current time and date

What is CMOS?


Memory27 l.jpg

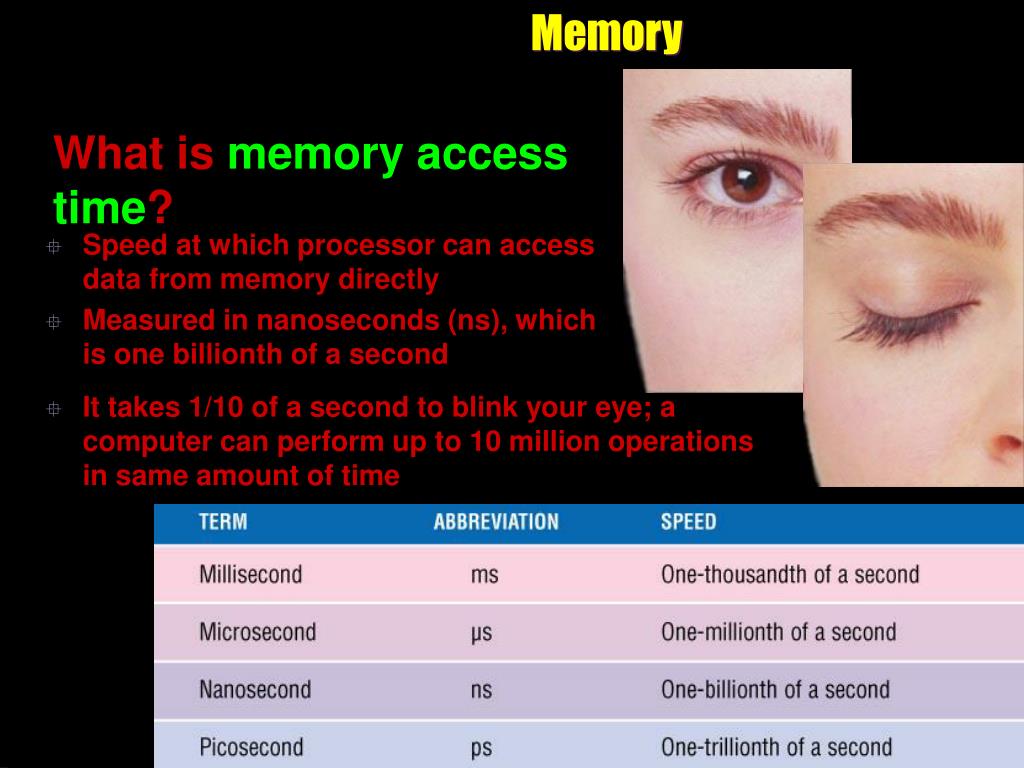

Memory

What is memory access time?

  • Speed at which processor can access data from memory directly

  • Measured in nanoseconds (ns), which is one billionth of a second

  • It takes 1/10 of a second to blink your eye; a computer can perform up to 10 million operations in same amount of time


Expansion slots and expansion cards l.jpg
Expansion Slots and Expansion Cards

expansion card

expansion slot

What is an expansion slot?

  • An opening, or socket, where circuit board is inserted into motherboard

  • Expansion card inserted in expansion slot


Expansion slots and expansion cards29 l.jpg
Expansion Slots and Expansion Cards

How are expansion cards used?


Ports l.jpg
Ports

mouse

keyboard

USB

USB

serial port

printer (parallel port)

speaker

monitor

microphone

game port

network

telephone line out

telephone line in

FM reception

svideo out

cable TV

  • Connects external devices to system unit

What is a port?


Ports31 l.jpg
Ports

byte representation for number 5 (00110101)

serial transmission of data

byte representation for number 5 (00110101)

byte representation for number 5 (00110101)

DB-9 female connector

DB-9 male connector

What is a serial port?

  • Transmits one bit of data at a time

  • Used to connect slow-speed devices, such as mouse, keyboard, modem


Ports32 l.jpg
Ports

byte representation for number 1

byte representation for number 3

byte representation fornumber 5

DB-25 male connector

DB-25 female connector

What is a parallel port?

  • Connects devices that can transfer more than one bit at a time, such as a printer


Ports33 l.jpg
Ports

1394 port

USB port

What is a universal serial bus port (USB) ?

  • Connector that supports newer peripherals and plug and play

  • Other popular ports include 1394, MIDI, SCSI, and IrDA


Slide34 l.jpg

PORTS

USB, USB 2.0

Can connect multiple devices

MIDI

Connects an instrument to the system unit

SCSI

High speed parallel port used to connect disk drives, 7 devices can be attached

1394 (Fire Wire)

Can connect multiple devices requiring fast connections

Digital video camcorders, color printers, digital cameras and DVD drives


Slide35 l.jpg

processor

system bus

RAM

  • Channel that allows devices inside computer to communicate with each other

  • System bus connects processor and RAM

  • Bus width determines numberof bits transmitted at one time

  • Word size determines numberof bits processor can interpretand execute at a given time

What is a bus?


Buses l.jpg
Buses

fastest

next fastest

next fastest

slowest

memory

processor

PCI busexpansion slots

ISA bus expansion slots

What is an expansion bus?

  • Allows processor to communicate with peripherals


Expansion bus l.jpg
Expansion Bus

  • Expansion bus allows the CPU to connect to the peripheral device attached to the expansion card

  • ISA (Industry Standard Architecture)

    • Mouse, Modem, Soundcard

  • PCI (Peripheral Component Interconnect)

    • Hard Drive (4 X faster than ISA)

  • AGP (Accelerated Graphics Port) which is

    • actually a bus

    • Bus designed for a video card (AGP video card)

  • USB (Universal Serial Bus), multiple devices,

    • USB connects to the PCI bus


Market tiers l.jpg
Market Tiers

  • Top Tier

    • IBM, Apple, Compaq and HP

  • Second Tier

    • Newer companies with high sales volume

      • Gateway, Dell, Packard Bell

    • Third Tuer

      • Smaller Start up Companies

        • Mail Order


Marketing channels l.jpg
Marketing Channels

  • Computer Retail Store

  • Mail Order Suppliers

  • Value – added Reseller

  • Manufacturer Direct
