Presentation Transcript
Privilege and policy management for cyber infrastructures l.jpg

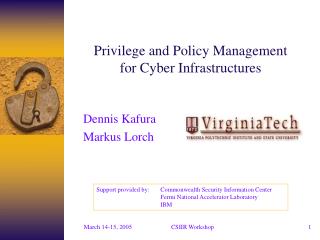

Privilege and Policy Management for Cyber Infrastructures

Dennis Kafura

Markus Lorch

Support provided by: Commonwealth Security Information Center

Fermi National Accelerator Laboratory

IBM

March 14-15, 2005


Organization l.jpg

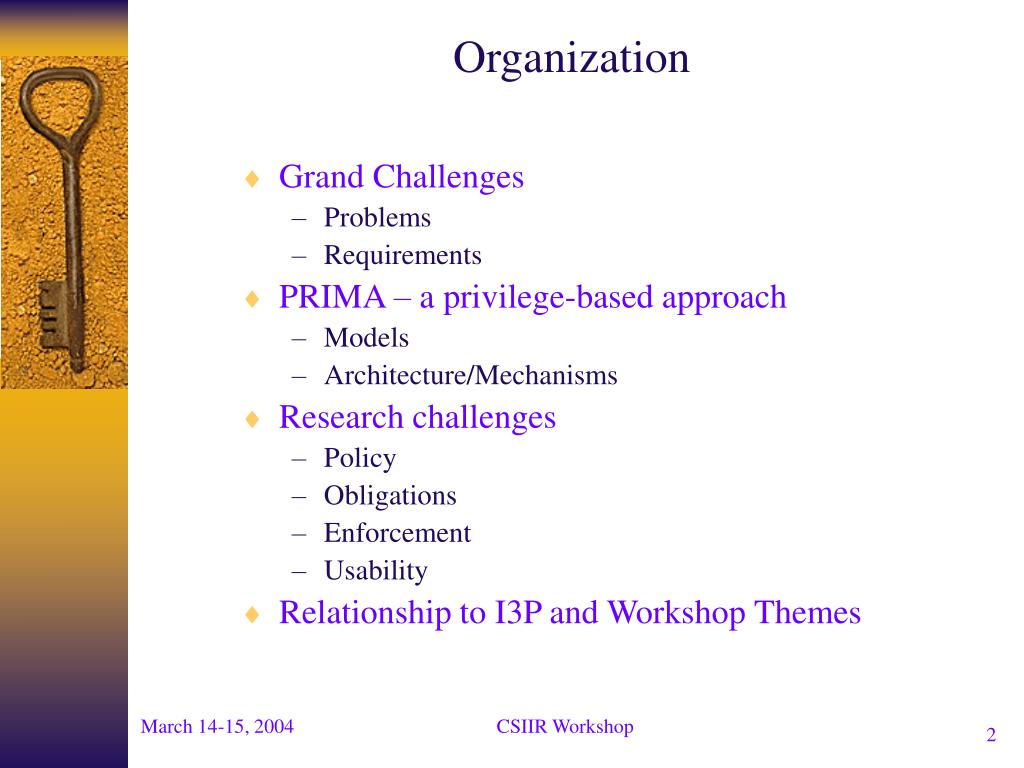

Organization

  • Grand Challenges

    • Problems

    • Requirements

  • PRIMA – a privilege-based approach

    • Models

    • Architecture/Mechanisms

  • Research challenges

    • Policy

    • Obligations

    • Enforcement

    • Usability

  • Relationship to I3P and Workshop Themes

March 14-15, 2004


Grand challenge problems l.jpg
Grand Challenge Problems

  • Societal infrastructures

    “Develop tools and principles that allow construction of

    large-scale systems for important societal applications that

    are highly trustworthy despite being attractive targets.”

  • Dynamic, pervasive computing environments

    “For the dynamic, pervasive computing environments of

    the future, give computing end-users security they can

    understand and privacy they can control.

From: CRA Workshop on “Grand Research Challenges in Information Security and Assurance,” November 2003.

March 14-15, 2004



Prima models l.jpg
PRIMA Models

March 14-15, 2004


Prima properties l.jpg
PRIMA Properties

March 14-15, 2004


Privilege structure l.jpg
Privilege Structure

  • Privilege Properties

  • Fully associated

  • Directly applicable

  • Time limited

  • Externalized

  • Secure

  • Non-repudiation

  • Implementation

  • Container: X.509 Attribute Certificate

  • Privilege: XACML rule construct

March 14-15, 2004


Enforcement concepts l.jpg
Enforcement Concepts

  • Policy Enforcement Point (PEP) checks privileges for:

    • Applicability (to resource and requestor)

    • Validity (of time frame and signature)

    • Authority (with respect to privilege management policy)

  • All permissible privilege constitute a dynamic policy for a request

  • Policy Decision Point (PDP):

    • Makes coarse decision

    • Adds obligations for PEP

March 14-15, 2004


Dynamic policy l.jpg

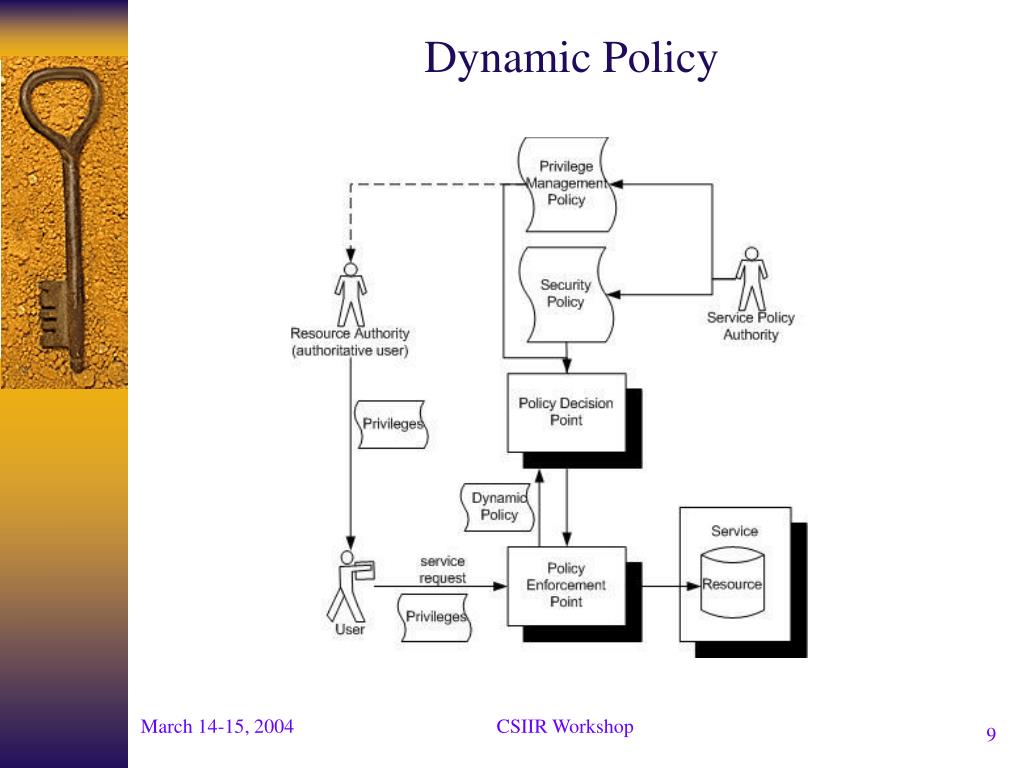

Dynamic Policy

March 14-15, 2004


Obligations l.jpg
Obligations

  • Additional constraints to an authorization decision

  • If PEP cannot fulfill an obligation then it disallows access

  • Obligation address the mismatch in level of detail between request and policies

  • Obligations help in maintaining system state

March 14-15, 2004


Research challenges policy l.jpg
Research Challenges: Policy

  • What can be adapted from software engineering research for policy:

    • Testing

    • Debugging

    • Formal Analysis

    • Requirements engineering

  • Policy extensions

    • Threat/environment aware

March 14-15, 2004


Research challenges obligations l.jpg
Research Challenges: Obligations

  • Granularity mismatch

    • Too many rights to be externalized

    • Partially addressed by dynamic policy

  • With respect to the request

    • Need to add restrictions finer-grained than request

March 14-15, 2004


Research challenges enforcement l.jpg
Research Challenges: Enforcement

  • Evaluation of mechanisms

    • Dynamic user accounts

    • Virtual machine/sandboxing

    • Service containers

  • Model

    • Distributing privileges to dynamically provision an execution environment, vs.

    • Pre-provisioning an execution environment and distributing a privilege for it

March 14-15, 2004


Research challenges usability l.jpg
Research Challenges: Usability

  • What are the right conceptual models?

    • Privileges

    • Roles

    • Others? Several? Combinations?

  • How can users manage their rights?

    • P3P

    • Shibboleth release policies

    • Least-privilege control

March 14-15, 2004


Addressing i3p and workshop themes l.jpg
Addressing I3P and Workshop Themes

I3P Agenda

Workshop

Themes

March 14-15, 2004
