Presentation Transcript
Green roofs l.jpg
Green Roofs

  • by Walter Tersch

April 27, 2007

[email protected]

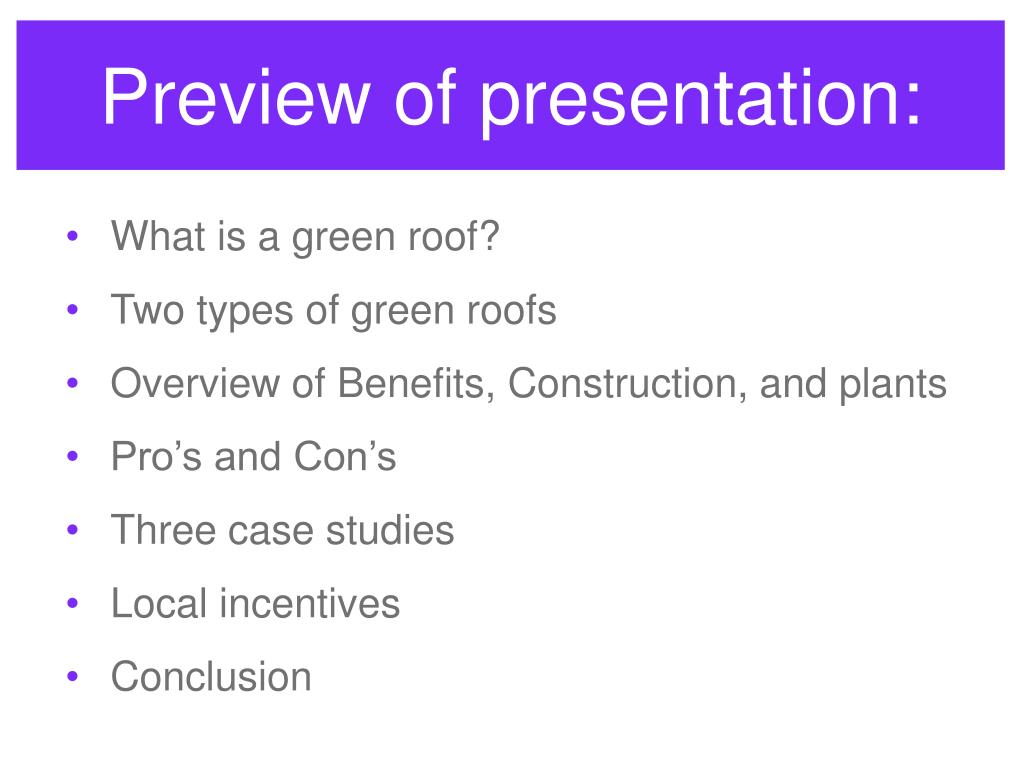

Preview of presentation l.jpg
Preview of presentation:

  • What is a green roof?

  • Two types of green roofs

  • Overview of Benefits, Construction, and plants

  • Pro’s and Con’s

  • Three case studies

  • Local incentives

  • Conclusion


Green roof basics l.jpg

“Rooftop gardening is an attractive and energy-saving alternative to a conventional rooftop”

Green Roof basics

-Chicago’s Mayor Richard M. Daley

  • “Vegetation and soil or a growing medium planted over a waterproofing membrane”

-U.S. EPA

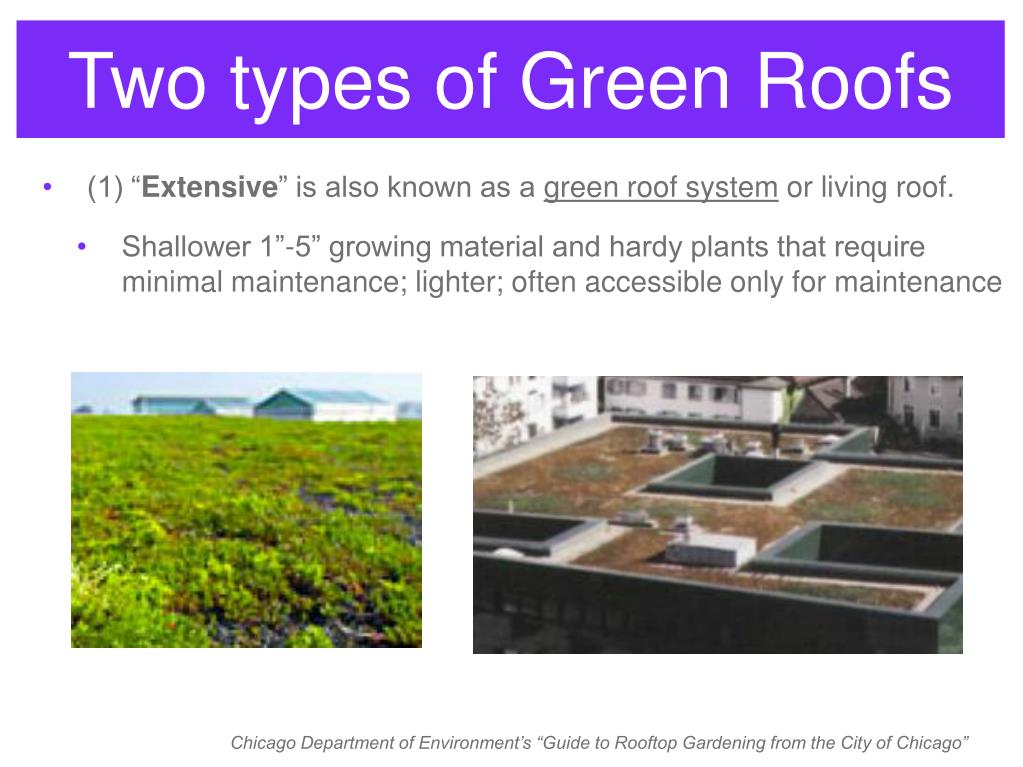

Two types of green roofs l.jpg
Two types of Green Roofs alternative to a conventional rooftop”

  • (1) “Extensive” is also known as a green roof system or living roof.

    • Shallower 1”-5” growing material and hardy plants that require minimal maintenance; lighter; often accessible only for maintenance

Chicago Department of Environment’s “Guide to Rooftop Gardening from the City of Chicago”


Two types of green roofs5 l.jpg
Two types of Green Roofs alternative to a conventional rooftop”

  • (2) “Intensive” is also known as a rooftop garden

    • Deeper 12+” growing material, more intricate or delicate plantings, and more maintenance such as irrigation and pruning required;heavier but generally accessible to people, like a ground garden

    • Requires two exits, barriers at roof’s edge, raised smokestacks, and a structural capacity load calculation that accounts for people.

Note: Container gardens are cheapest and easiest type of “plants on roof” to maintain, but do not insulate or reduce stormwater runoff and are not considered green roofs

Chicago Department of Environment’s “Guide to Rooftop Gardening from the City of Chicago”


Overview of benefits l.jpg
Overview of benefits alternative to a conventional rooftop”

  • Reduce urban heat island effect

  • Improve air quality

  • Extend useful life of roof

  • Add beauty and usable space

  • Reduce stormwater runoff

  • Enhance energy efficiency of buildings, helping move towards energy independence


Basic construction l.jpg
Basic Construction alternative to a conventional rooftop”

  • Ford Motor company’s 3-inch thick system:

    • Sedum plants and growing material

    • Fleece mat

    • Drainage Layer

    • Root-resistant Membrane

  • Green roofs originated in Europe, where sod has been a roofing material for hundreds of years.

  • Urban areas in Germany began adding GR’s more than 30 years ago; now one of every 10 flat roofs is green.

http://www.post-gazette.com/pg/05218/549461.stm


Sedum l.jpg
Sedum alternative to a conventional rooftop”

  • Most popular green roof plant

  • Virtually maintenance-free

  • A hardy flowering, creeping succulent that stores water in its leaves

  • Found throughout the Northern Hemisphere; also known as Stonecrop

  • Grows less than 6 inches tall and spreads horizontally, crowding out weeds; traps dust and consumes CO2

Sources: http://www.ecocenter.org/200308/fordrouge200308.shtml and

http://en.wikipedia.org/wiki/Sedum

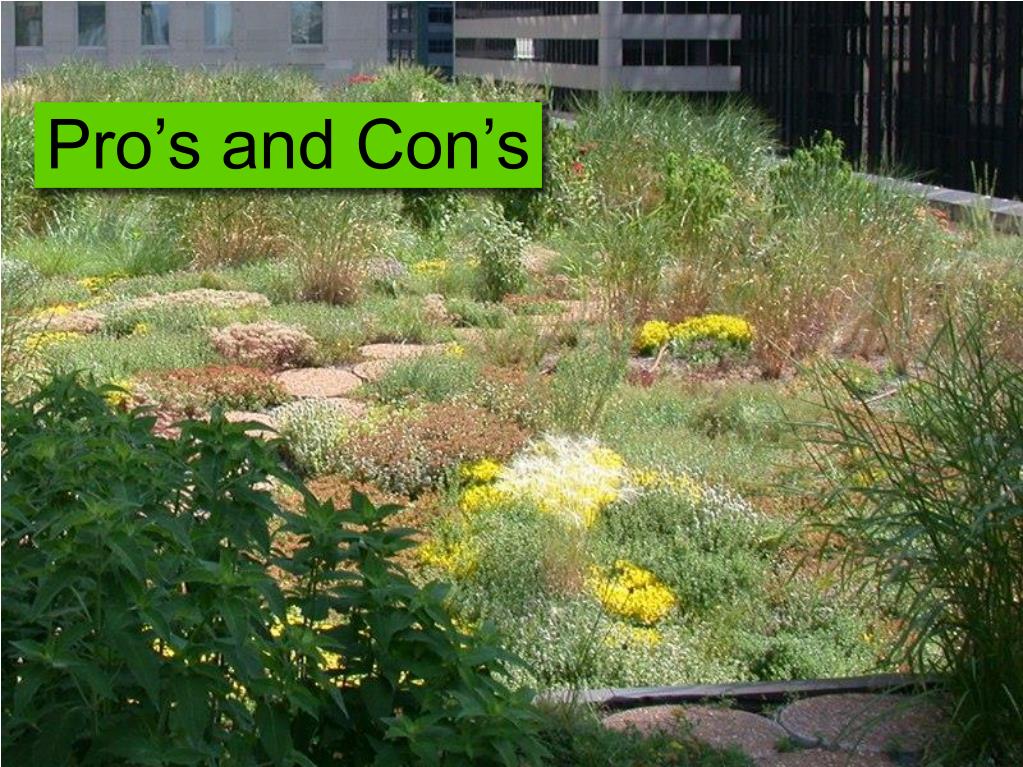

Pro s and con s l.jpg
Pro’s and Con’s alternative to a conventional rooftop”

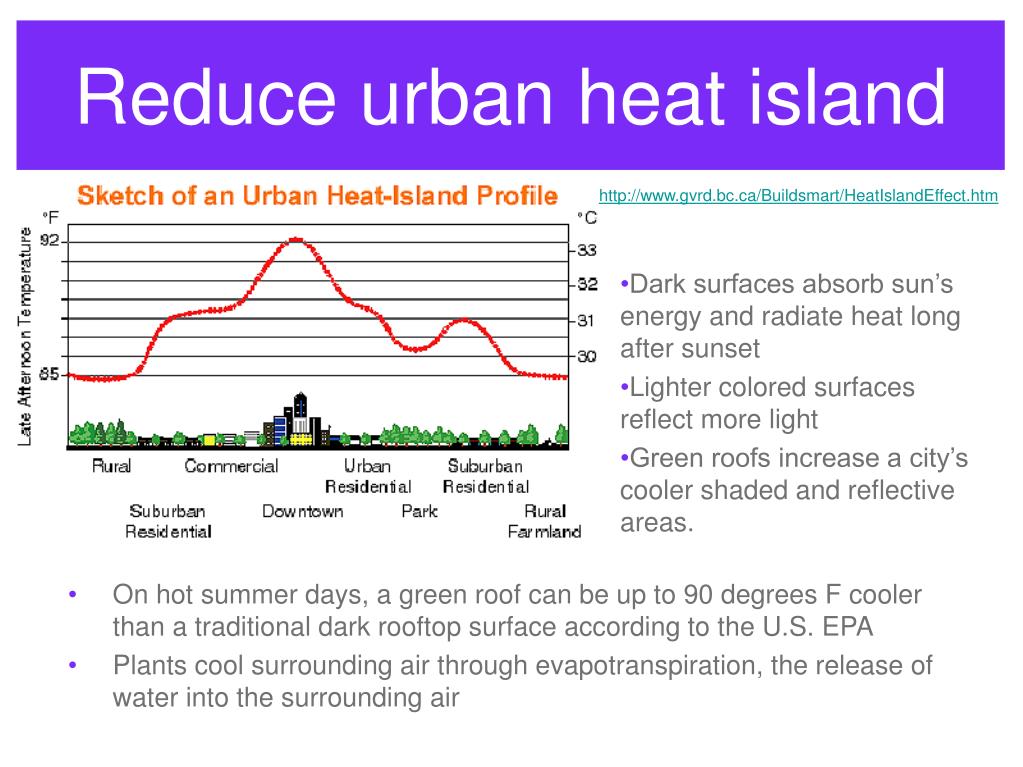

Reduce urban heat island l.jpg
Reduce urban heat island alternative to a conventional rooftop”

  • On hot summer days, a green roof can be up to 90 degrees F cooler than a traditional dark rooftop surface according to the U.S. EPA

  • Plants cool surrounding air through evapotranspiration, the release of water into the surrounding air

http://www.gvrd.bc.ca/Buildsmart/HeatIslandEffect.htm

  • Dark surfaces absorb sun’s energy and radiate heat long after sunset

  • Lighter colored surfaces reflect more light

  • Green roofs increase a city’s cooler shaded and reflective areas.


Improve air quality l.jpg
Improve air quality alternative to a conventional rooftop”

  • Direct: plants use excess carbon dioxide to produce oxygen

  • Indirect: air conditioners do not need to work as hard to keep building cool in summer. “Peaker” power plants need to activate less frequently in the summer, thus causing less air pollution (and lower energy prices)

    • Also, higher temperatures create more smog because pollution is magnified when chemicals in the air react with heat and sunlight.

    • Ground-level ozone is a components of smog dangerous to human health; it irritates the eyes, aggravates asthma, and causes permanent lung damage.

Chicago Department of Environment’s “Guide to Rooftop Gardening from the City of Chicago”

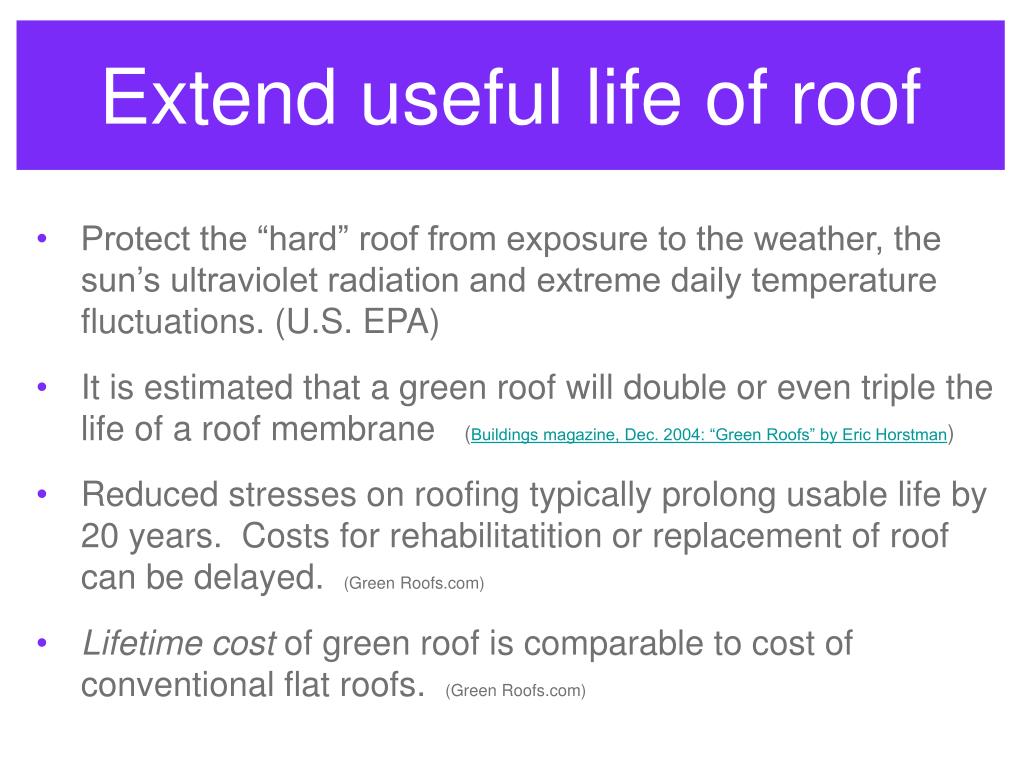

Extend useful life of roof l.jpg
Extend useful life of roof alternative to a conventional rooftop”

  • Protect the “hard” roof from exposure to the weather, the sun’s ultraviolet radiation and extreme daily temperature fluctuations. (U.S. EPA)

  • It is estimated that a green roof will double or even triple the life of a roof membrane (Buildings magazine, Dec. 2004: “Green Roofs” by Eric Horstman)

  • Reduced stresses on roofing typically prolong usable life by 20 years. Costs for rehabilitatition or replacement of roof can be delayed. (Green Roofs.com)

  • Lifetime cost of green roof is comparable to cost of conventional flat roofs. (Green Roofs.com)


Add beauty and usable space l.jpg
Add beauty and usable space alternative to a conventional rooftop”

  • Provide habitat for birds and insects

  • Protect biodiversity

  • Improve urban quality of life

  • Reduce noise transfer from outdoors “by up to 25% for extensive roofs and more for intensive.” (Green Roofs.com)


Reduce stormwater runoff l.jpg
Reduce stormwater runoff alternative to a conventional rooftop”

  • Green roofs absorb rainfall and reduce urban runoff that would otherwise collect pollutants and empty into sewers for costly treatment

    • 3”-5” of growing medium absorbs 75% of rain events of 1/2” or less

  • Filter pollution from rainwater; root systems’ bacteria and fungi utilize natural filtering processes of bioremediation and phytoremediation to break down and detoxify nitrogen and phosphorus

  • http://www.epa.gov/hiri/strategies/greenroofs.html


    Enhanced energy efficiency l.jpg
    Enhanced energy efficiency alternative to a conventional rooftop”

    • Less wasted energy = more energy independence

    • Can reduce a single-story building’s cooling costs by 20 to 30 percent(Buildings magazine, Dec. 2004: “Green Roofs” by Eric Horstman)

    • A 3 to 7 degree temperature drop translates to a 10% reduction in air conditioning requirements. (Greenroofs.com)

    • Weston Design Consultants’ study for the city of chicago estimated that it $100M could be saved annually with the greening of all the city’s rooftops.

    • “Peak demand would be cut by 720 megawatts -- the equivalent of several coal-fired generating stations or one small nuclear power plant.” (Greenroofs.com)


    Drawbacks and limitations l.jpg
    Drawbacks and Limitations alternative to a conventional rooftop”

    • As a general rule of thumb, green roof systems cost 50% more than a conventional roof

    • U.S. EPA: Green Roofs start at $8/ sq. ft., including materials, preparation work and installation, whereas traditional roof starts at $1.25/ sq. ft.

    • Not all roofs can support the weight of green roofs (additional 12 to 150 lbs. per sq. foot)

    Chicago Department of Environment’s “Guide to Rooftop Gardening from the City of Chicago”

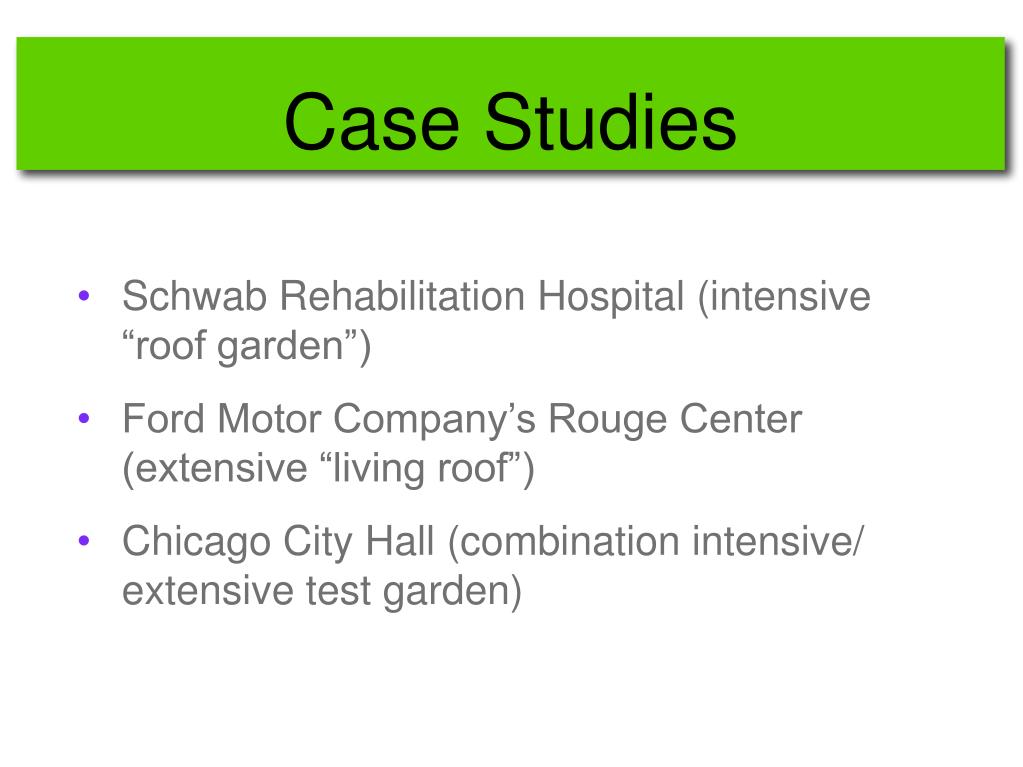

    Case studies l.jpg
    Case Studies alternative to a conventional rooftop”

    • Schwab Rehabilitation Hospital (intensive “roof garden”)

    • Ford Motor Company’s Rouge Center (extensive “living roof”)

    • Chicago City Hall (combination intensive/ extensive test garden)

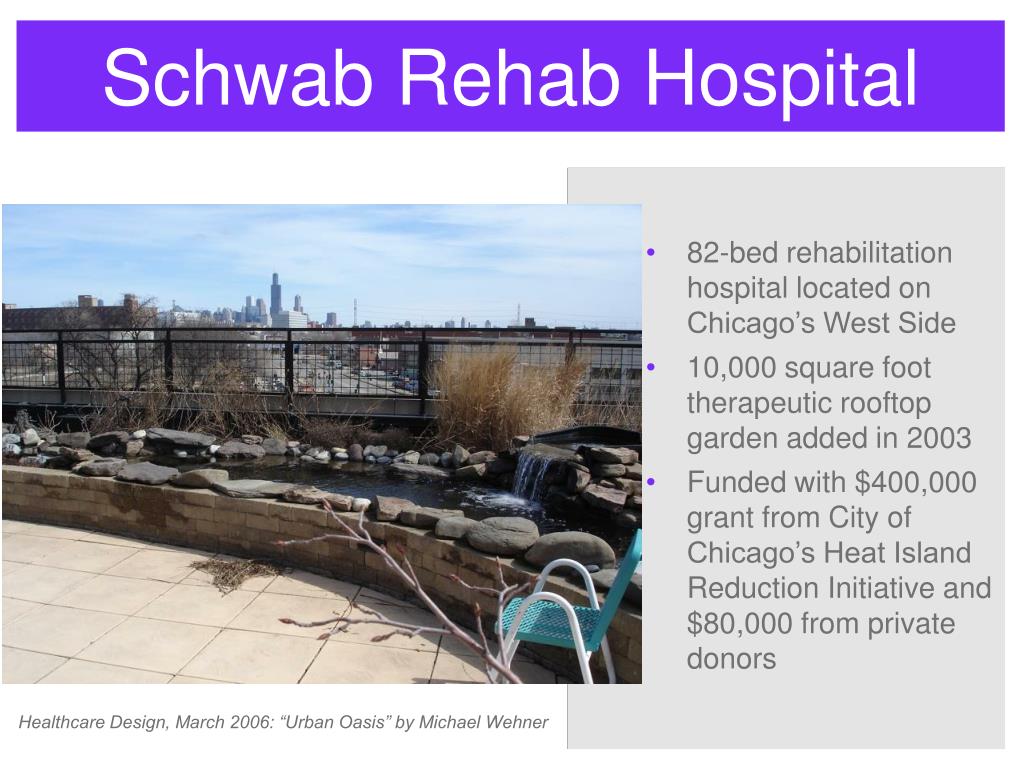

    Schwab rehab hospital l.jpg
    Schwab Rehab Hospital alternative to a conventional rooftop”

    • 82-bed rehabilitation hospital located on Chicago’s West Side

    • 10,000 square foot therapeutic rooftop garden added in 2003

    • Funded with $400,000 grant from City of Chicago’s Heat Island Reduction Initiative and $80,000 from private donors

    Healthcare Design, March 2006: “Urban Oasis” by Michael Wehner


    Schwab rehab hospital19 l.jpg
    Schwab Rehab Hospital alternative to a conventional rooftop”

    • Intensive roof garden; energy savings unknown

    • Built with structure for a 4th story


    Schwab rehab hospital20 l.jpg
    Schwab Rehab Hospital alternative to a conventional rooftop”

    • Waterfall feeds 50-foot pebble-lined stream; benefits patients

    • 50 midwestern savanna plant species selected; many drought-resistant or full sun.


    Schwab rehab hospital21 l.jpg
    Schwab Rehab Hospital alternative to a conventional rooftop”

    • Organic gardening techniques eliminate need for chemical fertilizer; composting reduces yard waste by over 90%

    • Volunteer master gardeners and recreational therapists maintain it

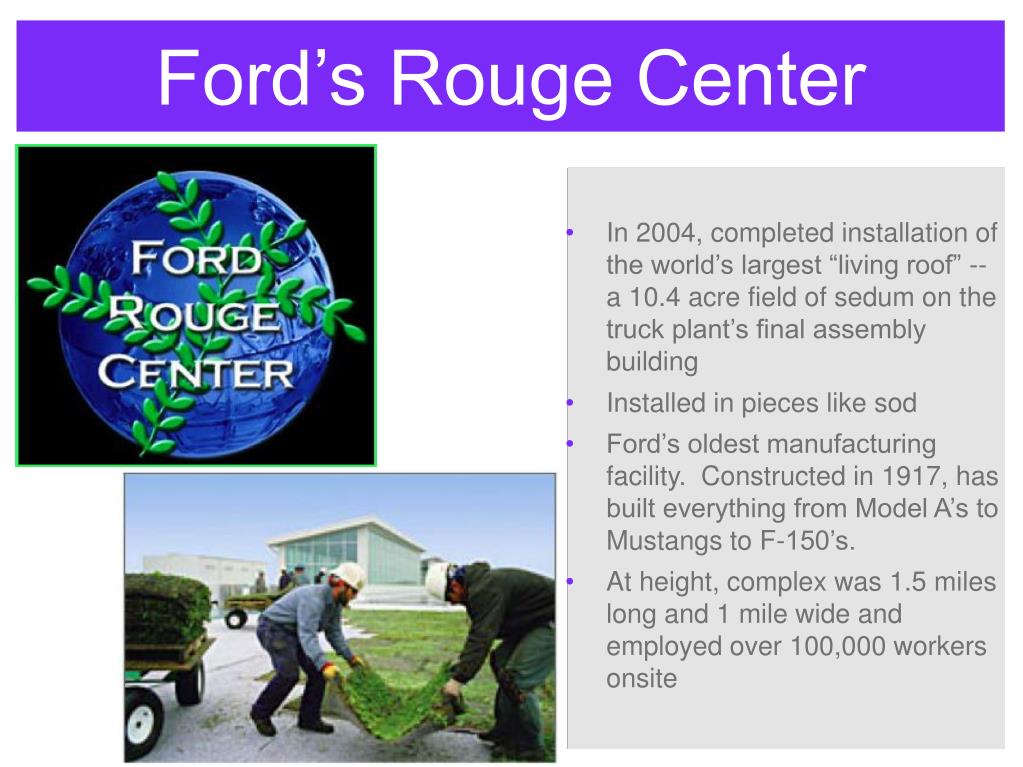

    Ford s rouge center l.jpg
    Ford’s Rouge Center alternative to a conventional rooftop”

    • In 2004, completed installation of the world’s largest “living roof” -- a 10.4 acre field of sedum on the truck plant’s final assembly building

    • Installed in pieces like sod

    • Ford’s oldest manufacturing facility. Constructed in 1917, has built everything from Model A’s to Mustangs to F-150’s.

    • At height, complex was 1.5 miles long and 1 mile wide and employed over 100,000 workers onsite


    Ford s rouge center23 l.jpg
    Ford’s Rouge Center alternative to a conventional rooftop”

    • Ford’s vertically oriented “ore to assembly” processes left their mark on the environment

    • In 2000, they launched their $2 billion Rouge Heritage Project.

    • The new roof stores rainwater and will save Ford money in the long run

    • Also has world’s largest porous parking lot to minimize stormwater runoff


    Ford s rouge center24 l.jpg
    Ford’s Rouge Center alternative to a conventional rooftop”

    • Experimental phytoremediation is being tested to treat soil containing harmful byproducts of steel manufacturing process

      • Microbes on special plants break down compounds into small fragments absorbed into roots

      • May prove to be a safe alternative to landfilling contaminated soil

    • Natural light is used on line

    • 20,000 honeybees live on plant grounds, aiding wildlife

    Source: “The Greening of the Rouge”, Ecology Center News,

    August 2003


    Chicago city hall l.jpg
    Chicago City Hall alternative to a conventional rooftop”

    • Both extensive and intensive systems (3” to 24” thick soil)

    • G.R. was completed in 2001 after Mayor Daley saw many G.R.’s in Hamburg, Germany

    • 20,000 plants - 156 species incl. shrubs, vines and two trees

      • Hall built in 1911; structural capacity for a 12th story

    Source: Kevin Laberge, P.E., Chicago Dept. of Environment

    Environmental Engineer


    Chicago city hall26 l.jpg
    Chicago City Hall alternative to a conventional rooftop”

    • First of its kind in Chicago; showcase for the whole U.S.

    • Funded through a settlement agreement between the City and ComEd

    • Radiating bands of species initially ested plants in different soil thicknesses, gradients, and drainage patterns; nature has taken its course


    Chicago city hall27 l.jpg
    Chicago City Hall alternative to a conventional rooftop”

    • Drip irrigation used since 2002.

    • Two cisterns provide 10% of water

    • Existing 6 rooftop drains are utilized


    Chicago city hall28 l.jpg
    Chicago City Hall alternative to a conventional rooftop”

    • Biodegradable mesh netting held initial plantings in place; cable anchors hold trees

    • Studies indicate that ambient air temperature is up to 78 degrees cooler than the air temperature above the black tar roof on Cook County half of the building

    http://www.asla.org/meetings/awards/awds02/chicagocityhall.html

    Photo credits: Mark Farina, Chicago Department of Environment


    Chicago city hall29 l.jpg
    Chicago City Hall alternative to a conventional rooftop”

    • Two beehives produce over 150 lbs. of honey per year, which is sold at Chicago Cultural Center

    • Estimated heating and cooling savings of $5,500 annually; city lacks ability to track actual savings

    Photo credits: Mark Farina, Chicago Department of Environment

    Sources: http://www.madisonenvironmental.com/events_greenrooftour.html;

    Kevin Laberge, P.E., Chicago Dept. of Environment, Environmental Engineer


    Local incentives l.jpg
    Local Incentives alternative to a conventional rooftop”

    • City of Chicago:

      • The City awarded 40 $5,000 “green building and design” grants to residential and small businesses in 2006.

    • There are now more than 80 green roofs established or underway in Chicago, on public and private buildings.

    News Star, 4/11/07: “Going Green” by Karen Shoffner


    Conclusion l.jpg
    Conclusion alternative to a conventional rooftop”

    • Most green roofs should be able to use the existing rooftop drainage system with only minor modifications

    • Due to benefits including energy savings, enhanced roof life, stormwater reduction, beautification, and air quality improvement, green roofs make sense for all new roofs.

    • Since 2001, City of Chicago requires all new roofs to be either reflective-coated or green roofs
