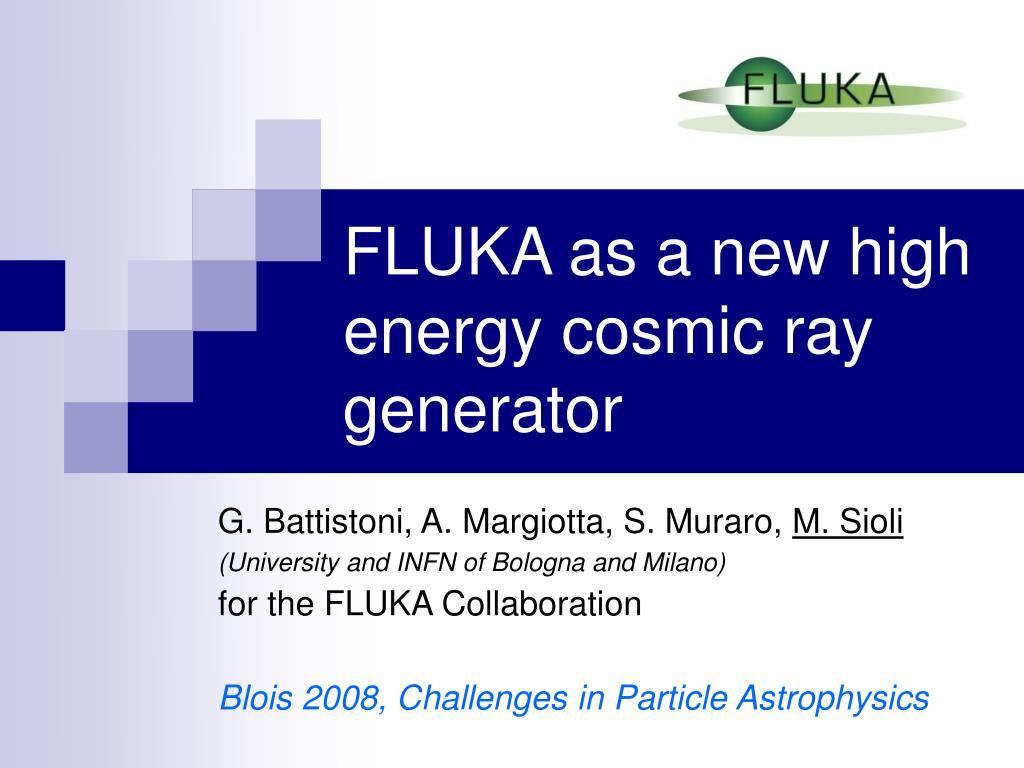

  1. FLUKA as a new high energy cosmic ray generator G. Battistoni, A. Margiotta, S. Muraro, M. Sioli(University and INFN of Bologna and Milano)for the FLUKA CollaborationBlois 2008, Challenges in Particle Astrophysics

  2. Outline • Motivations • Main features of FLUKA • Code structure • The geometry setup • The underground case • The underwater case • First results • Conclusions M. Sioli, Blois 2008

  3. Motivations • Extend the existing FLUKA cosmic-ray library to include the TeV region (primaries at the knee of the spectrum), aimed to underground and underwater sites • Different approach with respect to past and present cosmic ray generators: use of a unique framework (FLUKA) for the whole simulation. From 1ry interaction in the upper atmosphere up to the detector level (and the detector itself, in principle) • Provide a prediction data set (muons and muon-related secondaries) for some topic sites: presently for LNGS and ANTARES sites • Cross check with other dedicated simulation packages (HEMAS, CORSIKA, Cosmos) • Cross check with past experimental data (e.g. MACRO) M. Sioli, Blois 2008

  4. Main features of FLUKA FLUKA authors:A. Fasso1, A. Ferrari2, J. Ranft3, P.R. Sala4 1 SLAC Stanford, 2 CERN, 3 Siegen University, 4 INFN Milan Official web site:www.fluka.org • FLUKA is a general purpose Monte Carlo code for the interaction and transport of particles in matter in a wide range of energies in user-defined geometries • Applications span from shielding design, space physics, calorimetry, dosimetry, medical physics, detector design, particle physics etc. • The code is maintained and developed under a CERN-INFN agreement • More than 1000 users all over the world • Physics models (e.g. hadronic interaction models) are built according to a theoretical microscopic point of view (no parameterizations)  few free parameters, high predictivity but low flexibility • Cosmic Ray physics with FLUKA “triggered” by: • HEP physics (e.g. atmospheric neutrino flux calculations) • radioprotection in space M. Sioli, Blois 2008

  5. Primary C.R. proton/nucleus:A,E,isotropic The physics of CR TeV muons hadronic interaction: multiparticle productions(A,E), dN/dx(A,E)  extensive air shower Primary p, He, ..., Fe nuclei with lab. energy from 1 TeV/nucleon up to >10000 TeV/nucleon K (ordinary) meson decay:dNm/d cosq ~ 1/ cosq p m short-lifetime meson production and prompt decay (e.g. charmed mesons) Isotropic ang. distr. transverse size of bundle  Pt(A,E) m m (TeV) muon propagation in the rock: radiative processes and fluctuations Multi-TeV muon transport detection:Nm(A,E), dNm/dr M. Sioli, Blois 2008

  6. Relevant for HE C.R. physics The FLUKA hadronic interaction models(for a detailed study of their validity for CR studies see hep-ph/0612075 and 0711.2044) > 5 GeV Elab DPM:soft physics based on (multi)Pomeron exchange DPMJET:soft physics of DPM plus 2+2 processes from pQCD

  7. Code structure • Geometry description • Generation of the kinematics (i.e. the source particles) ↔ 1ry cosmic ray composition model • Output file on an event by event basis (root tree file): • information on primary cosmic ray generating the shower • for each particle reaching the detector level, stores all the relevant parameters (particle ID, 3-momenta, vertex coordinates, momentum in atmosphere, information on the parent mesons etc) N.B. With FLUKA, shower generation, transport in the sea/rock, and particle folding in the detector is performed inside the same framework (otherwise different tools have to be patched together) M. Sioli, Blois 2008

  8. Geometry setup (e.g. LNGS site) • 100 atmospheric shells • 1 spherical body for the mountain, whose radius is dynamically changed, according to primary direction and to the Gran Sasso mountain map (direction  rock depth) • 1 rock box surrounding the experimental underground halls, where muon-induced 2ry are activated (e.m. and hadron showers from photo-nuclear interactions) • Underground halls: one box + one semi-cylinder • Possibility to include simultaneously more than one experimental Hall to study large transverse momentum secondaries with detector coincidences) M. Sioli, Blois 2008

  9. Geometry for underground sites z Spherical mountain whose radius is dynamically changed using a detailed topographical map Primary injection point d Atmosphere R0 R Earth M. Sioli, Blois 2008

  10. Geometry setup: LNGS halls External (rock) volume to propagate all particles down to 100 MeV m muon-produced secondaries LNGS underground halls M. Sioli, Blois 2008

  11. Geometry setup (underwater) • Underwater case (e.g. ANTARES) • 100 atmospheric shells • Simpler geometrical description (see ≡ concentrical spherical shell of water) • Can ≡ virtual cylindrical surface which set the boundaries for the active volume (instrumented with PM-equipped lines) • Eventually include also here an “active layer” (for secondary production and following) M. Sioli, Blois 2008

  12. Geometry for underwater sites Atmosphere m Sea Can Earth M. Sioli, Blois 2008

  13. Technical issues (biasing) • initialize energy band boundaries for 1ry cosmic rays: • lower bound is computed according to muon survival probabilities • recompute “on the fly” energy thresholds: • kill particles with Ekin<800 GeV at mountain entrance • kill particles with Ekin<2 GeV inside mountain • kill particle with Ekin<100 MeV inside rock shell M. Sioli, Blois 2008

  14. Muon and 1ry thresholds • In order to bias the deeply falling spectrum, production is divided in 5 energy bins and 6 angular windows Muons with E<Emmin have a probability < 10-5 to survive at hMIN M. Sioli, Blois 2008

  15. Muon and 1ry thresholds Minimum energy/nucleus (TeV) for each mass group, as the function of the angular window Energy/nucleus (TeV) for each mass group, for angular window W6 M. Sioli, Blois 2008

  16. Primary sampling • Primary energy spectrum has the form: • Possibility to choose among different spectra (now MACRO-fit is implemented) • Sampling done re-adapting some HEMAS routines g~2.7÷3 Ecut~3000 TeV Ecut E M. Sioli, Blois 2008

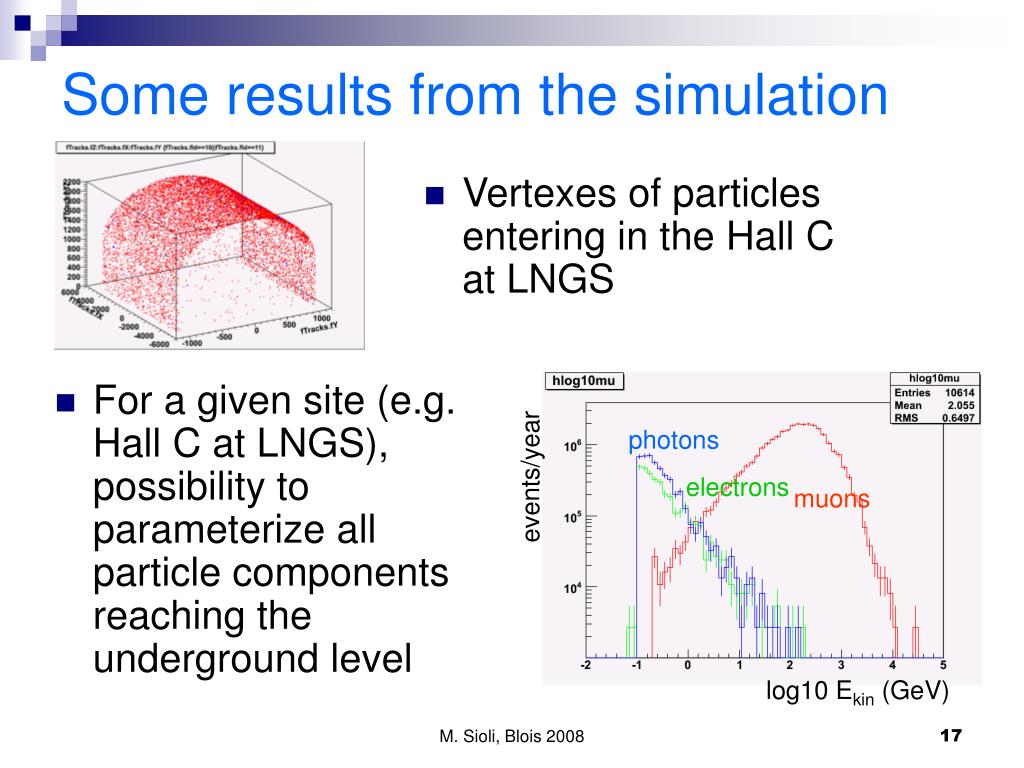

  17. Some results from the simulation • Vertexes of particles entering in the Hall C at LNGS • For a given site (e.g. Hall C at LNGS), possibility to parameterize all particle components reaching the underground level photons events/year electrons muons log10 Ekin (GeV) M. Sioli, Blois 2008

  18. FLUKA and HEMAS-DPM comparison • We cross-checked FLUKA with HEMAS-DPM code: • HEMAS was a shower code extensively used in the MACRO collaboration • At the beginning (~1990), HEMAS was the name of both the shower propagation code and of the embedded hadronic interaction model (based on UA1 parameterizations) this version was used to produce the so-called MACRO-fit 1ry composition model • Later, HEMAS native interaction model was superseeded with DPMJET-II.4 (HEMAS-DPM, Battistoni 1997) • Muon transport in rock treated with another dedicated package (PROPMU, Lipari-Stanev 1991) • HEMAS output (only muons) is on an infinite area at underground levelmuons have to be sampled on the surface of a box surrounding detector sensitive volumes DIRECT comparison M. Sioli, Blois 2008

  19. FLUKA and HEMAS-DPM comparison Normalized d to the same livetime HEMAS ( MACRO-fit + DPMJET-II.4 ) FLUKA ( MACRO-fit + DPMJET-II.53 ) M. Sioli, Blois 2008

  20. FLUKA and HEMAS-DPM comparison Normalized d to the same livetime HEMAS ( MACRO-fit + DPMJET-II.4 ) FLUKA ( MACRO-fit + DPMJET-II.53 ) M. Sioli, Blois 2008

  21. FLUKA and HEMAS-DPM comparison Normalized d to the same livetime HEMAS ( MACRO-fit + DPMJET-II.4 ) FLUKA ( MACRO-fit + DPMJET-II.53 ) M. Sioli, Blois 2008

  22. Conclusions • FLUKA can be used as a new high energy cosmic ray generator for underground and underwater physics • The package has been developed using LNGS and ANTARES sites as examples; however, it can be easily extended to other sites, provided the map of the rock overburden or the depth of underwater sites • First comparisons with other dedicated MC codes (HEMAS) • Next steps: • Introduce other 1ry cosmic ray composition models • Comparisons with experimental data, e.g.: • MACRO unfolded multiplicity distribution • MACRO unfolded decoherence distribution • Muon induced neutron flux at LNGS • Muon charge ratio with OPERA/MINOS spectrometers M. Sioli, Blois 2008

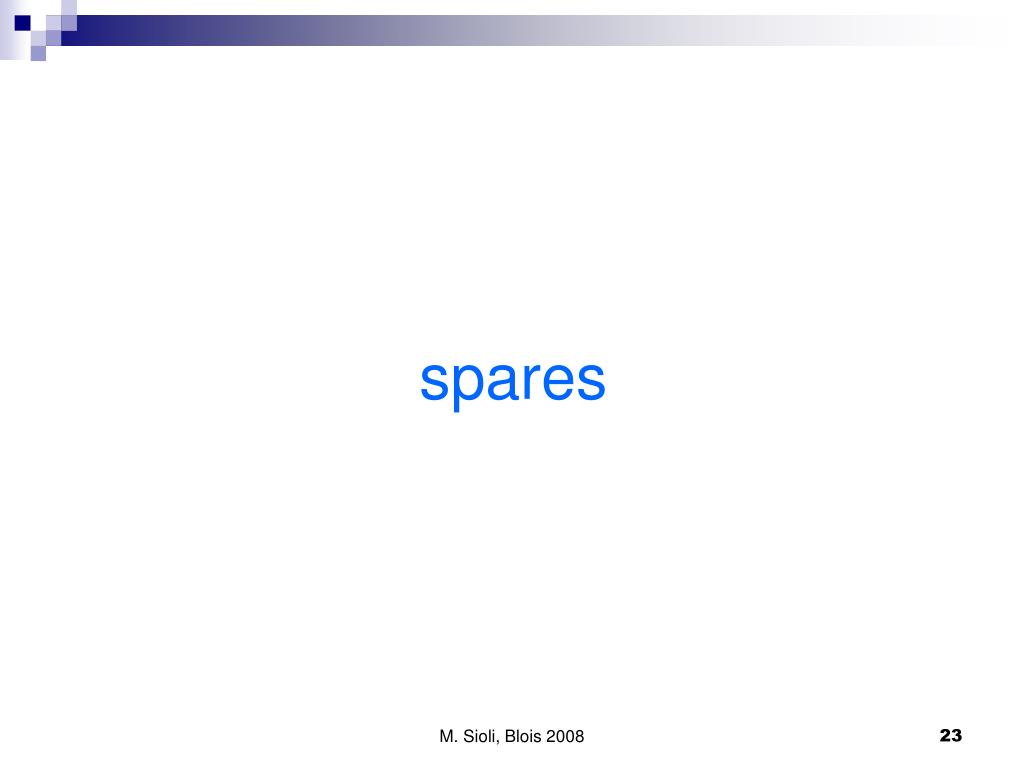

  23. spares M. Sioli, Blois 2008

  24. Rock map overburden @ LNGS • A map is an ascii file with three colums: zenith, azimuth and the corresponding rock depth (in m) • We have a topographical map from the Italian IGM (up to 94 deg): • Distances are related to the central part of Hall B (including some badly known bins in the map) • Rock density from core sample campaign (2001) • Starting from these data, it’s possible to reproduce the map in every other place (Hall A, Hall C etc.)  interpolation of scattered data M. Sioli, Blois 2008
