Savings with efficient windows in a heating season l.jpg
Savings with Efficient Windows in a Heating Season

EGEE 102

http://www.efficientwindows.org/energycosts.html


Cooling season l.jpg
Cooling Season

http://www.efficientwindows.org/energycosts.html

EGEE 102


Heat losses through doors and windows l.jpg
Heat losses through Doors and Windows

  • Most window manufacturers label their windows with a U-value (conductance of heat, Btu/h °F ft2)

  • U-values are the reciprocals of R-values (h °F ft2/Btu).

  • The lower the U-value, the less heat is lost through the window

EGEE 102


Factors in selecting windows l.jpg
Factors in Selecting Windows

  • Solar heat gain coefficient (SHGC),

  • Visible transmittance (VT), and

  • Air leakage (AL).

  • The type of window frame

  • The degradation of fabrics by ultra-violet radiation

EGEE 102


Factors affecting the r value of a window l.jpg
Factors affecting the R-value of a window

  • The type of glazing material (e.g., glass, plastic, treated glass)

  • The number of layers of glass

  • The size of the air space between the layers of glass

  • The thermal resistance or conductance of the frame and spacer materials

  • The "tightness" of the installation i.e., air leaks.

EGEE 102



Advances in window technologies l.jpg
Advances in Window Technologies

  • Low e-coatings

  • Spectrally Selective Coatings

  • Heat absorbing Glazing

  • Reflective Coatings

  • Gas fills

EGEE 102


Effect of glazing l.jpg
Effect of Glazing

  • Special thin coatings (metal oxide or semiconductor) that reduce heat transfer

  • Soft and hard Coatings

  • Cost 10-15% more

  • Reduce Energy loss by 30-50%

EGEE 102


Spectrally selective coatings l.jpg
Spectrally Selective Coatings

  • These coatings filter out 40-70% of the heat normally transmitted through clear glass while allowing full amount of light to be transmitted

  • Customizable

    • Increase or decrease solar gains according to aesthetic and climatic effects

    • Reduce 40% of the cooling requirements

EGEE 102


Gas filed windows l.jpg

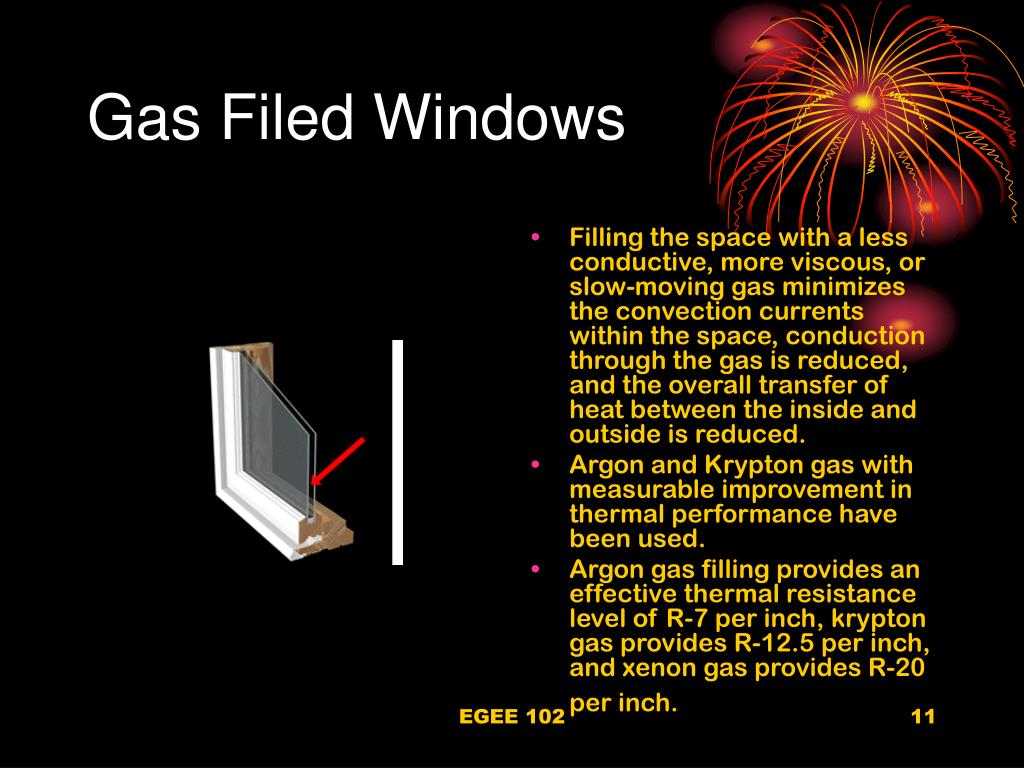

Gas Filed Windows

  • Filling the space with a less conductive, more viscous, or slow-moving gas minimizes the convection currents within the space, conduction through the gas is reduced, and the overall transfer of heat between the inside and outside is reduced.

  • Argon and Krypton gas with measurable improvement in thermal performance have been used.

  • Argon gas filling provides an effective thermal resistance level of R-7 per inch, krypton gas provides R-12.5 per inch, and xenon gas provides R-20 per inch.

EGEE 102


Insulation performance l.jpg
Insulation Performance

EGEE 102

Conventional

Advanced


Smart windows l.jpg
Smart Windows

EGEE 102


Normal window l.jpg
Normal Window

  • Relative to all other glazing options, single-glazed with clear glass allows the highest transfer of energy (i.e. heat loss or heat gain depending on local climate conditions) while permitting the highest daylight transmission

EGEE 102


Triple glazed with low solar gain low e glass spectrally selective l.jpg
Triple-Glazed with Low-Solar-Gain Low-E Glass(Spectrally Selective)

  • Three glazing layers and two Low-E coatings, 1/2" argon gas or 1/4" krypton gas fill between glazings, and low-conductance edge spacers. The middle glazing layer can be glass or plastic film. Some windows use four glazing layers (two glass layers and two suspended plastic films). With this window, both Low-E coatings are spectrally selective in order to minimize solar heat gain. This window is best suited for climates with both significant heating and cooling loads.

EGEE 102


Improvement in windows resistance to heat flow l.jpg

Actual

Net Energy

Gain

R-9.0

Superwindows

R-7.0

Superwindows

R-5.0

Superwindows

Net Energy

Loss

R-2.5

Low-E

Projected

R-1.7

Double pane

R-0.5

Single pane

1970 1980 1990 2000 2010

Year

Improvement in Windows’ Resistance to Heat Flow

EGEE 102


Resources l.jpg
Resources

  • http://www.efficientwindows.org/glazing_single.html

  • http://windows.lbl.gov/

  • http://www.eren.doe.gov/erec/factsheets/eewindows.html

EGEE 102
