Presentation Transcript


Slide1 l.jpg

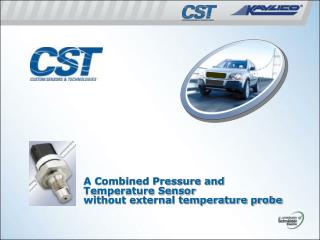

A Combined Pressure and Temperature Sensorwithout external temperature probe


Content l.jpg

Content

(1) Key P/T Sensor Specifications

(2) Patented Thin Film Technology

(3) Sensor Design for CO2 / R744 MACS

(4) Finite Element Modeling / Simulation

(5) Qualification Testing

(6) Other Thin Film Applications and Sensor products


1 key p t sensor specifications l.jpg

(1) Key P/T Sensor Specifications

  • Pressure:Measurement Range0 to 170 BarAccuracy< ± 1,0%(F.Sp.)Response time~4 ms(t63)

  • Temperature:Media -40°C to +180°CAccuracy ~ ± 3 KResponse time< 10 sec(t63)Ambient Temperatureup to 135°C

  • Electrical Interface:3-pin LIN2.0,3-pin PWM,4-pin P/T analog


2 patented thin film technology l.jpg

(2) Patented Thin Film Technology

  • Thin Film Element on SST

  • Sputtered Metal Strain Gauge

  • TiON Strain Gauge with high K-Factor/ Gauge Factor: K: TiON ~ 5 (CrNi ~ 1,1..2)K-Factor: dR/R= K * dl/l

  • High Temperature Resistance (330°C)

  • Pressure Range: 10 to 3.000 Bar

6 mm


3 sensor design for co 2 r744 macs l.jpg

(3) Sensor Design for CO2 / R744 MACS

  • Digital output: LIN2.0 or PWM(Temperature output embedded in signal)

  • Integrated Temp. feature: Less part complexity, higher reliability, less flow restriction and reduced leakage risk.

  • Long term stability, Rugged Design.

  • Smallest possible thread interface: M10x1mm


Exploded view cross sectional l.jpg

Connector

Flexwire

Component board

with µC

Housing

Flexwire

DV Chip

Combined Sensor Assembly (p,T)

p,T

Exploded View / Cross Sectional


Kavlico dv chip l.jpg

Kavlico DV Chip

Dual Frequency-Output ASIC for Thin-Film and PRT Resistive type sensors:

  • Ratiometric multiplexed frequency (digital) output for Sensor (Pressure-) and Temperature-data.

  • Coarse gain and offset calibration via serial-interface, allowing wide range of sensors.

  • Fine calibration by µP ; calibration coefficients to be stored in memory of µP.

  • Extreme temperature range ( -50ºC to +200ºC ).

  • Low-Power (sleep mode and 3mA operational current)

  • Self-diagnostics and failure analysis.


Dv chip placement on thin film flexure l.jpg

Bumps on DV Chip

Electrical Contact

Underfill Adhesive

Bridge pads

DV Chip placement on Thin Film Flexure

  • Accurate Temperature measurement independent from ambient temperature.

  • Digital, non-susceptible output (temperature output embeded in signal).


Schematic l.jpg

Schematic

Conditioning(PC Board)

Sensing(Sensor assy)

p

T

Micro Controller

Flexwire

Inter-connection

DV chip

Thin Film

Strain

Gauge

LIN2.0

Transceiver

Out


4 finite element modeling of p t sensor l.jpg

(4) Finite Element Modeling of P/T Sensor


Effect of chip on diaphragm stress and deflection l.jpg

The influence of DV chip on the stress distribution and deflection of diaphragm is small

r

R

Condition: 180ºC temperature, 150 bar pressure

Effect of Chip on Diaphragm Stress and Deflection


Thermal analysis impact to electrical components pcb l.jpg

  • Ambient Conditions:

  • 25ºCstill air

  • 150ºCstill air150ºC air flow / 4.4 m/s

  • 135ºC still air

Thermal AnalysisImpact to electrical Components (PCB)

CO2 @ 200 kg/h and 180ºC or 165ºC


Temperature distributions after 5 min 25 c ambient temperature l.jpg

Temperature Distributions after 5 Min. (25ºC Ambient Temperature)

25°C, Voo = 0m/s

Printed Circuit Board

112~140ºC

Initial Fluid Temperature: 25ºC; Transient to 180ºC


B temperature distributions after 5 min 150 c ambient temperature l.jpg

b) Temperature Distributions after 5 Min. (150ºC Ambient Temperature)

150°C, Voo = 4.4m/s

150°C, Voo = 0m/s

166~172ºC

167~173ºC

Printed Circuit Board

Initial Fluid Temperature: 25ºC; Transient to 180ºC


Replace pcb l.jpg

Replace PCB

ULTEM 2310 PolyetherimidePlastic Connector

Circuit Board

Stainless Steel 304L

Mount the circuit board to components with low thermal conductivity (plastics) away from the metal housing.


C design at 135 c ambient temperature l.jpg

c) Design at 135ºC Ambient Temperature

CO2 Temperature

Printed Circuit Board Temperature

141-144ºC

5 min of 180ºC

5 min of 165ºC

139-141ºC

Initial Fluid Temperature: 135ºC; Transient to 180ºCand165ºC


Conclusions l.jpg

Conclusions

  • DV chip has negligible influence on the performance of sensor diaphragm / pressure sensor functionality.

  • By connecting the circuit board to plastics and away from the metal housing, the circuit board temperature can be reduced to around

    ~ 140ºC under 135ºC ambient Temperature


5 qualification testing l.jpg

(5) Qualification Testing

  • Leackage test Requirement <1,0 gram per year The test is carried out at an external test lab, specialized on these kind of tests.

  • Design validation test on sensor levelStart after sample build in July 2008Duration appr. 6 month.


Slide19 l.jpg

(6) Other Thin Film Application and Sensor Products:

  • Direct Fuel Injection / Common Rail

  • In-Cylinder Pressure

  • Transmission / Break Pressure

  • Compressed Natural Gas (CNG)

  • Traction Control

  • (Mobile) Hydraulic Pressure / Controls

  • HVAC / Hydraulic Machinery


Slide20 l.jpg

Contact:Mr. Markus ButenopDirector of SalesKAVLICO GmbH Potsdamer Str. 1432423 Minden GermanyPhone:+49 (0)571 3859 – 171Fax.:+49 (0)571 3859 – 119Email:mbutenop@kavlico.deWeb:www.kavlico.de / www.cst-sensors.com
