  1. BRIDGE CONTROL SYSTEMS Asst.Prof. Dr. Ender Asyalı

  2. Bridge Control Systems. --Communication systems: GMDSS equipments, VHF, intercom. --Position fixing systems: Radar, GPS, Direction Finder, Loran-c, polerus --Collision avoidance systems: Radar, ARPA --Speed measurement : Speed log --Distance measurement: Radar --Bearing measurement: Radar,gyro repeaters --Steering systems: Gyro compass, Auto Pilot, Rudder angle indicator. --Engine controls: Engine telegram, --Alarm systems: fire,collision,dead man --Recording systems: VDR, Course recorder, depth recorder --Indicators: depth, speed, course, wind

  3. SOLAS Regulation 12 Shipborne navigational equipment

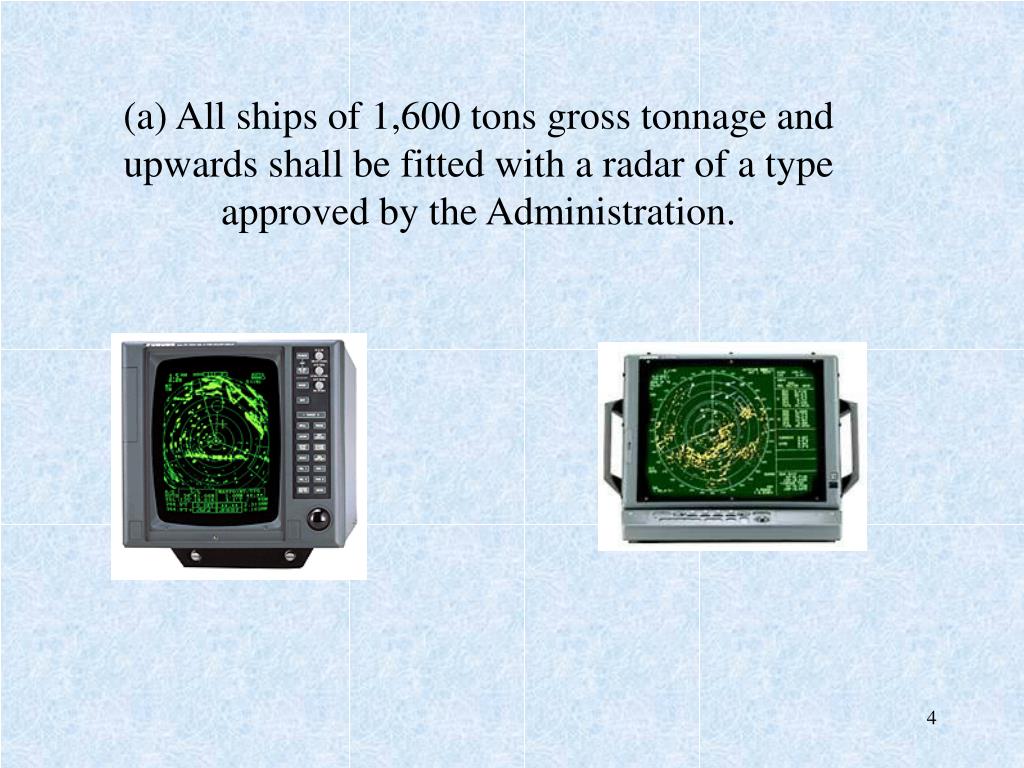

  4. (a) All ships of 1,600 tons gross tonnage and upwards shall be fitted with a radar of a type approved by the Administration.

  5. Radio Direction-Finder (b) All ships of 1,600 tons gross tonnage and upwards, when engaged on international voyages, shall be fitted with radio direction-finding apparatus. The Administration may, in areas where it considers it unreasonable or unnecessary for such apparatus to be carried, exempt any ship of less than 5,000 tons gross tonnage from this requirement,

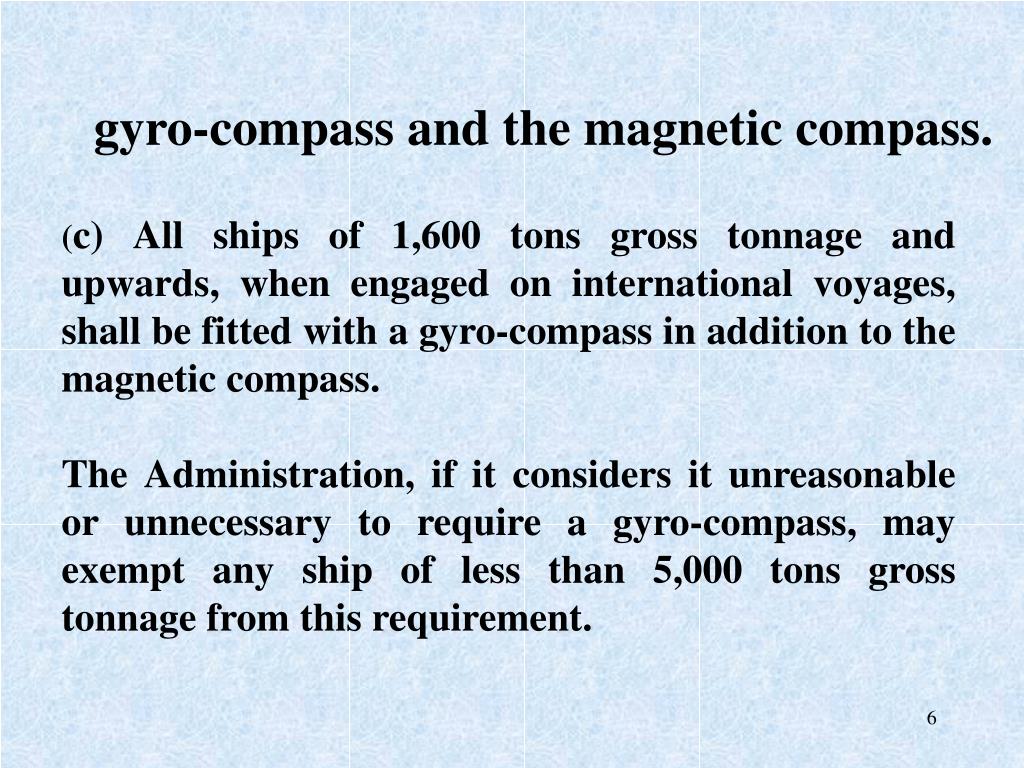

  6. gyro-compass and the magnetic compass. (c) All ships of 1,600 tons gross tonnage and upwards, when engaged on international voyages, shall be fitted with a gyro-compass in addition to the magnetic compass. The Administration, if it considers it unreasonable or unnecessary to require a gyro-compass, may exempt any ship of less than 5,000 tons gross tonnage from this requirement.

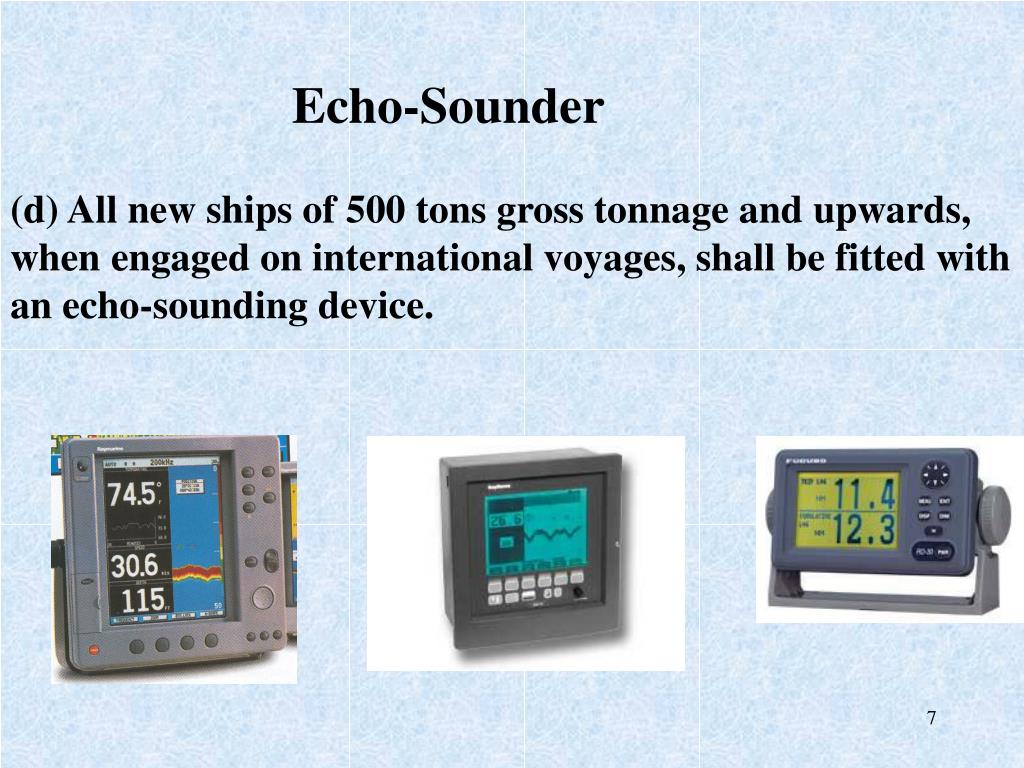

  7. Echo-Sounder (d) All new ships of 500 tons gross tonnage and upwards, when engaged on international voyages, shall be fitted with an echo-sounding device.

  8. GYRO COMPASS

  9. Speed log

  10. Weatherfax

  11. FIXED MOUNT VHF RADIOS

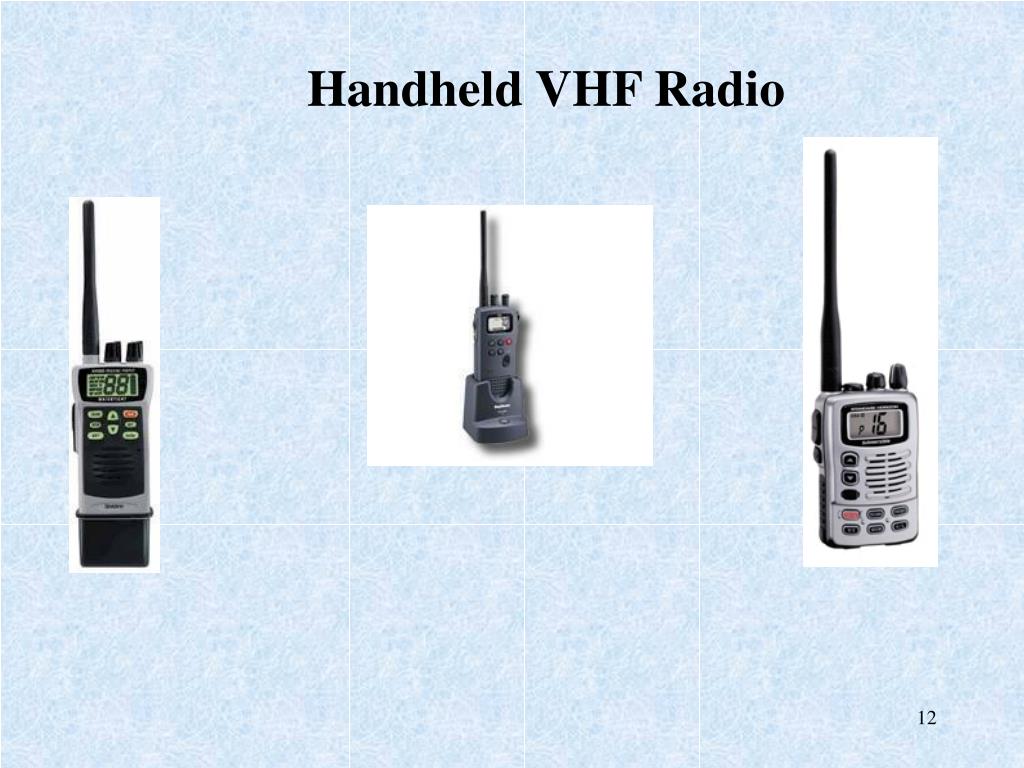

  12. Handheld VHF Radio

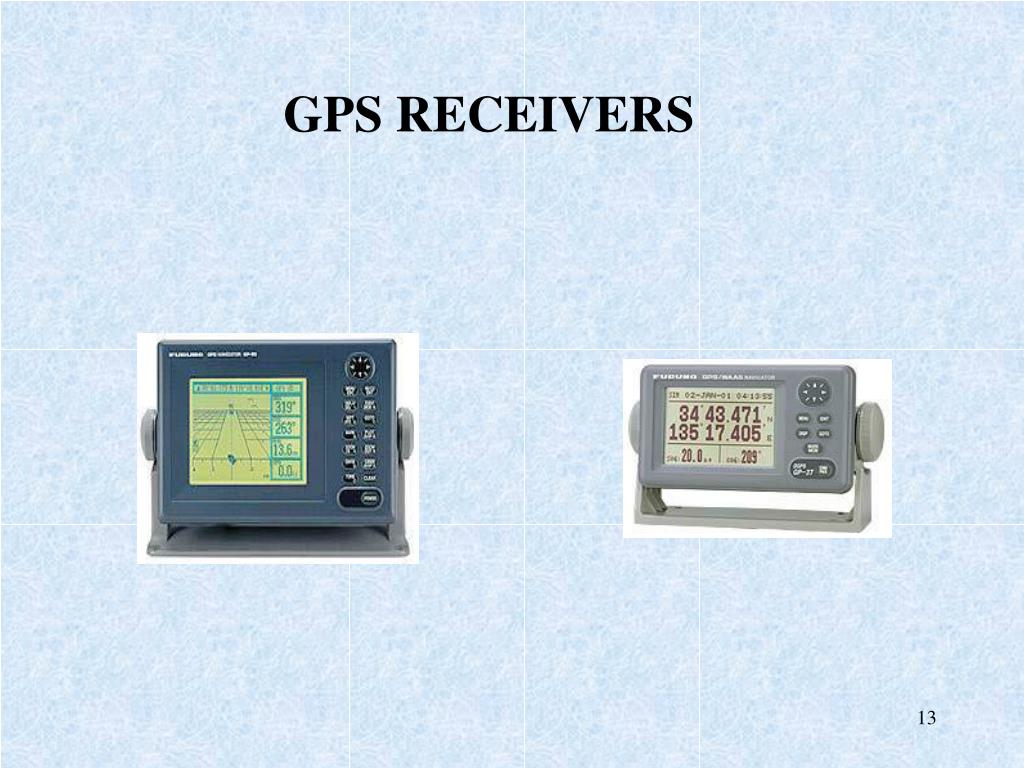

  13. GPS RECEIVERS

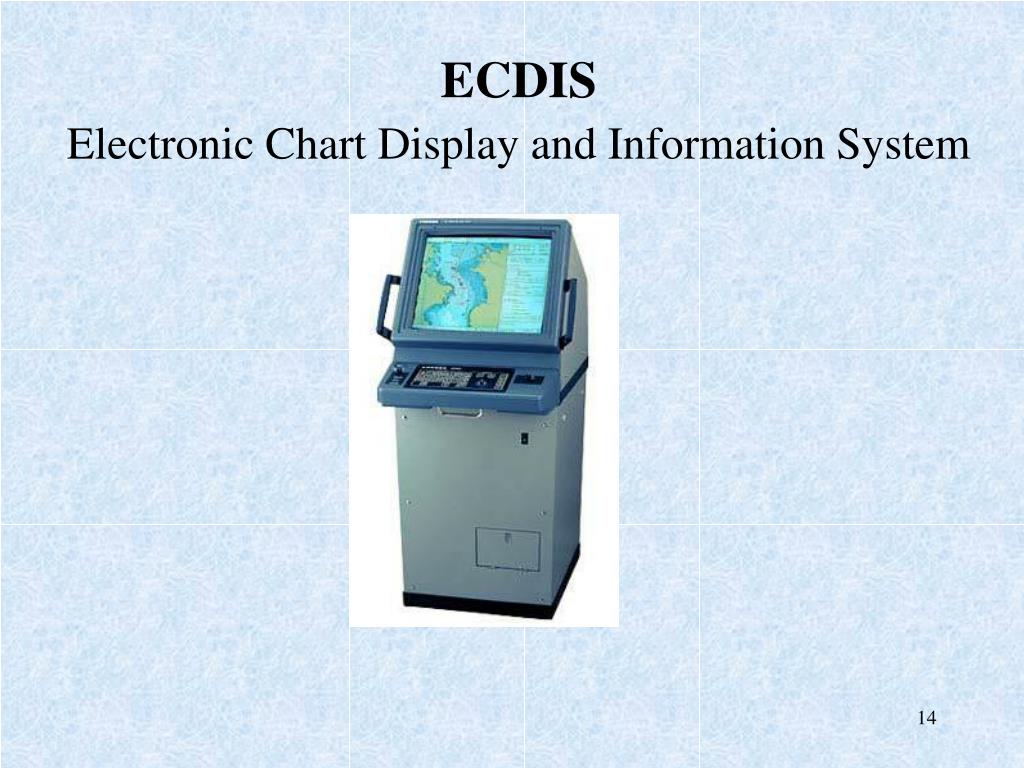

  14. ECDIS Electronic Chart Display and Information System

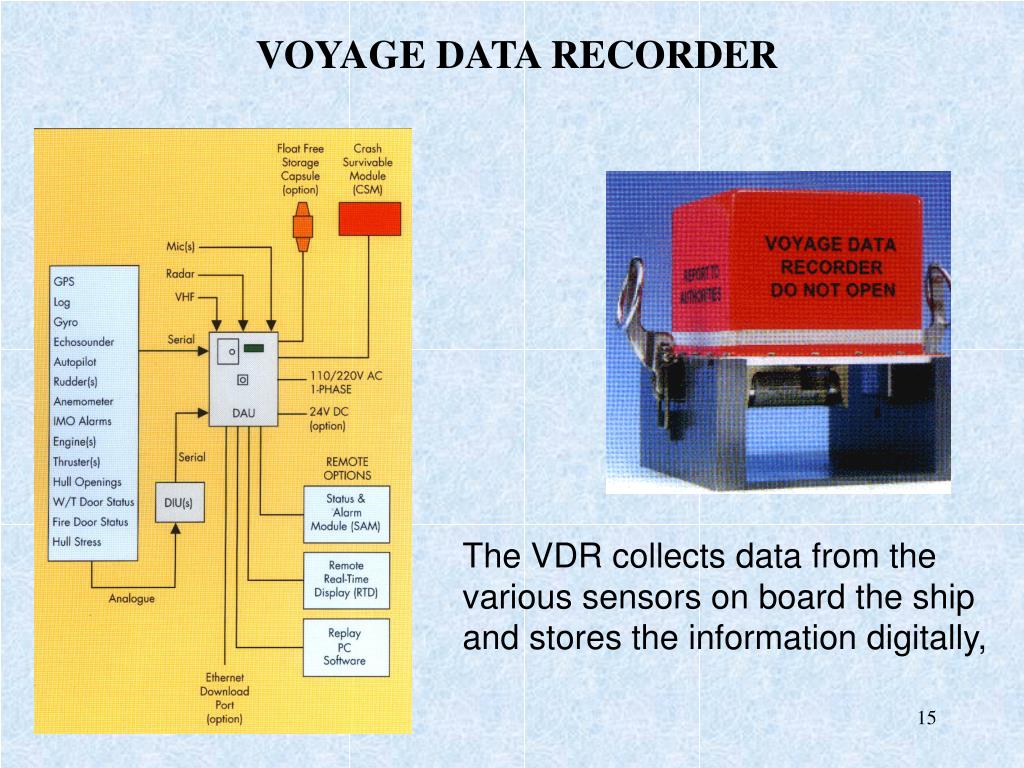

  15. VOYAGE DATA RECORDER The VDR collects data from the various sensors on board the ship and stores the information digitally,

  16. The Automatic Identification System

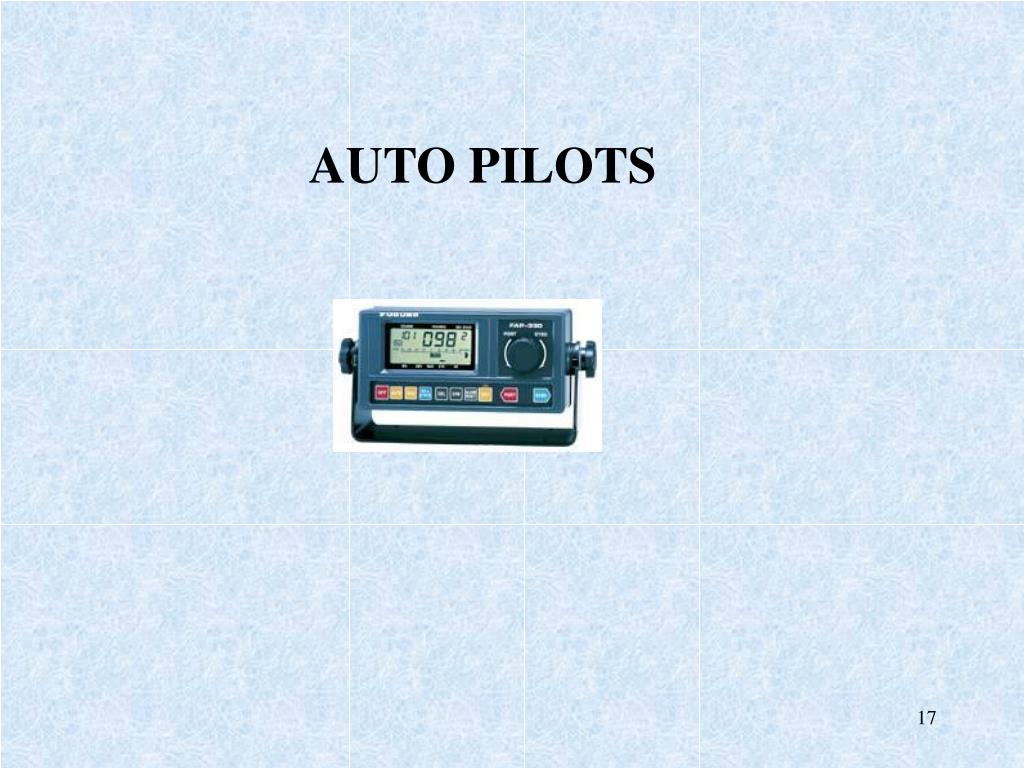

  17. AUTO PILOTS

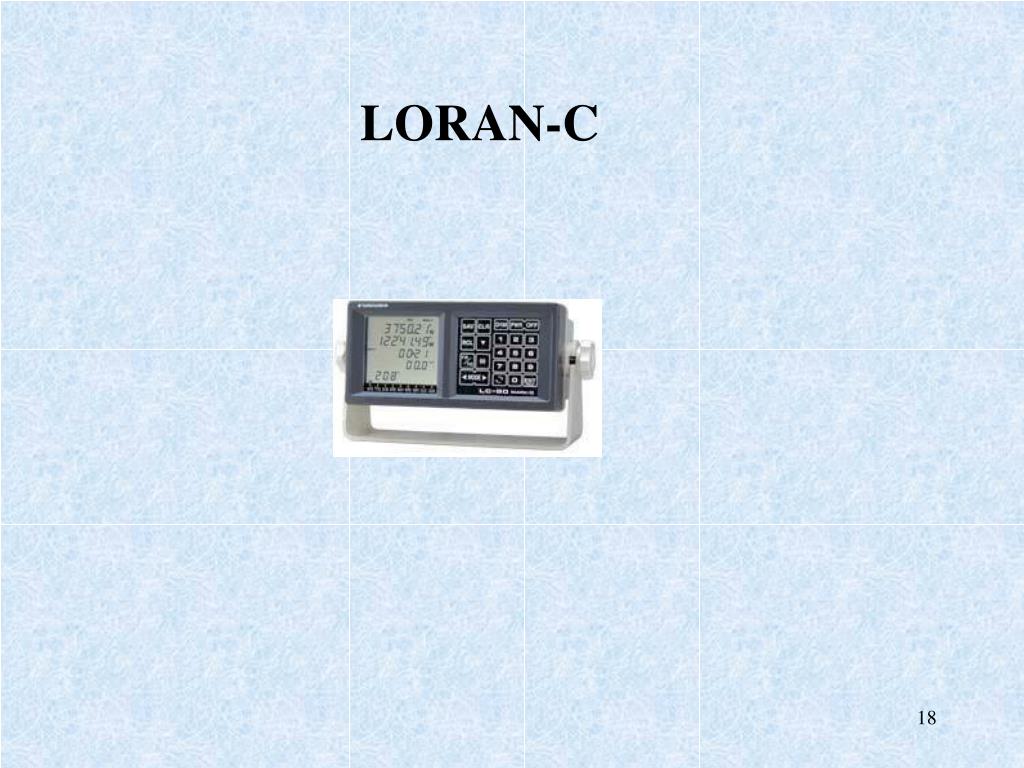

  18. LORAN-C
