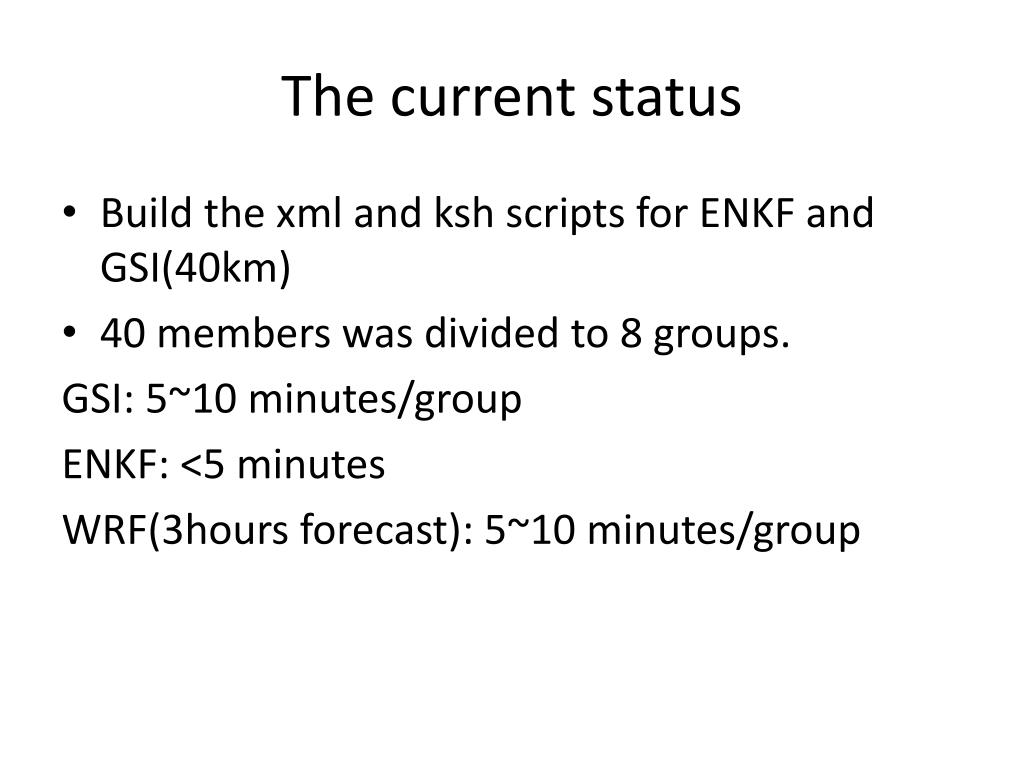

The current status
The current status

  • Build the xml and ksh scripts for ENKF and GSI(40km)

  • 40 members was divided to 8 groups.

    GSI: 5~10 minutes/group

    ENKF: <5 minutes

    WRF(3hours forecast): 5~10 minutes/group


What i have tested gsi analysis only

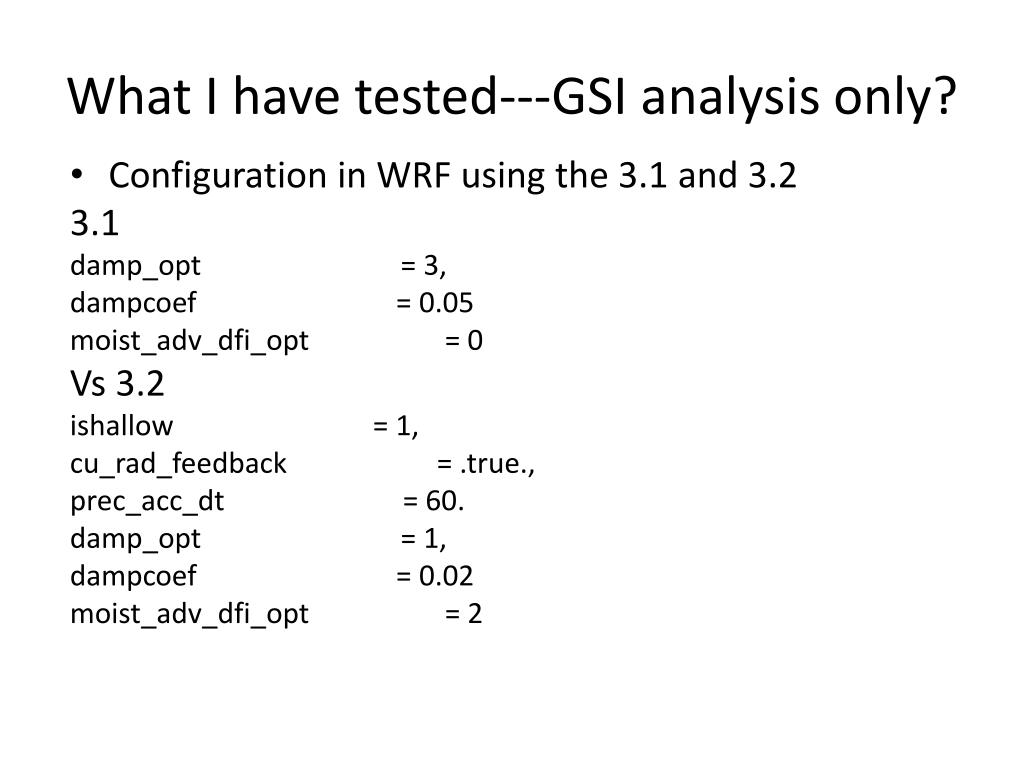

What I have tested---GSI analysis only?

  • Configuration in WRF using the 3.1 and 3.2

    3.1

    damp_opt = 3,

    dampcoef = 0.05

    moist_adv_dfi_opt = 0

    Vs 3.2

    ishallow = 1,

    cu_rad_feedback = .true.,

    prec_acc_dt = 60.

    damp_opt = 1,

    dampcoef = 0.02

    moist_adv_dfi_opt = 2


What i have tested enkf analysis using the wrf3 2 confiuration

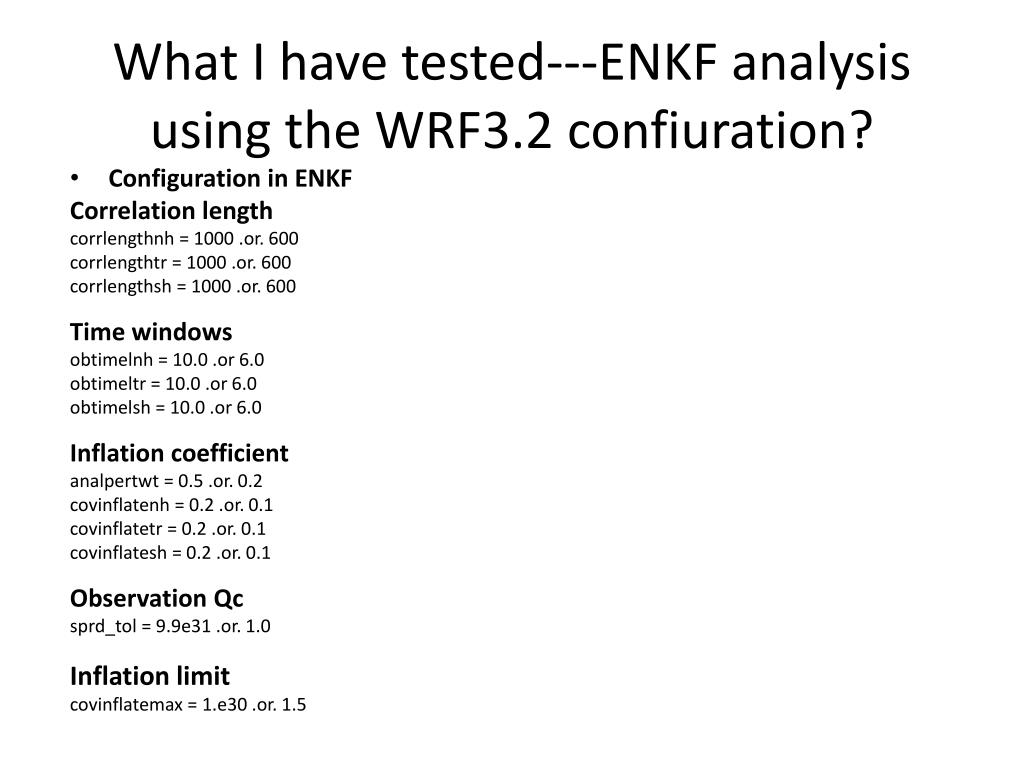

What I have tested---ENKF analysis using the WRF3.2 confiuration?

  • Configuration in ENKF

    Correlation length

    corrlengthnh = 1000 .or. 600

    corrlengthtr = 1000 .or. 600

    corrlengthsh = 1000 .or. 600

    Time windows

    obtimelnh = 10.0 .or 6.0

    obtimeltr = 10.0 .or 6.0

    obtimelsh = 10.0 .or 6.0

    Inflation coefficient

    analpertwt = 0.5 .or. 0.2

    covinflatenh = 0.2 .or. 0.1

    covinflatetr = 0.2 .or. 0.1

    covinflatesh = 0.2 .or. 0.1

    Observation Qc

    sprd_tol = 9.9e31 .or. 1.0

    Inflation limit

    covinflatemax = 1.e30 .or. 1.5


Observation check

Surface pressure, obtype=180, SFCSHP

Surface pressure, obtype=120, ADPUPA

Surface pressure, obtype=183, ADPSFC,SFCSHP

Surface pressure, obtype=181, ADPSFC

Surface pressure, obtype=187, ADPSFC

Obtype=153, GPSIPW


Qvapor, obtype=133 AIRCAR

Qvapor, obtype=134, AIRCFT

Qvapor, obtype=120, ADPUPA

Qvapor, obtype=180, SFCSHP

Qvapor, obtype=181, ADPSFC

Qvapor, obtype=183, ADPSFC,SFCSHP

Qvapor, obtype=187, ADPSFC


temperature, obtype=120, RASSDA

temperature, obtype=120, ADPUPA

temperature, obtype=131 AIRCFT

temperature, obtype=130 AIRCFT

temperature, obtype=133 AIRCAR

temperature, obtype=135 AIRCFT

temperature, obtype=134, AIRCFT

temperature, obtype=180, SFCSHP


temperature, obtype=187, ADPSFC

temperature, obtype=181, ADPSFC

temperature, obtype=183, ADPSFC,SFCSHP

U, obtype=220, ADPUPA

U, obtype=223, PROFLR

U, obtype=224, VADWND


U, obtype=230, AIRCFT

U, obtype=231, AIRCFT

U, obtype=233, AIRCAR

U, obtype=234, AIRCFT

U, obtype=235, AIRCFT

U, obtype=243, SATWND

U, obtype=245, SATWND

U, obtype=246, SATWND


U, obtype=247, SATWND

U, obtype=251, SATWND

U, obtype=253, SATWND

U, obtype=254, SATWND

U, obtype=280, SFCSHP

U, obtype=281, ADPSFC

U, obtype=282, SFCSHP

U, obtype=284, ADPSFC,SFCSHP

U, obtype=287, ADPSFC


Add constraint in the get convobs data
Add constraint in the ‘get_convobs_data’

  • Temperature: If abs(Hx-O) > 5.0 Set x_qc(nob) = -999

  • U and V: If abs(Hx-O) > 20.0 Set x_qc(nob) = -999

  • Surface pressure: If abs(Hx-O) > 5.0 Set x_qc(nob) = -999

  • Qvapor: If abs(Hx-O) > 2.0 Set x_qc(nob) = -999


  • Max and min ensemble mean analysis increment (ug,vg,tempg,qg,psg): at 00UTC

    -4.556772 4.641273

    -5.453091 5.320977

    -3.193622 2.471778

    -2.7511111E-03 1.9388166E-03

    -2.564441 2.609161

  • Max and min ensemble mean analysis increment (ug,vg,tempg,qg,psg): at 06UTC

  • -14.55259 13.19032

  • -11.47718 11.15390

  • -5.021232 6.807072

  • -2.8613484E-03 4.4340347E-03

  • -4.340828 3.731035

  • Max and min ensemble mean analysis increment (ug,vg,tempg,qg,psg): at 09UTC

  • -26.25758 20.79196

  • -19.61047 14.91415

  • -8.054179 11.22992

  • -3.4274021E-03 3.6110494E-03

  • -3.366595 4.557354

  • Max and min ensemble mean analysis increment (ug,vg,tempg,qg,psg): at 12UTC

  • -27.53129 25.76617

  • -26.61810 21.47729

  • -9.255808 15.93376

  • -3.0404832E-03 4.1383011E-03

  • -4.060146 9.327016

  • Max and min ensemble mean analysis increment (ug,vg,tempg,qg,psg): at 15UTC

  • -35.08931 23.87338

  • -31.59468 19.87436

  • -11.49796 12.52381

  • -3.2191891E-03 3.6776178E-03

  • -4.257873 10.33907

  • Max and min ensemble mean analysis increment (ug,vg,tempg,qg,psg): at 18UTC

  • -42.62371 34.48653

  • -31.65698 29.22342

  • -14.25782 13.88359

  • -2.9138320E-03 4.0013785E-03

  • -10.70951 36.57909


Inflation
inflation

taper(r)


Inflation check
Inflation check

  • With inflation: at 00UTC,May 9

    no covinflate.dat file available for previous analysis

    min/max inflation = 1.001976 358.3088

    min/max ps inflation = 1.100000 302.6647

    nanal,psg , max/min increment: 40 91.83405 -43.33380

    nanal,ug , max/min increment: 40 155.1773 -116.7216

    nanal,vg , max/min increment: 40 100.2846 -121.5881

    nanal,qg , max/min increment: 40 7.3264516E-03 -7.2183665E-03

    nanal,tempg, max/min increment: 40 53.34357 -62.76953

  • Turned off the inflation: at 00UTC,May 9

    no covinflate.dat file available for previous analysis

    min/max inflation = 1.000000 1.000000

    min/max ps inflation = 1.000000 1.000000

    nanal,psg , max/min increment: 40 60.55426 -17.94000

    nanal,ug , max/min increment: 40 76.97275 -82.57754

    nanal,vg , max/min increment: 40 89.04576 -62.84710

    nanal,qg , max/min increment: 40 9.3078632E-03 -7.4219871E-03

    nanal,tempg, max/min increment: 40 55.46576 -57.95239







P Spread prior (upper) , post (lower)






RRstraitform weight function

ARPSconvective weight function


Thompson, G., R. M. Rasmussen, et al. (2004). "Explicit forecasts of winter precipitation using an improved bulk microphysics scheme. Part I: Description and sensitivity analysis." Monthly Weather Review132(2): 519-542.


10h forecast forecasts of winter precipitation using an improved bulk microphysics scheme. Part I: Description and sensitivity analysis."
